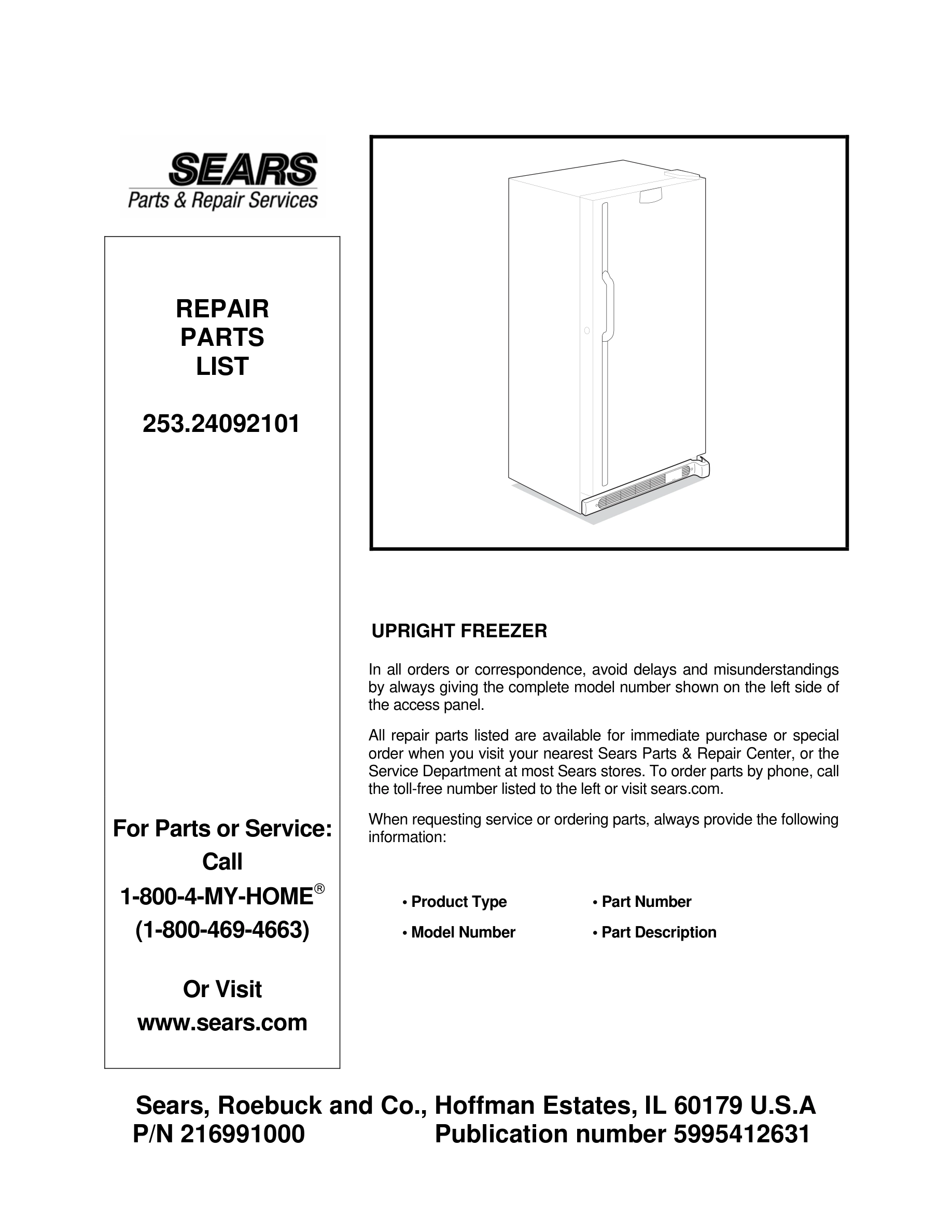

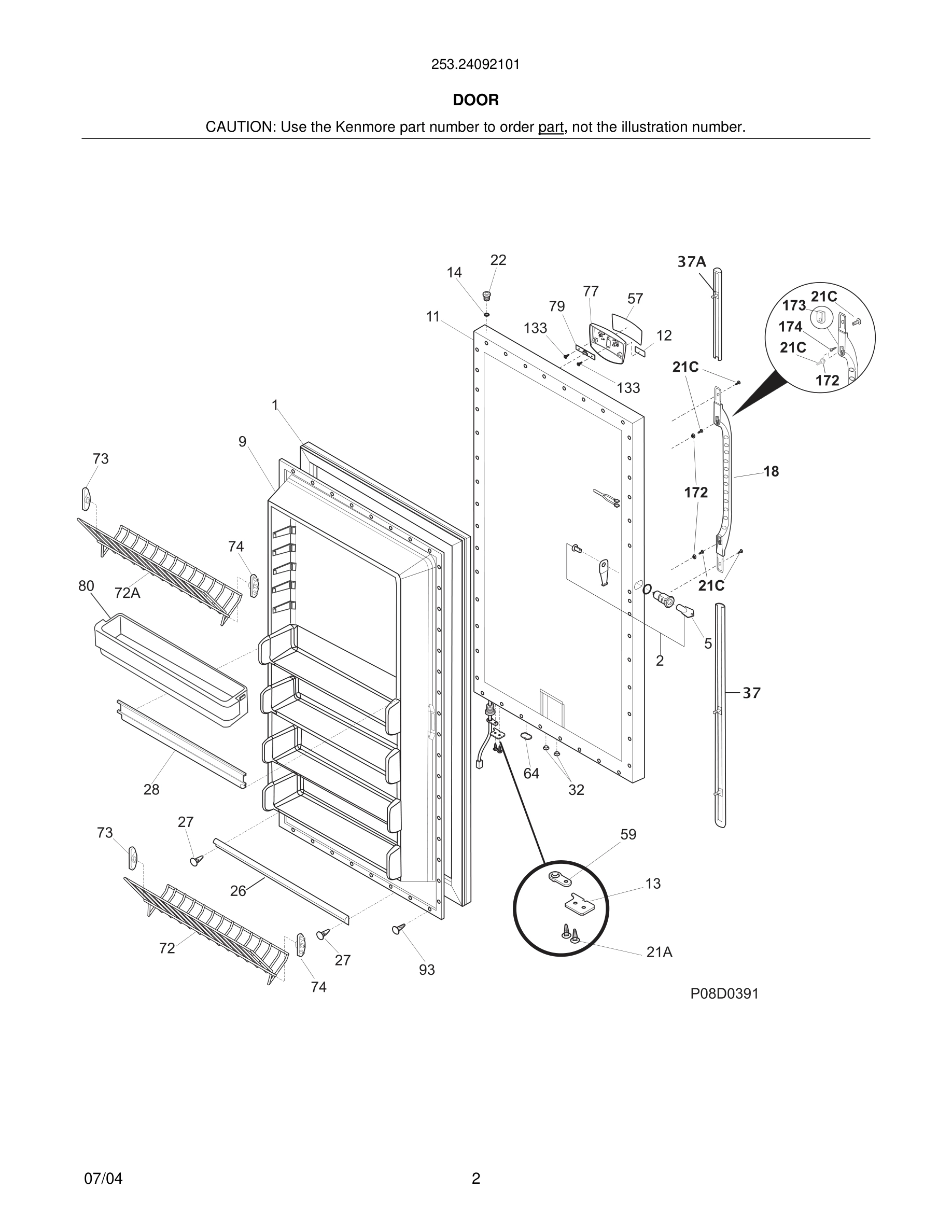

Model Kenmore 253.24092101 FREEZER – Common Parts & Diagrams

*
Wire, battery
Wire, battery WCI 216955400 Contact Us For Availability
View on Model
*
Insulation, drain tube
Insulation, drain tube WCI 09948773 Contact Us For Availability
View on Model
*
Sleeve, suction line
Sleeve, suction line WCI 216502500 Contact Us For Availability
View on Model
*
Clip-cable
Clip-cable WCI 5303311565 Contact Us For Availability
View on Model
*
Spacer-tube, 0.237" ID
Spacer-tube, 0.237" ID WCI 5303298960 Contact Us For Availability
View on Model
5#
Harness-main
Harness-main WCI 216950100 Contact Us For Availability
View on Model
13
Door Stop
Door Stop WCI 5303271076 Contact Us For Availability
View on Model
18
Insulator-evap, styrofoam
Insulator-evap, styrofoam WCI 216727600 Contact Us For Availability
View on Model
19
Insulator-evap, styrofoam
Insulator-evap, styrofoam WCI 216727700 Contact Us For Availability
View on Model
28
Rack-door, contour
Rack-door, contour WCI 216806100 Contact Us For Availability
View on Model
32
Valve, breather, door base
Valve, breather, door base WCI 5309950074 Contact Us For Availability
View on Model
32
Clamp, elec cont mtg, compressor
Clamp, elec cont mtg, compressor WCI 216649100 Contact Us For Availability
View on Model
34
Shield-light
Shield-light WCI 216816200 Contact Us For Availability
View on Model
34
Sleeve-compressor, (3)
Sleeve-compressor, (3) WCI 5306594529 Contact Us For Availability
View on Model
35
Screw, Ind hex sems, 1/4-28 unfx, compressor,
Screw, Ind hex sems, 1/4-28 unfx, compressor, WCI 5303272328 Contact Us For Availability
View on Model
37
Trim-handle, 29.64", white, lower, w/mtg lock
Trim-handle, 29.64", white, lower, w/mtg lock WCI 218779318 Contact Us For Availability
View on Model
37A
Trim-handle, 12.08", white, upper, w/mtg lock
Trim-handle, 12.08", white, upper, w/mtg lock WCI 218779307 Contact Us For Availability
View on Model
38
Hinge-upper
Hinge-upper WCI 216939100 Contact Us For Availability
View on Model
59A
Stop-basket
Stop-basket WCI 216486500 Contact Us For Availability
View on Model
59B
Basket
Basket WCI 216880100 Contact Us For Availability
View on Model
64
Plug-button, hole filler, door base
Plug-button, hole filler, door base WCI 216403700 Contact Us For Availability
View on Model
72
Shelf, tilt out, wire
Shelf, tilt out, wire WCI 216514100 Contact Us For Availability
View on Model
102
Clip, battery back-up
Clip, battery back-up WCI 216946700 Contact Us For Availability
View on Model
103
Cover, battery back-up
Cover, battery back-up WCI 216952600 Contact Us For Availability
View on Model
132
Screw, 6-20AB x 3/8
Screw, 6-20AB x 3/8 WCI 5303283898 Contact Us For Availability
View on Model
144
Shelf-assy, fixed, glass, complete
Shelf-assy, fixed, glass, complete WCI 216922302 Contact Us For Availability
View on Model
172
Button-handle mtg, dovetail
Button-handle mtg, dovetail WCI 218397000 No Longer Available
View on Model
