  • Kenmore 253.23024101

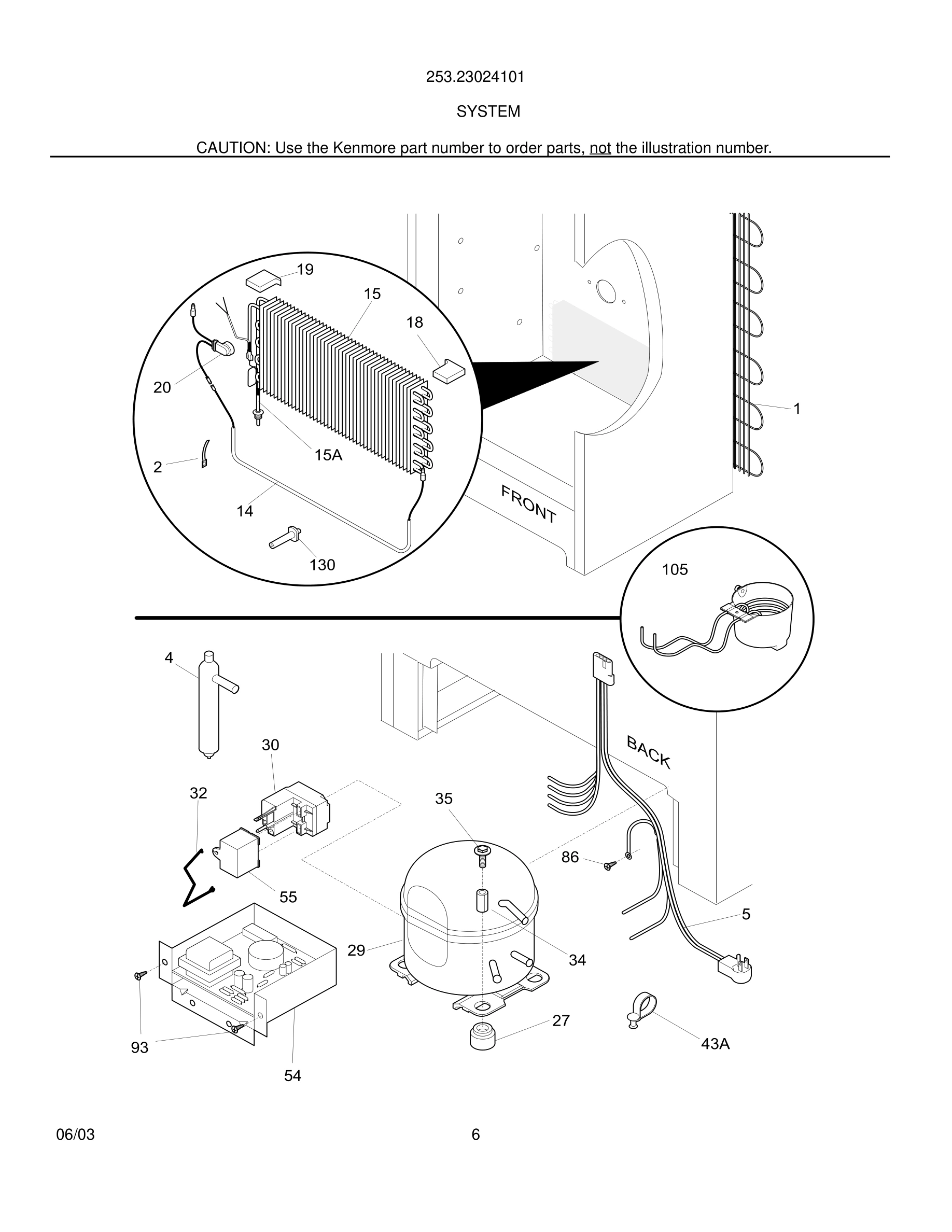

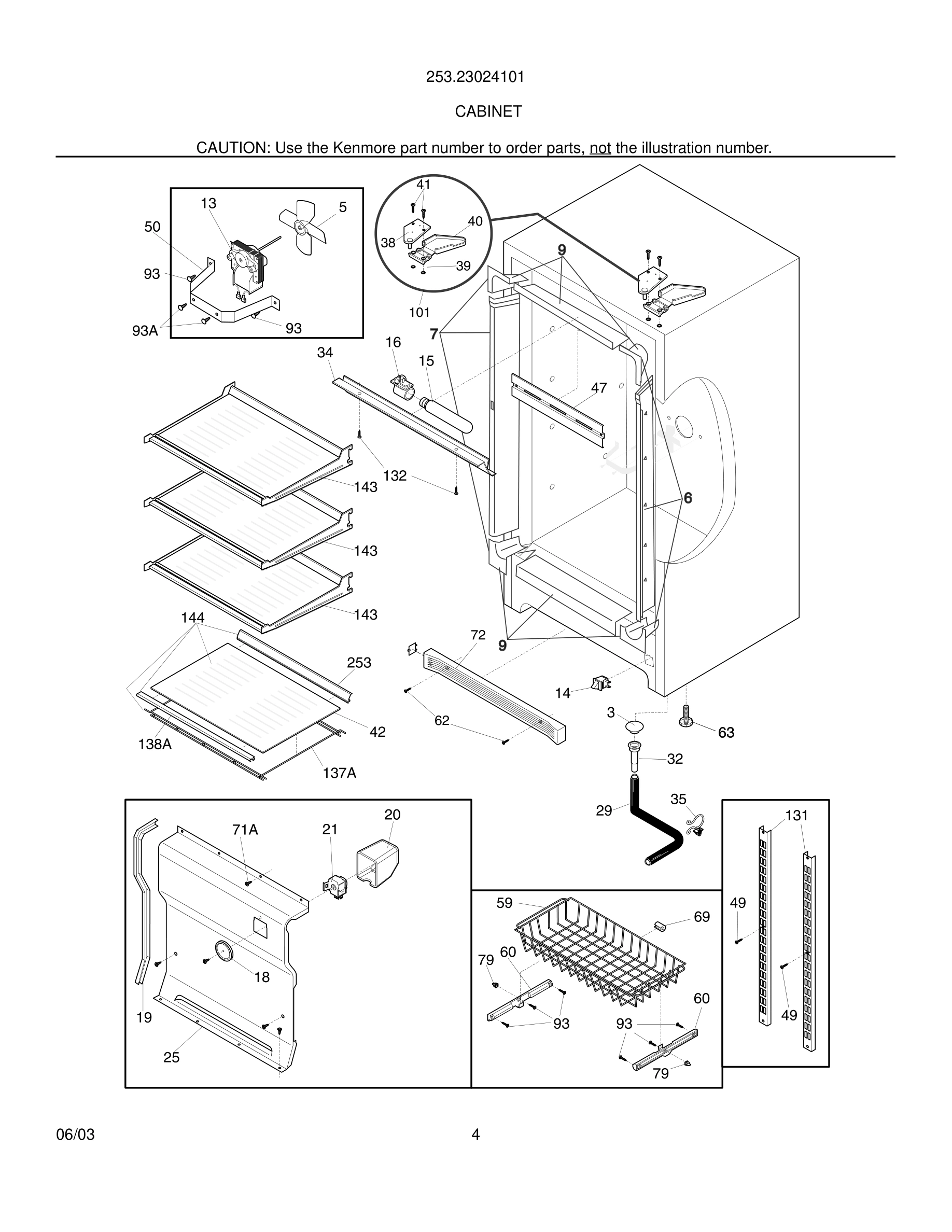

Model Kenmore 253.23024101 FREEZER – Common Parts & Diagrams

*
Insulation,drain tube
Insulation,drain tube WCI 09948773 Contact Us For Availability
View on Model
*
Sleeve,suction line
Sleeve,suction line WCI 216502500 Contact Us For Availability
View on Model
*
Spacer-tube,0.237" ID
Spacer-tube,0.237" ID WCI 5303298960 Contact Us For Availability
View on Model
*
Clip-cable
Clip-cable WCI 5303311565 Contact Us For Availability
View on Model
5#
Harness-main
Harness-main WCI 216899100 Contact Us For Availability
View on Model
13
Door Stop
Door Stop WCI 5303271076 Contact Us For Availability
View on Model
18
Insulator-evap,styrofoam
Insulator-evap,styrofoam WCI 216727600 Contact Us For Availability
View on Model
19
Gasket-cover evap
Gasket-cover evap WCI 216204901 Contact Us For Availability
View on Model
19
Insulator-evap,styrofoam
Insulator-evap,styrofoam WCI 216727700 Contact Us For Availability
View on Model
21#
Control-temperature
Control-temperature WCI 216844500 Contact Us For Availability
View on Model
28
Rack-door,contour ,(4)
Rack-door,contour ,(4) WCI 216806100 Contact Us For Availability
View on Model
32
Valve,breather ,door base
Valve,breather ,door base WCI 5309950074 Contact Us For Availability
View on Model
32
Clamp,elec cont mtg ,compressor
Clamp,elec cont mtg ,compressor WCI 216649100 Contact Us For Availability
View on Model
34
Shield-light
Shield-light WCI 216816200 Contact Us For Availability
View on Model
34
Sleeve-compressor
Sleeve-compressor WCI 5306594529 Contact Us For Availability
View on Model
35
Screw,Ind hex sems ,1/4-28 unfx ,compressor
Screw,Ind hex sems ,1/4-28 unfx ,compressor WCI 5303272328 Contact Us For Availability
View on Model
37
Trim-handle,29.64" ,white ,lower ,w/mtg lock
Trim-handle,29.64" ,white ,lower ,w/mtg lock WCI 218779318 Contact Us For Availability
View on Model
37A
Trim-handle,12.08" ,white ,upper ,w/mtg lock
Trim-handle,12.08" ,white ,upper ,w/mtg lock WCI 218779307 Contact Us For Availability
View on Model
38
Hinge,plate ,top
Hinge,plate ,top WCI 216808900 Contact Us For Availability
View on Model
54#
Electronics,high voltage ,w/o battery
Electronics,high voltage ,w/o battery WCI 216833800 Contact Us For Availability
View on Model
59
Basket,(2)
Basket,(2) WCI 216880100 Contact Us For Availability
View on Model
64
Plug-button,hole filler ,door base
Plug-button,hole filler ,door base WCI 216403700 Contact Us For Availability
View on Model
72
Shelf,tilt out ,wire ,(2)
Shelf,tilt out ,wire ,(2) WCI 216514100 Contact Us For Availability
View on Model
77
Bezel,door alarm
Bezel,door alarm WCI 216878700 Contact Us For Availability
View on Model
79#
Control Board,electronic
Control Board,electronic WCI 216885100 Contact Us For Availability
View on Model
101
Top Hinge Kit
Top Hinge Kit WCI 216835200 Contact Us For Availability
View on Model
131
Channel-shelf mtg,back
Channel-shelf mtg,back WCI 216484900 Contact Us For Availability
View on Model
132
Screw,6-20AB x 3/8
Screw,6-20AB x 3/8 WCI 5303283898 Contact Us For Availability
View on Model
137A
Frame,fixed ,full width
Frame,fixed ,full width WCI 216781600 Contact Us For Availability
View on Model
138A
Trim-shelf,fixed/cantil ,24.21" ,glass ,front
Trim-shelf,fixed/cantil ,24.21" ,glass ,front WCI 216492200 Contact Us For Availability
View on Model
143
Shelf,cantilever ,(3) ,complete assy
Shelf,cantilever ,(3) ,complete assy WCI 216904400 Contact Us For Availability
View on Model
144
Shelf-assy,fixed,glass ,complete
Shelf-assy,fixed,glass ,complete WCI 216781500 Contact Us For Availability
View on Model
172
Button-handle mtg,dovetail
Button-handle mtg,dovetail WCI 218397000 No Longer Available
View on Model
253A
Trim-shelf,fixed/cantil ,24.21" ,rear
Trim-shelf,fixed/cantil ,24.21" ,rear WCI 216492300 Contact Us For Availability
View on Model
