Model Whirlpool 2496X0 ELECTRIC RANGE – Common Parts & Diagrams
05 - DOOR LOCK
07 - ELECTRIC GRILL , ELECTRIC COIL

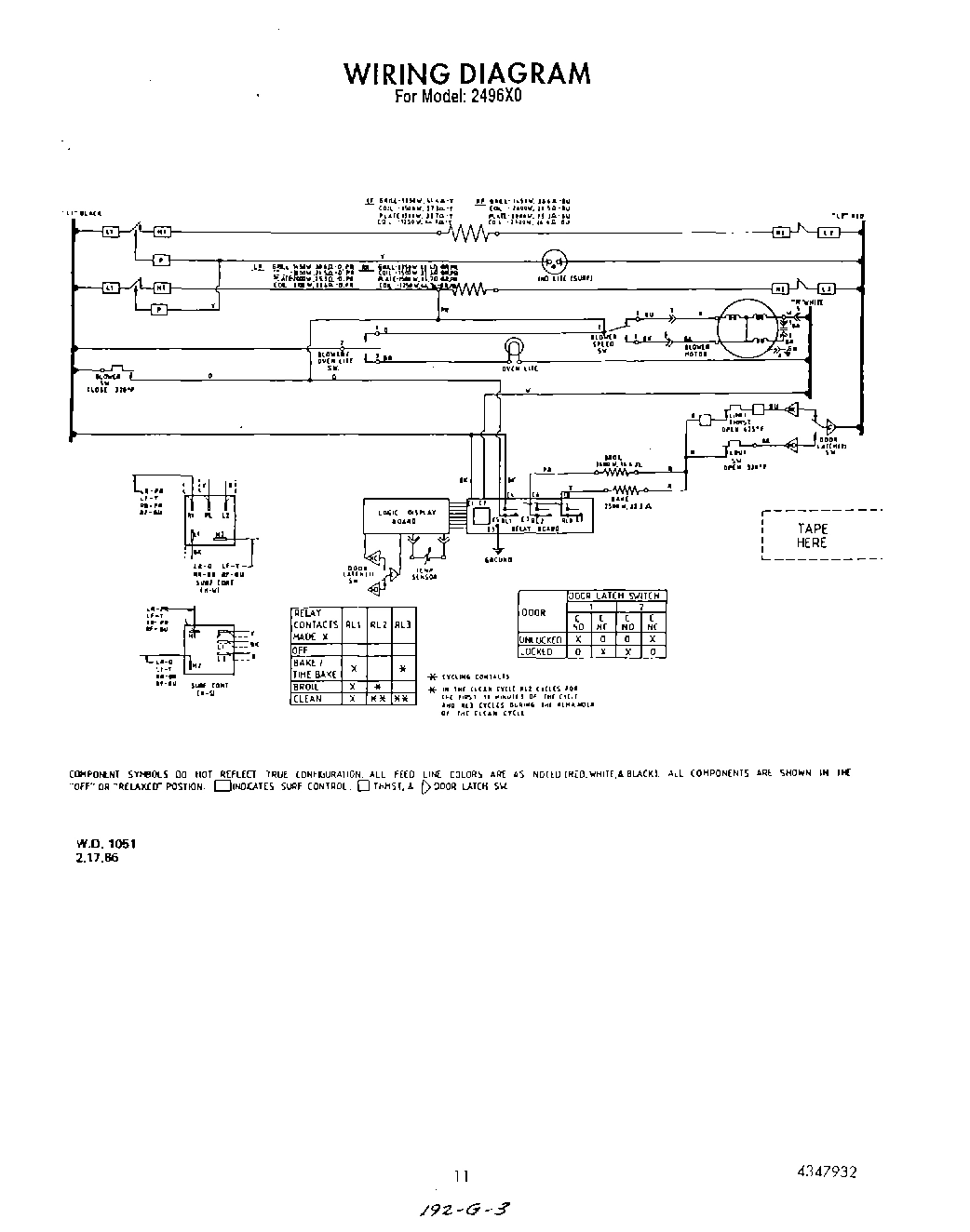

09 - WIRING DIAGRAM

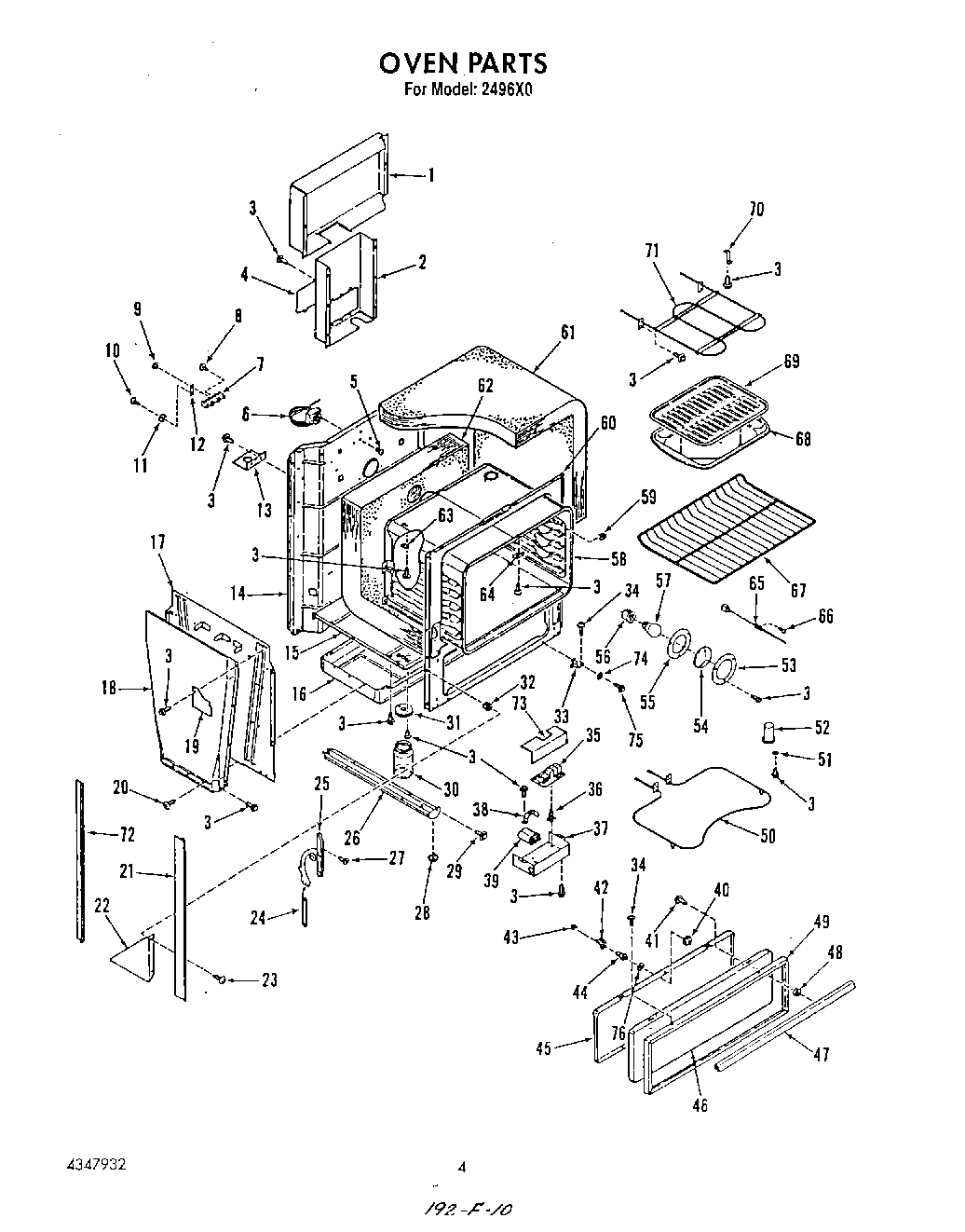

03 - OVEN

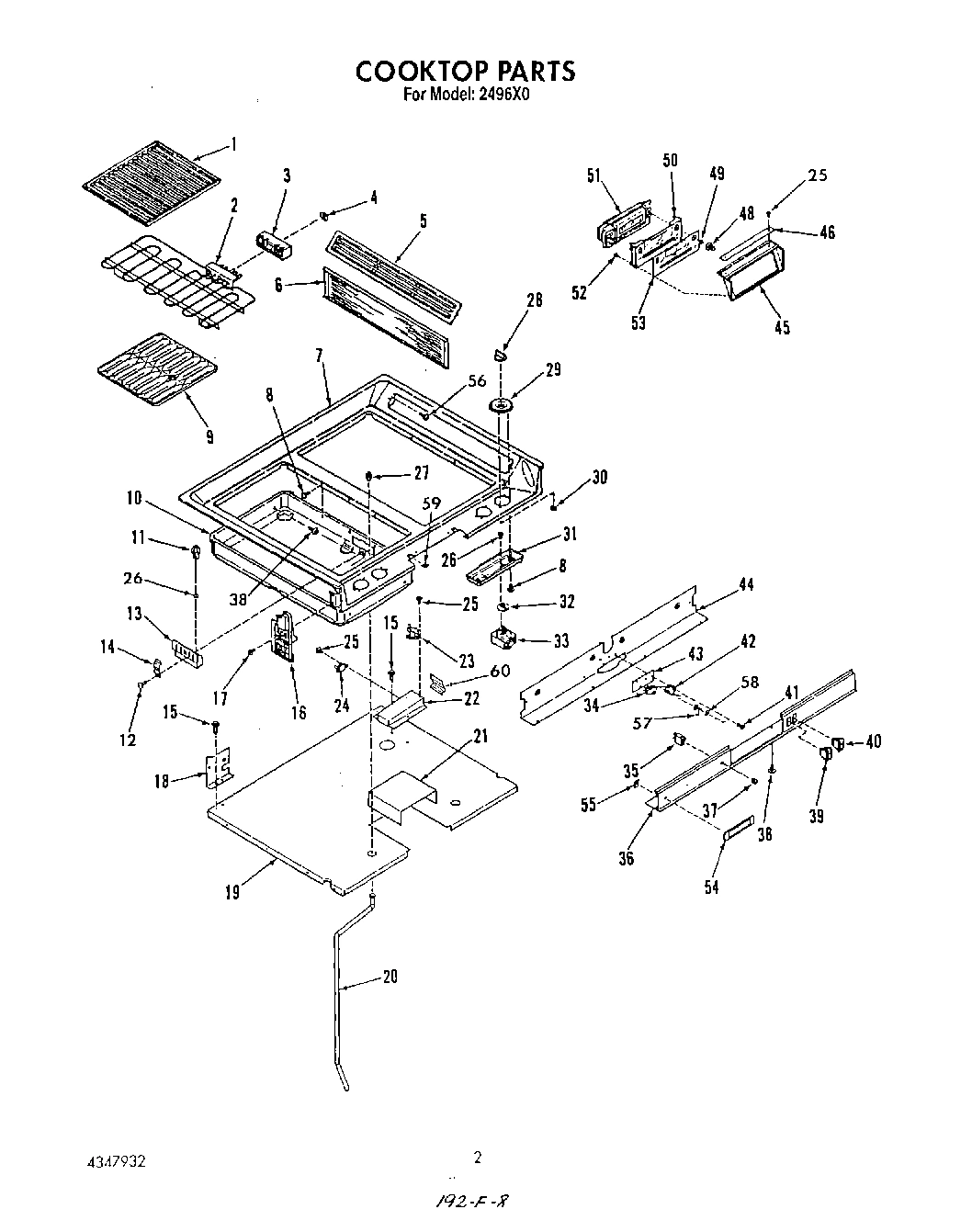

02 - COOK TOP

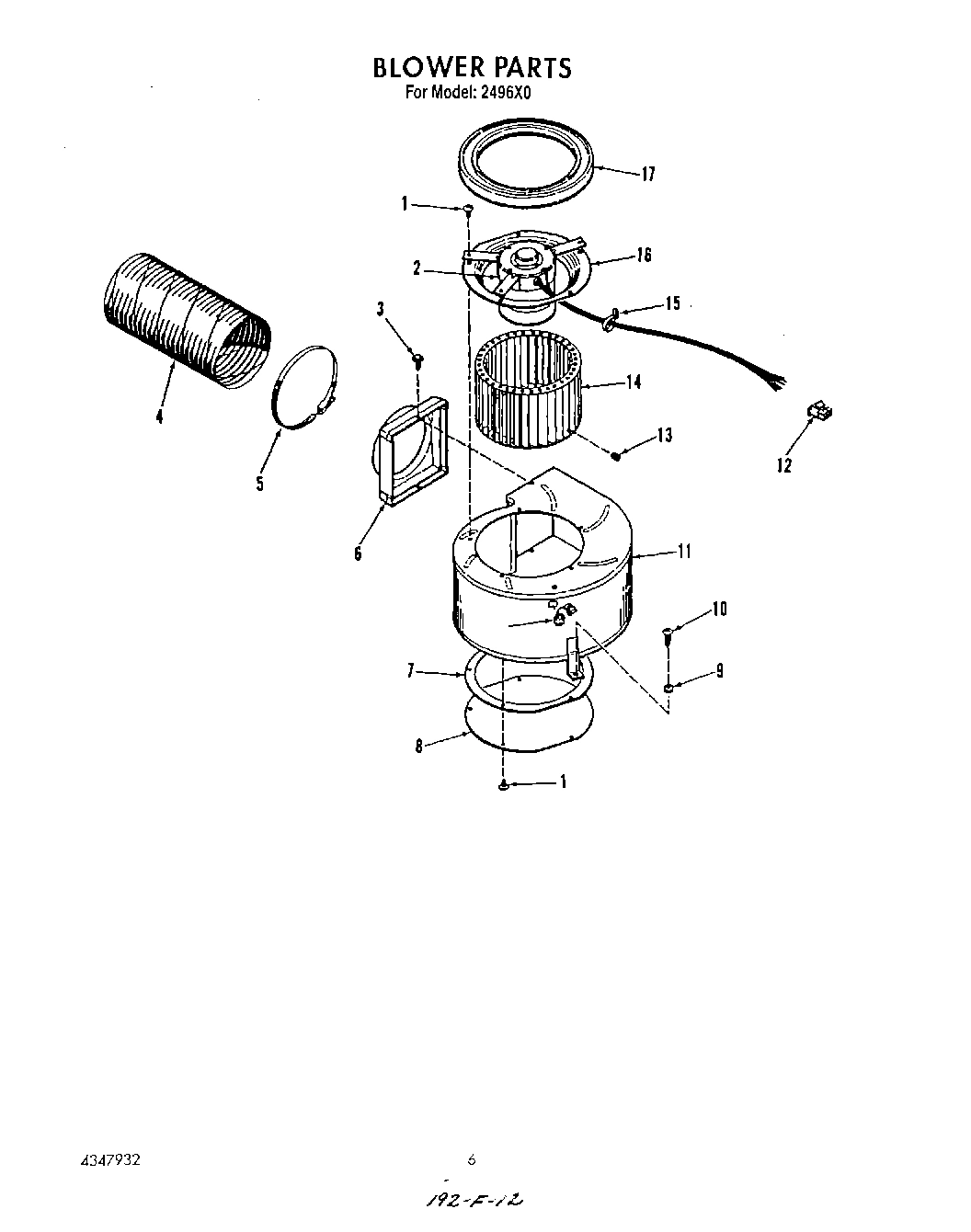

04 - BLOWER

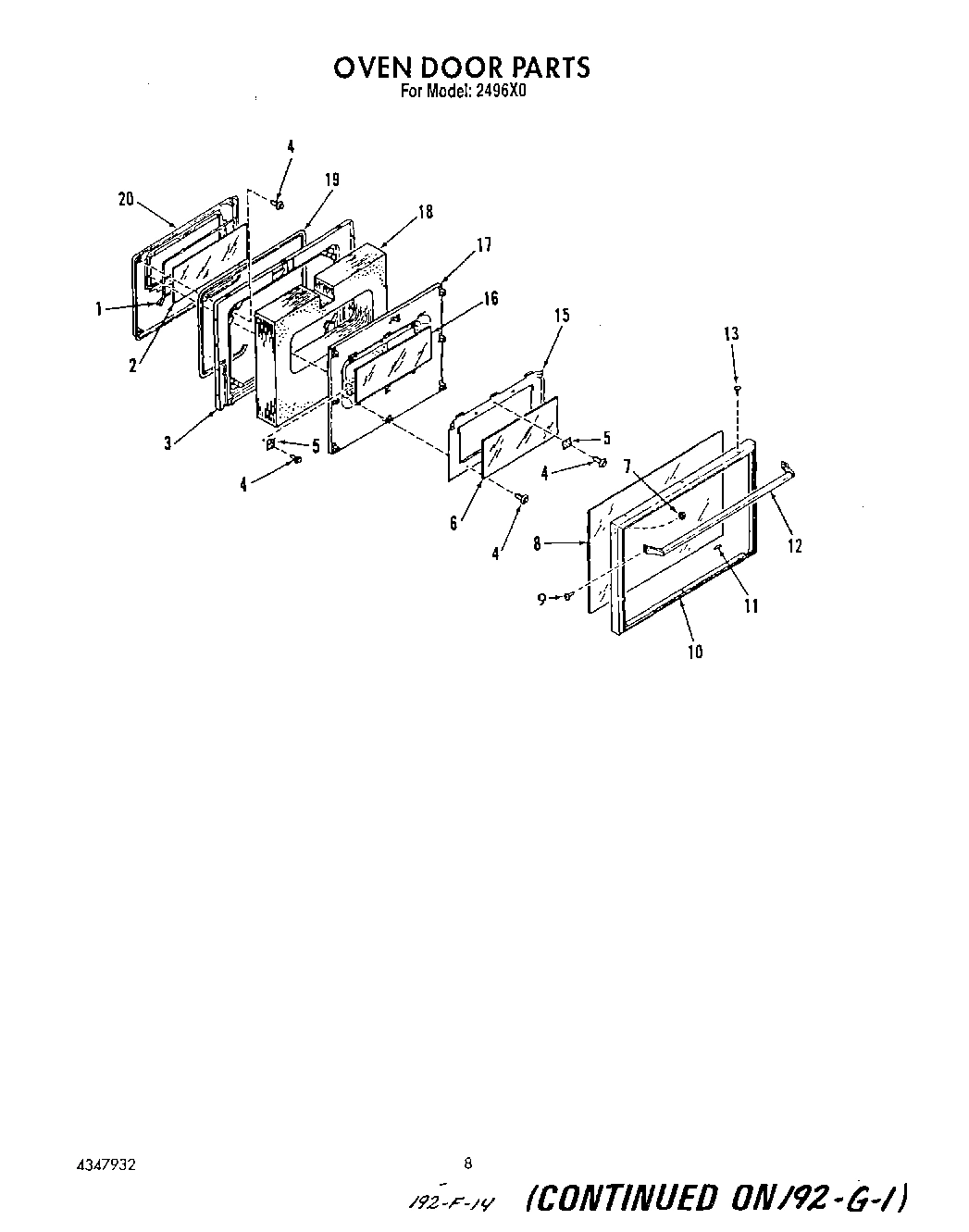

06 - OVEN DOOR

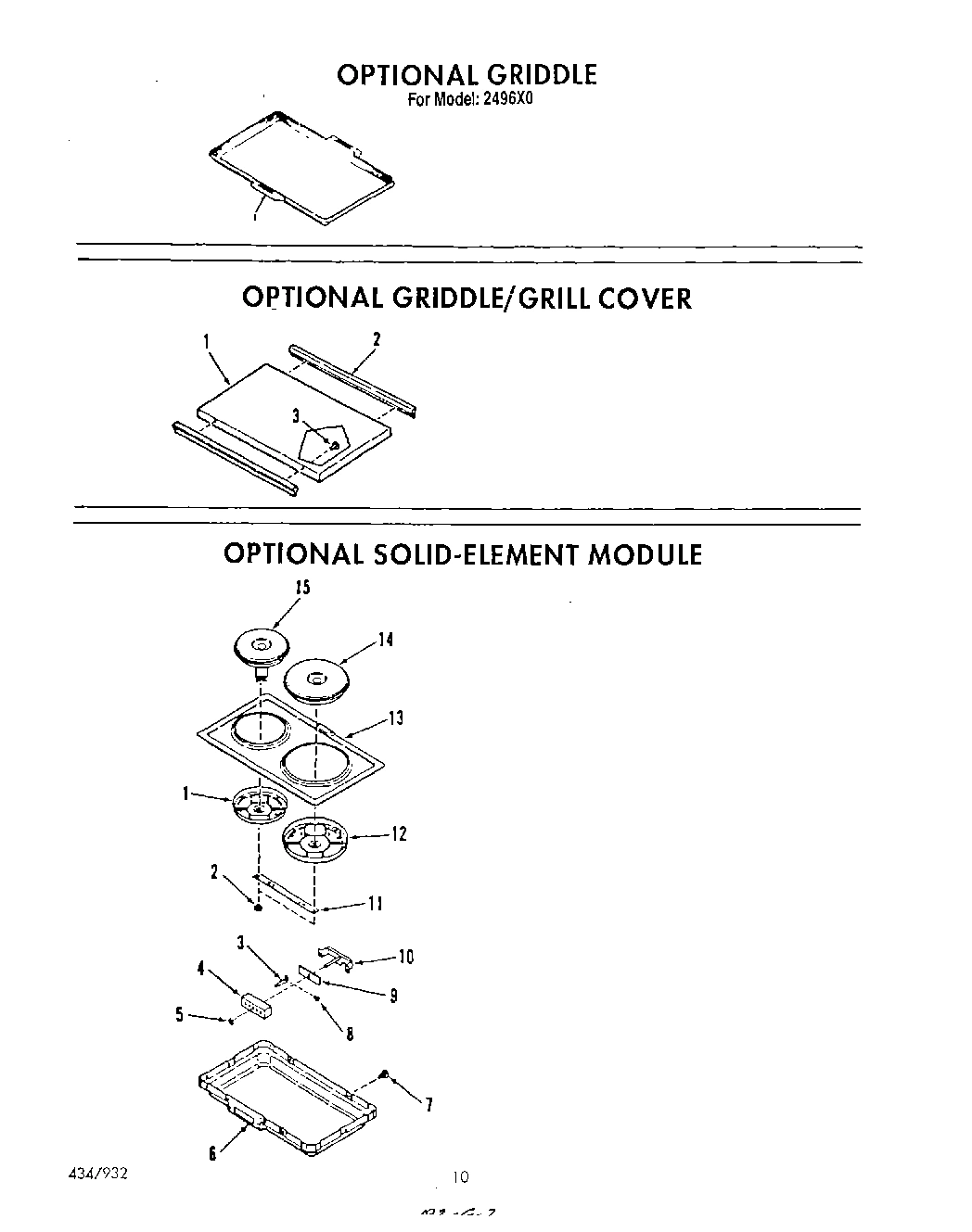

08 - GRIDDLE, GRIDDLE/GRILL COVER, SOLID
Common parts from model Whirlpool 2496X0 ELECTRIC RANGE
xInstallation Guide WPL 4347927 Contact Us For Availability
xUse & Care Manual WPL 4347928 Contact Us For Availability
xRepair Parts List WPL 4347932 Contact Us For Availability
1
Grate-Grill WPL 4354905 Contact Us For Availability
1
Wire Cover, Rear - Upper WPL 4354917 Contact Us For Availability
1
Grill, Grate (2) WPL 4335911 Contact Us For Availability
1
Screw, No.8 x 3/8 WPL 4323467 Contact Us For Availability
1
Seal, Inner Glass WPL 4342634 Contact Us For Availability
1
Clamp WPL 4335942 Contact Us For Availability
1
Cover WPL 4336005 Contact Us For Availability
1
Griddle WPL 4336453 Contact Us For Availability
2
Spring WPL 4331536 Contact Us For Availability
2
Medallion (2) WPL 4332691 Contact Us For Availability
2
Element, Grill (240 Volt) WPL 4336912 Contact Us For Availability
2
Element, Grill (208 Volt (Opt.)) WPL 4336913 Contact Us For Availability
2
Wire Cover, Lower Rear WPL 4336825 Contact Us For Availability
2
Motor WPL 4337091 Contact Us For Availability
2
Glass, Inner Oven Door WPL 4331298 Contact Us For Availability
2
Handle-Rt/Lt WPL 4336006 Contact Us For Availability
2
Nut, Mount. (2) WPL 4336026 Contact Us For Availability
3
Box, Mounting WPL 4336705 Contact Us For Availability
3
Pin, Terminal (4) WPL 4330875 Contact Us For Availability
3
Block, Terminal WPL 4336252 Contact Us For Availability
3
Lining, Oven Door WPL 4336704 Contact Us For Availability
3
Screw, No. 6 x 1/4 WPL 4336235 Contact Us For Availability
4
Screw 6-20x3/8 WPL 4336048 Contact Us For Availability
4
Clip WPL 4336259 Contact Us For Availability
4
Terminal Block WPL 4335910 Contact Us For Availability
4
Plate, Access WPL 4336826 Contact Us For Availability
4
Vent Tubing, Flexible WPL 4335913 Contact Us For Availability
5
Cooktop (Chrome) WPL 4335980 Contact Us For Availability
5
Cooktop (Almond) WPL 4336458 Contact Us For Availability
5
Nut, Speed WPL 4323399 Contact Us For Availability
5
Screw No.8-32x1/4 WPL 4351426 Contact Us For Availability
5
Grill, Air Intake WPL 4335907 Contact Us For Availability
5
Clamp, Tube WPL 4335914 Contact Us For Availability
5
Retainer WPL 4334791 Contact Us For Availability
6
Washer WPL 4323206 Contact Us For Availability
6
Thermostat, Hi-Limit WPL 4336545 Contact Us For Availability
6
Air Filter WPL 4335915 Contact Us For Availability
6
Transition WPL 4336822 Contact Us For Availability
6
Glass, Intermediate WPL 4334821 Contact Us For Availability
6
Pan-Module WPL 4336604 Contact Us For Availability
7
Lock Assembly, (Inc`s Illus. No.2) WPL 4331206 Contact Us For Availability
7
Screw, No.8-32 x 3/8 WPL 4324647 Contact Us For Availability
7
Cooktop, Main (Chrome) WPL 4336814 Contact Us For Availability
7
Cooktop, Main (Almond) WPL 4337002 Contact Us For Availability
7
Seal, Rear Cover WPL 4337098 Contact Us For Availability
8
Handle, Lock WPL 4336811 Contact Us For Availability
8
Screw No.8-32 x 3/16 WPL 4323479 Contact Us For Availability
8
Screw, No.10-32x1 WPL 4331572 Contact Us For Availability
8
Screw, 6-20x3/8 WPL 4335339 Contact Us For Availability
8
Cover, Rear WPL 4337244 Contact Us For Availability
8
Glass, Outer WPL 4336860 Contact Us For Availability
9
Clip WPL 4335705 Contact Us For Availability
9
Grid, (2) WPL 4336807 Contact Us For Availability
9
Pan, Module WPL 4336605 Contact Us For Availability
9
Insulator WPL 4330873 Contact Us For Availability
9
Nut, Hex 10-32 WPL 4354975 Contact Us For Availability
9
Grommet WPL 4337097 Contact Us For Availability
9
Screw No.8-32x1/2 WPL 4332885 Contact Us For Availability
10
Knob, Lock WPL 4335706 Contact Us For Availability
10
Bracket WPL 4335944 Contact Us For Availability
10
Screw No.10-32x7/16 WPL 4331573 Contact Us For Availability
10
Grease Well (Left) WPL 4337016 Contact Us For Availability
10
Grease Well (Right) WPL 4337017 Contact Us For Availability
10
Screw No.10 x 3/4 WPL 4323387 Contact Us For Availability
10
Frame WPL 4336813 Contact Us For Availability
11
Washer WPL 4327921 Contact Us For Availability
11
Terminal WPL 4337042 Contact Us For Availability
11
Housing, Blower WPL 4337094 Contact Us For Availability
11
Cushion WPL 4324217 Contact Us For Availability
11
Strap, Elmnt. WPL 4335993 Contact Us For Availability
12
Strap, Ground WPL 4335219 Contact Us For Availability
12
Disconnect WPL 4337045 Contact Us For Availability
12
Handle, Handle WPL 4328833 Contact Us For Availability
12
Clamp, Elmnt. WPL 4335941 Contact Us For Availability
13
Service Plate WPL 4335223 Contact Us For Availability
13
Screw No.10-32x1/2 WPL 4332521 Contact Us For Availability
13
Block, Terminal WPL 4337041 Contact Us For Availability
13
Screw, Set, 5/16 No.24 x 3/8 WPL 4336243 Contact Us For Availability
13
Cooktop (Chrome) WPL 4335938 Contact Us For Availability
13
Cooktop (Almond) WPL 4336457 Contact Us For Availability
14
Back WPL 4336810 Contact Us For Availability
14
Clamp, Terminal Block WPL 4330868 Contact Us For Availability
14
Wheel, Blower WPL 4337092 Contact Us For Availability
15
Retainer, Insulation-Bottom WPL 4336692 Contact Us For Availability
15
Clamp, Wire WPL 4337243 Contact Us For Availability
15
Mounting Plate, Glass WPL 4335753 Contact Us For Availability
15
xWire-Blue-12`` WPL 4335945 Contact Us For Availability
15
xWire-Brown-7`` WPL 4335946 Contact Us For Availability
16
Plenum WPL 4336691 Contact Us For Availability
16
End Cap (Right) WPL 4336816 Contact Us For Availability
16
End Cap (Left) WPL 4336817 Contact Us For Availability
16
Ring, Inlet WPL 4337093 Contact Us For Availability
16
Glass, Center WPL 4335008 Contact Us For Availability
17
Screw, No.7-32 x 5/16 WPL 4327985 Contact Us For Availability
17
Retainer, Side Insulation WPL 4336699 Contact Us For Availability
17
Screw, No.10 x 5/8 WPL 4337167 Contact Us For Availability
17
Gasket, Blower WPL 4336821 Contact Us For Availability
17
Retainer, Insulation WPL 4336703 Contact Us For Availability
18
Vent Box WPL 4336709 Contact Us For Availability
18
Rear Filler (Right) WPL 4336954 Contact Us For Availability
18
Rear Filler (Left) WPL 4336955 Contact Us For Availability
18
Insulation, WPL 4354940 Contact Us For Availability
19
Wire Cover, End WPL 4337217 Contact Us For Availability
19
Retainer, Insul. WPL 4336706 Contact Us For Availability
19
Gasket, Door WPL 4342564 Contact Us For Availability
20
Tube, Grease WPL 4336823 Contact Us For Availability
20
Wire Harness (Relay) WPL 4336939 Contact Us For Availability
20
Wire Harness (Sensor) WPL 4336940 Contact Us For Availability
20
Wire Harness (Control) WPL 4336941 Contact Us For Availability
20
Plug, Door Lining WPL 4337101 Contact Us For Availability
21
Side Trim (Right) WPL 4336818 Contact Us For Availability
21
Side Trim (Left) WPL 4336819 Contact Us For Availability
21
Cover, Latch WPL 4337081 Contact Us For Availability
22
Corner Filler (Left) WPL 4336768 Contact Us For Availability
22
Corner Filler (Right) WPL 4336769 Contact Us For Availability
22
Flue Duct WPL 4336855 Contact Us For Availability
23
Screw No.8x5/8 WPL 4331822 Contact Us For Availability
23
Limit Switch, Thermostat WPL 4337195 Contact Us For Availability
24
Spring, Door (2) WPL 4337386 Contact Us For Availability
24
Limit Switch, Blower WPL 4337008 Contact Us For Availability
25
Door Hinge (Right) WPL 4334793 Contact Us For Availability
25
Door Hinge (Left) WPL 4334794 Contact Us For Availability
25
Screw 6-32x5/16 WPL 4328072 Contact Us For Availability
26
Base, W/ Levelers (2) WPL 4337332 Contact Us For Availability
27
Screw WPL 4336631 Contact Us For Availability
27
Fitting, Tube WPL 4336824 Contact Us For Availability
28
Levelers, Leg (4) WPL 4334800 Contact Us For Availability
28
Knob, Infinite WPL 4336360 Contact Us For Availability
29
Screw, No.10-32x17/32`` WPL 4323884 Contact Us For Availability
29
Bezel, Knob (Left Rear) WPL 4336571 Contact Us For Availability
29
Bezel, Knob (Right Rear) WPL 4336572 Contact Us For Availability
29
Bezel, Knob (Left Front) WPL 4336573 Contact Us For Availability
29
Bezel, Knob (Right Front) WPL 4336574 Contact Us For Availability
30
Nut, Speed WPL 4342629 Contact Us For Availability
31
Jar Lid (2) WPL 4335900 Contact Us For Availability
31
Mounting Plate WPL 4337341 Contact Us For Availability
32
Expansion Nut (8) WPL 4331381 Contact Us For Availability
32
Seal, Control WPL 4325524 Contact Us For Availability
33
Hinge WPL 4324014 Contact Us For Availability
34
Switch, Door Lock WPL 4337117 Contact Us For Availability
35
Circuit Board WPL 4337279 Contact Us For Availability
35
Indicator Light WPL 4335252 Contact Us For Availability
36
Spacer, Circuit Board WPL 4336562 Contact Us For Availability
36
Panel, Control WPL 4337213 Contact Us For Availability
37
Cover, Wire WPL 4336918 Contact Us For Availability
37
Lens, Ind. Light WPL 4336078 Contact Us For Availability
38
Clamp, Capacitor WPL 4337073 Contact Us For Availability
39
Capacitor WPL 4337124 Contact Us For Availability
39
Rocker Switch, Blower/Hi-Lo WPL 4336220 Contact Us For Availability
40
Rocker Switch, Blower/Oven Light WPL 4335904 Contact Us For Availability
41
Screw, No.10-32 x 1/2 WPL 4323778 Contact Us For Availability
41
Screw No.4-40 WPL 4335881 Contact Us For Availability
42
Bracket WPL 4335689 Contact Us For Availability
42
Micro Switch, Thermostat WPL 4337116 Contact Us For Availability
43
Catch WPL 4323421 Contact Us For Availability
43
Insulation WPL 4337206 Contact Us For Availability
44
Strike WPL 4328032 Contact Us For Availability
44
Back, Control WPL 4336812 Contact Us For Availability
45
Lining, Lower Door WPL 4336378 Contact Us For Availability
45
Bezel, Clock/Oven Control WPL 4336815 Contact Us For Availability
46
Panel, Lower Door WPL 4336330 Contact Us For Availability
46
Plate, Clock/Oven Control WPL 4336919 Contact Us For Availability
47
Handle WPL 4354338 Contact Us For Availability
48
Spacer, Handle WPL 4323997 Contact Us For Availability
48
Knob, Clock/Oven Control WPL 4337194 Contact Us For Availability
49
Frame, Lower Door WPL 4336221 Contact Us For Availability
49
Hex Nut WPL 4337161 Contact Us For Availability
50
Element, Bake (240 Volt) WPL 4334756 Contact Us For Availability
50
Bake Element (208 Volt (Opt)) WPL 4334927 Contact Us For Availability
50
WPL 4337210 WPL 4337210 Contact Us For Availability
51
Washer WPL 4333871 Contact Us For Availability
51
WPL 4343004 WPL 4343004 Contact Us For Availability
52
Vent Tube WPL 4331173 Contact Us For Availability
52
WPL 4333352 WPL 4333352 Contact Us For Availability
53
Retainer, Lens WPL 4324482 Contact Us For Availability
53
WPL 4337075 WPL 4337075 Contact Us For Availability
54
Light Lens WPL 4324415 Contact Us For Availability
54
WPL 4335903 WPL 4335903 Contact Us For Availability
55
Gasket, Lens WPL 4324481 Contact Us For Availability
55
WPL 4323217 WPL 4323217 Contact Us For Availability
57
WPL 4337398 WPL 4337398 Contact Us For Availability
58
Oven Body WPL 4336561 Contact Us For Availability
58
WPL 4337415 WPL 4337415 Contact Us For Availability
59
Clip, Thermostat Bulb WPL 4326912 Contact Us For Availability
59
WPL 4331069 WPL 4331069 Contact Us For Availability
60
Frame, Front WPL 4336762 Contact Us For Availability
60
WPL 4337312 WPL 4337312 Contact Us For Availability
61
Insulation, Top & Sid WPL 4336990 Contact Us For Availability
62
WPL 4353609 WPL 4353609 Contact Us For Availability
63
WPL 4324951 WPL 4324951 Contact Us For Availability
64
WPL 4329206 WPL 4329206 Contact Us For Availability
65
WPL 4337170 WPL 4337170 Contact Us For Availability
67
WPL 4334809 WPL 4334809 Contact Us For Availability
70
WPL 4334357 WPL 4334357 Contact Us For Availability
72
WPL 4337215 WPL 4337215 Contact Us For Availability
73
WPL 4337413 WPL 4337413 Contact Us For Availability
74
WPL 4337371 WPL 4337371 Contact Us For Availability
76
WPL 4323694 WPL 4323694 Contact Us For Availability
× ![]()
