Model RCA 24688W0 Electric Range – Common Parts & Diagrams

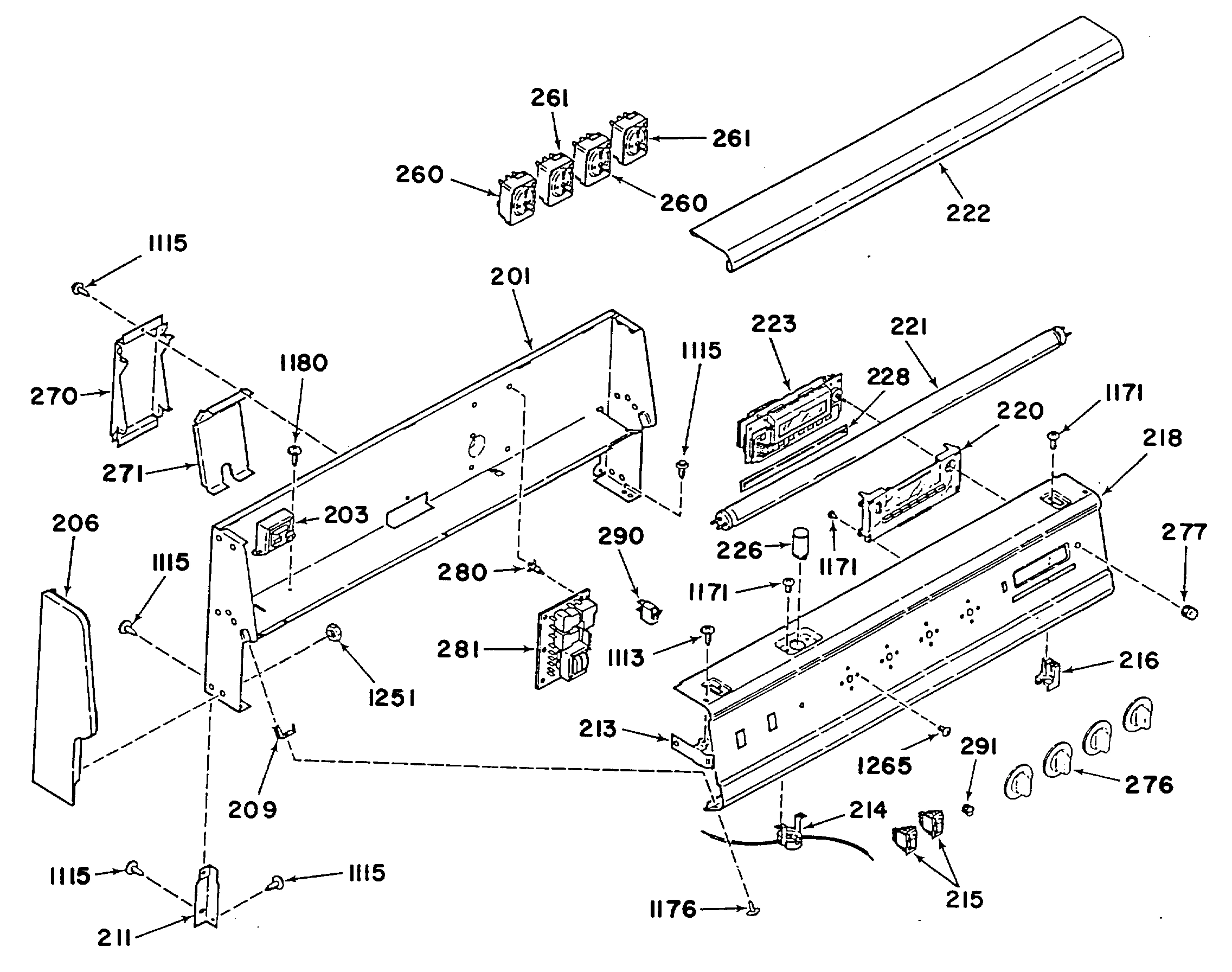

0

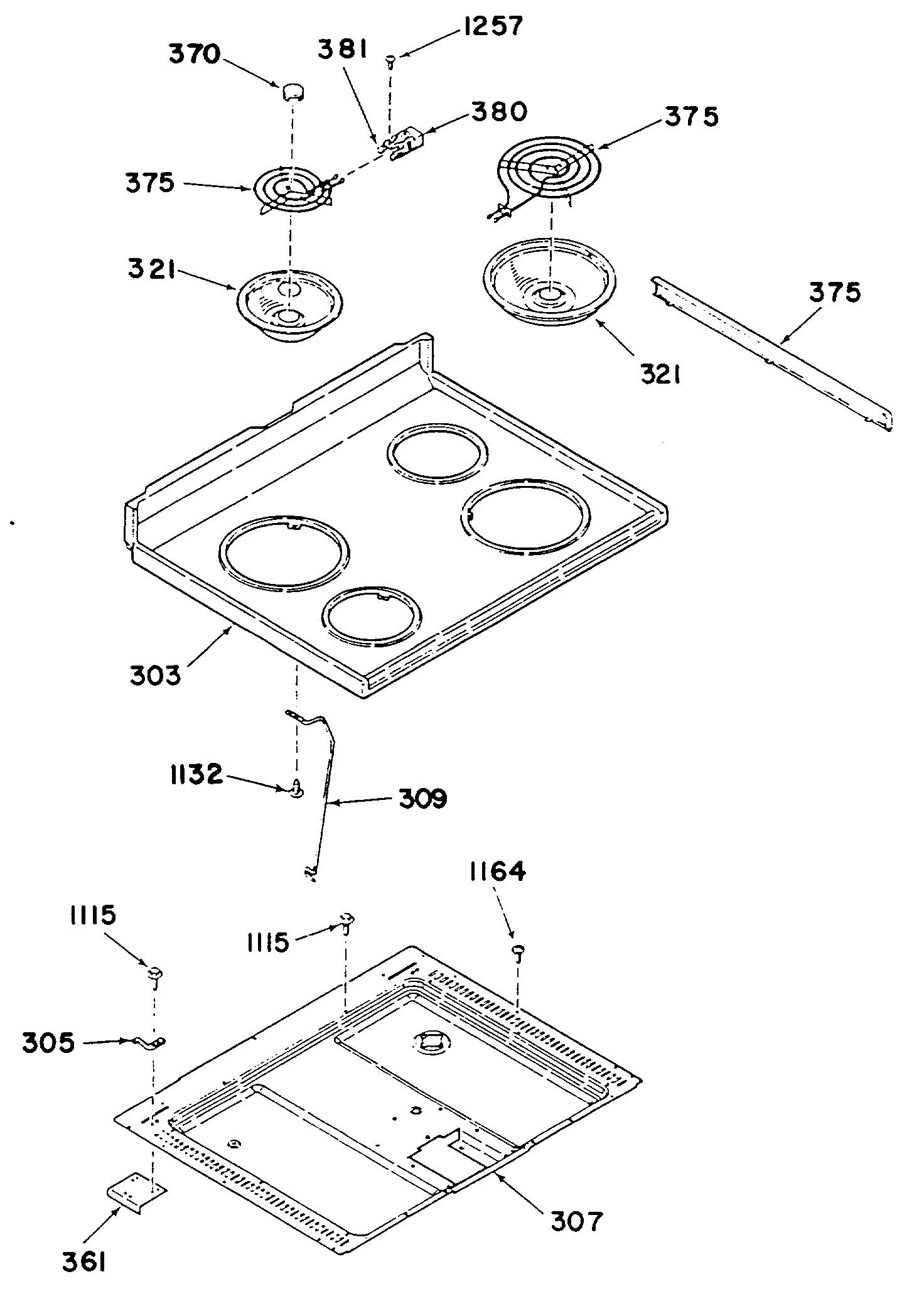

1

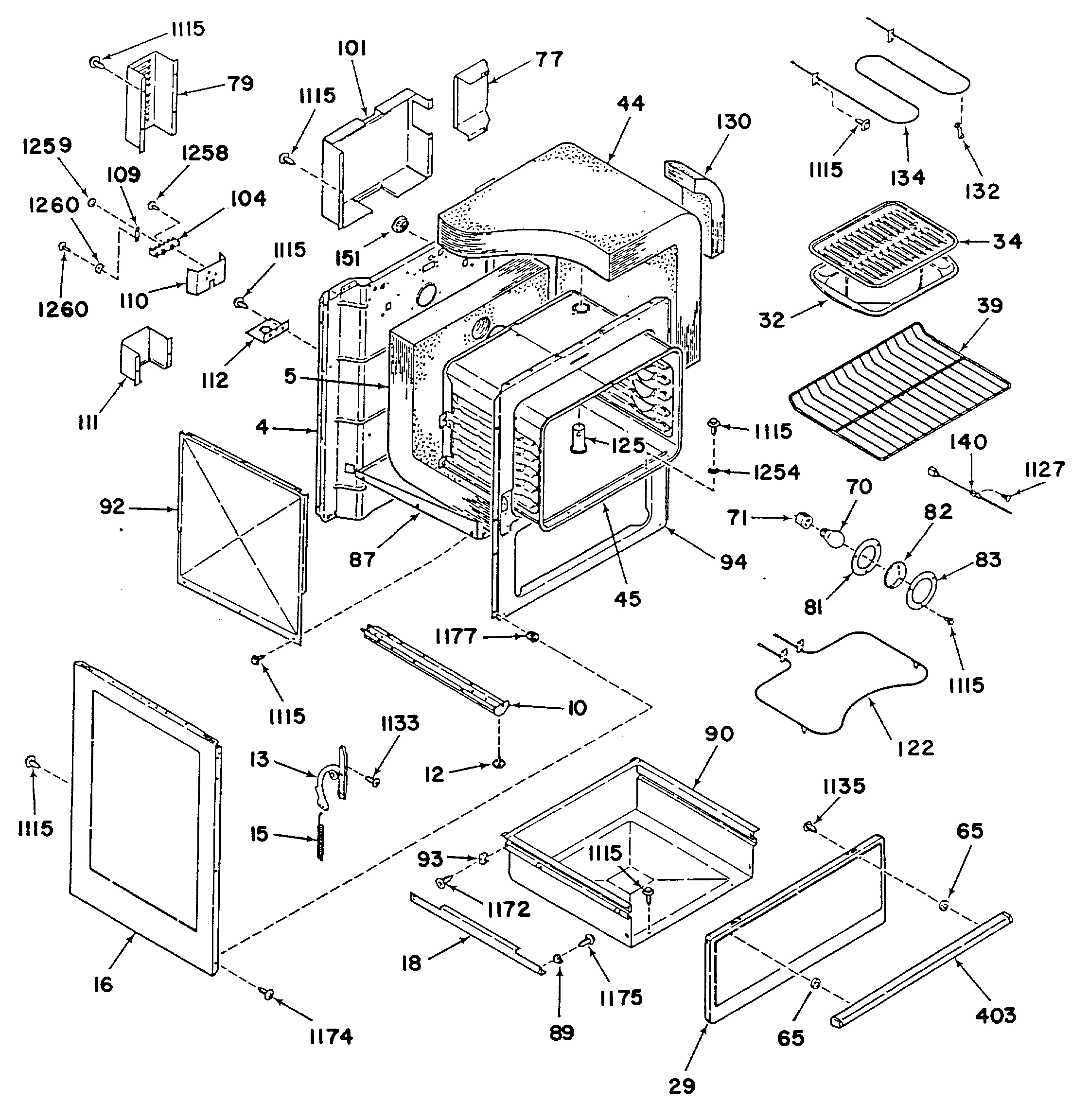

2

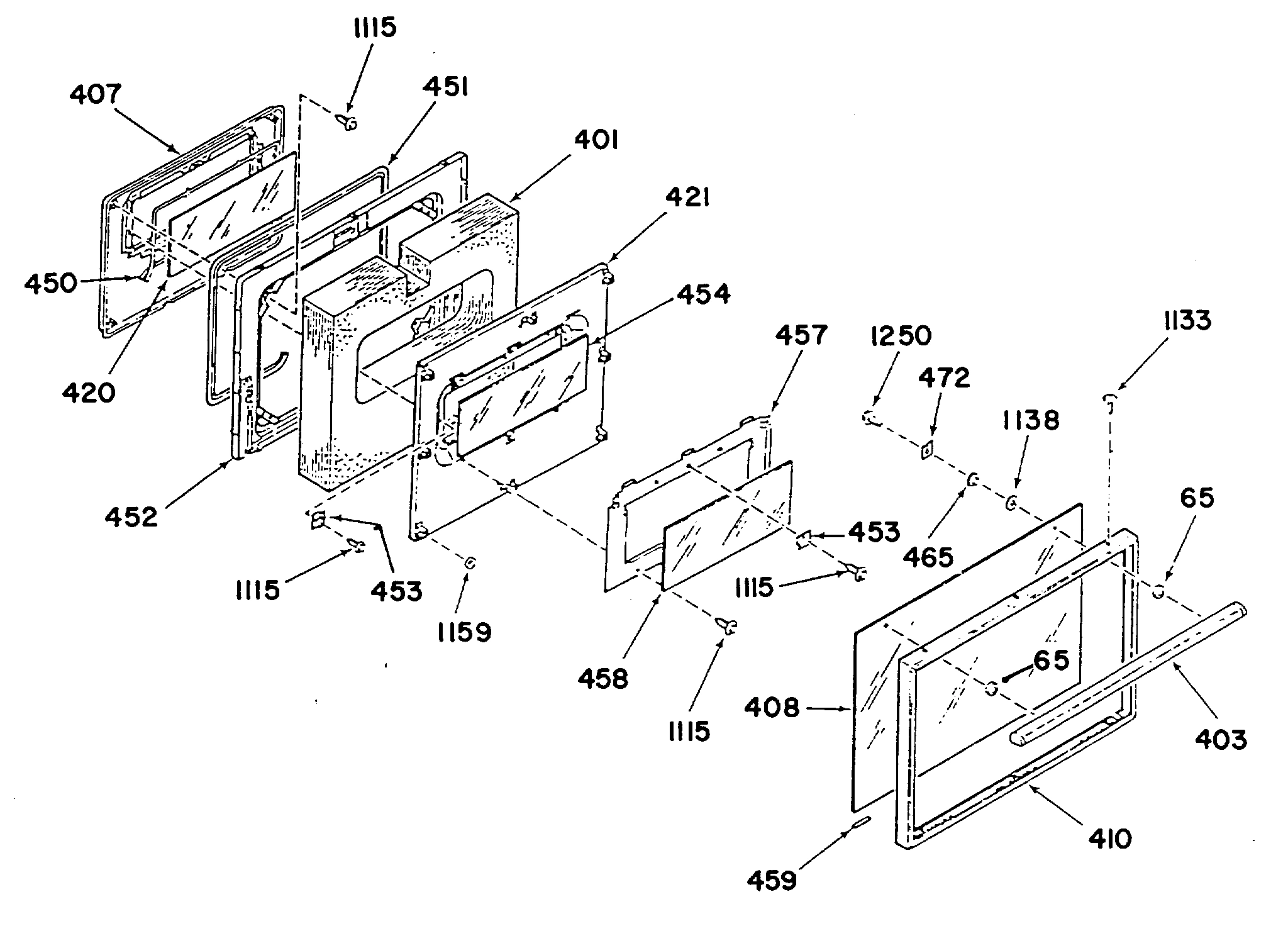

3

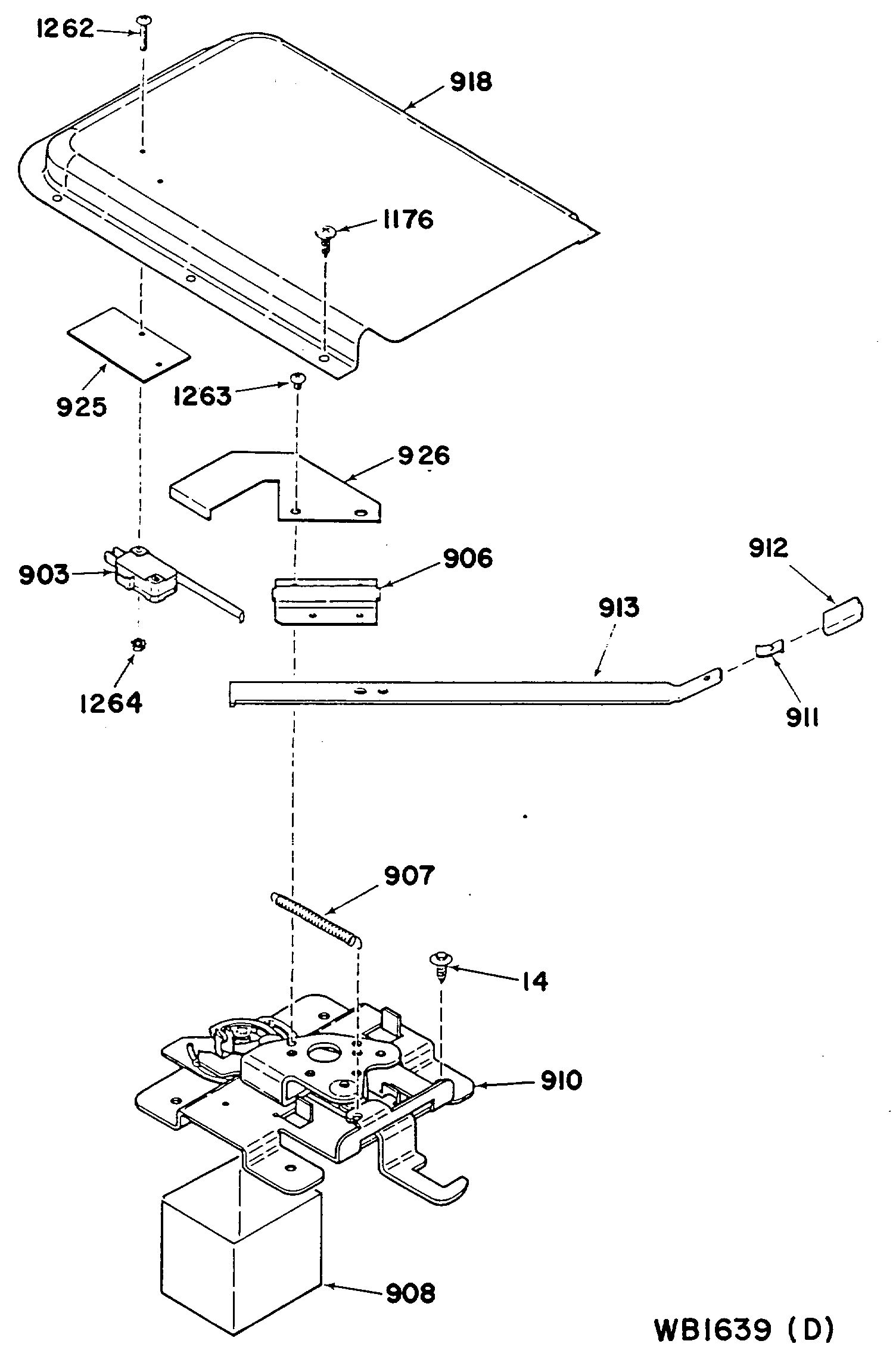

4
Common parts from model RCA 24688W0 Electric Range
4
GEN WB63X0355 GEN WB63X0355 Contact Us For Availability
5
INSULATION-OVEN BACK GEN WB02X9144 Contact Us For Availability
10
GEN WB02X9040 GEN WB02X9040 Contact Us For Availability
12
LEVELING LEGS GEN WB02X9025 Contact Us For Availability
15
SPRING-OVEN DOOR-R & L GEN WB09X0252 Contact Us For Availability
16
PANEL-SIDE-L & R-WHITE GEN WB63X0351 Contact Us For Availability
18
GEN WB02X9147 GEN WB02X9147 Contact Us For Availability
29
PANEL-DRAWER-WHITE GEN WB56X1959 Contact Us For Availability
39
GEN WB48X0208 GEN WB48X0208 Contact Us For Availability
44
GEN WB02X9423 GEN WB02X9423 Contact Us For Availability
45
GEN WB53X0279 GEN WB53X0279 Contact Us For Availability
65
SPACER GEN WB02X9037 Contact Us For Availability
71
GEN WB08X0279 GEN WB08X0279 Contact Us For Availability
77
GEN WB02X9139 GEN WB02X9139 Contact Us For Availability
79
GEN WB02X9421 GEN WB02X9421 Contact Us For Availability
81
GASKET-OVEN LAMP LENS GEN WB02X9151 Contact Us For Availability
82
GEN WB36X0754 GEN WB36X0754 Contact Us For Availability
83
RETAINER-OVEN LAMP GEN WB02X9150 Contact Us For Availability
87
RETAINER-INSULATION-LOW GEN WB02X9429 Contact Us For Availability
89
SLIDE BLOCK-FRONT-R & L GEN WB02X9148 Contact Us For Availability
90
GEN WB58X0065 GEN WB58X0065 Contact Us For Availability
92
RETAINER-INSULATION-SIDE GEN WB02X9445 Contact Us For Availability
93
SLIDE BLOCK-REAR-R & L GEN WB02X9146 Contact Us For Availability
94
GEN WB63X0353 GEN WB63X0353 Contact Us For Availability
101
GEN WB02X9444 GEN WB02X9444 Contact Us For Availability
109
GEN WB02X9424 GEN WB02X9424 Contact Us For Availability
110
INSULATOR GEN WB02X9425 Contact Us For Availability
111
GEN WB02X9426 GEN WB02X9426 Contact Us For Availability
112
GEN WB02X9427 GEN WB02X9427 Contact Us For Availability
122
BAKE ELEMENT-208 V GEN WB44X0235 Contact Us For Availability
125
GEN WB38X0111 GEN WB38X0111 Contact Us For Availability
130
INSULATION GEN WB02X9430 Contact Us For Availability
134
BROIL ELEMENT-208 VOLT GEN WB44X0233 Contact Us For Availability
151
BUSHING GEN WB02X9447 Contact Us For Availability
203
GEN WB20X0116 GEN WB20X0116 Contact Us For Availability
206
GEN WB07X1658 GEN WB07X1658 Contact Us For Availability
206
GEN WB07X1659 GEN WB07X1659 Contact Us For Availability
209
GEN WB02X9443 GEN WB02X9443 Contact Us For Availability
211
GEN WB02X9387 GEN WB02X9387 Contact Us For Availability
211
GEN WB02X9388 GEN WB02X9388 Contact Us For Availability
213
GEN WB02X9389 GEN WB02X9389 Contact Us For Availability
214
GEN WB08X0290 GEN WB08X0290 Contact Us For Availability
215
GEN WB24X0415 GEN WB24X0415 Contact Us For Availability
216
GEN WB08X0291 GEN WB08X0291 Contact Us For Availability
218
GEN WB07X1660 GEN WB07X1660 Contact Us For Availability
220
GEN WB02X9134 GEN WB02X9134 Contact Us For Availability
222
GEN WB61X0365 GEN WB61X0365 Contact Us For Availability
223
GEN WB19X0251 GEN WB19X0251 Contact Us For Availability
226
GEN WB02X9390 GEN WB02X9390 Contact Us For Availability
228
GEN WB02X9137 GEN WB02X9137 Contact Us For Availability
270
GEN WB02X9415 GEN WB02X9415 Contact Us For Availability
271
GEN WB02X9416 GEN WB02X9416 Contact Us For Availability
276
GEN WB03X0788 GEN WB03X0788 Contact Us For Availability
277
GEN WB03X0780 GEN WB03X0780 Contact Us For Availability
280
PC BOARD SPACER GEN WB02X9158 Contact Us For Availability
281
GEN WB27X0489 GEN WB27X0489 Contact Us For Availability
303
GEN WB62X1684 GEN WB62X1684 Contact Us For Availability
305
GEN WB14X0126 GEN WB14X0126 Contact Us For Availability
305
GEN WB14X0127 GEN WB14X0127 Contact Us For Availability
307
GEN WB63X0349 GEN WB63X0349 Contact Us For Availability
309
ROD-MAIN TOP SUPPORT GEN WB02X9084 Contact Us For Availability
361
GEN WB02X9418 GEN WB02X9418 Contact Us For Availability
370
GEN WB32X0105 GEN WB32X0105 Contact Us For Availability
375
GEN WB07X1661 GEN WB07X1661 Contact Us For Availability
375
GEN WB07X1662 GEN WB07X1662 Contact Us For Availability
401
GEN WB02X9169 GEN WB02X9169 Contact Us For Availability
403
HANDLE GEN WB15X0272 Contact Us For Availability
407
GEN WB02X9171 GEN WB02X9171 Contact Us For Availability
410
FRAME-OVEN DOOR GEN WB07X1622 Contact Us For Availability
420
INNER GLASS GEN WB56X1905 Contact Us For Availability
421
GEN WB02X9372 GEN WB02X9372 Contact Us For Availability
452
GEN WB56X1904 GEN WB56X1904 Contact Us For Availability
453
RETAINER-GLASS GEN WB02X9177 Contact Us For Availability
454
GLASS-CENTER GEN WB56X1907 Contact Us For Availability
457
PLATE-GLASS MOUNTING GEN WB02X9178 Contact Us For Availability
458
GEN WB56X1906 GEN WB56X1906 Contact Us For Availability
459
GEN WB02X9036 GEN WB02X9036 Contact Us For Availability
465
GEN WB02X9039 GEN WB02X9039 Contact Us For Availability
472
RETAINER-GLASS GEN WB02X9382 Contact Us For Availability
903
GEN WB24X0416 GEN WB24X0416 Contact Us For Availability
906
GEN WB02X9433 GEN WB02X9433 Contact Us For Availability
907
GEN WB09X0251 GEN WB09X0251 Contact Us For Availability
908
GEN WB02X9448 GEN WB02X9448 Contact Us For Availability
910
GEN WB14X0128 GEN WB14X0128 Contact Us For Availability
911
GEN WB01X9404 GEN WB01X9404 Contact Us For Availability
912
GEN WB03X0782 GEN WB03X0782 Contact Us For Availability
913
LATCH HANDLE GEN WB02X9434 Contact Us For Availability
918
LOCK COVER GEN WB02X9431 Contact Us For Availability
925
GEN WB02X9129 GEN WB02X9129 Contact Us For Availability
926
LEVER-SWITCH GEN WB02X9432 Contact Us For Availability
1113
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
1132
GEN WB01X1132 GEN WB01X1132 Contact Us For Availability
1138
WASHER GEN WB01X1138 Contact Us For Availability
1159
WASHER-FELT GEN WB01X1159 Contact Us For Availability
1164
GEN WB01X1164 GEN WB01X1164 Contact Us For Availability
1171
GEN WB01X1171 GEN WB01X1171 Contact Us For Availability
1172
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
1176
SCREW GEN WB01X1176 Contact Us For Availability
1177
NUT-EXPANSION/SPACER GEN WB01X1177 Contact Us For Availability
1250
GEN WB01X1250 GEN WB01X1250 Contact Us For Availability
1251
GEN WB01X1251 GEN WB01X1251 Contact Us For Availability
1260
GEN WB01X1260 GEN WB01X1260 Contact Us For Availability
1262
GEN WB01X1262 GEN WB01X1262 Contact Us For Availability
1264
GEN WB01X1264 GEN WB01X1264 Contact Us For Availability
1265
GEN WB01X1265 GEN WB01X1265 Contact Us For Availability
× ![]()
