Model Whirlpool 1151WA-36G ELECTRIC COOK-TOP – Common Parts & Diagrams

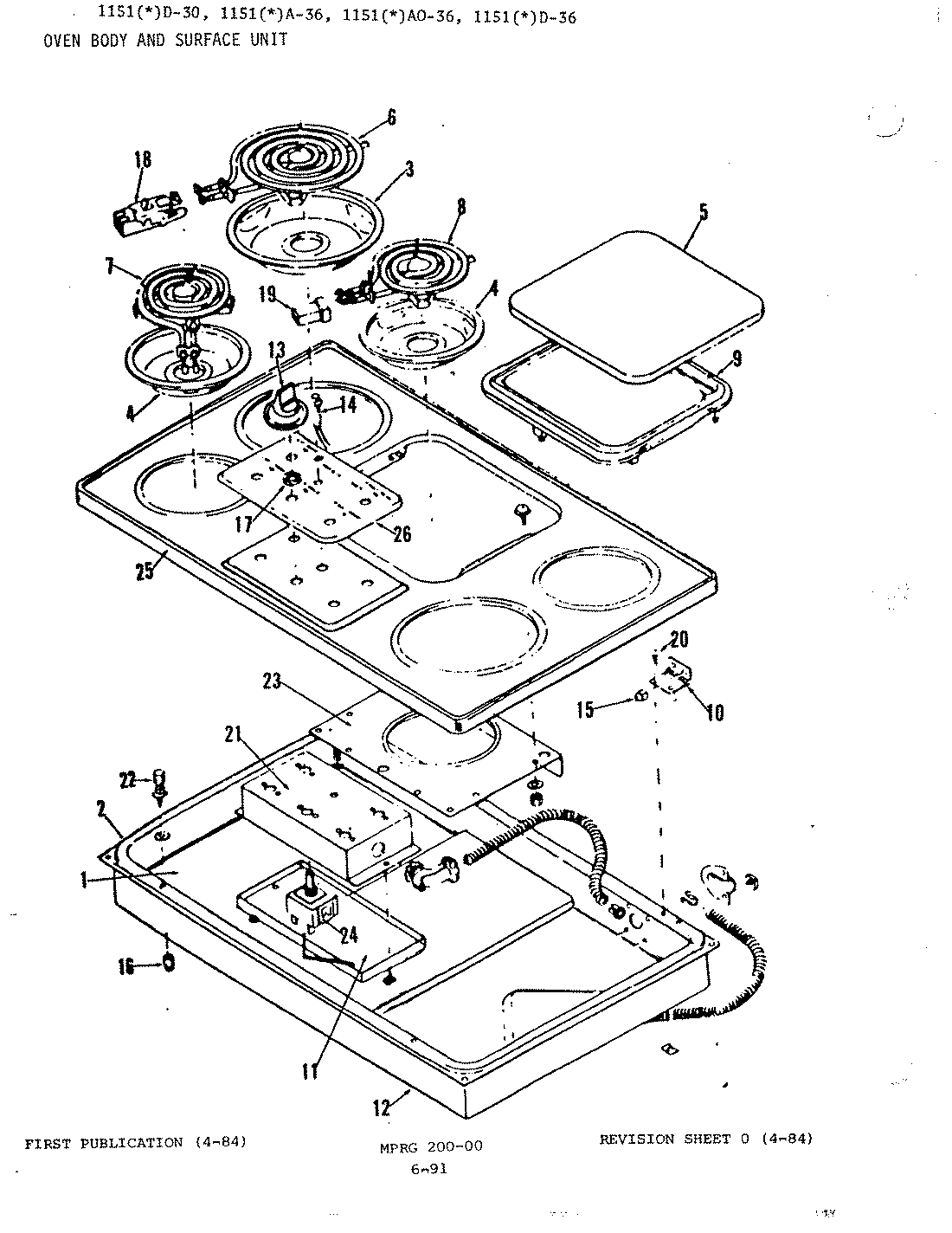

01 - BODY
Common parts from model Whirlpool 1151WA-36G ELECTRIC COOK-TOP
1
BAFFLE WPL 0153340 Contact Us For Availability
1
BLOCK WPL 1867212 Contact Us For Availability
1
BLOCK WPL 1867250 Contact Us For Availability
2
BOTTOM, BURNER BOX WPL 0237114 Contact Us For Availability
4
CLAMP WPL 1140201 Contact Us For Availability
5
COVER WPL 0329211S Contact Us For Availability
8
ELEMENT WPL 1938363 Contact Us For Availability
9
GRIDDLE WPL 1337207 Contact Us For Availability
10
HINGE WPL 1376218 Contact Us For Availability
10
HINGE WPL 1376236 Contact Us For Availability
11
HOUSING WPL 0537251 Contact Us For Availability
12
HOUSING WPL 0537249 Contact Us For Availability
13
KNOB, SURF SWITCH WPL 7711P14760 Contact Us For Availability
14
LIGHT, INDICATOR WPL 1406214 Contact Us For Availability
15
DOUBLE SPEED CLIP WPL 1555252 Contact Us For Availability
16
NUT WPL 1555241 Contact Us For Availability
16
NYLON NUT WPL 1555256 Contact Us For Availability
17
NUT WPL 1555246 Contact Us For Availability
19
RECEPTACLE WPL 1657224 Contact Us For Availability
20
SCREW, SPECIAL WPL 1986246 Contact Us For Availability
21
SPACER WPL 1783232 Contact Us For Availability
22
STRAP WPL 1808238 Contact Us For Availability
23
SUPPORT WPL 0862379 Contact Us For Availability
24
SWITCH, INF. CONTROL WPL 7403P07160 Contact Us For Availability
24
SWITCH, INF. CONTROL WPL 7403P07560 Contact Us For Availability
25
TOP, MAIN WPL 0901312A Contact Us For Availability
25
TOP, MAIN WPL 0901312B Contact Us For Availability
25
TOP, MAIN WPL 0901312G Contact Us For Availability
25
TOP, MAIN WPL 0901312N Contact Us For Availability
25
TOP, MAIN WPL 0901312S Contact Us For Availability
25
TOP, MAIN WPL 0901312Y Contact Us For Availability
25
TOP, MAIN WPL 0901313A Contact Us For Availability
25
TOP, MAIN WPL 0901313B Contact Us For Availability
25
TOP, MAIN WPL 0901313G Contact Us For Availability
25
TOP, MAIN WPL 0901313N Contact Us For Availability
25
TOP, MAIN WPL 0901313S Contact Us For Availability
25
TOP, MAIN WPL 0901313Y Contact Us For Availability
25
TOP, MAIN WPL 0901328A Contact Us For Availability
25
TOP, MAIN WPL 0901328B Contact Us For Availability
25
TOP, MAIN WPL 0901328G Contact Us For Availability
25
TOP, MAIN WPL 0901328N Contact Us For Availability
25
TOP, MAIN WPL 0901328S Contact Us For Availability
25
TOP, MAIN WPL 0901328Y Contact Us For Availability
26
TRIM WPL 1916175 Contact Us For Availability
26
TRIM WPL 1916176 Contact Us For Availability
× ![]()
