Whirlpool 110.97091100 Gas Dryer (Kenmore 11097091100) Parts List

1

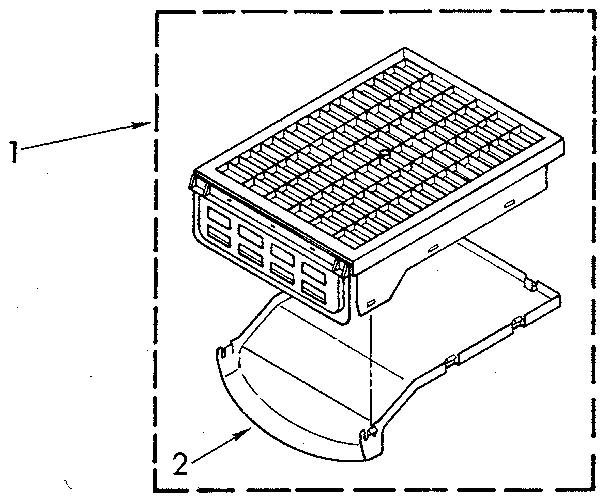

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $55.11

View on Model

1

(338471) (ALT.) WPL N/P Contact Us For Availability

View on Model

1A

Cover (White) WPL 3387675 Contact Us For Availability

View on Model

1A

Wiring Diagram WPL LIT3390539 Contact Us For Availability

View on Model

1B

Cover (Almond) WPL 3387676 Contact Us For Availability

View on Model

1B

Operating Instructions WPL LIT3392301 Contact Us For Availability

View on Model

1C

Cover WPL 3387677 Contact Us For Availability

View on Model

1C

Owner's Manual WPL LIT3388865 Contact Us For Availability

View on Model

1D

Cover (Platinum) WPL 3387678 Contact Us For Availability

View on Model

1D

Installation Instructions WPL LIT3389091 Contact Us For Availability

View on Model

1E

Operating Instructions WPL LIT3390910 Contact Us For Availability

View on Model

1F

U&c Label WPL LIT3392449 Contact Us For Availability

View on Model

1G

Parts List WPL LIT3391533 Contact Us For Availability

View on Model

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

View on Model

2A

Rear Panel (White) WPL 3388660 Contact Us For Availability

View on Model

2B

Rear Panel (Almond) WPL 3388661 Contact Us For Availability

View on Model

2C

Panel WPL 3388662 Contact Us For Availability

View on Model

2D

Panel (Platinum) WPL 3388663 Contact Us For Availability

View on Model

3

Dryer Timer WPL 3388752 Contact Us For Availability

View on Model

4

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

View on Model

4

WPW10354249 Whirlpool Cover Backorder WPL WPW10354249 $3.70

View on Model

5

WP3391902 Whirlpool Lid Switch In Stock WPL WP3391902 $33.36

View on Model

5

WP346343 Whirlpool Relay Push to Start Backorder WPL WP346343 $124.23

View on Model

6

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $41.12

View on Model

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

View on Model

6

Connector WPL 341141 Contact Us For Availability

View on Model

7

End Cap Clip WPL 689559 Contact Us For Availability

View on Model

7A

Cabinet WPL 3388456 Contact Us For Availability

View on Model

7B

Cabnt Al WPL 3388457 Contact Us For Availability

View on Model

7C

Cabnt Tst WPL 3388458 Contact Us For Availability

View on Model

7D

Cabnt Plt WPL 3388459 Contact Us For Availability

View on Model

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

View on Model

8

End Cap WPL 388203 Contact Us For Availability

View on Model

9

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $46.54

View on Model

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

View on Model

10

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

View on Model

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $7.74

View on Model

11

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $2.51

View on Model

11

Control Panel WPL 3349268 Contact Us For Availability

View on Model

12

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

View on Model

12A

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $55.11

View on Model

12B

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $41.69

View on Model

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $12.04

View on Model

13

Rack WPL 3388908 Contact Us For Availability

View on Model

14

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

View on Model

14

Fastener WPL 3389802 Contact Us For Availability

View on Model

15

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

View on Model

15

Screw WPL 3390648 Contact Us For Availability

View on Model

16

Ground Strap WPL 22965 Contact Us For Availability

View on Model

16

Clip WPL 688412 Contact Us For Availability

View on Model

17

Ground Wire WPL 364089 Contact Us For Availability

View on Model

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

View on Model

19

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.18

View on Model

19

Wire Harness WPL 3392262 Contact Us For Availability

View on Model

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.79

View on Model

20

Knob WPL 696847 Contact Us For Availability

View on Model

21

WP3387560 Whirlpool Door Hinge In Stock WPL WP3387560 $54.34

View on Model

21

Knob WPL 697198 Contact Us For Availability

View on Model

21A

WP3387559 Whirlpool Door Hinge Backorder WPL WP3387559 $54.34

View on Model

22

WP3387565 Whirlpool Door Spring Backorder WPL WP3387565 $13.56

View on Model

22

Hinge Panel WPL 387402 Contact Us For Availability

View on Model

23

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

View on Model

23

Light Seal WPL 3388392 Contact Us For Availability

View on Model

24

Wire WPL 3387377 Contact Us For Availability

View on Model

24A

Top W WPL 697202 Contact Us For Availability

View on Model

24B

Top Al WPL 697203 Contact Us For Availability

View on Model

24C

Top WPL 697204 Contact Us For Availability

View on Model

24D

Top Pl WPL 697205 Contact Us For Availability

View on Model

25

Harness Clip WPL 3390514 Contact Us For Availability

View on Model

26

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $56.87

View on Model

26

End Cap WPL 388209 Contact Us For Availability

View on Model

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $108.05

View on Model

27

Buzzer WPL 347137 Contact Us For Availability

View on Model

28

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

View on Model

28

Dryer Thermostat Heater WPL 61894 Contact Us For Availability

View on Model

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $7.41

View on Model

29

Dryer Control WPL 661513 Contact Us For Availability

View on Model

30

W11667280 Whirlpool Belt Assembly Backorder WPL W11667280 $12.19

View on Model

30

Knob WPL 388027 Contact Us For Availability

View on Model

31

693152 Whirlpool Bumper In Stock WPL 693152 $7.06

View on Model

31

Control Panel WPL 697297 Contact Us For Availability

View on Model

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $49.90

View on Model

33

Switch WPL 696910 Contact Us For Availability

View on Model

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.59

View on Model

34

WP388257 Whirlpool Trim Ring Backorder WPL WP388257 $3.70

View on Model

34

Clip WPL 3388600 Contact Us For Availability

View on Model

35

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

View on Model

35

Guard Idler WPL 3389503 Contact Us For Availability

View on Model

36

Bumper WPL 3390174 Contact Us For Availability

View on Model

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

View on Model

37

Harness Clip WPL 3391881 Contact Us For Availability

View on Model

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $12.68

View on Model

40

WP3395530 Whirlpool Screw Backorder WPL WP3395530 $2.51

View on Model

40

Receptacle WPL 351296 Contact Us For Availability

View on Model

41

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

View on Model

42

Screw WPL 3389484 Contact Us For Availability

View on Model

43

WP3391943 Whirlpool Foot Boot Backorder WPL WP3391943 $3.70

View on Model

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

View on Model

44

Receptacle WPL 691707 Contact Us For Availability

View on Model

45

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

View on Model

46

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.88

View on Model

47

Door WPL 697655 Contact Us For Availability

View on Model

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

View on Model

48

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

View on Model

49A

Dryer Door WPL 697221 Contact Us For Availability

View on Model

49B

Door Al WPL 697222 Contact Us For Availability

View on Model

49C

Door To WPL 697223 Contact Us For Availability

View on Model

49D

Door Pl WPL 697224 Contact Us For Availability

View on Model

50

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

View on Model

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

View on Model

51A

Panel WPL 697227 Contact Us For Availability

View on Model

51B

Panel Al WPL 697228 Contact Us For Availability

View on Model

51C

Panel To WPL 697229 Contact Us For Availability

View on Model

51D

Panel Pl WPL 697230 Contact Us For Availability

View on Model

53

Hanger WPL 3388707 Contact Us For Availability

View on Model

57

W10823582 Whirlpool Door Seal In Stock WPL W10823582 $47.01

View on Model

58

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.17

View on Model

59

Wire WPL 3387376 Contact Us For Availability

View on Model

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

View on Model

60A

WP348721 Whirlpool Handle In Stock WPL WP348721 $48.46

View on Model

60B

Handle (Almond) WPL 689457 Contact Us For Availability

View on Model

60C

Handle WPL 695174 Contact Us For Availability

View on Model

60D

Handle (Platinum) WPL 695175 Contact Us For Availability

View on Model

61A

WP3406797 Whirlpool Toe Panel Backorder WPL WP3406797 $90.75

View on Model

61B

Toepnl Al WPL 697216 Contact Us For Availability

View on Model

61C

Toepnl To WPL 697217 Contact Us For Availability

View on Model

61D

Toepnl Pl WPL 697218 Contact Us For Availability

View on Model

NI

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

View on Model

NI

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

View on Model

NI

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

View on Model

NI

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.92

View on Model

NI

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

View on Model

NI

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

View on Model

NI

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

View on Model

NI

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

View on Model

NI

Paint (White) WPL 799344 Contact Us For Availability

View on Model

NI

Natural Gas Paint WPL 261891 Contact Us For Availability

View on Model

NI

Spray (Toast) WPL 285365 Contact Us For Availability

View on Model

NI

Spray (Platinum) WPL 285366 Contact Us For Availability

View on Model

NI

Paint To WPL 285367 Contact Us For Availability

View on Model

NI

Paint Pl WPL 285368 Contact Us For Availability

View on Model

NI

Spray Th WPL 350941 Contact Us For Availability

View on Model

NI

Touch-Up WPL 72112 Contact Us For Availability

View on Model

NI

Spray WPL 786020 Contact Us For Availability

View on Model

NI

Paint (Ebony) WPL 786032 Contact Us For Availability

View on Model

NI

Paint (Almond) WPL 978883 Contact Us For Availability

View on Model

Model Whirlpool 110.97091100 Gas Dryer (Kenmore 11097091100) – Common Parts & Diagrams

Common parts from model Whirlpool 110.97091100 Gas Dryer (Kenmore 11097091100)

Search result for :
