Model Whirlpool 110.94572400 Compact Washer (Kenmore 11094572400) – Common Parts &amp; Diagrams

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.55

1

Drive Basket WPL 3935337 Contact Us For Availability

1

Tube Dispenser WPL 3428670 Contact Us For Availability

1

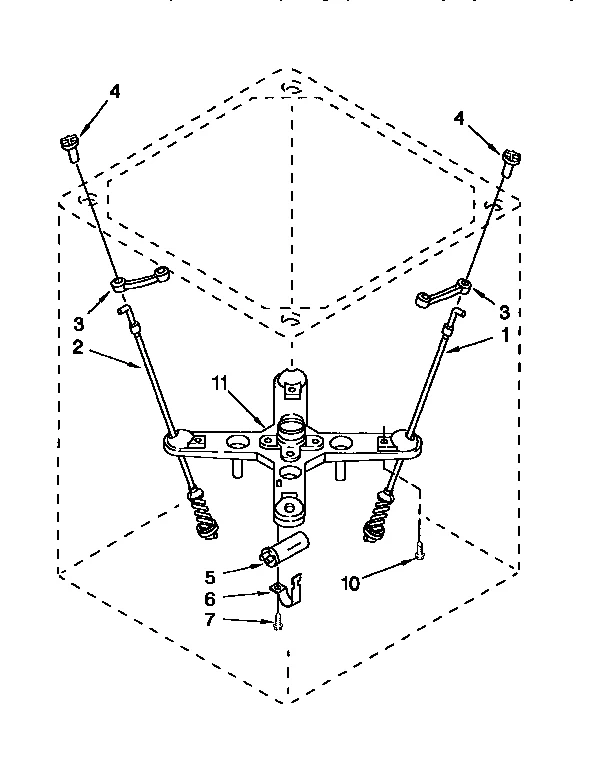

Washer Suspension WPL 3935137 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $30.26

2

90984 Whirlpool Nut Backorder WPL 90984 $9.28

2

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $3.76

2

BLOCK, DISCONNECT (MAIN) WPL 3966385 Contact Us For Availability

2

Bracket WPL 3935155 Contact Us For Availability

2

Filtr-lint WPL 3428391 Contact Us For Availability

2

Washer Suspension WPL 3935136 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.76

3

WP3967051 Whirlpool Strap In Stock WPL WP3967051 $3.76

3

Screw, Balance Ring WPL 3428014 Contact Us For Availability

3

Motor Shield WPL 3935998 Contact Us For Availability

3

Extension WPL 3935357 Contact Us For Availability

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.55

4

Screw WPL 3429189 Contact Us For Availability

4

Brake Board WPL 3428323 Contact Us For Availability

4

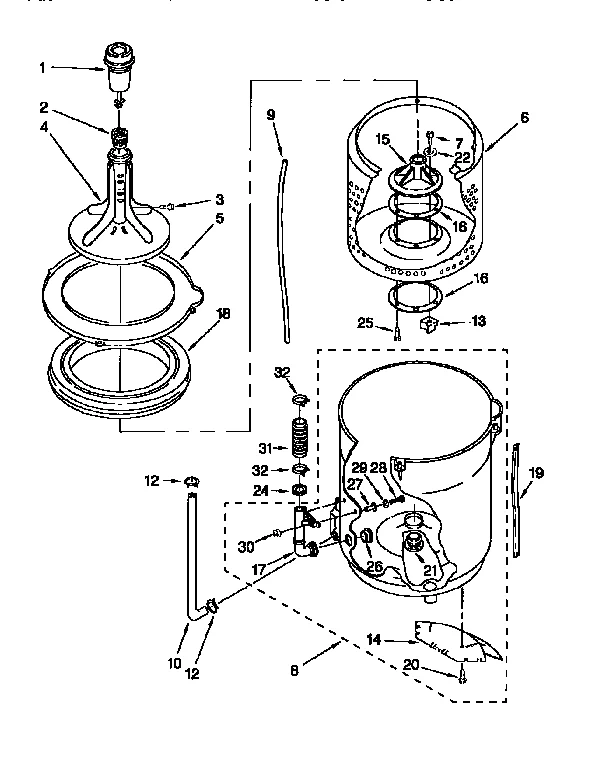

Agitator WPL 3428392 Contact Us For Availability

4

Ball WPL 3428423 Contact Us For Availability

5

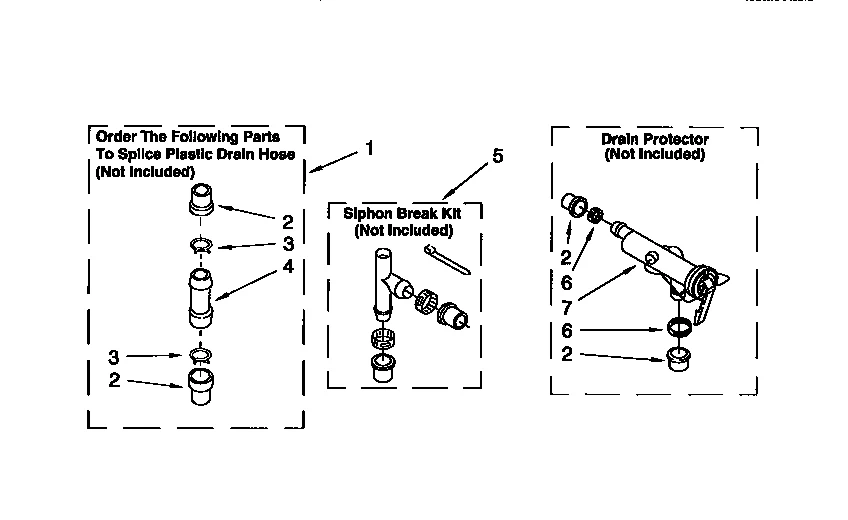

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

5

Washer Run Capacitor WPL 3429938 Contact Us For Availability

5

Spring WPL 3428342 Contact Us For Availability

5

Harness Clip WPL 3935875 Contact Us For Availability

5

Tub Ring WPL 3429902 Contact Us For Availability

6

Nut, Washer Locking WPL 3934661 Contact Us For Availability

6

BLACK, DISCONNECT (MOTOR)(USES TERMINAL NO. 3 WPL 311150 Contact Us For Availability

6

Microcomputer WPL 3935487 Contact Us For Availability

6

Basket WPL 3935943 Contact Us For Availability

6

Bracket WPL 3428343 Contact Us For Availability

7

Washer Splutch Pulley WPL 3428359 Contact Us For Availability

7

Screw, Bracket Tub Spring WPL 3934040 Contact Us For Availability

7

Washer Drain Protector WPL 367031 Contact Us For Availability

7

Jumper Wire WPL 3935929 Contact Us For Availability

7

Screw WPL 3428430 Contact Us For Availability

8

W10849778 Whirlpool Hose Assembly Backorder WPL W10849778 $149.96

8

Clutch Cam WPL 3428378 Contact Us For Availability

8

Outer Tub WPL 3935537 Contact Us For Availability

9

WP353244 Whirlpool Hose In Stock WPL WP353244 $34.65

9

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $5.02

9

Pad Protector WPL 3935630 Contact Us For Availability

Spring WPL 3934212 Contact Us For Availability

Seal WPL 3935353 Contact Us For Availability

Washer Dispenser Hose WPL 3430339 Contact Us For Availability

Screw WPL 3428033 Contact Us For Availability

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

Slider WPL 3428380 Contact Us For Availability

Screw WPL 3935602 Contact Us For Availability

Support WPL 3934460 Contact Us For Availability

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.55

Washer Caster Wheel WPL 3934872 Contact Us For Availability

Cam Ring WPL 3428379 Contact Us For Availability

Water-Level Switch WPL 3934914 Contact Us For Availability

13

Solenoid WPL 3934709 Contact Us For Availability

13

Bracket WPL 3935270 Contact Us For Availability

13

Block WPL 3428429 Contact Us For Availability

14

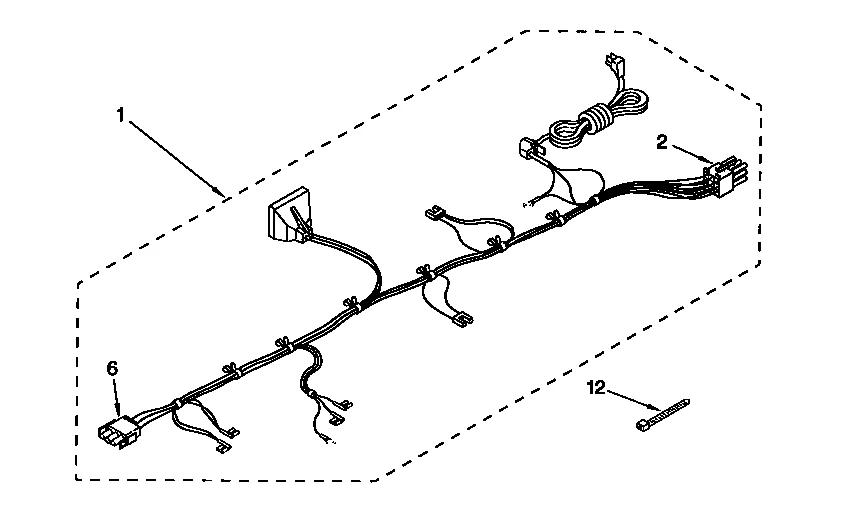

Wire Harness WPL 3934172 Contact Us For Availability

14

Motor Shield WPL 3428814 Contact Us For Availability

15

Motor Plate WPL 3430205 Contact Us For Availability

15

Wire Tie WPL 3429812 Contact Us For Availability

15

Drive Hub WPL 3934735 Contact Us For Availability

16

Bolt, Motor Plate WPL 3429405 Contact Us For Availability

16

Clamp WPL 3935709 Contact Us For Availability

16

Hub Gasket WPL 3428179 Contact Us For Availability

17

Hose-wl WPL 3935344 Contact Us For Availability

17

Inlet WPL 3935347 Contact Us For Availability

18

Washer Drive Belt WPL 3934700 Contact Us For Availability

18

Inlet Valve WPL 3360396 Contact Us For Availability

18

Balance Ring WPL 3934565 Contact Us For Availability

19

Hose WPL 3966238 Contact Us For Availability

20

WP3400872 Whirlpool Screw Backorder WPL WP3400872 $2.55

20

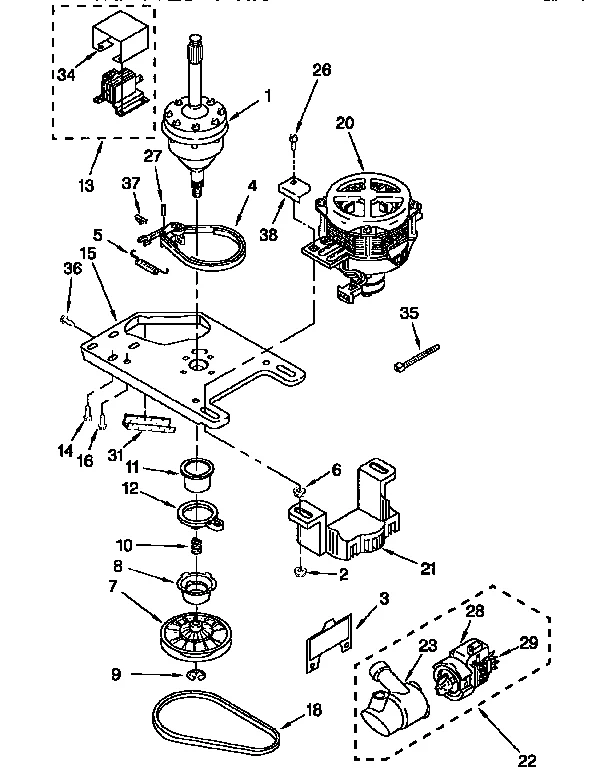

Drive Motor WPL 3934201 Contact Us For Availability

20

Seal WPL 3935354 Contact Us For Availability

21

WP3968381 Whirlpool Tub Seal Backorder WPL WP3968381 $14.45

21

Shield WPL 3935999 Contact Us For Availability

21

Screw, Control Board WPL 3935667 Contact Us For Availability

22

WP3400094 Whirlpool Screw Backorder WPL WP3400094 $2.55

22

Water Pump WPL 3430119 Contact Us For Availability

22

Lock Washer WPL 3429750 Contact Us For Availability

23

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.76

23

Housing WPL 3430120 Contact Us For Availability

24

Shield WPL 3935672 Contact Us For Availability

24

Protector WPL 3935678 Contact Us For Availability

25

Extrude WPL 3935201 Contact Us For Availability

25

Funnel WPL 3935325 Contact Us For Availability

25

Screw (White) WPL 3934714 Contact Us For Availability

26

Screw WPL 3934663 Contact Us For Availability

26

Seal WPL 3935332 Contact Us For Availability

Wheel Pin WPL 3935130 Contact Us For Availability

Brake Pin WPL 3934183 Contact Us For Availability

Funnel WPL 3966222 Contact Us For Availability

Nut Well WPL 3935431 Contact Us For Availability

Sound Absorber WPL 3349654 Contact Us For Availability

Motor WPL 3430089 Contact Us For Availability

Inlet WPL 3935330 Contact Us For Availability

Screw WPL 3935432 Contact Us For Availability

Rear Panel WPL 3430058 Contact Us For Availability

Blade WPL 3429939 Contact Us For Availability

Shield Valve WPL 3935995 Contact Us For Availability

Washer WPL 3935786 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.29

30

Rivet WPL 3429823 Contact Us For Availability

30

Nut WPL 3935437 Contact Us For Availability

Washer Tub-to-Pump Hose WPL 3429900 Contact Us For Availability

Gusset WPL 3935128 Contact Us For Availability

Protector WPL 3429705 Contact Us For Availability

Funnel WPL 3935327 Contact Us For Availability

31A

Gusset WPL 3935129 Contact Us For Availability

32

Clamp WPL 3935874 Contact Us For Availability

33

Washer Cycle Selector Switch WPL 3966202 Contact Us For Availability

34

Shield WPL 3935997 Contact Us For Availability

34

Screw WPL 3935634 Contact Us For Availability

35

Temperature Switch WPL 3966205 Contact Us For Availability

36

WP2205813 Whirlpool Refrigerator Wire Tie Backorder WPL WP2205813 $2.55

37

Lock WPL 3429416 Contact Us For Availability

37

Wire Tie WPL 3935429 Contact Us For Availability

38

Shield WPL 3430197 Contact Us For Availability

38

Screw WPL 3428934 Contact Us For Availability

39

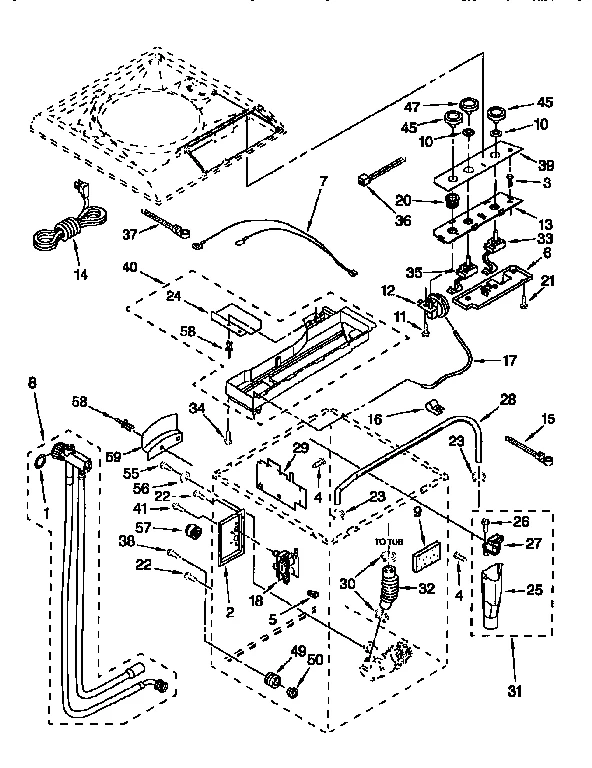

Control Panel WPL 3935514 Contact Us For Availability

39A

Control Panel WPL 3935515 Contact Us For Availability

40

Shield WPL 3935627 Contact Us For Availability

41

Washer Screw WPL 3934148 Contact Us For Availability

45

Control Knob WPL 3935449 Contact Us For Availability

45A

Control Knob WPL 3935450 Contact Us For Availability

47

Control Knob WPL 3935451 Contact Us For Availability

47A

Control Knob WPL 3935452 Contact Us For Availability

49

Grommet WPL 3428526 Contact Us For Availability

50

Spacer WPL 3428933 Contact Us For Availability

56

Washer WPL 3429923 Contact Us For Availability

57

WP356054 Whirlpool Cap Assembly Backorder WPL WP356054 $4.63

58

Rivet WPL 3430186 Contact Us For Availability

59

Bracket WPL 356499 Contact Us For Availability

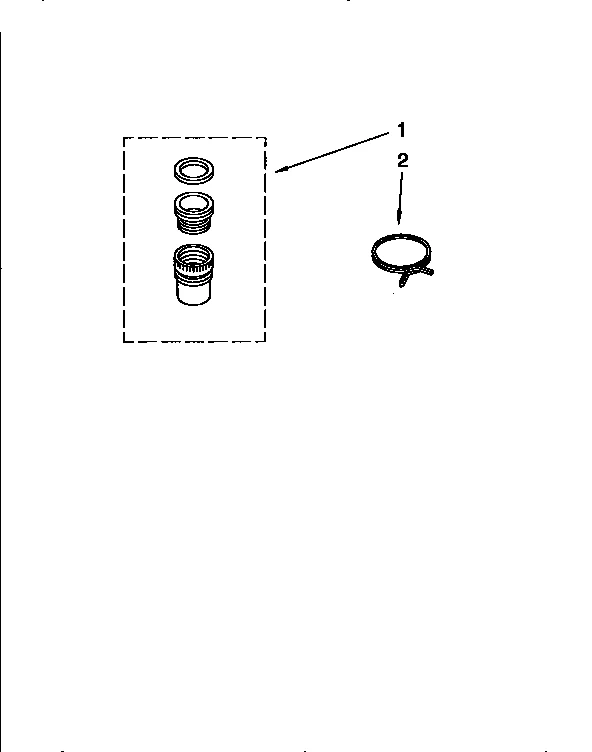

285677 Whirlpool Convection Kit Backorder WPL 285677 $84.36

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.76

350938 Whirlpool Spray Gun Backorder WPL 350938 $51.15

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.30

49971 Whirlpool Compact Washer Stand, White Backorder WPL 49971 $271.45

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $5.00

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $34.89

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.23

Paint (White) WPL 799344 Contact Us For Availability

Conv-kit WPL 3935674 Contact Us For Availability

Stand Al WPL 49978 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability
