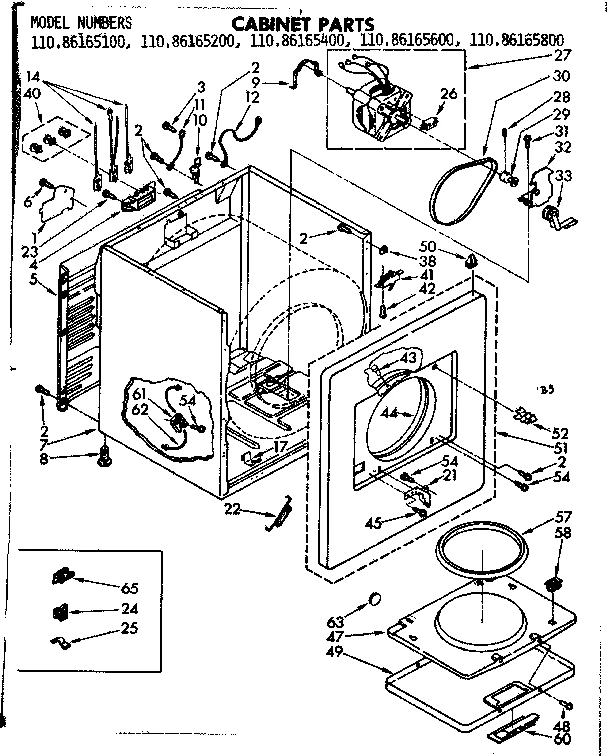

Whirlpool 110.86165600 Electric Dryer (Kenmore 11086165600) Parts List

1

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $26.28

View on Model

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

View on Model

4

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

View on Model

4

279771 Whirlpool Clip Backorder WPL 279771 $6.20

View on Model

5

Box WPL 685457 Contact Us For Availability

View on Model

5

Panel WPL 346368 Contact Us For Availability

View on Model

7

End Cap Clip WPL 689559 Contact Us For Availability

View on Model

7

(338471) (ALT.) WPL N/P Contact Us For Availability

View on Model

7A

Cabinet (White) WPL 690847 Contact Us For Availability

View on Model

7B

Cabinet WPL 690849 Contact Us For Availability

View on Model

7C

Cabinet WPL 690850 Contact Us For Availability

View on Model

7D

Cabinet WPL 690851 Contact Us For Availability

View on Model

7E

Cabinet (Almond) WPL 690848 Contact Us For Availability

View on Model

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

View on Model

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

View on Model

10

WP8066217 Whirlpool Hinge In Stock WPL WP8066217 $3.70

View on Model

11

Ground Wire WPL 340025 Contact Us For Availability

View on Model

12

Compression Ring WPL 90015 Contact Us For Availability

View on Model

12

Wire WPL 690236 Contact Us For Availability

View on Model

14

WP4391960 Whirlpool Dryer Heating Element In Stock WPL WP4391960 $18.74

View on Model

14A

279318 Whirlpool Terminal In Stock WPL 279318 $44.05

View on Model

17

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.50

View on Model

17

Screw, Nibbed WPL 339607 Contact Us For Availability

View on Model

17

Bulkhead WPL 685769 Contact Us For Availability

View on Model

18

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

View on Model

18

Screw WPL 355326 Contact Us For Availability

View on Model

19

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $34.33

View on Model

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.79

View on Model

20

Dryer Timer Knob WPL 688865 Contact Us For Availability

View on Model

21

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $8.16

View on Model

21

Door Hinge WPL 238456 Contact Us For Availability

View on Model

21

Dryer Control Knob WPL 349796 Contact Us For Availability

View on Model

21A

WP238460 Whirlpool Hinge In Stock WPL WP238460 $2.51

View on Model

22

WP337186 Whirlpool Door Spring In Stock WPL WP337186 $2.51

View on Model

22

Bracket WPL 348945 Contact Us For Availability

View on Model

22A

W10874409 Whirlpool Lint Screen Filter In Stock WPL W10874409 $40.85

View on Model

22B

Screen WPL 689470 Contact Us For Availability

View on Model

22C

Screen WPL 689472 Contact Us For Availability

View on Model

23

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

View on Model

23

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

View on Model

24

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

View on Model

24

Clip WPL 688412 Contact Us For Availability

View on Model

24A

Top (White) WPL 685958 Contact Us For Availability

View on Model

24B

Top WPL 689474 Contact Us For Availability

View on Model

24C

Top WPL 689476 Contact Us For Availability

View on Model

24D

Top WPL 689475 Contact Us For Availability

View on Model

24E

Top (Almond) WPL 689473 Contact Us For Availability

View on Model

25

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $213.22

View on Model

25

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

View on Model

25

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

View on Model

26

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

View on Model

26

Harness WPL 692026 Contact Us For Availability

View on Model

26

Screw WPL 690372 Contact Us For Availability

View on Model

27

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $25.73

View on Model

27

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

View on Model

28

Screw WPL 690046 Contact Us For Availability

View on Model

29

W11233559 Whirlpool Motor Pulley Backorder WPL W11233559 $44.93

View on Model

30

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $6.00

View on Model

31

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

View on Model

32

WP348780 Whirlpool Base In Stock WPL WP348780 $40.41

View on Model

33

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.06

View on Model

35

98460 Whirlpool Nut Backorder WPL 98460 $9.59

View on Model

36

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

View on Model

37

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

View on Model

38

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.16

View on Model

38

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

View on Model

40

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

View on Model

41

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

View on Model

41

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

View on Model

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

View on Model

43

279220 Whirlpool Clip Backorder WPL 279220 $11.93

View on Model

44

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $51.86

View on Model

44

Housing WPL 688880 Contact Us For Availability

View on Model

45

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

View on Model

47A

Door (White) WPL 346395 Contact Us For Availability

View on Model

47B

Door WPL 689490 Contact Us For Availability

View on Model

47C

Door WPL 689492 Contact Us For Availability

View on Model

47D

Door WPL 689491 Contact Us For Availability

View on Model

47E

Door (Almond) WPL 689489 Contact Us For Availability

View on Model

48

Screw WPL 689791 Contact Us For Availability

View on Model

49A

Door (White) WPL 348737 Contact Us For Availability

View on Model

49B

Door WPL 689486 Contact Us For Availability

View on Model

49C

Door WPL 689488 Contact Us For Availability

View on Model

49D

Door WPL 689487 Contact Us For Availability

View on Model

49E

Door (Almond) WPL 689485 Contact Us For Availability

View on Model

50

WP18776 Whirlpool Lock In Stock WPL WP18776 $5.01

View on Model

51

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $29.44

View on Model

51A

Panel (White) WPL 337464 Contact Us For Availability

View on Model

51B

Panel WPL 689526 Contact Us For Availability

View on Model

51C

Panel WPL 689528 Contact Us For Availability

View on Model

51D

Panel WPL 689527 Contact Us For Availability

View on Model

51E

Panel (Almond) WPL 689525 Contact Us For Availability

View on Model

52

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $54.61

View on Model

54

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $40.96

View on Model

54

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

View on Model

55

279505 Whirlpool Chute Backorder WPL 279505 $139.21

View on Model

56

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $7.98

View on Model

57

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $21.94

View on Model

58

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.17

View on Model

60A

WP348721 Whirlpool Handle In Stock WPL WP348721 $48.46

View on Model

60B

Handle WPL 689458 Contact Us For Availability

View on Model

60D

Handle WPL 689459 Contact Us For Availability

View on Model

60E

Handle (Almond) WPL 689457 Contact Us For Availability

View on Model

61

Door Cable Guide WPL 337182 Contact Us For Availability

View on Model

61A

Guide WPL 337183 Contact Us For Availability

View on Model

62

DOOR CABLE Backorder CMP 230131CM $4.48

View on Model

63

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $3.70

View on Model

65

Clip WPL 689567 Contact Us For Availability

View on Model

NI

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

View on Model

NI

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

View on Model

NI

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

View on Model

NI

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

View on Model

NI

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

View on Model

NI

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

View on Model

NI

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

View on Model

NI

Paint (White) WPL 799344 Contact Us For Availability

View on Model
