Model Whirlpool 110.25062500 Washer (Kenmore 11025062500) – Common Parts & Diagrams
CONTROL PANEL PARTS
BRAKE, MOTOR AND PUMP PARTS

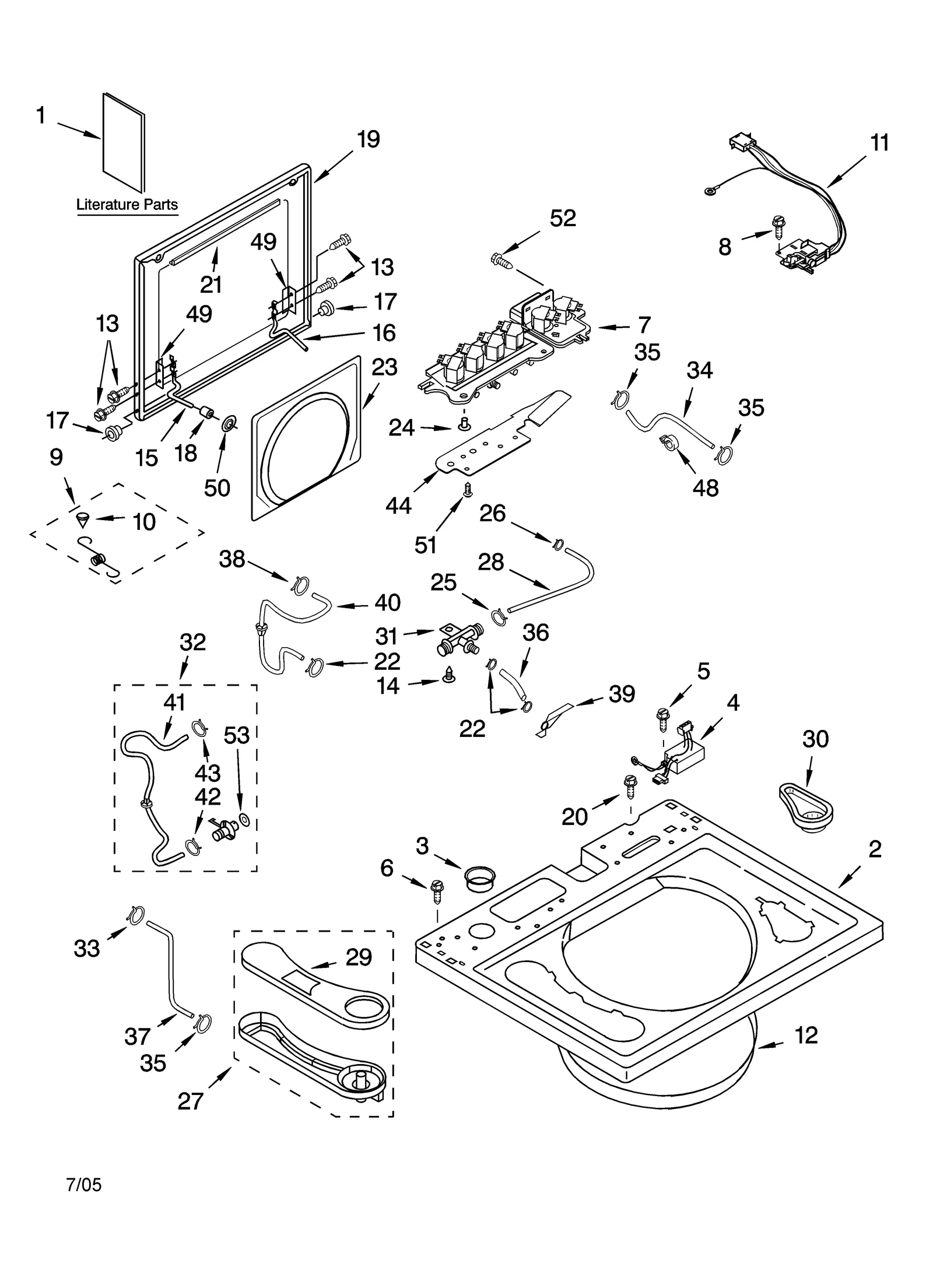

TOP AND LID PARTS

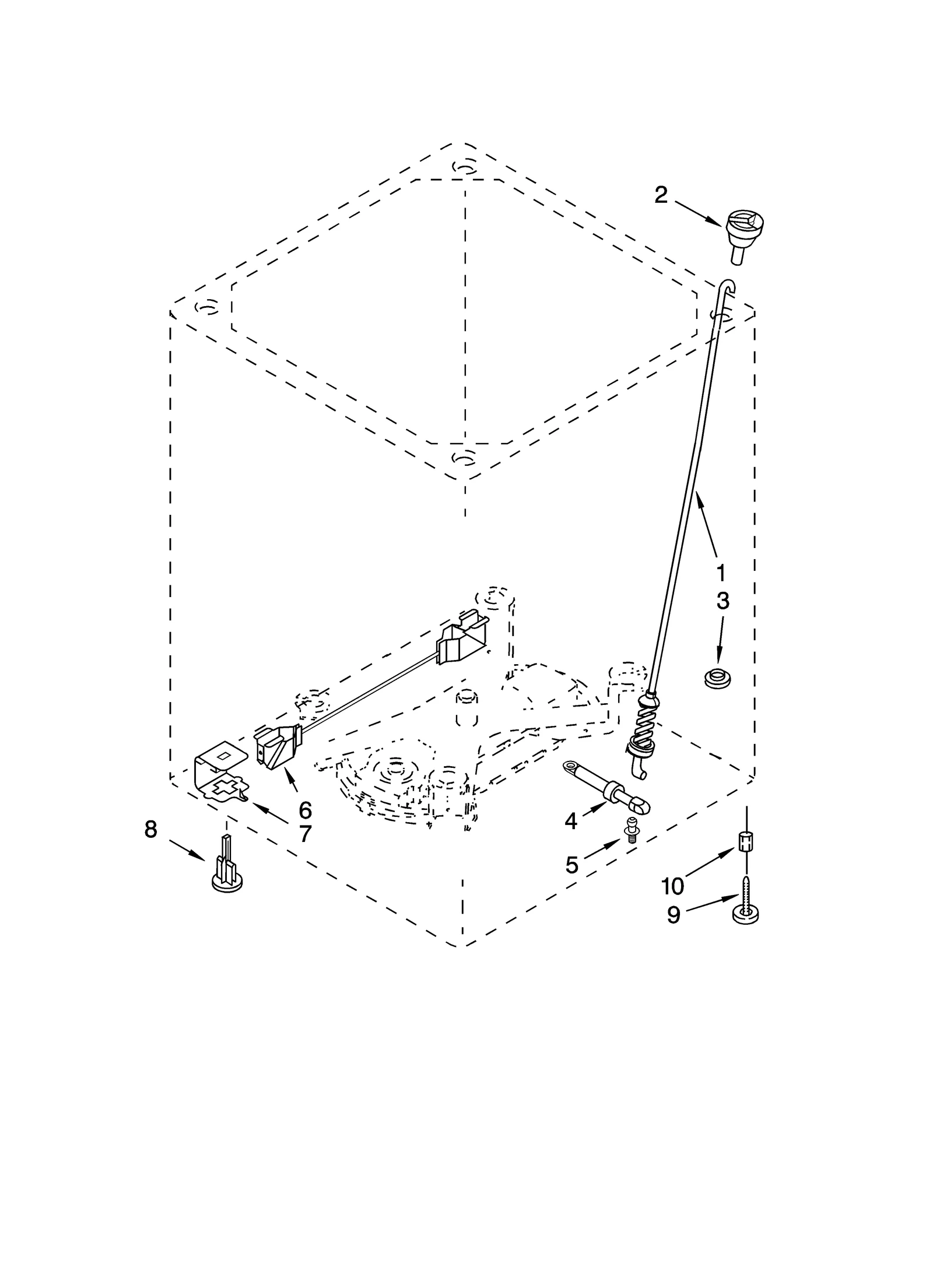

SUSPENSION PARTS

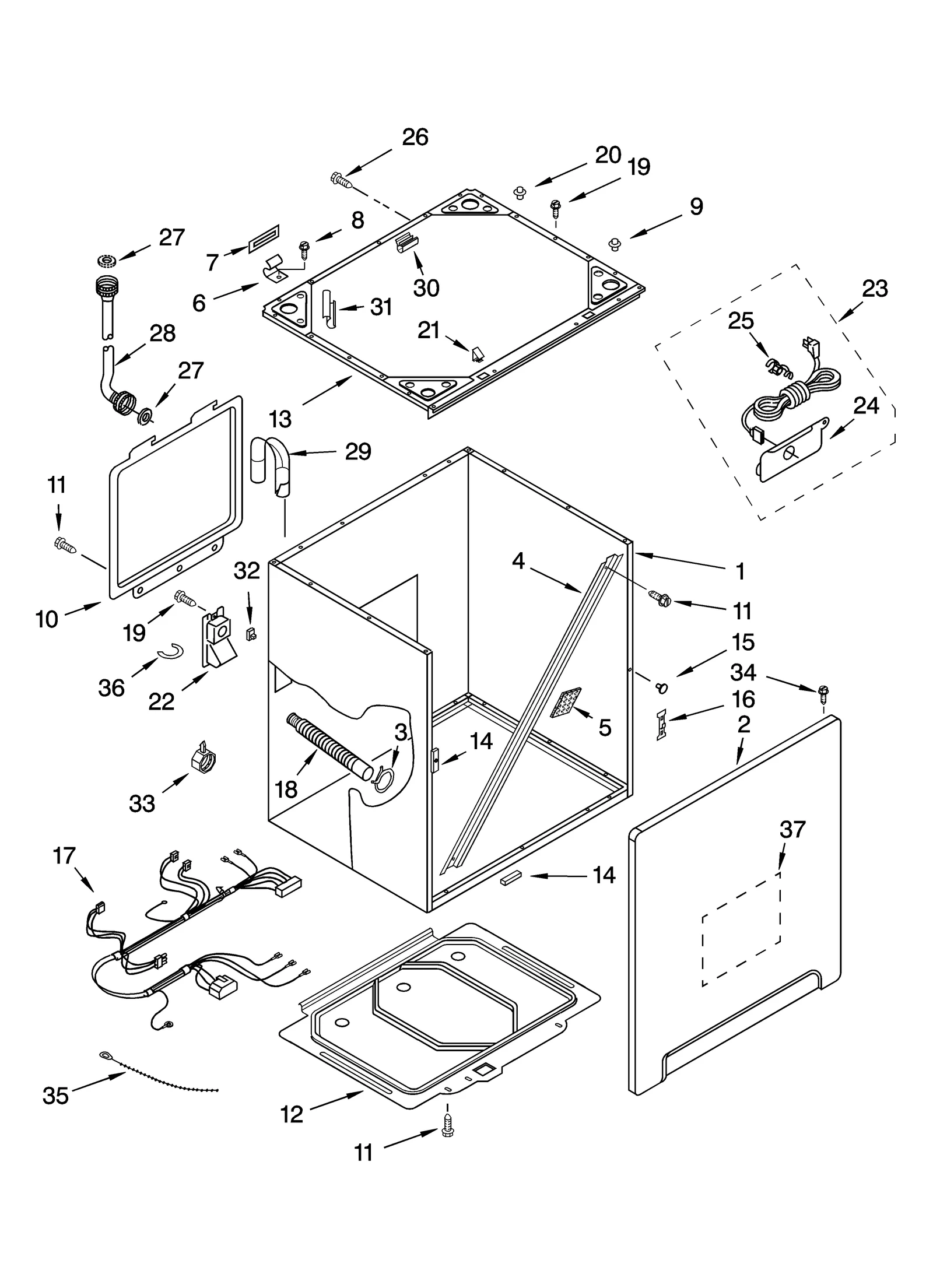

CABINET AND FRAME PARTS

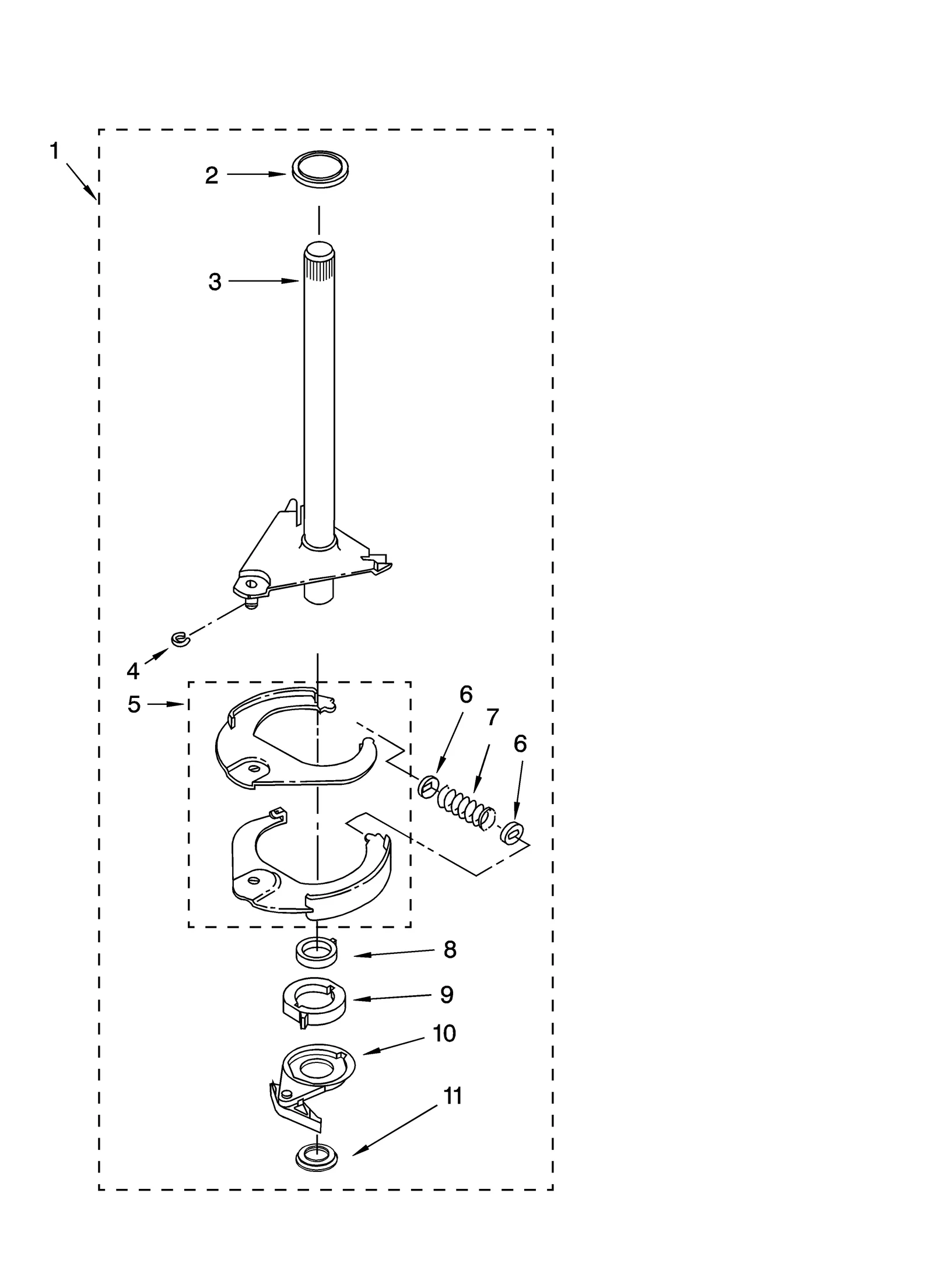

BRAKE AND DRIVE TUBE PARTS, MISCELLANEOUS PARTS, OPTIO

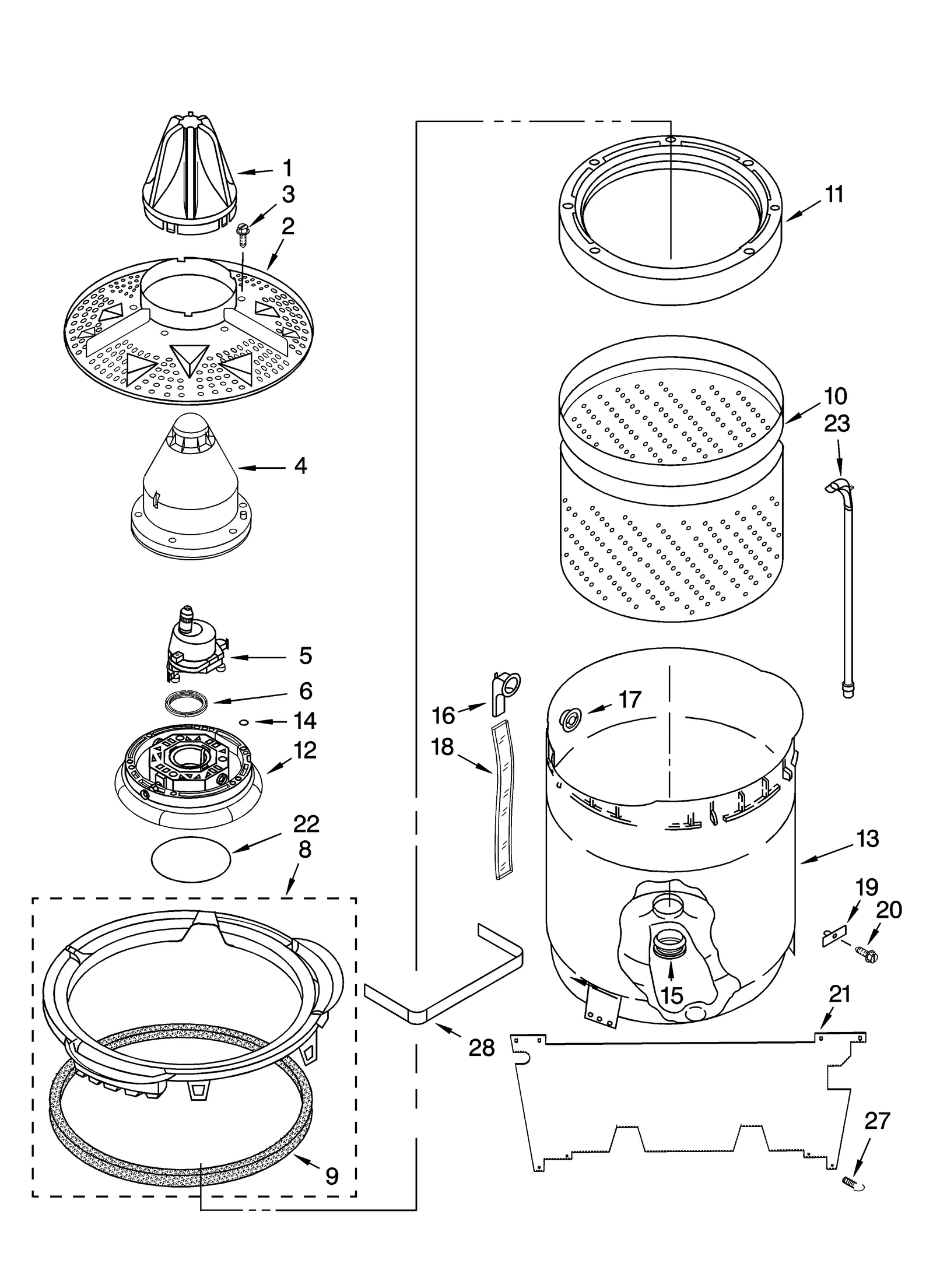

WASHPLATE, BASKET AND TUB PARTS
Common parts from model Whirlpool 110.25062500 Washer (Kenmore 11025062500)
1
Washer Brake Assembly WPL 8271972 Contact Us For Availability
1
Washer Suspension WPL 9723241 Contact Us For Availability
1
Cabinet WPL 8054490 Contact Us For Availability
1
Washer Washplate Dome WPL 8055042 Contact Us For Availability
1A
Cabinet WPL 3954709 Contact Us For Availability
1B
Cabinet WPL 8272122 Contact Us For Availability
2
Ball WPL 8055179 Contact Us For Availability
2
Panel WPL 8318240 Contact Us For Availability
2
Ring WPL 9724189 Contact Us For Availability
2
Washplate WPL 8055269 Contact Us For Availability
2A
Panel WPL 8318242 Contact Us For Availability
2B
Panel WPL 8280589 Contact Us For Availability
3
Socket WPL 8054964 Contact Us For Availability
3
Drive Tube WPL 8318243 Contact Us For Availability
3
Screw WPL 3400231 Contact Us For Availability
4
Washer Suspension Shock Absorber WPL 9723335 Contact Us For Availability
4
Brace WPL 8283274 Contact Us For Availability
4
Washplate WPL 8533210 Contact Us For Availability
5
Washer Motor Control Board WPL 8541034 Contact Us For Availability
5
Ball Stud WPL 8312710 Contact Us For Availability
5
Brake Shoe WPL 8271887 Contact Us For Availability
5
Leveler WPL 8519518 Contact Us For Availability
6
Support WPL 8054942 Contact Us For Availability
6
Link WPL 8271819 Contact Us For Availability
6
Hinge WPL 8519199 Contact Us For Availability
6
Cap, Brake Spring WPL 8055260 Contact Us For Availability
6
Washer Spanner Nut WPL 8520855 Contact Us For Availability
7
Washer Water Inlet Valve WPL 9724754 Contact Us For Availability
7
Clip, Leveling WPL 8054532 Contact Us For Availability
7
Spring WPL 8271969 Contact Us For Availability
8
Washer Leveling Leg WPL 8054747 Contact Us For Availability
8
Sleeve WPL 8055314 Contact Us For Availability
8
Tub Ring WPL 8317383 Contact Us For Availability
9
Washer Tub Ring Seal WPL 8054355 Contact Us For Availability
9
Washer Control Panel (White) WPL 8565423 Contact Us For Availability
9
Spring WPL 384463 Contact Us For Availability
9
Brake Cam WPL 8546463 Contact Us For Availability
10
Plug WPL 54690 Contact Us For Availability
10
Panel WPL 8518896 Contact Us For Availability
10
Driver Cam WPL 8054992 Contact Us For Availability
10
Basket WPL 8529754 Contact Us For Availability
11
Washer Electronic Control Board WPL 8571359 Contact Us For Availability
11
Washer Lid Switch WPL 8272124 Contact Us For Availability
11
Balance Ring WPL 9724323 Contact Us For Availability
11
Washer Agitator Cam Bearing WPL 8282568 Contact Us For Availability
12
Shield WPL 8055191 Contact Us For Availability
12
Pan WPL 8283364 Contact Us For Availability
12
U-Joint WPL 8562580 Contact Us For Availability
13
Washer Drive Belt WPL 8562613 Contact Us For Availability
13
Frame WPL 8054500 Contact Us For Availability
13
Washer Outer Tub WPL 8529943 Contact Us For Availability
14
Washer Retainer Clip WPL 8282566 Contact Us For Availability
14
Motor Switch WPL 8300022 Contact Us For Availability
15
Hinge Washer WPL 8055257 Contact Us For Availability
15
Spacer WPL 8283353 Contact Us For Availability
15
Washer Door Boot WPL 8055288 Contact Us For Availability
16
Hinge Washer WPL 8055256 Contact Us For Availability
16
Tube WPL 8283307 Contact Us For Availability
17
Washer Lid Hinge Bearing WPL 8319539 Contact Us For Availability
17
Washer Wire Harness WPL 8299814 Contact Us For Availability
17
Washer Outer Tub Overflow Connection WPL 8283308 Contact Us For Availability
18
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
18
Washer Drain Hose WPL 9724100 Contact Us For Availability
18
Bag WPL 8055135 Contact Us For Availability
19
Lid Asm - Ke WPL 8567355 Contact Us For Availability
19
Clip, Tub Retainer WPL 9724609 Contact Us For Availability
19A
Lid Asm - Ke WPL 8567356 Contact Us For Availability
19B
Lid WPL 8567357 Contact Us For Availability
20
Rivet WPL 8271831 Contact Us For Availability
21
Washer Lid Seal WPL 8054939 Contact Us For Availability
21
Lock WPL 8318449 Contact Us For Availability
21
Sound Absorber WPL 8541606 Contact Us For Availability
21A
Washer Lid Seal WPL 8283532 Contact Us For Availability
22
Connector WPL 9724106 Contact Us For Availability
23
Washer Water Recirculation Tube WPL 8054989 Contact Us For Availability
23
Inner Lid WPL 8543686 Contact Us For Availability
23
Power Cord WPL 8310666 Contact Us For Availability
24
Clip WPL 8299698 Contact Us For Availability
24
Cover WPL 8283348 Contact Us For Availability
25
Relief Stirrer WPL 8054328 Contact Us For Availability
26
Washer Tub-to-Pump Hose WPL 8054944 Contact Us For Availability
27
Washer Dispenser Assembly WPL 8055022 Contact Us For Availability
27
Retainer WPL 3351189 Contact Us For Availability
28
Washer Tub-to-Pump Hose WPL 8054988 Contact Us For Availability
28
Hose WPL 8054366 Contact Us For Availability
28
Shield WPL 8318231 Contact Us For Availability
29
Drive Pulley Assembly WPL 8055089 Contact Us For Availability
29
Cover WPL 8571813 Contact Us For Availability
29
Washer Drain Hose U-Bend Bracket WPL 8528318 Contact Us For Availability
30
Dispenser WPL 8571812 Contact Us For Availability
30
Clip WPL 8310651 Contact Us For Availability
31
Connector WPL 8055168 Contact Us For Availability
31
Clip WPL 8528279 Contact Us For Availability
32
Hose WPL 8542373 Contact Us For Availability
33
Clip WPL 9724675 Contact Us For Availability
34
Washer Detergent Dispenser Hose WPL 8530273 Contact Us For Availability
36
Washer Bleach Dispenser Hose WPL 8538442 Contact Us For Availability
36
Retainer WPL 8318208 Contact Us For Availability
37
Washer Fabric Softener Dispenser Hose WPL 8054365 Contact Us For Availability
37
Sound Absorber WPL 8317308 Contact Us For Availability
39
Clip WPL 8271943 Contact Us For Availability
40
Hose WPL 8316761 Contact Us For Availability
41
Hose WPL 8316762 Contact Us For Availability
44
Shield WPL 8529937 Contact Us For Availability
50
Nut WPL 8532031 Contact Us For Availability
51
Rivet WPL 8530271 Contact Us For Availability
53
Gasket WPL 8563776 Contact Us For Availability
NI
Appliance Touch-Up Paint, 0.6-oz (Graphite) WPL 80051 Contact Us For Availability
NI
Paint (White) WPL 799344 Contact Us For Availability
NI
Washer Leveling Leg WPL 8281198 Contact Us For Availability
NI
Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability
NI
Appliance Paint, 1-qt (Bisque) WPL 4392900 Contact Us For Availability
NI
Paint (Graphite) WPL 8171358 Contact Us For Availability
NI
Replacement Part WPL 8529947 Contact Us For Availability
NI
BAG, DELICATE ITEMS WPL 8571889 Contact Us For Availability
× ![]()
