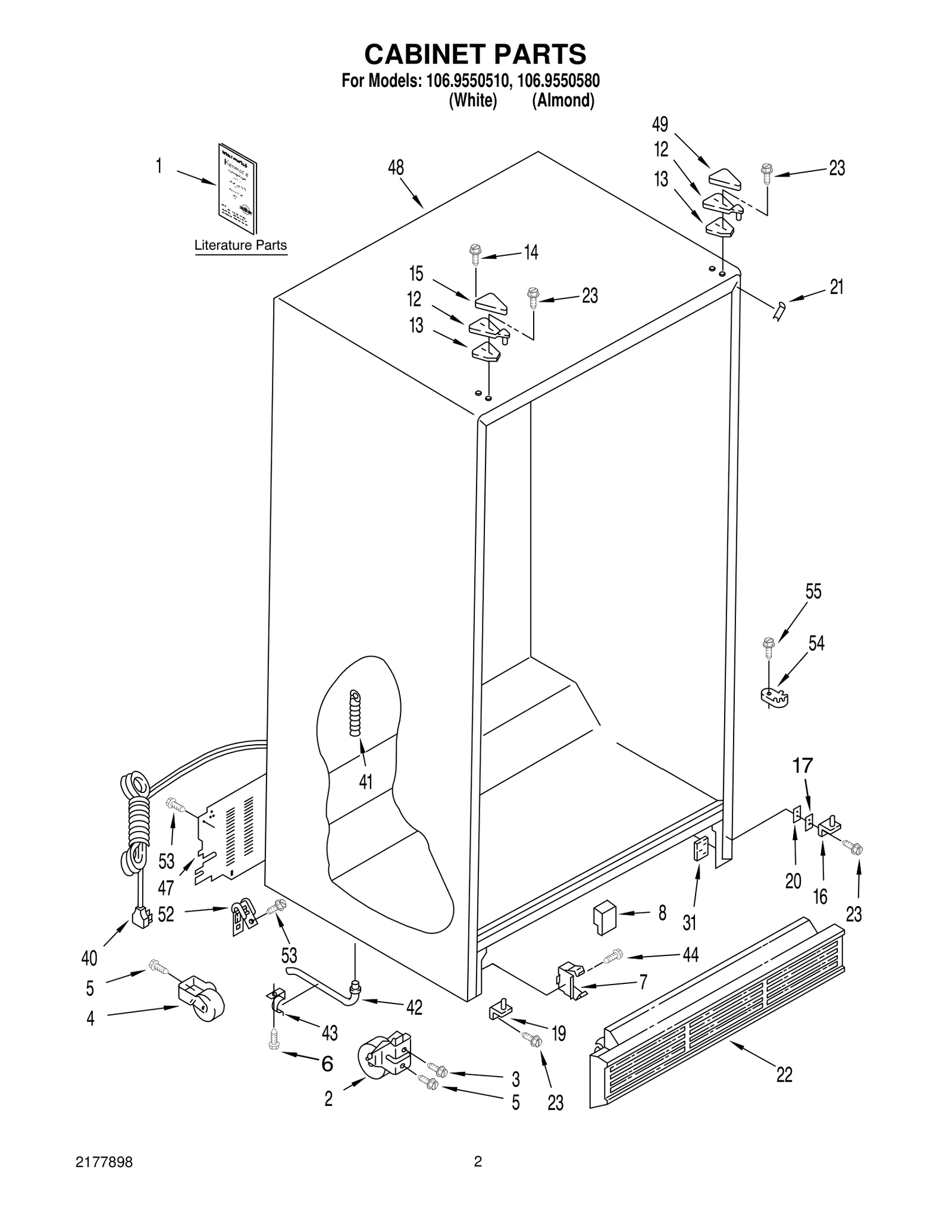

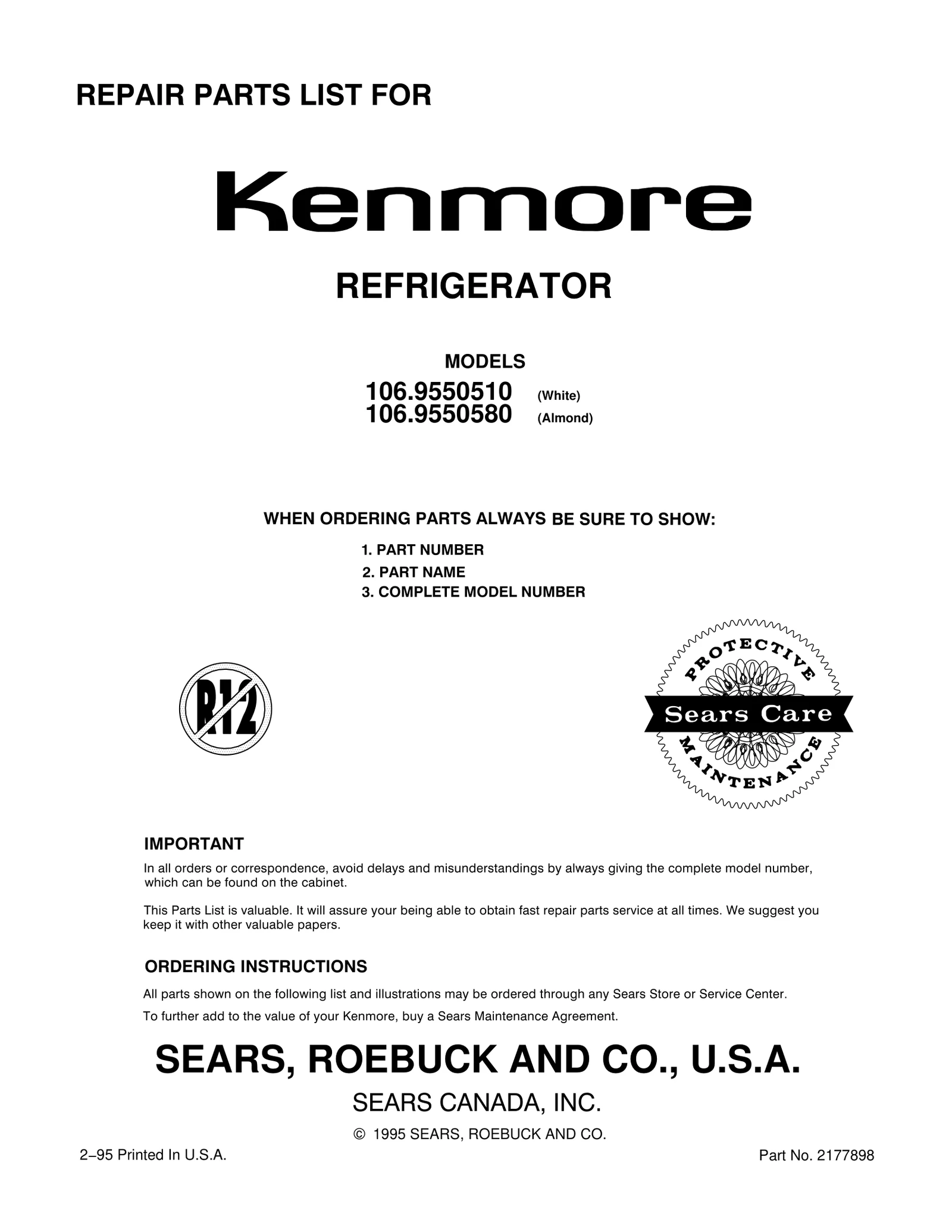

Model Whirlpool 106.9550510 Refrigerator – Common Parts &amp; Diagrams

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $122.77

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

Freezer, Door Panel — White WPL 4362008 Contact Us For Availability

1

Almond (Also Order Item 11) WPL 4362009 Contact Us For Availability

1

Heater, Dispenser WPL 2154789 Contact Us For Availability

1

Control Box WPL 2169147 Contact Us For Availability

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

Retainer, Fan Motor WPL 2155590 Contact Us For Availability

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Grommet WPL 987048 Contact Us For Availability

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

3

Handle WPL 2169729 Contact Us For Availability

3

Trim, Shelf (3) WPL 2163438 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

3

Screw (2) WPL 489397 Contact Us For Availability

3

Condenser Assembly WPL 2164513 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $20.89

4

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

Cap, Hinge Sleeve WPL 939886 Contact Us For Availability

4

Housing, Dispenser WPL 1107943 Contact Us For Availability

5

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Release Valve WPL 2171846 Contact Us For Availability

5

Shelf, Compartment WPL 1116707 Contact Us For Availability

5

End Cap (Top) WPL 2160457 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

Track, Roll−Top WPL 2154319 Contact Us For Availability

6

Diffuser Air Duct WPL 2149544 Contact Us For Availability

6

Defrost Timer WPL 2162046 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.95

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $13.36

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $93.38

7

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

7

Gasket, Door WPL 983691 Contact Us For Availability

7

End Cap (Bottom) WPL 2151819 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability

8

2188404A Whirlpool Refrigerator Door Gasket In Stock WPL 2188404A $133.14

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

Shield, Ice Door WPL 987121 Contact Us For Availability

8

Retainer, Gasket WPL 1117767 Contact Us For Availability

8

Hole Plug WPL 940014 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $51.64

9

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

9

Door, Ice WPL 983690 Contact Us For Availability

9

Cap, Hinge Sleeve WPL 509929 Contact Us For Availability

2188405A Whirlpool Refrigerator Door Gasket Backorder WPL 2188405A $140.37

4318046 Whirlpool Dual Water Inlet Valve In Stock WPL 4318046 $33.02

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Door Mechanism Assembly WPL 938669 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $36.51

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Wire Connector WPL 227991 Contact Us For Availability

Cam Assembly WPL 2161250 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP1120581 Whirlpool Refrigerator Mechanism Backorder WPL WP1120581 $89.54

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $33.42

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Screw Anchor (2) WPL 941242 Contact Us For Availability

Harness, Fan Evaporator, And Heater, Bi−Met WPL 2161478 Contact Us For Availability

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $76.53

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

Grille, Overflow WPL 983900 Contact Us For Availability

Tube, Water Inlet WPL 2171943 Contact Us For Availability

Grommet (4) WPL 2176134 Contact Us For Availability

Shim, Hinge Top WPL 1123515 Contact Us For Availability

Panel, Interior Door WPL 1125649 Contact Us For Availability

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Trim, Door Shelf (4) WPL 2169749 Contact Us For Availability

Clip, Bearing (2) WPL 987917 Contact Us For Availability

Retainer, Damper WPL 938439 Contact Us For Availability

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Hinge Cover — White WPL 1129262 Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

Bearing, Lever (3) WPL 983697 Contact Us For Availability

Relay WPL N/S Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $36.71

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $29.17

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Spring, Lever (2) WPL 983696 Contact Us For Availability

Tube, Water Line WPL 2147080 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $34.28

Panel, Interior Door WPL 2161221 Contact Us For Availability

Harness, Door WPL 2179915 Contact Us For Availability

Shield, Wiring WPL 984494 Contact Us For Availability

Capacitor WPL 2169137 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $30.20

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $35.91

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Switch, Light WPL 851386 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $153.49

Tube, Door Wiring WPL 1119059 Contact Us For Availability

Control Box Harness WPL 2149185 Contact Us For Availability

Unit Cover, Bottom WPL 2160505 Contact Us For Availability

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

21

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

21

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $33.64

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $203.37

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $93.40

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.55

Grille WPL 2155476 Contact Us For Availability

Insulation, Dispenser WPL 1115206 Contact Us For Availability

Clip, Wiring WPL 1115375 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $32.06

Chute, Ice WPL 987188 Contact Us For Availability

Connecting Rod WPL 1123959 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $29.83

Fastener, Push−On WPL 489285 Contact Us For Availability

Tap Plate WPL 2155335 Contact Us For Availability

Lever, Ice Dispenser WPL 1127421 Contact Us For Availability

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.99

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $41.30

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $45.89

Guide, Ice WPL 1118269 Contact Us For Availability

Escutcheon, Control Box WPL 2179323 Contact Us For Availability

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Screw WPL 489197 Contact Us For Availability

26

Harness, Intermediate WPL 2149199 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $24.91

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $46.67

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Stop, Glass WPL 1119056 Contact Us For Availability

Knob, Air Control WPL 1116853 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $27.52

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $51.59

Bracket, Door Stop WPL 2155334 Contact Us For Availability

Track, Roll WPL 2154317 Contact Us For Availability

Seal WPL 482672 Contact Us For Availability

Retainer, Knob WPL 837444 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

Shim WPL 2160458 Contact Us For Availability

29

Socket, Lamp WPL 987265 Contact Us For Availability

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

Screw WPL 488362 Contact Us For Availability

30

Unit Mounting Frame WPL 2160498 Contact Us For Availability

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $28.40

31

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

31

End Cap, Handle WPL 2174700 Contact Us For Availability

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $48.79

Retainer, Gasket WPL 1117766 Contact Us For Availability

Insulator, Switch (2) WPL 984683 Contact Us For Availability

Bracket, Fan Motor WPL 548695 Contact Us For Availability

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $52.59

Track, Roll−Bottom WPL 2154320 Contact Us For Availability

Bracket, Control WPL 1129283 Contact Us For Availability

34

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $8.31

34

Trim, Door−Top WPL 2161271 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $49.38

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

Trim, Door−Bottom WPL 2161273 Contact Us For Availability

Spring, Plunger WPL 983986 Contact Us For Availability

36

Trim, Middle WPL 2161272 Contact Us For Availability

36

Plunger WPL 1116563 Contact Us For Availability

36

Clip, Support (2) WPL 2155021 Contact Us For Availability

37

Nameplate WPL 2155971 Contact Us For Availability

37

Pin, Retainer WPL 983987 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

38

Lever, Water Dispenser WPL 2159196 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

Plaque, Front Cover WPL 2174297 Contact Us For Availability

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

Front Cover, Housing WPL 2174319 Contact Us For Availability

40

Nut, Compression WPL 1129179 Contact Us For Availability

41

Air Baffle WPL 2155301 Contact Us For Availability

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

42

Clip, Heat WPL 2155547 Contact Us For Availability

43

Screw WPL 488316 Contact Us For Availability

44

Retainer, Gasket WPL 1118301 Contact Us For Availability

44

Wiring Assembly, Door WPL 2149783 Contact Us For Availability

45

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

Hinge Cover — White WPL 1119787 Contact Us For Availability

49

Screw WPL 488624 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $26.83

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

Wire Tie WPL 851095 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 850145 Contact Us For Availability

59

Clip, Wire & Tube WPL 2155658 Contact Us For Availability

61

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

62

Clip, Tube (3) WPL 934011 Contact Us For Availability

63

WP4211117 Whirlpool Refrigerator Connector In Stock WPL WP4211117 $5.34

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

Valve, Access WPL 978029 Contact Us For Availability

Tube, Spring Following Parts Not Illustrated WPL 983659 Contact Us For Availability

Valve, Access WPL 978028 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $107.21

OPT-1

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

OPT-2

285006 Whirlpool Spray In Stock WPL 285006 $44.38

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

OPT-4

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

OPT-5

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

OPT-6

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

OPT-7

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.21

OPT-8

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

OPT-9

(4 Feet) WPL 479502 Contact Us For Availability

OPT-11

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $106.84

OPT-13

X 2−5/8) WPL 876029 Contact Us For Availability

OPT-14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

OPT-15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

OPT-16

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

OPT-17

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

OPT-18

(1/2 Oz.) WPL 542639 Contact Us For Availability

OPT-19

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.17

OPT-20

(36−5/8" x 46") WPL 799833 Contact Us For Availability

OPT-21

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

OPT-22

Refinishing Material WPL 799340 Contact Us For Availability

OPT-23

(1 Qt. Uncut) WPL 799344 Contact Us For Availability

OPT-24

(1 Qt. Uncut) WPL 978883 Contact Us For Availability

OPT-25

TORX SCREW WRENCH WPL 1117510 Contact Us For Availability
