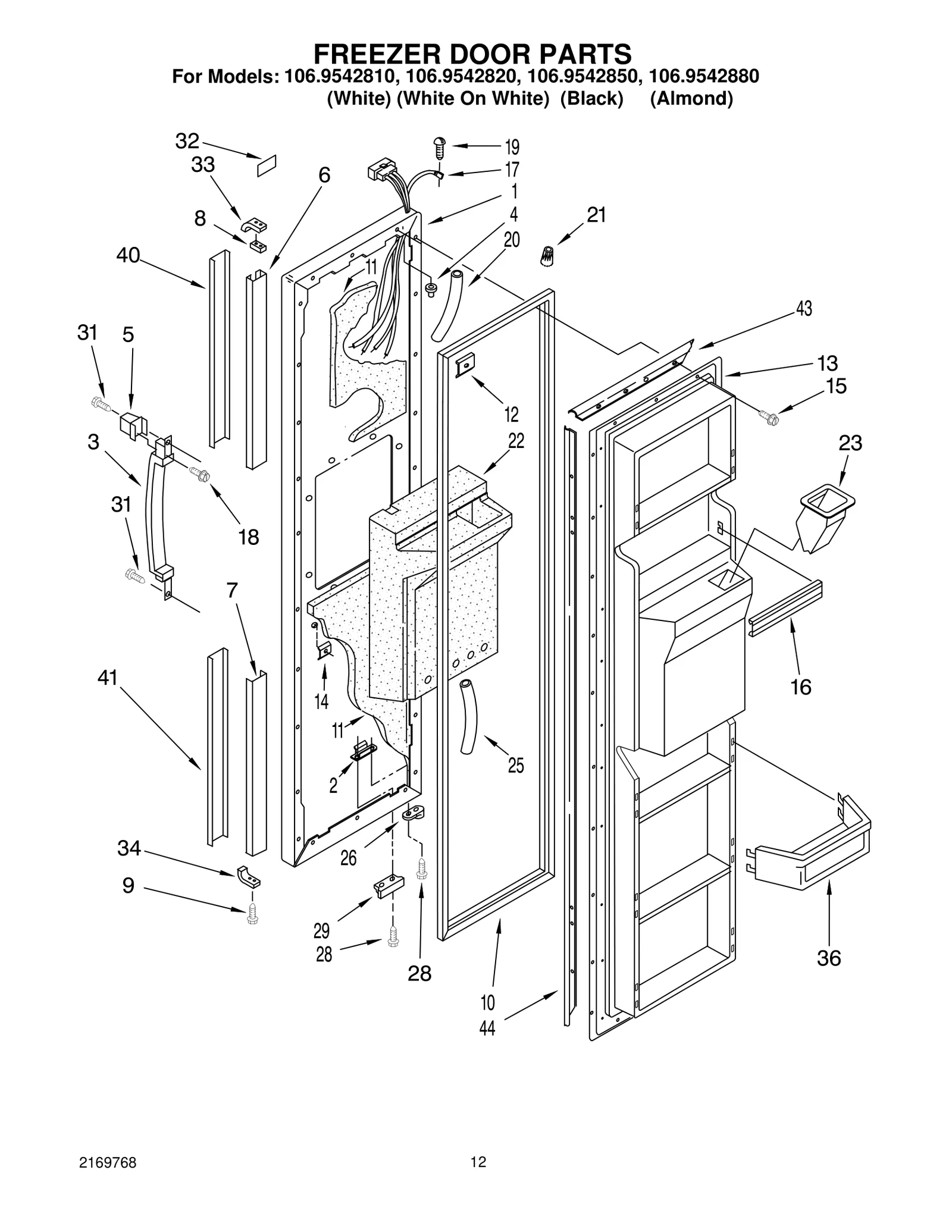

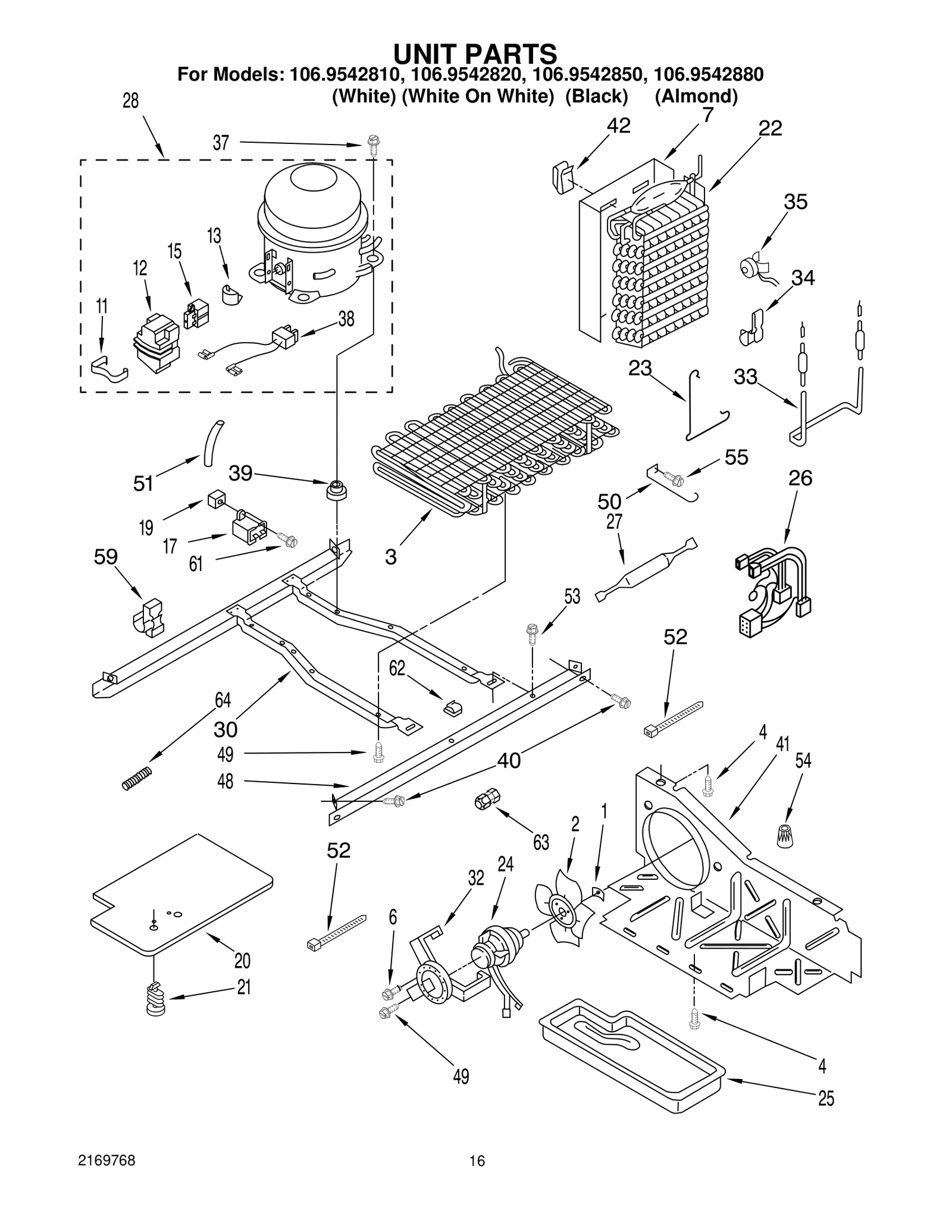

Model Whirlpool 106.9542850 Refrigerator – Common Parts &amp; Diagrams

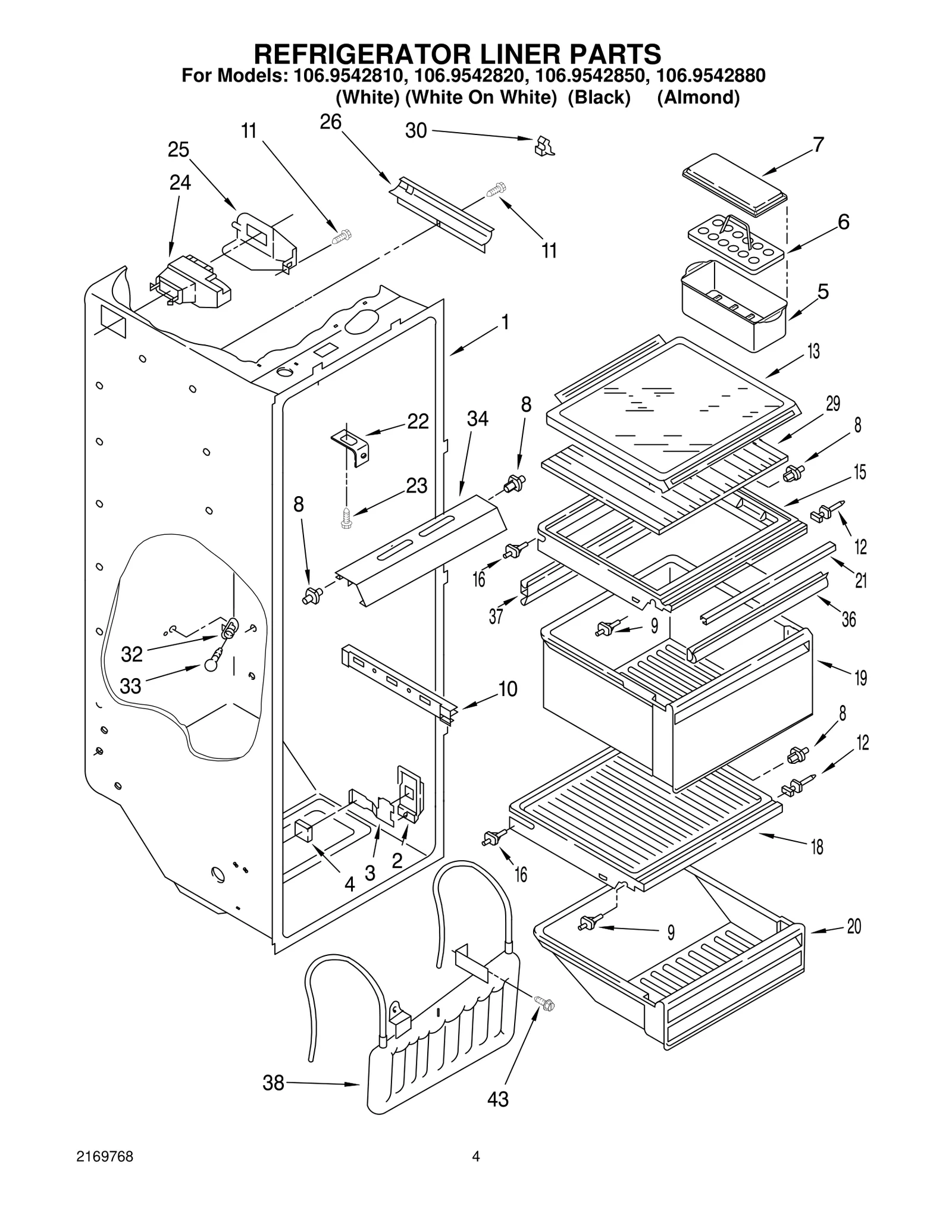

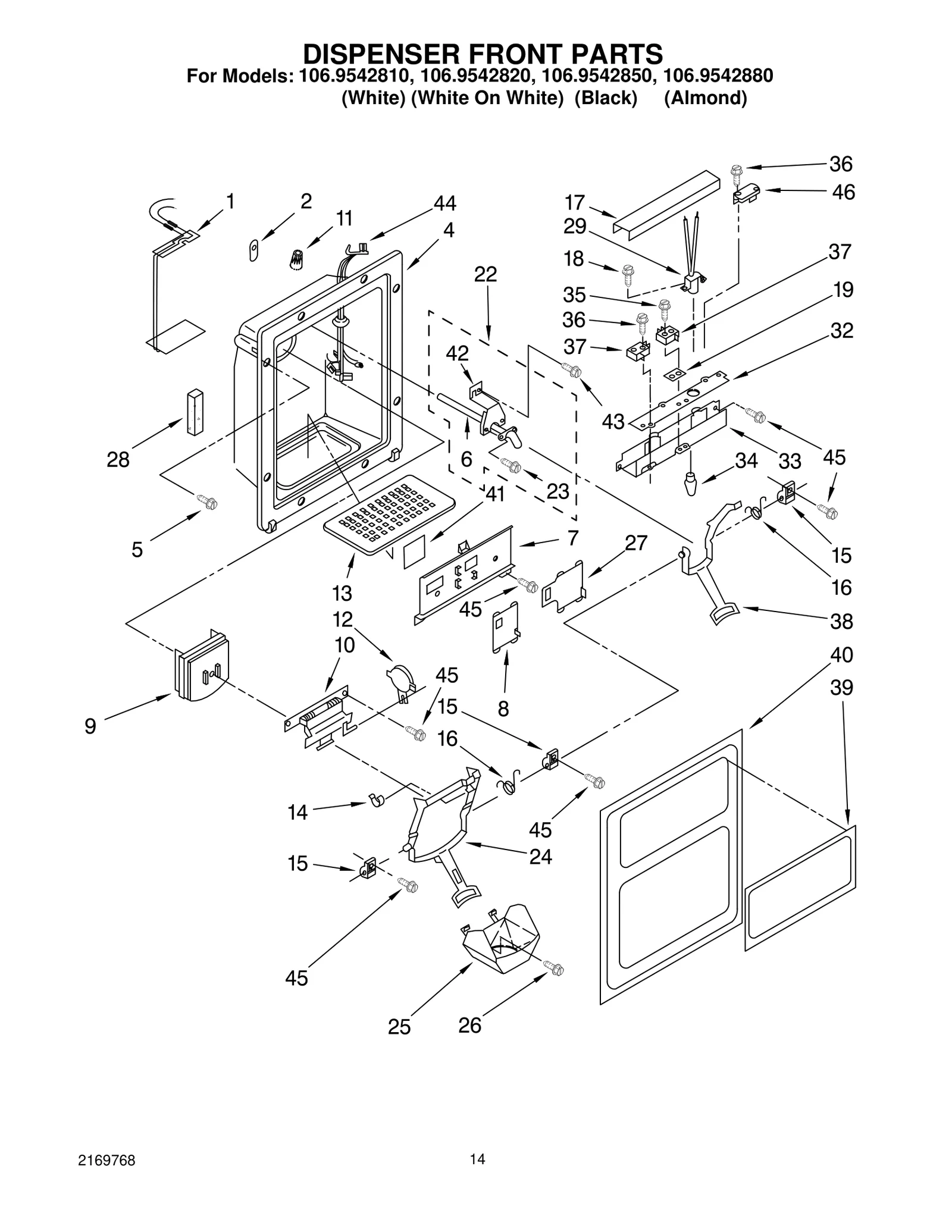

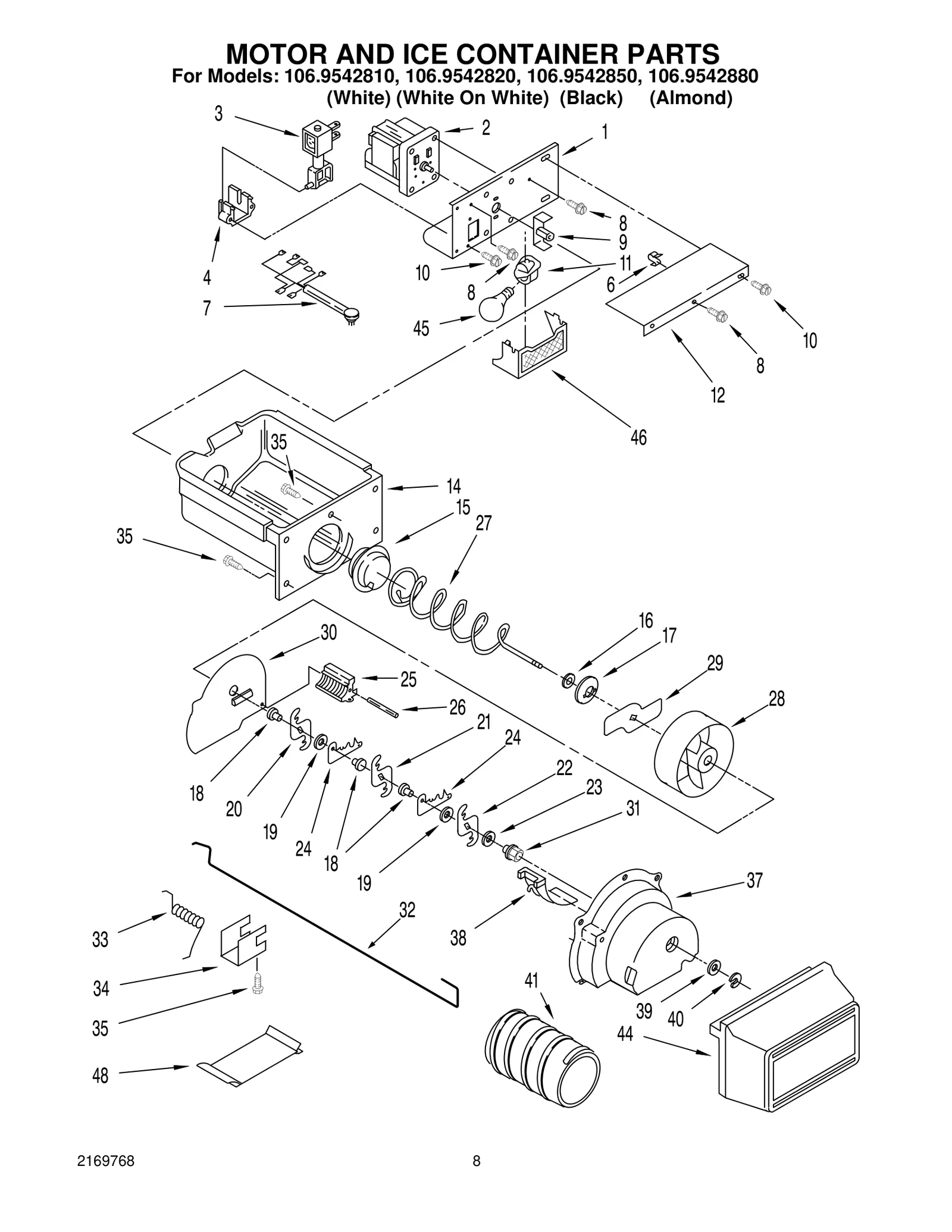

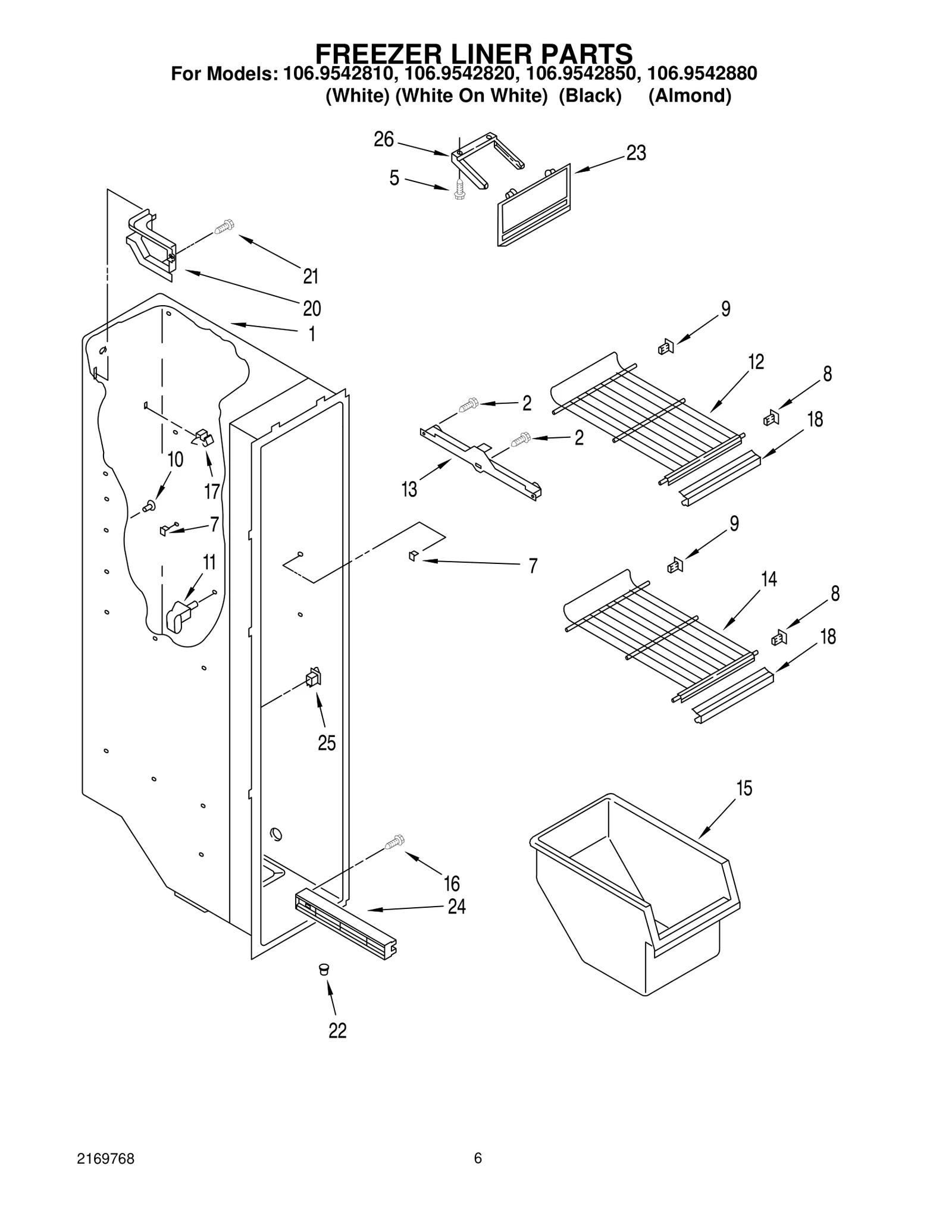

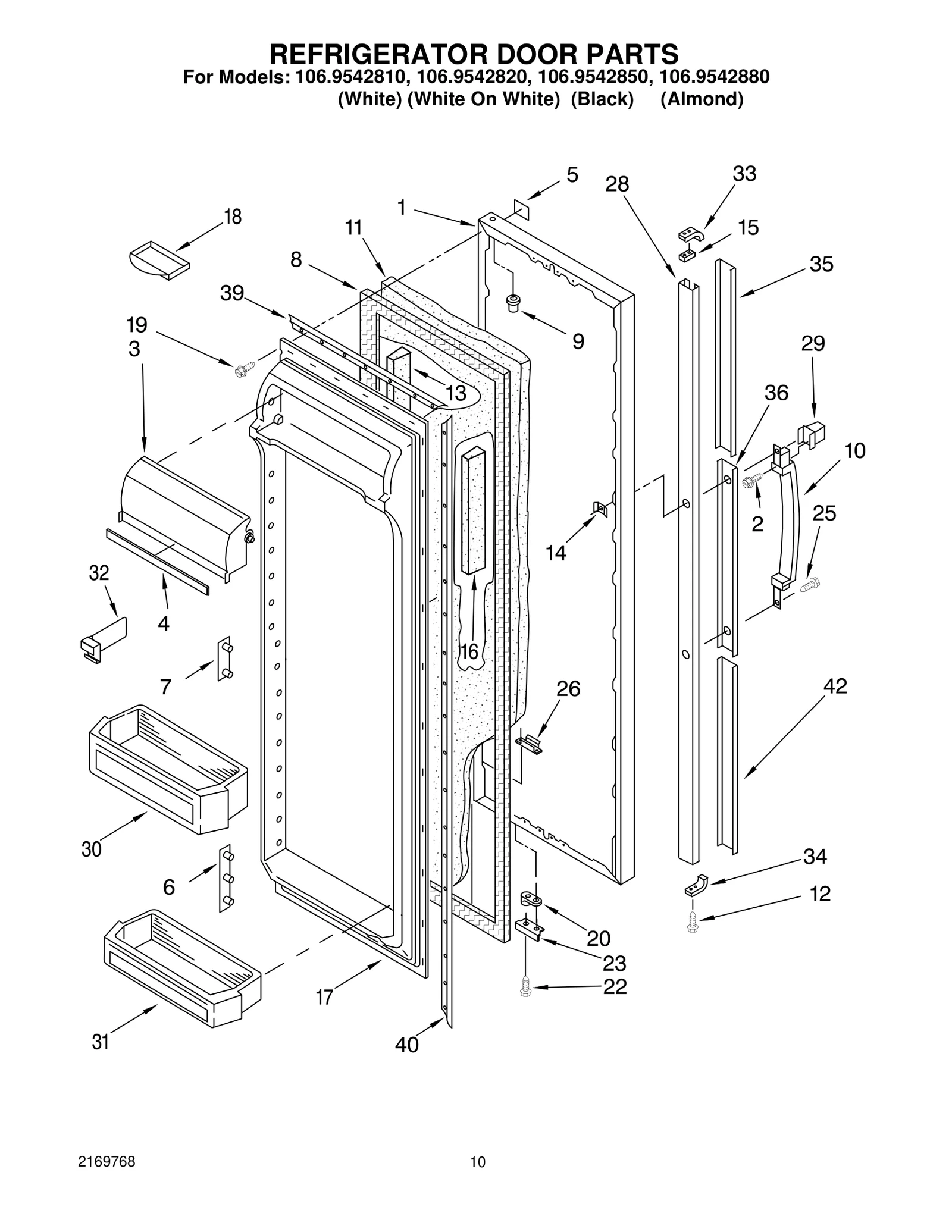

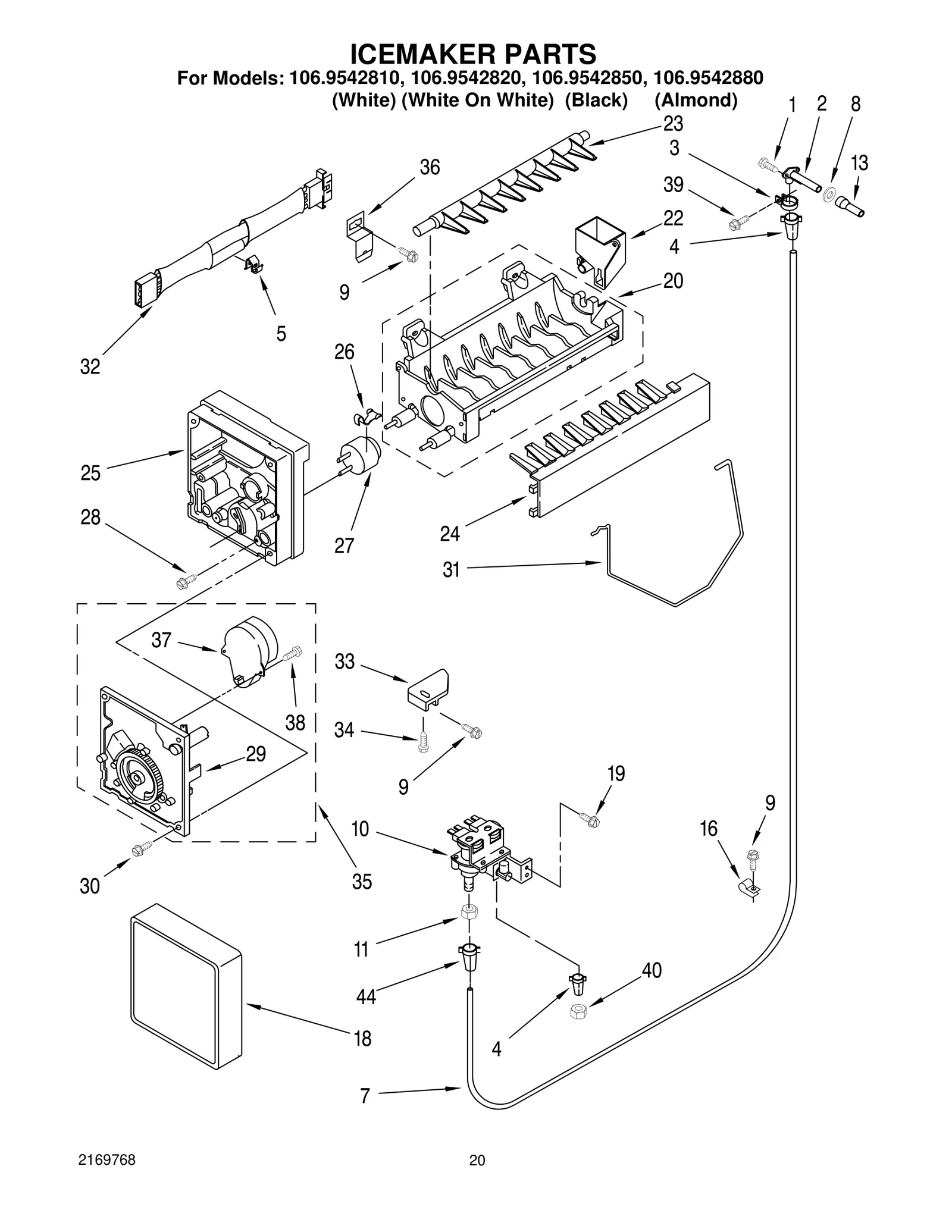

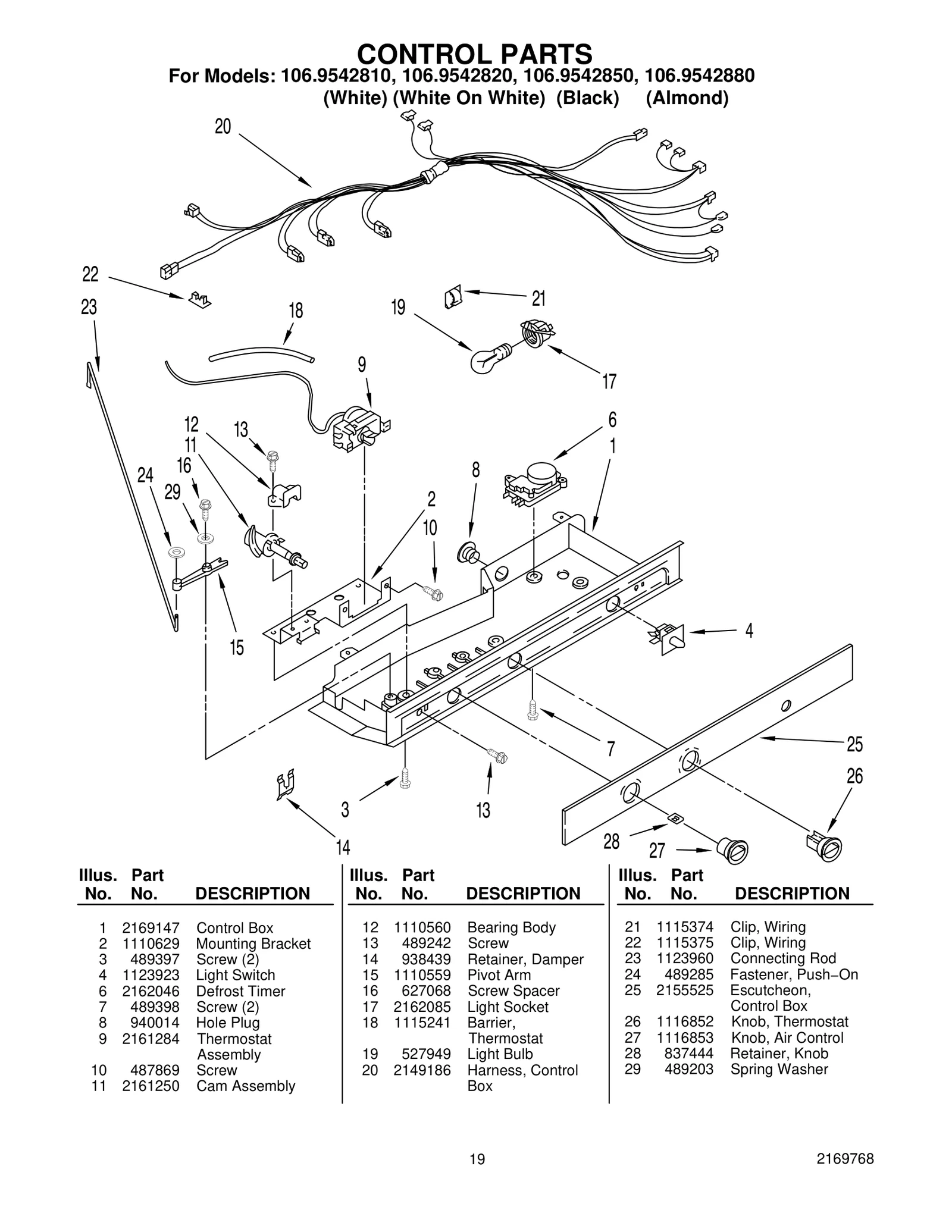

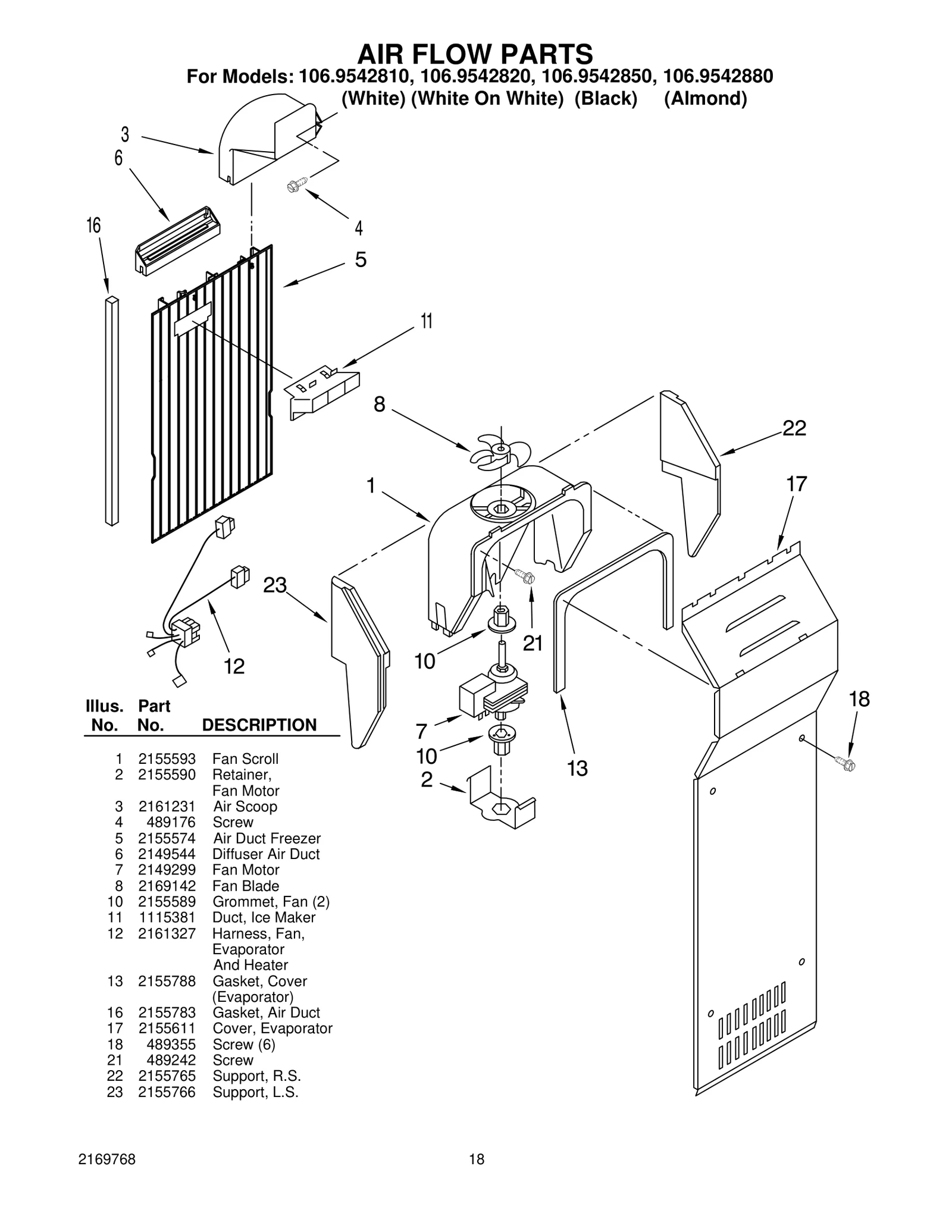

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

Refrigerator Door Panel — White WPL 4362031 Contact Us For Availability

1

Refrigerator Door Panel — Almond WPL 4362032 Contact Us For Availability

1

Refrigerator Door Panel — Black WPL 4362033 Contact Us For Availability

1

Freezer, Door Panel — White WPL 4362008 Contact Us For Availability

1

Freezer, Door Panel — Almond WPL 4362009 Contact Us For Availability

1

Black (Also Order Item 11) WPL 4362020 Contact Us For Availability

1

Heater, Dispenser WPL 2154789 Contact Us For Availability

1

Control Box WPL 2169147 Contact Us For Availability

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

Retainer, Fan Motor WPL 2155590 Contact Us For Availability

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Tap Plate WPL 2155335 Contact Us For Availability

2

Grommet WPL 987048 Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $106.45

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

3

Handle — Black WPL 2169729 Contact Us For Availability

3

Handle — White WPL 2169730 Contact Us For Availability

3

Door, Compartment WPL 2148289 Contact Us For Availability

3

Condenser Assembly WPL 2164513 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

3

Screw (2) WPL 489397 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $20.89

4

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

Trim WPL 2164025 Contact Us For Availability

4

Seal, Hinge Pin WPL 939886 Contact Us For Availability

4

Housing, Dispenser — White WPL 1124715 Contact Us For Availability

4

Housing, Dispenser — Black WPL 1107943 Contact Us For Availability

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Nameplate — White WPL 2161066 Contact Us For Availability

5

Nameplate — Black WPL 2156860 Contact Us For Availability

5

End Cap, Handle WPL 2156607 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

Pin Plate WPL 1116986 Contact Us For Availability

6

Track, Roll−Top WPL 2154319 Contact Us For Availability

6

Diffuser Air Duct WPL 2149544 Contact Us For Availability

6

Defrost Timer WPL 2162046 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.95

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $13.36

7

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

7

Pin Plate WPL 1118048 Contact Us For Availability

7

Track, Roll−Bottom WPL 2154320 Contact Us For Availability

7

Frame, Slides — White WPL 2152717 Contact Us For Availability

7

Frame, Slides — Black WPL 2152716 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability

8

2188404A Whirlpool Refrigerator Door Gasket In Stock WPL 2188404A $133.14

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Door Gasket, Magnetic — Black WPL 2156852 Contact Us For Availability

8

Shim, Handle WPL 2160458 Contact Us For Availability

8

Slide, Cube/Crush Switch — White WPL 2152720 Contact Us For Availability

8

Slide, Cube/Crush Switch — Black WPL 2152719 Contact Us For Availability

8

Hole Plug WPL 940014 Contact Us For Availability

9

WP2149540 Whirlpool Shelf Support In Stock WPL WP2149540 $4.34

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $51.64

9

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

9

Door, Ice WPL 2147168 Contact Us For Availability

9

Cap, Hinge Sleeve WPL 509929 Contact Us For Availability

2188405A Whirlpool Refrigerator Door Gasket Backorder WPL 2188405A $140.37

4318046 Whirlpool Dual Water Inlet Valve In Stock WPL 4318046 $33.02

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Door Mechanism Assembly WPL 2147167 Contact Us For Availability

Shelf Track — Right Side WPL 1114632 Contact Us For Availability

Shelf Track — Left Side WPL 1114633 Contact Us For Availability

Door, Gasket Magnetic — Black WPL 2156853 Contact Us For Availability

Grommet, Fan (2) WPL 2155589 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $36.51

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Strap WPL 938384 Contact Us For Availability

Cam Assembly WPL 2161250 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP1120581 Whirlpool Refrigerator Mechanism Backorder WPL WP1120581 $89.54

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

Screw Anchor (4) WPL 941242 Contact Us For Availability

Cover WPL 1108115 Contact Us For Availability

Harness, Fan, Evaporator And Heater WPL 2161327 Contact Us For Availability

4388953 Whirlpool Overload Relay Backorder WPL 4388953 $78.88

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

Shim, Hinge Top WPL 1123515 Contact Us For Availability

Door Dike, Hinge Side WPL 1115379 Contact Us For Availability

Panel, Interior Door WPL 1126179 Contact Us For Availability

Grille, Overflow — White WPL 1128523 Contact Us For Availability

Grille, Overflow — Black WPL 1106392 Contact Us For Availability

Tube, Water Inlet WPL 2155247 Contact Us For Availability

14

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

14

Clip, Bearing (2) WPL 987917 Contact Us For Availability

14

Retainer, Damper WPL 938439 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Hinge Cover — White WPL 1129262 Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

Bearing, Lever (3) WPL 983697 Contact Us For Availability

Shelf Stud (2) WPL 1115290 No Longer Available

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $29.17

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Spring, Lever (2) WPL 983696 Contact Us For Availability

Door Dike, Handle Side WPL 1119055 Contact Us For Availability

Trim, Door Shelf WPL 1118462 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $34.28

Panel, Interior Door WPL 1129278 Contact Us For Availability

Harness, Door WPL 1119212 Contact Us For Availability

Shield, Wiring WPL 2147165 Contact Us For Availability

Capacitor WPL 2154565 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Butter Tray WPL 2151651 Contact Us For Availability

Cover WPL 628355 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Spacer, Switch WPL 625834 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $153.49

Tube, Door Wiring WPL 1119059 Contact Us For Availability

Unit Cover, Bottom WPL 2160505 Contact Us For Availability

Harness, Control Box WPL 2149186 Contact Us For Availability

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

21

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

21

For Models: 106.9542810, 106.9542820, 106.954 WPL N/S Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $203.37

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $93.40

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.55

Grille — Black WPL 2155476 Contact Us For Availability

Insulation, Dispenser WPL 2149014 Contact Us For Availability

Clip, Wiring WPL 1115375 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $32.06

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Chute, Ice WPL 1119036 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $51.59

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $56.13

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $29.83

Fastener, Push−On WPL 489285 Contact Us For Availability

Lever Assembly, Ice Dispenser — White WPL 1124718 Contact Us For Availability

Lever Assembly, Ice Dispenser — Black WPL 1127421 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $36.71

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $41.30

Guide, Ice — White WPL 1124730 Contact Us For Availability

Tube, Door Wiring WPL 2147080 Contact Us For Availability

Guide, Ice — Black WPL 1119035 Contact Us For Availability

Tray, Evaporator WPL 2154114 Contact Us For Availability

Escutcheon, Control Box WPL 2155525 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.99

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $30.18

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Screw — Stainless Steel WPL 488892 Contact Us For Availability

Screw — Black WPL 489197 Contact Us For Availability

Harness, Intermediate WPL 2149199 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $24.91

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $46.67

Slide, Light Switch — White WPL 2152726 Contact Us For Availability

Slide, Light Switch — Black WPL 2152724 Contact Us For Availability

Knob, Air Control WPL 1116853 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $27.52

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Track, Roll WPL 2154317 Contact Us For Availability

Seal WPL 482672 Contact Us For Availability

Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154558 Contact Us For Availability

Retainer, Knob WPL 837444 Contact Us For Availability

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $34.20

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

Bracket, Door Stop — Chrome WPL 2155332 Contact Us For Availability

Bracket, Door Stop — Black WPL 2155334 Contact Us For Availability

Lamp Holder WPL 2147131 Contact Us For Availability

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $106.63

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

Shelf Bin WPL 2169722 Contact Us For Availability

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $28.40

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

Screw WPL 488549 Contact Us For Availability

Shelf Bin WPL 2169723 Contact Us For Availability

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $12.11

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $48.79

Divider WPL 2152335 Contact Us For Availability

Nameplate — White WPL 2161065 Contact Us For Availability

Nameplate — Black WPL 2154377 Contact Us For Availability

Insulator, Control Bracket WPL 2147164 Contact Us For Availability

Bracket, Fan Motor WPL 2162062 Contact Us For Availability

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

Heater, Defrost WPL 2161322 Contact Us For Availability

End Cap−Top WPL 2160457 Contact Us For Availability

Bracket, Control WPL 2147163 Contact Us For Availability

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $8.31

End Cap− Bottom WPL 2151819 Contact Us For Availability

Clip, Heater WPL 2161330 Contact Us For Availability

Screw WPL 489365 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

35

Screw (2) WPL 488361 Contact Us For Availability

Trim, Middle — White WPL 2161055 Contact Us For Availability

Trim, Middle — Black WPL 2161272 Contact Us For Availability

Shelf, Door (4) WPL 2169763 Contact Us For Availability

Screw WPL 489155 Contact Us For Availability

Clip, Support (2) WPL 2155021 Contact Us For Availability

37

814037 Whirlpool Microwave Switch Backorder WPL 814037 $32.35

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $49.38

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $57.34

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

Lever Assembly, Water Dispenser — White WPL 2159197 Contact Us For Availability

Lever Assembly, Water Dispenser — Black WPL 2159196 Contact Us For Availability

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability

Plaque, Front Cover — White WPL 2163994 Contact Us For Availability

Plaque, Front Cover — Black WPL 2156856 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

Trim, Door− Top — White WPL 2161054 Contact Us For Availability

Trim, Door− Top — Black WPL 2161271 Contact Us For Availability

Front Cover, Housing — White WPL 2163993 Contact Us For Availability

Front Cover, Housing — Black WPL 2156855 Contact Us For Availability

Nut, Compression WPL 1129179 Contact Us For Availability

4317870 Whirlpool Refrigerator Auger Sleeve Backorder WPL 4317870 $91.80

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $40.19

Trim, Door− Bottom — White WPL 2161056 Contact Us For Availability

Trim, Door− Bottom — Black WPL 2161273 Contact Us For Availability

Heat Shield, Frame WPL 2147172 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

Trim, Bottom — Black WPL 8175 Contact Us For Availability

Trim, Bottom — White WPL 8178 Contact Us For Availability

Bracket, Water WPL 987049 Contact Us For Availability

Clip, Heat WPL 2155547 Contact Us For Availability

43

Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability

43

Screw WPL 488316 Contact Us For Availability

Front Cover, Ice Container WPL 2162948 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability

Wiring Assembly, Door WPL 2147166 Contact Us For Availability

Insert WPL 1129177 Contact Us For Availability

45

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

46

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

46

Light Lens, Dispenser WPL 983359 Contact Us For Availability

48

Filler, Housing WPL 2152700 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

Hinge Cover — White WPL 1119787 Contact Us For Availability

49

Hinge Cover — Black WPL 2155938 Contact Us For Availability

49

Screw WPL 488624 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $26.83

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 850145 Contact Us For Availability

59

Clip, Wire & Tube WPL 2155658 Contact Us For Availability

61

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

62

Clip, Tube (3) WPL 934011 Contact Us For Availability

63

WP4211117 Whirlpool Refrigerator Connector In Stock WPL WP4211117 $5.34

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

Valve, Access WPL 978029 Contact Us For Availability

Tube, Spring Following Parts Not Illustrated WPL 983659 Contact Us For Availability

Valve, Access WPL 978028 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $107.21

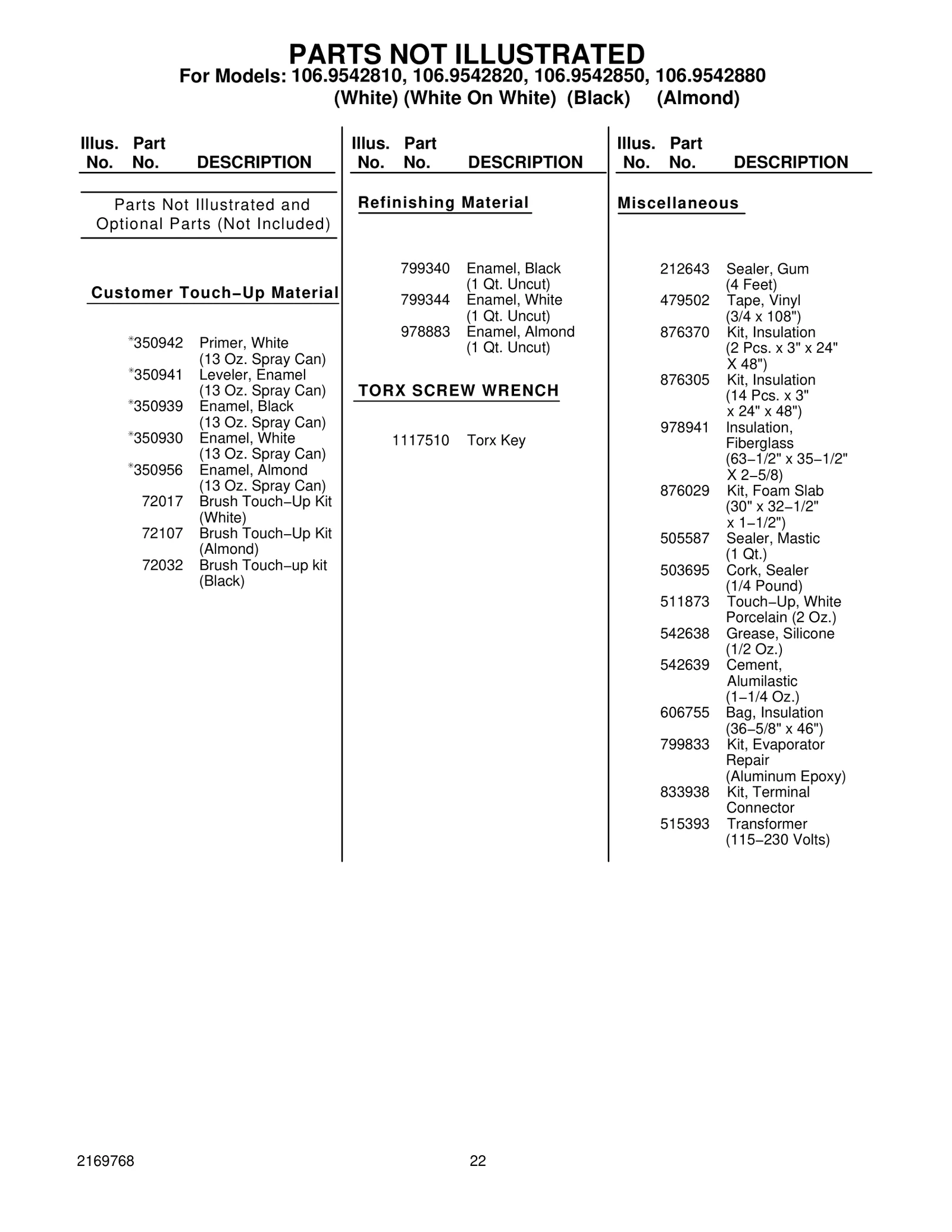

OPT-1

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

OPT-2

(13 Oz. Spray Can) WPL 350941 Contact Us For Availability

OPT-3

285006 Whirlpool Spray In Stock WPL 285006 $44.38

OPT-4

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

OPT-5

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

OPT-6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

OPT-7

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

OPT-8

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.21

OPT-9

Refinishing Material WPL 799340 Contact Us For Availability

OPT-10

(1 Qt. Uncut) WPL 799344 Contact Us For Availability

OPT-11

(1 Qt. Uncut) WPL 978883 Contact Us For Availability

OPT-12

TORX SCREW WRENCH WPL 1117510 Contact Us For Availability

OPT-13

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

OPT-14

(4 Feet) WPL 479502 Contact Us For Availability

OPT-16

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $106.84

OPT-18

X 2−5/8) WPL 876029 Contact Us For Availability

OPT-19

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

OPT-20

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

OPT-21

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

OPT-22

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

OPT-23

(1/2 Oz.) WPL 542639 Contact Us For Availability

OPT-24

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.17

OPT-25

(36−5/8" x 46") WPL 799833 Contact Us For Availability

OPT-26

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

OPT-27

Connector WPL 515393 Contact Us For Availability
