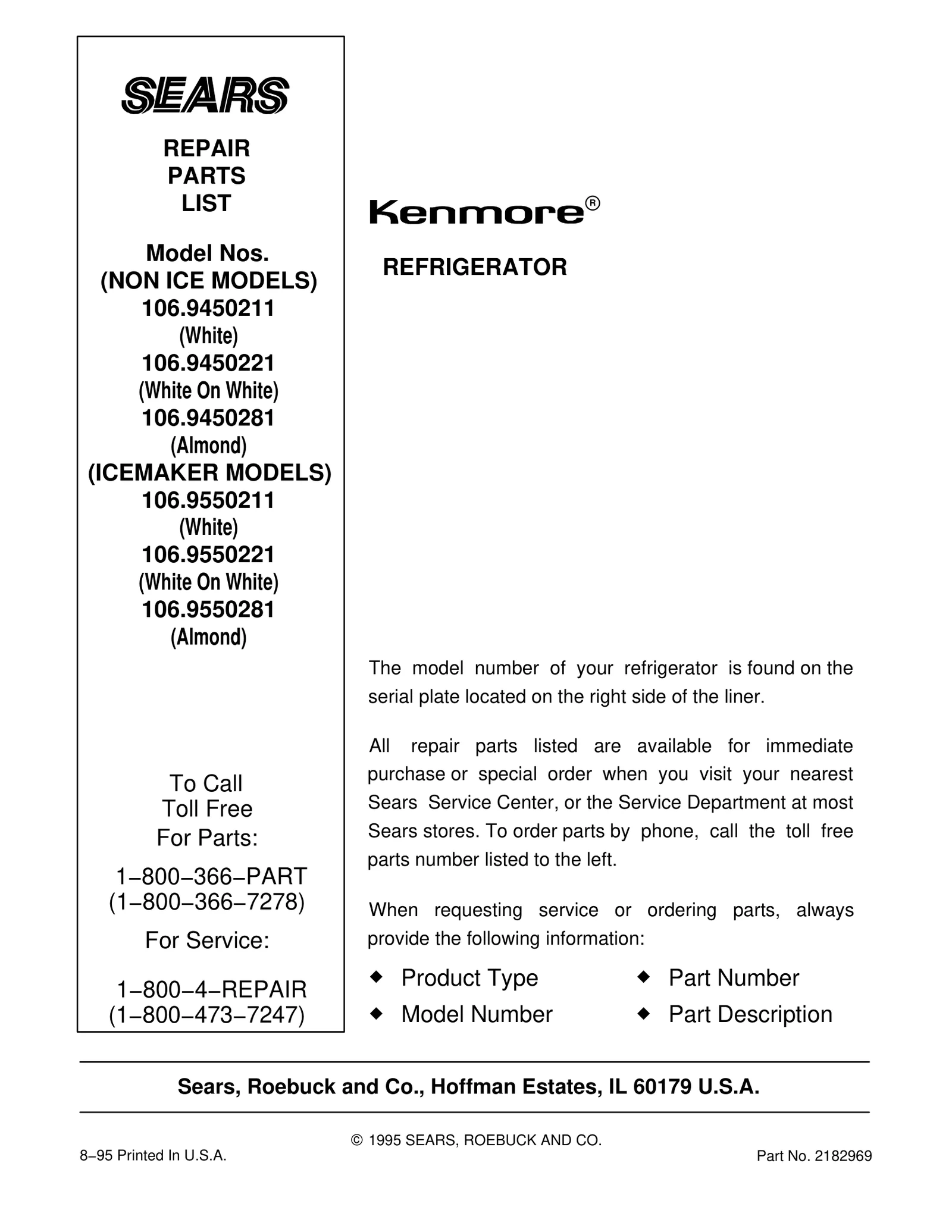

Model Whirlpool 106.9450281 Refrigerator – Common Parts &amp; Diagrams

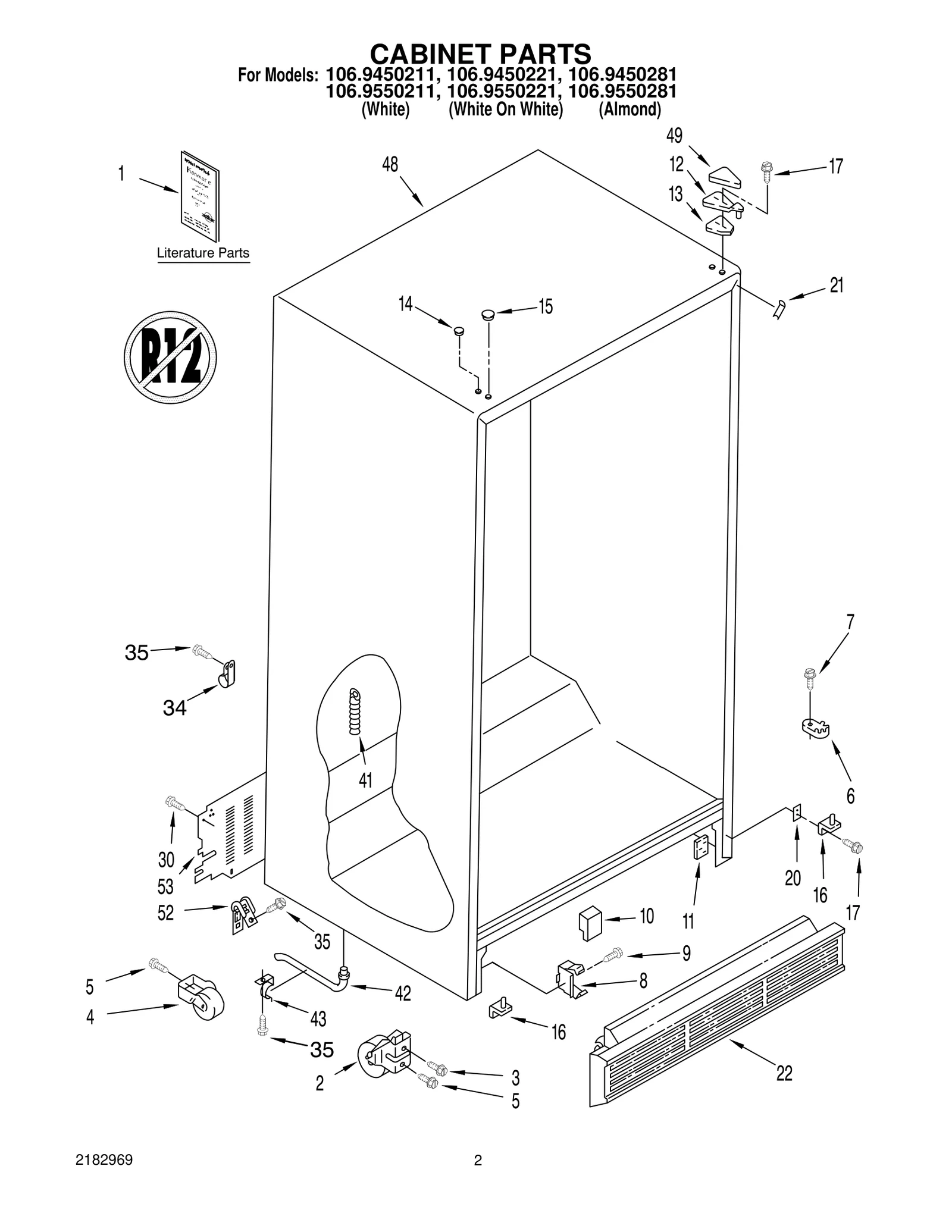

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

Freezer, Door Panel — White WPL 4362036 Contact Us For Availability

1

Freezer, Door Panel — Almond WPL 4362037 Contact Us For Availability

1

Control Box WPL 2169147 Contact Us For Availability

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

Retainer, Fan Motor WPL 2155590 Contact Us For Availability

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Trim, Shelf WPL 2177862 Contact Us For Availability

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

3

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

3

Slide, Meat Pan Control WPL 2182757 Contact Us For Availability

3

Trim, Shelf WPL 2177863 Contact Us For Availability

3

Handle, Center — Black WPL 1127464 Contact Us For Availability

3

Handle, Center — White WPL 2147470 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

3

Screw (2) WPL 489397 Contact Us For Availability

3

Condenser Assembly WPL 2164513 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $20.89

4

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

Cap, Hinge Sleeve WPL 509929 Contact Us For Availability

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Release Valve WPL 2171846 Contact Us For Availability

5

Handle, Reinforcement WPL 849445 Contact Us For Availability

5

Grommet WPL 509812 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

Shim, Handle (2) WPL 2147097 Contact Us For Availability

6

Diffuser Air Duct WPL 2149544 Contact Us For Availability

6

Defrost Timer WPL 2162046 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.95

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $13.36

7

Trim, Shelf WPL 2177864 Contact Us For Availability

7

Extension, Handle, Top — Black WPL 2177857 Contact Us For Availability

7

Extension, Handle, Top — White WPL 2177856 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability

8

2188404A Whirlpool Refrigerator Door Gasket In Stock WPL 2188404A $133.14

8

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

Reinforcement, Handle WPL 1127465 Contact Us For Availability

8

Hole Plug WPL 940014 Contact Us For Availability

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $51.64

9

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

9

Cover, Unit Compartment WPL 2160505 Contact Us For Availability

2188405A Whirlpool Refrigerator Door Gasket Backorder WPL 2188405A $140.37

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $42.13

11

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

11

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

11

Cam Assembly WPL 2161250 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $33.42

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Harness, Fan, Evaporator, And Heater WPL 2161478 Contact Us For Availability

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $76.53

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

Tube, Water Inlet WPL 2171943 Contact Us For Availability

Shim, Hinge (2) WPL 1123515 Contact Us For Availability

Panel, Interior Door WPL 1129243 Contact Us For Availability

14

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

14

Trim, Door Shelf (5) WPL 2177865 Contact Us For Availability

14

Retainer, Damper WPL 938439 Contact Us For Availability

15

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

15

Pivot Arm WPL 1110559 Contact Us For Availability

15

Relay WPL N/S Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $30.20

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $29.17

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Retainer Gasket WPL 1117767 Contact Us For Availability

17

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $34.28

17

Panel, Interior WPL 2177858 Contact Us For Availability

17

Retainer Gasket WPL 1117766 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Tap Plate WPL 2155335 Contact Us For Availability

19

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

19

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.99

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $153.49

Retainer Gasket WPL 1118301 Contact Us For Availability

Control Box Harness WPL 2149185 Contact Us For Availability

21

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

21

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

21

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $203.37

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.55

Grille — Black WPL 2155476 Contact Us For Availability

Bracket, Door Stop — Black WPL 2155334 Contact Us For Availability

Bracket, Door Stop — Chrome WPL 2155332 Contact Us For Availability

Clip, Wiring WPL 1115375 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $32.06

Insert, Handle WPL 2147581 Contact Us For Availability

Connecting Rod WPL 1123959 Contact Us For Availability

Clip, Heater (2) WPL 2161330 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $29.83

Fastener, Push−On WPL 489285 Contact Us For Availability

Retainer, Handle Top WPL 2147898 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $36.71

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $41.30

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $45.89

Retainer, Handle Bottom WPL 2147896 Contact Us For Availability

Escutcheon, Control Box WPL 2179323 Contact Us For Availability

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Harness, Intermediate WPL 2181710 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $24.91

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $46.67

Extension, Handle Bottom — Black WPL 1127473 Contact Us For Availability

Extension, Handle Bottom — White WPL 2147471 Contact Us For Availability

Extension, Top — Black WPL 2147445 Contact Us For Availability

Extension, Top — White WPL 2147472 Contact Us For Availability

Knob, Air Control WPL 1116853 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

28

Retainer, Knob WPL 837444 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

Unit Mounting Frame WPL 2160498 Contact Us For Availability

31

WP627792 Whirlpool Refrigerator Shut Off Arm In Stock WPL WP627792 $39.24

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $48.79

32

Fan, Motor Bracket WPL 548695 Contact Us For Availability

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $52.59

33

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

34

Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability

34

Clip, Support (2) WPL 2155021 Contact Us For Availability

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $49.38

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

Air Baffle WPL 2155301 Contact Us For Availability

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

Screw WPL 488624 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $26.83

52

Strap WPL 851095 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 850145 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

Valve, Access WPL 978029 Contact Us For Availability

Clip, Wire And Water Tube Following Parts Not WPL 2155658 Contact Us For Availability

Valve, Access WPL 978028 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $107.21

OPT-1

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

OPT-2

285006 Whirlpool Spray In Stock WPL 285006 $44.38

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

OPT-4

Enamel, Toast WPL 285365 Contact Us For Availability

OPT-5

Enamel, Platinum WPL 285366 Contact Us For Availability

OPT-6

Enamel, WPL 261890 Contact Us For Availability

OPT-7

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

OPT-8

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

OPT-9

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

OPT-10

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.21

OPT-11

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

OPT-12

Brush Touch−Up Kit WPL 72112 Contact Us For Availability

OPT-13

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

OPT-14

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

OPT-15

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-17

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $106.84

OPT-19

Kit, Foam Slab WPL 876029 Contact Us For Availability

OPT-20

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

OPT-21

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

OPT-22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

OPT-23

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

OPT-24

Cement, WPL 542639 Contact Us For Availability

OPT-25

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.17

OPT-26

Kit, Evaporator WPL 799833 Contact Us For Availability

OPT-27

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

OPT-28

Enamel, Toast WPL 285367 Contact Us For Availability

OPT-29

Enamel, Platinum WPL 285368 Contact Us For Availability

OPT-30

Enamel, Black WPL 799340 Contact Us For Availability

OPT-31

Enamel, White WPL 799344 Contact Us For Availability

OPT-32

Enamel, Almond WPL 978883 Contact Us For Availability

OPT-33

Enamel, WPL 261891 Contact Us For Availability

OPT-34

Torx Key WPL 1117510 Contact Us For Availability
