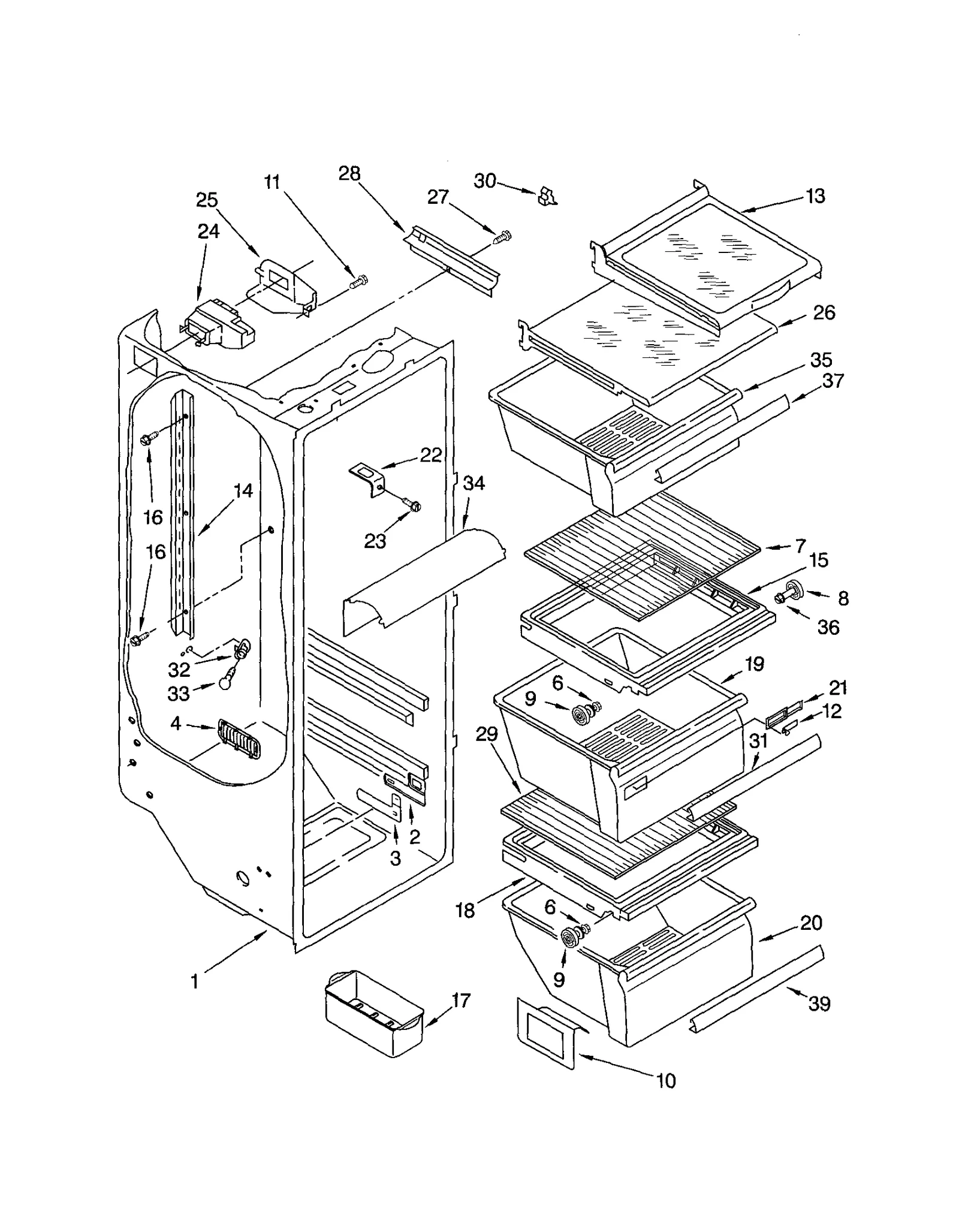

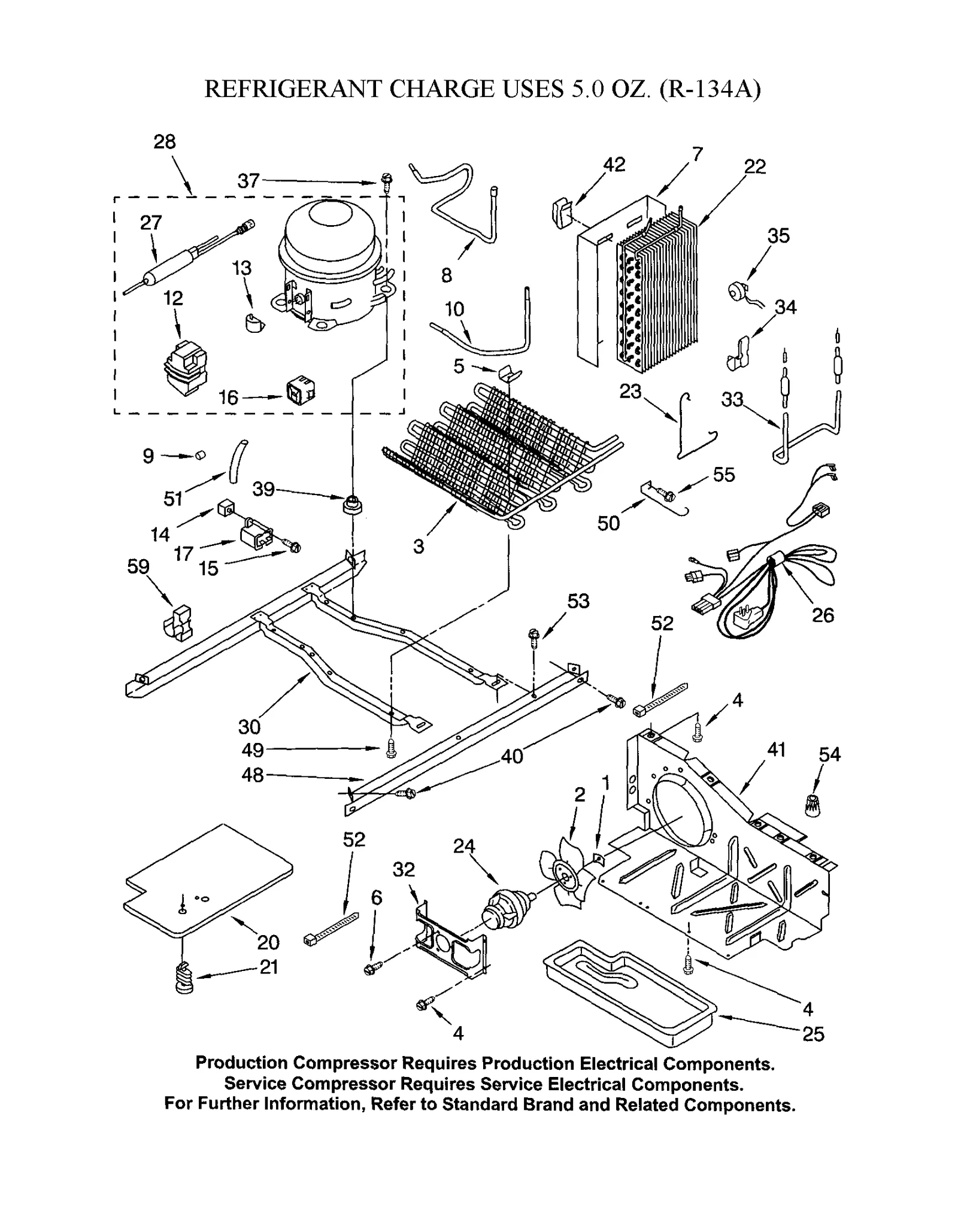

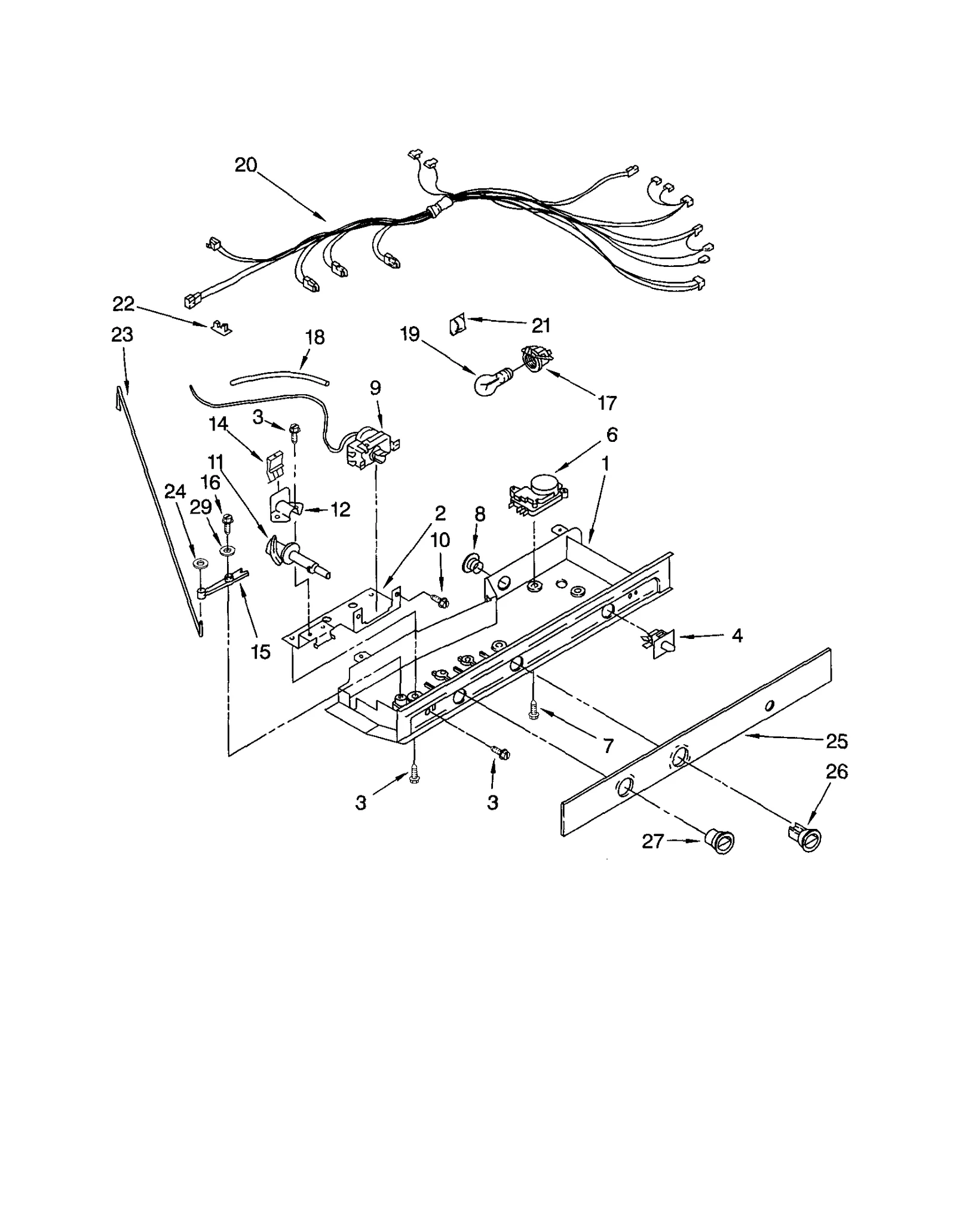

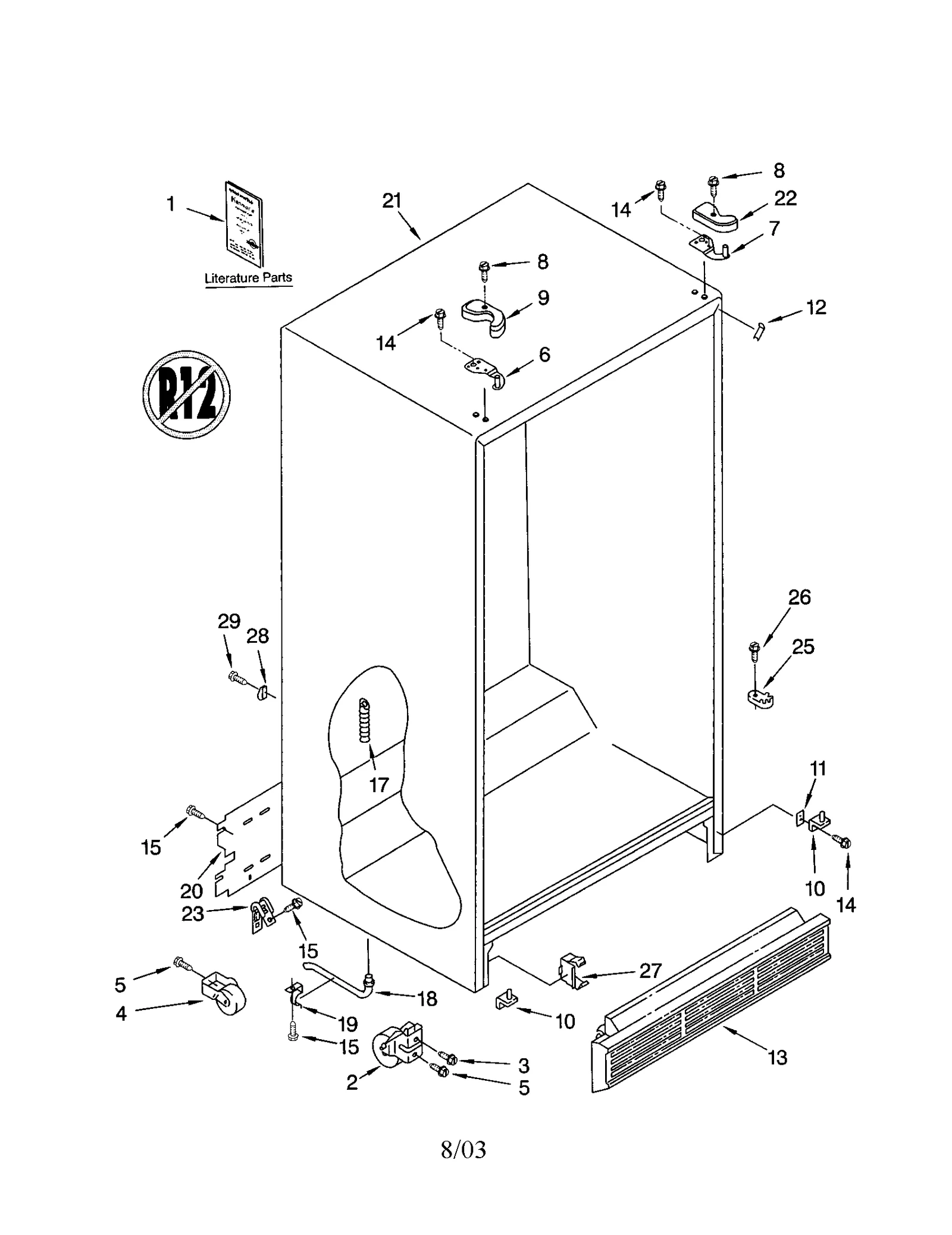

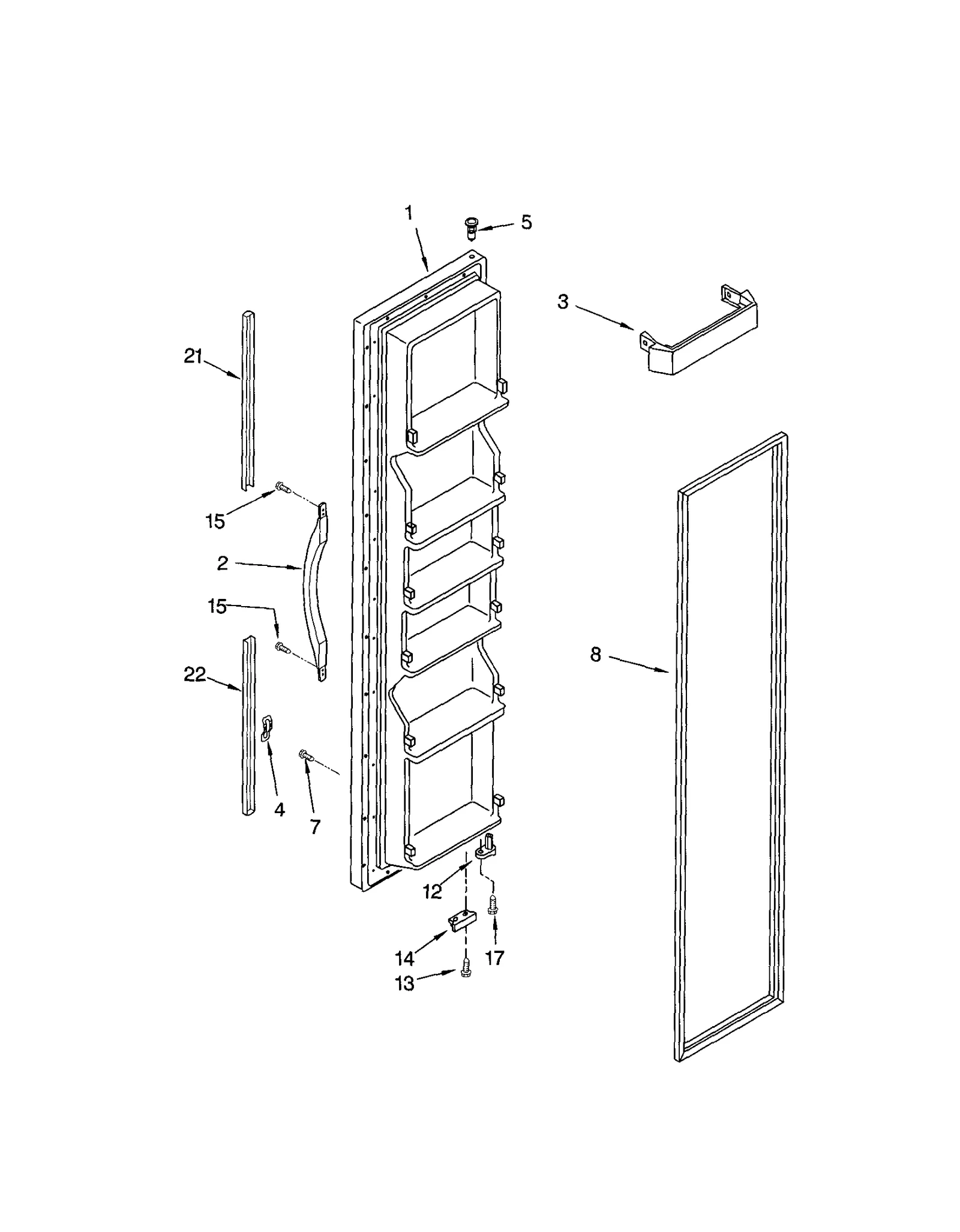

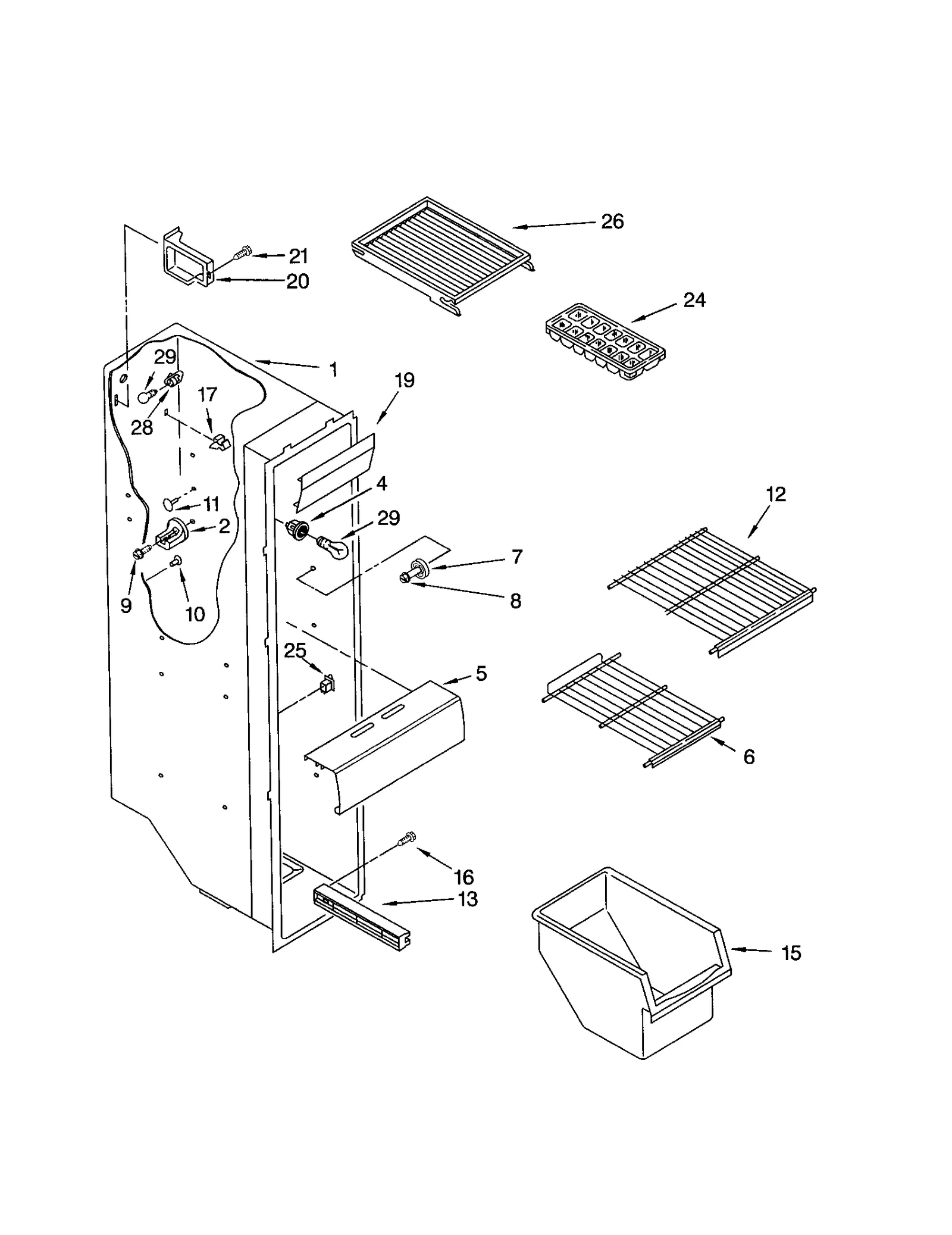

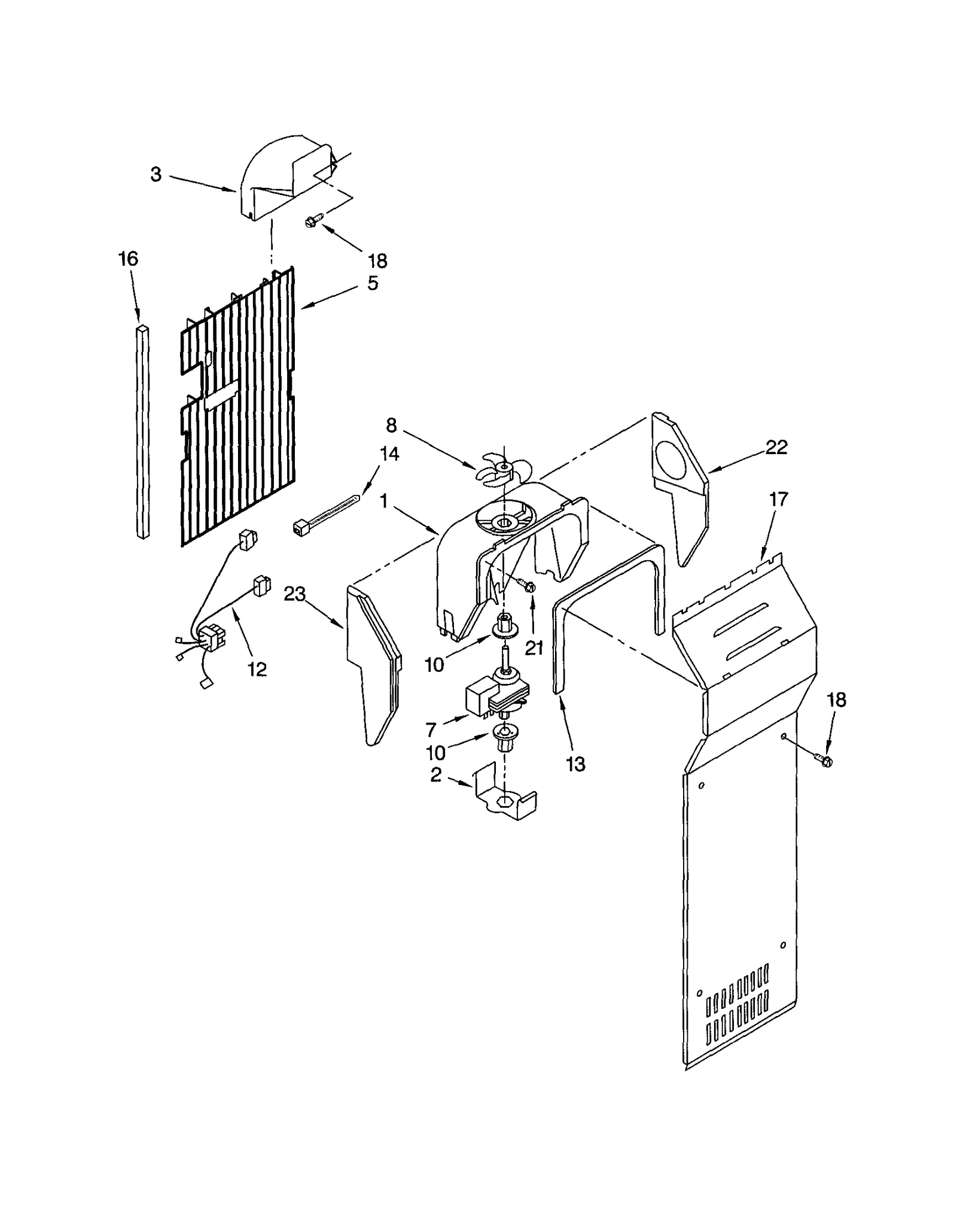

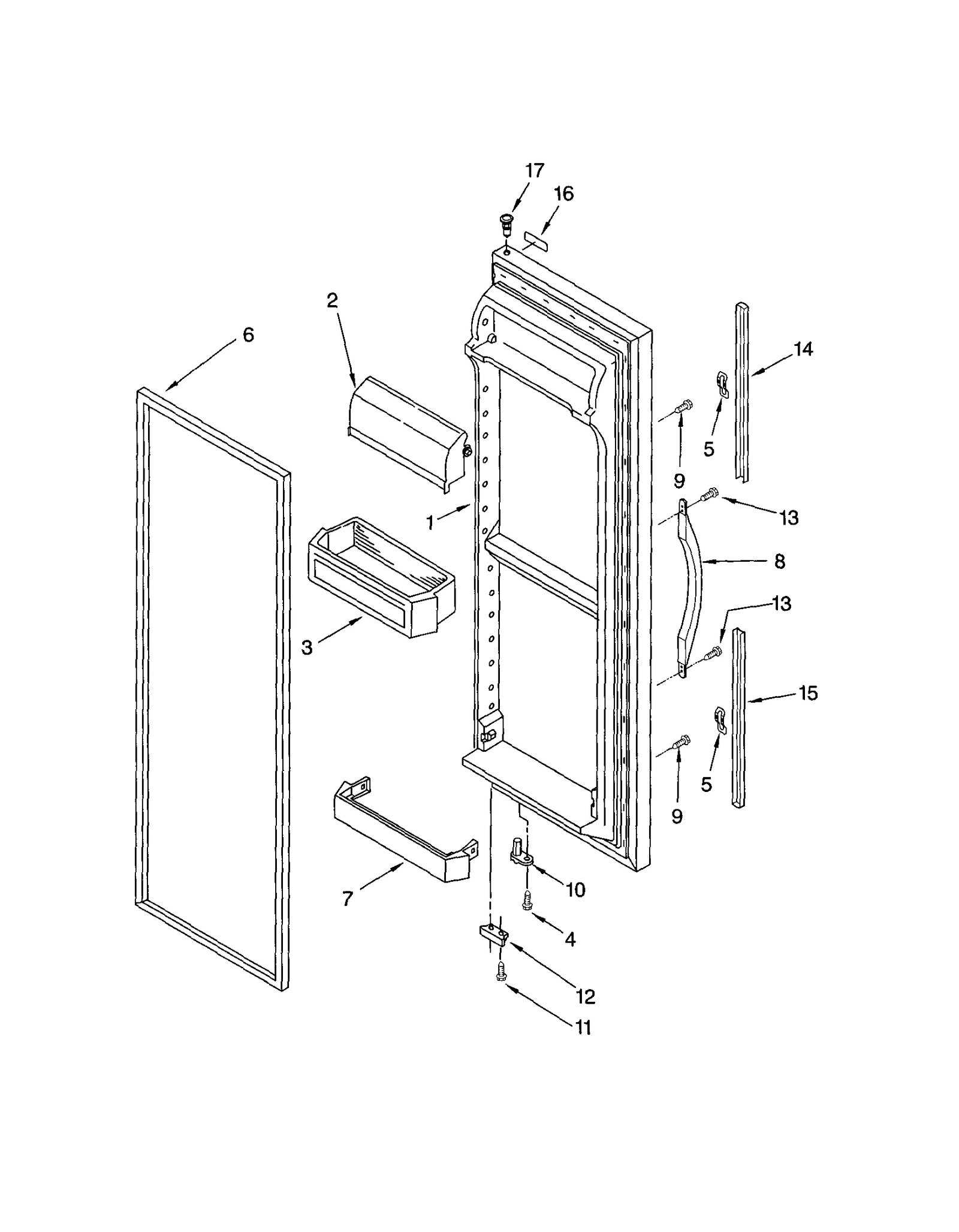

Model Whirlpool 106.41514101 Refrigerator (Kenmore 10641514101) – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Refrigerator Energy Guide WPL LIT2220293 Contact Us For Availability

1A

Refrigerator Energy Guide WPL LIT2220345 Contact Us For Availability

1B

Refrigerator Owner's Manual WPL LIT2220696 Contact Us For Availability

1C

Refrigerator Parts List WPL LIT2255039 Contact Us For Availability

1D

Refrigerator Parts List WPL LIT2254989 Contact Us For Availability

1E

Owner's Manual WPL LIT787808 Contact Us For Availability

1F

Ice Maker Repair Manual WPL LIT787316 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $32.06

2

Refrigerator Condenser Fan WPL 2190685 Contact Us For Availability

2

Refrigerator Evaporator Fan Motor Retainer WPL 2155590 Contact Us For Availability

2

Refrigerator Shelf Stud WPL 2196207 Contact Us For Availability

2

Refrigerator Thermistor Bracket WPL 1110629 Contact Us For Availability

2

Refrigerator Cabinet Roller WPL 2174748 Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2187172 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2187172 $24.03

3

Refrigerator Deli Drawer Temperature Control WPL 2182757 Contact Us For Availability

3

Refrigerator Air Scoop WPL 2161231 Contact Us For Availability

3

Refrigerator Condenser WPL 2204484 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $20.89

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

5

Air Duct WPL 2203594 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $33.56

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.95

7

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $35.78

7

Refrigerator Shield WPL 2149294 Contact Us For Availability

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

8

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

8

Refrigerator Suction Line WPL 2205765 Contact Us For Availability

9

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $51.64

9

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

9A

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

9B

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $30.20

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $31.44

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

Refrigerator Freezer Shelf Support Grommet WPL 2176134 Contact Us For Availability

Refrigerator Tube WPL 2211760 Contact Us For Availability

11

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

11

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

11

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

W11234406 Whirlpool Refrigerator Wire Harness In Stock WPL W11234406 $64.09

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $33.42

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $52.52

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

Refrigerator Trim Cap WPL 2196094 Contact Us For Availability

12A

Refrigerator Filler WPL 2196150 Contact Us For Availability

12B

Refrigerator Filler WPL 2196097 Contact Us For Availability

13

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

13

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $60.44

13

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

13A

W10283947 Whirlpool Grille Assembly Backorder WPL W10283947 $52.10

13B

WPW10283946 Whirlpool Refrigerator Grille Backorder WPL WPW10283946 $60.04

14

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

14

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

14

Grommet WPL 509812 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $80.00

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

NLA:SCREW Backorder WPL WPW10141645 $3.70

Refrigerator Damper Control Pivot Arm WPL 1110559 Contact Us For Availability

16

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $29.77

16

Refrigerator Start Device WPL 2212194 Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $21.01

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $25.41

Refrigerator Evaporator Cover WPL 2203841 Contact Us For Availability

17A

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $90.19

18

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

19

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

19

Refrigerator Light Lens WPL 2171705 Contact Us For Availability

20

Refrigerator Cover Unit WPL 2186995 Contact Us For Availability

20

Refrigerator Cover Unit WPL 2206281 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

Refrigerator Door Handle Trim WPL 2194707W Contact Us For Availability

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

21A

Refrigerator Extension WPL 2194707T Contact Us For Availability

21B

Refrigerator Extension WPL 2194707B Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $196.39

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Refrigerator Door Handle Trim WPL 2194705W Contact Us For Availability

22A

Refrigerator Extension WPL 2194705T Contact Us For Availability

22A

Refrigerator Cover WPL 2203408T Contact Us For Availability

22B

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

22B

Refrigerator Door Trim (Black) WPL 2194705B Contact Us For Availability

23

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

23

Refrigerator Defrost Clip WPL 2161324 Contact Us For Availability

24

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $139.73

24

Refrigerator Air Damper Control Clip WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $36.71

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $15.76

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.59

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $45.89

26

4389202 Whirlpool Wire Harness Backorder WPL 4389202 $171.89

26

Refrigerator Temperature Control Knob WPL 2182111 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $24.91

27

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

27

Refrigerator Temperature Control Knob WPL 2197871 Contact Us For Availability

28

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

28

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $314.61

28

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

29

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $93.38

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $115.36

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

Refrigerator Defrost Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

37

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $36.23

37

SCREW WPL 489473 Contact Us For Availability

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $40.19

42

Exchange Clip WPL 2155547 Contact Us For Availability

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $29.17

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

GUARD-FAN Backorder WPL 1110663 $26.83

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Nut WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

59

Ice Maker Wire Harness Clamp WPL 2208280 Contact Us For Availability

NI01

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

NI02

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

NI03

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

NI05

Refrigerator Service Valve WPL 978029 Contact Us For Availability

NI06

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

NI07

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

NI08

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

NI10

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

NI11

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

NI12

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $43.92

NI13

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

NI14

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

NI15

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.21

NI16

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

NI18

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

NI19

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

NI23

Foam Slab WPL 876029 Contact Us For Availability

NI24

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

NI25

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

NI26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

NI27

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

NI29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.17

NI31

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

NI33

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

NI36

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability
