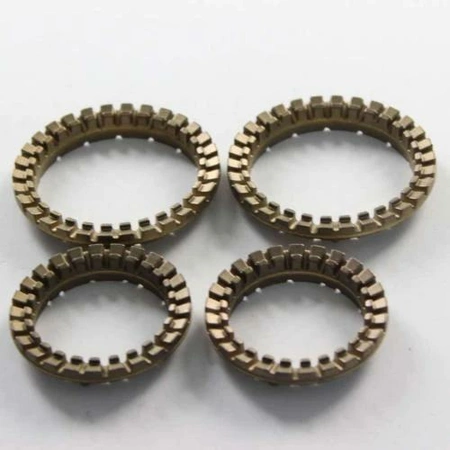

DE81-05084A Samsung Burner Ring Set SGM304

Step 1: Turn off the power for the Samsung Range. Disconnect the power cord from the outlet.

Step 2: Unscrew the screws that hold the top panel in place with a Phillips screwdriver. Carefully remove the panel, and set the screws aside.

Step 3: Using a flat head screwdriver, lift up the two metal tabs to unlock the burner head assembly. Pull out the burner head assembly, and set it aside.

Step 4: Remove the burner grates and burner caps with a pair of pliers and set them aside.

Step 5: Unscrew the six screws that secure the Samsung DE81-05084A SVC-BURNER RING SET with a Philips head screwdriver. Pull out the old ring set from the mounting holes, and set aside.

Step 6: Place the new Samsung DE81-05084A SVC-BURNER RING SET into the mounting holes, and align the holes with the screws. Secure the ring set to the range with the six screws.

Step 7: Replace the burner grates and burner caps by inserting them onto the burners and securing them with the pliers.

Step 8: Insert the burner head assembly back into the slots and lock it in place by pushing down on the two metal tabs.

Step 9: Place the top panel back into its original position. Reattach the screws and tighten with the screwdriver.

Step 10: Plug the power cord back into the outlet and turn on the power for the Samsung Range.

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer's manual, if available.
