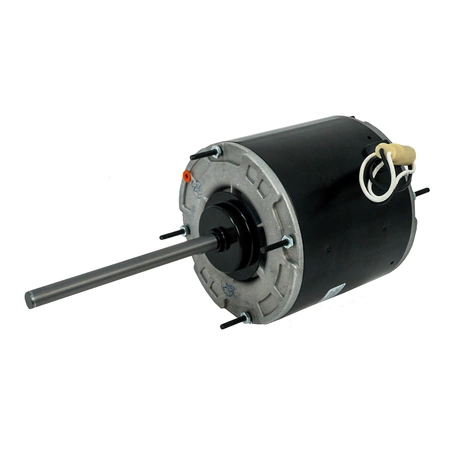

43734F Packard 5 5/8" Dia. High Temp. Condenser Fan Motor, 1/2 HP, 208-230 Volts, 1075 RPM
Part #: PAC 43734F
Application: Designed for Condenser Fan and Heat Pump Units Requiring Vertical Shaft Up or Vertical Shaft Down Positioning with "Belly Band" or Extended Clamp Screw Mounting.
- Class F Insulation
- 70°C Ambient
- Ball Bearing
- Single Speed
- Drilled and Tapped Holes in the Shell for Rheem Mounting
- Reversible
- All Angle Mounting
- Extended Thru Bolts
- 36" Leads
- Energy Efficient PSC Design
Compatible Replacement For
- Fasco D907 Wagner WG840730HT Mars 03730HS Mars 20730 US Motors 1862H
Weight : 4.162500 lbs
Dimension : 13.430000 x 6.540000 x 6.540000
Application: Designed for Condenser Fan and Heat Pump Units Requiring Vertical Shaft Up or Vertical Shaft Down Positioning with "Belly Band" or Extended Clamp Screw Mounting.
- Class F Insulation
- 70°C Ambient
- Ball Bearing
- Single Speed
- Drilled and Tapped Holes in the Shell for Rheem Mounting
- Reversible
- All Angle Mounting
- Extended Thru Bolts
- 36" Leads
- Energy Efficient PSC Design
Compatible Replacement For
- Fasco D907 Wagner WG840730HT Mars 03730HS Mars 20730 US Motors 1862H
Weight : 4.162500 lbs
Dimension : 13.430000 x 6.540000 x 6.540000
