Model Bosch WAS28792/06 Washer – Common Parts & Diagrams
Diagram 1
Diagram 2

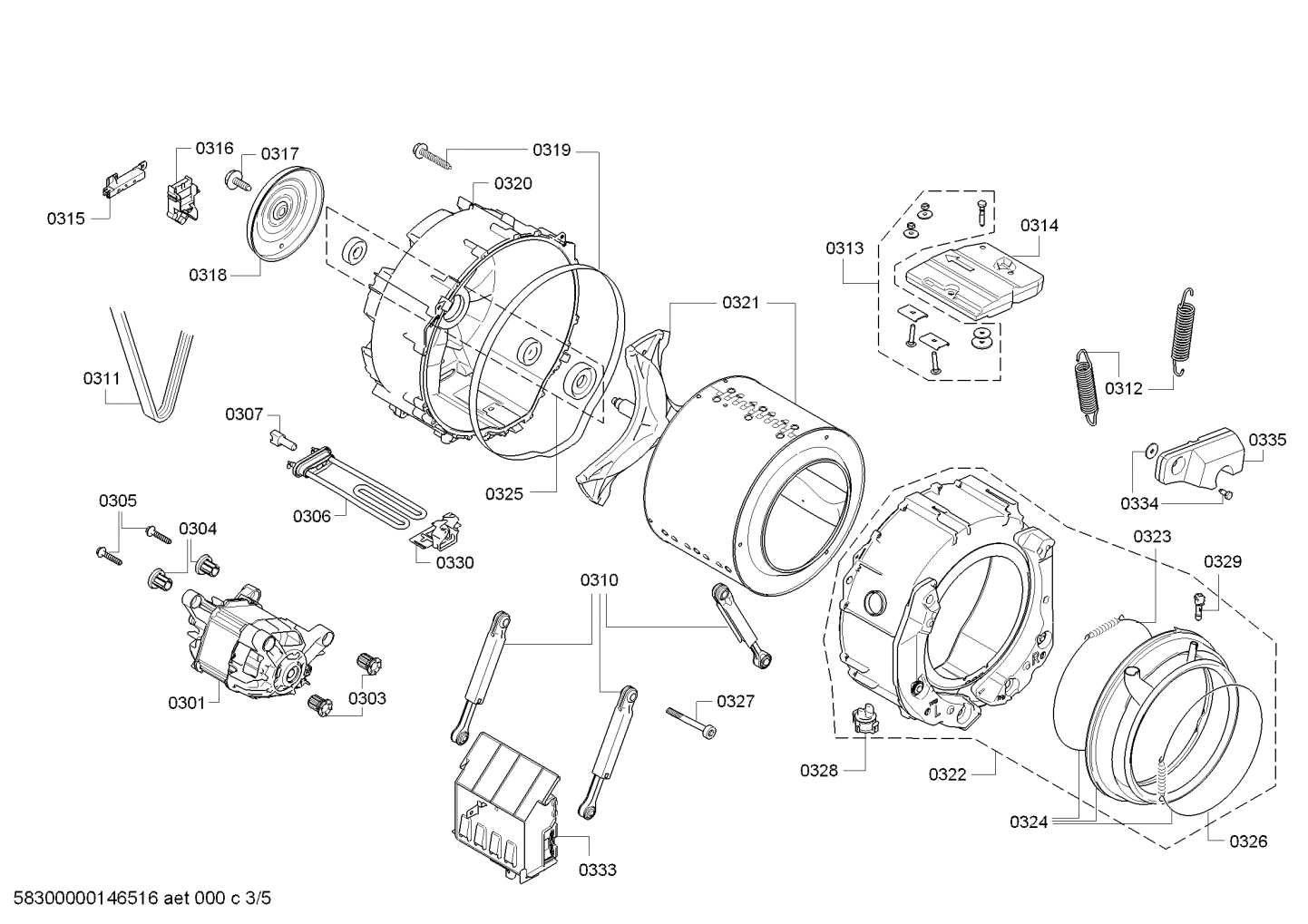

Diagram 3

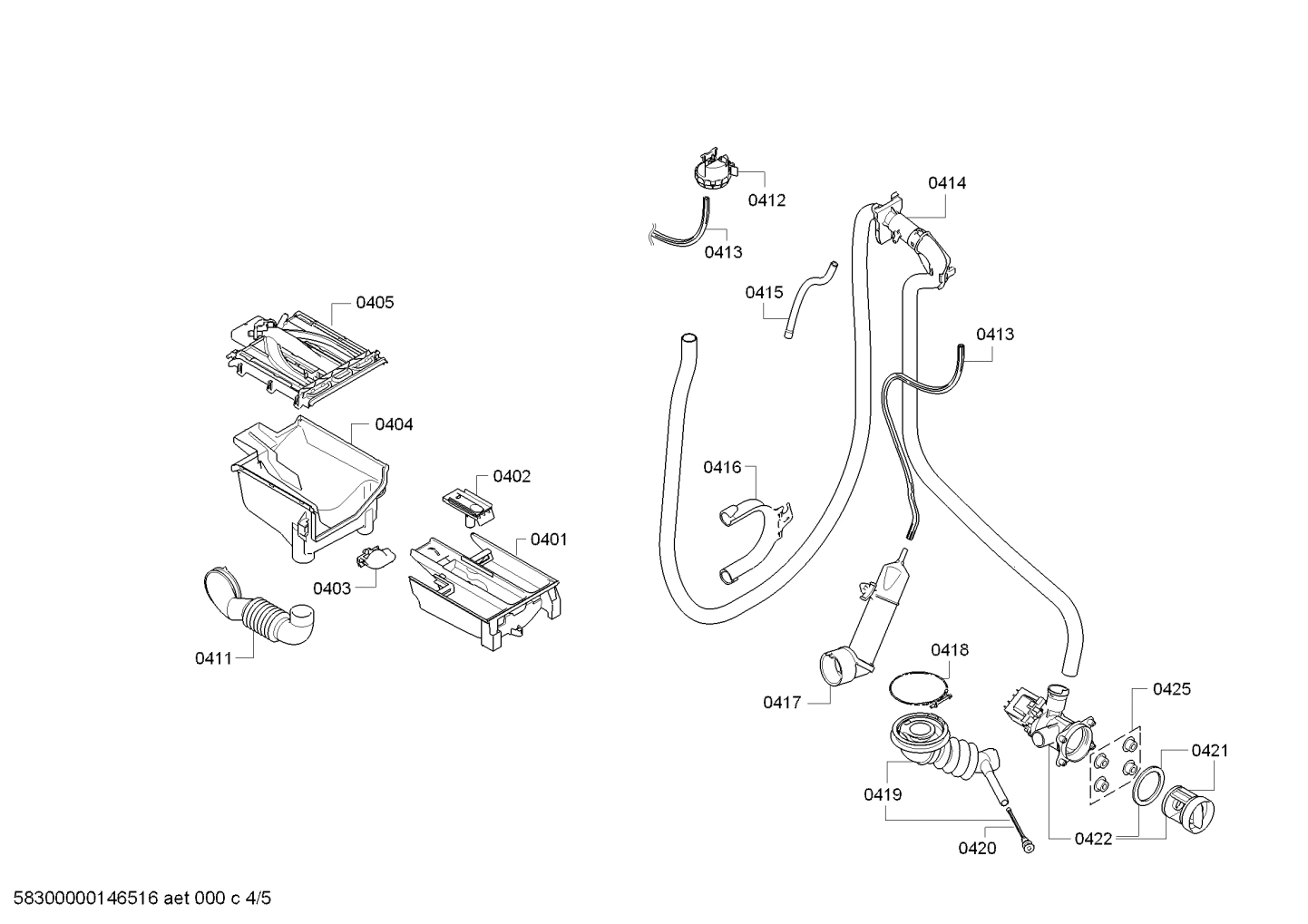

Diagram 4

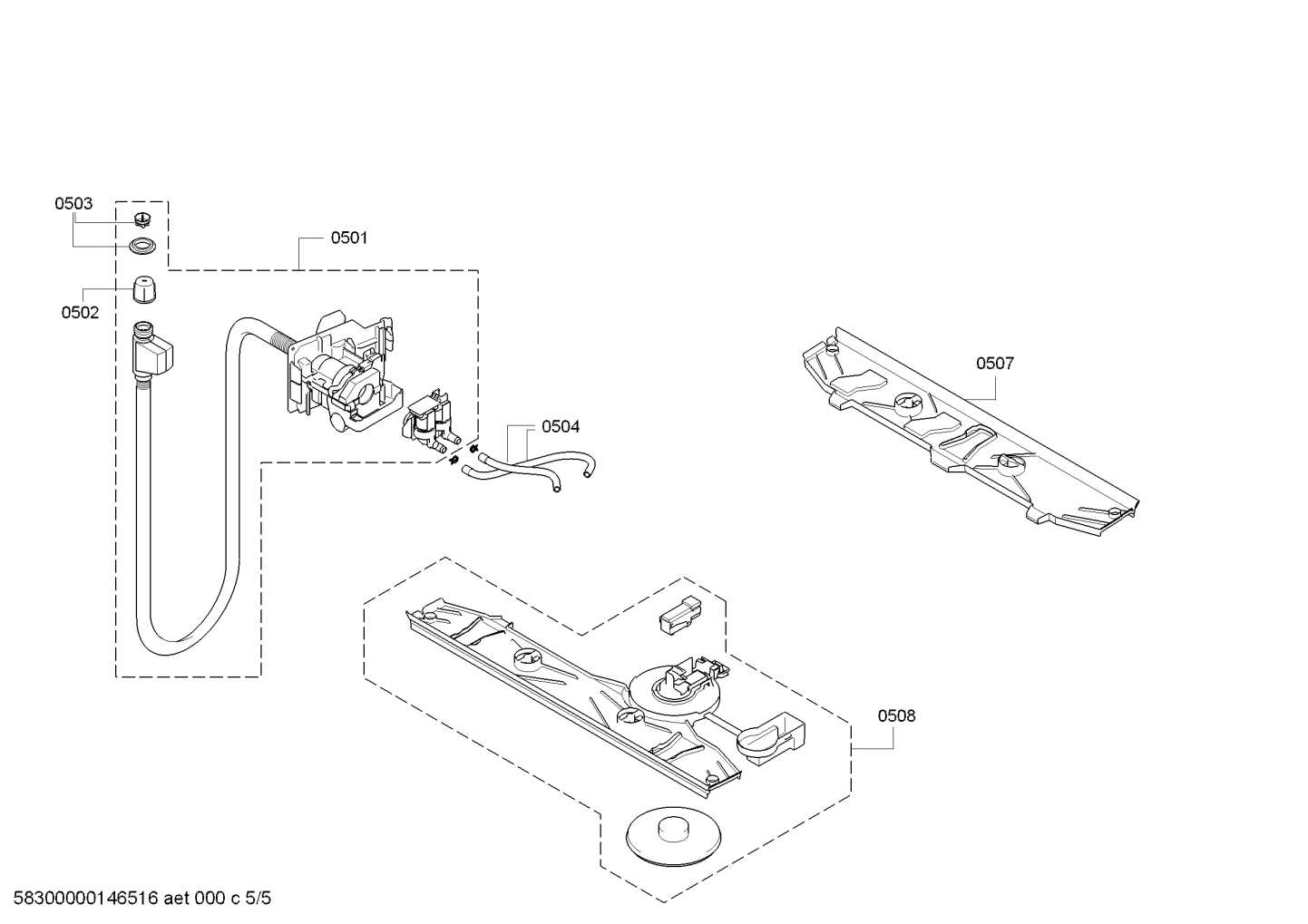

Diagram 5
Common parts from model Bosch WAS28792/06 Washer
0134
Clamping piece BOS 00174409 Contact Us For Availability
0136
Capacitor-interference suppre. BOS 00623842 Contact Us For Availability
0201
Fixing kit BOS 10012244 Contact Us For Availability
0202
Back panel BOS 00683880 Contact Us For Availability
0206
Washer Foot BOS 00610643 Contact Us For Availability
0207
Auxiliary tool BOS 00416875 Contact Us For Availability
0209
Flap BOS 00640711 Contact Us For Availability
0213
Hinge-window BOS 00655117 Contact Us For Availability
0215
Hook BOS 00623234 Contact Us For Availability
0226
Holder BOS 00618779 Contact Us For Availability
0227
Kit to Attach Washer to Floor/Pedestal BOS 00493529 Contact Us For Availability
0228
Lid BOS 00478026 Contact Us For Availability
0229
Band BOS 00705651 Contact Us For Availability
0303
Bushing BOS 00605216 Contact Us For Availability
0304
Fixture BOS 00171272 Contact Us For Availability
0307
Sensor-NTC BOS 00170961 Contact Us For Availability
0312
Spring-tank BOS 00605140 Contact Us For Availability
0313
Fixing kit BOS 00630817 Contact Us For Availability
0315
Sensor BOS 00617804 Contact Us For Availability
0316
Holder BOS 00615697 Contact Us For Availability
0317
Nut BOS 00605147 Contact Us For Availability
0319
Sealing BOS 00640433 Contact Us For Availability
0322
Tub front BOS 00248667 Contact Us For Availability
0323
fastening ring BOS 00660868 Contact Us For Availability
0325
Bearing set BOS 00619808 Contact Us For Availability
0326
fastening ring BOS 00670743 Contact Us For Availability
0327
Screw BOS 00621467 Contact Us For Availability
0401
Dispenser tray BOS 00660683 Contact Us For Availability
0402
Siphon-device BOS 00605148 Contact Us For Availability
0403
Dispenser Tray Insert BOS 00605740 Contact Us For Availability
0411
Hose-fill BOS 00265958 Contact Us For Availability
0413
Hose-pressure chamber BOS 00605209 Contact Us For Availability
0414
Outlet hose BOS 00678974 Contact Us For Availability
0415
Hose BOS 00605215 Contact Us For Availability
0416
Holder BOS 00655300 Contact Us For Availability
0419
Hose-sump BOS 00704793 Contact Us For Availability
0420
Latch BOS 00707751 Contact Us For Availability
0421
Dryer Filter BOS 00647920 Contact Us For Availability
0503
Sealing BOS 00166671 Contact Us For Availability
0504
Hose BOS 00661785 Contact Us For Availability
× ![]()
