Samsung WA45H7000AW/A2-02 Washer Parts List

1

DC29-00021A Samsung Washer Noise Filter Assem Backorder SMG DC29-00021A $119.44

View on Model

1

DC61-03174A Samsung Fixer Cover Top Backorder SMG DC61-03174A $5.75

View on Model

1

DC63-01433A Samsung Cover Panel WA456DRHDWD A Backorder SMG DC63-01433A $61.79

View on Model

1-1

6021-001588 Samsung Washer Hexagon Nut Backorder SMG 6021-001588 $4.07

View on Model

1-2

6031-002240 Samsung Washer Wave Backorder SMG 6031-002240 $8.59

View on Model

1-3

DC31-20014C Samsung Washer Shift Actuator In Stock SMG DC31-20014C $143.90

View on Model

1-4

DC60-40133A Samsung Washer Pulsator Bolt Backorder SMG DC60-40133A $5.42

View on Model

1-5

DC61-03280A Samsung Support Cushion Assembly Backorder SMG DC61-03280A $115.70

View on Model

1-7

DC66-00777A Samsung Washer Pulsator Cap In Stock SMG DC66-00777A $14.49

View on Model

1-9

DC90-10128N Samsung Washer Water Temperature In Stock SMG DC90-10128N $28.18

View on Model

1-11

DC97-05280W Samsung Washer Damper Assembly (P In Stock SMG DC97-05280W $35.72

View on Model

1-12

Washer Outer Tub SMG DC97-16967A Contact Us For Availability

View on Model

1-13

DC60-80169A Samsung MSWR L45 Link Pin Assembl Backorder SMG DC60-80169A $1.35

View on Model

2

DC92-01089A Samsung Assembly PCB Cover (M) Backorder SMG DC92-01089A $54.87

View on Model

2

Washer Door Lock Assembly SMG DC34-00025A Contact Us For Availability

View on Model

2

Driving Md SMG DC90-09449A Contact Us For Availability

View on Model

2-1

6011-004528 Samsung Bolt In Stock SMG 6011-004528 $3.63

View on Model

2-3

DC60-60046A Samsung Washer Spring Backorder SMG DC60-60046A $0.97

View on Model

2-4

6031-002269 Samsung Washer Plain Backorder SMG 6031-002269 $2.72

View on Model

2-5

DC91-11804B Samsung Screw Assembly XQB46-71 M Backorder SMG DC91-11804B $1.81

View on Model

2-6

DC93-00309A Samsung Washer Drive Motor Assemb In Stock SMG DC93-00309A $245.20

View on Model

2-7

DC97-16984A Samsung Washer Clutch Assembly In Stock SMG DC97-16984A $281.38

View on Model

2-61

DC31-00153A Samsung Motor Direct Current Hall Backorder SMG DC31-00153A $94.56

View on Model

2-62

DC31-00154A Samsung Washer BLDC Motor Stator Backorder SMG DC31-00154A $178.37

View on Model

2-63

DC31-00155A Samsung Motor Brushless Direct Cu Backorder SMG DC31-00155A $159.01

View on Model

3

DC61-03400A Samsung Clip Backorder SMG DC61-03400A $1.81

View on Model

3

DC61-03426A Samsung Guide Pin Assembly In Stock SMG DC61-03426A $77.32

View on Model

3

DC92-01625B Samsung Washer Main PCB Assembly In Stock SMG DC92-01625B $305.28

View on Model

3

Samsung Washer Washplate SMG DC97-18154A Contact Us For Availability

View on Model

3-1

Pulsator SMG DC66-00778A Contact Us For Availability

View on Model

3-2

Pulsator SMG DC66-00821A Contact Us For Availability

View on Model

3-3

Bushing SMG DC66-20042A Contact Us For Availability

View on Model

4

DC63-01430B Samsung Washer Switch Cover Assem Backorder SMG DC63-01430B $4.07

View on Model

4

DC90-12777B Samsung Assembly Semi Base Hudson Backorder SMG DC90-12777B $158.41

View on Model

4

DC92-01624B Samsung Assembly Printed Circuit Backorder SMG DC92-01624B $237.15

View on Model

4

DC97-16990H Samsung Spin Basket Backorder SMG DC97-16990H $292.71

View on Model

4-1

6011-004242 Samsung Washer Hex Bolt M6.0 L40. Backorder SMG 6011-004242 $9.50

View on Model

4-1

Basket Wrap SMG DC61-03272E Contact Us For Availability

View on Model

4-2

DC61-01722B Samsung Washer Adjustable Levelin In Stock SMG DC61-01722B $5.42

View on Model

4-2

DC97-18933A Samsung Balancer Assembly WA7000 Backorder SMG DC97-18933A $144.67

View on Model

4-3

DC61-03191B Samsung Washer Rubber Leveling Le In Stock SMG DC61-03191B $22.18

View on Model

4-3

Bowl SMG DC97-18187A Contact Us For Availability

View on Model

4-6

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.97

View on Model

4-21

DC63-01871A Samsung Balancer Assembly Backorder SMG DC63-01871A $69.29

View on Model

4-22

ASSEMBLY FRAME FRONT & DOOR SMG N/P Contact Us For Availability

View on Model

4-31

DC60-00101A Samsung Flange-Shaft Backorder SMG DC60-00101A $174.52

View on Model

4-32

Basket SMG DC61-03649B Contact Us For Availability

View on Model

4-71

DC98-01438A Samsung F900 Pump Cushion Assembl Backorder SMG DC98-01438A $43.75

View on Model

4-73

6009-001780 Samsung Hex Bolt Backorder SMG 6009-001780 $2.72

View on Model

4-74

DC61-03550A Samsung Washer Pump Bracket Assem Backorder SMG DC61-03550A $12.66

View on Model

4-75

DC61-03385A Samsung Washer Pump Case Backorder SMG DC61-03385A $30.59

View on Model

4-76

DC62-00328A Samsung Washer Drain Check Valve Backorder SMG DC62-00328A $79.82

View on Model

4-77

DC31-00187A Samsung Washer AC Pump Motor Asse In Stock SMG DC31-00187A $140.06

View on Model

5

DC93-00546B Samsung Auto Main Wire Harness As Backorder SMG DC93-00546B $137.24

View on Model

5-1

DC61-00201A Samsung Bracket Nut Assembly In Stock SMG DC61-00201A $1.35

View on Model

6

DC90-11705A Samsung Bleach Decoration Assembl Backorder SMG DC90-11705A $25.78

View on Model

6

DC97-19289F Samsung Washer Drain Pump Assembl In Stock SMG DC97-19289F $99.36

View on Model

6-1

DC64-02762A Samsung Decoration Bleach Backorder SMG DC64-02762A $25.34

View on Model

7

DC97-17417A Samsung Washer Drain Hose Assembl Backorder SMG DC97-17417A $94.56

View on Model

7

DC97-18682A Samsung Drain Hose Assembly Backorder SMG DC97-18682A $123.61

View on Model

7-1

DC65-00008B Samsung Clamper Hose Assembly Backorder SMG DC65-00008B $2.72

View on Model

8

DC96-00757C Samsung Washer Power Cord Assembl Backorder SMG DC96-00757C $73.42

View on Model

9

DC96-01703C Samsung Washer Water Level Pressu In Stock SMG DC96-01703C $69.10

View on Model

10

DC97-15459H Samsung Washer Water Valve Assemb In Stock SMG DC97-15459H $127.39

View on Model

10

DC97-16931A Samsung Encoder Knob Assembly Backorder SMG DC97-16931A $42.52

View on Model

12-1

DC61-03184A Samsung Washer/Dishwasher R.S. Ma Backorder SMG DC61-03184A $5.89

View on Model

13

DC97-16962A Samsung Assembly Body Detergent Backorder SMG DC97-16962A $65.78

View on Model

14

DC97-16963G Samsung Washer Detergent Case Ass Backorder SMG DC97-16963G $81.08

View on Model

15

DC97-16971C Samsung Washer Fill Nozzle Tub Backorder SMG DC97-16971C $26.56

View on Model

15-4

DC67-00051B Samsung Drawer Hose Assembly Backorder SMG DC67-00051B $28.97

View on Model

16-1

Washer Top Panel SMG DC63-01418A Contact Us For Availability

View on Model

1121

Washer Outer Tub SMG DC61-03278A Contact Us For Availability

View on Model

1122

DC61-03307A Samsung Motor Die Backorder SMG DC61-03307A $245.54

View on Model

NI

DC61-70184A Samsung Spring Clip Assembly Backorder SMG DC61-70184A $1.35

View on Model

NI

DC65-00038A Samsung Clamper Hose Fix Assembly In Stock SMG DC65-00038A $3.17

View on Model

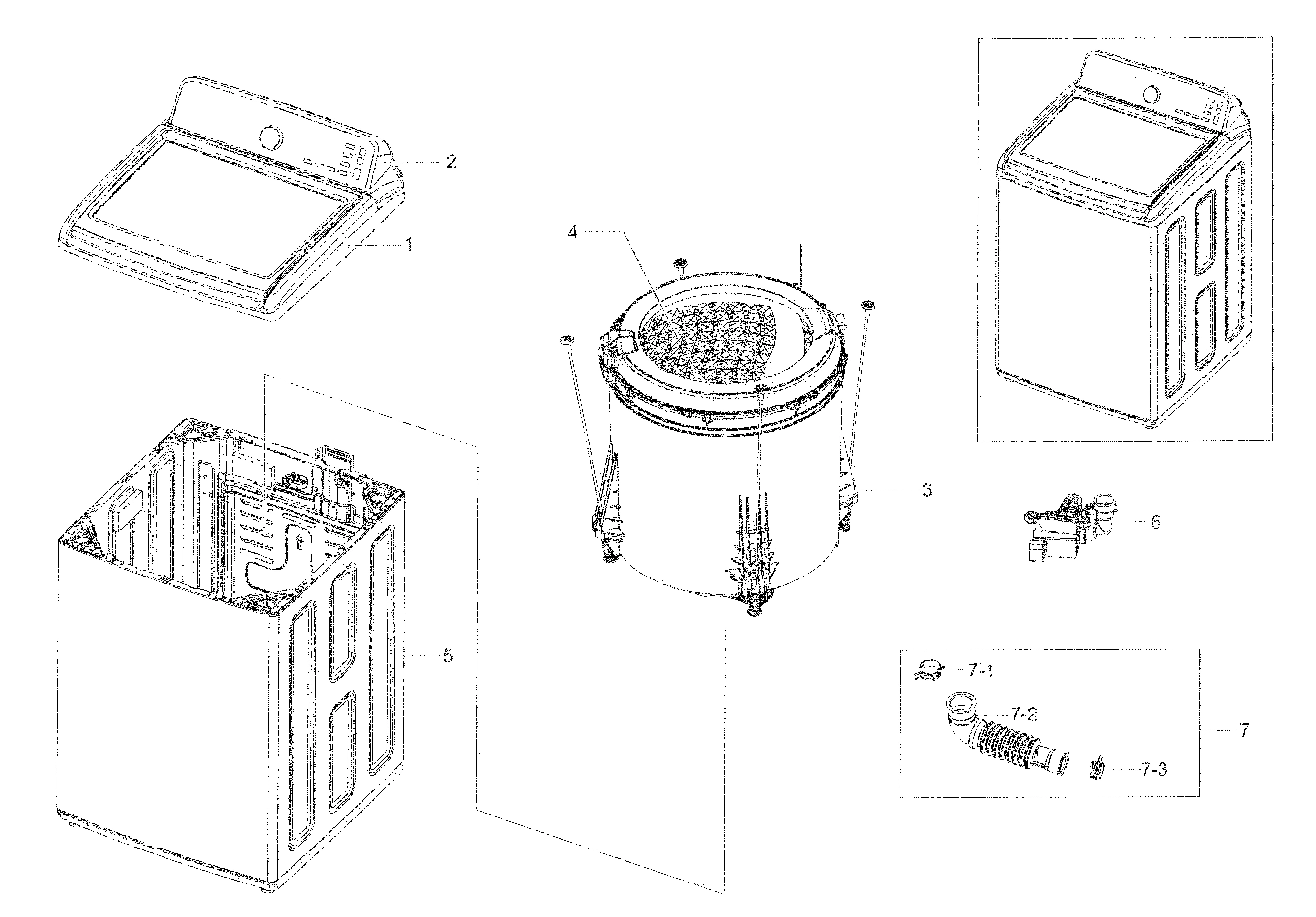

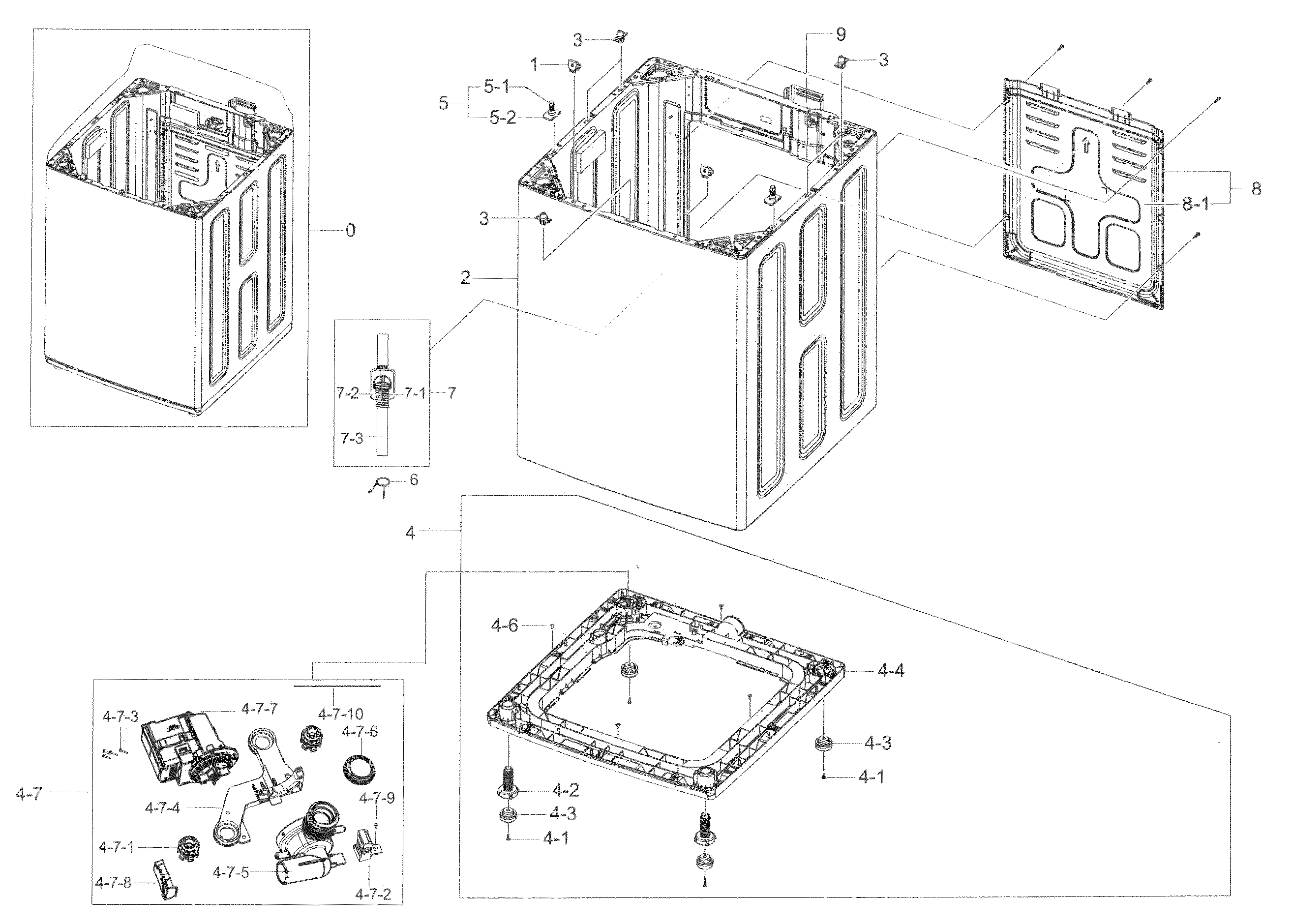

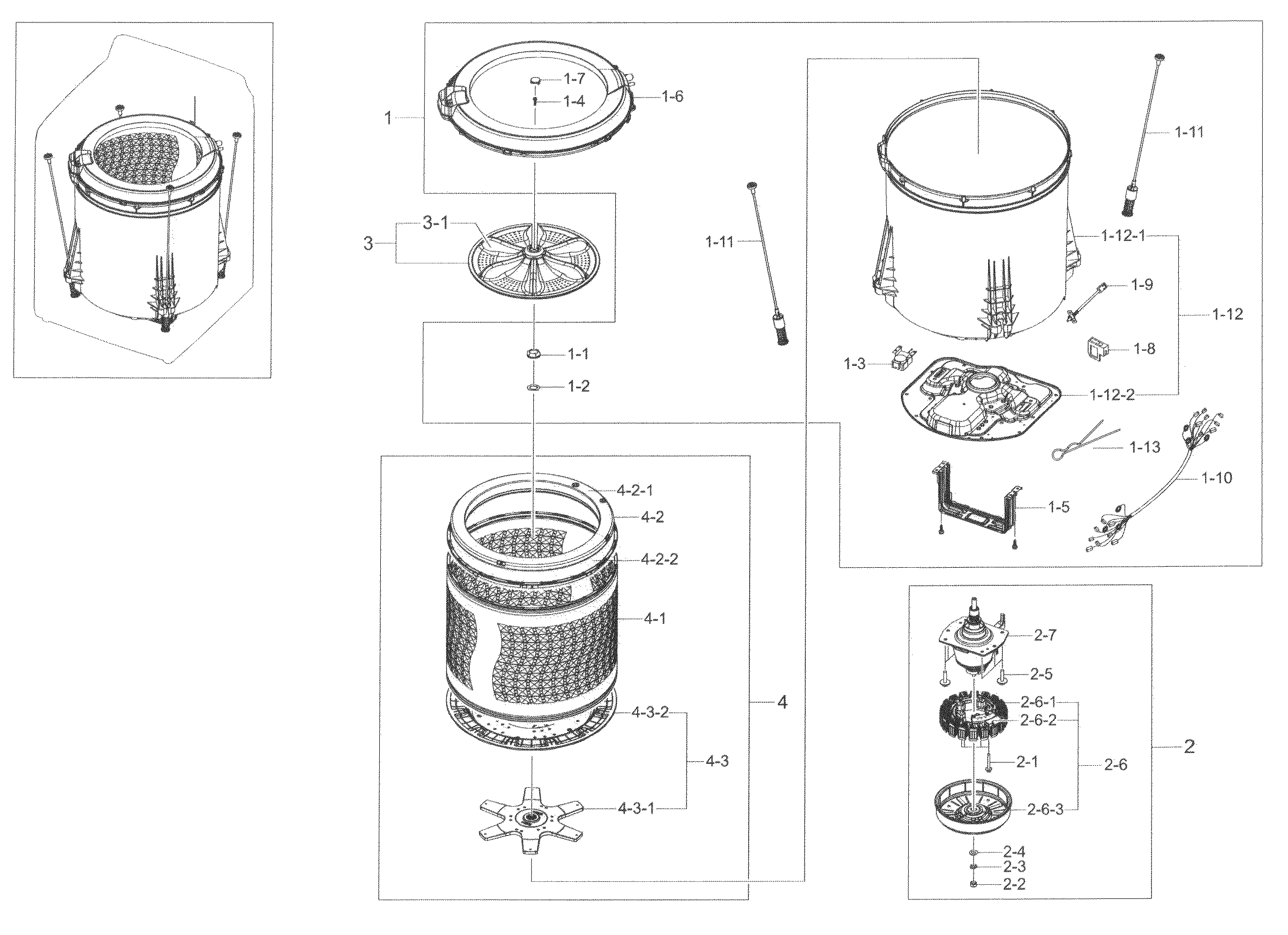

Model Samsung WA45H7000AW/A2-02 Washer – Common Parts & Diagrams
