Model Bosch SMV86M90DE/35 Dishwasher – Common Parts & Diagrams
Diagram 1
Diagram 2

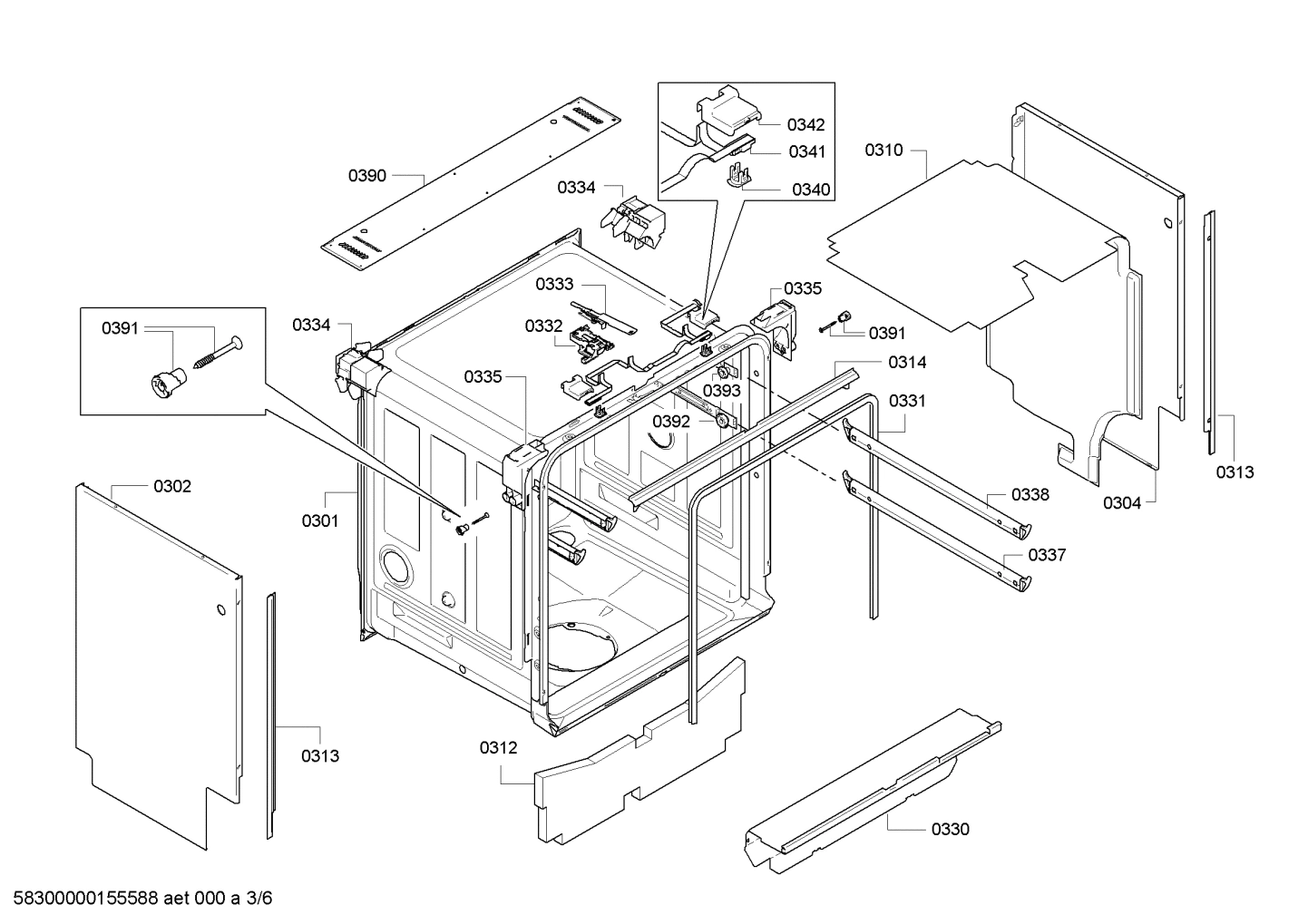

Diagram 3

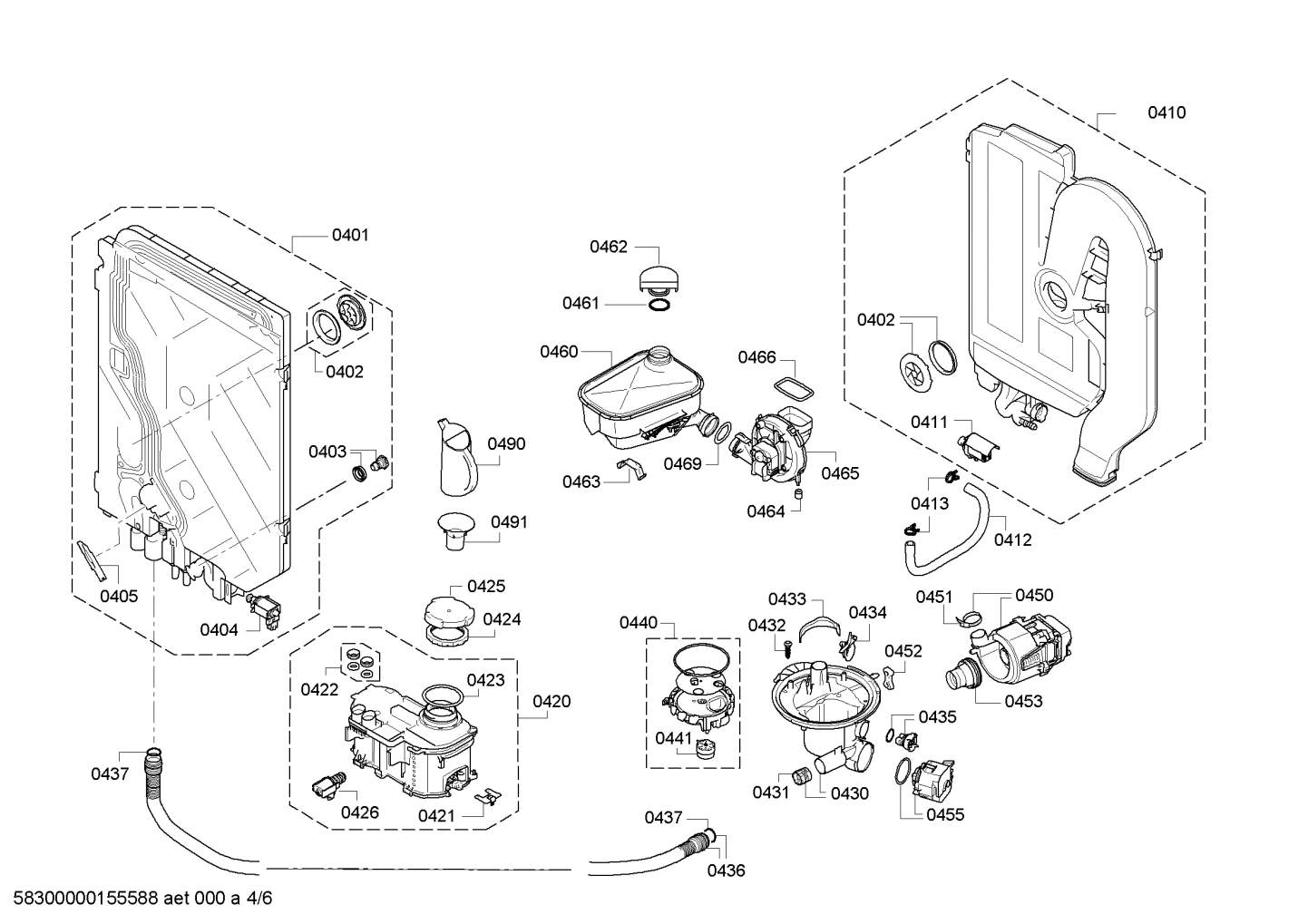

Diagram 4

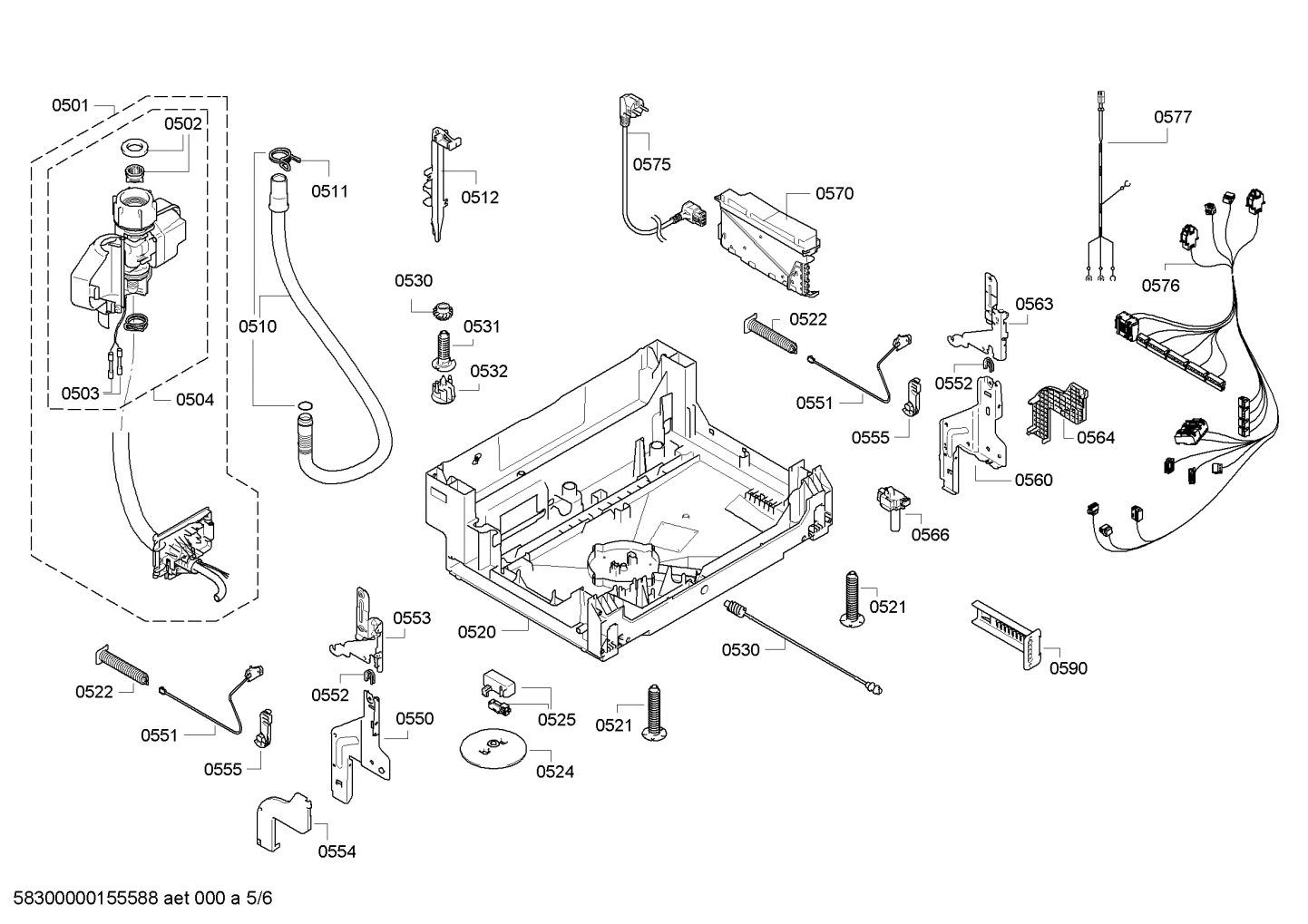

Diagram 5

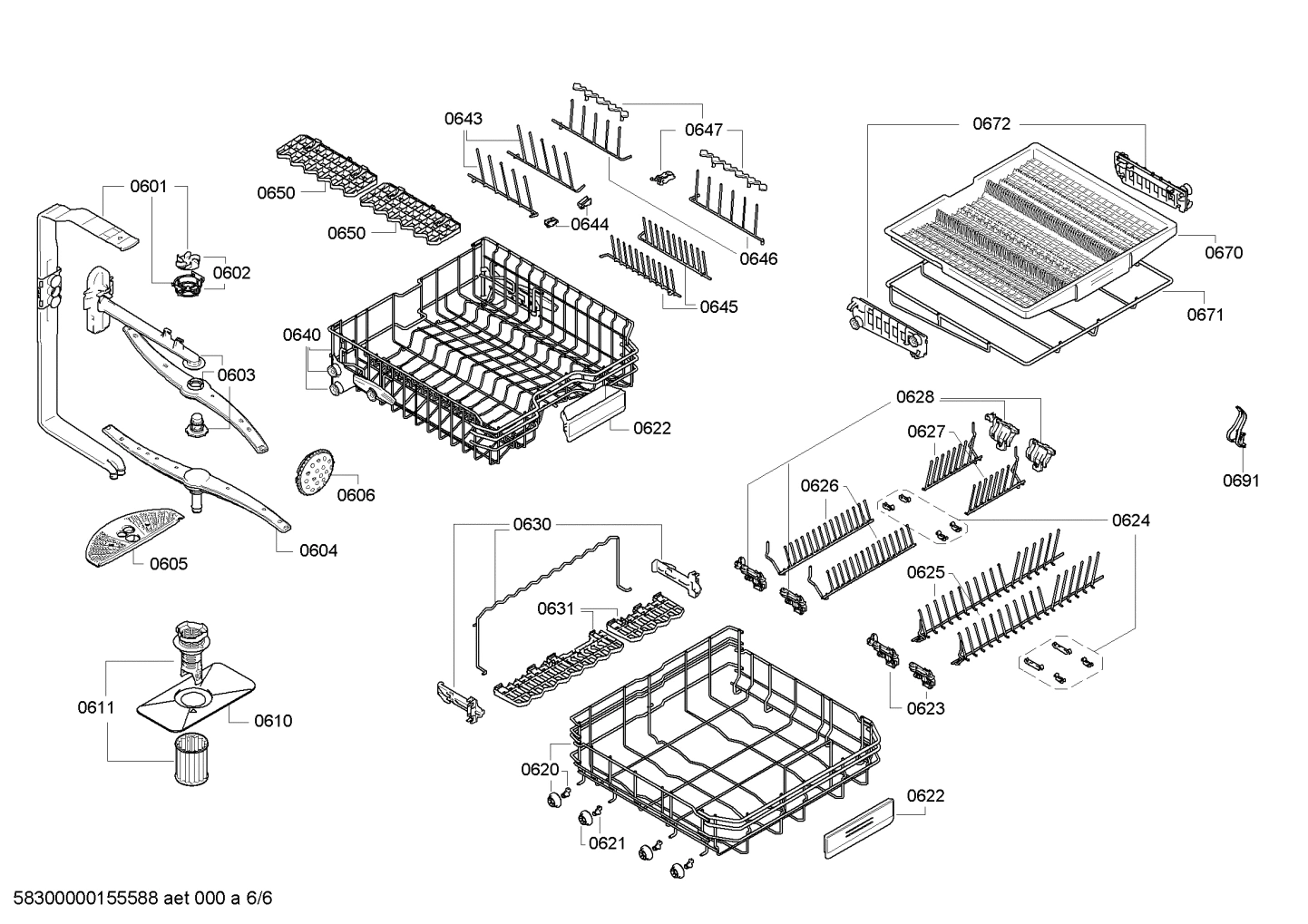

Diagram 6
Common parts from model Bosch SMV86M90DE/35 Dishwasher
0109
Cable BOS 00645125 Contact Us For Availability
0113
Switch BOS 00620775 Contact Us For Availability
0199
Repair set-pump sump-seal BOS 12005744 Contact Us For Availability
0199
Cutlery Drawer BOS 00685271 Contact Us For Availability
0202
Sealing BOS 00645144 Contact Us For Availability
0203
Sensor BOS 00611574 Contact Us For Availability
0204
Lid BOS 00611575 Contact Us For Availability
0205
Lid BOS 00611576 Contact Us For Availability
0241
Screw BOS 00611311 Contact Us For Availability
0242
Screw BOS 00151703 Contact Us For Availability
0243
Seal-door BOS 00668079 Contact Us For Availability
0245
Door Switch BOS 00611312 Contact Us For Availability
0247
Wood Screw BOS 00612562 Contact Us For Availability
0260
Door-outer BOS 00684856 Contact Us For Availability
0261
Strip BOS 00678837 Contact Us For Availability
0262
Strip BOS 00669855 Contact Us For Availability
0263
Screw BOS 00182137 Contact Us For Availability
0264
Insulating plate BOS 00645606 Contact Us For Availability
0290
Mounting set BOS 00618833 Contact Us For Availability
0314
Strip BOS 00668095 Contact Us For Availability
0330
Base BOS 00668096 Contact Us For Availability
0331
Seal BOS 00263096 Contact Us For Availability
0332
Lock BOS 10006917 Contact Us For Availability
0335
Spacer BOS 00622874 Contact Us For Availability
0337
Rack guide rail BOS 00668097 Contact Us For Availability
0338
Rack guide rail BOS 00668719 Contact Us For Availability
0390
Steam Safety Sheet BOS 00114294 Contact Us For Availability
0391
Left/Right Attachment Brackets BOS 00622861 Contact Us For Availability
0392
Repair set-role BOS 00622193 Contact Us For Availability
0402
Cover BOS 00611314 Contact Us For Availability
0403
Thread bolt BOS 00622267 Contact Us For Availability
0405
Flow-through sensor BOS 00611317 Contact Us For Availability
0413
Hose clamp BOS 00625999 Contact Us For Availability
0421
Sensor BOS 00611912 Contact Us For Availability
0422
Sealing BOS 00611913 Contact Us For Availability
0423
Sealing BOS 00611915 Contact Us For Availability
0424
Nut BOS 00611318 Contact Us For Availability
0425
Includes gasket BOS 00611319 Contact Us For Availability
0430
Sump BOS 00668102 Contact Us For Availability
0431
Valve-non return BOS 00611320 Contact Us For Availability
0432
Screw BOS 00167241 Contact Us For Availability
0433
Cover BOS 00611321 Contact Us For Availability
0434
Lid BOS 00611322 Contact Us For Availability
0435
Sensor BOS 00611323 Contact Us For Availability
0436
Hose BOS 00668104 Contact Us For Availability
0437
Sealing BOS 00611324 Contact Us For Availability
0451
Hose clamp BOS 00172272 Contact Us For Availability
0452
Suspension BOS 00611330 Contact Us For Availability
0455
Drain Pump BOS 00620774 Contact Us For Availability
0501
Aquastop BOS 00673684 Contact Us For Availability
0503
Cable connector BOS 00067776 Contact Us For Availability
0504
Valve-aquastop BOS 00645701 Contact Us For Availability
0510
Drain Hose BOS 00668114 Contact Us For Availability
0511
Hose Clamp BOS 00417499 Contact Us For Availability
0522
Spring BOS 00611338 Contact Us For Availability
0525
Float switch BOS 00622039 Contact Us For Availability
0530
Axis BOS 00669859 Contact Us For Availability
0550
Hinge BOS 00706435 Contact Us For Availability
0551
Rope BOS 00611370 Contact Us For Availability
0552
Hinge Bushing BOS 00165296 Contact Us For Availability
0553
Hinge BOS 12005776 Contact Us For Availability
0554
Cover BOS 00611371 Contact Us For Availability
0555
Guide BOS 00623536 Contact Us For Availability
0560
Hinge BOS 00706436 Contact Us For Availability
0563
Hinge BOS 12005775 Contact Us For Availability
0564
Cover BOS 00611373 Contact Us For Availability
0566
LED-announcement BOS 00424819 Contact Us For Availability
0590
Toe Kick Mounting Brackets BOS 00612653 Contact Us For Availability
0601
Tube BOS 11003118 Contact Us For Availability
0602
Shower BOS 00611388 Contact Us For Availability
0603
Spray arm top BOS 11012631 Contact Us For Availability
0604
Spray arm bottom BOS 00668148 Contact Us For Availability
0610
Filter-fine BOS 00645037 Contact Us For Availability
0611
Coarse Micro-Filter BOS 00645038 Contact Us For Availability
0621
Dishwasher Rack Wheel BOS 00611475 Contact Us For Availability
0622
Basket handle BOS 00616395 Contact Us For Availability
0623
Bearing BOS 00611482 Contact Us For Availability
0624
Clip BOS 00611472 Contact Us For Availability
0625
Flip tine BOS 00645108 Contact Us For Availability
0626
Flip tine BOS 00645101 Contact Us For Availability
0627
Flip tine BOS 00645102 Contact Us For Availability
0628
Bearing BOS 00611473 Contact Us For Availability
0630
Bracket BOS 00701712 Contact Us For Availability
0631
Cup rack BOS 00652130 Contact Us For Availability
0640
Upper crockery basket BOS 00778368 Contact Us For Availability
0643
Flip tine BOS 12004141 Contact Us For Availability
0644
Clip BOS 00611474 Contact Us For Availability
0645
Flip tine BOS 12004140 Contact Us For Availability
0646
Flip tine BOS 12004142 Contact Us For Availability
0647
Clip BOS 00652041 Contact Us For Availability
0650
Cup rack BOS 00645105 Contact Us For Availability
0670
Cutlery drawer BOS 00685187 Contact Us For Availability
0671
Frame BOS 00685184 Contact Us For Availability
0672
Holder BOS 00619598 Contact Us For Availability
8100
Fixing kit BOS 00622456 Contact Us For Availability
8101
Cover BOS 00657927 Contact Us For Availability
× ![]()
