Samsung SMH9187ST/XAA Parts List

B001

3405-001034 Samsung Microwave Oven Range Micr In Stock SMG 3405-001034 $8.59

View on Model

B002

3405-001033 Samsung Whirlpool Microwave Oven In Stock SMG 3405-001033 $10.87

View on Model

B006

DE66-00168A Samsung Latch Body Assembly Backorder SMG DE66-00168A $13.57

View on Model

B013

DE66-90106B Samsung Washer Ball Bearing Lower Backorder SMG DE66-90106B $1.08

View on Model

B018

DE96-00414A Samsung Microwave Latch Body Asse In Stock SMG DE96-00414A $46.69

View on Model

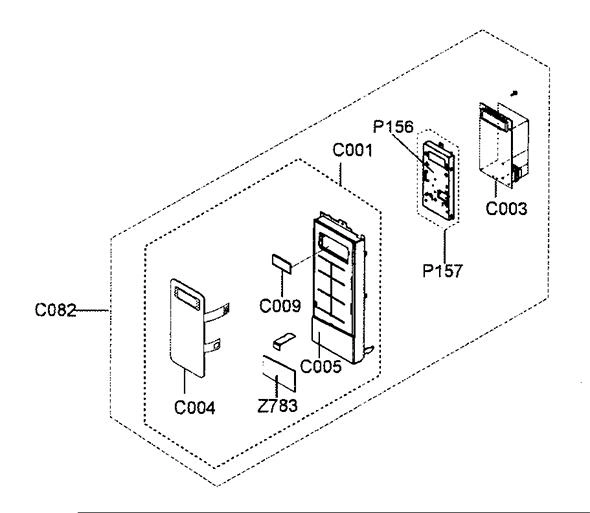

C001

Samsung Microwave Control Panel SMG DE94-02001C Contact Us For Availability

View on Model

C003

Microwave Relay Control Board SMG RAS-SM7MGV-07 Contact Us For Availability

View on Model

C004

DE34-00330C Samsung Microwave Black Membrane Backorder SMG DE34-00330C $94.56

View on Model

C005

Control Panel SMG DE64-02066A Contact Us For Availability

View on Model

C009

DE64-02086A Samsung Display Window Backorder SMG DE64-02086A $10.40

View on Model

C081

DE66-20095B Samsung Stirring Fan Cover Backorder SMG DE66-20095B $10.40

View on Model

C082

Control Box SMG DE94-01999C Contact Us For Availability

View on Model

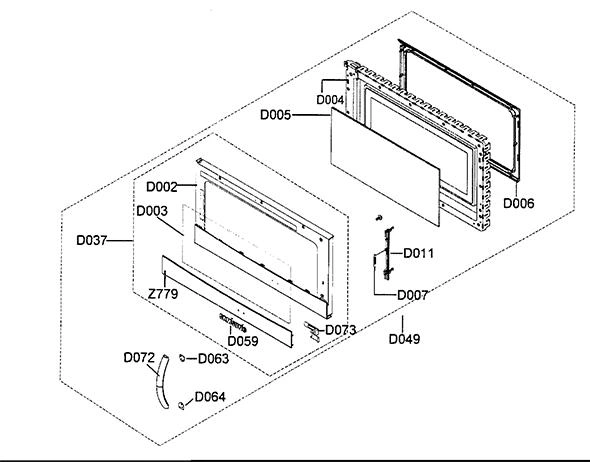

D002

DE64-02065A Samsung Door Assembly CYMA PC HB Backorder SMG DE64-02065A $94.18

View on Model

D003

DE64-02231A Samsung Door Screen Backorder SMG DE64-02231A $78.58

View on Model

D004

DE94-01470B Samsung Microwave Inner Door Pane Backorder SMG DE94-01470B $99.87

View on Model

D005

DE01-00127A Samsung Door Film Backorder SMG DE01-00127A $13.57

View on Model

D006

DE64-00759A Samsung Microwave Black Door Asse Backorder SMG DE64-00759A $20.36

View on Model

D007

DE61-00048A Samsung Microwave Door Latch Key In Stock SMG DE61-00048A $1.00

View on Model

D011

DE64-00760A Samsung Door Latch Hook Strike As In Stock SMG DE64-00760A $13.57

View on Model

D037

DE94-01996A Samsung Microwave Door Assembly Backorder SMG DE94-01996A $156.15

View on Model

D049

DE94-01997C Samsung Microwave Door Assembly Backorder SMG DE94-01997C $206.79

View on Model

D059

Badge Logo SMG DE64-02228A Contact Us For Availability

View on Model

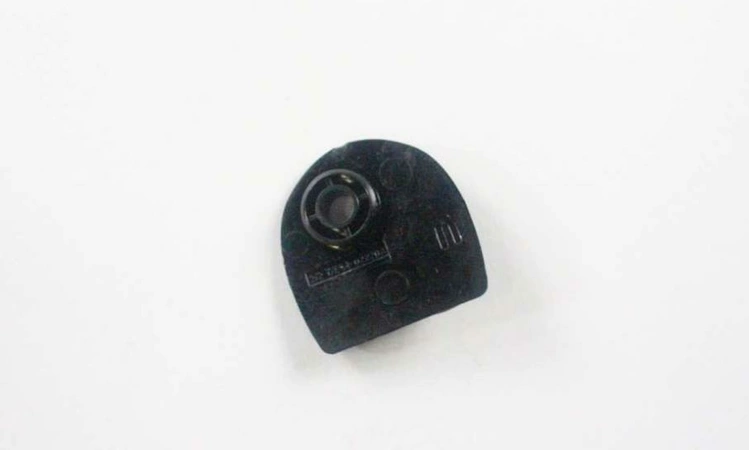

D063

DE64-02220A Samsung Upper Base Handle Backorder SMG DE64-02220A $20.36

View on Model

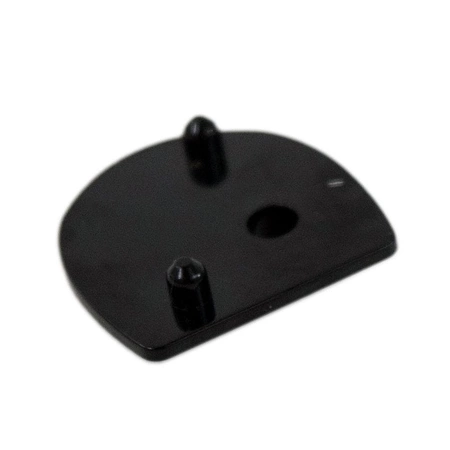

D064

DE64-02243A Samsung Lower Base Handle Backorder SMG DE64-02243A $19.92

View on Model

D072

DE64-02224A Samsung Handle Assembly-Tube Backorder SMG DE64-02224A $96.61

View on Model

D073

Earth Door SMG DE63-00539A Contact Us For Availability

View on Model

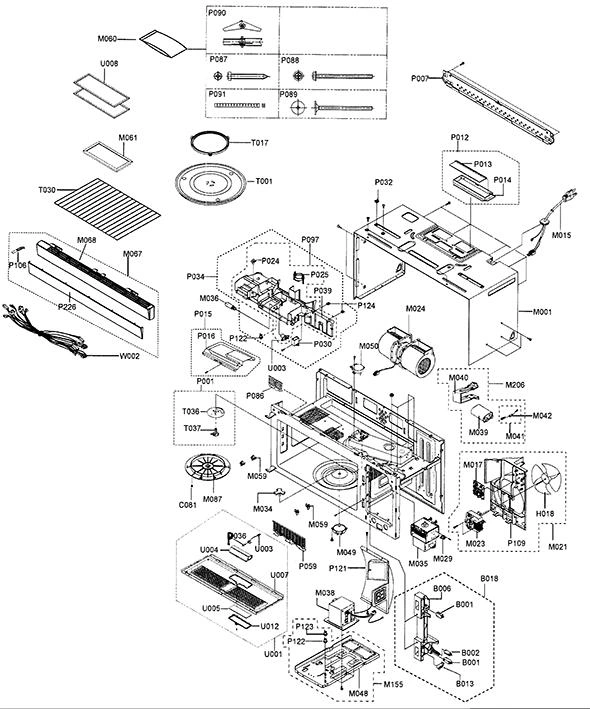

M017

DE96-00400B Samsung Noise Assembly Backorder SMG DE96-00400B $65.11

View on Model

M021

DE97-00365C Samsung Motor Cover Assembly SMH7 Backorder SMG DE97-00365C $124.68

View on Model

M024

DE31-00029C Samsung Ventilation Motor Backorder SMG DE31-00029C $158.33

View on Model

M034

DE67-00179A Samsung Coupler Assembly In Stock SMG DE67-00179A $17.20

View on Model

M036

4713-001013 Samsung Microwave Incandescent La In Stock SMG 4713-001013 $14.48

View on Model

M038

DE26-00126A Samsung Transformer In Stock SMG DE26-00126A $158.01

View on Model

M039

2501-001011 Samsung Microwave High Voltage Ca In Stock SMG 2501-001011 $61.04

View on Model

M041

DE91-70063D Samsung Microwave High Voltage Di In Stock SMG DE91-70063D $13.57

View on Model

M042

DE59-00002A Samsung Microwave High Voltage Di In Stock SMG DE59-00002A $14.03

View on Model

M050

DE31-10173A Samsung Microwave Oven Turntable Backorder SMG DE31-10173A $45.20

View on Model

M059

DE61-00375A Samsung Holder Rack Backorder SMG DE61-00375A $10.87

View on Model

M060

DE92-90505E Samsung Hardware Assembly Backorder SMG DE92-90505E $27.16

View on Model

M068

Microwave Vent Grille SMG DE64-02067A Contact Us For Availability

View on Model

M087

DE71-60121A Samsung Microwave Stirrer Blade C Backorder SMG DE71-60121A $10.40

View on Model

M206

DE96-00269A Samsung Microwave Oven High Volta In Stock SMG DE96-00269A $36.17

View on Model

NI

Wire SMG DE70-60025A Contact Us For Availability

View on Model

NI

Wire SMG DE70-90027A Contact Us For Availability

View on Model

NI

Sheet SMG DE70-90033A Contact Us For Availability

View on Model

NI

Sheet SMG DE71-00042A Contact Us For Availability

View on Model

NI

Shield Cup SMG DE71-60270C Contact Us For Availability

View on Model

NI

Cap Antenna SMG DE71-80021A Contact Us For Availability

View on Model

NI

Shield SMG DE71-80022A Contact Us For Availability

View on Model

NI

Shield SMG DE72-10012D Contact Us For Availability

View on Model

NI

Anode Body SMG DE73-00019A Contact Us For Availability

View on Model

NI

Magnet SMG DE99-00224A Contact Us For Availability

View on Model

NI

Rod Assembly SMG DE99-00234A Contact Us For Availability

View on Model

NI

Assy-anode SMG DE99-00235A Contact Us For Availability

View on Model

NI

Asy-output SMG DE99-00237A Contact Us For Availability

View on Model

NI

Cathode SMG 1404-000230 Contact Us For Availability

View on Model

P001

DE97-00367A Samsung Assembly Stirrer SMH7175 Backorder SMG DE97-00367A $15.38

View on Model

P007

DE70-00561A Samsung Microwave Mounting Plate In Stock SMG DE70-00561A $26.25

View on Model

P012

Microwave Mounting Plate SMG DE92-90242D Contact Us For Availability

View on Model

P013

DE71-60051B Samsung Microwave Vent Cover Damp Backorder SMG DE71-60051B $2.90

View on Model

P014

DE72-40022A Samsung Microwave Main Vent Dampe In Stock SMG DE72-40022A $14.03

View on Model

P015

DE97-00411A Samsung Upper Duct Bracket Assemb Backorder SMG DE97-00411A $42.15

View on Model

P016

DE61-00410A Samsung Duct Bracket Assembly SMH Backorder SMG DE61-00410A $8.59

View on Model

P024

DE32-60011A Samsung Microwave Gas Sensor Asse In Stock SMG DE32-60011A $79.51

View on Model

P025

DE61-90111A Samsung Sensor Holder Backorder SMG DE61-90111A $12.22

View on Model

P030

DE59-50002A Samsung Microwave Motor Capacitor Backorder SMG DE59-50002A $23.53

View on Model

P032

DE92-90508A Samsung Microwave Mounting Nut Ho In Stock SMG DE92-90508A $14.03

View on Model

P034

Microwave Mounting Nut SMG DE97-00366A Contact Us For Availability

View on Model

P036

DE39-40678D Samsung Assembly Wire Harness SMH Backorder SMG DE39-40678D $26.25

View on Model

P039

Microwave Wire Harness SMG DE67-00168A Contact Us For Availability

View on Model

P059

DE63-00419A Samsung Cover Front Assembly Backorder SMG DE63-00419A $12.66

View on Model

P086

DE61-01008A Samsung Barrier Bracket Backorder SMG DE61-01008A $9.96

View on Model

P087

DE60-10111A Samsung Screw LAG Backorder SMG DE60-10111A $1.08

View on Model

P088

DE60-20022A Samsung Microwave Mounting Toggle Backorder SMG DE60-20022A $1.08

View on Model

P089

DE60-20066A Samsung Microwave Mounting Flat B In Stock SMG DE60-20066A $16.75

View on Model

P090

DE60-30022A Samsung Toggle Nut Backorder SMG DE60-30022A $1.81

View on Model

P091

Microwave Wall Mounting Anchor Nut SMG DE63-10011A Contact Us For Availability

View on Model

P097

Grommet SMG DE97-00371A Contact Us For Availability

View on Model

P109

DE63-00141A Samsung Cover Motor Backorder SMG DE63-00141A $26.25

View on Model

P121

DE61-00411B Samsung Rear Duct Bracket Backorder SMG DE61-00411B $20.01

View on Model

P122

DE47-20059B Samsung Microwave Oven Thermal Fu In Stock SMG DE47-20059B $14.03

View on Model

P123

DE47-20034A Samsung Microwave Thermostat Asse In Stock SMG DE47-20034A $14.48

View on Model

P124

DE60-30063A Samsung Mounting Nut Assembly Backorder SMG DE60-30063A $6.79

View on Model

P156

Bracket SMG DE61-01045A Contact Us For Availability

View on Model

P157

DE94-02002A Samsung Assembly Bracket Control Backorder SMG DE94-02002A $14.48

View on Model

P226

Microwave Mounting Nut SMG DE94-01995A Contact Us For Availability

View on Model

T001

DE74-20002A Samsung Tray Cooking Glass T6.0 P Backorder SMG DE74-20002A $73.10

View on Model

T017

DE97-00368A Samsung Microwave Guide Roller As Backorder SMG DE97-00368A $24.43

View on Model

T030

Microwave Turntable Tray Support SMG DE75-00036B Contact Us For Availability

View on Model

T036

DE31-00023A Samsung Stirrer Blade Assembly Backorder SMG DE31-00023A $62.09

View on Model

T037

Blade SMG DE61-00505A Contact Us For Availability

View on Model

U001

Holder SMG DE97-00675A Contact Us For Availability

View on Model

U003

DE47-00006A Samsung Microwave Lamp Socket Hol Backorder SMG DE47-00006A $14.48

View on Model

U004

DE61-00407A Samsung Lamp Bottom Bracket Backorder SMG DE61-00407A $10.87

View on Model

U005

DE64-00911A Samsung Glass Lamp Cooktop Backorder SMG DE64-00911A $15.85

View on Model

U007

DE61-00406F Samsung Bottom Base Assembly Backorder SMG DE61-00406F $75.18

View on Model

U008

DE63-00196A Samsung Aluminum Air Filter Assem In Stock SMG DE63-00196A $18.55

View on Model

U012

DE63-00137B Samsung Cooktop Glass Cover Backorder SMG DE63-00137B $16.29

View on Model

U07A

Microwave Base Plate Assembly (Black) SMG DE61-00406E Contact Us For Availability

View on Model

U12A

Microwave Light Lens Bracket SMG DE63-00137A Contact Us For Availability

View on Model

W002

DE96-00533F Samsung SMH9187 Assembly Wire Har Backorder SMG DE96-00533F $117.39

View on Model

Z779

Inlay Door SMG DE64-02069A Contact Us For Availability

View on Model

Z783

Microwave Control Overlay SMG DE64-02070A Contact Us For Availability

View on Model

Model Samsung SMH9187ST/XAA – Common Parts & Diagrams

Common parts from model Samsung SMH9187ST/XAA
