Model Bosch SHY66C05UC/23 Dishwasher – Common Parts & Diagrams

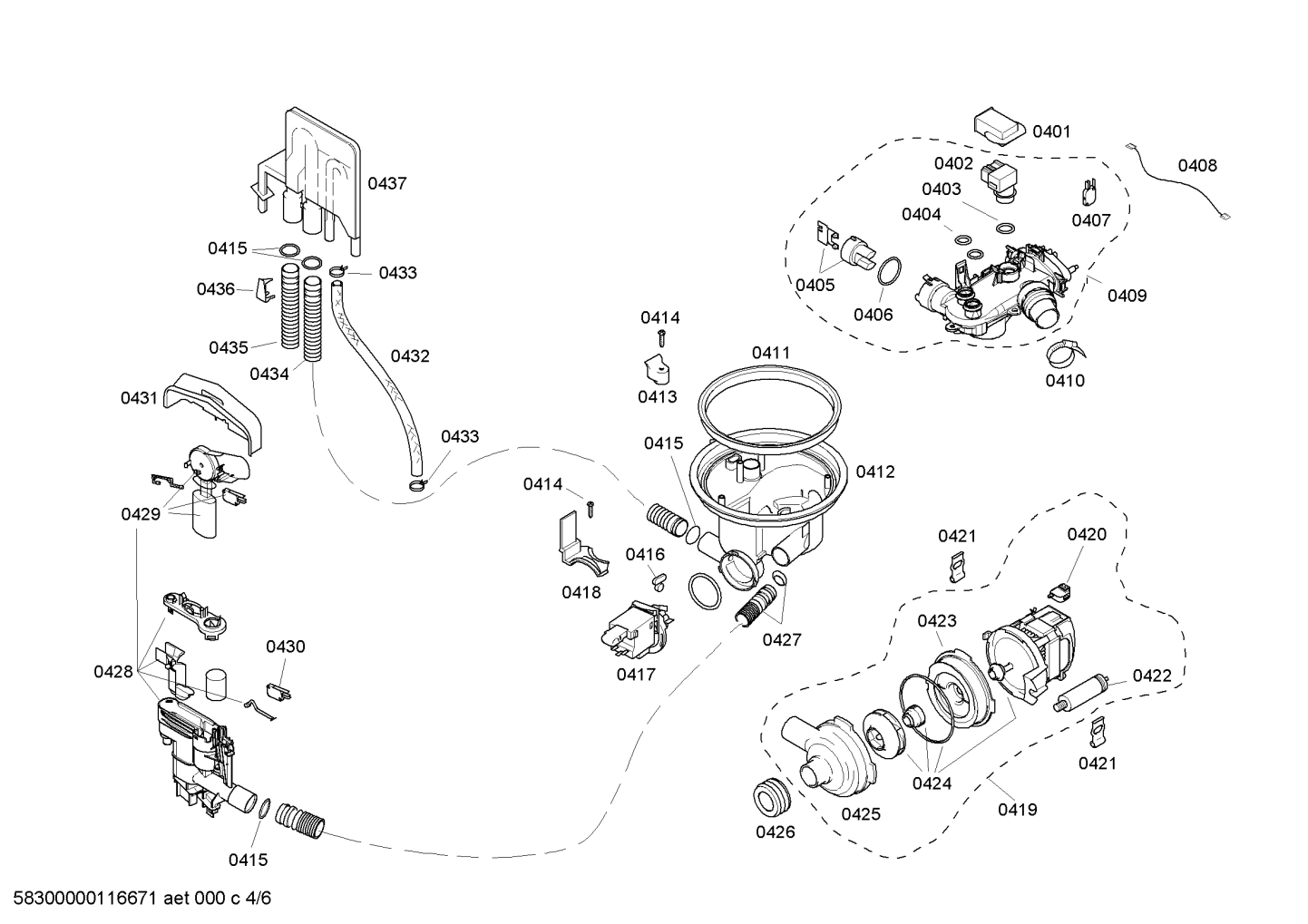

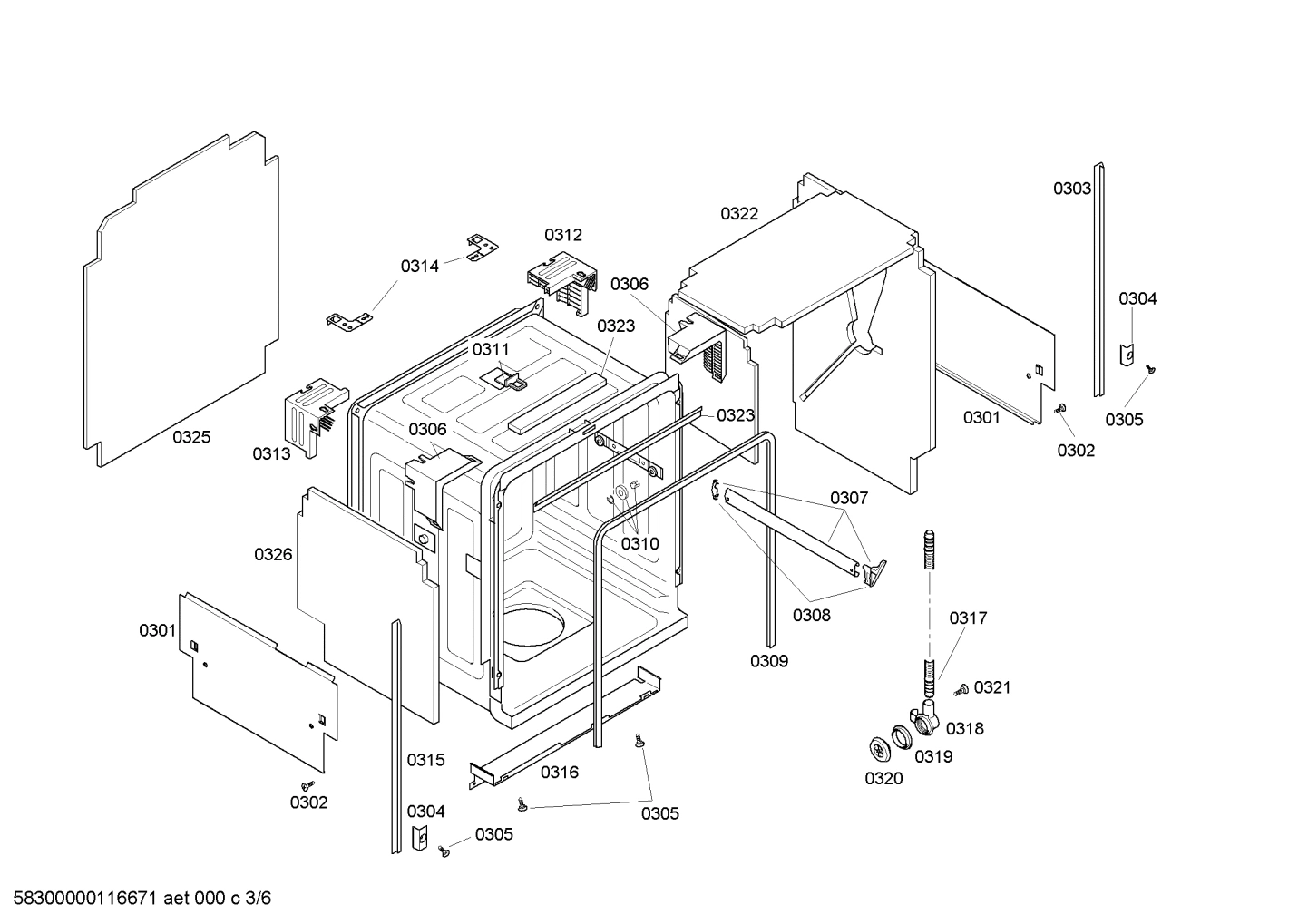

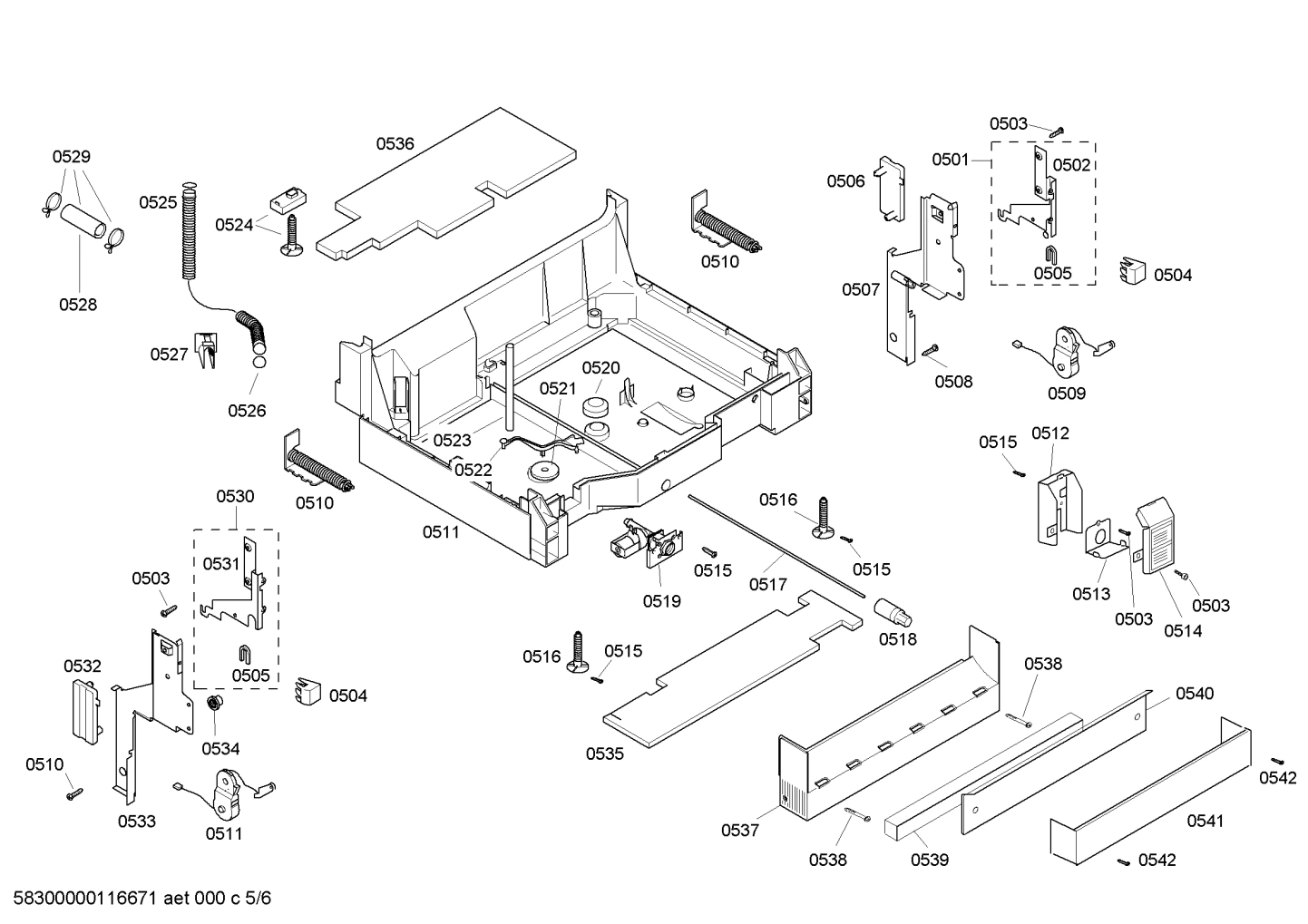

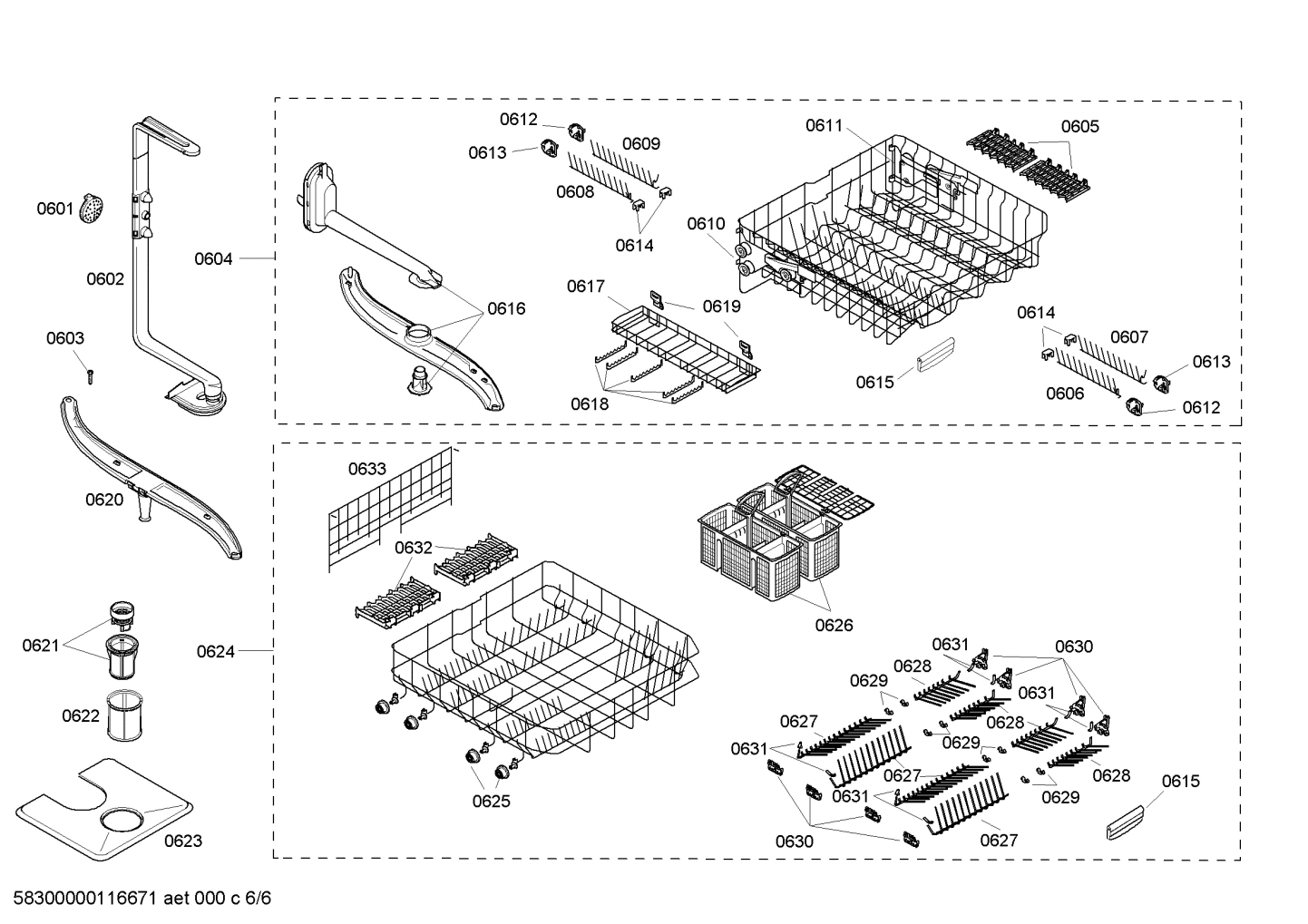

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Common parts from model Bosch SHY66C05UC/23 Dishwasher
0102
Control unit BOS 00219640 Contact Us For Availability
0103
On/Off Main Switch BOS 00424410 Contact Us For Availability
0104
Ball Bearing Door Latch BOS 00438026 Contact Us For Availability
0105
Switch BOS 00187205 Contact Us For Availability
0107
Frame BOS 00357842 Contact Us For Availability
0112
On/Off Button BOS 00184590 Contact Us For Availability
0201
Screw BOS 00151703 Contact Us For Availability
0202
Door-inner BOS 00218781 Contact Us For Availability
0203
Door Seal BOS 00432490 Contact Us For Availability
0204
Door-outer BOS 00184593 Contact Us For Availability
0206
Door Handle BOS 00432116 Contact Us For Availability
0207
End Cap BOS 00615352 Contact Us For Availability
0210
Sealing BOS 00166637 Contact Us For Availability
0212
Switch BOS 00182134 Contact Us For Availability
0213
Rectifier BOS 00182135 Contact Us For Availability
0215
Insulating part BOS 00437048 Contact Us For Availability
0304
Clip BOS 00186929 Contact Us For Availability
0307
Rack guide rail BOS 00298547 Contact Us For Availability
0308
Front/Rear End Cap Set BOS 00165254 Contact Us For Availability
0310
Repair set-role BOS 00622193 Contact Us For Availability
0311
Latch BOS 00187185 Contact Us For Availability
0314
Attachment Brackets BOS 00170664 Contact Us For Availability
0315
Strip BOS 00740617 Contact Us For Availability
0316
Cover sheet BOS 00350318 Contact Us For Availability
0317
Hose-vent BOS 00265832 Contact Us For Availability
0318
Cover BOS 00171024 Contact Us For Availability
0319
Sealing BOS 00065303 Contact Us For Availability
0320
Cover BOS 00066400 Contact Us For Availability
0323
Strip BOS 00298550 Contact Us For Availability
0324
Insulating part BOS 00437047 Contact Us For Availability
0325
Insulating part BOS 00437045 Contact Us For Availability
0401
Cover BOS 00165284 Contact Us For Availability
0402
Sensor-NTC BOS 00165281 Contact Us For Availability
0403
Sealing BOS 00151866 Contact Us For Availability
0404
Sealing BOS 00165280 Contact Us For Availability
0405
Sensor BOS 00165279 Contact Us For Availability
0406
Sealing BOS 00165278 Contact Us For Availability
0407
Switch BOS 00426400 Contact Us For Availability
0409
Instantaneous water heater BOS 00219639 Contact Us For Availability
0410
Hose clamp BOS 00172272 Contact Us For Availability
0411
Sealing BOS 00263102 Contact Us For Availability
0413
Holder BOS 00165265 Contact Us For Availability
0416
Valve-non return BOS 00165262 Contact Us For Availability
0417
Pump-drain BOS 00167082 Contact Us For Availability
0418
Cover BOS 00165263 Contact Us For Availability
0421
Suspension BOS 00171596 Contact Us For Availability
0423
Pump-housing BOS 00267739 Contact Us For Availability
0425
Case-upper part BOS 00266514 Contact Us For Availability
0426
Sealing BOS 00171598 Contact Us For Availability
0427
Inlet Hose BOS 00361113 Contact Us For Availability
0428
Complete Water Level System BOS 00499500 Contact Us For Availability
0430
Switch BOS 00165256 Contact Us For Availability
0431
Cover BOS 00263113 Contact Us For Availability
0432
Hose BOS 00496099 Contact Us For Availability
0434
Sump Drain Hose BOS 00263099 Contact Us For Availability
0436
Fixture BOS 00167028 Contact Us For Availability
0437
Water inlet BOS 00263833 Contact Us For Availability
0502
Hinge Lever BOS 00498927 Contact Us For Availability
0503
Screw BOS 00423896 Contact Us For Availability
0505
Hinge Bushing BOS 00165296 Contact Us For Availability
0506
Hinge-cover BOS 00422794 Contact Us For Availability
0507
Hinge BOS 00298570 Contact Us For Availability
0508
Screw BOS 00633945 Contact Us For Availability
0509
Repair-set BOS 00618605 Contact Us For Availability
0512
Terminal box BOS 00492036 Contact Us For Availability
0513
Stress-relief BOS 00422806 Contact Us For Availability
0514
Cover BOS 00422795 Contact Us For Availability
0515
Screw BOS 00188670 Contact Us For Availability
0516
Foot BOS 00617585 Contact Us For Availability
0518
Bushing BOS 00165329 Contact Us For Availability
0519
Water Inlet Valve BOS 00425458 Contact Us For Availability
0520
Hood BOS 00167243 Contact Us For Availability
0521
Float BOS 00165301 Contact Us For Availability
0522
Lever BOS 00263123 Contact Us For Availability
0523
Tube BOS 00263122 Contact Us For Availability
0524
Foot BOS 00165330 Contact Us For Availability
0525
Drain Hose BOS 00298564 Contact Us For Availability
0526
O-Ring BOS 00165331 Contact Us For Availability
0527
Stress-relief BOS 00165286 Contact Us For Availability
0528
Hose connection inlet BOS 00165258 Contact Us For Availability
0529
Adapter BOS 00088403 Contact Us For Availability
0531
Hinge Lever BOS 00498928 Contact Us For Availability
0532
Hinge-cover BOS 00422793 Contact Us For Availability
0533
Hinge BOS 00298567 Contact Us For Availability
0535
Insulating part BOS 00187984 Contact Us For Availability
0538
Base Extension Screw BOS 00421783 Contact Us For Availability
0539
Insulation BOS 00482120 Contact Us For Availability
0540
Seal-door BOS 00432115 Contact Us For Availability
0542
Screw BOS 00617588 Contact Us For Availability
0601
Tall/Large Item Sprinkler Head BOS 00167301 Contact Us For Availability
0602
Tube BOS 00350321 Contact Us For Availability
0603
Screw BOS 00167241 Contact Us For Availability
0609
Insert BOS 00418501 Contact Us For Availability
0611
Rack Height Adjustment Set BOS 00648570 Contact Us For Availability
0615
Handle BOS 00417519 Contact Us For Availability
0616
Upper Spray Arm Assembly BOS 00298594 Contact Us For Availability
0617
Cutlery basket BOS 00187059 Contact Us For Availability
0618
Holder BOS 00417522 Contact Us For Availability
0619
Clip BOS 00417521 Contact Us For Availability
0620
Spray Arm BOS 00437051 Contact Us For Availability
0623
Filter-fine BOS 00357393 Contact Us For Availability
0624
Lower Dishwasher Rack BOS 00249276 Contact Us For Availability
0625
Dishwasher Rack Wheel BOS 00165314 Contact Us For Availability
0626
Cutlery Basket BOS 00481957 Contact Us For Availability
0629
Holder BOS 00418498 Contact Us For Availability
0631
Flip Tine Set BOS 00428344 Contact Us For Availability
0632
Cup rack BOS 00093044 Contact Us For Availability
× ![]()
