Bosch SHV66A03UC/23 Dishwasher Parts List

0101

Control unit BOS 00219640 No Longer Available

View on Model

0102

00424410 Bosch Dishwasher Switch In Stock BOS 00424410 $55.97

View on Model

0103

00438026 Bosch Dishwasher Door Latch In Stock BOS 00438026 $55.97

View on Model

0104

00187205 Bosch Dishwasher Switch Assembly Backorder BOS 00187205 $32.81

View on Model

0106

Frame BOS 00677523 Contact Us For Availability

View on Model

0107

Panel-facia BOS 00239200 Contact Us For Availability

View on Model

0109

Key BOS 00424501 Contact Us For Availability

View on Model

0110

00427361 Bosch Dishwasher Holder Backorder BOS 00427361 $10.62

View on Model

0201

00612562 Bosch Screw In Stock BOS 00612562 $2.90

View on Model

0202

00151703 Bosch Screw In Stock BOS 00151703 $7.72

View on Model

0203

00218781 Bosch Dishwasher Inner Door Backorder BOS 00218781 $273.89

View on Model

0204

00432490 Bosch Dishwasher Door Seal In Stock BOS 00432490 $31.85

View on Model

0205

Door-outer BOS 00213953 Contact Us For Availability

View on Model

0206

00165325 Bosch Dishwasher Holder In Stock BOS 00165325 $6.27

View on Model

0211

00189670 Bosch Dishwasher Screw In Stock BOS 00189670 $4.83

View on Model

0212

Dispenser BOS 00431413 Contact Us For Availability

View on Model

0213

Guide BOS 00417495 Contact Us For Availability

View on Model

0214

00166637 Bosch Dishwasher Sealing Backorder BOS 00166637 $10.62

View on Model

0215

Lid BOS 00182136 Contact Us For Availability

View on Model

0216

00182134 Bosch Dishwasher Switch Backorder BOS 00182134 $57.30

View on Model

0217

00182135 Bosch Dishwasher Rectifier Backorder BOS 00182135 $29.43

View on Model

0219

Insulating part BOS 00437048 Contact Us For Availability

View on Model

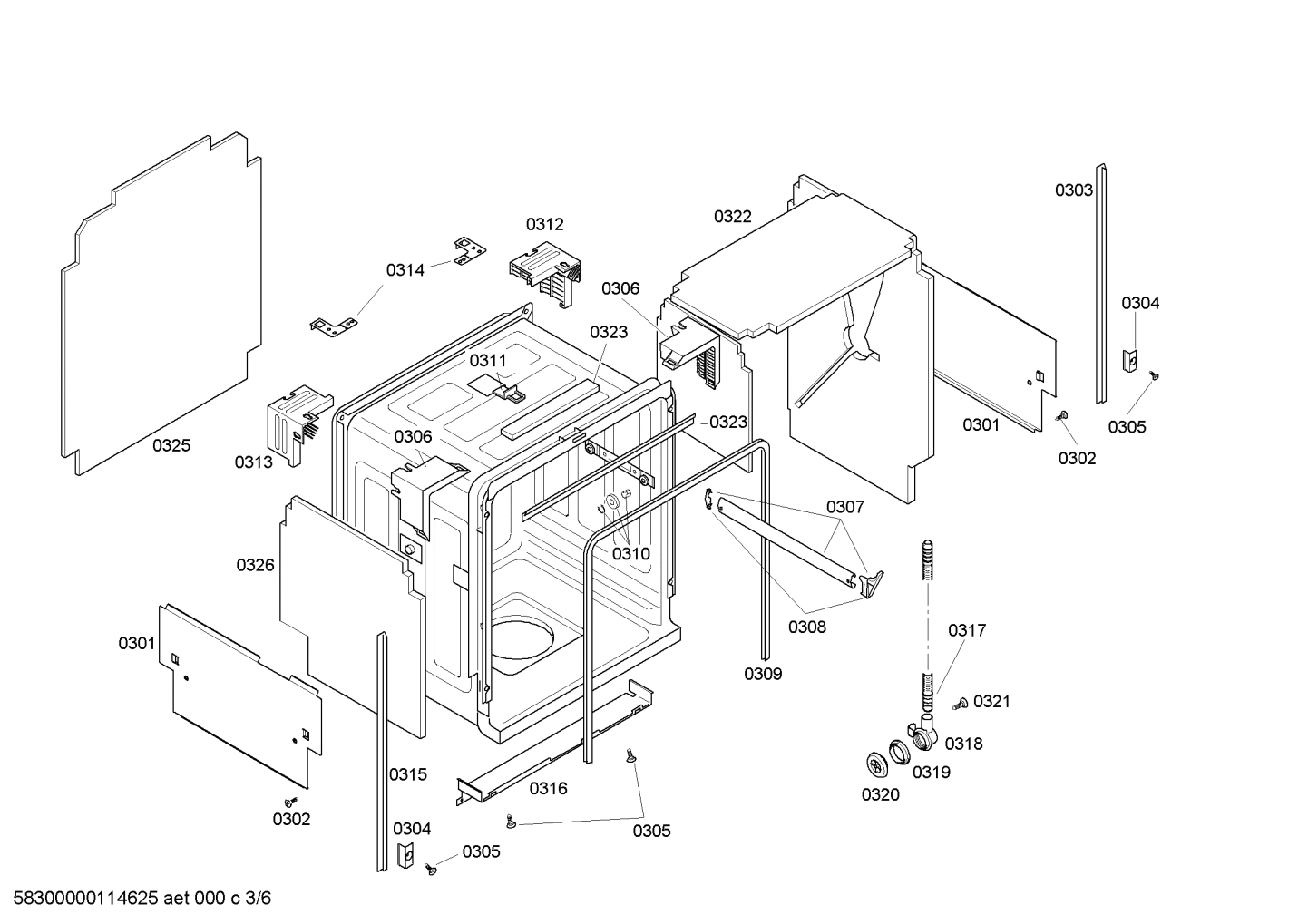

0304

Clip BOS 00186929 Contact Us For Availability

View on Model

0306

Holder BOS 00268587 Contact Us For Availability

View on Model

0307

00668097 Bosch Dishwasher Rack Guide Rail Backorder BOS 00668097 $29.43

View on Model

0308

00165254 Bosch Dishwasher Holder In Stock BOS 00165254 $11.10

View on Model

0310

00622193 Bosch Dishwasher Repair Role Set Backorder BOS 00622193 $66.37

View on Model

0311

Hook BOS 00187185 Contact Us For Availability

View on Model

0314

00170664 Bosch Dishwasher Fixing Kit In Stock BOS 00170664 $13.79

View on Model

0315

00740617 Bosch Dishwasher Strip Backorder BOS 00740617 $49.70

View on Model

0316

Cover sheet BOS 00350318 Contact Us For Availability

View on Model

0317

Hose-vent BOS 00265832 Contact Us For Availability

View on Model

0318

00171024 Bosch Dishwasher Cover Backorder BOS 00171024 $13.03

View on Model

0319

Sealing BOS 00065303 Contact Us For Availability

View on Model

0320

Cover BOS 00066400 Contact Us For Availability

View on Model

0322

Insulating part BOS 00366495 Contact Us For Availability

View on Model

0323

00298550 Bosch Dishwasher Strip Backorder BOS 00298550 $21.23

View on Model

0324

Insulating part BOS 00437047 Contact Us For Availability

View on Model

0325

Insulating part BOS 00437045 Contact Us For Availability

View on Model

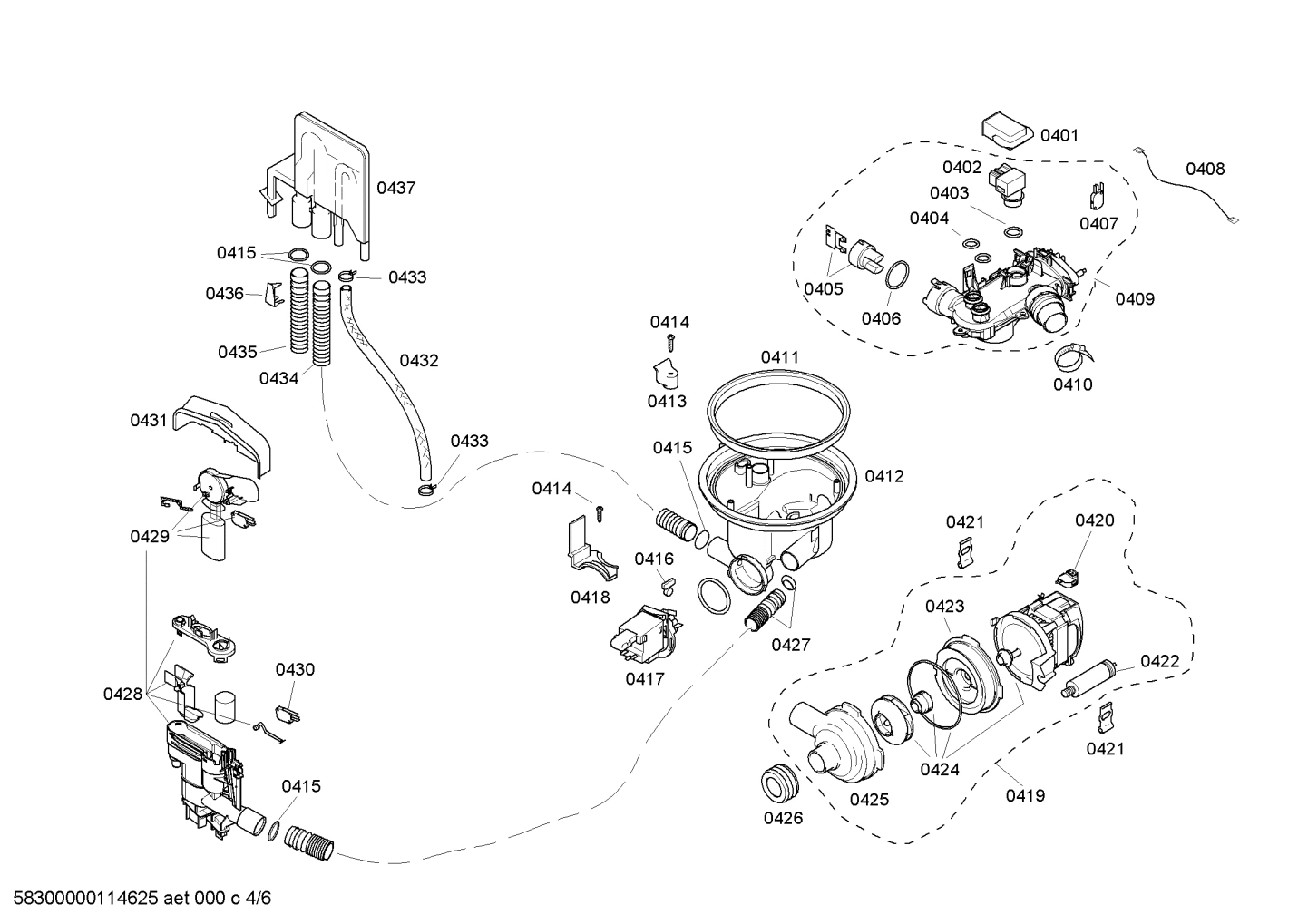

0401

00165284 Bosch Dishwasher Cover Backorder BOS 00165284 $4.83

View on Model

0402

00165281 Bosch Dishwasher NTC Sensor In Stock BOS 00165281 $106.96

View on Model

0403

00151866 Bosch Dishwasher Seal In Stock BOS 00151866 $10.13

View on Model

0404

00165280 Bosch Dishwasher Seal In Stock BOS 00165280 $10.13

View on Model

0405

Aqua Sensor BOS 00165279 Contact Us For Availability

View on Model

0406

00165278 Bosch Dishwasher Sealing In Stock BOS 00165278 $10.62

View on Model

0407

Switch BOS 00426400 Contact Us For Availability

View on Model

0409

00219639 Bosch Dishwasher Instantaneous Water Backorder BOS 00219639 $252.96

View on Model

0410

00172272 Bosch Dishwasher Hose Clamp In Stock BOS 00172272 $19.78

View on Model

0411

Sealing BOS 00263102 No Longer Available

View on Model

0412

Sump BOS 00482035 Contact Us For Availability

View on Model

0413

Holder BOS 00165265 Contact Us For Availability

View on Model

0416

00165262 Bosch Dishwasher Non-Valve Return In Stock BOS 00165262 $8.69

View on Model

0417

00167082 Bosch Dishwasher Drain Pump In Stock BOS 00167082 $94.08

View on Model

0418

00165263 Bosch Dishwasher Cover Backorder BOS 00165263 $8.69

View on Model

0419

Pump-circulating BOS 00437345 Contact Us For Availability

View on Model

0420

Relay-starting BOS 00182318 Contact Us For Availability

View on Model

0421

Suspension BOS 00171596 No Longer Available

View on Model

0422

Capacitor BOS 00167235 Contact Us For Availability

View on Model

0423

00267739 Bosch Dishwasher Pump Housing Backorder BOS 00267739 $33.29

View on Model

0424

Sealing kit BOS 00167085 Contact Us For Availability

View on Model

0425

00266514 Bosch Dishwasher Upper Case Part Backorder BOS 00266514 $37.64

View on Model

0426

00171598 Bosch Dishwasher Seal Backorder BOS 00171598 $25.57

View on Model

0427

00361113 Bosch Dishwasher Inlet Hose Backorder BOS 00361113 $13.99

View on Model

0428

00499500 Bosch Dishwasher Pressure Chamber Backorder BOS 00499500 $54.04

View on Model

0429

Regulator-water level BOS 00263185 Contact Us For Availability

View on Model

0430

00165256 Bosch Dishwasher Switch In Stock BOS 00165256 $23.64

View on Model

0431

00263113 Bosch Dishwasher Cover Backorder BOS 00263113 $15.44

View on Model

0432

00496099 Bosch Dishwasher Hose In Stock BOS 00496099 $19.30

View on Model

0433

Hose clamp BOS 00417498 Contact Us For Availability

View on Model

0434

00263099 Bosch Dishwasher Hose In Stock BOS 00263099 $12.06

View on Model

0436

00167028 Bosch Dishwasher Fixture Backorder BOS 00167028 $5.79

View on Model

0437

Water inlet BOS 00263833 No Longer Available

View on Model

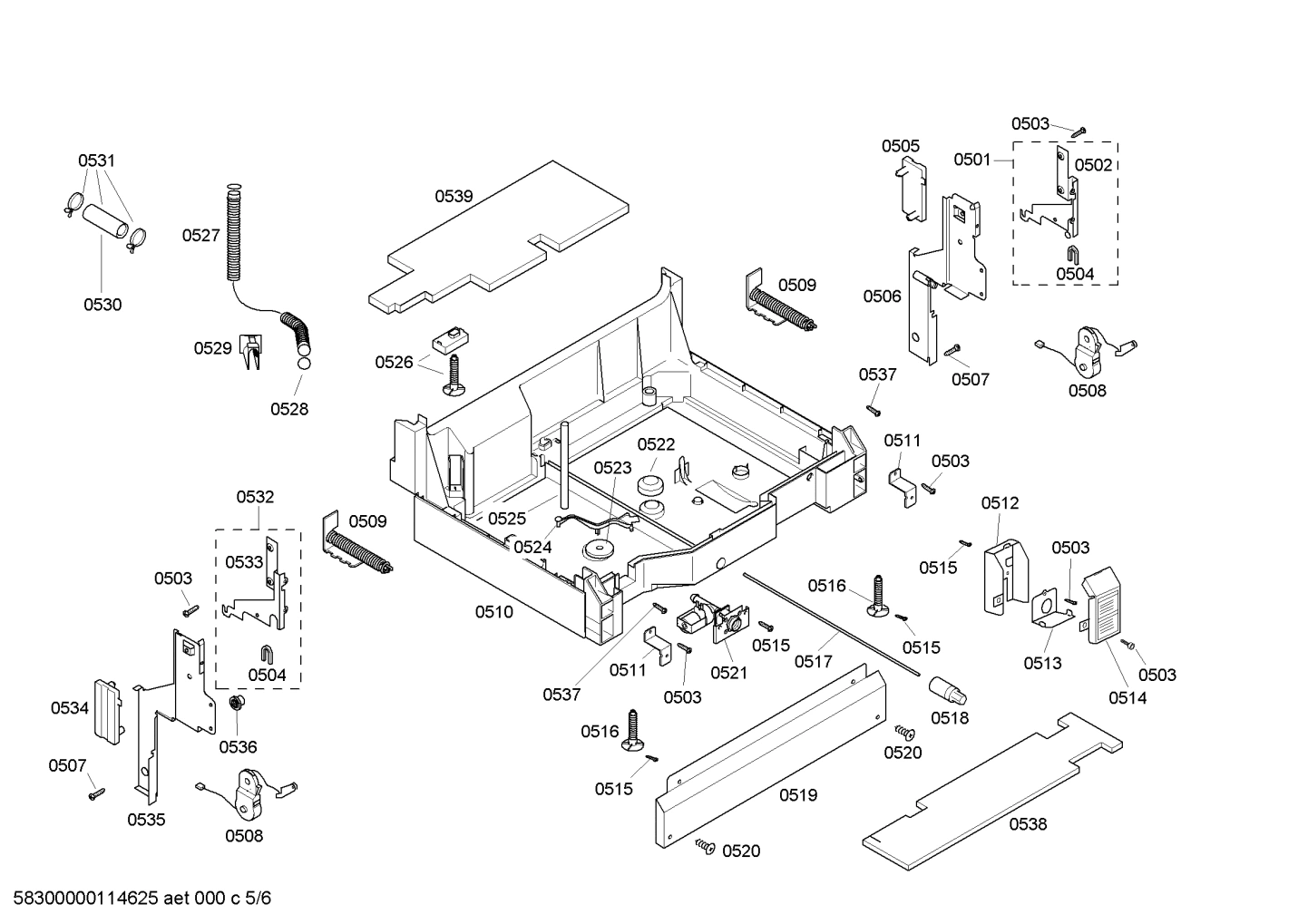

0502

00498927 Bosch Dishwasher Lever In Stock BOS 00498927 $17.38

View on Model

0503

00423896 Bosch Oven Screw Backorder BOS 00423896 $8.69

View on Model

0504

00165296 Bosch Dishwasher Bearing In Stock BOS 00165296 $12.55

View on Model

0505

Hinge-cover BOS 00422794 Contact Us For Availability

View on Model

0506

00298570 Bosch Dishwasher Hinge In Stock BOS 00298570 $49.70

View on Model

0507

00633945 Bosch Dishwasher Screw Backorder BOS 00633945 $6.27

View on Model

0508

00618605 Bosch Dishwasher Repair Set In Stock BOS 00618605 $63.53

View on Model

0509

00187527 Bosch Dishwasher Spring Backorder BOS 00187527 $27.02

View on Model

0511

Bracket BOS 00167079 Contact Us For Availability

View on Model

0512

Terminal box BOS 00492036 Contact Us For Availability

View on Model

0513

Stress-relief BOS 00422806 Contact Us For Availability

View on Model

0514

Cover BOS 00422795 Contact Us For Availability

View on Model

0515

00188670 Bosch Dishwasher Screw In Stock BOS 00188670 $9.17

View on Model

0516

00617585 Bosch Dishwasher Foot In Stock BOS 00617585 $4.83

View on Model

0518

00165329 Bosch Dishwasher Bushing Backorder BOS 00165329 $6.76

View on Model

0519

Panel-base BOS 00446633 Contact Us For Availability

View on Model

0520

00176121 Bosch Dishwasher Screw In Stock BOS 00176121 $3.86

View on Model

0521

00425458 Bosch Dishwasher Access Valve In Stock BOS 00425458 $53.08

View on Model

0522

Hood BOS 00167243 Contact Us For Availability

View on Model

0523

00165301 Bosch Dishwasher Float In Stock BOS 00165301 $6.27

View on Model

0524

Lever BOS 00263123 Contact Us For Availability

View on Model

0525

Tube BOS 00263122 Contact Us For Availability

View on Model

0526

Foot BOS 00165330 Contact Us For Availability

View on Model

0527

00298564 Bosch Dishwasher Outlet Hose In Stock BOS 00298564 $26.54

View on Model

0528

00165331 Bosch Dishwasher Sealing In Stock BOS 00165331 $10.62

View on Model

0529

00165286 Bosch Dishwasher Stress Relief Valve Backorder BOS 00165286 $11.58

View on Model

0530

00165258 Bosch Dishwasher Inlet Hose Connecti Backorder BOS 00165258 $4.83

View on Model

0531

00088403 Bosch Dishwasher Mounting Set In Stock BOS 00088403 $14.96

View on Model

0533

00498928 Bosch Dishwasher Lever In Stock BOS 00498928 $22.20

View on Model

0534

Hinge-cover BOS 00422793 Contact Us For Availability

View on Model

0535

00298567 Bosch Dishwasher Hinge Backorder BOS 00298567 $48.25

View on Model

0537

00169525 Bosch Dishwasher Adjusting Screw Backorder BOS 00169525 $5.31

View on Model

0538

Insulating part BOS 00187984 Contact Us For Availability

View on Model

0539

Insulating part BOS 00437044 Contact Us For Availability

View on Model

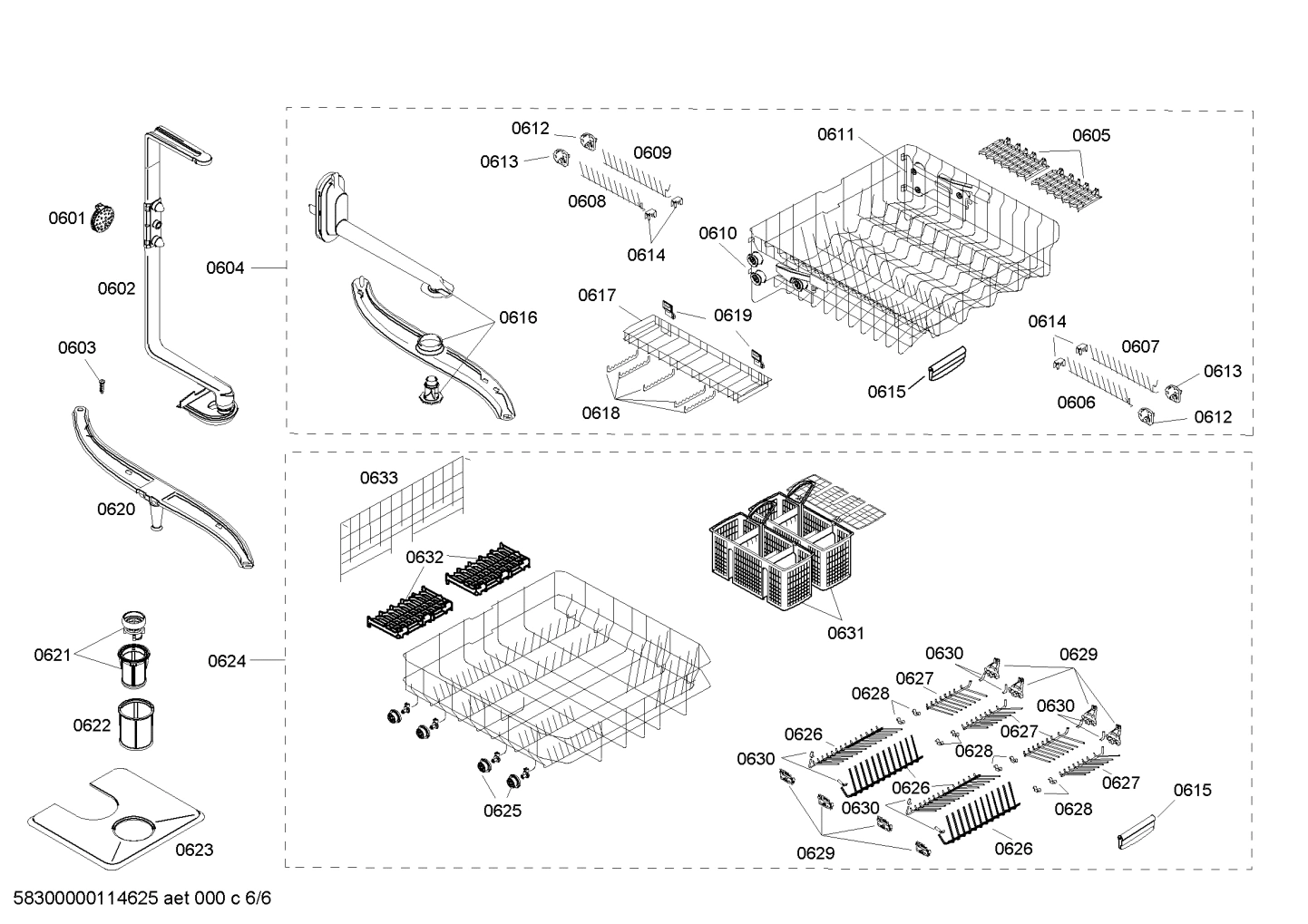

0601

00167301 Bosch Dishwasher Spray Head Backorder BOS 00167301 $11.10

View on Model

0602

00350321 Bosch Dishwasher Tube Backorder BOS 00350321 $74.01

View on Model

0603

00167241 Bosch Screw In Stock BOS 00167241 $1.93

View on Model

0604

Crockery basket BOS 00249277 Contact Us For Availability

View on Model

0605

Cup rack BOS 00431411 Contact Us For Availability

View on Model

0609

Insert BOS 00418501 Contact Us For Availability

View on Model

0611

00648570 Bosch Dishwasher Adjusting Device Backorder BOS 00648570 $66.85

View on Model

0612

Holder BOS 00418493 Contact Us For Availability

View on Model

0613

Holder BOS 00418494 Contact Us For Availability

View on Model

0615

00417519 Bosch Dishwasher Handle Backorder BOS 00417519 $10.62

View on Model

0616

00298594 Bosch Dishwasher Spray Arm In Stock BOS 00298594 $61.60

View on Model

0617

Cutlery basket BOS 00187059 Contact Us For Availability

View on Model

0618

Holder BOS 00417522 Contact Us For Availability

View on Model

0619

Clip BOS 00417521 Contact Us For Availability

View on Model

0620

Spray arm BOS 00437051 No Longer Available

View on Model

0623

Filter-fine BOS 00353507 Contact Us For Availability

View on Model

0624

00249276 Bosch Dishwasher Crockery Basket In Stock BOS 00249276 $294.81

View on Model

0625

00165314 Bosch Dishwasher Wheel In Stock BOS 00165314 $7.00

View on Model

0628

00418498 Bosch Dishwasher Holder In Stock BOS 00418498 $4.83

View on Model

0630

00428344 Bosch Dishwasher Bearing In Stock BOS 00428344 $28.95

View on Model

0631

00481957 Bosch Dishwasher Cutlery Basket Backorder BOS 00481957 $52.59

View on Model

0632

Cup rack BOS 00093044 Contact Us For Availability

View on Model
