Model Bosch SHV65P03UC/60 Dishwasher – Common Parts & Diagrams
Diagram 1
Diagram 2

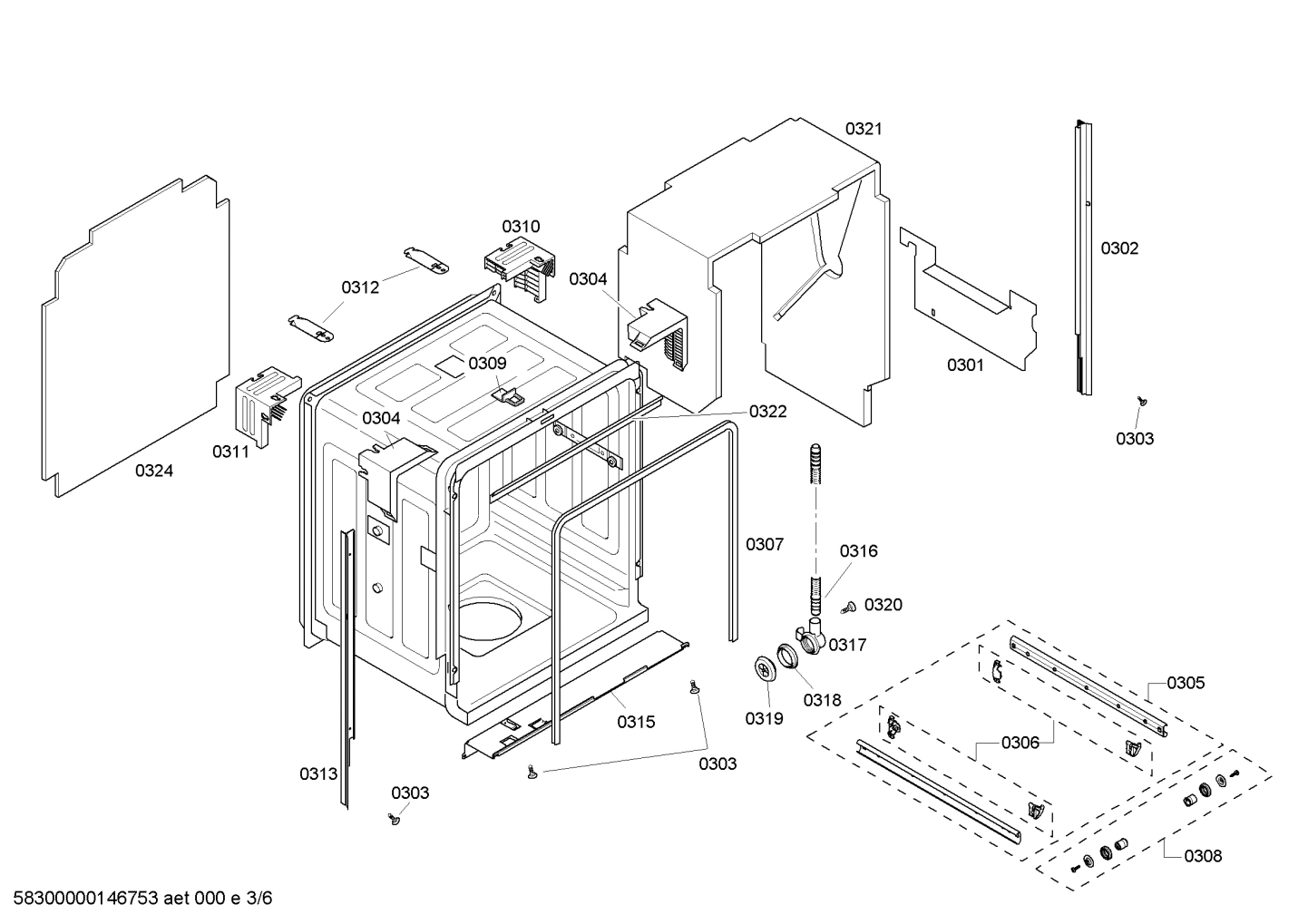

Diagram 3

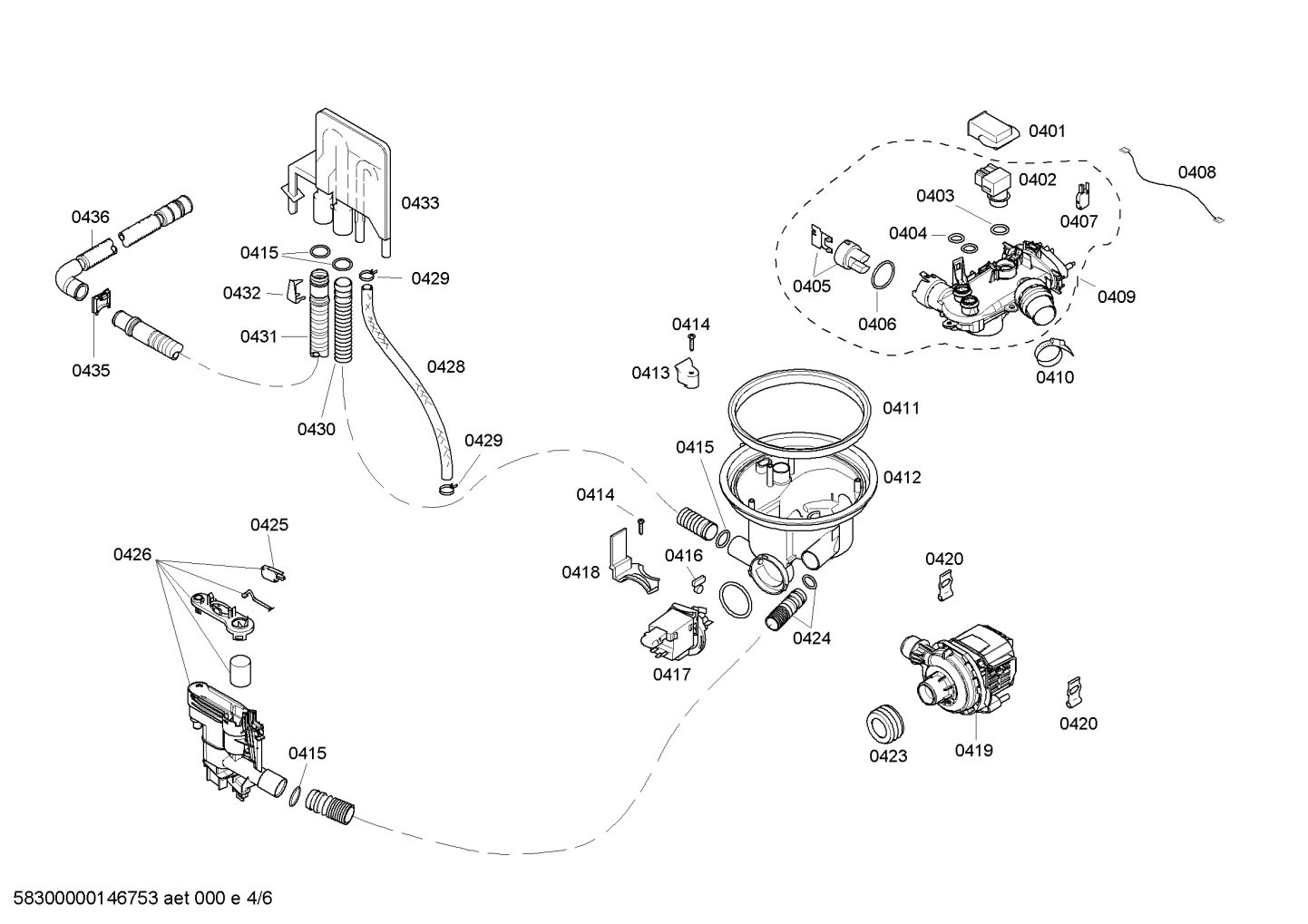

Diagram 4

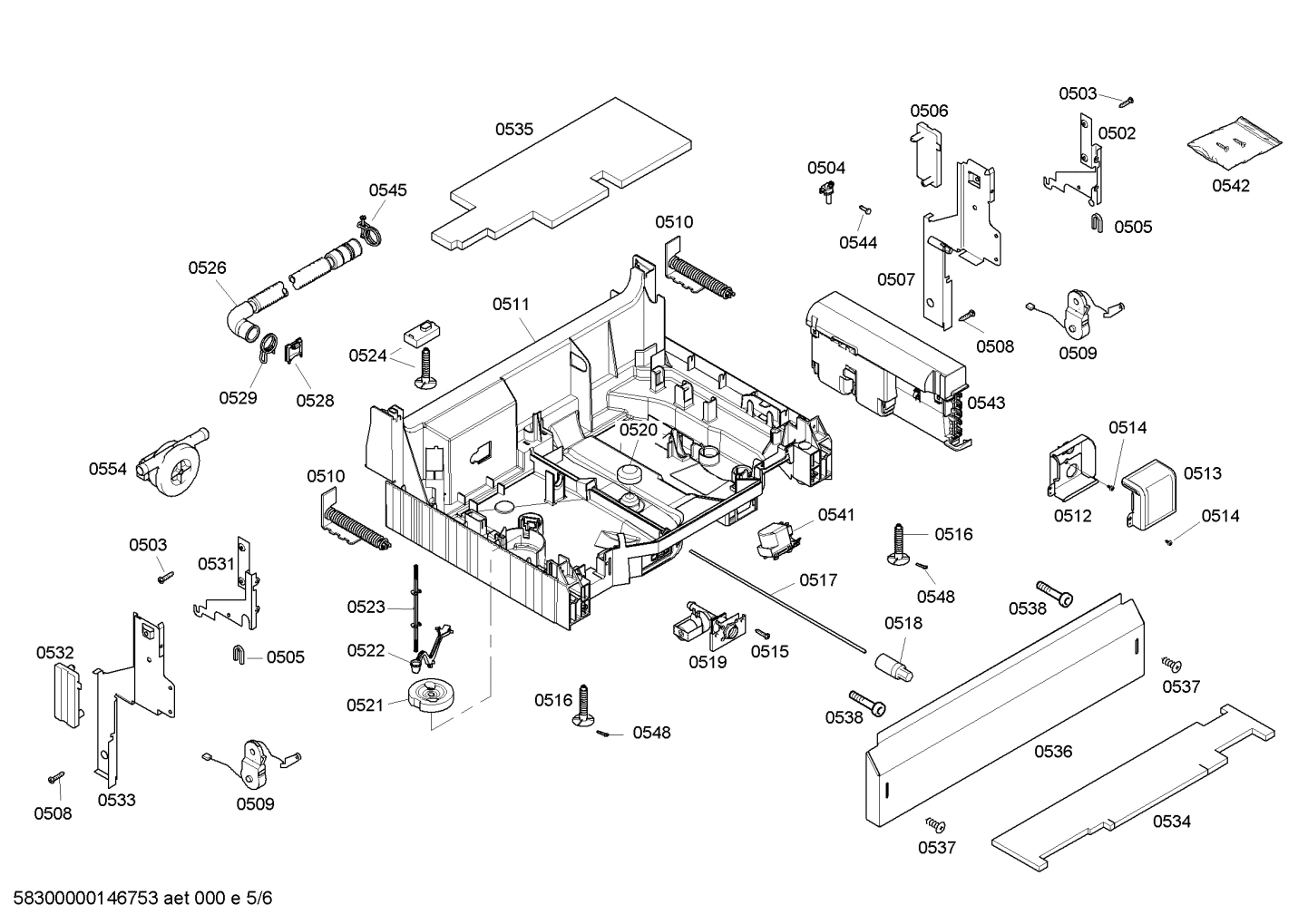

Diagram 5

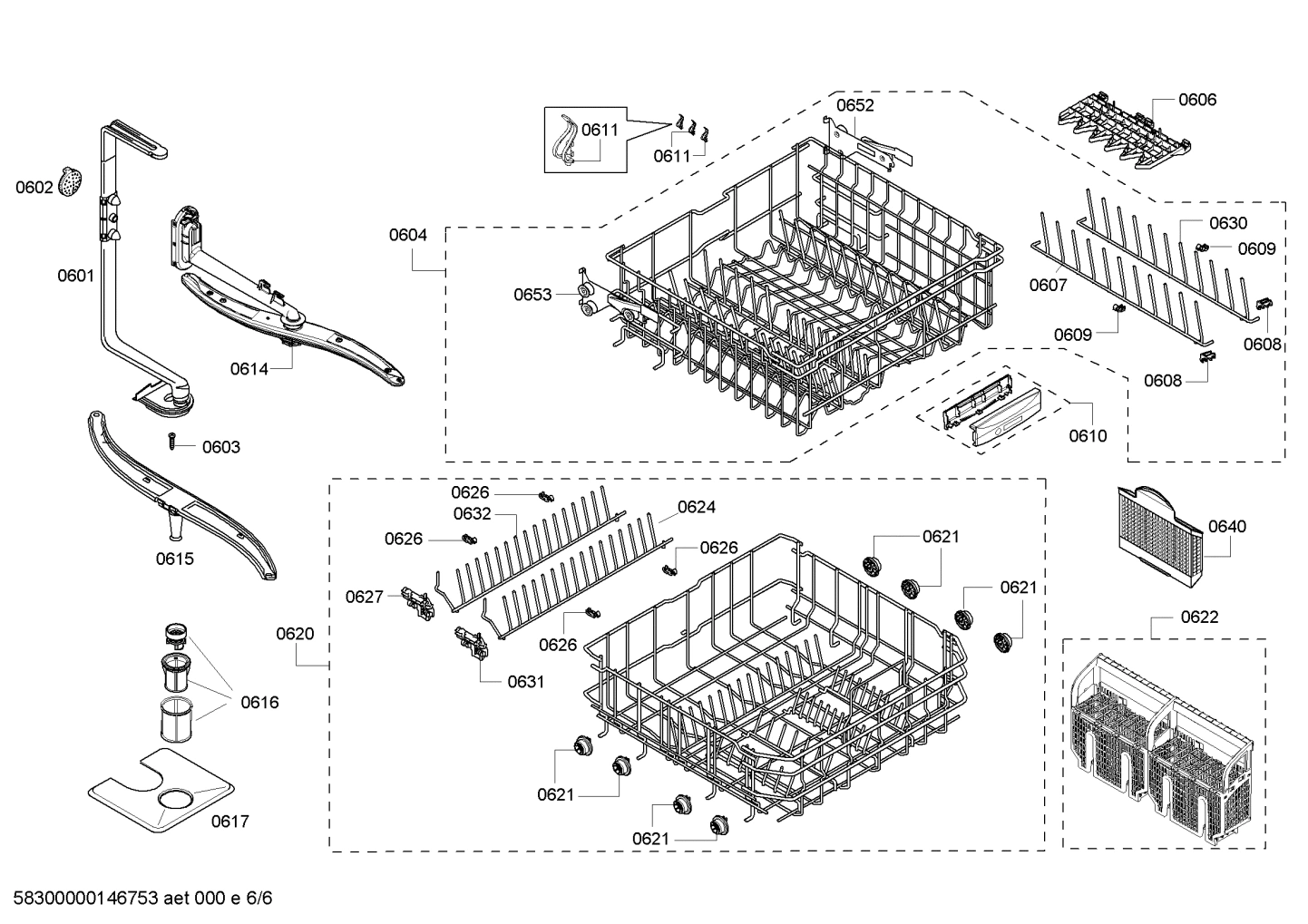

Diagram 6
Common parts from model Bosch SHV65P03UC/60 Dishwasher
0102
On/Off Main Switch BOS 00424410 Contact Us For Availability
0103
Door latch BOS 00654621 Contact Us For Availability
0105
Cable harness BOS 00650903 Contact Us For Availability
0106
Frame BOS 00439645 Contact Us For Availability
0107
Panel-facia BOS 00683962 Contact Us For Availability
0108
Holder BOS 00427361 Contact Us For Availability
0111
Push button set BOS 00649313 Contact Us For Availability
0201
Wood Screw BOS 00612562 Contact Us For Availability
0202
Screw BOS 00151703 Contact Us For Availability
0203
Door-inner BOS 00218781 Contact Us For Availability
0204
Door Seal BOS 00432490 Contact Us For Availability
0208
Screw BOS 00189670 Contact Us For Availability
0210
Dispenser BOS 00490467 Contact Us For Availability
0212
Sealing BOS 00166637 Contact Us For Availability
0213
Lid BOS 00166623 Contact Us For Availability
0214
Sealing BOS 00166625 Contact Us For Availability
0215
Adjusting device BOS 00166626 Contact Us For Availability
0216
Detergent Lid BOS 00166621 Contact Us For Availability
0217
Lever, Wrap, Seal BOS 00166630 Contact Us For Availability
0218
Plunger BOS 00166627 Contact Us For Availability
0219
Repair-set BOS 00166632 Contact Us For Availability
0220
Actuator BOS 00166635 Contact Us For Availability
0221
Repair-set BOS 00166628 Contact Us For Availability
0225
Insulating part BOS 00437048 Contact Us For Availability
0230
Cable strap BOS 00616022 Contact Us For Availability
0305
Rail BOS 00669255 Contact Us For Availability
0306
Front/Rear End Cap Set BOS 00165254 Contact Us For Availability
0308
Repair-set BOS 00645743 Contact Us For Availability
0309
Latch BOS 00187185 Contact Us For Availability
0312
Dishwasher Mounting Bracket BOS 00619985 Contact Us For Availability
0313
Strip BOS 00749684 Contact Us For Availability
0316
Hose-vent BOS 00265832 Contact Us For Availability
0317
Cover BOS 00171024 Contact Us For Availability
0318
Sealing BOS 00065303 Contact Us For Availability
0319
Cover BOS 00066400 Contact Us For Availability
0322
Strip BOS 00672951 Contact Us For Availability
0324
Insulating part BOS 00437045 Contact Us For Availability
0402
Sensor-NTC BOS 00165281 Contact Us For Availability
0403
Sealing BOS 00151866 Contact Us For Availability
0404
Sealing BOS 00165280 Contact Us For Availability
0405
Sensor BOS 00165279 Contact Us For Availability
0406
Sealing BOS 00165278 Contact Us For Availability
0407
Switch BOS 00426400 Contact Us For Availability
0410
Hose clamp BOS 00172272 Contact Us For Availability
0411
Sealing BOS 00263102 Contact Us For Availability
0412
Sump BOS 00640004 Contact Us For Availability
0413
Holder BOS 00165265 Contact Us For Availability
0415
O-Ring BOS 00165331 Contact Us For Availability
0416
Valve-non return BOS 00165262 Contact Us For Availability
0417
Drain Pump BOS 00642239 Contact Us For Availability
0418
Cover BOS 00165263 Contact Us For Availability
0419
Pump-circulating BOS 00665510 Contact Us For Availability
0420
Suspension BOS 00171596 Contact Us For Availability
0423
Sealing BOS 00171598 Contact Us For Availability
0424
Inlet Hose BOS 00361113 Contact Us For Availability
0425
Switch BOS 00165256 Contact Us For Availability
0426
Water Level Control Assembly BOS 00440670 Contact Us For Availability
0428
Hose BOS 00643996 Contact Us For Availability
0430
Sump Drain Hose BOS 00263099 Contact Us For Availability
0431
Drain hose BOS 00668109 Contact Us For Availability
0432
Fixture BOS 00167028 Contact Us For Availability
0433
Water inlet BOS 00263833 Contact Us For Availability
0502
Hinge Lever BOS 00498927 Contact Us For Availability
0503
Screw BOS 00423896 Contact Us For Availability
0504
LED-announcement BOS 00424819 Contact Us For Availability
0505
Hinge Bushing BOS 00165296 Contact Us For Availability
0506
Hinge-cover BOS 00422794 Contact Us For Availability
0507
Hinge BOS 00298570 Contact Us For Availability
0508
Screw BOS 00633945 Contact Us For Availability
0509
Repair-set BOS 00618605 Contact Us For Availability
0511
Case-bottom BOS 00476528 Contact Us For Availability
0512
Terminal box BOS 00640476 Contact Us For Availability
0513
Cover BOS 00640477 Contact Us For Availability
0514
Screw BOS 00605743 Contact Us For Availability
0515
Screw BOS 00617588 Contact Us For Availability
0516
Foot BOS 00617585 Contact Us For Availability
0518
Bushing BOS 00165329 Contact Us For Availability
0519
Water Inlet Valve BOS 00607335 Contact Us For Availability
0520
Hood BOS 00167243 Contact Us For Availability
0521
Float BOS 00165301 Contact Us For Availability
0522
Lever BOS 00263123 Contact Us For Availability
0523
Tube BOS 00263122 Contact Us For Availability
0524
Foot BOS 00165330 Contact Us For Availability
0526
Drain Hose BOS 00668108 Contact Us For Availability
0528
Stress-relief BOS 00611325 Contact Us For Availability
0529
Hose clamp BOS 00611973 Contact Us For Availability
0531
Hinge Lever BOS 00498928 Contact Us For Availability
0532
Hinge-cover BOS 00422793 Contact Us For Availability
0533
Hinge BOS 00298567 Contact Us For Availability
0534
Insulating part BOS 00640488 Contact Us For Availability
0536
Black Toe Panel BOS 00668687 Contact Us For Availability
0537
Screw BOS 00603934 Contact Us For Availability
0538
Screw-adjust BOS 00169525 Contact Us For Availability
0541
Capacitor-interference BOS 00429052 Contact Us For Availability
0542
Installation set BOS 00604885 Contact Us For Availability
0545
Hose clamp BOS 00417497 Contact Us For Availability
0548
Screw BOS 00188670 Contact Us For Availability
0554
Flow Meter BOS 00424099 Contact Us For Availability
0601
Tube BOS 00449323 Contact Us For Availability
0602
Tall/Large Item Sprinkler Head BOS 00167301 Contact Us For Availability
0603
Screw BOS 00167241 Contact Us For Availability
0604
Crockery basket BOS 00248820 Contact Us For Availability
0606
Cup rack BOS 00676468 Contact Us For Availability
0607
Insert BOS 00649337 Contact Us For Availability
0608
Holder BOS 00616990 Contact Us For Availability
0609
Holder BOS 00616989 Contact Us For Availability
0610
Handle BOS 00617998 Contact Us For Availability
0615
Spray Arm BOS 00448806 Contact Us For Availability
0617
Filter-fine BOS 00357393 Contact Us For Availability
0620
Crockery basket BOS 00770545 Contact Us For Availability
0622
Cutlery Basket BOS 00675794 Contact Us For Availability
0624
Insert BOS 00649332 Contact Us For Availability
0626
Flip Tine BOS 00611981 Contact Us For Availability
0627
Holder BOS 00611980 Contact Us For Availability
0631
Holder BOS 00617903 Contact Us For Availability
0632
Insert BOS 00649331 Contact Us For Availability
0640
Cutlery Basket BOS 00267820 Contact Us For Availability
0653
Rail-pull out BOS 12005415 Contact Us For Availability
× ![]()
