Model Bosch SHI4305/11 Dishwasher – Common Parts & Diagrams
Diagram 1
Diagram 2

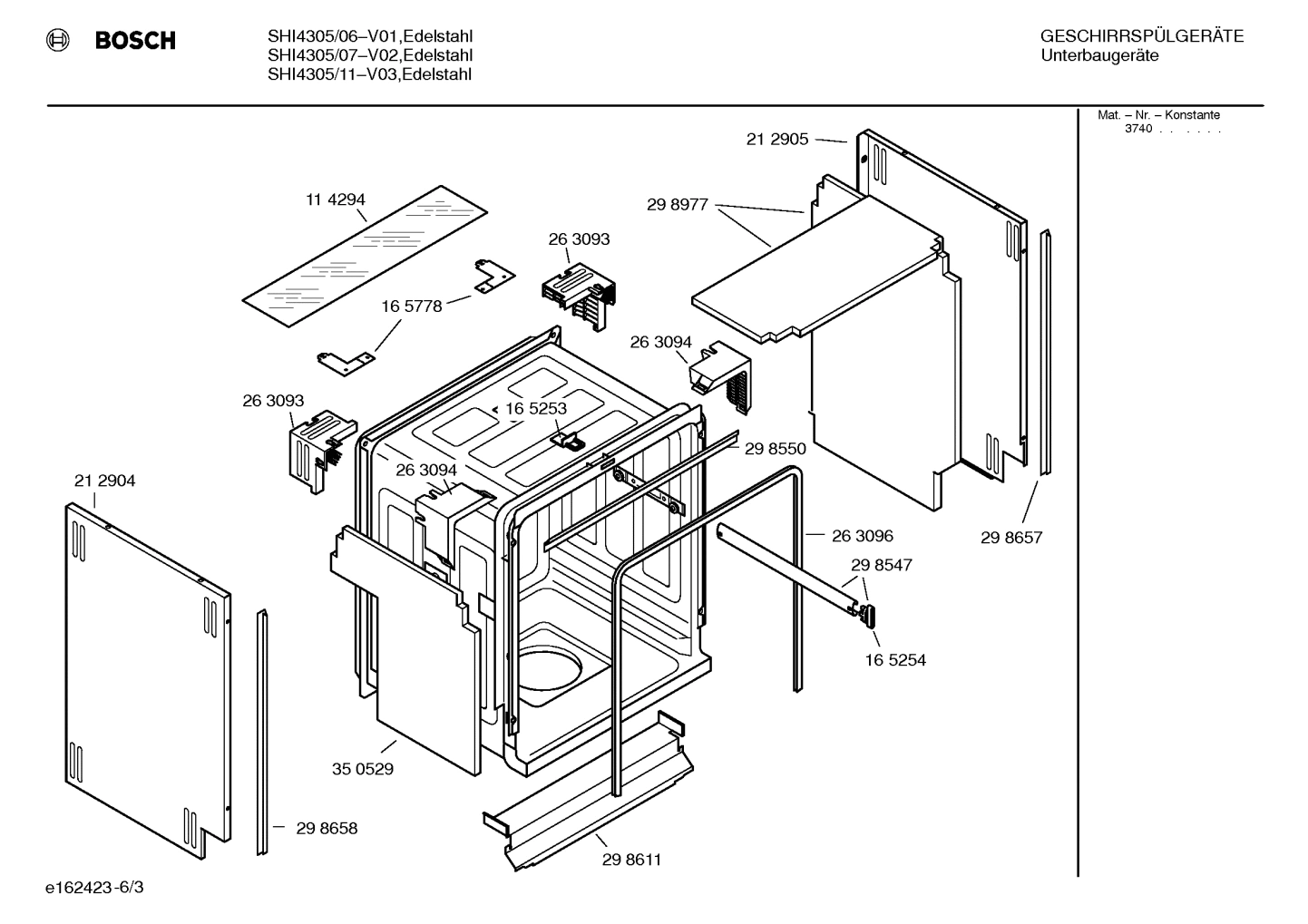

Diagram 3

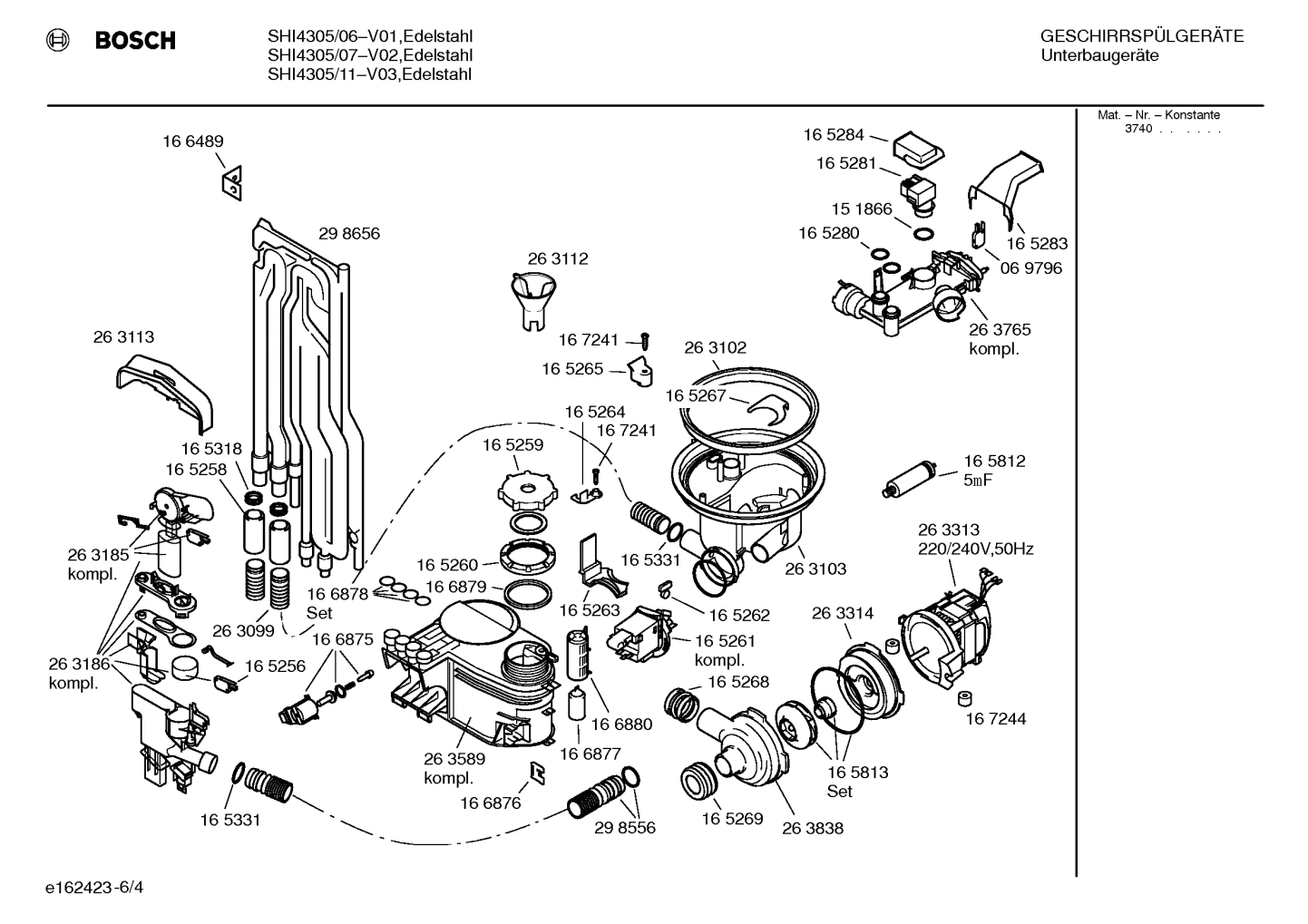

Diagram 4

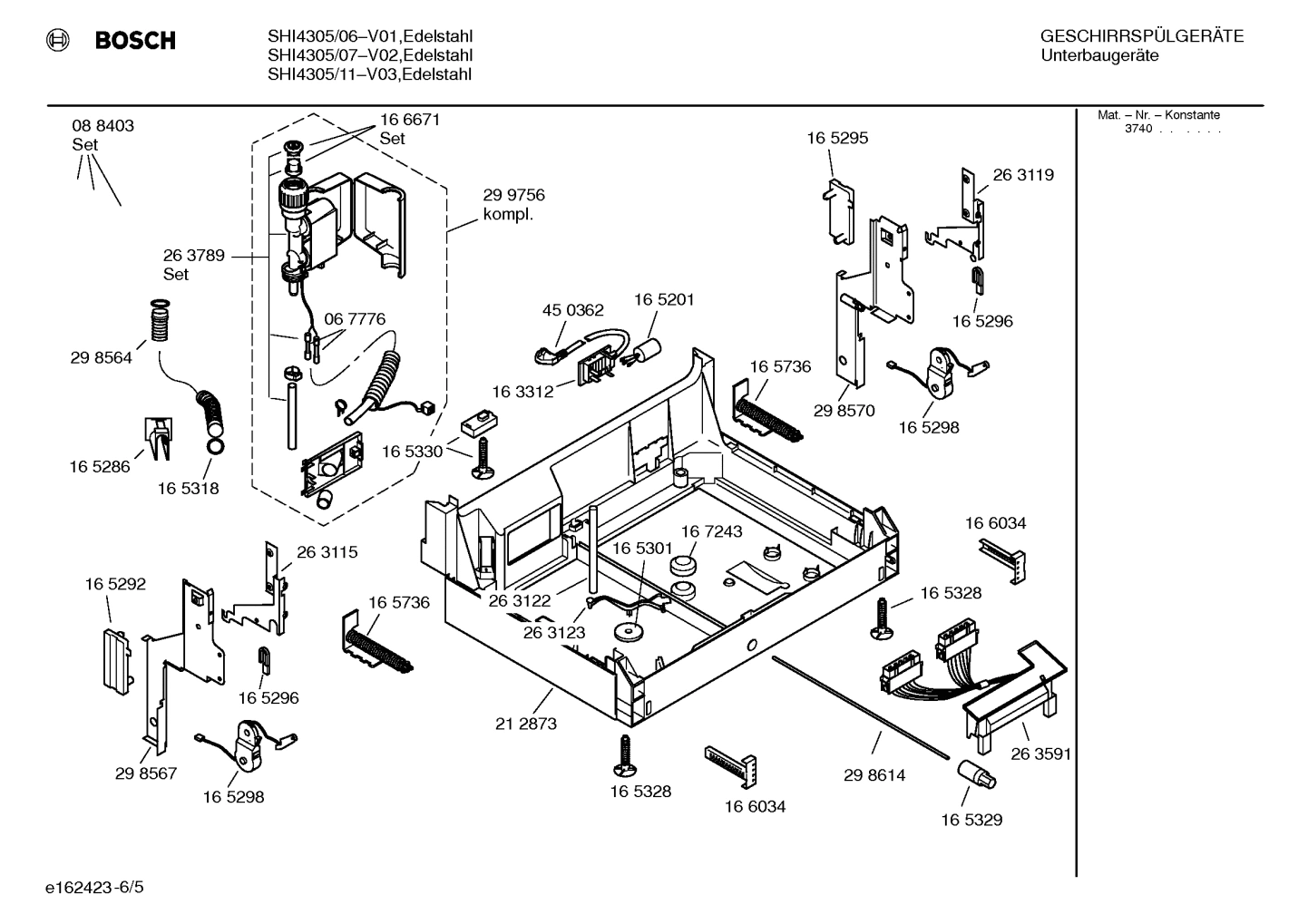

Diagram 5
Diagram 6
Common parts from model Bosch SHI4305/11 Dishwasher
0006
Lock BOS 00165243 Contact Us For Availability
0007
Frame BOS 00298518 Contact Us For Availability
0011
Cover BOS 00166881 Contact Us For Availability
0020
Dispenser BOS 00263088 Contact Us For Availability
0021
Sealing BOS 00166637 Contact Us For Availability
0022
Detergent Lid BOS 00166621 Contact Us For Availability
0023
Lid BOS 00166623 Contact Us For Availability
0024
Repair-set BOS 00166628 Contact Us For Availability
0025
Adjusting device BOS 00166626 Contact Us For Availability
0026
Lever, Wrap, Seal BOS 00166630 Contact Us For Availability
0027
Plunger BOS 00166627 Contact Us For Availability
0030
Actuator BOS 00166635 Contact Us For Availability
0031
Repair-set BOS 00166632 Contact Us For Availability
0032
Switch BOS 00166633 Contact Us For Availability
0035
Door Seal BOS 00298534 Contact Us For Availability
0039
Screw BOS 00151703 Contact Us For Availability
0041
Holder BOS 00165325 Contact Us For Availability
0050
Steam Safety Sheet BOS 00114294 Contact Us For Availability
0057
Latch BOS 00165253 Contact Us For Availability
0058
Seal BOS 00263096 Contact Us For Availability
0059
Rack guide rail BOS 00298547 Contact Us For Availability
0060
Front/Rear End Cap Set BOS 00165254 Contact Us For Availability
0064
Strip BOS 00298550 Contact Us For Availability
0066
Bushing BOS 00165329 Contact Us For Availability
0068
Foot BOS 00165330 Contact Us For Availability
0073
Switch BOS 00165256 Contact Us For Availability
0076
Hose BOS 00298556 Contact Us For Availability
0079
Hose connection inlet BOS 00165258 Contact Us For Availability
0080
Sump Drain Hose BOS 00263099 Contact Us For Availability
0087
Pump-drain BOS 00165261 Contact Us For Availability
0088
Valve-non return BOS 00165262 Contact Us For Availability
0089
Cover BOS 00165263 Contact Us For Availability
0091
O-Ring BOS 00165331 Contact Us For Availability
0092
Holder BOS 00165265 Contact Us For Availability
0093
Sealing BOS 00263102 Contact Us For Availability
0096
Sealing BOS 00165268 Contact Us For Availability
0097
Case-upper part BOS 00263838 Contact Us For Availability
0100
Pump-housing BOS 00263314 Contact Us For Availability
0104
Screw BOS 00167241 Contact Us For Availability
0109
Sealing BOS 00165280 Contact Us For Availability
0110
Sensor-NTC BOS 00165281 Contact Us For Availability
0111
Sealing BOS 00151866 Contact Us For Availability
0112
Switch BOS 00069796 Contact Us For Availability
0115
Cover BOS 00165284 Contact Us For Availability
0116
Cover BOS 00263113 Contact Us For Availability
0120
Adapter BOS 00088403 Contact Us For Availability
0121
Sealing BOS 00166671 Contact Us For Availability
0125
Cable connector BOS 00067776 Contact Us For Availability
0129
Drain Hose BOS 00298564 Contact Us For Availability
0131
Stress-relief BOS 00165286 Contact Us For Availability
0136
Hinge BOS 00263115 Contact Us For Availability
0137
Hinge BOS 00298567 Contact Us For Availability
0139
Hinge Bushing BOS 00165296 Contact Us For Availability
0143
Tube BOS 00263122 Contact Us For Availability
0144
Hood BOS 00167243 Contact Us For Availability
0145
Lever BOS 00263123 Contact Us For Availability
0146
Float BOS 00165301 Contact Us For Availability
0149
Plate BOS 00165295 Contact Us For Availability
0150
Hinge BOS 00298570 Contact Us For Availability
0151
Hinge BOS 00263119 Contact Us For Availability
0156
Fixing kit BOS 00166034 Contact Us For Availability
0170
Tube BOS 00350321 Contact Us For Availability
0171
Spray arm BOS 00369656 Contact Us For Availability
0172
Upper Spray Arm Assembly BOS 00298594 Contact Us For Availability
0175
Sieve BOS 00480934 Contact Us For Availability
0177
Upper crockery basket BOS 00770441 Contact Us For Availability
0181
Anti-Tarnish Silverware Holder BOS 00432377 Contact Us For Availability
0183
Dishwasher Rack Wheel BOS 00165314 Contact Us For Availability
0184
Cup rack BOS 00093044 Contact Us For Availability
0185
Cutlery Basket BOS 00093046 Contact Us For Availability
0186
Tall/Large Item Sprinkle BOS 00167301 Contact Us For Availability
0187
BOS 00167273 BOS 00167273 Contact Us For Availability
0188
BOS 00167291 BOS 00167291 Contact Us For Availability
× ![]()
