Model Bosch SGV45E03UC/18 Dishwasher – Common Parts & Diagrams
Diagram 1
Diagram 2

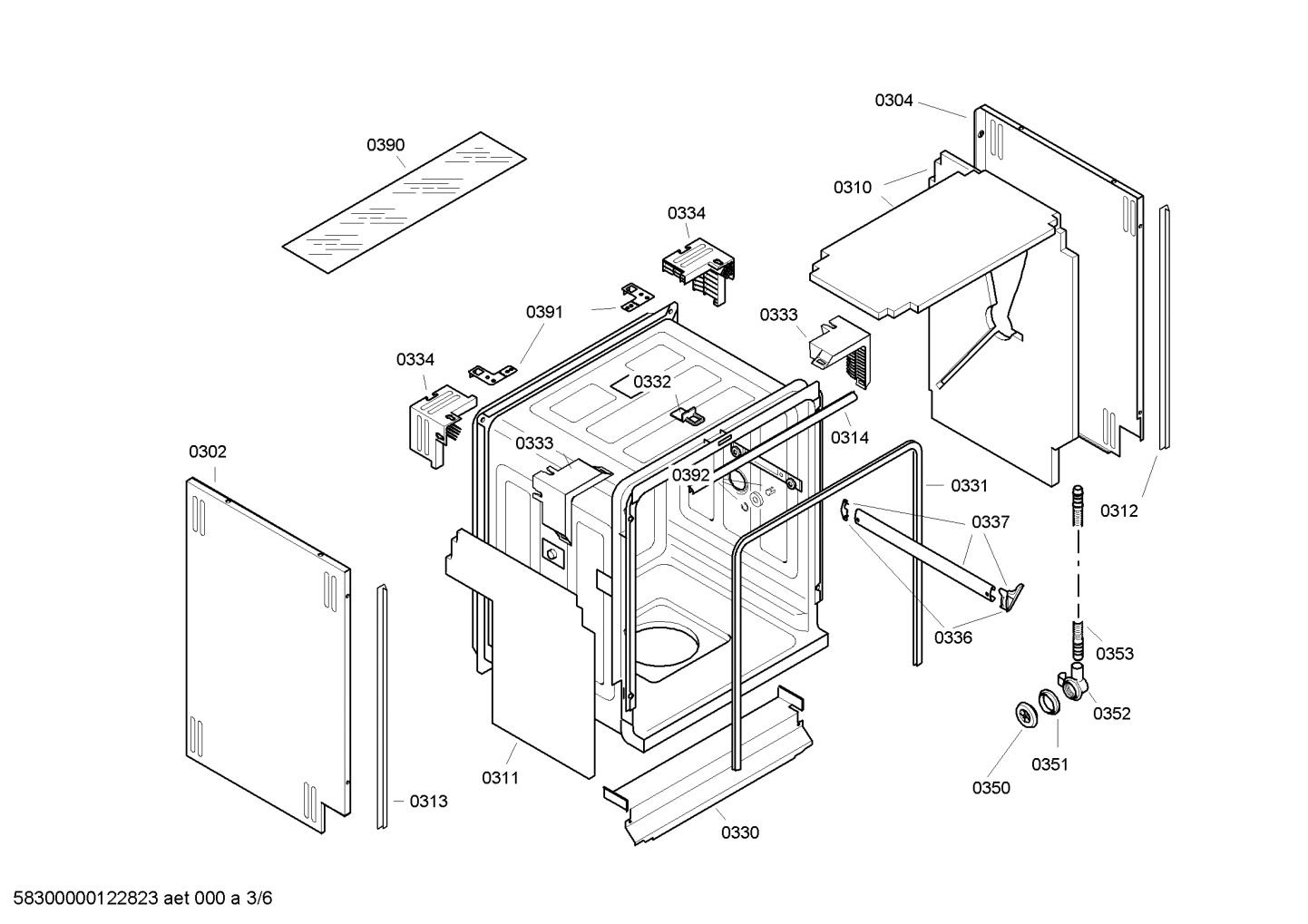

Diagram 3

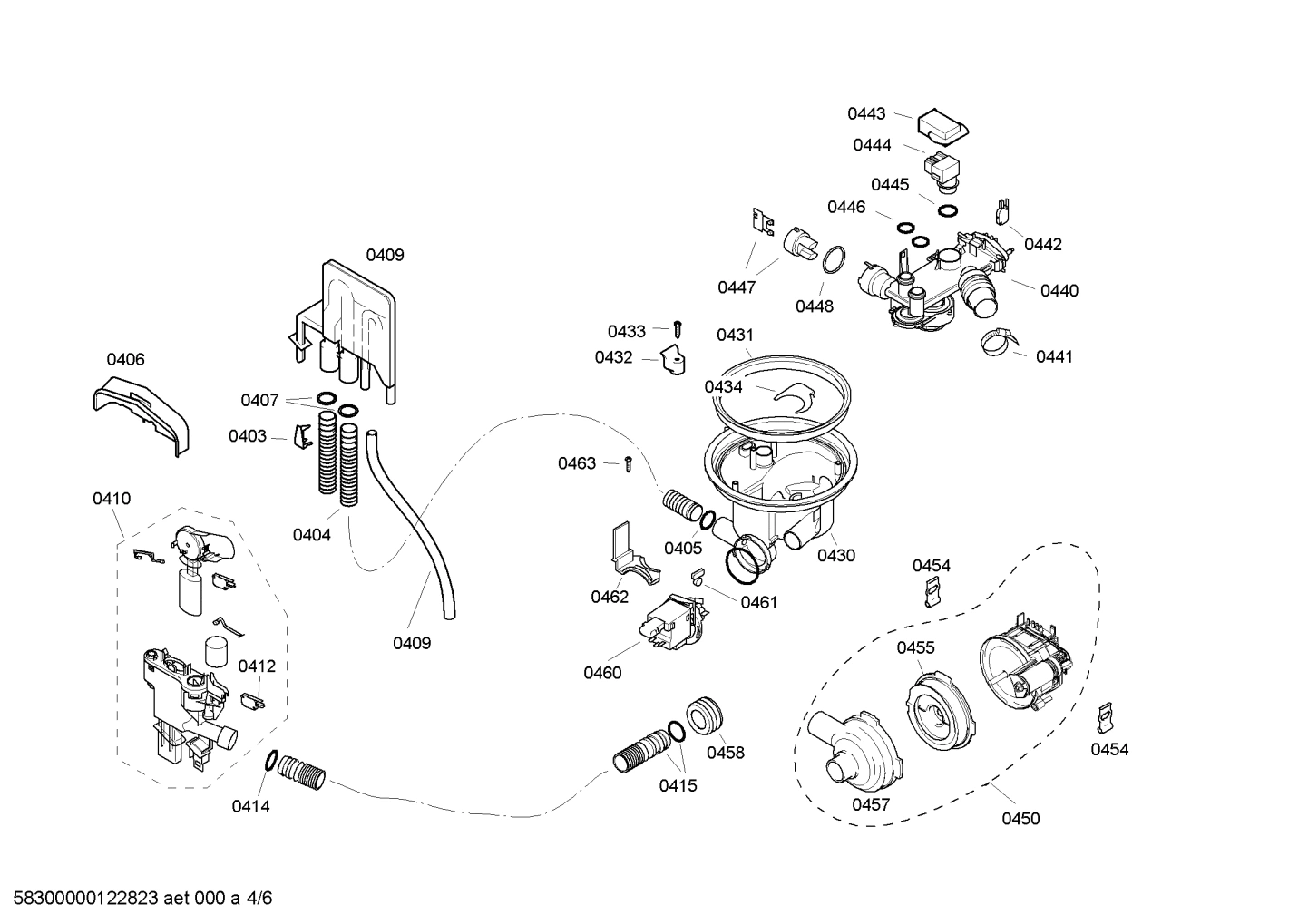

Diagram 4

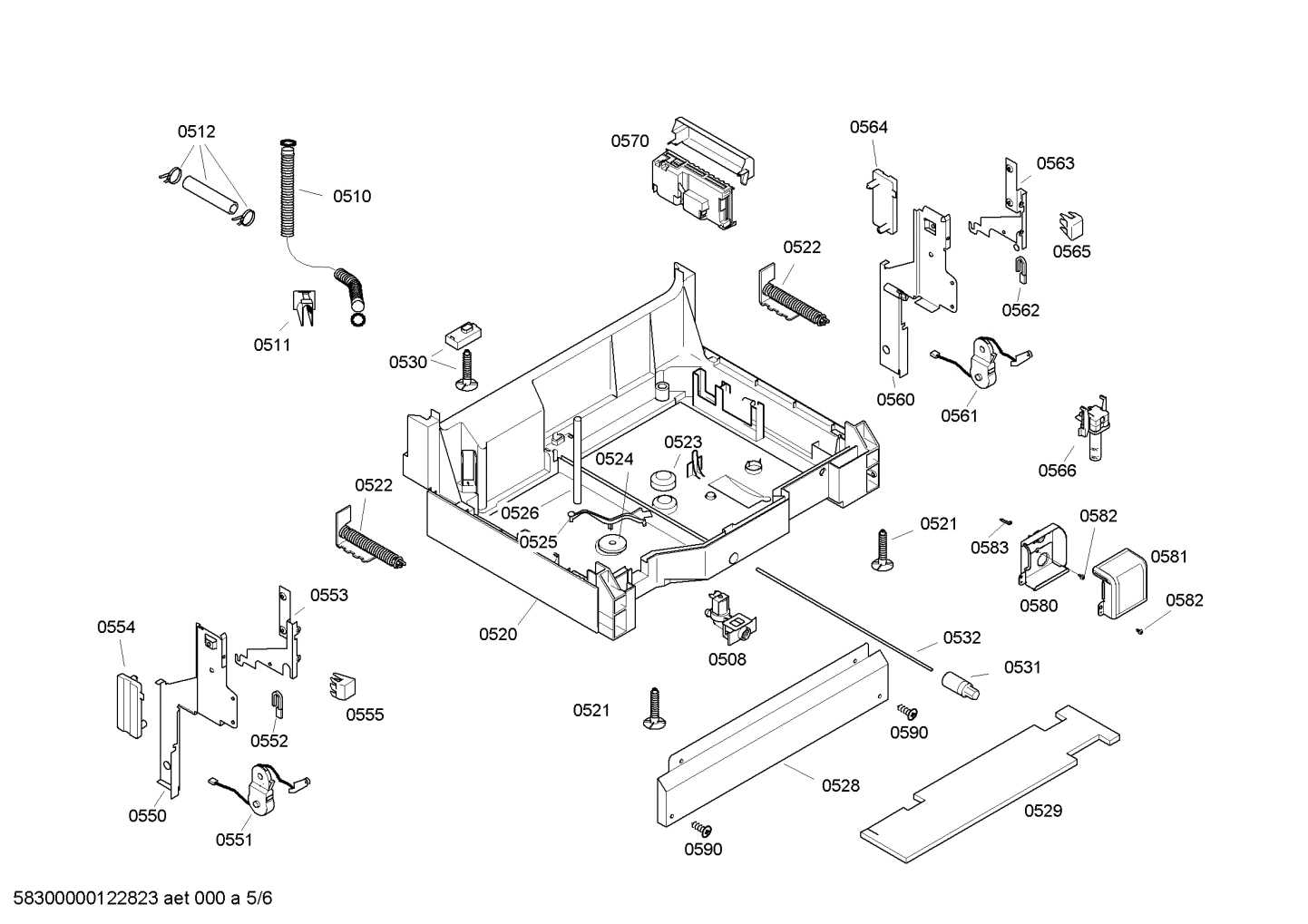

Diagram 5

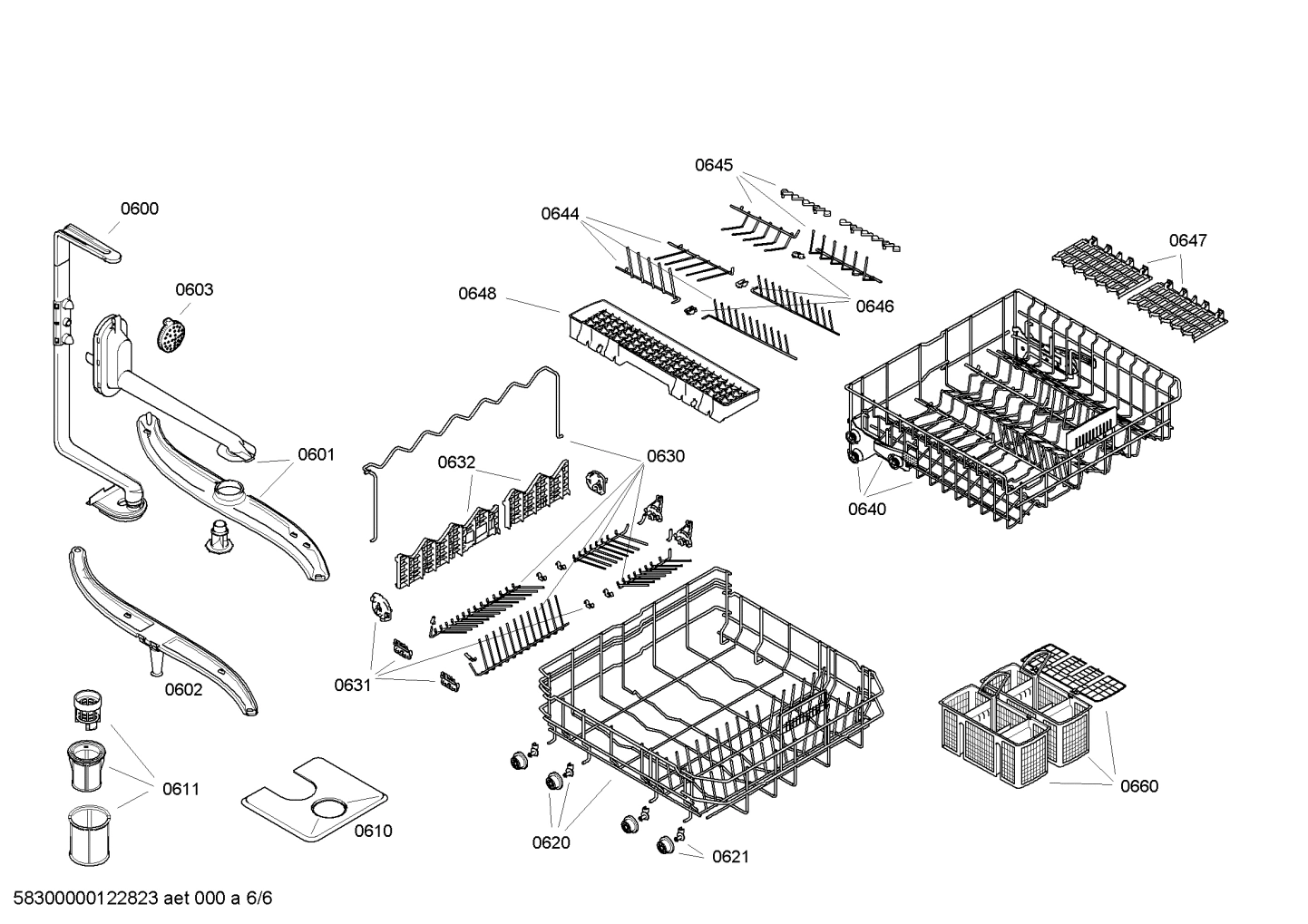

Diagram 6
Common parts from model Bosch SGV45E03UC/18 Dishwasher
0100
Control module BOS 00664715 Contact Us For Availability
0110
Frame BOS 00439645 Contact Us For Availability
0111
Ball Bearing Door Latch BOS 00438026 Contact Us For Availability
0112
Switch BOS 00187205 Contact Us For Availability
0113
On/Off Main Switch BOS 00424410 Contact Us For Availability
0210
Dispenser BOS 00490467 Contact Us For Availability
0211
Sealing BOS 00166637 Contact Us For Availability
0212
Detergent Lid BOS 00166621 Contact Us For Availability
0213
Sealing BOS 00166625 Contact Us For Availability
0214
Lever, Wrap, Seal BOS 00166630 Contact Us For Availability
0215
Plunger BOS 00166627 Contact Us For Availability
0216
Lid BOS 00166623 Contact Us For Availability
0217
Adjusting device BOS 00166626 Contact Us For Availability
0218
Repair-set BOS 00166632 Contact Us For Availability
0219
Actuator BOS 00166635 Contact Us For Availability
0220
Repair-set BOS 00166628 Contact Us For Availability
0241
Screw BOS 00151703 Contact Us For Availability
0242
Door Seal BOS 00298534 Contact Us For Availability
0290
Mounting set BOS 00602186 Contact Us For Availability
0314
Strip BOS 00298550 Contact Us For Availability
0331
Seal BOS 00263096 Contact Us For Availability
0332
Latch BOS 00187185 Contact Us For Availability
0336
Front/Rear End Cap Set BOS 00165254 Contact Us For Availability
0337
Cover sheet BOS 00350318 Contact Us For Availability
0350
Cover BOS 00066400 Contact Us For Availability
0352
Cover BOS 00171024 Contact Us For Availability
0353
Hose-vent BOS 00265832 Contact Us For Availability
0390
Steam Safety Sheet BOS 00114294 Contact Us For Availability
0391
Attachment Brackets BOS 00170664 Contact Us For Availability
0392
Repair set-role BOS 00622193 Contact Us For Availability
0403
Fixture BOS 00167028 Contact Us For Availability
0404
Sump Drain Hose BOS 00263099 Contact Us For Availability
0406
Cover BOS 00263113 Contact Us For Availability
0409
Water inlet BOS 00263833 Contact Us For Availability
0412
Switch BOS 00165256 Contact Us For Availability
0414
O-Ring BOS 00165331 Contact Us For Availability
0415
Inlet Hose BOS 00361113 Contact Us For Availability
0431
Sealing BOS 00263102 Contact Us For Availability
0432
Holder BOS 00165265 Contact Us For Availability
0434
Cover BOS 00171681 Contact Us For Availability
0441
Hose clamp BOS 00172272 Contact Us For Availability
0442
Switch BOS 00069796 Contact Us For Availability
0443
Cover BOS 00165284 Contact Us For Availability
0444
Sensor-NTC BOS 00165281 Contact Us For Availability
0445
Sealing BOS 00151866 Contact Us For Availability
0446
Sealing BOS 00165280 Contact Us For Availability
0447
Sensor BOS 00165279 Contact Us For Availability
0448
Sealing BOS 00165278 Contact Us For Availability
0450
Circulating Pump BOS 00442548 Contact Us For Availability
0454
Suspension BOS 00171596 Contact Us For Availability
0455
Pump-housing BOS 00488184 Contact Us For Availability
0457
Pump-housing BOS 00488183 Contact Us For Availability
0458
Sealing BOS 00171598 Contact Us For Availability
0460
Drain Pump BOS 00642239 Contact Us For Availability
0461
Valve-non return BOS 00165262 Contact Us For Availability
0462
Cover BOS 00165263 Contact Us For Availability
0463
Screw BOS 00167241 Contact Us For Availability
0508
Water Inlet Valve BOS 00607335 Contact Us For Availability
0510
Drain Hose BOS 00298564 Contact Us For Availability
0511
Stress-relief BOS 00165286 Contact Us For Availability
0512
Adapter BOS 00088403 Contact Us For Availability
0520
Case-bottom BOS 00476528 Contact Us For Availability
0523
Hood BOS 00167243 Contact Us For Availability
0524
Float BOS 00165301 Contact Us For Availability
0525
Lever BOS 00263123 Contact Us For Availability
0526
Tube BOS 00263122 Contact Us For Availability
0528
Black Toe Panel BOS 00668687 Contact Us For Availability
0529
Insulating part BOS 00187984 Contact Us For Availability
0530
Foot BOS 00165330 Contact Us For Availability
0531
Bushing BOS 00165329 Contact Us For Availability
0550
Hinge BOS 00298567 Contact Us For Availability
0553
Hinge BOS 00263115 Contact Us For Availability
0560
Hinge BOS 00298570 Contact Us For Availability
0562
Hinge Bushing BOS 00165296 Contact Us For Availability
0563
Hinge BOS 00263119 Contact Us For Availability
0564
Plate BOS 00165295 Contact Us For Availability
0565
Insulating part BOS 00167078 Contact Us For Availability
0566
LED-announcement BOS 00424819 Contact Us For Availability
0580
Terminal box BOS 00640476 Contact Us For Availability
0581
Cover BOS 00640477 Contact Us For Availability
0582
Screw BOS 00605743 Contact Us For Availability
0583
Screw BOS 00188670 Contact Us For Availability
0590
Screw BOS 00603934 Contact Us For Availability
0601
Upper Spray Arm Assembly BOS 00298594 Contact Us For Availability
0602
Spray Arm BOS 00448806 Contact Us For Availability
0603
Tall/Large Item Sprinkler Head BOS 00167301 Contact Us For Availability
0610
Filter-fine BOS 00357393 Contact Us For Availability
0621
Dishwasher Rack Wheel BOS 00165314 Contact Us For Availability
0630
Insert BOS 00432375 Contact Us For Availability
0631
Bearing BOS 00418675 Contact Us For Availability
0640
Rack Height Adjustment Set BOS 00648570 Contact Us For Availability
0640
Upper crockery basket BOS 00770441 Contact Us For Availability
0646
Bearing BOS 00418674 Contact Us For Availability
0647
Cup rack BOS 00093044 Contact Us For Availability
0648
Knife Rack BOS 00363436 Contact Us For Availability
0660
Cutlery Basket BOS 00481957 Contact Us For Availability
× ![]()
