Model Bosch SGU53E32SK/22 Dishwasher – Common Parts & Diagrams

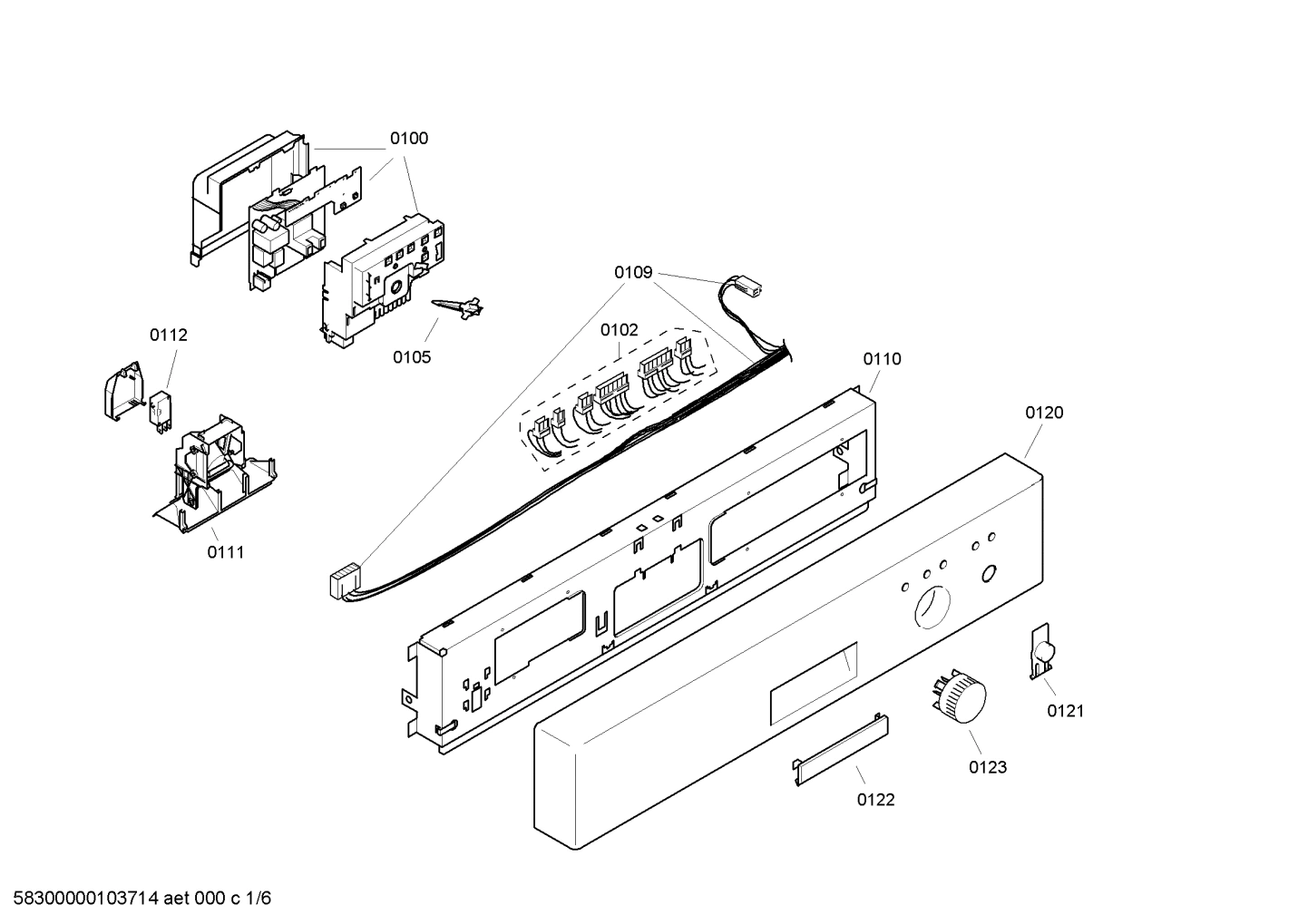

Diagram 1

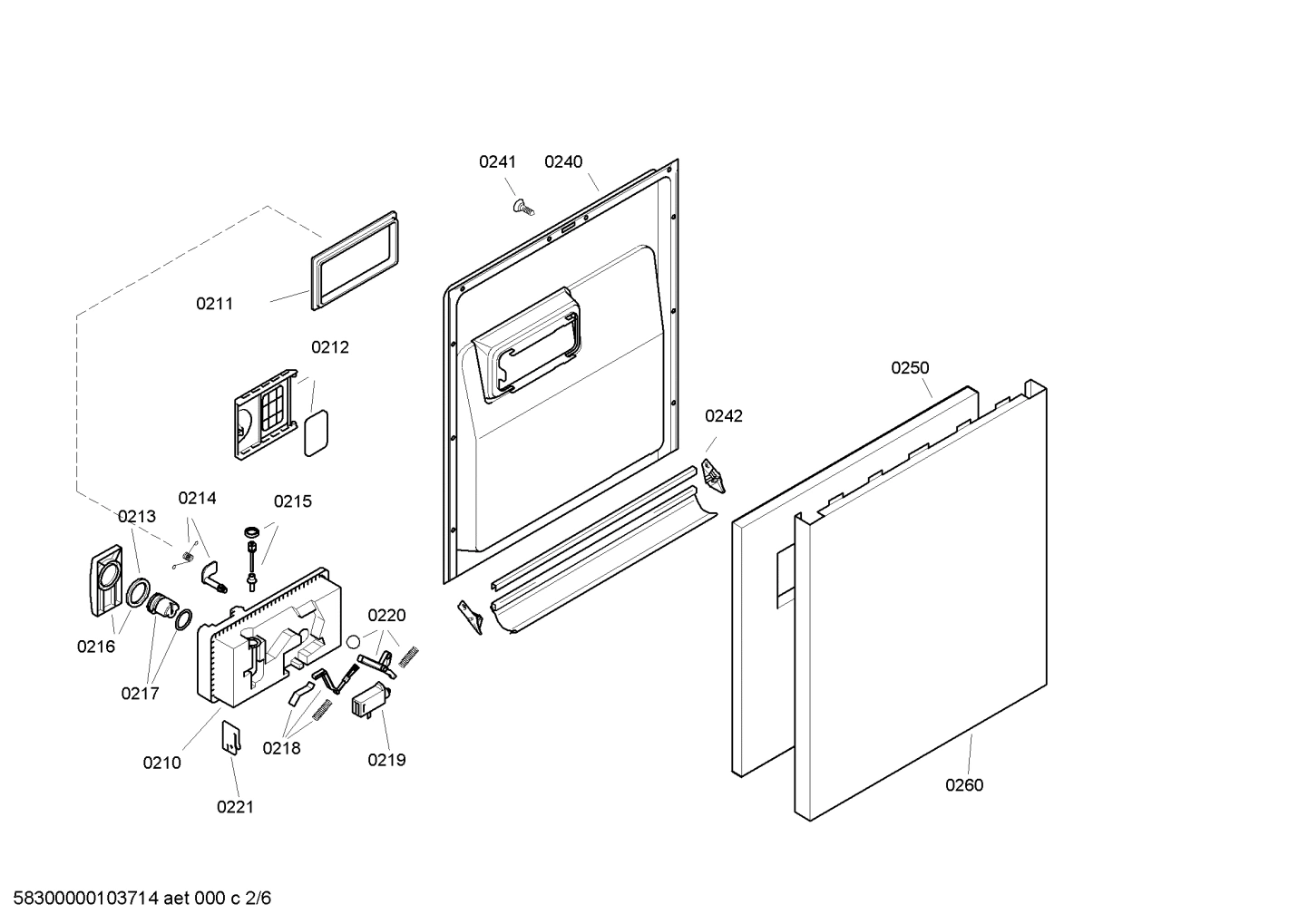

Diagram 2

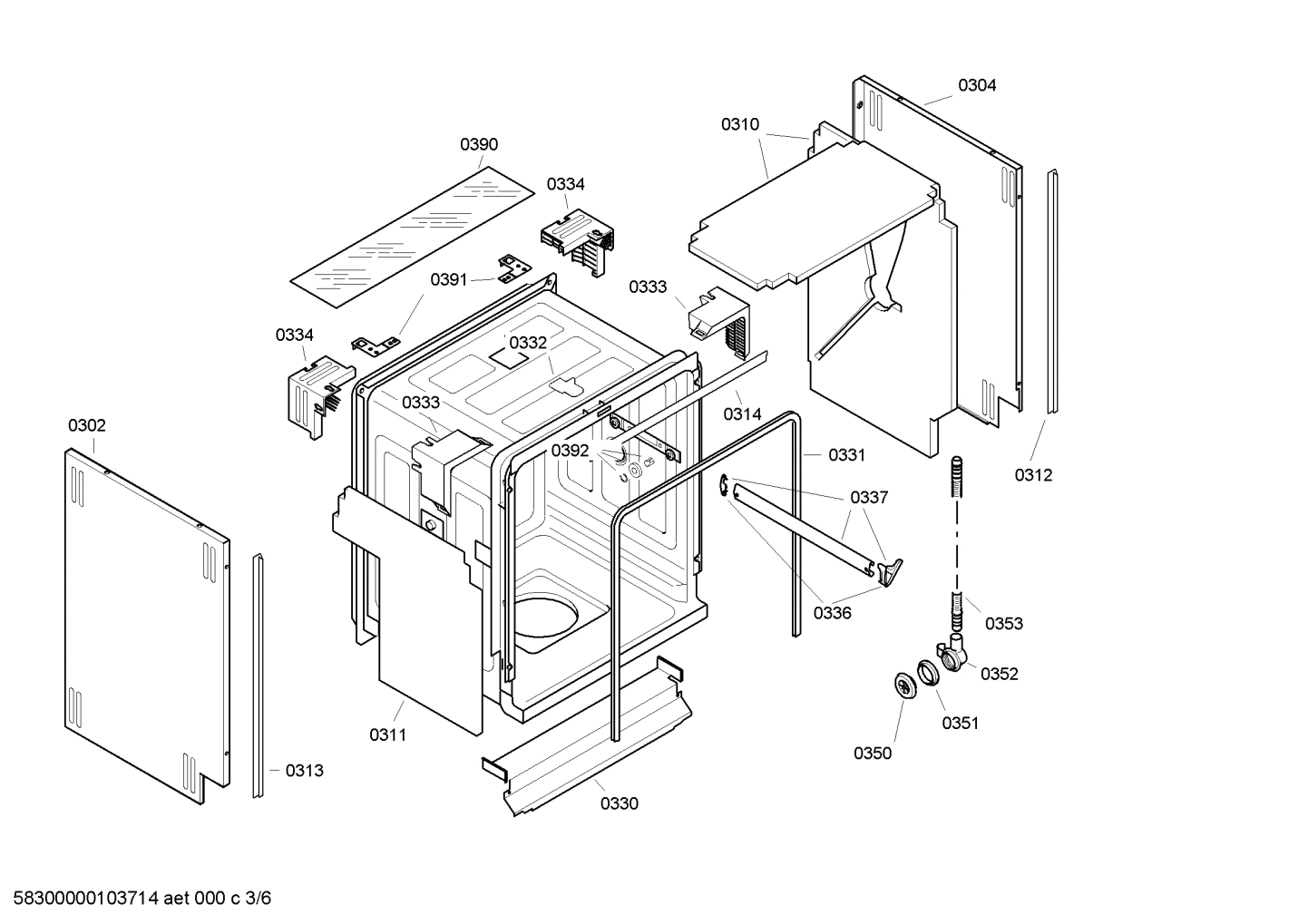

Diagram 3

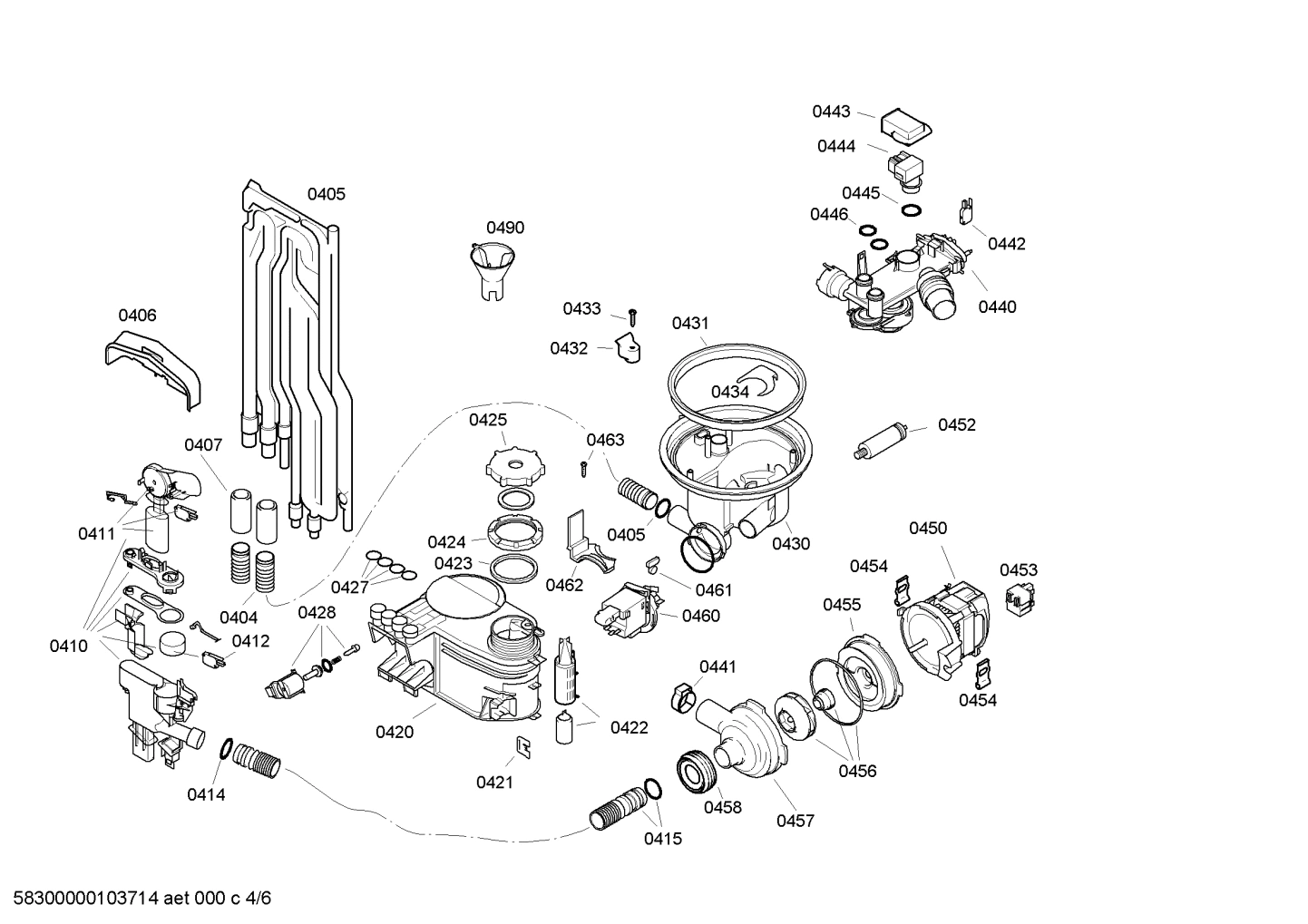

Diagram 4

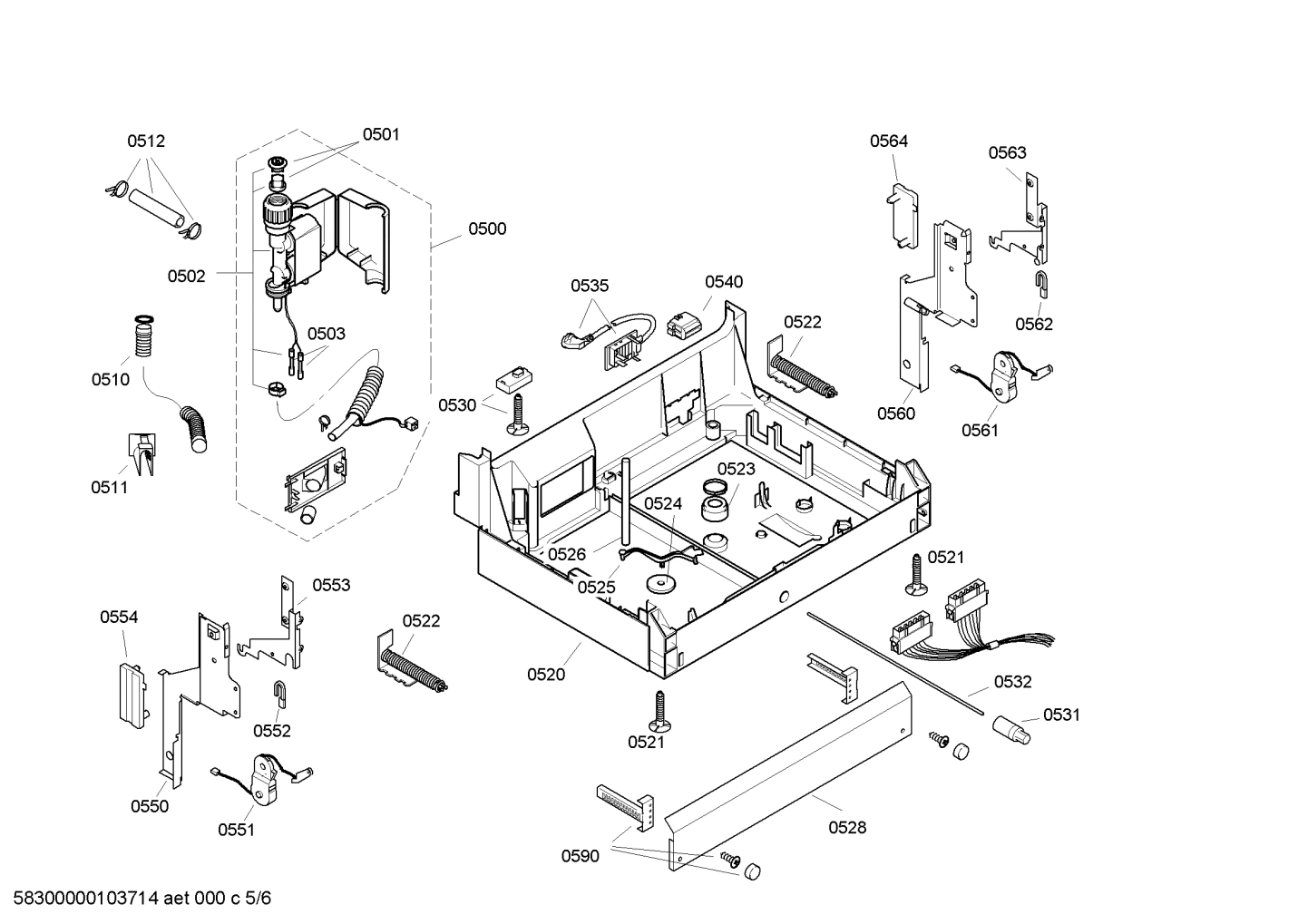

Diagram 5

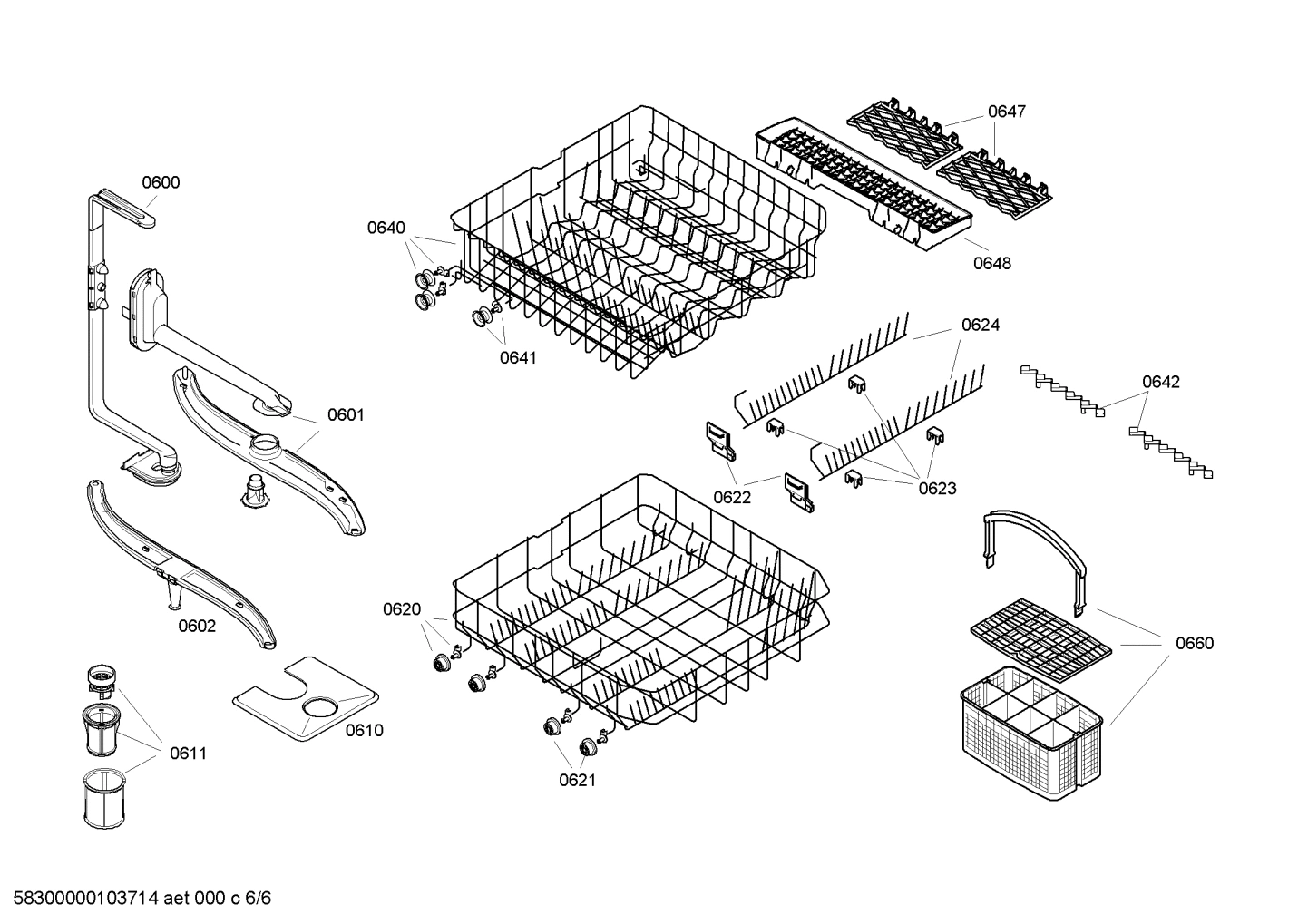

Diagram 6
Common parts from model Bosch SGU53E32SK/22 Dishwasher
0110
Frame BOS 00298518 Contact Us For Availability
0112
Switch BOS 00187205 Contact Us For Availability
0122
Worktop BOS 00165248 Contact Us For Availability
0210
Dispenser BOS 00490467 Contact Us For Availability
0211
Sealing BOS 00166637 Contact Us For Availability
0212
Detergent Lid BOS 00166621 Contact Us For Availability
0213
Sealing BOS 00166625 Contact Us For Availability
0214
Lever, Wrap, Seal BOS 00166630 Contact Us For Availability
0215
Plunger BOS 00166627 Contact Us For Availability
0216
Lid BOS 00166623 Contact Us For Availability
0217
Adjusting device BOS 00166626 Contact Us For Availability
0218
Repair-set BOS 00166632 Contact Us For Availability
0219
Actuator BOS 00166635 Contact Us For Availability
0220
Repair-set BOS 00166628 Contact Us For Availability
0221
Switch BOS 00166633 Contact Us For Availability
0241
Screw BOS 00151703 Contact Us For Availability
0242
Door Seal BOS 00298534 Contact Us For Availability
0314
Strip BOS 00298550 Contact Us For Availability
0331
Seal BOS 00263096 Contact Us For Availability
0332
Latch BOS 00187185 Contact Us For Availability
0336
Front/Rear End Cap Set BOS 00165254 Contact Us For Availability
0337
Rack guide rail BOS 00298547 Contact Us For Availability
0350
Cover BOS 00066400 Contact Us For Availability
0352
Cover BOS 00171024 Contact Us For Availability
0353
Hose-vent BOS 00265832 Contact Us For Availability
0390
Steam Safety Sheet BOS 00114294 Contact Us For Availability
0391
Attachment Brackets BOS 00170664 Contact Us For Availability
0392
Repair set-role BOS 00622193 Contact Us For Availability
0404
Sump Drain Hose BOS 00263099 Contact Us For Availability
0406
Cover BOS 00263113 Contact Us For Availability
0407
Hose connection inlet BOS 00165258 Contact Us For Availability
0412
Switch BOS 00165256 Contact Us For Availability
0414
O-Ring BOS 00165331 Contact Us For Availability
0415
Hose BOS 00298556 Contact Us For Availability
0430
Sump BOS 00267619 Contact Us For Availability
0431
Sealing BOS 00263102 Contact Us For Availability
0432
Holder BOS 00165265 Contact Us For Availability
0434
Cover BOS 00171681 Contact Us For Availability
0441
Hose clamp BOS 00172272 Contact Us For Availability
0442
Switch BOS 00069796 Contact Us For Availability
0443
Cover BOS 00165284 Contact Us For Availability
0444
Sensor-NTC BOS 00165281 Contact Us For Availability
0445
Sealing BOS 00151866 Contact Us For Availability
0446
Sealing BOS 00165280 Contact Us For Availability
0454
Suspension BOS 00171596 Contact Us For Availability
0455
Pump-housing BOS 00267739 Contact Us For Availability
0457
Case-upper part BOS 00266514 Contact Us For Availability
0458
Sealing BOS 00171598 Contact Us For Availability
0460
Pump-drain BOS 00165261 Contact Us For Availability
0461
Valve-non return BOS 00165262 Contact Us For Availability
0462
Cover BOS 00165263 Contact Us For Availability
0463
Screw BOS 00167241 Contact Us For Availability
0501
Sealing BOS 00166671 Contact Us For Availability
0503
Cable connector BOS 00067776 Contact Us For Availability
0510
Drain Hose BOS 00298564 Contact Us For Availability
0511
Stress-relief BOS 00165286 Contact Us For Availability
0512
Adapter BOS 00088403 Contact Us For Availability
0522
Spring BOS 00173696 Contact Us For Availability
0523
Hood BOS 00167243 Contact Us For Availability
0524
Float BOS 00165301 Contact Us For Availability
0525
Lever BOS 00263123 Contact Us For Availability
0526
Tube BOS 00263122 Contact Us For Availability
0530
Foot BOS 00165330 Contact Us For Availability
0531
Bushing BOS 00165329 Contact Us For Availability
0550
Hinge BOS 00298567 Contact Us For Availability
0553
Hinge BOS 00263115 Contact Us For Availability
0560
Hinge BOS 00298570 Contact Us For Availability
0562
Hinge Bushing BOS 00165296 Contact Us For Availability
0563
Hinge BOS 00263119 Contact Us For Availability
0564
Plate BOS 00165295 Contact Us For Availability
0590
Fixing kit BOS 00166034 Contact Us For Availability
0601
Upper Spray Arm Assembly BOS 00298594 Contact Us For Availability
0602
Spray arm BOS 00369656 Contact Us For Availability
0621
Dishwasher Rack Wheel BOS 00165314 Contact Us For Availability
0640
Upper crockery basket BOS 00770441 Contact Us For Availability
0641
Dishwasher Rack Wheel BOS 00611666 Contact Us For Availability
0647
Cup rack BOS 00093044 Contact Us For Availability
0648
Knife Rack BOS 00363436 Contact Us For Availability
0660
Cutlery Basket BOS 00093046 Contact Us For Availability
× ![]()
