Model Bosch SGI57M05EU/74 Dishwasher – Common Parts & Diagrams

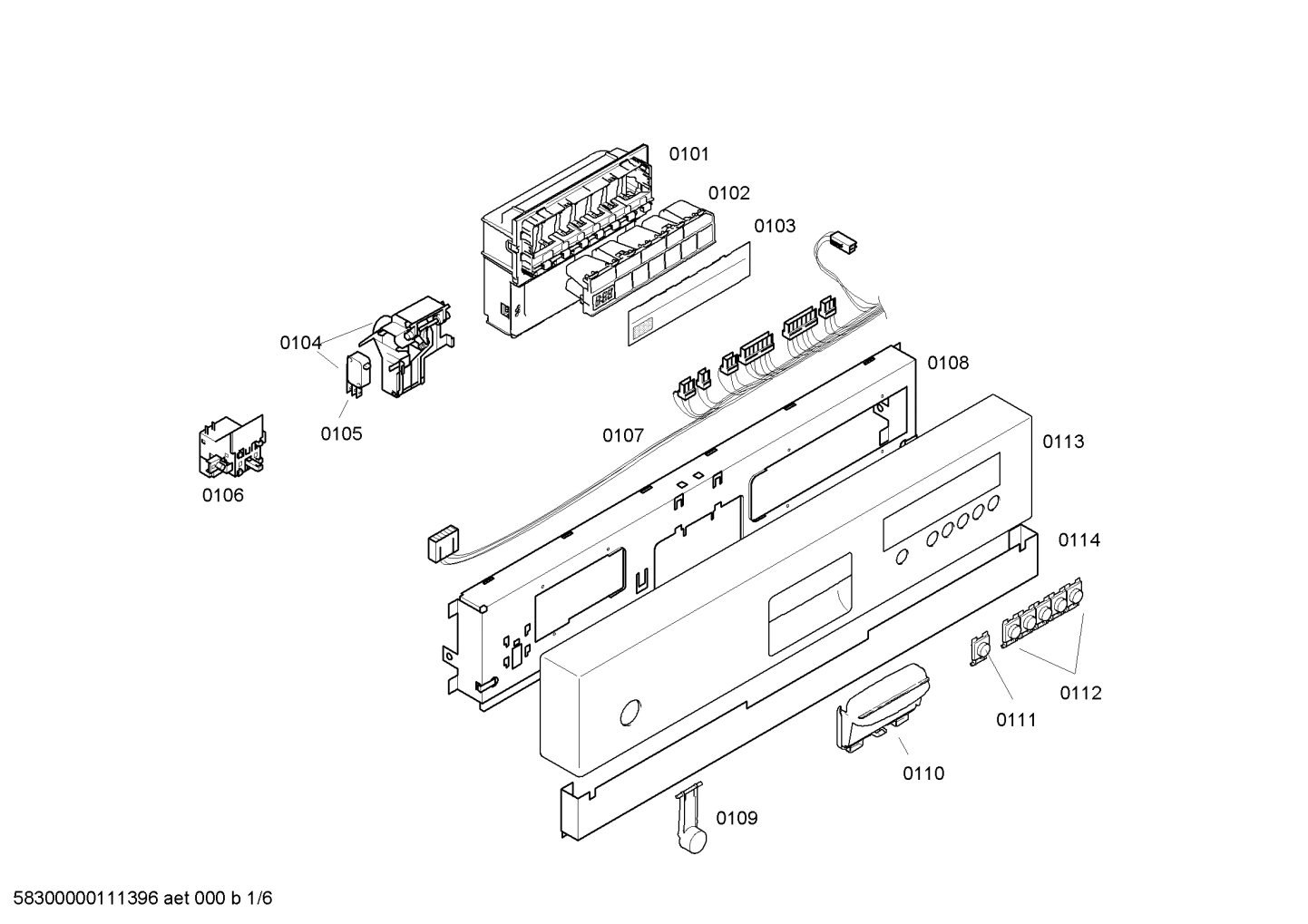

Diagram 1

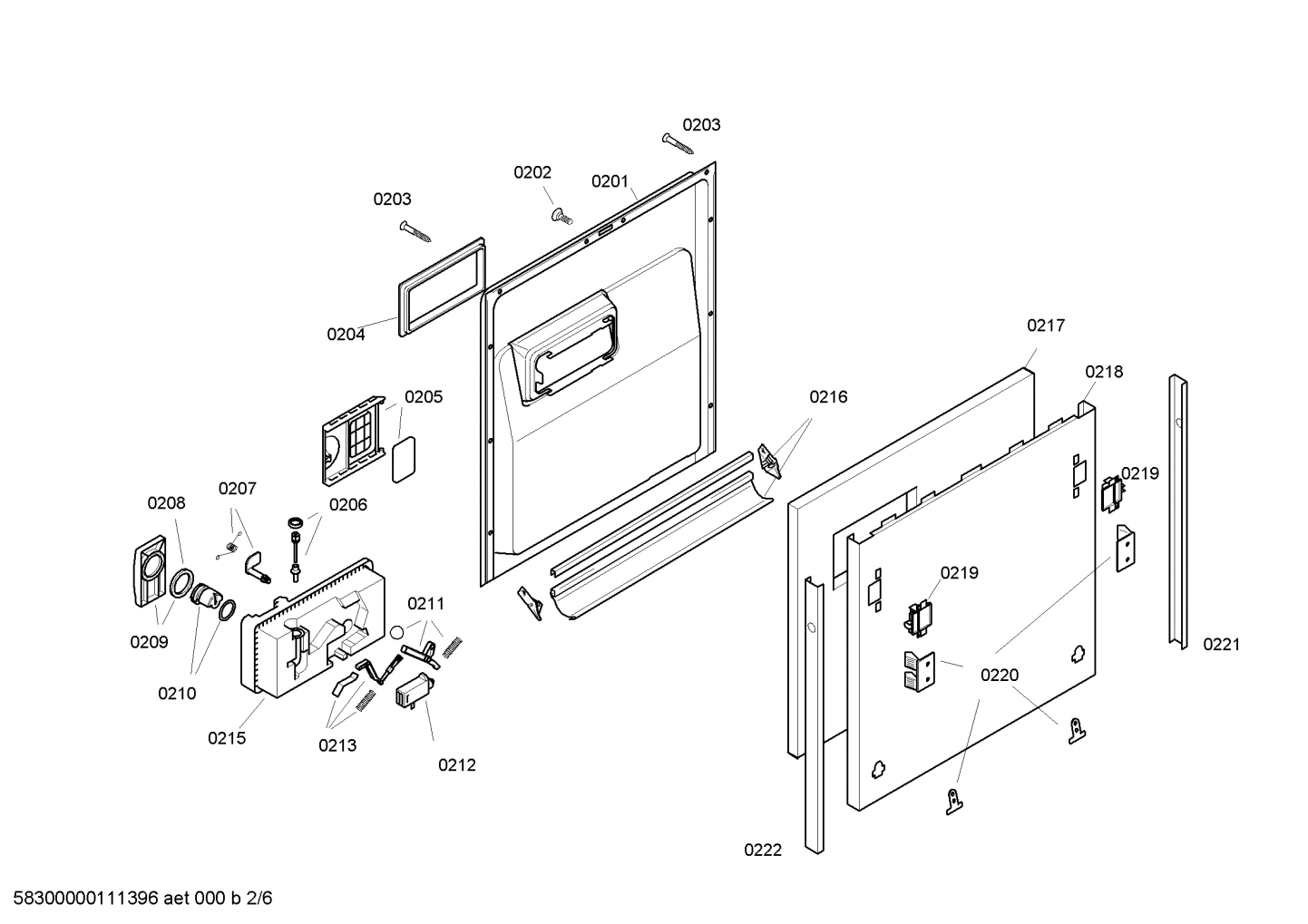

Diagram 2

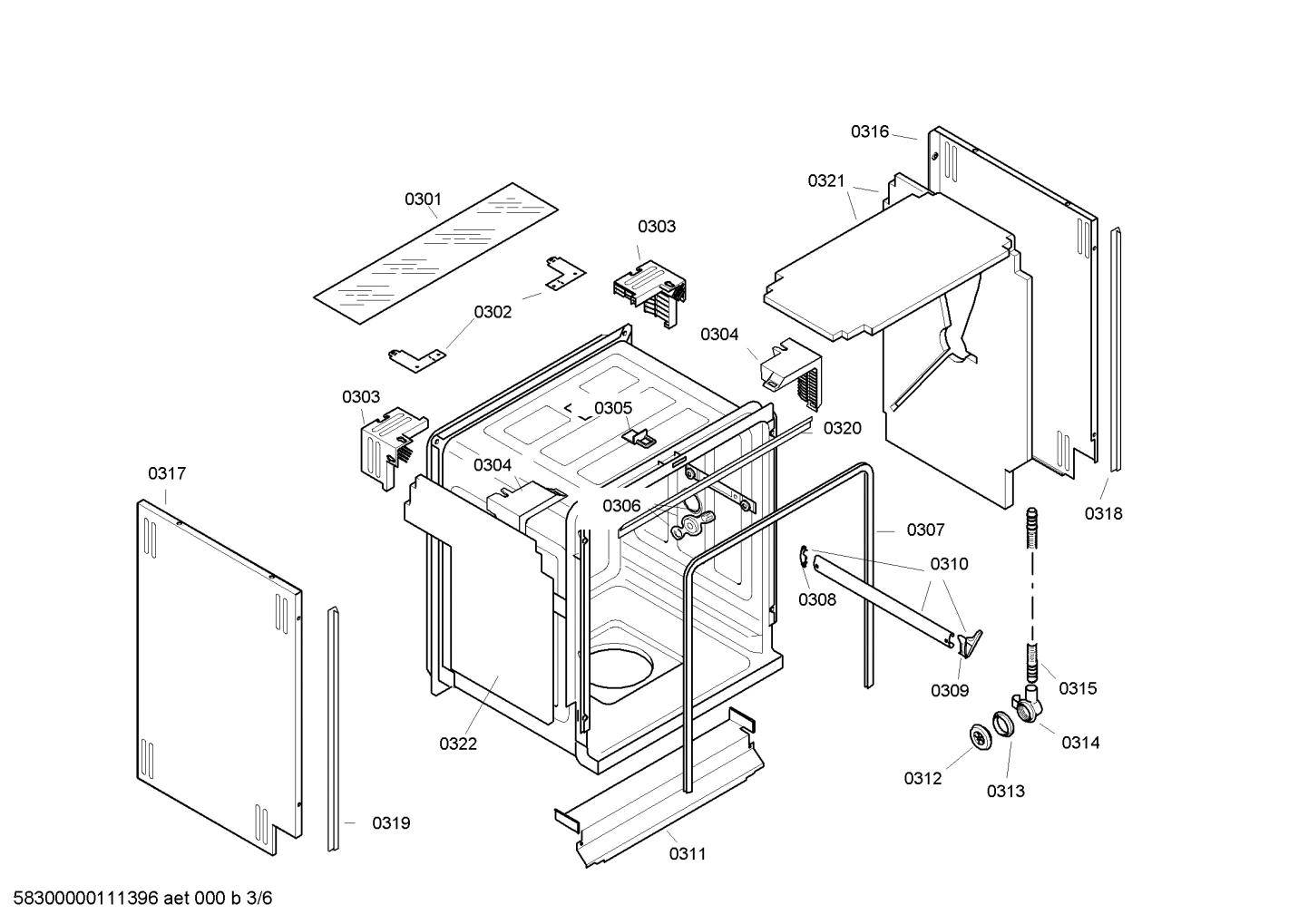

Diagram 3

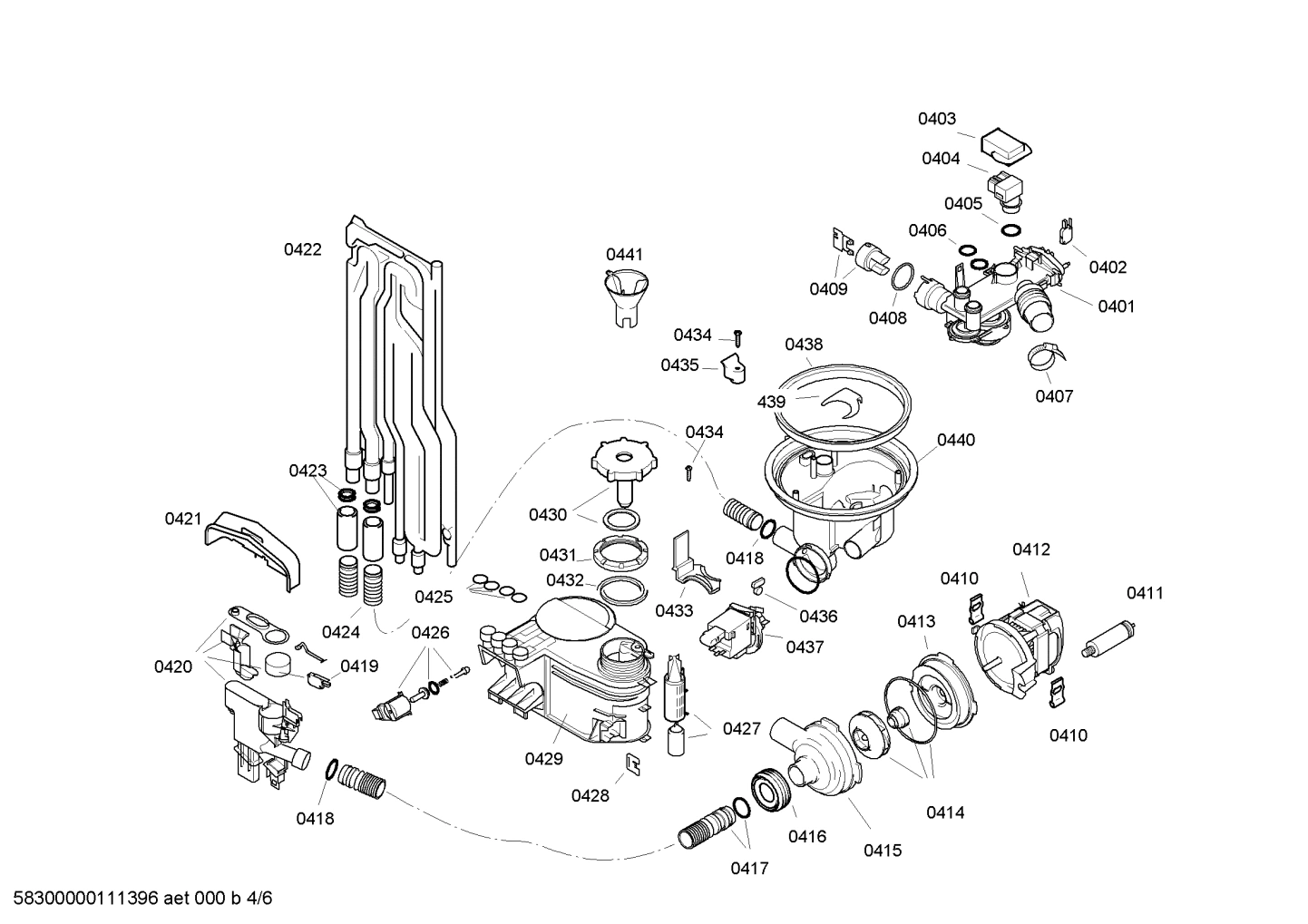

Diagram 4

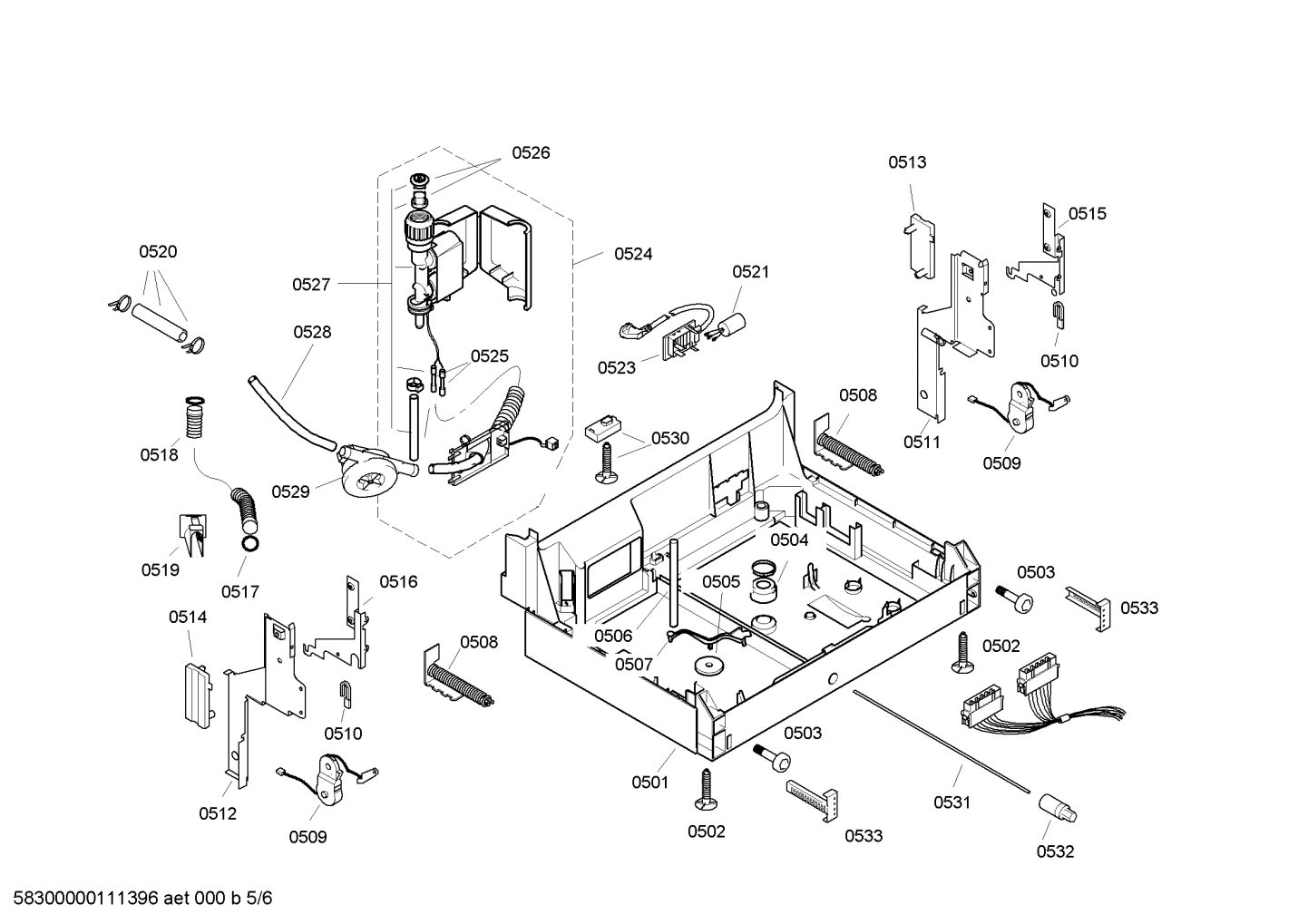

Diagram 5

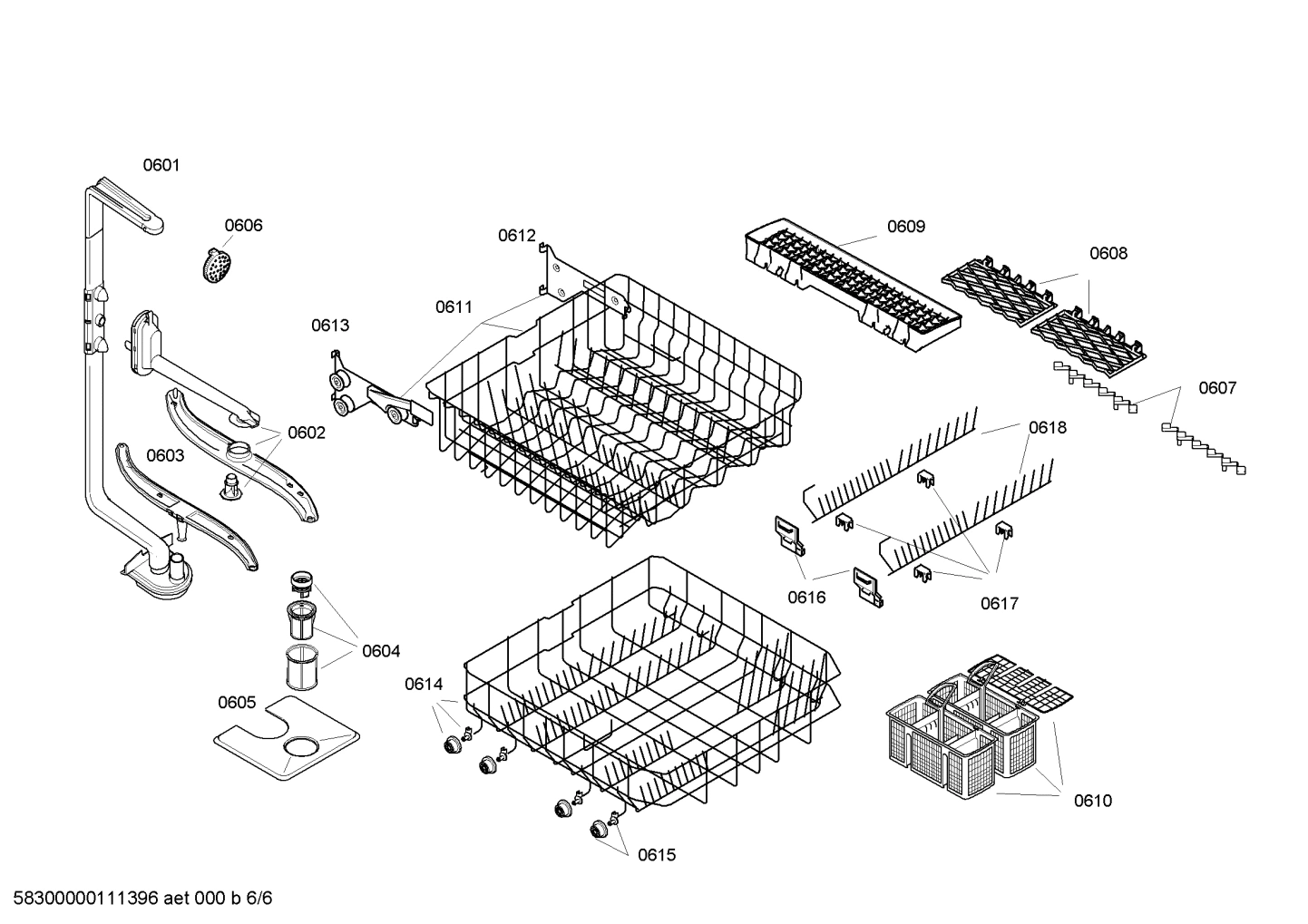

Diagram 6
Common parts from model Bosch SGI57M05EU/74 Dishwasher
0105
Switch BOS 00187205 Contact Us For Availability
0106
On/Off Main Switch BOS 00424410 Contact Us For Availability
0108
Frame BOS 00432941 Contact Us For Availability
0202
Screw BOS 00151703 Contact Us For Availability
0203
Wood Screw BOS 00612562 Contact Us For Availability
0204
Sealing BOS 00166637 Contact Us For Availability
0205
Detergent Lid BOS 00166621 Contact Us For Availability
0206
Plunger BOS 00166627 Contact Us For Availability
0207
Lever, Wrap, Seal BOS 00166630 Contact Us For Availability
0208
Sealing BOS 00166625 Contact Us For Availability
0209
Lid BOS 00166623 Contact Us For Availability
0210
Adjusting device BOS 00166626 Contact Us For Availability
0211
Repair-set BOS 00166628 Contact Us For Availability
0212
Actuator BOS 00166635 Contact Us For Availability
0213
Repair-set BOS 00166632 Contact Us For Availability
0215
Dispenser BOS 00490467 Contact Us For Availability
0216
Door Seal BOS 00298534 Contact Us For Availability
0220
Mounting Set for Dishwashers BOS 00165737 Contact Us For Availability
0301
Steam Safety Sheet BOS 00114294 Contact Us For Availability
0302
Attachment Brackets BOS 00170664 Contact Us For Availability
0305
Latch BOS 00187185 Contact Us For Availability
0306
Repair set-role BOS 00622193 Contact Us For Availability
0307
Seal BOS 00263096 Contact Us For Availability
0308
Front/Rear End Cap Set BOS 00165254 Contact Us For Availability
0310
Rack guide rail BOS 00298547 Contact Us For Availability
0312
Cover BOS 00066400 Contact Us For Availability
0314
Cover BOS 00171024 Contact Us For Availability
0315
Hose-vent BOS 00265832 Contact Us For Availability
0320
Strip BOS 00298550 Contact Us For Availability
0402
Switch BOS 00069796 Contact Us For Availability
0403
Cover BOS 00165284 Contact Us For Availability
0405
Sealing BOS 00151866 Contact Us For Availability
0406
Sealing BOS 00165280 Contact Us For Availability
0407
Hose clamp BOS 00172272 Contact Us For Availability
0408
Sealing BOS 00165278 Contact Us For Availability
0409
Sensor BOS 00165279 Contact Us For Availability
0410
Suspension BOS 00171596 Contact Us For Availability
0416
Sealing BOS 00171598 Contact Us For Availability
0417
Hose BOS 00298556 Contact Us For Availability
0418
O-Ring BOS 00165331 Contact Us For Availability
0419
Switch BOS 00165256 Contact Us For Availability
0421
Cover BOS 00263113 Contact Us For Availability
0423
Hose connection inlet BOS 00165258 Contact Us For Availability
0424
Sump Drain Hose BOS 00263099 Contact Us For Availability
0433
Cover BOS 00165263 Contact Us For Availability
0434
Screw BOS 00167241 Contact Us For Availability
0435
Holder BOS 00165265 Contact Us For Availability
0436
Valve-non return BOS 00165262 Contact Us For Availability
0437
Pump-drain BOS 00165261 Contact Us For Availability
0438
Sealing BOS 00263102 Contact Us For Availability
0439
Cover BOS 00171681 Contact Us For Availability
0440
Sump BOS 00640004 Contact Us For Availability
0503
Screw-adjust BOS 00169525 Contact Us For Availability
0504
Hood BOS 00167243 Contact Us For Availability
0505
Float BOS 00165301 Contact Us For Availability
0506
Tube BOS 00263122 Contact Us For Availability
0507
Lever BOS 00263123 Contact Us For Availability
0510
Hinge Bushing BOS 00165296 Contact Us For Availability
0511
Hinge BOS 00298570 Contact Us For Availability
0512
Hinge BOS 00298567 Contact Us For Availability
0513
Plate BOS 00165295 Contact Us For Availability
0515
Hinge BOS 00263119 Contact Us For Availability
0516
Hinge BOS 00263115 Contact Us For Availability
0519
Stress-relief BOS 00165286 Contact Us For Availability
0520
Adapter BOS 00088403 Contact Us For Availability
0525
Cable connector BOS 00067776 Contact Us For Availability
0526
Sealing BOS 00166671 Contact Us For Availability
0528
Hose BOS 00496099 Contact Us For Availability
0529
Flow Meter BOS 00424099 Contact Us For Availability
0530
Foot BOS 00165330 Contact Us For Availability
0532
Bushing BOS 00165329 Contact Us For Availability
0533
Fixing kit BOS 00166034 Contact Us For Availability
0602
Spray Arm BOS 00448806 Contact Us For Availability
0606
Tall/Large Item Sprinkler Head BOS 00167301 Contact Us For Availability
0608
Cup rack BOS 00093044 Contact Us For Availability
0609
Knife Rack BOS 00363436 Contact Us For Availability
0610
Cutlery Basket BOS 00481957 Contact Us For Availability
0613
Rack Height Adjustment Set BOS 00648570 Contact Us For Availability
0616
Holder BOS 00167273 Contact Us For Availability
0617
Clamp, Flip Tine BOS 00167291 Contact Us For Availability
× ![]()
