Model Bosch SGI43A76GB/01 Dishwasher – Common Parts & Diagrams

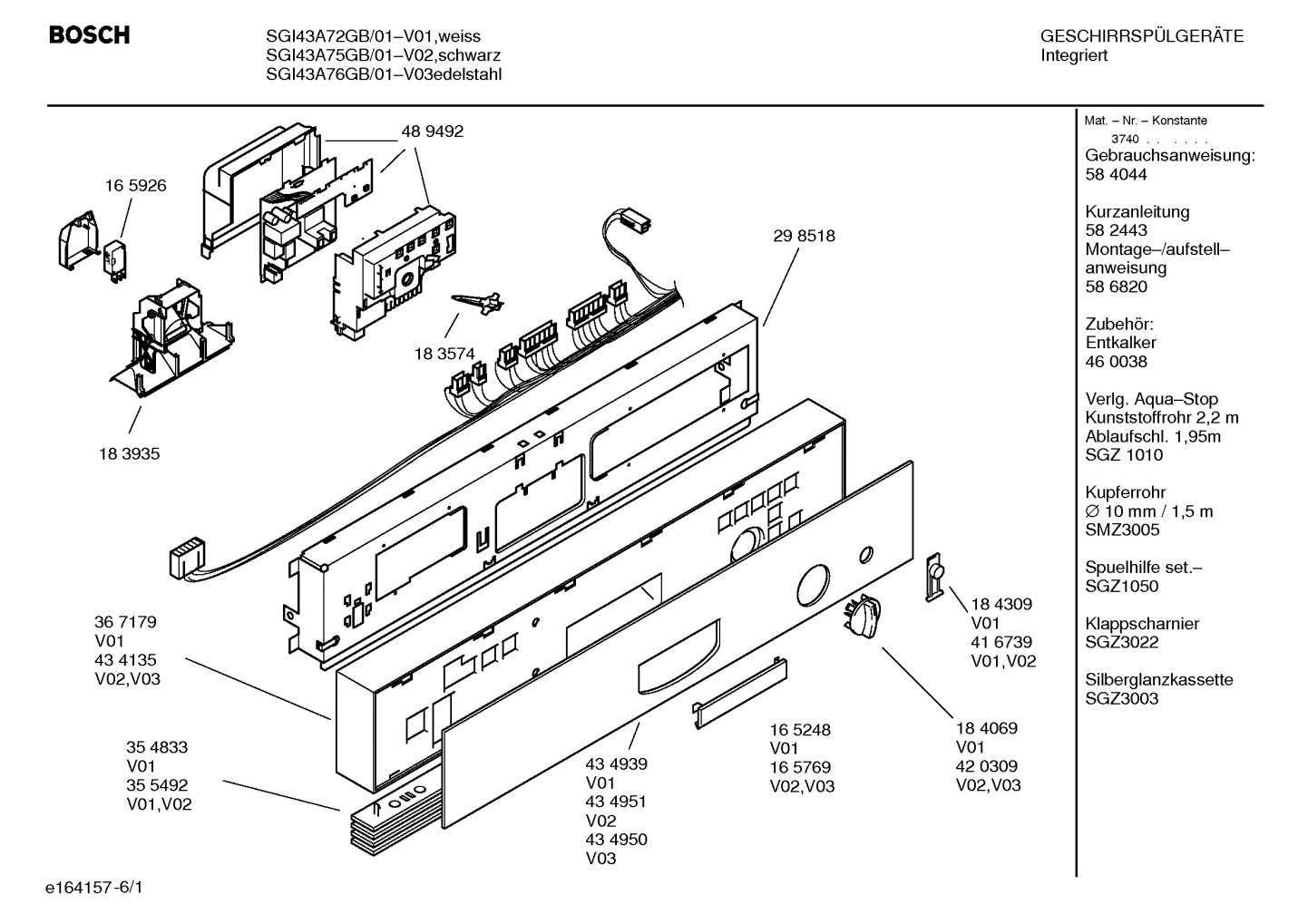

Diagram 1

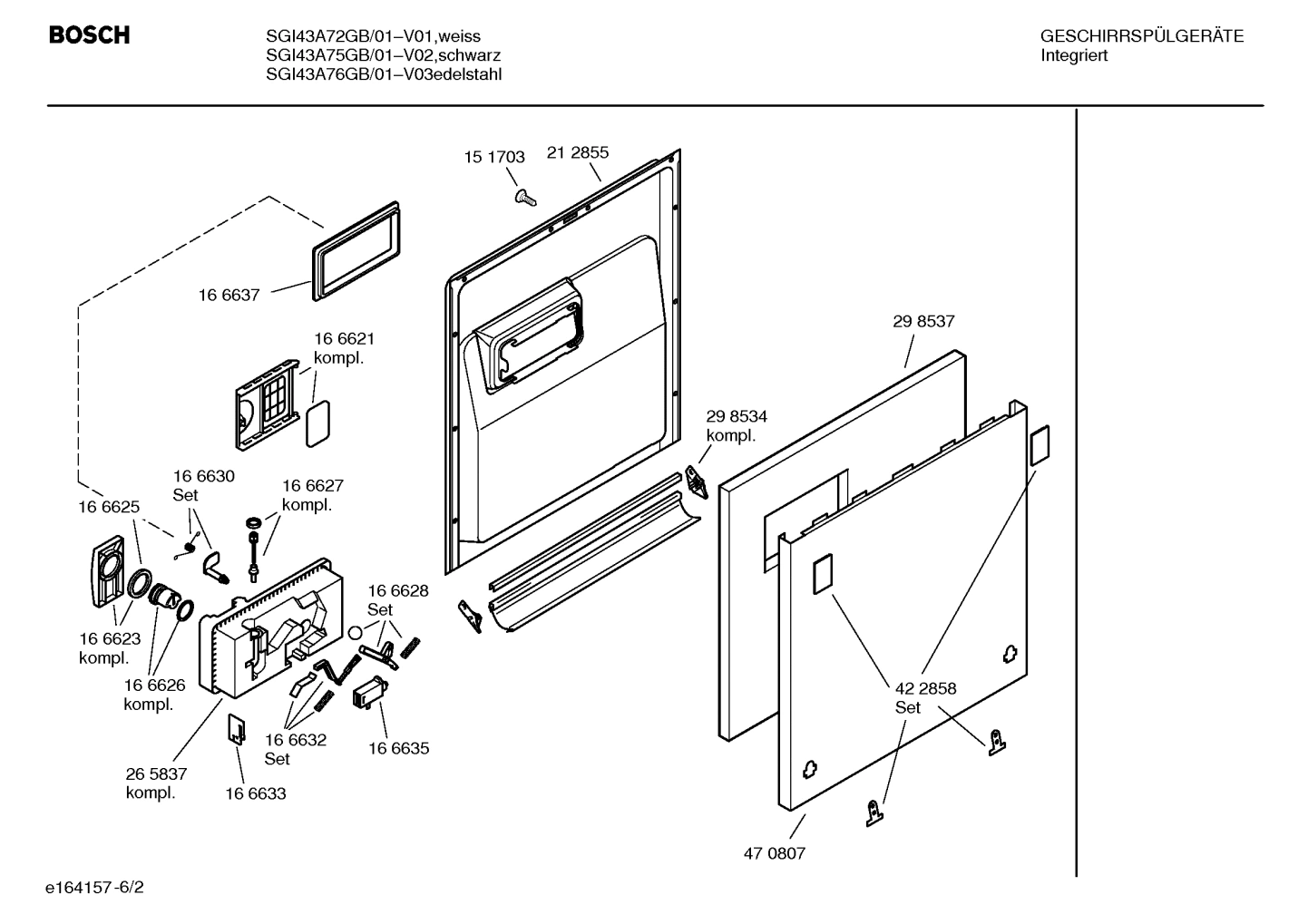

Diagram 2

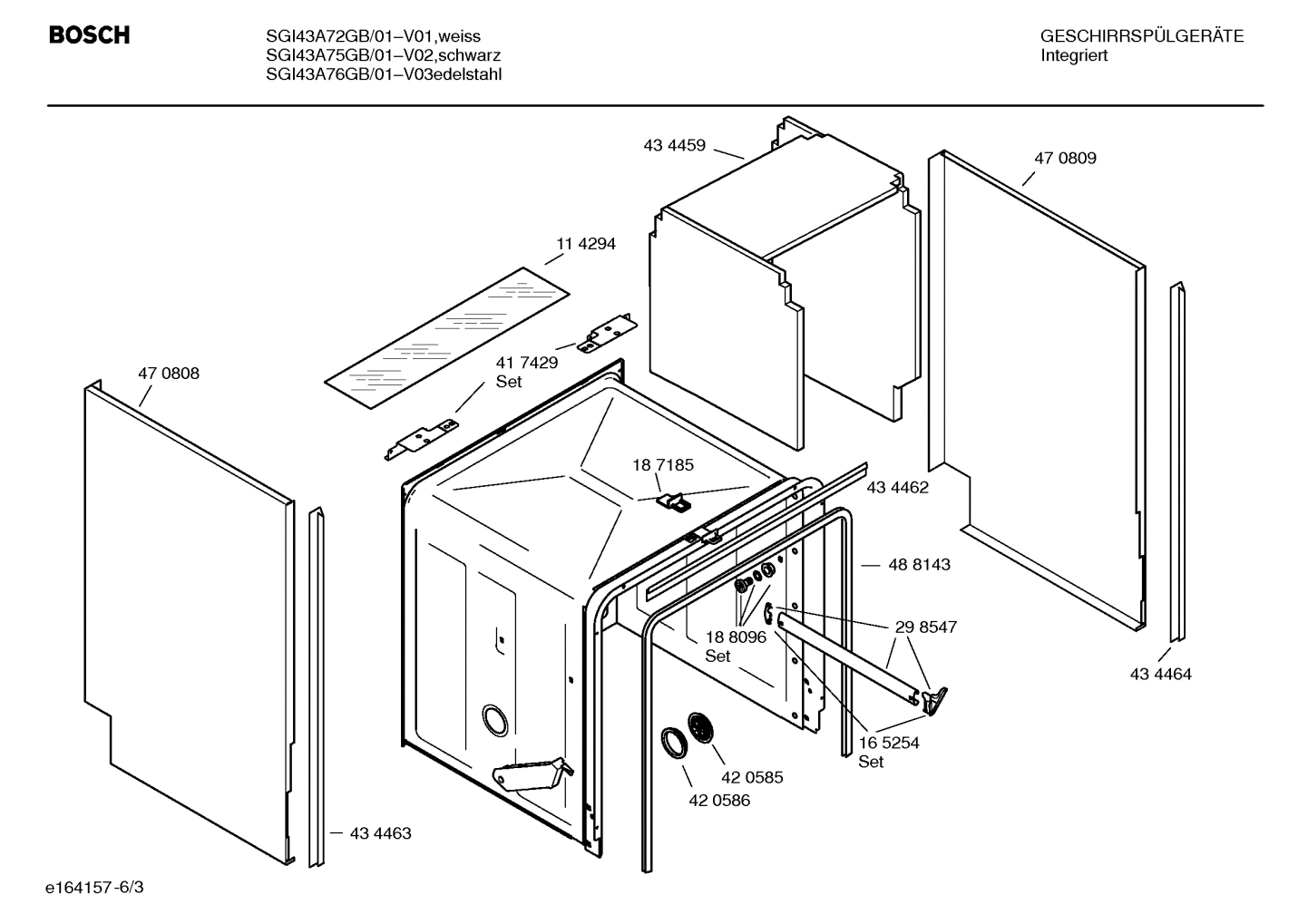

Diagram 3

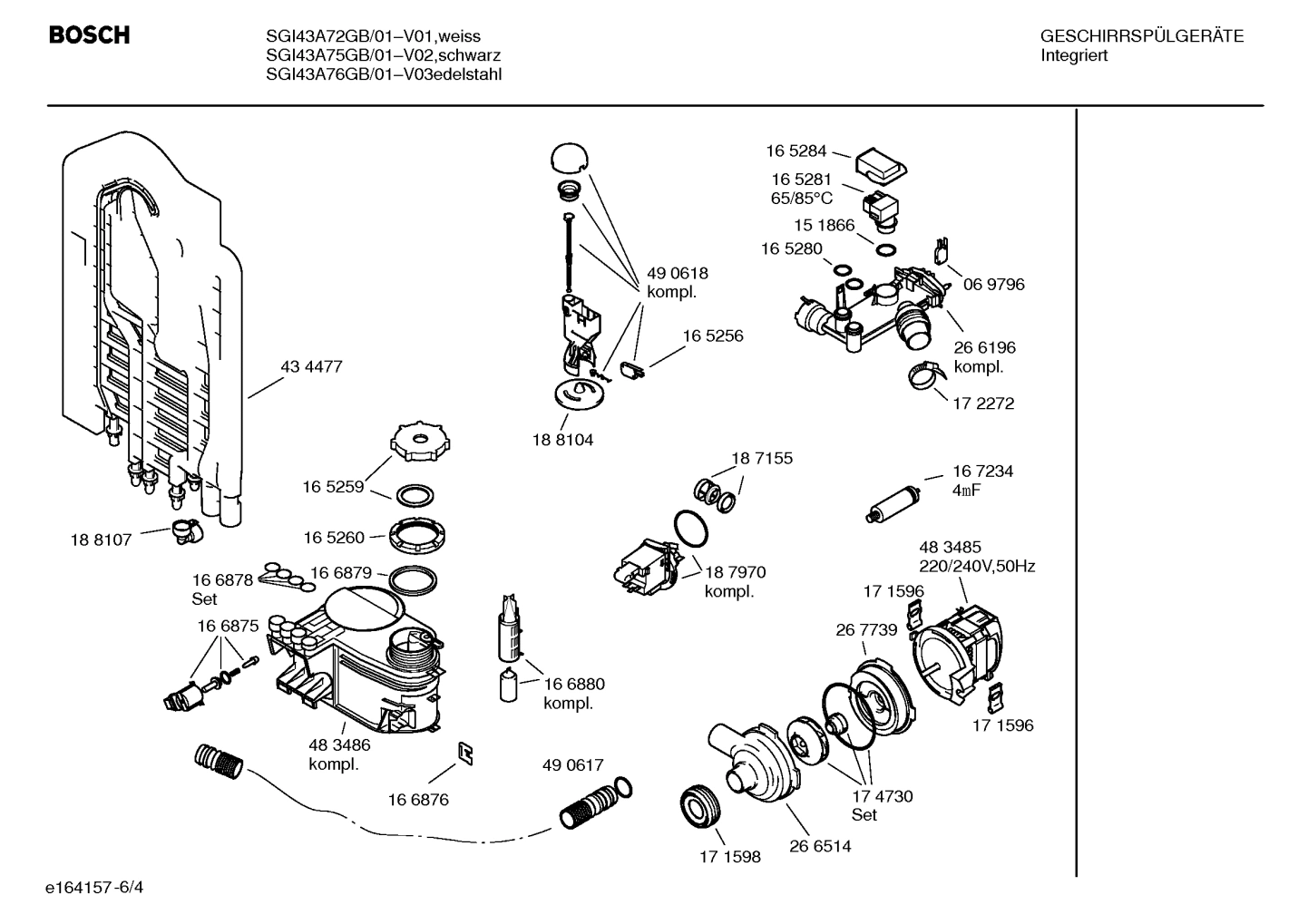

Diagram 4

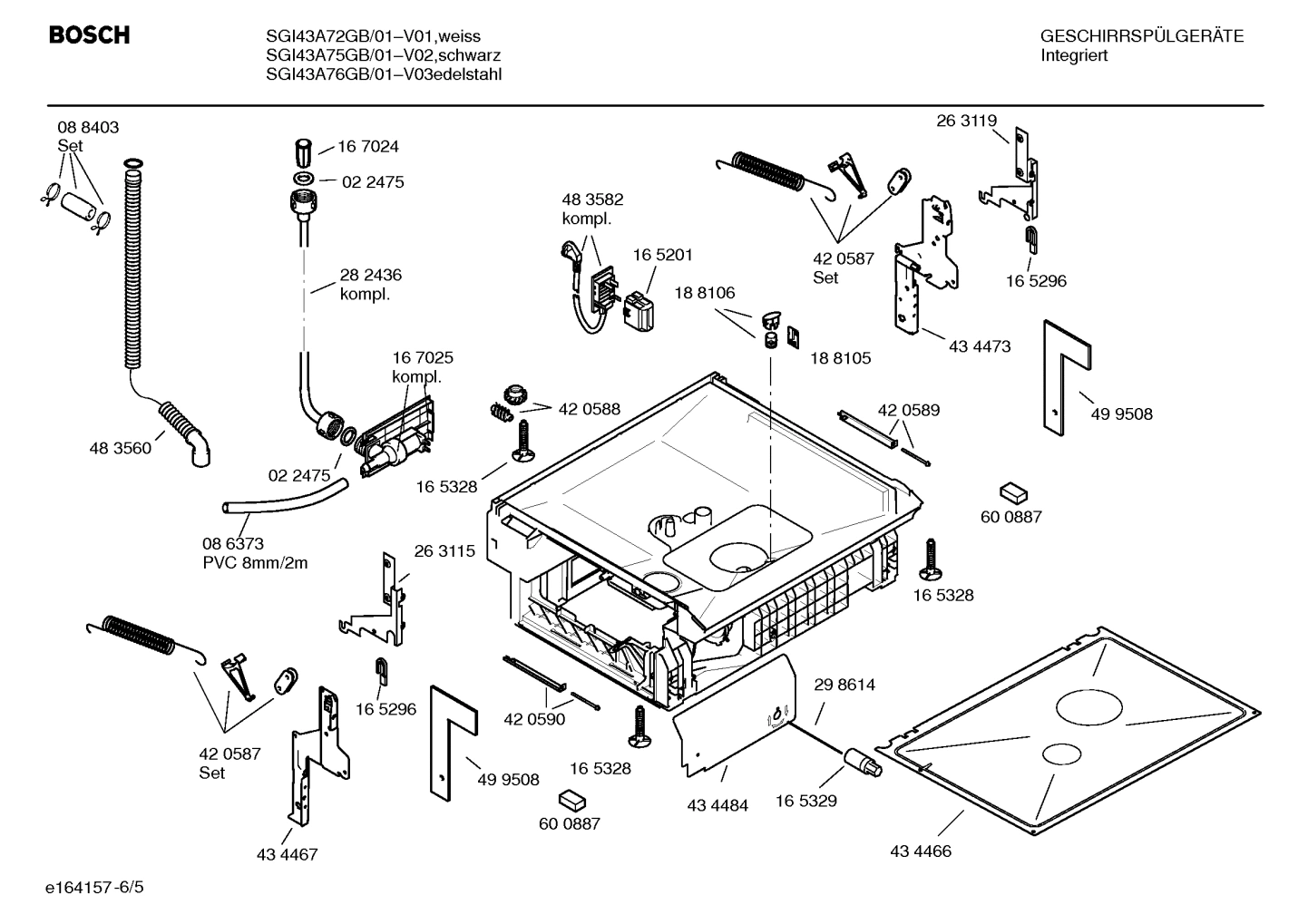

Diagram 5

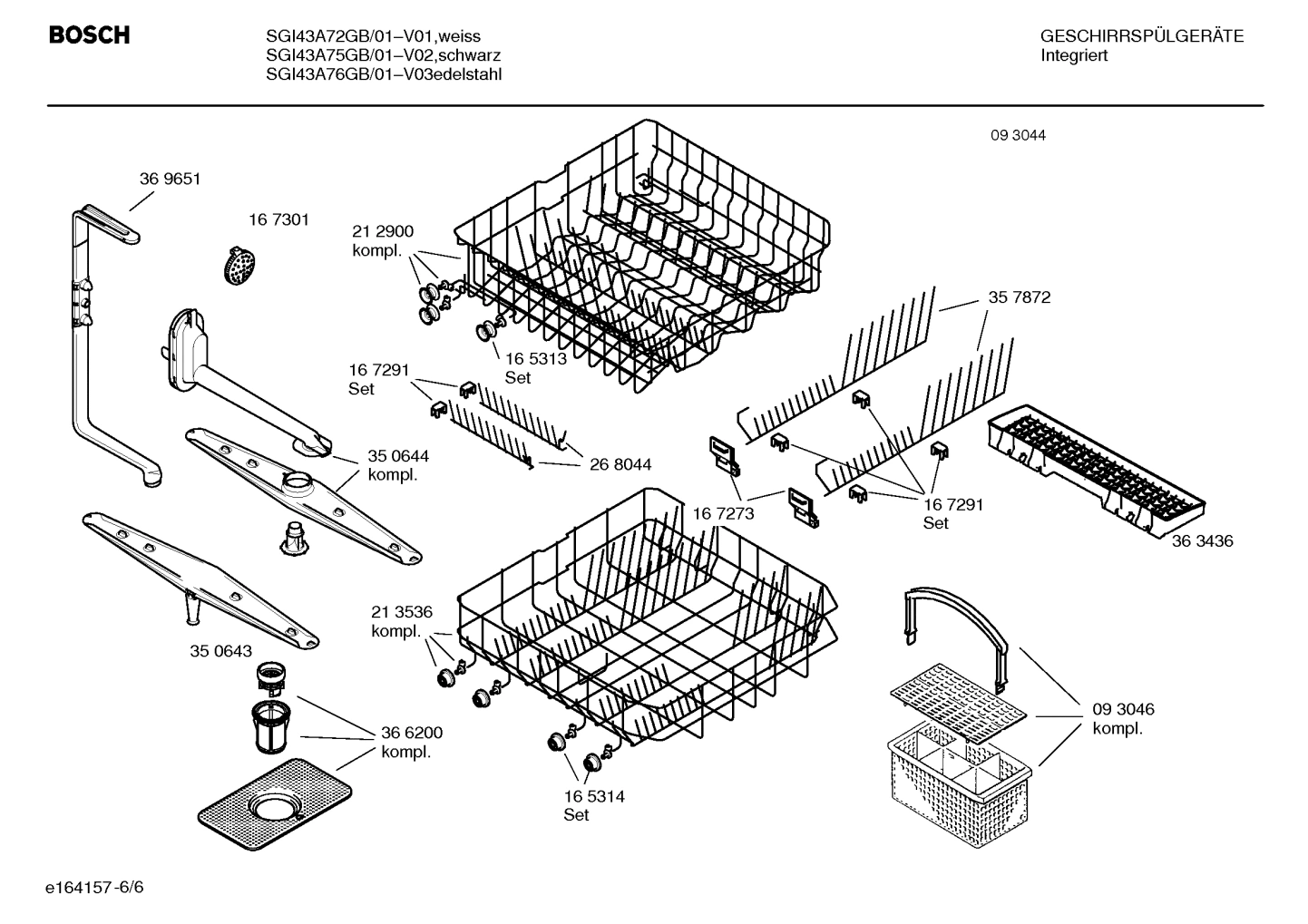

Diagram 6
Common parts from model Bosch SGI43A76GB/01 Dishwasher
0110
Frame BOS 00298518 Contact Us For Availability
0114
Cover BOS 00165769 Contact Us For Availability
0200
Dispenser BOS 00490467 Contact Us For Availability
0201
Sealing BOS 00166637 Contact Us For Availability
0202
Detergent Lid BOS 00166621 Contact Us For Availability
0203
Lever, Wrap, Seal BOS 00166630 Contact Us For Availability
0204
Plunger BOS 00166627 Contact Us For Availability
0205
Repair-set BOS 00166628 Contact Us For Availability
0206
Actuator BOS 00166635 Contact Us For Availability
0207
Repair-set BOS 00166632 Contact Us For Availability
0208
Switch BOS 00166633 Contact Us For Availability
0209
Adjusting device BOS 00166626 Contact Us For Availability
0210
Lid BOS 00166623 Contact Us For Availability
0211
Sealing BOS 00166625 Contact Us For Availability
0221
Screw BOS 00151703 Contact Us For Availability
0223
Door Seal BOS 00298534 Contact Us For Availability
0302
Steam Safety Sheet BOS 00114294 Contact Us For Availability
0330
Front/Rear End Cap Set BOS 00165254 Contact Us For Availability
0331
Rack guide rail BOS 00298547 Contact Us For Availability
0333
Cover BOS 00420585 Contact Us For Availability
0334
Sealing BOS 00420586 Contact Us For Availability
0341
Latch BOS 00187185 Contact Us For Availability
0401
Pump-housing BOS 00267739 Contact Us For Availability
0403
Case-upper part BOS 00266514 Contact Us For Availability
0404
Sealing BOS 00171598 Contact Us For Availability
0405
Suspension BOS 00171596 Contact Us For Availability
0411
Switch BOS 00069796 Contact Us For Availability
0412
Cover BOS 00165284 Contact Us For Availability
0413
Sensor-NTC BOS 00165281 Contact Us For Availability
0414
Sealing BOS 00151866 Contact Us For Availability
0415
Sealing BOS 00165280 Contact Us For Availability
0418
Hose clamp BOS 00172272 Contact Us For Availability
0431
Switch BOS 00165256 Contact Us For Availability
0510
Valve BOS 00167025 Contact Us For Availability
0530
Adapter BOS 00088403 Contact Us For Availability
0552
Hinge Bushing BOS 00165296 Contact Us For Availability
0553
Hinge BOS 00263119 Contact Us For Availability
0582
Bushing BOS 00165329 Contact Us For Availability
0601
Spray arm BOS 00369656 Contact Us For Availability
0602
Upper Spray Arm Assembly BOS 00298594 Contact Us For Availability
0603
Tall/Large Item Sprinkler Head BOS 00167301 Contact Us For Availability
0621
Dishwasher Rack Wheel BOS 00165314 Contact Us For Availability
0622
Holder BOS 00167273 Contact Us For Availability
0630
Cutlery Basket BOS 00093046 Contact Us For Availability
0640
Upper crockery basket BOS 00770441 Contact Us For Availability
0643
Clamp, Flip Tine BOS 00167291 Contact Us For Availability
0645
Knife Rack BOS 00363436 Contact Us For Availability
0646
Cup rack BOS 00093044 Contact Us For Availability
× ![]()
