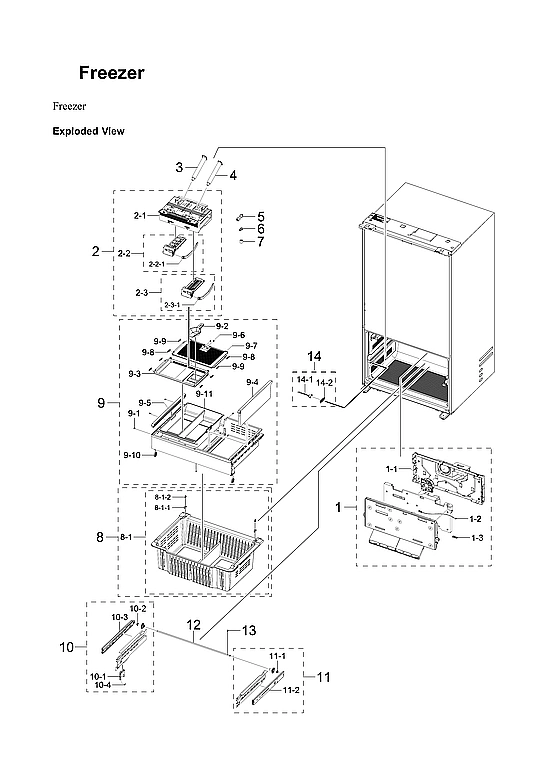

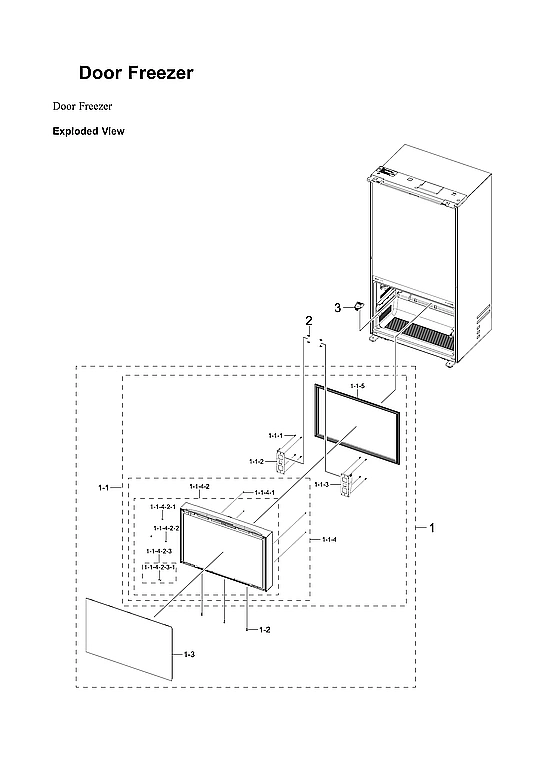

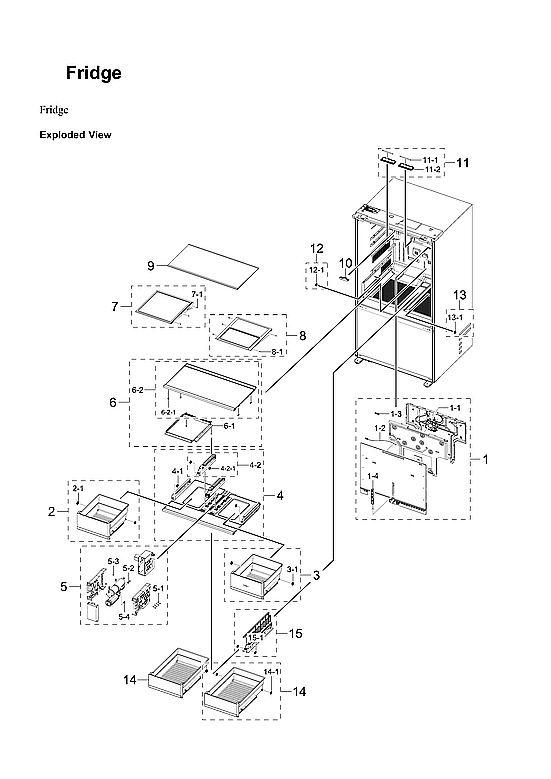

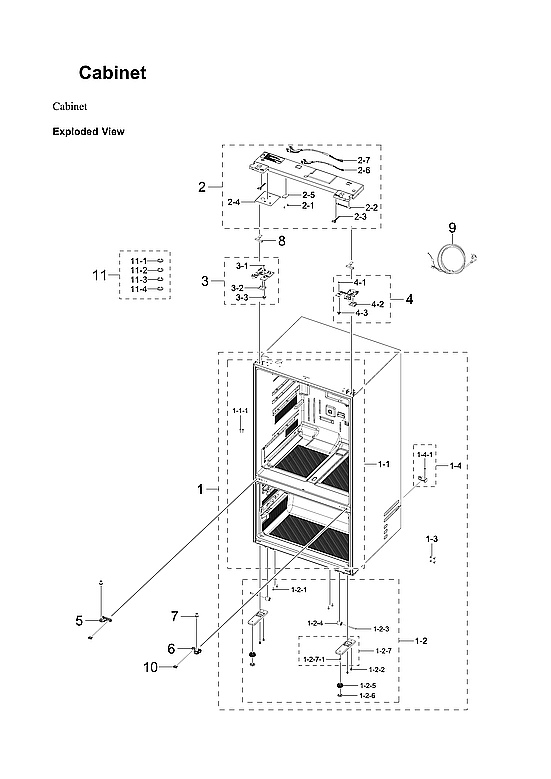

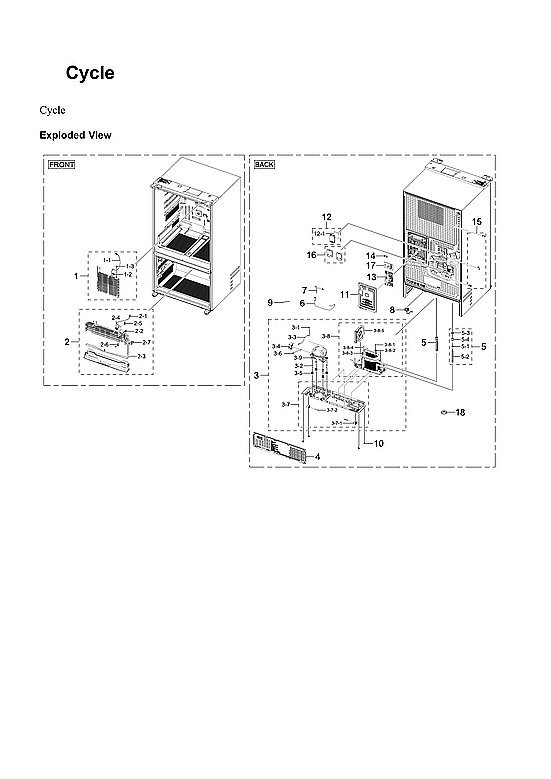

Model Samsung RF30BB69006M/AA-00 Refrigerator – Common Parts &amp; Diagrams

1

DA97-22973B Samsung Refrigerator Evaporator C Backorder SMG DA97-22973B $206.33

1

DA97-22974B Samsung Refrigerator Evaporator C Backorder SMG DA97-22974B $153.67

1

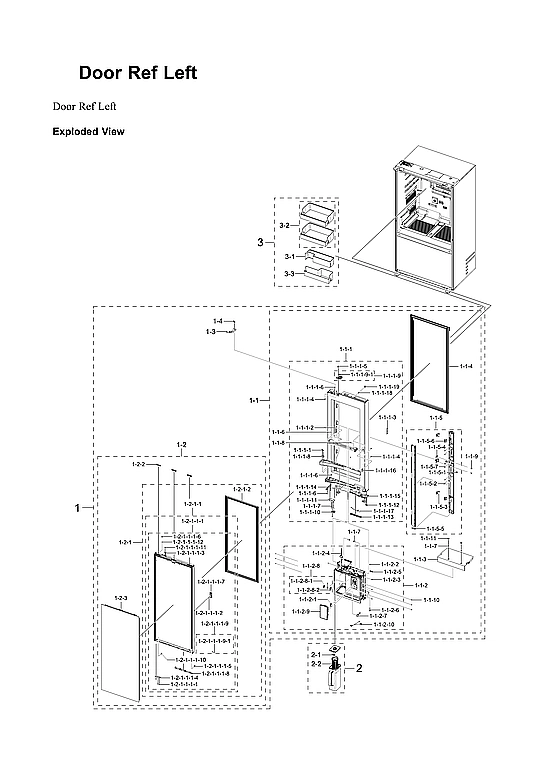

ASSY DOOR SUB-REF LEFT SMG DA93-01250C Contact Us For Availability

1

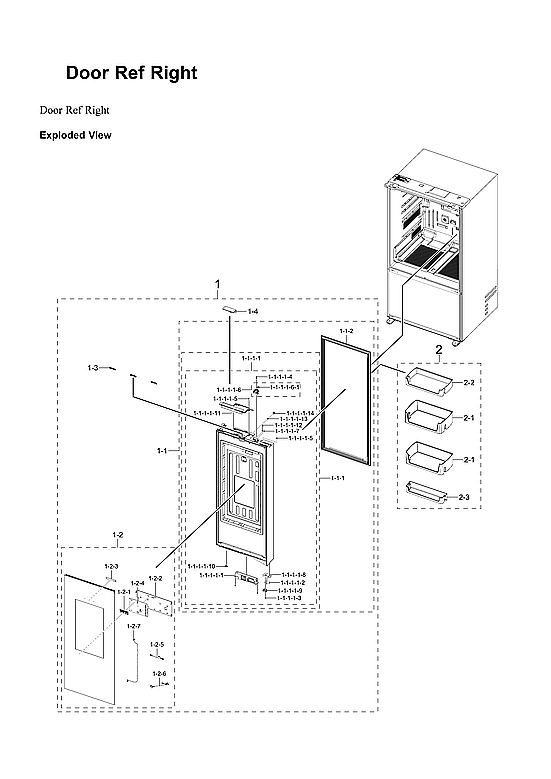

ASSY DOOR SUB-REF RIGHT SMG DA93-01251B Contact Us For Availability

DA31-00334D Samsung Refrigerator BLDC Fan Mot Backorder SMG DA31-00334D $125.41

DA32-00070M Samsung Refrigerator Temperature Backorder SMG DA32-00070M $25.78

ASSY DOOR SUB-REF IN LEFT DOOR MODULE SMG DA93-01243B Contact Us For Availability

ASSY DOOR SUB-REF RIGHT DOOR MODULE SMG DA93-01242A Contact Us For Availability

1-1-1

DA91-06118A Samsung Assy Door Foam-Ref Right Backorder SMG DA91-06118A $294.10

1-1-1

ASSY DOOR FOAM-REF IN;RF8000B, Backorder SMG DA91-06120B $277.42

1-1-1-1

ASSY PLATE DOOR-REF RIGHT SMG DA97-23036A Contact Us For Availability

1-1-1-2

6001-000715 Samsung Machine Screw Backorder SMG 6001-000715 $8.59

1-1-1-4

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.97

1-1-1-7

6009-001475 Samsung Refrigerator Special Scre Backorder SMG 6009-001475 $0.97

1-1-1-8

DA97-22979A Samsung Refrigerator Lower Left H Backorder SMG DA97-22979A $108.95

1-1-1-11

DA61-13422A Samsung Refrigerator Low Door Sto Backorder SMG DA61-13422A $54.87

1-1-1-13

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $46.84

1-1-1-14

DA63-11598A Samsung Cover Door-Left Backorder SMG DA63-11598A $19.45

1-1-1-15

DA63-11599A Samsung Refrigerator Right Door C Backorder SMG DA63-11599A $27.77

1-1-1-16

DA66-01342A Samsung Refrigerator Lever Backorder SMG DA66-01342A $6.33

1-1-1-17

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $15.59

1-1-2

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $61.77

1-1-2

DA97-17399U Samsung Assy Case Inner;rf7000ac, Backorder SMG DA97-17399U $302.14

1-1-2

DA97-23013A Samsung Refrigerator Gasket Assem Backorder SMG DA97-23013A $168.69

1-1-2-1

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $13.12

1-1-2-2

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $0.97

1-1-2-3

6002-001547 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001547 $0.97

1-1-2-4

DA34-00043M Samsung Refrigerator Reed Switch Backorder SMG DA34-00043M $27.16

1-1-2-5

DA61-11032A Samsung Refrigerator Fixer Assemb Backorder SMG DA61-11032A $6.33

1-1-2-6

DA61-13987A Samsung CASE DISPENSER;RS5000T,ST Backorder SMG DA61-13987A $91.30

1-1-2-7

DA67-04504D Samsung Refrigerator Tube Cap Fix Backorder SMG DA67-04504D $7.24

1-1-2-9

DA97-17297C Samsung Refrigerator Dispenser Le Backorder SMG DA97-17297C $91.72

1-1-2-10

DA96-01471C Samsung Assy Wire Harness-Dispens Backorder SMG DA96-01471C $88.95

1-1-3

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $58.22

1-1-3

DA97-21788A Samsung Basket Cover Assembly Backorder SMG DA97-21788A $153.80

1-1-5

DA97-23074C Samsung Refrigerator French Assem Backorder SMG DA97-23074C $299.81

1-1-5-3

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.98

1-1-5-4

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $6.79

1-1-5-5

DA63-06842B Samsung Refrigerator Low French G Backorder SMG DA63-06842B $5.89

1-1-5-6

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.07

1-1-5-7

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.52

DA32-00070A Samsung Refrigerator Temperature In Stock SMG DA32-00070A $14.48

DA32-00070B Samsung Refrigerator Temperature Backorder SMG DA32-00070B $11.97

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.35

DA99-04371R Samsung Refrigerator Custom Panel Backorder SMG DA99-04371R $1,440.08

1-2-1

NON-SERVICEABLE PART SMG N/P Contact Us For Availability

1-2-2

DA60-10123E Samsung Refrigerator Hex Bolt M6 Backorder SMG DA60-10123E $1.81

1-2-2

DA63-09838A Samsung Cover Display-Rear;Rf9500 Backorder SMG DA63-09838A $61.41

1-2-3

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $2.26

1-2-3

DA92-01368A Samsung Assembly PBA Voice Module Backorder SMG DA92-01368A $61.46

1-2-3

RA-F18DU312/AA Samsung Refrigerator RFD 0.0 1 Backorder SMG RA-F18DU312/AA $246.00

1-2-4

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $5.89

1-2-4

DA94-06039F Samsung EEPROM PCB Assembly Backorder SMG DA94-06039F $314.21

1-2-5

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $6.79

1-2-5

WIRE HARNESS SMG DA96-01368B Contact Us For Availability

1-2-6

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.26

1-2-6

WIRE HARNESS SMG DA96-01524A Contact Us For Availability

1-2-7

WIRE HARNESS SMG DA96-01421C Contact Us For Availability

1-3

FIXER;RT5000K,PA66,-,WHITE,-,K Backorder SMG DA61-11034A $18.10

1-3

DA63-09686A Samsung Refrigerator Dark ABS Doo Backorder SMG DA63-09686A $4.98

1-3

DA97-20039C Samsung Refrigerator Left Upper H Backorder SMG DA97-20039C $113.63

1-4

DA61-14455B Samsung Middle Angle Shelf Backorder SMG DA61-14455B $126.00

1-4

DA63-08449B Samsung Refrigerator Lock Cover Backorder SMG DA63-08449B $13.12

2

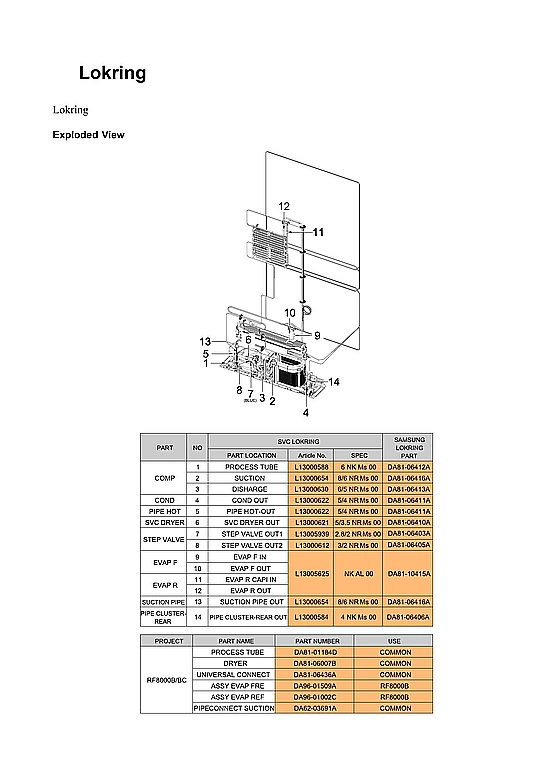

L13000654 American Vulkan Lokring Brass Reduc In Stock ALC L13000654 $5.87

2

DA97-21261K Samsung Refrigerator Water Filter Backorder SMG DA97-21261K $220.50

2

ASSY ICE MAKER SMG DA97-21804C Contact Us For Availability

2

ASSY TRAY DRAWER-DRAWER MODULE SMG DA97-23246D Contact Us For Availability

2

CASE VEG-LOW SMG DA97-21873K Contact Us For Availability

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.97

DA32-10104N Samsung Refrigerator Temperature Backorder SMG DA32-10104N $18.22

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $5.42

DA61-14435A Samsung Refrigerator Ice Maker Su Backorder SMG DA61-14435A $96.03

DA97-19988A Samsung Refrigerator Roller Assem Backorder SMG DA97-19988A $78.41

DA97-21915C Samsung Refrigerator Guard Assemb Backorder SMG DA97-21915C $69.10

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $62.78

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $23.08

DA61-15091A Samsung Refrigerator Filter Case Backorder SMG DA61-15091A $26.96

DA97-22160A Samsung Refrigerator Ice Case Ass Backorder SMG DA97-22160A $152.26

DA97-22566B Samsung Assembly GUARD-REF UP;RF8 Backorder SMG DA97-22566B $63.55

2-2-1

DA61-14661A Samsung Refrigerator Ice Guide Backorder SMG DA61-14661A $58.92

2-3

DA97-22162A Samsung Refrigerator Ice Case Ass Backorder SMG DA97-22162A $147.24

2-3

DA97-23268A Samsung Assembly GUARD-REF LOW;RF Backorder SMG DA97-23268A $44.27

3

L13000630 American Vulkan Lokring Refrigerati In Stock ALC L13000630 $5.26

3

DA97-21256C Samsung Refrigerator Water Ice Pi Backorder SMG DA97-21256C $114.13

3

DA97-21873B Samsung Refrigerator Low Vegetabl Backorder SMG DA97-21873B $186.43

3

DA97-23024A Samsung Refrigerator Stopper Asse Backorder SMG DA97-23024A $76.40

3-1

6006-001170 Samsung Appliance Tapping Screw T Backorder SMG 6006-001170 $0.97

3-1

DA97-21914E Samsung Refrigerator Low Guard As Backorder SMG DA97-21914E $71.09

3-2

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.35

3-2

DA97-21960E Samsung Refrigerator Middle Guard Backorder SMG DA97-21960E $91.30

3-3

DA97-23075B Samsung Refrigerator Low Ref Guar Backorder SMG DA97-23075B $57.85

3-7-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $4.98

3-7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.07

4

L13000622 American Vulkan Lokring Refrigerati In Stock ALC L13000622 $7.26

4

DA97-21256B Samsung Refrigerator Water Pipe I Backorder SMG DA97-21256B $135.06

4

DA97-23049A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-23049A $251.83

4-2

DA97-21871A Samsung Assembly Left Middle Rail Backorder SMG DA97-21871A $41.46

5

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $18.55

5

COVER COMP SMG DA97-04049E No Longer Available

5

DA97-23025A Samsung Refrigerator Filter Case Backorder SMG DA97-23025A $256.64

5-1

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.97

5-2

DA60-00393A Samsung Refrigerator Tube Fitting Backorder SMG DA60-00393A $27.37

5-3

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.97

5-4

DA62-02414A Samsung Refrigerator Fitting Tube Backorder SMG DA62-02414A $16.75

6

L13000621 American Vulkan Lokring .197 or 3/1 In Stock ALC L13000621 $6.37

6

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $25.77

6

ASSY SHELF VEG-LOW SMG DA97-21901M Contact Us For Availability

6-1

DA63-11226A Samsung Refrigerator Vegetable Dr Backorder SMG DA63-11226A $134.83

6-2

DA97-21901C Samsung Refrigerator Low Shelf Mo Backorder SMG DA97-21901C $158.84

6-2-1

DA64-03784A Samsung Refrigerator Shelf Trim Backorder SMG DA64-03784A $42.27

7

L13000612 American Vulkan Lokring .118" to .0 In Stock ALC L13000612 $7.69

7

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.35

7

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $17.64

7

DA97-22971A Samsung Shelf Insert Assembly Backorder SMG DA97-22971A $125.21

7-1

6002-001397 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001397 $0.97

8

DA61-04932B Samsung Refrigerator Hinge Fixer Backorder SMG DA61-04932B $12.66

8

DA97-20047B Samsung Refrigerator Shelf Assemb Backorder SMG DA97-20047B $201.55

8-1

DA97-23029A Samsung Refrigerator Drawer Tray Backorder SMG DA97-23029A $231.48

8-1-1

DA71-20145A Samsung Refrigerator Roller Fixer Backorder SMG DA71-20145A $0.97

8-1-2

DA97-22036A Samsung Refrigerator Roller Assem Backorder SMG DA97-22036A $5.42

9

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $47.96

9

DA81-10415A Samsung Refrigerator Lock Ring As In Stock SMG DA81-10415A $124.32

9

DA97-21897A Samsung Refrigerator Assembly She Backorder SMG DA97-21897A $151.11

9

DA97-22997A Samsung Refrigerator Tray Upper A Backorder SMG DA97-22997A $259.66

9-1

6002-000473 Samsung Tapping Screw Backorder SMG 6002-000473 $0.97

9-2

DA61-14309A Samsung Refrigerator Ice Scoop Ca Backorder SMG DA61-14309A $79.40

9-3

DA61-15175A Samsung Refrigerator Basket Assem Backorder SMG DA61-15175A $60.70

9-4

DA61-15177A Samsung Guide Tray-Fre;rf8000b, H Backorder SMG DA61-15177A $50.57

9-5

DA61-15179A Samsung Left Rail Assembly Backorder SMG DA61-15179A $33.41

9-6

DA63-11374A Samsung Refrigerator Door Grommet Backorder SMG DA63-11374A $5.42

9-7

DA63-11588A Samsung Refrigerator Upper Front Backorder SMG DA63-11588A $52.01

9-8

DA63-11592A Samsung GROMMET-A;RF8000BC,POM,NA Backorder SMG DA63-11592A $33.81

9-9

DA63-11593A Samsung Refrigerator Grommet Backorder SMG DA63-11593A $13.57

9-10

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $4.52

9-11

DA97-23081B Samsung Refrigerator Ice Case Ass Backorder SMG DA97-23081B $123.37

10

6003-001727 Samsung Refrigerator Television T Backorder SMG 6003-001727 $1.81

10

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $4.98

10

DA97-21688A Samsung Refrigerator Left Slide R Backorder SMG DA97-21688A $193.81

10-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $3.63

10-2

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.35

10-3

DA61-03156A Samsung Refrigerator Low Hanger R Backorder SMG DA61-03156A $104.90

10-4

DA61-03769B Samsung Refrigerator Dispenser Dr Backorder SMG DA61-03769B $2.72

11

DA97-21686A Samsung Refrigerator Low Right Sl Backorder SMG DA97-21686A $187.60

11

DA97-21951B Samsung Lamp Cover Assembly Backorder SMG DA97-21951B $108.11

11

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $50.65

11-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $0.97

11-1

DA96-01119E Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-01119E $110.07

11-2

DA61-03157A Samsung Refrigerator Low Hanger R Backorder SMG DA61-03157A $80.45

11-2

DA63-11686A Samsung Cover Lamp;rf8000b, Gpps, Backorder SMG DA63-11686A $15.38

12

DA66-00437H Samsung Refrigerator Shaft Backorder SMG DA66-00437H $28.18

12

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $14.03

12

DA97-23044A Samsung Assy Cover Rail-Left;rf80 Backorder SMG DA97-23044A $84.82

13

COVER RAIL-R SMG DA97-23045A Contact Us For Availability

14

L13000584 American Vulkan Lokring Refrigerati In Stock ALC L13000584 $4.43

14

DA97-13783A Samsung Refrigerator Assembly Cov Backorder SMG DA97-13783A $23.53

14

DA97-23040A Samsung Refrigerator Low Vega Cas Backorder SMG DA97-23040A $164.42

14-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $22.18

14-2

DA63-07513A Samsung Refrigerator Reed Switch Backorder SMG DA63-07513A $5.42

15

SUPPORT-MIDD SMG DA97-23042A Contact Us For Availability

11111

3001-002863 Samsung Speaker;4ohm, 803db, 20 Backorder SMG 3001-002863 $137.77

11112

6001-000570 Samsung Machine Screw Backorder SMG 6001-000570 $0.97

11113

Refrigerator Screw SMG 6002-000538 Contact Us For Availability

11114

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $1.00

11115

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.97

11116

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $16.75

11117

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.26

11118

DA61-09952B Samsung Refrigerator Door Stopper Backorder SMG DA61-09952B $9.07

11119

DA61-13385A Samsung Refrigerator Door Close S Backorder SMG DA61-13385A $4.07

11281

DA61-07581A Samsung Refrigerator LED Case Lam Backorder SMG DA61-07581A $2.26

11282

DA63-06505A Samsung Cover LED Lamp Backorder SMG DA63-06505A $2.26

11422

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $0.97

11423

Assy lever handle SMG DA97-23030A Contact Us For Availability

111110

DA63-04825B Samsung Refrigerator Grommet Cap Backorder SMG DA63-04825B $2.26

111111

Refrigerator Grommet SMG DA63-11578A Contact Us For Availability

111112

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $0.97

111113

6021-000258 Samsung Hexagon Nut Backorder SMG 6021-000258 $0.97

111114

DA97-20572A Samsung Assy Fixer-Up Backorder SMG DA97-20572A $26.25

111161

DA66-00440A Samsung Refrigerator Auto Close R Backorder SMG DA66-00440A $1.35

DA62-03691A Samsung Refrigerator Suction Pipe Backorder SMG DA62-03691A $78.88

DA81-01184D Samsung Refrigerator Check Plug A Backorder SMG DA81-01184D $22.83

DA81-06007B Samsung Refrigerator Dryer Assemb Backorder SMG DA81-06007B $114.21

DA81-06436A Samsung Pipe Connection Assembly Backorder SMG DA81-06436A $20.82

DA96-01002C Samsung Refrigerator Evaporator M Backorder SMG DA96-01002C $192.75

DA96-01509A Samsung Refrigerator EVAP-FRE Mod Backorder SMG DA96-01509A $255.15

Samsung Refrigerator Water Filter SMG HAF-QIN Contact Us For Availability
