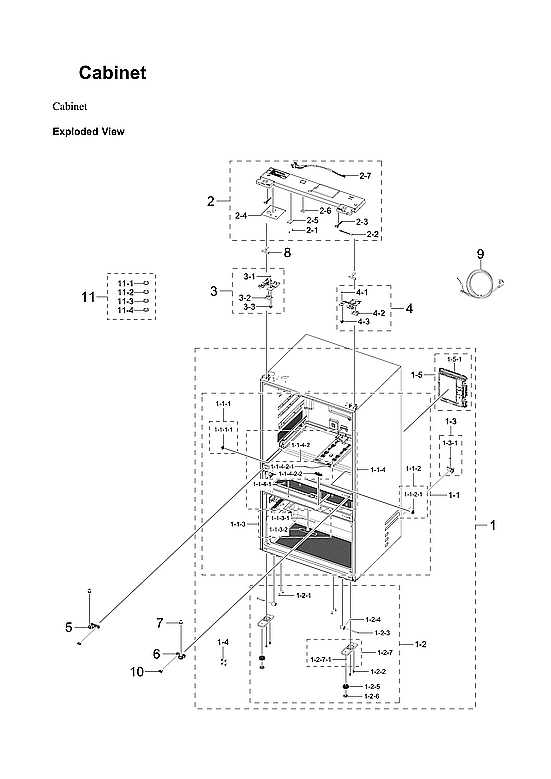

Model Samsung RF29BB8600QL/AA-00 Refrigerator – Common Parts &amp; Diagrams

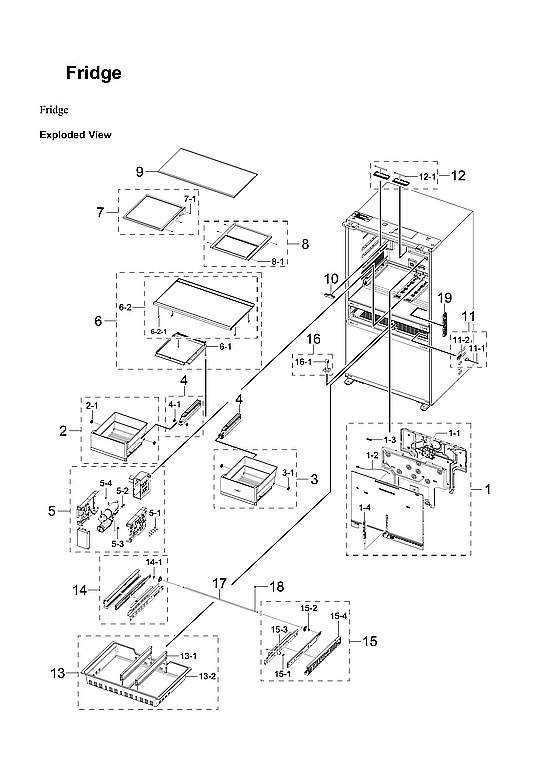

1

DA97-22973A Samsung Refrigerator Evaporator C Backorder SMG DA97-22973A $277.50

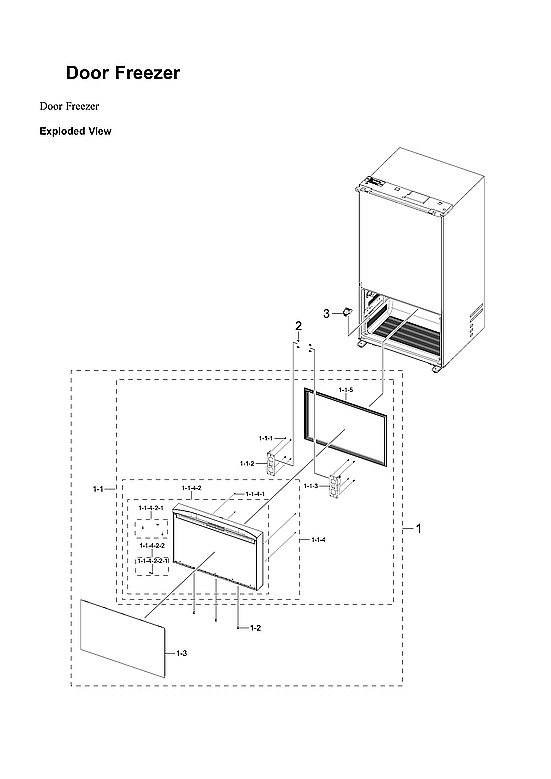

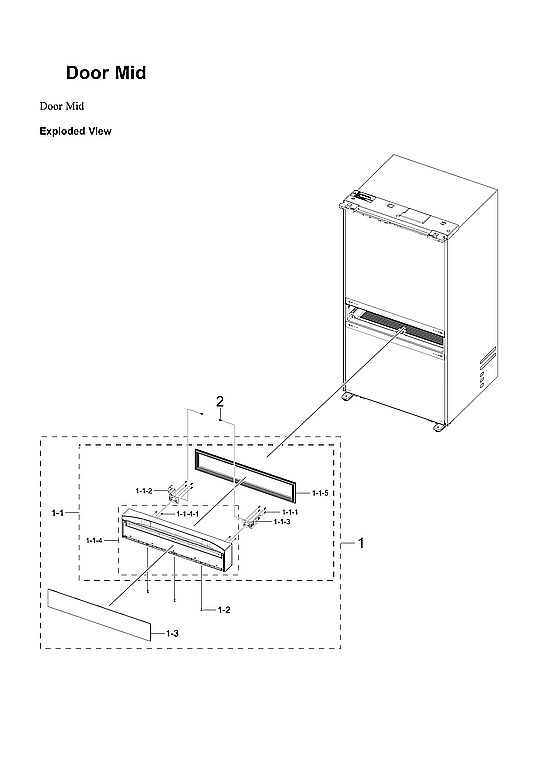

1

Assy door sub-middle SMG DA93-01235A Contact Us For Availability

1

Assy door sub-ref right SMG DA93-01232A Contact Us For Availability

DA31-00334D Samsung Refrigerator BLDC Fan Mot In Stock SMG DA31-00334D $136.19

DA32-00070M Samsung Refrigerator Temperature In Stock SMG DA32-00070M $26.55

Assy door sub-middle door module SMG DA93-01225A Contact Us For Availability

Assy door sub-ref right door module SMG DA93-01222A Contact Us For Availability

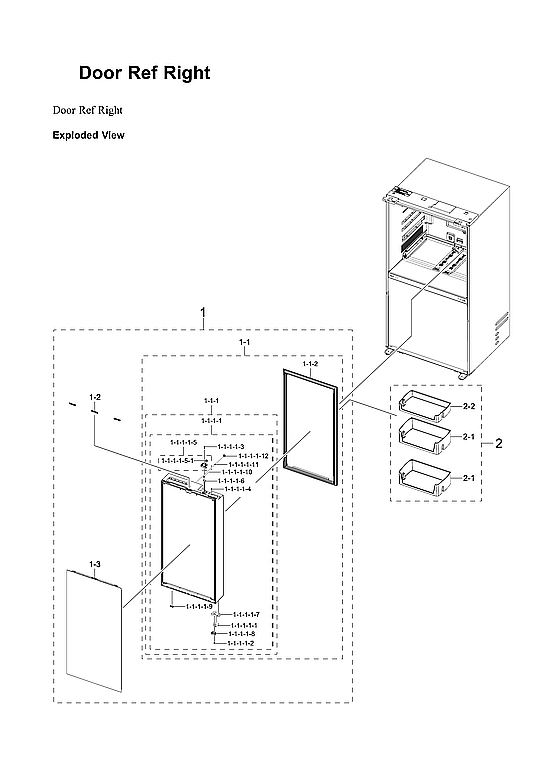

1-1-1

DA91-06106A Samsung Refrigerator Right Door F Backorder SMG DA91-06106A $191.58

1-1-1-1

Assy plate door-ref right SMG DA97-23005A Contact Us For Availability

1-1-2

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $75.95

1-1-2

DA61-09248A Samsung Refrigerator Left Middle Backorder SMG DA61-09248A $42.40

1-1-2

DA97-21890B Samsung Refrigerator Dark Gray Ga Backorder SMG DA97-21890B $161.37

1-1-3

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $84.55

1-1-3

DA61-09249A Samsung Refrigerator Hanger Front Backorder SMG DA61-09249A $31.35

1-1-4

DA91-06107A Samsung Refrigerator Middle Door Backorder SMG DA91-06107A $160.40

1-1-4-1

Tapping screw SMG 6002-001149 Contact Us For Availability

1-1-4-2

DA97-08608A Samsung Refrigerator Sensor Cover In Stock SMG DA97-08608A $24.87

1-1-5

DA97-23011A Samsung Refrigerator Middle Gaske Backorder SMG DA97-23011A $150.18

1-2

DA32-00070A Samsung Refrigerator Temperature Backorder SMG DA32-00070A $12.85

1-2

DA63-09686A Samsung Refrigerator Dark ABS Doo Backorder SMG DA63-09686A $4.26

1-2

DA67-04961A Samsung Refrigerator Cap Screw As Backorder SMG DA67-04961A $52.91

1-2-2

DA60-10123E Samsung Refrigerator Hex Bolt M6 In Stock SMG DA60-10123E $1.24

1-2-3

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.31

1-2-4

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.05

1-2-5

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $7.87

1-2-6

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.91

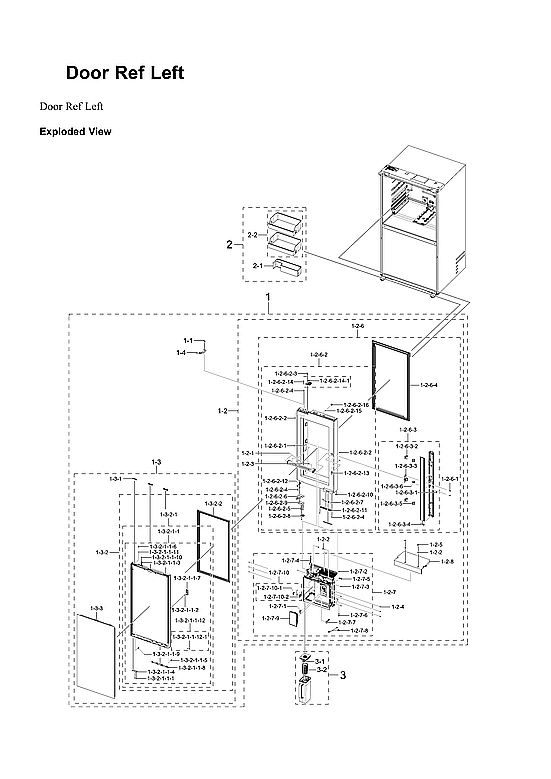

1-2-6-2

DA91-05462C Samsung Refrigerator Foam Door As Backorder SMG DA91-05462C $231.74

1-2-6-3

DA97-14049G Samsung Refrigerator French Door Backorder SMG DA97-14049G $159.40

1-2-7

DA97-17399J Samsung Refrigerator Inner Case A Backorder SMG DA97-17399J $275.40

1-2-7-1

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $9.53

1-2-7-2

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $0.92

1-2-7-4

DA34-00043M Samsung Refrigerator Reed Switch In Stock SMG DA34-00043M $32.08

1-2-7-5

DA61-11032A Samsung Refrigerator Fixer Assemb Backorder SMG DA61-11032A $5.80

1-2-7-6

DA61-13987A Samsung CASE DISPENSER;RS5000T,ST Backorder SMG DA61-13987A $83.60

1-2-7-7

DA67-04504D Samsung Refrigerator Tube Cap Fix Backorder SMG DA67-04504D $6.62

1-2-7-8

ASSY WIRE HARNESS-DISPENSER;AL Backorder SMG DA96-01471C $81.43

1-2-7-9

DA97-17297C Samsung Refrigerator Dispenser Le Backorder SMG DA97-17297C $96.42

1-2-7-10

Non-serviceable part SMG N/P Contact Us For Availability

1-2-8

DA97-21788A Samsung Basket Cover Assembly Backorder SMG DA97-21788A $175.08

DA32-00070B Samsung Refrigerator Temperature Backorder SMG DA32-00070B $10.96

DA99-05047A Samsung Refrigerator Custom Panel Backorder SMG DA99-05047A $138.57

RA-F36DMMQL/AA Samsung Refrigerator French Do Backorder SMG RA-F36DMMQL/AA $182.53

Assy door sub-ref out left SMG DA93-01231A Contact Us For Availability

Fixer SMG DA61-11034A Contact Us For Availability

1-3-2

Assy door sub-ref out left door module SMG DA93-01227A Contact Us For Availability

1-3-2-1

DA91-06109A Samsung Refrigerator Left Outer D Backorder SMG DA91-06109A $213.29

1-3-2-2

DA97-22008A Samsung Refrigerator Gasket Assem Backorder SMG DA97-22008A $144.25

1-4

DA61-14455A Samsung Refrigerator Angle Shelf Backorder SMG DA61-14455A $114.06

1-4

DA97-20039C Samsung Refrigerator Left Upper H Backorder SMG DA97-20039C $44.36

2

6011-001656 Samsung Refrigerator Hex Bolt Backorder SMG 6011-001656 $1.24

2

Assy guard packing-door bin module SMG DA97-22181A Contact Us For Availability

2

Case veg-low SMG DA97-21873K Contact Us For Availability

2

Assy guard packing-door bin module SMG DA97-21906A Contact Us For Availability

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.92

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $18.59

DA97-21912A Samsung Refrigerator Door Bin Ass Backorder SMG DA97-21912A $75.66

DA97-21914A Samsung Refrigerator Low Ref Guar In Stock SMG DA97-21914A $72.40

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $43.37

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $24.05

DA97-21916A Samsung Refrigerator Guard Assemb Backorder SMG DA97-21916A $76.24

DA97-21960A Samsung Refrigerator Middle Ref G Backorder SMG DA97-21960A $93.61

2-6

DA61-13585A Samsung Refrigerator Bimetal Fixe Backorder SMG DA61-13585A $10.78

2-6

DA92-00817A Samsung Refrigerator Module Buzze Backorder SMG DA92-00817A $37.24

3

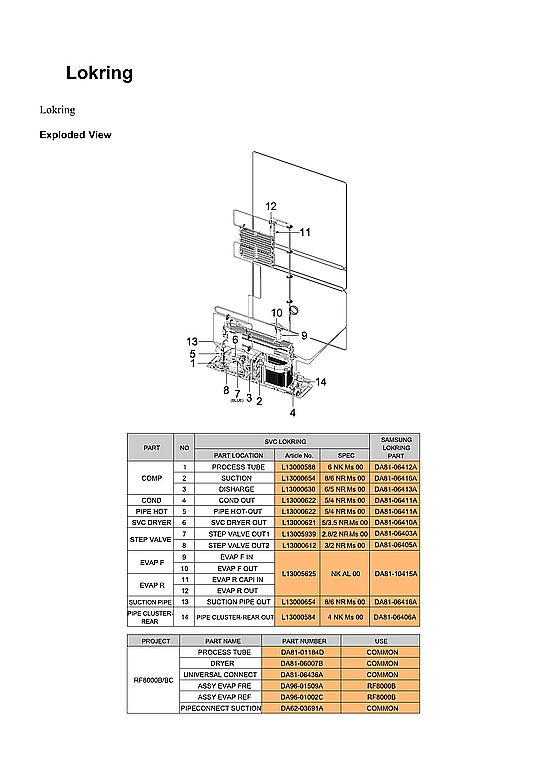

L13000630 American Vulkan Lokring Refrigerati In Stock ALC L13000630 $5.64

3

DA97-21261K Samsung Refrigerator Water Filter Backorder SMG DA97-21261K $201.59

3

DA97-21873B Samsung Refrigerator Low Vegetabl Backorder SMG DA97-21873B $172.38

3-1

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $5.80

3-2

DA61-15091A Samsung Refrigerator Filter Case Backorder SMG DA61-15091A $36.14

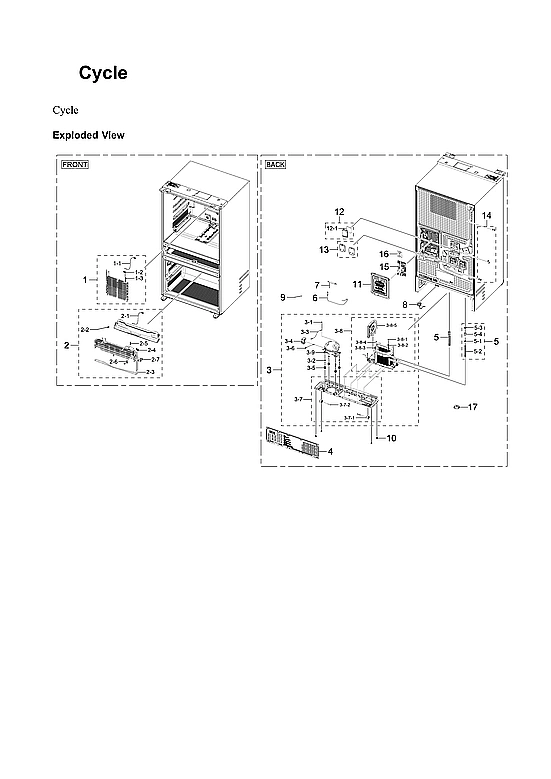

3-6

DA96-01170A Samsung Refrigerator Compressor W Backorder SMG DA96-01170A $24.34

3-7

DA97-12557K Samsung Chassis Component Assembl Backorder SMG DA97-12557K $171.47

3-8

DA97-15978C Samsung Refrigerator Drain Water Backorder SMG DA97-15978C $223.01

4

DA97-21871A Samsung Assembly Left Middle Rail Backorder SMG DA97-21871A $37.97

5

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $19.89

5

DA97-23025A Samsung Refrigerator Filter Case Backorder SMG DA97-23025A $266.89

5-2

DA60-00393A Samsung Refrigerator Tube Fitting Backorder SMG DA60-00393A $31.71

5-3

DA62-02414A Samsung Refrigerator Fitting Tube Backorder SMG DA62-02414A $16.58

5-4

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.92

6

L13000621 American Vulkan Lokring .197 or 3/1 In Stock ALC L13000621 $6.41

6

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $18.25

6

Assy shelf veg-low SMG DA97-21901M Contact Us For Availability

6-1

DA63-11226A Samsung Refrigerator Vegetable Dr Backorder SMG DA63-11226A $155.84

6-2

DA97-21901C Samsung Refrigerator Low Shelf Mo Backorder SMG DA97-21901C $159.97

6-2-1

DA64-03784A Samsung Refrigerator Shelf Trim Backorder SMG DA64-03784A $41.39

7

L13000612 American Vulkan Lokring .118" to .0 In Stock ALC L13000612 $7.73

7

DA62-04309A Samsung Refrigerator Dryer Assemb Backorder SMG DA62-04309A $34.81

7

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.67

7

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.62

7

DA97-22971A Samsung Shelf Insert Assembly Backorder SMG DA97-22971A $120.49

8

DA61-04932B Samsung Refrigerator Hinge Fixer Backorder SMG DA61-04932B $12.02

8

DA97-20047B Samsung Refrigerator Shelf Assemb Backorder SMG DA97-20047B $200.78

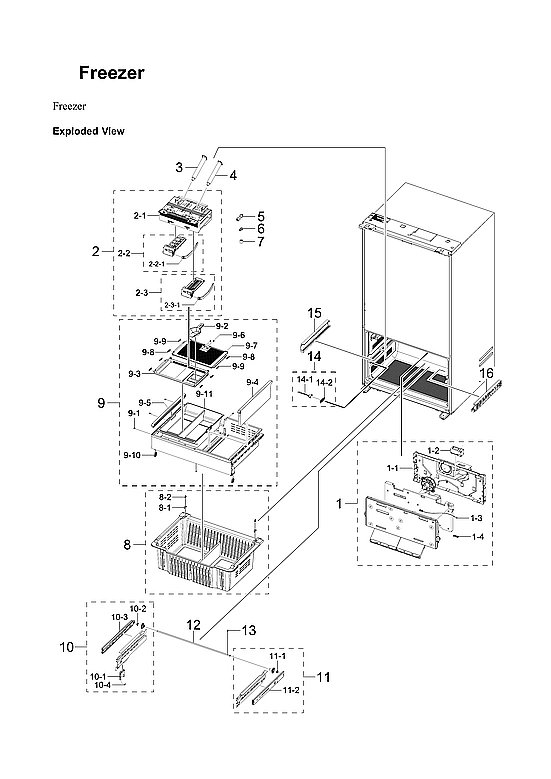

9

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $64.47

9

DA97-21897A Samsung Refrigerator Assembly She Backorder SMG DA97-21897A $158.49

9-10

DA66-00554A Samsung Refrigerator Upper Freeze In Stock SMG DA66-00554A $4.56

10

6003-001727 Samsung Refrigerator Television T Backorder SMG 6003-001727 $1.67

10

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $5.80

10

DA97-21688A Samsung Refrigerator Left Slide R Backorder SMG DA97-21688A $185.98

10-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $3.33

11

DA97-13783A Samsung Refrigerator Assembly Cov Backorder SMG DA97-13783A $23.22

11

DA97-21686A Samsung Refrigerator Low Right Sl Backorder SMG DA97-21686A $190.13

11

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $8.06

11-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $1.67

11-2

DA63-07513A Samsung Refrigerator Reed Switch Backorder SMG DA63-07513A $4.98

12

DA97-21951A Samsung Cover Lamp Assembly Backorder SMG DA97-21951A $38.59

12-1

DA96-01119B Samsung Refrigerator LED Lamp Backorder SMG DA96-01119B $87.66

13

Assy case convertible SMG DA97-22988A Contact Us For Availability

13-1

DA61-15162A Samsung Refrigerator Middle Guide Backorder SMG DA61-15162A $32.81

13-2

DA61-15164A Samsung Refrigerator Convertible Backorder SMG DA61-15164A $134.00

14

L13000584 American Vulkan Lokring Refrigerati In Stock ALC L13000584 $4.46

14

DA97-13781C Samsung Refrigerator Middle Left Backorder SMG DA97-13781C $171.18

14-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $19.49

15

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $34.29

15

DA97-13780C Samsung Refrigerator Middle Right Backorder SMG DA97-13780C $172.39

15-3

COVER FIXER MAGNET;RF8000BC,HI Backorder SMG DA63-11585A $2.91

15-4

COVER RAIL-MIDDLE RIGHT;RF8000 Backorder SMG DA63-11594A $52.91

16

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $42.77

16

DA92-00945A Samsung Refrigerator Fuse Block P In Stock SMG DA92-00945A $44.69

16

DA97-23068A Samsung Refrigerator Roller Assem Backorder SMG DA97-23068A $5.80

16-1

ROLLER-VEG;PP,OD24.5,NATURAL,I Backorder SMG DA66-00276B $0.92

17

DA66-00733B Samsung Refrigerator Shaft Backorder SMG DA66-00733B $21.56

19

DA97-20552R Samsung Refrigerator Control Cove Backorder SMG DA97-20552R $174.16

11111

6001-000570 Samsung Machine Screw Backorder SMG 6001-000570 $0.92

11112

Screw SMG 6002-000538 Contact Us For Availability

11113

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $0.92

11117

DA61-09952B Samsung Refrigerator Door Stopper Backorder SMG DA61-09952B $8.31

11118

DA61-13385A Samsung Refrigerator Door Close S Backorder SMG DA61-13385A $5.38

11119

DA63-04825B Samsung Refrigerator Grommet Cap Backorder SMG DA63-04825B $2.91

11421

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $19.07

11422

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.31

12622

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.92

12624

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

12625

6009-001475 Samsung Refrigerator Special Scre Backorder SMG 6009-001475 $0.92

12626

DA97-20041B Samsung Refrigerator Low Left Hin Backorder SMG DA97-20041B $122.61

12627

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $14.29

12629

DA61-13422A Samsung Refrigerator Low Door Sto Backorder SMG DA61-13422A $55.37

12632

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.98

12633

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $6.22

12634

DA63-08421A Samsung Gasket Low French Backorder SMG DA63-08421A $8.29

12635

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.15

12636

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.15

13211

Assy plate door-ref out left SMG DA97-23004A Contact Us For Availability

111111

6021-000258 Samsung Hexagon Nut Backorder SMG 6021-000258 $0.92

111112

DA97-20572A Samsung Assy Fixer-Up Backorder SMG DA97-20572A $7.05

126211

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $42.91

126212

DA63-11272A Samsung Refrigerator Left Door Co Backorder SMG DA63-11272A $23.22

126213

DA66-01342A Samsung Refrigerator Lever Backorder SMG DA66-01342A $6.62

126214

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $16.58

126214-1

DA66-00440A Samsung Refrigerator Auto Close R In Stock SMG DA66-00440A $1.24

127101

DA61-07581A Samsung Refrigerator LED Case Lam Backorder SMG DA61-07581A $2.07

127102

DA63-06505A Samsung Cover LED Lamp Backorder SMG DA63-06505A $1.94

132113

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.07

132114

DA61-13384A Samsung Refrigerator Door Stopper Backorder SMG DA61-13384A $11.60

132115

Grommet-cove SMG DA63-02750B Contact Us For Availability

132116

DA63-07545B Samsung Refrigerator Middle Hinge Backorder SMG DA63-07545B $2.49

132117

Cover lock SMG DA63-09537A Contact Us For Availability

132118

COVER CAP DOOR;RF9000R(B),ABS, Backorder SMG DA63-09639A $13.69

132119

DA63-09942A Samsung Door Grommet Backorder SMG DA63-09942A $2.07

1321110

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $0.92

1321111

DA73-00211A Samsung Refrigerator Hose Rubber Backorder SMG DA73-00211A $0.92

1321112

Assy lever handle SMG DA97-22967A Contact Us For Availability

L13000622 American Vulkan Lokring Refrigerati In Stock ALC L13000622 $6.16

L13000654 American Vulkan Lokring Brass Reduc In Stock ALC L13000654 $5.64

6001-000715 Samsung Machine Screw Backorder SMG 6001-000715 $9.53

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $0.92

6002-001397 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001397 $0.92

6002-001547 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001547 $0.92

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.24

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.24

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.24

DA81-10415A Samsung Refrigerator Lock Ring As Backorder SMG DA81-10415A $125.44

DA97-19988A Samsung Refrigerator Roller Assem Backorder SMG DA97-19988A $76.82
