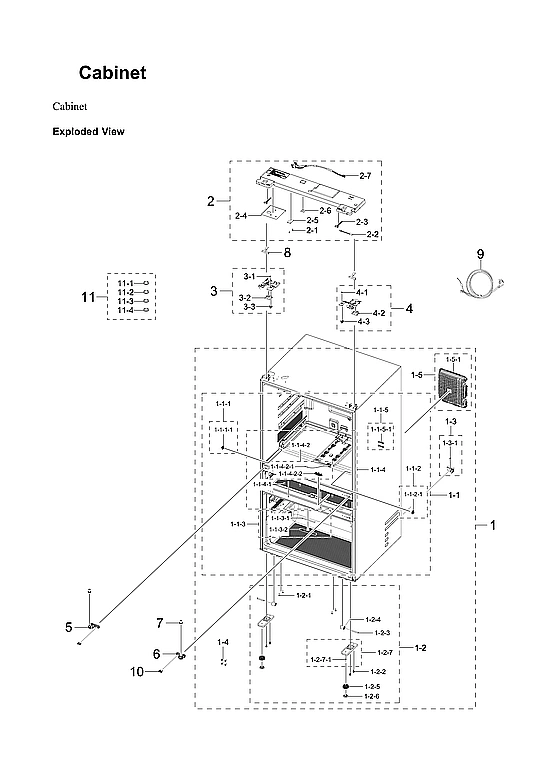

Model Samsung RF29BB860012/AA-00 Bottom-Mount Refrigerator – Common Parts &amp; Diagrams

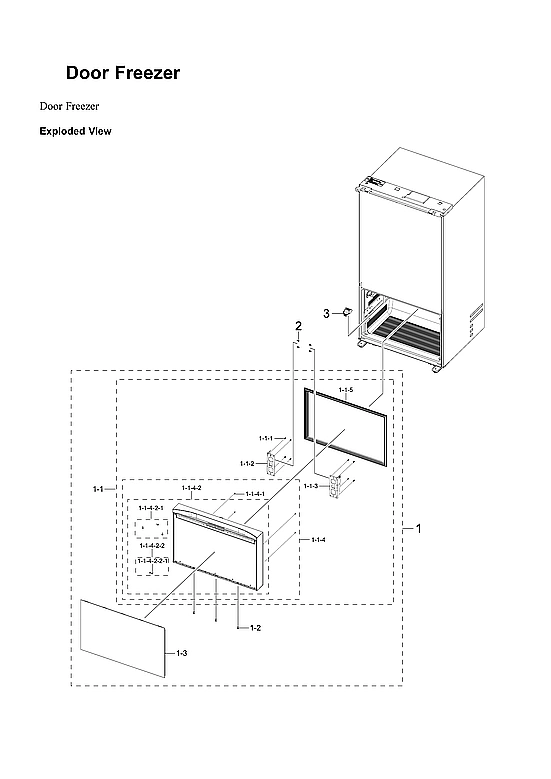

1

DA97-22973A Samsung Refrigerator Evaporator C Backorder SMG DA97-22973A $247.85

1

ASSY DOOR SUB-REF LEFT SMG DA93-01230E Contact Us For Availability

1

Assy door sub-middle SMG DA93-01235D Contact Us For Availability

1

Assy door sub-ref right SMG DA93-01232F Contact Us For Availability

DA31-00334D Samsung Refrigerator BLDC Fan Mot Backorder SMG DA31-00334D $125.41

DA32-00070M Samsung Refrigerator Temperature Backorder SMG DA32-00070M $25.78

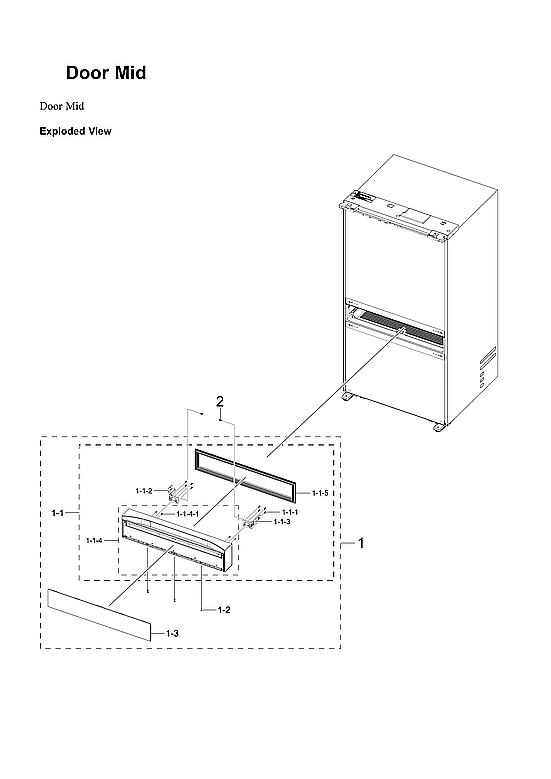

Assy door sub-middle door module SMG DA93-01225A Contact Us For Availability

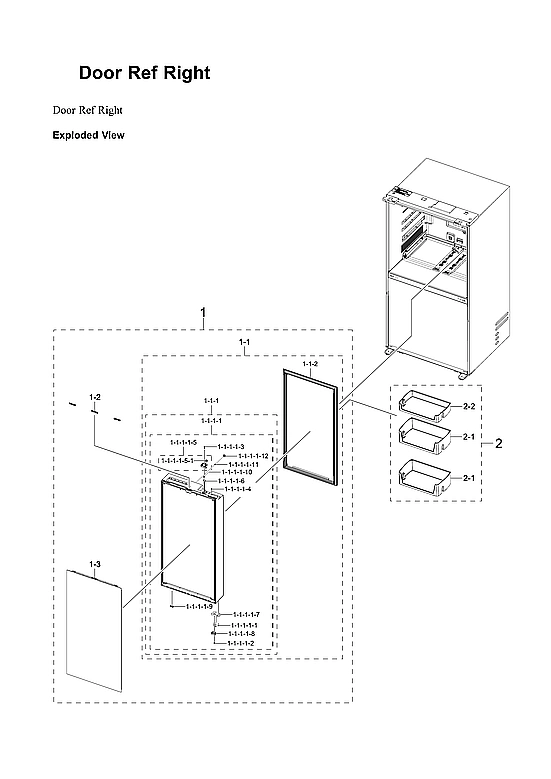

Assy door sub-ref right door module SMG DA93-01222A Contact Us For Availability

1-1-1

DA91-06106A Samsung Refrigerator Right Door F Backorder SMG DA91-06106A $224.22

1-1-1-1

Assy plate door-ref right SMG DA97-23005A Contact Us For Availability

1-1-2

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $61.77

1-1-2

DA61-09248A Samsung Refrigerator Left Middle Backorder SMG DA61-09248A $46.28

1-1-2

DA97-21890B Samsung Refrigerator Dark Gray Ga Backorder SMG DA97-21890B $175.80

1-1-3

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $58.22

1-1-3

DA61-09249A Samsung Refrigerator Hanger Front Backorder SMG DA61-09249A $41.05

1-1-4

DA91-06107A Samsung Refrigerator Middle Door Backorder SMG DA91-06107A $187.61

1-1-4-1

Tapping screw SMG 6002-001149 Contact Us For Availability

1-1-4-2

DA97-08608A Samsung Refrigerator Sensor Cover Backorder SMG DA97-08608A $26.25

1-1-5

DA97-23011A Samsung Refrigerator Middle Gaske Backorder SMG DA97-23011A $152.07

DA31-00346A Samsung Refrigerator DC Geared Mo Backorder SMG DA31-00346A $135.49

DA32-00070A Samsung Refrigerator Temperature Backorder SMG DA32-00070A $14.48

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.35

DA63-09686A Samsung Refrigerator Dark ABS Doo Backorder SMG DA63-09686A $4.98

DA67-04961A Samsung Refrigerator Cap Screw As Backorder SMG DA67-04961A $45.20

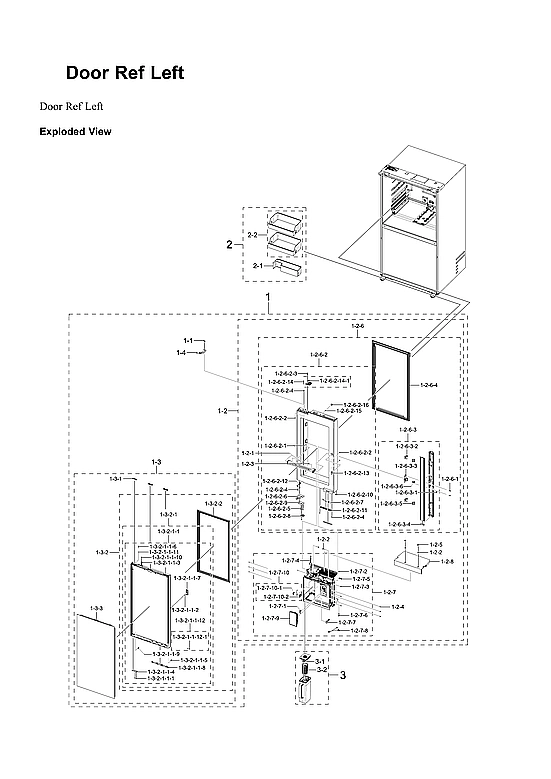

ASSY DOOR SUB-REF IN LEFT DOOR MODULE SMG DA93-01228A Contact Us For Availability

1-2-1

6001-000715 Samsung Machine Screw Backorder SMG 6001-000715 $8.59

1-2-2

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $0.97

1-2-3

6002-000244 Samsung Tapping Screw Backorder SMG 6002-000244 $0.97

1-2-3

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $2.26

1-2-4

6002-001547 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001547 $0.97

1-2-4

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $5.89

1-2-5

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $6.79

1-2-5

DA67-30266Q Samsung Cap Screw Backorder SMG DA67-30266Q $63.18

1-2-6

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.26

1-2-6

ASSY DOOR SUB-REF IN LEFT SMG DA93-01262A Contact Us For Availability

1-2-6-1

6002-001406 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001406 $0.97

1-2-6-2

DA91-05462C Samsung Refrigerator Foam Door As Backorder SMG DA91-05462C $271.23

1-2-6-3

DA97-14049G Samsung Refrigerator French Door Backorder SMG DA97-14049G $154.84

1-2-7

DA97-17399U Samsung Assy Case Inner;rf7000ac, Backorder SMG DA97-17399U $302.14

1-2-7-1

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $13.12

1-2-7-2

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $0.97

1-2-7-4

DA34-00043M Samsung Refrigerator Reed Switch Backorder SMG DA34-00043M $27.16

1-2-7-5

DA61-11032A Samsung Refrigerator Fixer Assemb Backorder SMG DA61-11032A $6.33

1-2-7-6

DA61-13987A Samsung CASE DISPENSER;RS5000T,ST Backorder SMG DA61-13987A $91.30

1-2-7-7

DA67-04504D Samsung Refrigerator Tube Cap Fix Backorder SMG DA67-04504D $7.24

1-2-7-8

DA96-01471C Samsung Assy Wire Harness-Dispens Backorder SMG DA96-01471C $88.95

1-2-7-9

DA97-17297C Samsung Refrigerator Dispenser Le Backorder SMG DA97-17297C $91.72

1-2-8

DA97-21788A Samsung Basket Cover Assembly Backorder SMG DA97-21788A $153.80

DA32-00070B Samsung Refrigerator Temperature Backorder SMG DA32-00070B $11.97

FIXER;RT5000K,PA66,-,WHITE,-,K Backorder SMG DA61-11034A $18.10

DA99-05050C Samsung Refrigerator Custom Panel Backorder SMG DA99-05050C $169.52

DA99-05051C Samsung Refrigerator Custom Panel Backorder SMG DA99-05051C $137.07

ASSY DOOR SUB-REF OUT LEFT SMG DA93-01231E Contact Us For Availability

1-3-2

ASSY DOOR SUB-REF OUT LEFT DOOR MODULE SMG DA93-01227A Contact Us For Availability

1-3-2-1

DA91-06109A Samsung Refrigerator Left Outer D Backorder SMG DA91-06109A $249.65

1-3-2-2

DA97-22008A Samsung Refrigerator Gasket Assem Backorder SMG DA97-22008A $160.46

1-4

DA61-14455A Samsung Refrigerator Angle Shelf Backorder SMG DA61-14455A $126.45

1-4

DA97-20039C Samsung Refrigerator Left Upper H Backorder SMG DA97-20039C $113.63

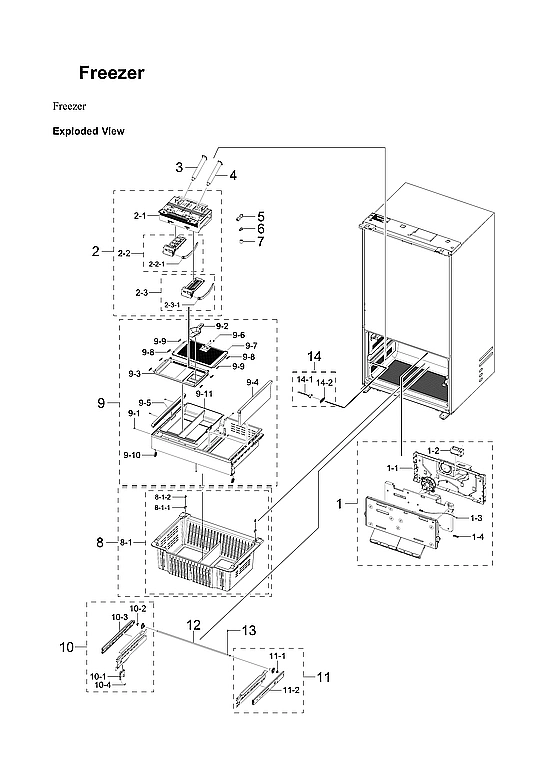

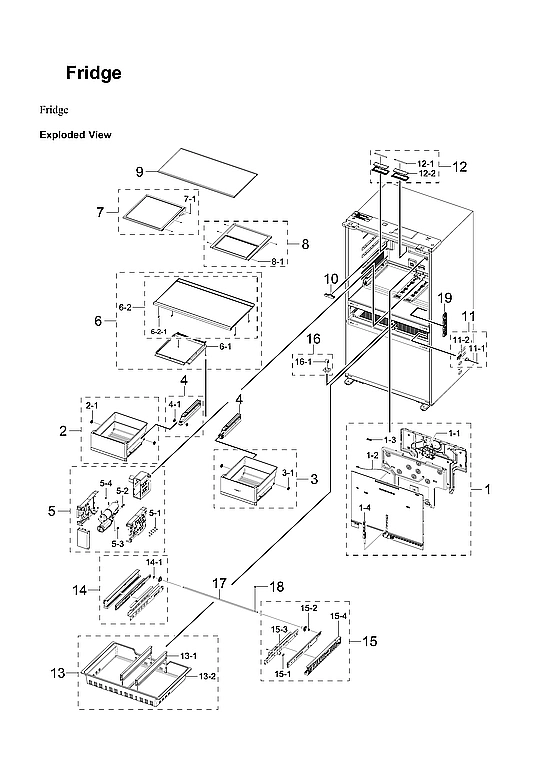

2

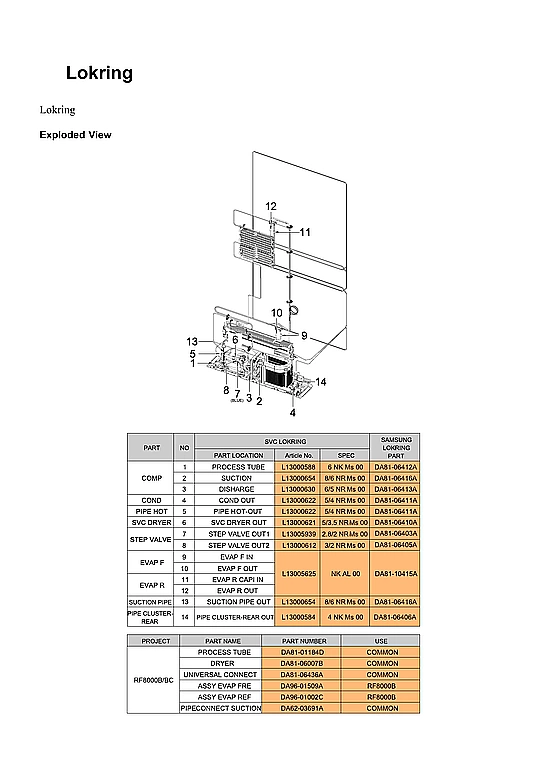

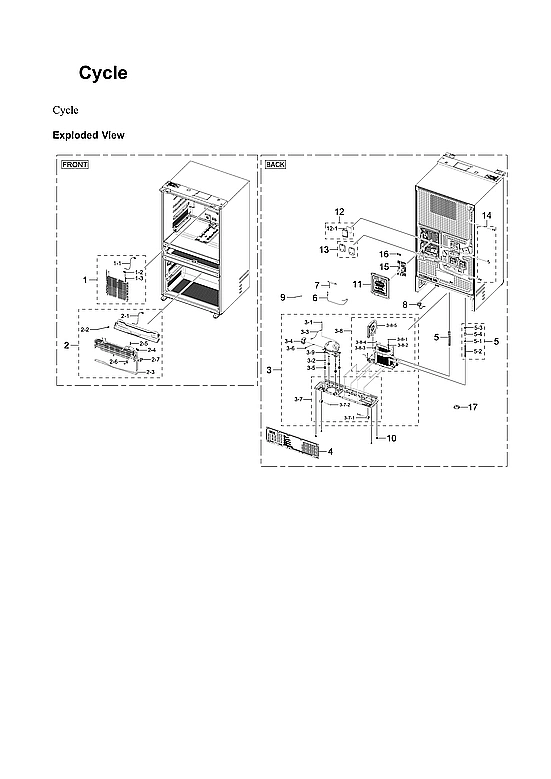

L13000654 American Vulkan Lokring Brass Reduc In Stock ALC L13000654 $5.87

2

6011-001656 Samsung Refrigerator Hex Bolt Backorder SMG 6011-001656 $1.35

2

DA97-21873A Samsung Assembly CASE VEG-LOW DRA Backorder SMG DA97-21873A $119.70

2

ASSY ICE MAKER SMG DA97-21804C Contact Us For Availability

2

Assy tray drawer-drawer module SMG DA97-23246B Contact Us For Availability

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.97

DA32-10104N Samsung Refrigerator Temperature Backorder SMG DA32-10104N $18.22

DA61-14435A Samsung Refrigerator Ice Maker Su Backorder SMG DA61-14435A $96.03

DA97-19988A Samsung Refrigerator Roller Assem Backorder SMG DA97-19988A $78.41

DA97-21912E Samsung Refrigerator Guard Top As Backorder SMG DA97-21912E $68.44

DA97-21914E Samsung Refrigerator Low Guard As Backorder SMG DA97-21914E $71.09

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $62.78

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $23.08

DA97-21916B Samsung Refrigerator Guard Upper Backorder SMG DA97-21916B $63.89

DA97-21960E Samsung Refrigerator Middle Guard Backorder SMG DA97-21960E $91.30

DA97-22160A Samsung Refrigerator Ice Case Ass Backorder SMG DA97-22160A $152.26

2-2-1

DA61-14661A Samsung Refrigerator Ice Guide Backorder SMG DA61-14661A $58.92

2-3

DA97-22162A Samsung Refrigerator Ice Case Ass Backorder SMG DA97-22162A $147.24

2-6

DA92-00817A Samsung Refrigerator Module Buzze Backorder SMG DA92-00817A $27.77

3

L13000630 American Vulkan Lokring Refrigerati In Stock ALC L13000630 $5.26

3

DA97-21256C Samsung Refrigerator Water Ice Pi Backorder SMG DA97-21256C $114.13

3

DA97-21261K Samsung Refrigerator Water Filter Backorder SMG DA97-21261K $220.50

3

DA97-21873B Samsung Refrigerator Low Vegetabl Backorder SMG DA97-21873B $186.43

3-1

6006-001170 Samsung Appliance Tapping Screw T Backorder SMG 6006-001170 $0.97

3-1

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $5.42

3-2

DA61-15091A Samsung Refrigerator Filter Case Backorder SMG DA61-15091A $26.96

3-2

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.35

3-7-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $4.98

3-7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.07

4

L13000622 American Vulkan Lokring Refrigerati In Stock ALC L13000622 $7.26

4

DA97-21256B Samsung Refrigerator Water Pipe I Backorder SMG DA97-21256B $135.06

4

DA97-21871A Samsung Assembly Left Middle Rail Backorder SMG DA97-21871A $41.46

5

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $18.55

5

COVER COMP SMG DA97-04049E No Longer Available

5

DA97-23025A Samsung Refrigerator Filter Case Backorder SMG DA97-23025A $256.64

5-1

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.97

5-2

DA60-00393A Samsung Refrigerator Tube Fitting Backorder SMG DA60-00393A $27.37

5-3

DA62-02414A Samsung Refrigerator Fitting Tube Backorder SMG DA62-02414A $16.75

5-4

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.97

6

L13000621 American Vulkan Lokring .197 or 3/1 In Stock ALC L13000621 $6.37

6

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $25.77

6

ASSY SHELF VEG-LOW SMG DA97-21901M Contact Us For Availability

6-1

DA63-11226A Samsung Refrigerator Vegetable Dr Backorder SMG DA63-11226A $134.83

6-2

DA97-21901C Samsung Refrigerator Low Shelf Mo Backorder SMG DA97-21901C $158.84

6-2-1

DA64-03784A Samsung Refrigerator Shelf Trim Backorder SMG DA64-03784A $42.27

7

L13000612 American Vulkan Lokring .118" to .0 In Stock ALC L13000612 $7.69

7

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.35

7

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $17.64

7

DA97-22971A Samsung Shelf Insert Assembly Backorder SMG DA97-22971A $125.21

7-1

6002-001397 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001397 $0.97

8

DA61-04932B Samsung Refrigerator Hinge Fixer Backorder SMG DA61-04932B $12.66

8

DA97-20047B Samsung Refrigerator Shelf Assemb Backorder SMG DA97-20047B $201.55

8-1

DA97-23029A Samsung Refrigerator Drawer Tray Backorder SMG DA97-23029A $231.48

8-1-1

DA71-20145A Samsung Refrigerator Roller Fixer Backorder SMG DA71-20145A $0.97

8-1-2

DA97-22036A Samsung Refrigerator Roller Assem Backorder SMG DA97-22036A $5.42

9

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $47.96

9

DA81-10415A Samsung Refrigerator Lock Ring As In Stock SMG DA81-10415A $124.32

9

DA97-21897A Samsung Refrigerator Assembly She Backorder SMG DA97-21897A $151.11

9

DA97-22997A Samsung Refrigerator Tray Upper A Backorder SMG DA97-22997A $259.66

9-1

6002-000473 Samsung Tapping Screw Backorder SMG 6002-000473 $0.97

9-2

DA61-14309A Samsung Refrigerator Ice Scoop Ca Backorder SMG DA61-14309A $79.40

9-3

DA61-15175A Samsung Refrigerator Basket Assem Backorder SMG DA61-15175A $60.70

9-4

DA61-15177A Samsung Guide Tray-Fre;rf8000b, H Backorder SMG DA61-15177A $50.57

9-5

DA61-15179A Samsung Left Rail Assembly Backorder SMG DA61-15179A $33.41

9-6

DA63-11374A Samsung Refrigerator Door Grommet Backorder SMG DA63-11374A $5.42

9-7

DA63-11588A Samsung Refrigerator Upper Front Backorder SMG DA63-11588A $52.01

9-8

DA63-11592A Samsung GROMMET-A;RF8000BC,POM,NA Backorder SMG DA63-11592A $33.81

9-9

DA63-11593A Samsung Refrigerator Grommet Backorder SMG DA63-11593A $13.57

9-10

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $4.52

9-11

DA97-23081B Samsung Refrigerator Ice Case Ass Backorder SMG DA97-23081B $123.37

10

6003-001727 Samsung Refrigerator Television T Backorder SMG 6003-001727 $1.81

10

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $4.98

10

DA97-21688A Samsung Refrigerator Left Slide R Backorder SMG DA97-21688A $193.81

10-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $3.63

10-3

DA61-03156A Samsung Refrigerator Low Hanger R Backorder SMG DA61-03156A $104.90

10-4

DA61-03769B Samsung Refrigerator Dispenser Dr Backorder SMG DA61-03769B $2.72

11

DA97-13783A Samsung Refrigerator Assembly Cov Backorder SMG DA97-13783A $23.53

11

DA97-21686A Samsung Refrigerator Low Right Sl Backorder SMG DA97-21686A $187.60

11

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $50.65

11-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $0.97

11-2

DA61-03157A Samsung Refrigerator Low Hanger R Backorder SMG DA61-03157A $80.45

11-2

DA63-07513A Samsung Refrigerator Reed Switch Backorder SMG DA63-07513A $5.42

12

DA66-00437H Samsung Refrigerator Shaft Backorder SMG DA66-00437H $28.18

12

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $14.03

12

DA97-21951B Samsung Lamp Cover Assembly Backorder SMG DA97-21951B $108.11

12-1

DA96-01119E Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-01119E $110.07

12-2

DA63-11686A Samsung Cover Lamp;rf8000b, Gpps, Backorder SMG DA63-11686A $15.38

13

ASSY CASE CONVERTIBLE SMG DA97-22988A Contact Us For Availability

13-1

DA61-15162A Samsung Refrigerator Middle Guide Backorder SMG DA61-15162A $35.01

13-2

DA61-15164A Samsung Refrigerator Convertible Backorder SMG DA61-15164A $150.32

14

L13000584 American Vulkan Lokring Refrigerati In Stock ALC L13000584 $4.43

14

DA97-13781C Samsung Refrigerator Middle Left Backorder SMG DA97-13781C $154.14

14-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $22.18

14-1

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.35

15

DA97-13780C Samsung Refrigerator Middle Right Backorder SMG DA97-13780C $163.71

15-3

DA63-11585A Samsung Cover Fixer Magnet;rf8000 Backorder SMG DA63-11585A $3.17

15-4

DA63-11594A Samsung Cover Rail-Middle Right;r Backorder SMG DA63-11594A $57.75

16

DA97-23068A Samsung Refrigerator Roller Assem Backorder SMG DA97-23068A $5.89

16-1

DA66-00276B Samsung Roller Vegetable Backorder SMG DA66-00276B $0.97

17

DA66-00733B Samsung Refrigerator Shaft Backorder SMG DA66-00733B $122.07

19

DA97-20552R Samsung Refrigerator Control Cove Backorder SMG DA97-20552R $157.04

11111

6001-000570 Samsung Machine Screw Backorder SMG 6001-000570 $0.97

11112

Screw SMG 6002-000538 Contact Us For Availability

11113

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $1.00

11117

DA61-09952B Samsung Refrigerator Door Stopper Backorder SMG DA61-09952B $9.07

11118

DA61-13385A Samsung Refrigerator Door Close S Backorder SMG DA61-13385A $4.07

11119

DA63-04825B Samsung Refrigerator Grommet Cap Backorder SMG DA63-04825B $2.26

11421

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $19.45

11422

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $4.07

12622

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.97

12624

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.97

12625

6009-001475 Samsung Refrigerator Special Scre Backorder SMG 6009-001475 $0.97

12626

DA97-20041B Samsung Refrigerator Low Left Hin Backorder SMG DA97-20041B $114.68

12627

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $15.59

12629

DA61-13422A Samsung Refrigerator Low Door Sto Backorder SMG DA61-13422A $54.87

12632

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.98

12633

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $6.79

12634

DA63-08421A Samsung Gasket Low French Backorder SMG DA63-08421A $9.05

12635

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.07

12636

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.52

12710

NON-SERVICEABLE PART SMG N/P Contact Us For Availability

13211

ASSY PLATE DOOR-REF OUT LEFT SMG DA97-23004A Contact Us For Availability

111111

6021-000258 Samsung Hexagon Nut Backorder SMG 6021-000258 $0.97

111112

DA97-20572A Samsung Assy Fixer-Up Backorder SMG DA97-20572A $26.25

126211

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $46.84

126212

DA63-11272A Samsung Refrigerator Left Door Co Backorder SMG DA63-11272A $35.42

126213

DA66-01342A Samsung Refrigerator Lever Backorder SMG DA66-01342A $6.33

126214

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $16.75

127101

DA61-07581A Samsung Refrigerator LED Case Lam Backorder SMG DA61-07581A $2.26

127102

DA63-06505A Samsung Cover LED Lamp Backorder SMG DA63-06505A $2.26

132113

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.26

132114

DA61-13384A Samsung Refrigerator Door Stopper Backorder SMG DA61-13384A $18.55

132115

GROMMET-COVE SMG DA63-02750B Contact Us For Availability

132116

DA63-07545B Samsung Refrigerator Middle Hinge Backorder SMG DA63-07545B $2.72

132117

COVER LOCK SMG DA63-09537A Contact Us For Availability

132118

DA63-09639A Samsung Door Cap Cover Backorder SMG DA63-09639A $14.94

132119

DA63-09942A Samsung Door Grommet Backorder SMG DA63-09942A $20.82

1262141

DA66-00440A Samsung Refrigerator Auto Close R Backorder SMG DA66-00440A $1.35

1321110

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $0.97

1321111

DA73-00211A Samsung Refrigerator Hose Rubber Backorder SMG DA73-00211A $0.97

1321112

ASSY LEVER HANDLE SMG DA97-22967A Contact Us For Availability

NI

Samsung Refrigerator Water Filter SMG HAF-QIN Contact Us For Availability
