Model Samsung RF29BB820012/AA-00 Refrigerator – Common Parts &amp; Diagrams

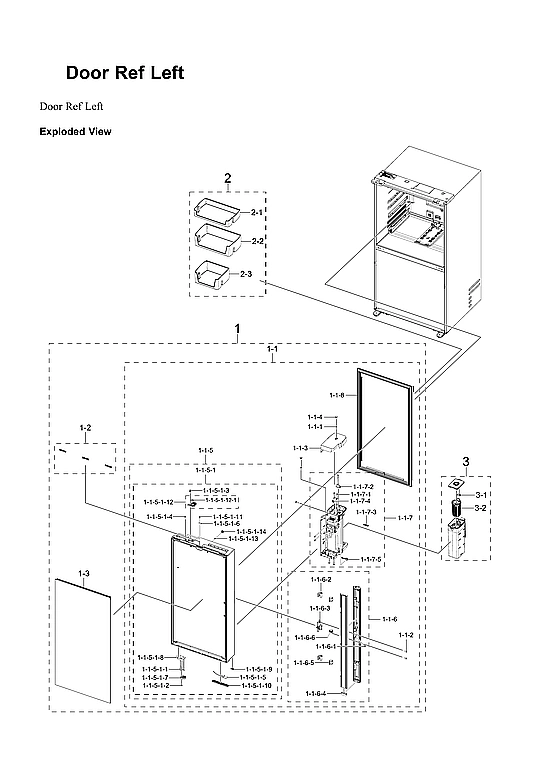

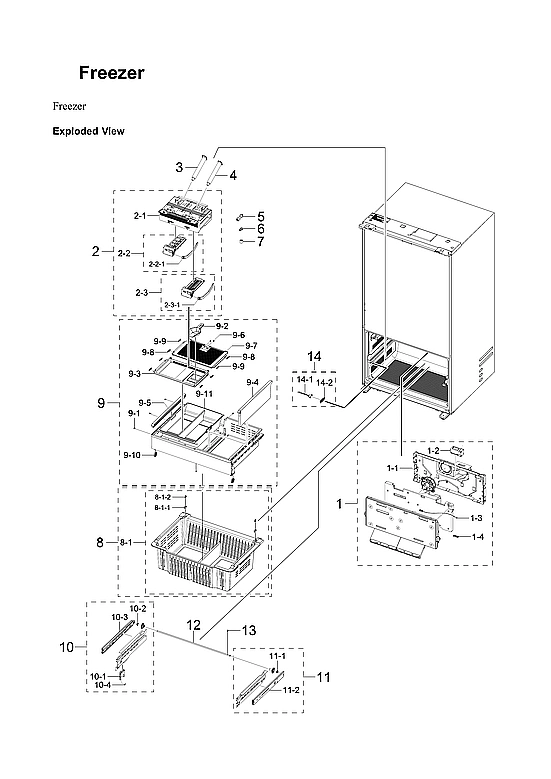

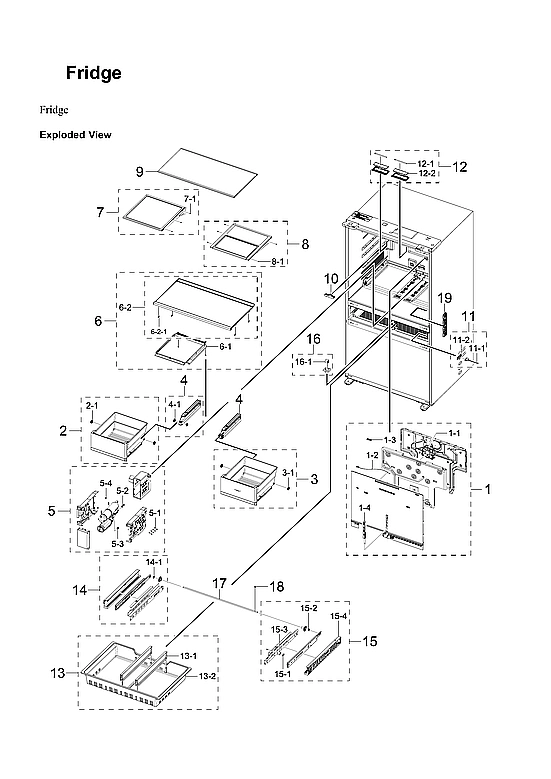

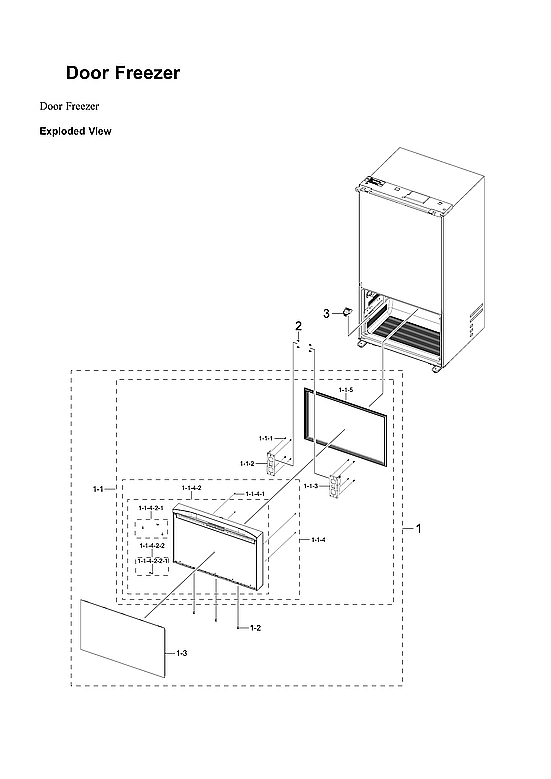

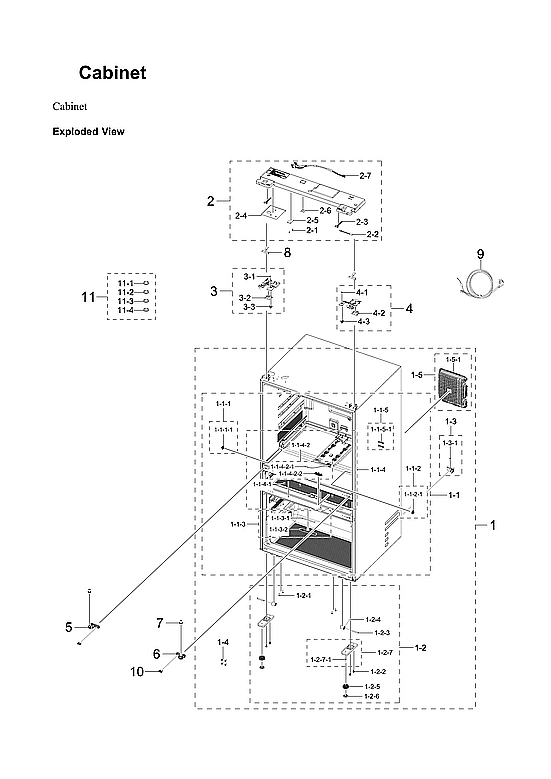

1

DA97-22973A Samsung Refrigerator Evaporator C Backorder SMG DA97-22973A $277.50

1

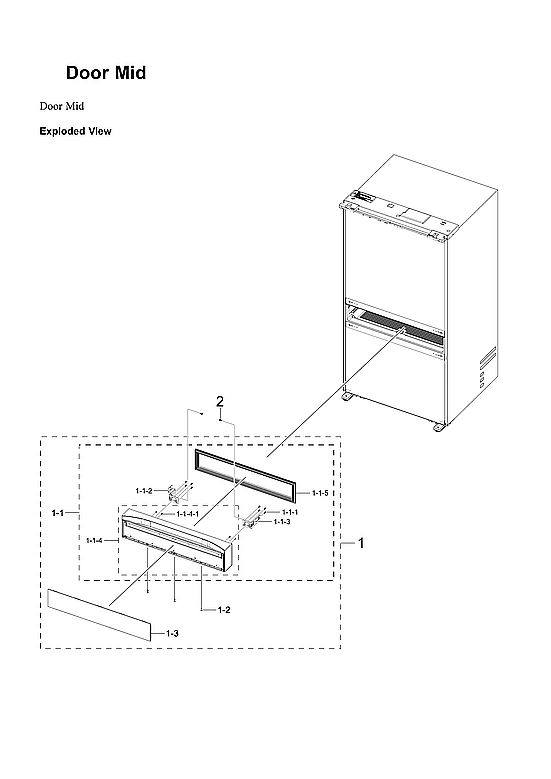

Assy door sub-middle SMG DA93-01235D Contact Us For Availability

1

Assy door sub-ref right SMG DA93-01233C Contact Us For Availability

DA31-00334D Samsung Refrigerator BLDC Fan Mot In Stock SMG DA31-00334D $136.19

DA32-00070M Samsung Refrigerator Temperature In Stock SMG DA32-00070M $26.55

Assy door sub-middle door module SMG DA93-01225A Contact Us For Availability

Assy door sub-ref right door module SMG DA93-01223A Contact Us For Availability

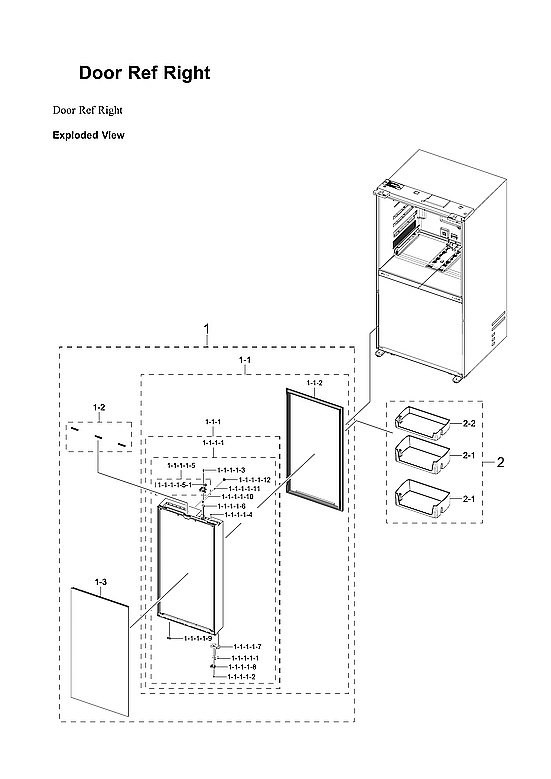

1-1-1

DA91-06111A Samsung Right Door Foam Assembly Backorder SMG DA91-06111A $189.82

1-1-1-1

Assy plate door-ref right SMG DA97-23001A Contact Us For Availability

1-1-2

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $75.95

1-1-2

DA61-09248A Samsung Refrigerator Left Middle Backorder SMG DA61-09248A $42.40

1-1-2

DA97-21890B Samsung Refrigerator Dark Gray Ga Backorder SMG DA97-21890B $161.37

1-1-3

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $84.55

1-1-3

DA61-09249A Samsung Refrigerator Hanger Front Backorder SMG DA61-09249A $31.35

1-1-3-1

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $14.29

1-1-3-2

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $42.91

1-1-4

DA91-06107A Samsung Refrigerator Middle Door Backorder SMG DA91-06107A $160.40

1-1-4-1

Tapping screw SMG 6002-001149 Contact Us For Availability

1-1-4-2

DA97-08608A Samsung Refrigerator Sensor Cover In Stock SMG DA97-08608A $24.87

1-1-5

DA97-23011A Samsung Refrigerator Middle Gaske Backorder SMG DA97-23011A $150.18

1-2

DA32-00070A Samsung Refrigerator Temperature Backorder SMG DA32-00070A $12.85

1-2

DA63-09686A Samsung Refrigerator Dark ABS Doo Backorder SMG DA63-09686A $4.26

1-2

DA67-04961A Samsung Refrigerator Cap Screw As Backorder SMG DA67-04961A $52.91

1-2-3

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.31

1-2-4

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.05

1-2-5

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $7.87

1-2-6

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.91

DA32-00070B Samsung Refrigerator Temperature Backorder SMG DA32-00070B $10.96

DA61-06013B Samsung Refrigerator FIXER Wire Backorder SMG DA61-06013B $5.38

DA99-05050C Samsung Refrigerator Custom Panel Backorder SMG DA99-05050C $160.50

DA99-05051C Samsung Refrigerator Custom Panel Backorder SMG DA99-05051C $129.78

Fixer SMG DA61-11034A Contact Us For Availability

1-4

DA61-14455A Samsung Refrigerator Angle Shelf Backorder SMG DA61-14455A $114.06

2

6011-001656 Samsung Refrigerator Hex Bolt Backorder SMG 6011-001656 $1.24

2

Case veg-low SMG DA97-21873K Contact Us For Availability

2

Assy tray drawer-drawer module SMG DA97-23246C Contact Us For Availability

2-1

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.92

2-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $18.59

2-1

DA97-21912E Samsung Refrigerator Guard Top As Backorder SMG DA97-21912E $76.53

2-2

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $43.37

2-2

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $24.05

2-2

DA97-21916B Samsung Refrigerator Guard Upper Backorder SMG DA97-21916B $66.30

2-3

DA47-00318V Samsung Refrigerator Metal Sheath Backorder SMG DA47-00318V $118.76

2-5

FIXER PIPE;FIXER PIPE,PP,T2,NA Backorder SMG DA61-12188A $2.91

2-6

DA61-13585A Samsung Refrigerator Bimetal Fixe Backorder SMG DA61-13585A $10.78

2-6

DA92-00817A Samsung Refrigerator Module Buzze Backorder SMG DA92-00817A $37.24

2-7

DA61-15131A Samsung Refrigerator Heater Fixer Backorder SMG DA61-15131A $2.91

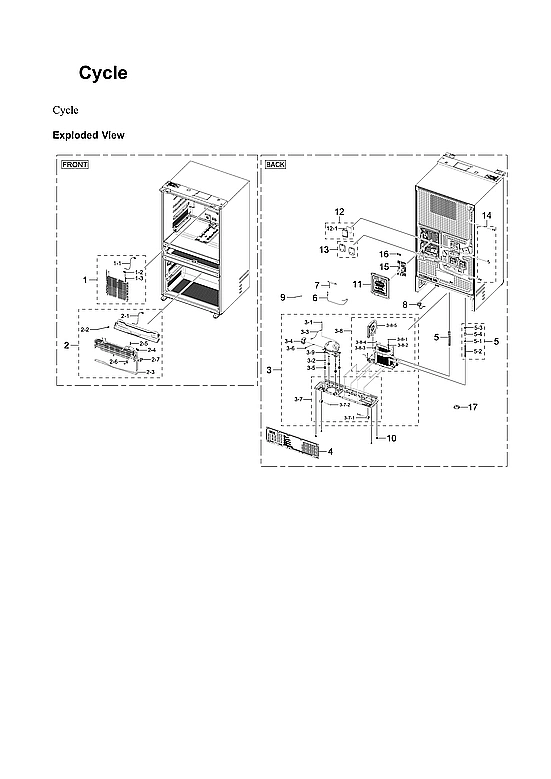

3

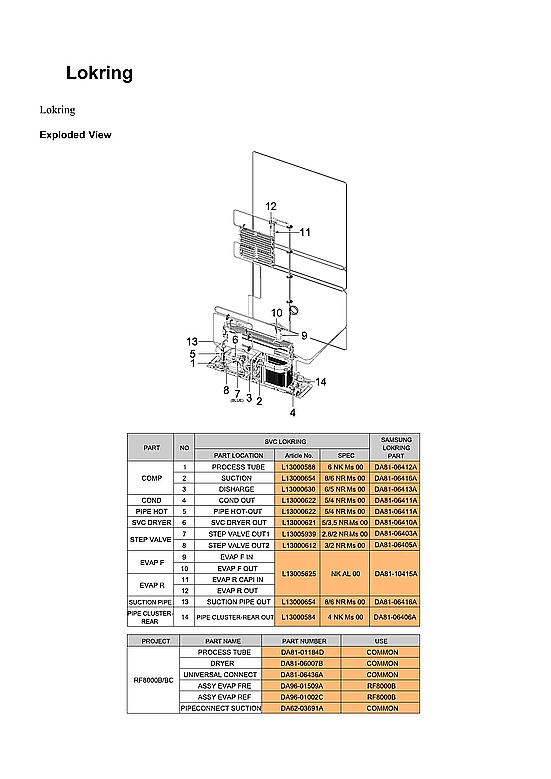

L13000630 American Vulkan Lokring Refrigerati In Stock ALC L13000630 $5.64

3

DA97-21873B Samsung Refrigerator Low Vegetabl Backorder SMG DA97-21873B $172.38

3

Assy comp n condensing-cond module SMG DA97-22348Q Contact Us For Availability

3-1

6006-001170 Samsung Appliance Tapping Screw T Backorder SMG 6006-001170 $0.92

3-2

BOLT-HEX;M6,L43.6,ZPC(SILVER), Backorder SMG 6011-007289 $1.24

3-3

DA39-20389L Samsung Refrigerator Wire Harness Backorder SMG DA39-20389L $1.24

3-4

DA63-06122A Samsung Refrigerator Black Cover Backorder SMG DA63-06122A $12.02

3-5

DA63-09336B Samsung Grommet Assembly Backorder SMG DA63-09336B $8.29

3-6

DA96-01170A Samsung Refrigerator Compressor W Backorder SMG DA96-01170A $24.34

3-7

DA97-12557K Samsung Chassis Component Assembl Backorder SMG DA97-12557K $171.47

3-7-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.80

3-7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.56

3-8

DA97-15978C Samsung Refrigerator Drain Water Backorder SMG DA97-15978C $223.01

3-8-2

DA63-04424A Samsung Condenser Grommet Sub Ass Backorder SMG DA63-04424A $7.05

3-8-3

GROMMET-IMMERSION PIPE B;ROMAN Backorder SMG DA63-07323A $2.91

3-8-4

DA63-40171B Samsung Refrigerator Suction Pipe Backorder SMG DA63-40171B $2.49

3-8-5

DA97-20025A Samsung Refrigerator Motor Suppor In Stock SMG DA97-20025A $123.75

3-9

NF54M7151ANASH Samsung Refrigerator R-600A Co In Stock SMG NF54M7151ANASH $281.64

4

DA97-12749N Samsung Refrigerator Cover Compon Backorder SMG DA97-12749N $67.53

4

DA97-21871A Samsung Assembly Left Middle Rail Backorder SMG DA97-21871A $37.97

5

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $19.89

5

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $17.56

5

DA97-23062A Samsung Refrigerator Assembly Cas Backorder SMG DA97-23062A $248.41

5-1

DA61-05021A Samsung Refrigerator Drain Fixer Backorder SMG DA61-05021A $3.50

5-2

DA60-00393A Samsung Refrigerator Tube Fitting Backorder SMG DA60-00393A $31.71

5-2

DA62-01266B Samsung Refrigerator PVC Tube Backorder SMG DA62-01266B $2.07

5-3

DA62-02414A Samsung Refrigerator Fitting Tube Backorder SMG DA62-02414A $16.58

5-3

DA63-02761A Samsung Refrigerator Drain Gromme Backorder SMG DA63-02761A $2.49

5-4

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.92

5-4

DA67-01301A Samsung Refrigerator Drain Cap As Backorder SMG DA67-01301A $1.17

6

L13000621 American Vulkan Lokring .197 or 3/1 In Stock ALC L13000621 $6.41

6

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $18.25

6

Assy shelf veg-low SMG DA97-21901M Contact Us For Availability

6-1

DA63-11226A Samsung Refrigerator Vegetable Dr Backorder SMG DA63-11226A $155.84

6-2

DA97-21901C Samsung Refrigerator Low Shelf Mo Backorder SMG DA97-21901C $159.97

6-2-1

DA64-03784A Samsung Refrigerator Shelf Trim Backorder SMG DA64-03784A $41.39

7

L13000612 American Vulkan Lokring .118" to .0 In Stock ALC L13000612 $7.73

7

DA62-04309A Samsung Refrigerator Dryer Assemb Backorder SMG DA62-04309A $34.81

7

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.67

7

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.62

7

DA97-22971A Samsung Shelf Insert Assembly Backorder SMG DA97-22971A $120.49

8

DA61-04932B Samsung Refrigerator Hinge Fixer Backorder SMG DA61-04932B $12.02

8

DA62-04678C Samsung Refrigerator Step Valve Backorder SMG DA62-04678C $93.47

8

DA97-20047B Samsung Refrigerator Shelf Assemb Backorder SMG DA97-20047B $200.78

9

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $64.47

9

DA73-10190U Samsung Refrigerator Connect Disc Backorder SMG DA73-10190U $5.38

9

DA97-21897A Samsung Refrigerator Assembly She Backorder SMG DA97-21897A $158.49

9-3

DA61-15175A Samsung Refrigerator Basket Assem Backorder SMG DA61-15175A $61.45

9-4

GUIDE TRAY-FRE;RF8000B,HIPS,T2 Backorder SMG DA61-15177A $68.74

9-5

DA61-15179A Samsung Left Rail Assembly Backorder SMG DA61-15179A $30.60

9-6

DA63-11374A Samsung Refrigerator Door Grommet Backorder SMG DA63-11374A $5.38

9-7

DA63-11588A Samsung Refrigerator Upper Front Backorder SMG DA63-11588A $49.28

9-8

DA63-11592A Samsung GROMMET-A;RF8000BC,POM,NA Backorder SMG DA63-11592A $1.67

9-9

DA63-11593A Samsung Refrigerator Grommet Backorder SMG DA63-11593A $1.67

9-10

DA66-00554A Samsung Refrigerator Upper Freeze In Stock SMG DA66-00554A $4.56

9-11

DA97-23081B Samsung Refrigerator Ice Case Ass Backorder SMG DA97-23081B $117.89

10

6003-001727 Samsung Refrigerator Television T Backorder SMG 6003-001727 $1.67

10

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $5.80

10

DA97-21688A Samsung Refrigerator Left Slide R Backorder SMG DA97-21688A $185.98

10-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $3.33

10-3

DA61-03156A Samsung Refrigerator Low Hanger R Backorder SMG DA61-03156A $93.34

10-4

DA61-03769B Samsung Refrigerator Dispenser Dr Backorder SMG DA61-03769B $4.98

DA97-13783A Samsung Refrigerator Assembly Cov Backorder SMG DA97-13783A $23.22

DA97-21686A Samsung Refrigerator Low Right Sl Backorder SMG DA97-21686A $190.13

DA97-22520A Samsung Refrigerator Main PCB Cov Backorder SMG DA97-22520A $35.76

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $8.06

11-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $1.67

11-2

DA61-03157A Samsung Refrigerator Low Hanger R Backorder SMG DA61-03157A $69.65

11-2

DA63-07513A Samsung Refrigerator Reed Switch Backorder SMG DA63-07513A $4.98

12

DA66-00437H Samsung Refrigerator Shaft Backorder SMG DA66-00437H $31.35

12

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.40

12

DA97-21951B Samsung Lamp Cover Assembly Backorder SMG DA97-21951B $65.40

12-1

DA96-01119E Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-01119E $101.56

12-1

Non-serviceable part SMG N/P Contact Us For Availability

12-2

COVER LAMP;RF8000B,GPPS,T2,HB, Backorder SMG DA63-11686A $14.09

13

DA97-23225A Samsung Water Pipe Cover Assembly Backorder SMG DA97-23225A $27.29

13

Assy case convertible SMG DA97-22988A Contact Us For Availability

13-1

DA61-15162A Samsung Refrigerator Middle Guide Backorder SMG DA61-15162A $32.81

13-2

DA61-15164A Samsung Refrigerator Convertible Backorder SMG DA61-15164A $134.00

14

L13000584 American Vulkan Lokring Refrigerati In Stock ALC L13000584 $4.46

14

DA97-13781C Samsung Refrigerator Middle Left Backorder SMG DA97-13781C $171.18

14

Fixer cover SMG DA61-12488B Contact Us For Availability

14-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $19.49

15

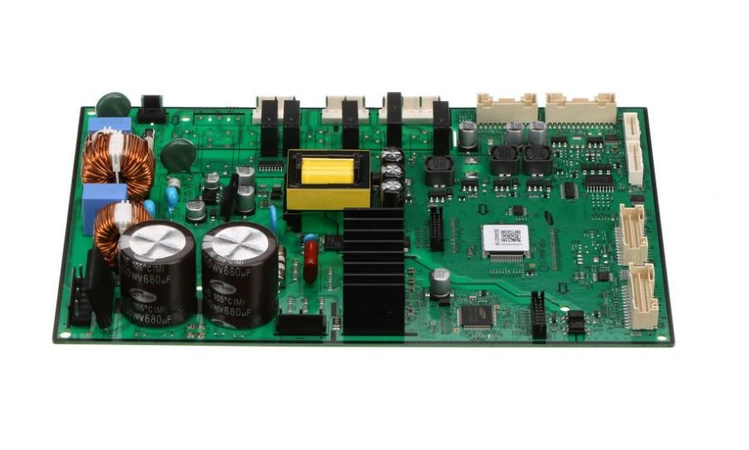

DA94-05310N Samsung Refrigerator EEPROM PCB A Backorder SMG DA94-05310N $254.07

15

DA97-13780C Samsung Refrigerator Middle Right Backorder SMG DA97-13780C $172.39

15-1

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $5.80

15-3

COVER FIXER MAGNET;RF8000BC,HI Backorder SMG DA63-11585A $2.91

15-4

COVER RAIL-MIDDLE RIGHT;RF8000 Backorder SMG DA63-11594A $52.91

16

DA92-00945A Samsung Refrigerator Fuse Block P In Stock SMG DA92-00945A $44.69

16

DA97-23068A Samsung Refrigerator Roller Assem Backorder SMG DA97-23068A $5.80

16-1

ROLLER-VEG;PP,OD24.5,NATURAL,I Backorder SMG DA66-00276B $0.92

17

DA63-03809A Samsung Urethane Cover Backorder SMG DA63-03809A $4.98

17

DA66-00733B Samsung Refrigerator Shaft Backorder SMG DA66-00733B $21.56

19

DA97-20552R Samsung Refrigerator Control Cove Backorder SMG DA97-20552R $174.16

11111

6001-000570 Samsung Machine Screw Backorder SMG 6001-000570 $0.92

11112

Screw SMG 6002-000538 Contact Us For Availability

11113

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $0.92

11114

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

11115

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $16.58

11116

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.07

11117

DA61-09952B Samsung Refrigerator Door Stopper Backorder SMG DA61-09952B $8.31

11118

DA61-13385A Samsung Refrigerator Door Close S Backorder SMG DA61-13385A $5.38

11119

DA63-04825B Samsung Refrigerator Grommet Cap Backorder SMG DA63-04825B $2.91

11421

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $19.07

11422

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.31

111110

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $0.92

111111

6021-000258 Samsung Hexagon Nut Backorder SMG 6021-000258 $0.92

111112

DA97-20572A Samsung Assy Fixer-Up Backorder SMG DA97-20572A $7.05

111151

DA66-00440A Samsung Refrigerator Auto Close R In Stock SMG DA66-00440A $1.24

L13000622 American Vulkan Lokring Refrigerati In Stock ALC L13000622 $6.16

L13000654 American Vulkan Lokring Brass Reduc In Stock ALC L13000654 $5.64

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $0.92

6002-001397 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001397 $0.92

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.24

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.24

DA61-14661A Samsung Refrigerator Ice Guide Backorder SMG DA61-14661A $57.52

DA62-03691A Samsung Refrigerator Suction Pipe Backorder SMG DA62-03691A $72.22

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.24

DA81-01184D Samsung Refrigerator Check Plug A Backorder SMG DA81-01184D $21.65

DA81-06007B Samsung Refrigerator Dryer Assemb In Stock SMG DA81-06007B $111.77

DA81-06436A Samsung Pipe Connection Assembly Backorder SMG DA81-06436A $21.98

DA81-10415A Samsung Refrigerator Lock Ring As Backorder SMG DA81-10415A $125.44

DA96-01002C Samsung Refrigerator Evaporator M Backorder SMG DA96-01002C $189.16

DA96-01509A Samsung Refrigerator EVAP-FRE Mod Backorder SMG DA96-01509A $227.36

DA97-19988A Samsung Refrigerator Roller Assem Backorder SMG DA97-19988A $76.82
