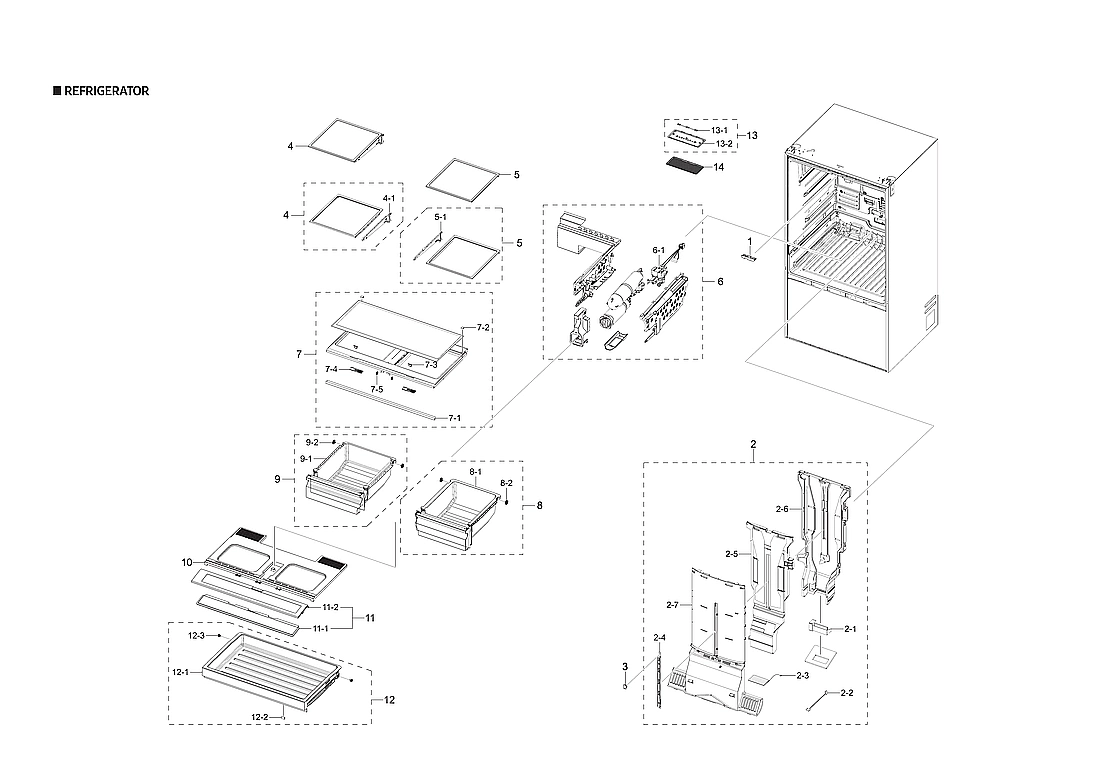

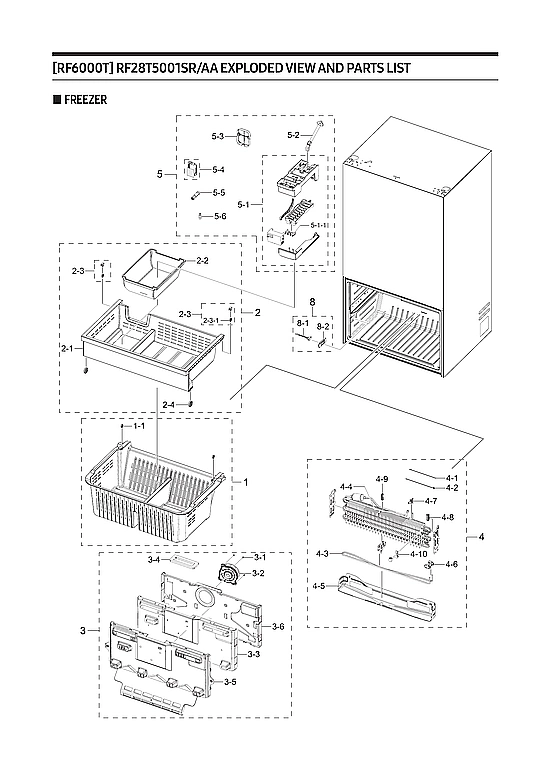

Model Samsung RF28T5001SR/AA-00 Refrigerator – Common Parts &amp; Diagrams

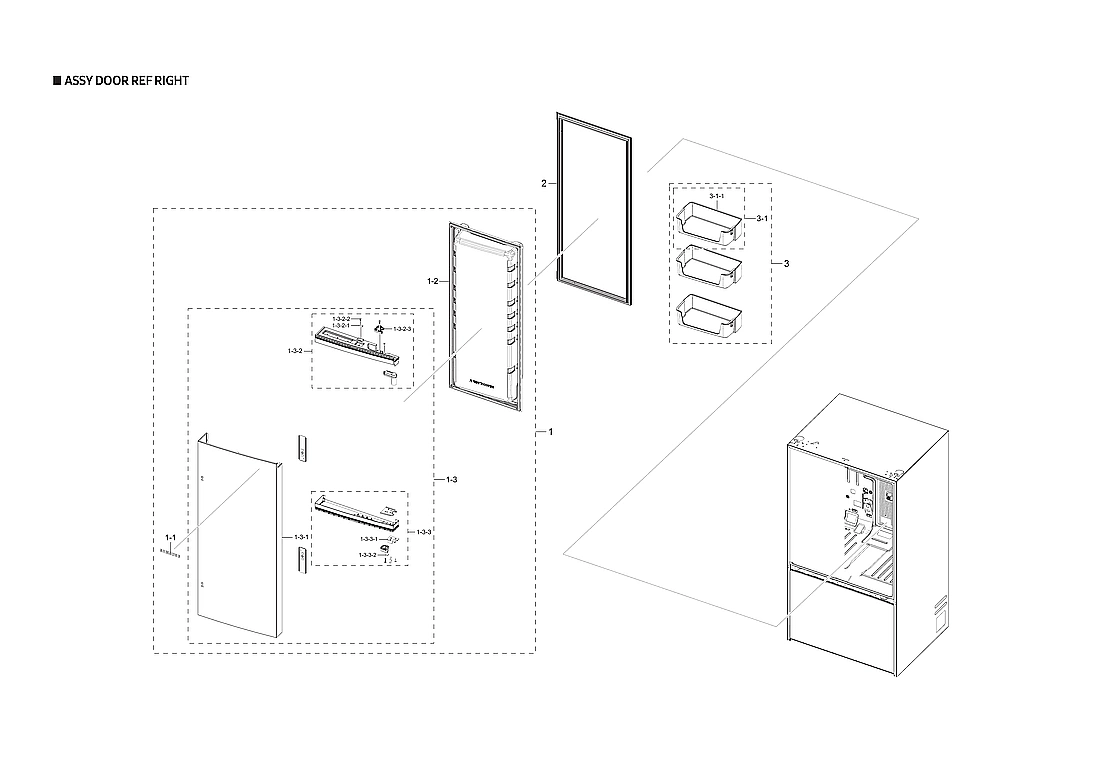

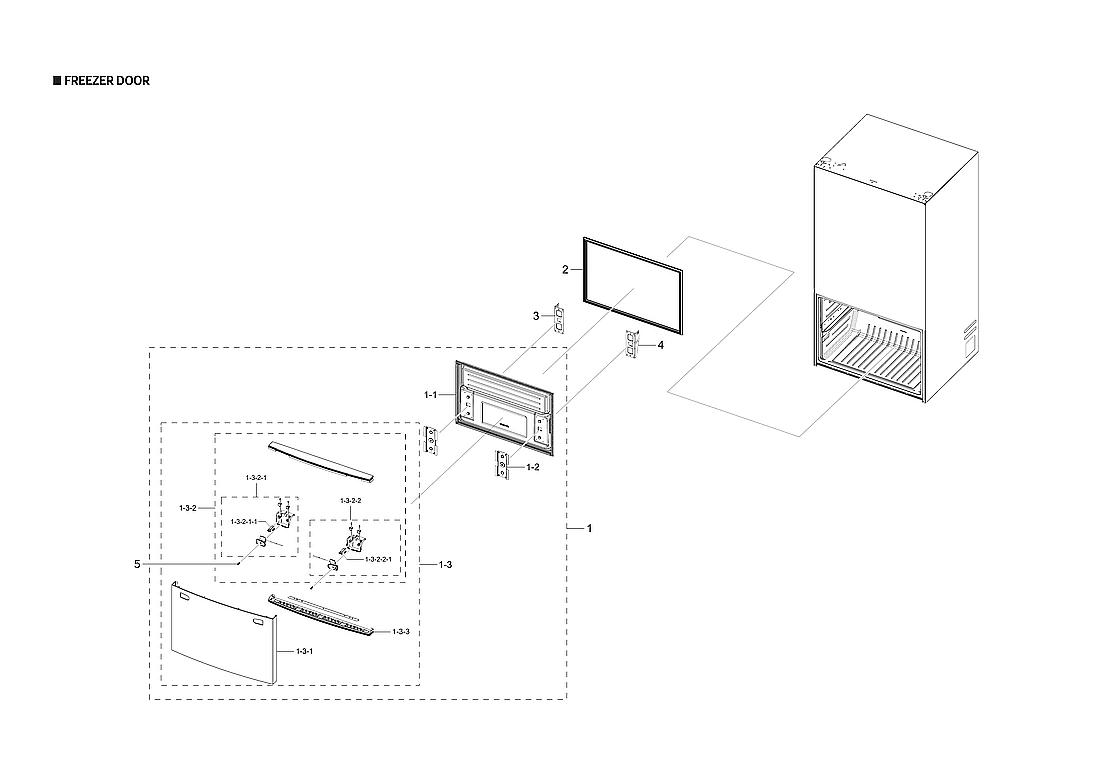

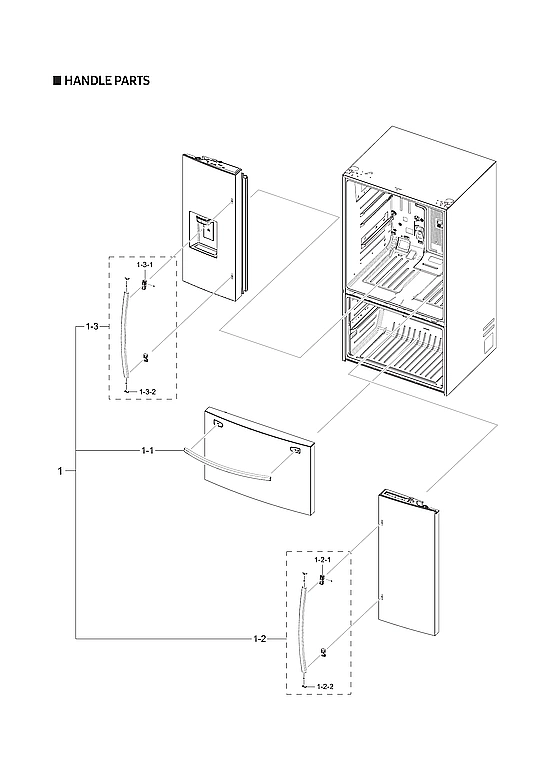

1

DA91-05272A Samsung Refrigerator Right Door F Backorder SMG DA91-05272A $159.26

1-1

DA64-04021A Samsung Refrigerator Nameplate Ma Backorder SMG DA64-04021A $32.04

1-1

Refrigerator freezer door handle assembly SMG DA97-20017A Contact Us For Availability

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $14.51

DA97-11291A Samsung Refrigerator Right Vegeta Backorder SMG DA97-11291A $33.18

Refrigerator door handle, right SMG DA97-20019A Contact Us For Availability

Panel-ref right SMG DA64-06268A Contact Us For Availability

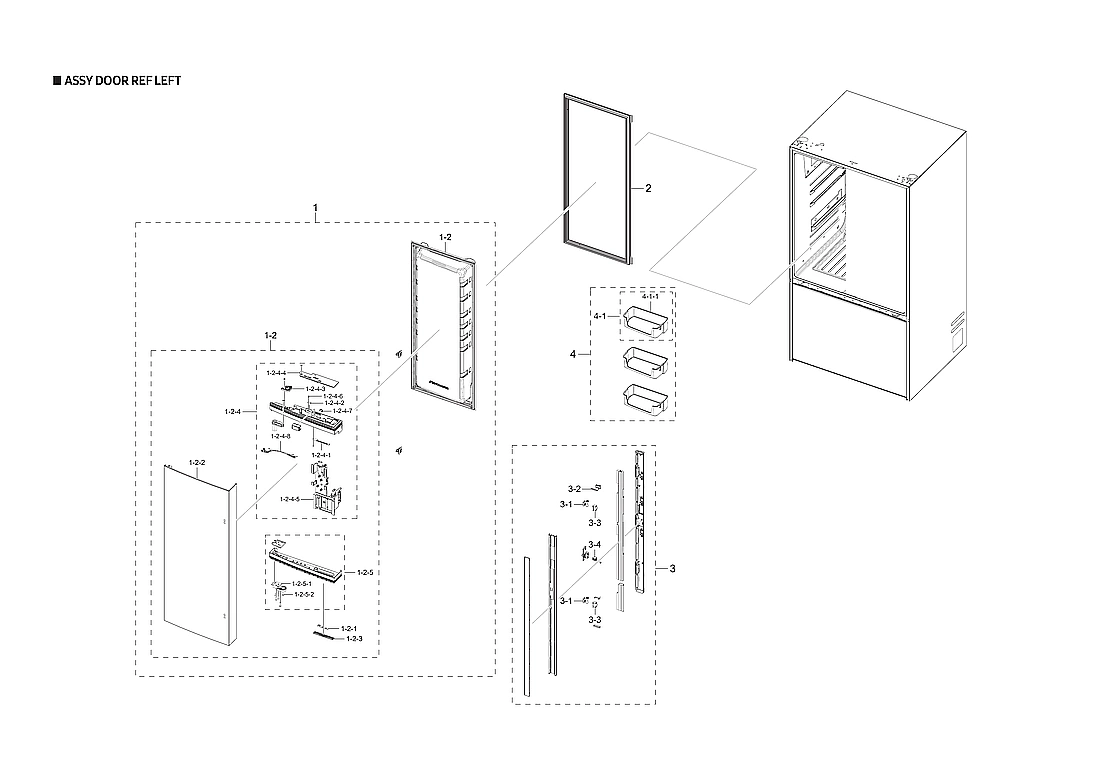

1-2-4

Assy cap door-ref up left SMG DA97-21010H Contact Us For Availability

1-2-4-1

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $43.37

1-2-4-4

DA63-06916F Samsung Refrigerator Door Upper L Backorder SMG DA63-06916F $12.02

1-2-4-5

Assy case french heater SMG DA97-21031A Contact Us For Availability

1-2-4-7

DA67-03218D Samsung CAP-INTERLOCK SWITCH HOLE Backorder SMG DA67-03218D $1.56

1-2-4-8

Assy wire harness- door SMG DA96-01426A Contact Us For Availability

1-2-5

Assy cap door-ref low left SMG DA97-21011A Contact Us For Availability

1-2-5-1

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $23.22

1-3

DA64-04477B Samsung Refrigerator Table Top As Backorder SMG DA64-04477B $65.70

1-3

DA97-20021A Samsung Refrigerator Left Handle Backorder SMG DA97-20021A $124.99

1-3

Assy plate door-ref right SMG DA97-21012A Contact Us For Availability

1-3-2

Assy cap door-ref up right SMG DA97-21013A Contact Us For Availability

1-3-2-1

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.07

1-3-2-3

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $16.58

1-3-3

Assy cap door-ref low right SMG DA97-21014A Contact Us For Availability

1-3-3-1

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $23.97

1-3-3-2

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

1-4

DA92-00817A Samsung Refrigerator Module Buzze Backorder SMG DA92-00817A $37.24

1-6

DA61-07329A Samsung Refrigerator Right Hand U Backorder SMG DA61-07329A $172.38

1-7

DA61-07328A Samsung Refrigerator Freezer Rail Backorder SMG DA61-07328A $162.92

2

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $6.59

2

DA97-13015J Samsung Refrigerator Door Gasket Backorder SMG DA97-13015J $87.66

2

DA97-21004A Samsung Refrigerator Cover Assemb In Stock SMG DA97-21004A $151.34

2-1

DA31-00043E Samsung Refrigerator DC Damper Mo Backorder SMG DA31-00043E $132.61

2-2

DA32-00006J Samsung Refrigerator Temperature Backorder SMG DA32-00006J $23.61

2-2

DA61-05300A Samsung Refrigerator Ice Cube Cas Backorder SMG DA61-05300A $56.54

2-3

Heater cord- drain SMG DA47-00248H Contact Us For Availability

2-4

DA66-00639A Samsung Refrigerator Upper Tray R Backorder SMG DA66-00639A $2.71

2-4

Non-serviceable part SMG N/P Contact Us For Availability

2-5

Insulation-multi ref a SMG DA62-05456A Contact Us For Availability

2-6

Insulation duct-b SMG DA62-05457A Contact Us For Availability

2-7

Cover multi-ref SMG DA63-09784A Contact Us For Availability

3

DA67-03978B Samsung Refrigerator Evaporator C Backorder SMG DA67-03978B $45.35

3

DA97-12573A Samsung Refrigerator Upper Left H In Stock SMG DA97-12573A $60.53

3

DA97-12624A Samsung Refrigerator French Door In Stock SMG DA97-12624A $138.48

3

DA97-20814B Samsung Refrigerator Pipe Connect In Stock SMG DA97-20814B $108.79

3

Assy guard SMG DA90-12108C Contact Us For Availability

3-1

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.98

3-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $49.61

3-1

DA97-20984A Samsung Refrigerator Right Guard Backorder SMG DA97-20984A $107.24

3-1-1

DA63-09775A Samsung Refrigerator Right Guard Backorder SMG DA63-09775A $55.37

3-2

DA31-00334C Samsung Refrigerator BLDC Fan Mot In Stock SMG DA31-00334C $134.05

3-2

DA63-06842B Samsung Refrigerator Low French G Backorder SMG DA63-06842B $5.38

3-3

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $4.56

3-3

DA67-02146A Samsung Refrigerator French Cap C Backorder SMG DA67-02146A $7.47

3-4

DA67-02154A Samsung Refrigerator French Door Backorder SMG DA67-02154A $4.56

4

DA61-04841A Samsung Refrigerator Front Hanger Backorder SMG DA61-04841A $61.74

4

DA62-04309F Samsung Refrigerator Single Dryer Backorder SMG DA62-04309F $28.60

4

DA97-12574A Samsung Refrigerator Upper Right In Stock SMG DA97-12574A $55.37

4

DA97-20335A Samsung Refrigerator Shelf Module Backorder SMG DA97-20335A $129.60

4-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $18.59

4-1

DA97-14398A Samsung Refrigerator Right Hanger Backorder SMG DA97-14398A $44.25

4-1

DA97-20989A Samsung Refrigerator Left Door Bi Backorder SMG DA97-20989A $122.50

4-1-1

Guard-ref left SMG DA63-09780A Contact Us For Availability

4-2

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $24.05

4-3

DA47-00526B Samsung Refrigerator Metal Sheath Backorder SMG DA47-00526B $114.10

4-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $4.15

4-6

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $7.47

4-7

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $7.87

5

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $4.15

5

DA97-12749B Samsung Refrigerator Compressor C Backorder SMG DA97-12749B $139.02

5

DA97-20336A Samsung Refrigerator Right Fixed Backorder SMG DA97-20336A $131.20

5-1

DA97-07603B Samsung Refrigerator Ice Maker In Stock SMG DA97-07603B $167.62

5-1

DA97-15168A Samsung Refrigerator Left Hanger Backorder SMG DA97-15168A $108.54

5-1-1

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $2.07

5-2

DA97-00209Z Samsung Refrigerator Water Pipe F In Stock SMG DA97-00209Z $79.68

5-4

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.40

5-5

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.62

5-6

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $18.25

6

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.67

6

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $38.94

6

DA97-21323A Samsung Refrigerator Water Filter In Stock SMG DA97-21323A $243.23

6-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $19.49

6-1

Valve water SMG DA62-03740C Contact Us For Availability

7

Refrigerator crisper drawer cover assembly SMG DA97-20333A Contact Us For Availability

7-1

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $118.03

7-2

DA61-04809A Samsung Refrigerator Vegetable Fi In Stock SMG DA61-04809A $0.92

7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.56

7-3

DA64-00817B Samsung Refrigerator Humidity Kno Backorder SMG DA64-00817B $7.47

7-4

DA66-00638A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00638A $3.09

7-5

DA97-15997A Samsung Refrigerator Roller Assem Backorder SMG DA97-15997A $13.69

8

DA97-08437H Samsung Refrigerator Right Vegeta Backorder SMG DA97-08437H $158.14

8-1

Case veg-right SMG DA61-13474B Contact Us For Availability

9

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $64.47

9

DA97-08438H Samsung Assembly Case Veg-Left Dr Backorder SMG DA97-08438H $151.26

9

DA97-11541B Samsung Refrigerator Left Pantry Backorder SMG DA97-11541B $46.34

9-1

Case veg-left SMG DA61-13473B Contact Us For Availability

10

DA97-20997A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-20997A $106.94

11

DA92-01199R Samsung Refrigerator Main PCB Ass In Stock SMG DA92-01199R $262.05

11

DA97-21058A Samsung Refrigerator Slide Cover Backorder SMG DA97-21058A $69.05

11-1

Cover slide-a SMG DA63-09794A Contact Us For Availability

11-2

Cover slide-b SMG DA63-09795A Contact Us For Availability

12

DA97-20998A Samsung Refrigerator Pantry Drawe Backorder SMG DA97-20998A $156.16

12

NF54M7151ANASH Samsung Refrigerator R-600A Co In Stock SMG NF54M7151ANASH $281.64

12-1

Case pantry SMG DA61-13950A Contact Us For Availability

12-2

DA60-10123E Samsung Refrigerator Hex Bolt M6 In Stock SMG DA60-10123E $1.24

12-2

DA66-00637A Samsung Refrigerator Pantry Rolle Backorder SMG DA66-00637A $0.92

12-3

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.31

12-3

DA97-19988B Samsung Refrigerator Roller Assem Backorder SMG DA97-19988B $36.14

12-4

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.05

12-5

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $7.87

12-6

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.91

13

DA63-04604A Samsung Refrigerator Left Lower R Backorder SMG DA63-04604A $112.64

13

DA97-12607A Samsung Refrigerator Lamp Assembl Backorder SMG DA97-12607A $189.73

13-1

DA41-00676K Samsung Refrigerator LED Lamp Ass Backorder SMG DA41-00676K $109.26

13-2

Refrigerator lamp case SMG DA61-08237A Contact Us For Availability

14

DA63-04605A Samsung Refrigerator Lower Right Backorder SMG DA63-04605A $71.08

14

DA63-06921A Samsung Cover Lamp Backorder SMG DA63-06921A $22.49

15-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $3.33

15-5

Refrigerator freezer basket slide rail assemb SMG DA61-09087A Contact Us For Availability

16

DA97-10595E Samsung Refrigerator Low Right Sl Backorder SMG DA97-10595E $165.90

16-3

DA61-09088A Samsung Refrigerator Slide Rail L Backorder SMG DA61-09088A $156.02

18

DA67-02795B Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795B $28.38

18

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $17.56

DA61-04804A Samsung Refrigerator Roller Wheel Backorder SMG DA61-04804A $18.94

DA61-06014A Samsung Refrigerator Handle Assem Backorder SMG DA61-06014A $2.49

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.24

DA97-19988A Samsung Refrigerator Roller Assem Backorder SMG DA97-19988A $76.82
