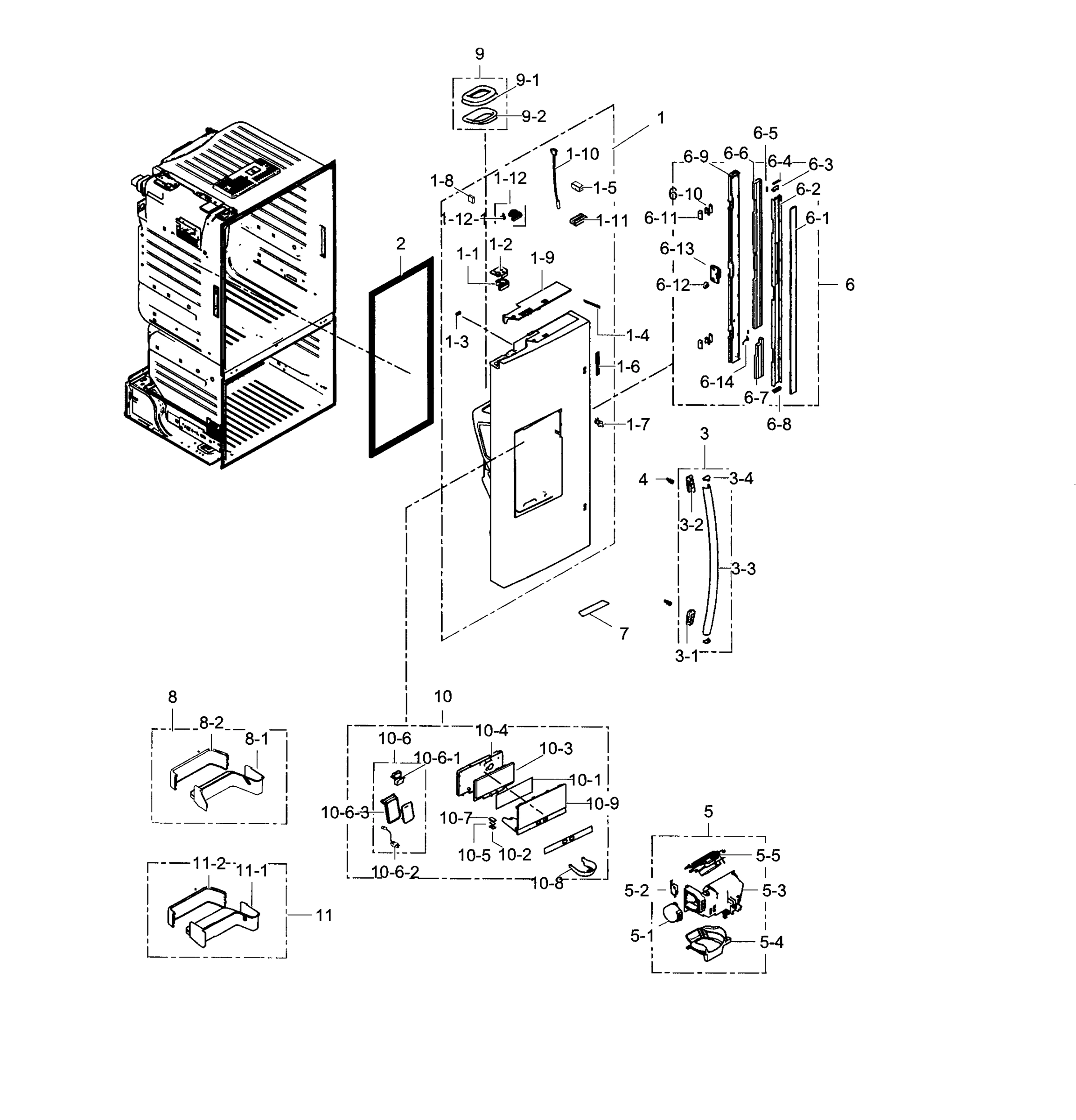

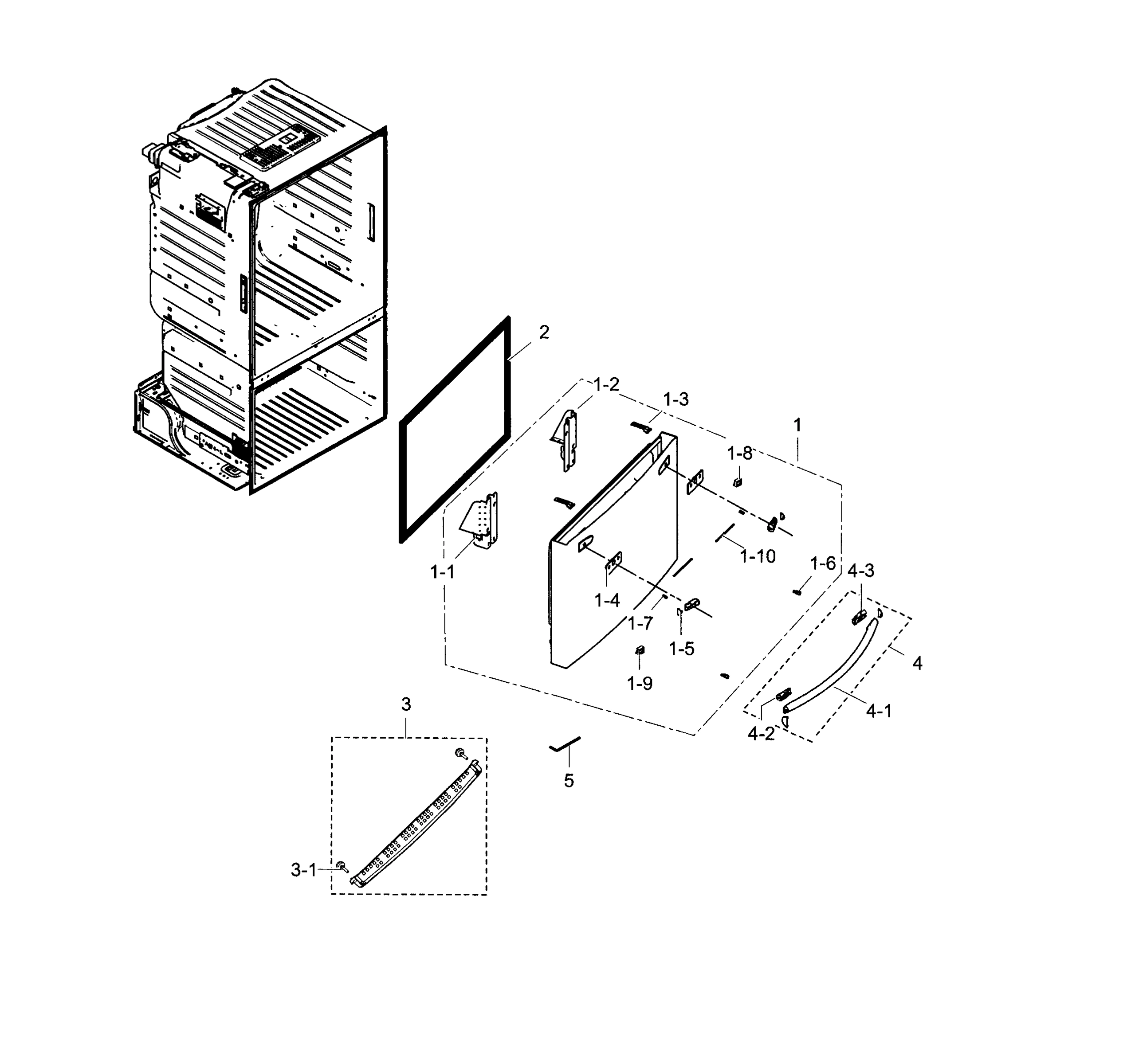

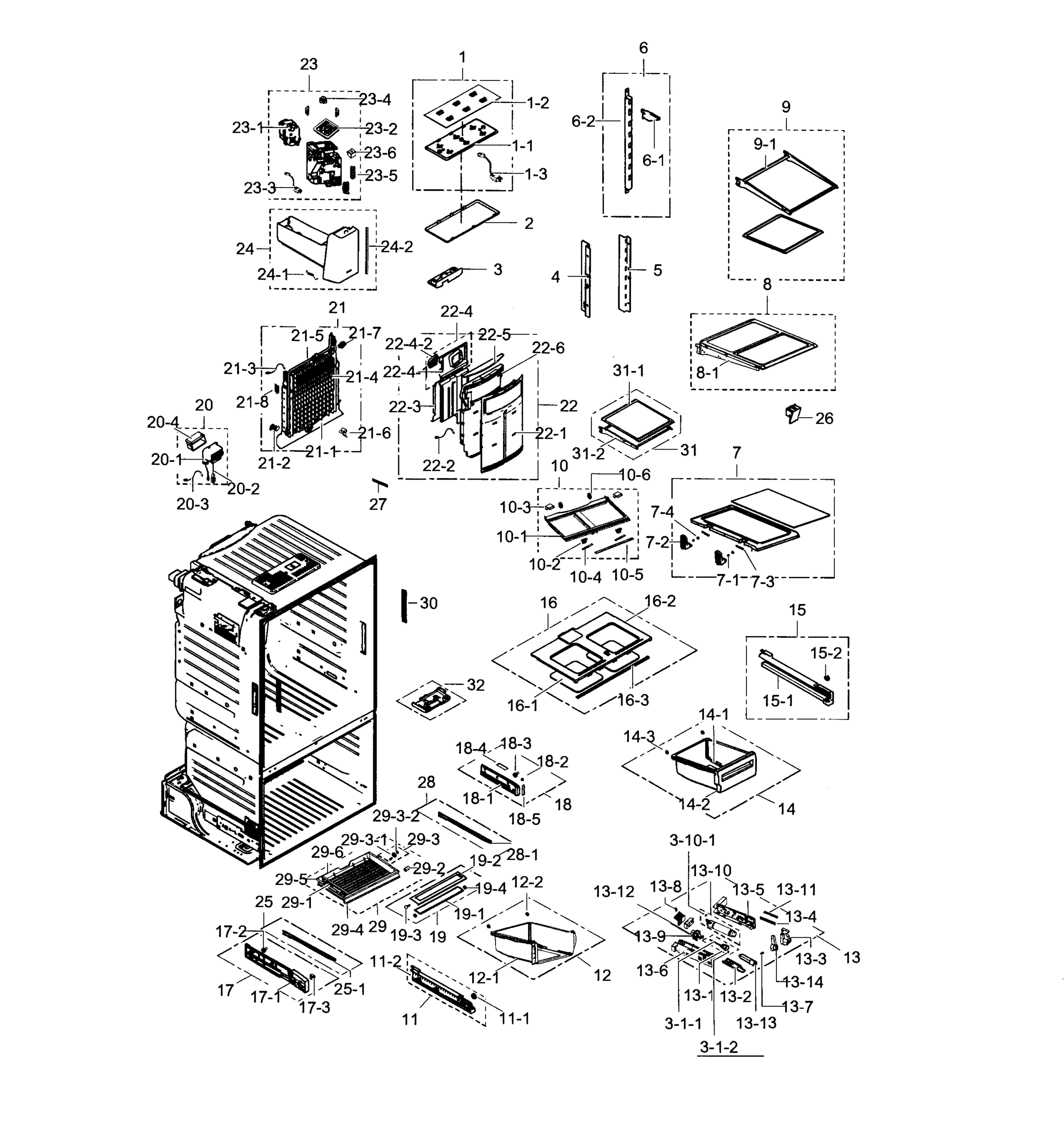

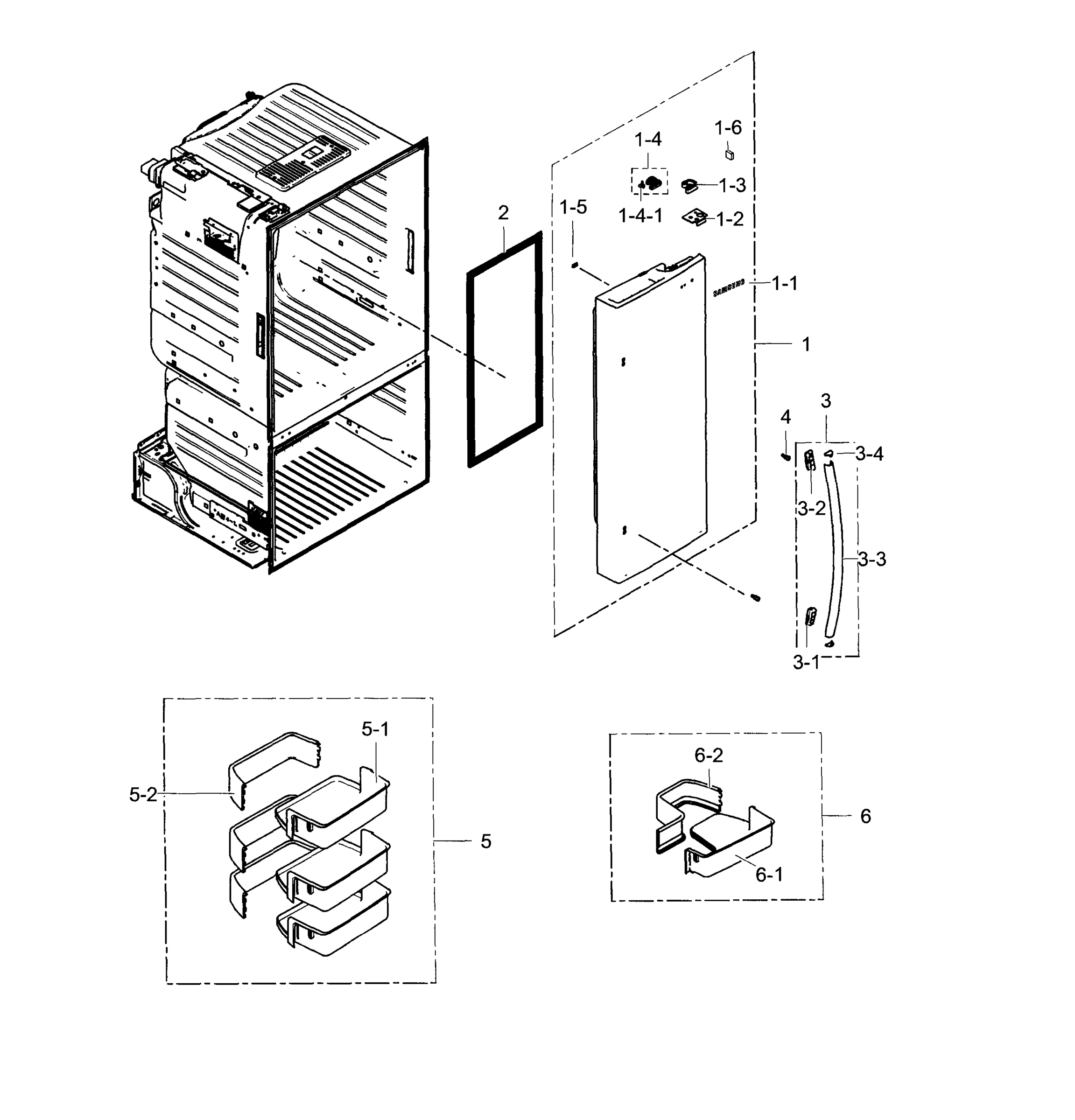

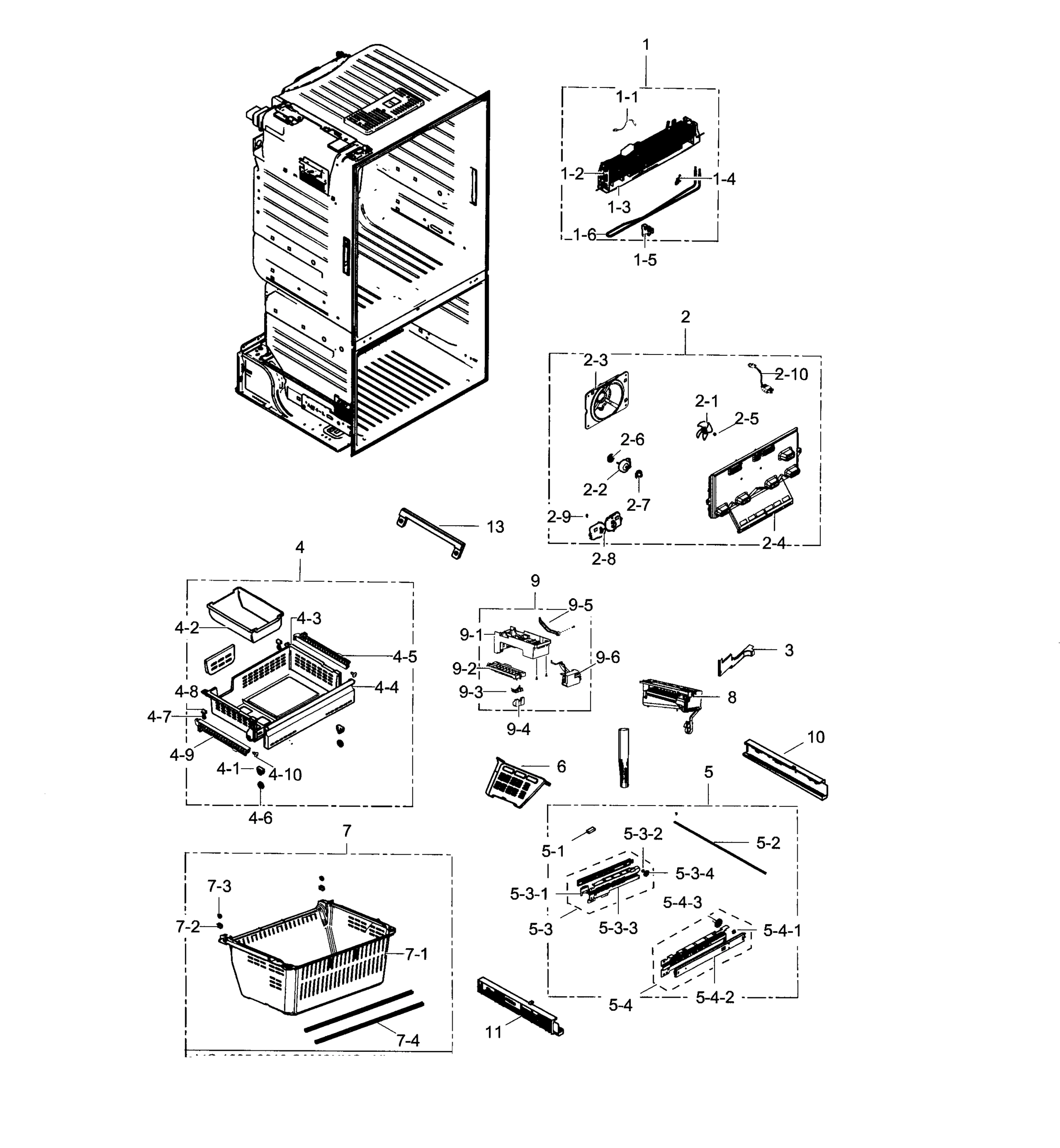

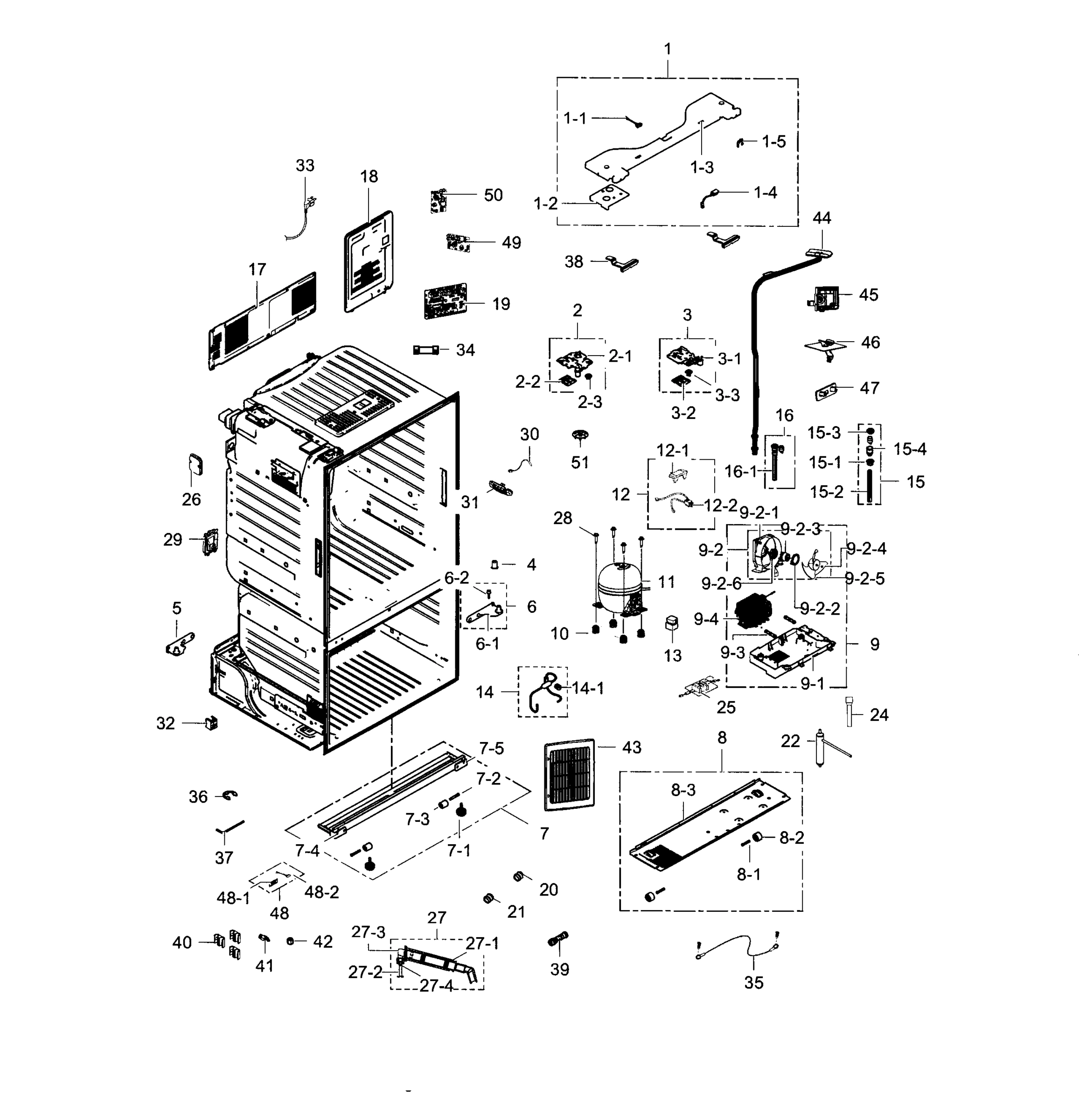

Model Samsung RF28HFEDTWW/AA-03 Refrigerator – Common Parts &amp; Diagrams

1

DA91-03809F Samsung Refrigerator Left-Hand Do Backorder SMG DA91-03809F $220.70

1

DA96-00632C Samsung Refrigerator Evaporator A Backorder SMG DA96-00632C $242.58

1-1

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $24.47

1-1

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $75.95

1-1

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $23.22

1-2

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $84.55

1-2

DA61-08196A Samsung Refrigerator Door Stopper Backorder SMG DA61-08196A $26.92

1-2

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $14.51

1-3

DA61-02383C Samsung Refrigerator Door Support Backorder SMG DA61-02383C $4.56

1-3

DA97-12522J Samsung Refrigerator Freezer Door Backorder SMG DA97-12522J $174.44

DA41-00676G Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00676G $41.72

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $7.87

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $2.91

DA96-00962A Samsung Refrigerator Reed Switch Backorder SMG DA96-00962A $15.76

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $16.58

1-5

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.07

1-5

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $8.71

1-6

DA47-00318M Samsung Refrigerator Metal Sheath Backorder SMG DA47-00318M $117.25

1-6

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $42.91

1-7

DA34-00066A Samsung Refrigerator Door Interlo Backorder SMG DA34-00066A $27.65

1-7

DA61-04335A Samsung Refrigerator Handle Sprin Backorder SMG DA61-04335A $1.17

1-8

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.24

1-8

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

1-9

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $1.67

1-10

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $56.89

1-10

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $7.05

1-11

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.49

2

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $27.29

2

DA97-05253W Samsung Refrigerator Door Gasket In Stock SMG DA97-05253W $174.44

2

DA97-08541A Samsung Refrigerator Evaporator C Backorder SMG DA97-08541A $295.61

2

DA97-12573A Samsung Refrigerator Upper Left H In Stock SMG DA97-12573A $60.53

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $49.61

2-1

Refrigerator evaporator fan blade SMG DA31-00124A Contact Us For Availability

2-2

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $117.25

2-3

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $4.56

2-6

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $3.73

2-7

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.31

2-10

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $16.58

3

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $5.80

3

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $11.20

3

DA97-12574A Samsung Refrigerator Upper Right In Stock SMG DA97-12574A $55.37

3

DA97-12714A Samsung Refrigerator Handle Bar A Backorder SMG DA97-12714A $114.31

3

DA97-12715A Samsung Refrigerator Handle Bar A Backorder SMG DA97-12715A $117.25

3

DA97-12963A Samsung Refrigerator Freezer Guar Backorder SMG DA97-12963A $65.70

3-1

DA61-08228A Samsung Refrigerator Handle Suppo Backorder SMG DA61-08228A $9.11

3-1

DA63-02750A Samsung Refrigerator Cover Slide Backorder SMG DA63-02750A $1.67

3-2

DA61-08246A Samsung Refrigerator Upper Handle Backorder SMG DA61-08246A $22.38

3-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $4.15

3-11

DA62-02429G Samsung Refrigerator Water Line P Backorder SMG DA62-02429G $6.22

4

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $4.15

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.67

4-1

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $7.47

4-1

DA67-02787C Samsung Refrigerator ABS Handle C Backorder SMG DA67-02787C $1.67

4-2

DA61-05300A Samsung Refrigerator Ice Cube Cas Backorder SMG DA61-05300A $56.54

4-2

DA61-08229A Samsung Refrigerator Freezer Hand In Stock SMG DA61-08229A $9.53

4-3

DA61-08247A Samsung Refrigerator Freezer Door In Stock SMG DA61-08247A $23.63

4-6

DA66-00554A Samsung Refrigerator Upper Freeze In Stock SMG DA66-00554A $4.56

4-8

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.24

4-9

DA61-05186A Samsung Refrigerator Upper Tray G Backorder SMG DA61-05186A $14.93

4-10

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $0.92

5

DA97-12712A Samsung Refrigerator Door Handle Backorder SMG DA97-12712A $125.51

5

DA97-13805B Samsung Refrigerator Bin Assembly Backorder SMG DA97-13805B $132.97

5

DA97-13829C Samsung Refrigerator Ice Route Gu In Stock SMG DA97-13829C $135.33

5

DA97-14383A Samsung Refrigerator Lower Hanger Backorder SMG DA97-14383A $248.16

5-1

DA31-00079D Samsung Refrigerator Geared Dispe In Stock SMG DA31-00079D $79.39

5-2

DA66-00437B Samsung Refrigerator Gear Shaft Backorder SMG DA66-00437B $29.87

5-3

DA97-13661C Samsung Refrigerator Left Rail As In Stock SMG DA97-13661C $151.35

5-4

DA97-13662A Samsung Refrigerator Lower Slide Backorder SMG DA97-13662A $128.05

5-5

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $41.07

5-31

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $3.33

5-32

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.24

5-34

Refrigerator freezer drawer gear SMG DA66-00751A Contact Us For Availability

5-43

Refrigerator gear rail SMG DA66-00750A Contact Us For Availability

6

DA97-12612A Samsung Refrigerator Mid Right Hi Backorder SMG DA97-12612A $75.37

6

DA97-12624C Samsung Refrigerator French Assem Backorder SMG DA97-12624C $145.89

6

DA97-13804B Samsung Refrigerator Assembly Gua Backorder SMG DA97-13804B $83.60

6-2

6011-001442 Samsung Refrigerator Socket Bolt Backorder SMG 6011-001442 $1.24

6-10

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.98

6-11

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.15

6-12

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.15

6-13

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $6.22

7

DA97-06276E Samsung Refrigerator Drawer Tray Backorder SMG DA97-06276E $132.33

7

DA97-14318A Samsung Refrigerator Shelf Assemb Backorder SMG DA97-14318A $140.94

7-1

DA61-00805F Samsung Refrigerator Black Front Backorder SMG DA61-00805F $5.80

7-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.31

7-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.05

8

DA97-15217D Samsung Refrigerator Ice Maker As In Stock SMG DA97-15217D $99.55

8-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.80

8-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.56

9

DA97-07603B Samsung Refrigerator Ice Maker In Stock SMG DA97-07603B $167.62

9

DA97-10634A Samsung Refrigerator Slide Shelf Backorder SMG DA97-10634A $122.29

9

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $52.25

9-1

DA61-05227A Samsung Refrigerator Ice Maker Su Backorder SMG DA61-05227A $35.39

9-1

DA63-06897A Samsung Refrigerator Drain Water Backorder SMG DA63-06897A $26.92

9-1

DA63-06945A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-06945A $57.20

9-2

DA63-02284B Samsung Refrigerator Ice Cube Tra In Stock SMG DA63-02284B $28.77

9-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $9.96

9-3

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $2.07

9-4

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $27.65

9-4

Refrigerator condenser coil SMG DA97-08464F Contact Us For Availability

9-5

DA61-05435A Samsung Refrigerator Ice Maker Sh In Stock SMG DA61-05435A $4.98

9-6

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $129.08

9-21

DA61-08427A Samsung Refrigerator Motor Circui Backorder SMG DA61-08427A $17.82

9-23

Refrigerator condenser fan motor SMG DA31-00305C Contact Us For Availability

9-25

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $20.31

10

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $42.77

10

DA97-13809G Samsung Refrigerator Dispenser Co Backorder SMG DA97-13809G $285.02

10-3

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $0.92

10-3

DA92-00597A Samsung Refrigerator LED Display Backorder SMG DA92-00597A $235.82

10-4

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $9.11

10-5

DA41-00217A Samsung Refrigerator Printed Circ In Stock SMG DA41-00217A $36.14

10-5

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $118.03

10-6

Refrigerator dispenser lever SMG DA97-12628H Contact Us For Availability

10-9

DA97-13808F Samsung Refrigerator Dispenser Co Backorder SMG DA97-13808F $140.46

11

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $34.29

11

DA97-14302A Samsung Refrigerator Guard Assemb Backorder SMG DA97-14302A $82.83

11

MKV190CL2B/ASH Samsung Refrigerator Compresso In Stock SMG MKV190CL2B/ASH $289.71

12

DA97-08438D Samsung Refrigerator Vegetable Cr Backorder SMG DA97-08438D $159.19

12

DA97-10848N Samsung Refrigerator All Wire Com In Stock SMG DA97-10848N $58.50

12-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $26.31

12-2

DA39-00154M Samsung Refrigerator Compressor W Backorder SMG DA39-00154M $18.65

13

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $11.60

13-1

DA97-08006D Samsung Refrigerator White Case F In Stock SMG DA97-08006D $97.70

13-3

DA63-05406B Samsung Refrigerator Cover Filter Backorder SMG DA63-05406B $17.00

13-4

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $49.61

13-6

DA61-07497A Samsung Refrigerator Case Filter Backorder SMG DA61-07497A $33.18

13-7

DA60-00258C Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258C $25.80

13-8

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $18.65

14

DA97-08437D Samsung Refrigerator Vegetable Dr Backorder SMG DA97-08437D $117.25

14

DA97-08458G Samsung Refrigerator Pipe Connect Backorder SMG DA97-08458G $73.38

15

DA97-11291A Samsung Refrigerator Right Vegeta Backorder SMG DA97-11291A $33.18

16

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $17.56

16

DA97-08417A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-08417A $174.44

16-1

DA62-01266E Samsung Refrigerator PVC Tube Backorder SMG DA62-01266E $3.31

16-1

DA64-02235A Samsung Refrigerator Pantry Shelf Backorder SMG DA64-02235A $37.61

16-2

DA67-02519A Samsung Refrigerator Pantry Shelf Backorder SMG DA67-02519A $106.80

17

DA97-11541A Samsung Refrigerator Pantry Rail Backorder SMG DA97-11541A $42.38

18

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $38.94

18

DA97-11542D Samsung Refrigerator Right Pantry Backorder SMG DA97-11542D $99.24

18-1

DA63-06520A Samsung Refrigerator Right Pantry Backorder SMG DA63-06520A $58.10

19

DA92-00593A Samsung Refrigerator Main Printed Backorder SMG DA92-00593A $72.40

19

Refrigerator drawer cover SMG DA97-06327A Contact Us For Availability

20

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $5.38

20

DA97-06324C Samsung Refrigerator Motor Damper In Stock SMG DA97-06324C $106.23

20-2

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $150.48

20-3

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $19.49

21-1

DA61-06186B Samsung Refrigerator Drain Plate In Stock SMG DA61-06186B $39.45

21-2

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $4.98

21-3

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $18.59

21-5

DA47-00244U Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244U $108.11

21-6

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $7.87

21-7

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.24

21-8

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $0.99

22

DA97-12608A Samsung Refrigerator Evaporator C Backorder SMG DA97-12608A $167.38

22-2

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $9.97

22-4

DA97-12815B Samsung Refrigerator Evaporator F In Stock SMG DA97-12815B $108.31

23

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $222.00

23-1

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $177.25

23-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $73.94

23-3

DA96-00682D Samsung Refrigerator Auger Motor In Stock SMG DA96-00682D $100.54

23-6

DA74-40151G Samsung Refrigerator Ice Dispense In Stock SMG DA74-40151G $96.04

24

DA97-14474C Samsung Refrigerator Ice Bucket T In Stock SMG DA97-14474C $173.14

24-1

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $4.98

24-2

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $2.49

25

DA27-00022B Samsung Refrigerator Coil Filter In Stock SMG DA27-00022B $87.98

25

DA97-11538A Samsung Refrigerator Left Pantry Backorder SMG DA97-11538A $55.06

26

DA97-12654A Samsung Refrigerator Cap Angle As Backorder SMG DA97-12654A $1.99

27

DA41-00519Q Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00519Q $20.15

27

DA97-00209Z Samsung Refrigerator Water Pipe F In Stock SMG DA97-00209Z $79.68

27-1

DA47-00192E Samsung Refrigerator Ice Maker Fi In Stock SMG DA47-00192E $57.20

27-3

DA73-00134D Samsung Refrigerator Water Pipe A Backorder SMG DA73-00134D $45.68

28

DA97-11539A Samsung Refrigerator Right Pantry Backorder SMG DA97-11539A $45.35

29

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.40

29-1

DA61-04290A Samsung Refrigerator Pantry Guide Backorder SMG DA61-04290A $103.60

29-3

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $11.20

29-4

DA63-04275B Samsung Refrigerator Pantry Front Backorder SMG DA63-04275B $46.99

29-5

DA63-04276B Samsung Refrigerator Pantry Trim Backorder SMG DA63-04276B $33.56

30

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $19.07

31

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.31

31-1

DA67-02014B Samsung Refrigerator Insert Fix S Backorder SMG DA67-02014B $73.65

32

DA97-14471A Samsung Refrigerator Case Lock As Backorder SMG DA97-14471A $42.38

33

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $64.47

36

DA60-00143B Samsung Refrigerator Housing Reta In Stock SMG DA60-00143B $0.92

38

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $6.59

39

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $42.16

41

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $18.25

42

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.62

48-2

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $19.49

49

DA92-00483B Samsung Refrigerator Inverter PCB In Stock SMG DA92-00483B $162.58

50

DA92-00486A Samsung Refrigerator Module Assem In Stock SMG DA92-00486A $120.19

1061

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $12.02

1062

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $42.04

1121

DA66-00440A Samsung Refrigerator Auto Close R In Stock SMG DA66-00440A $1.24

1314

DA67-02505B Samsung Refrigerator Tank Filter Backorder SMG DA67-02505B $7.87

2242

DA81-06013A Samsung Refrigerator Evaporator F In Stock SMG DA81-06013A $91.18

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.92

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.24

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $12.44

DA97-14447A Samsung Refrigerator Roller Assem Backorder SMG DA97-14447A $15.76
