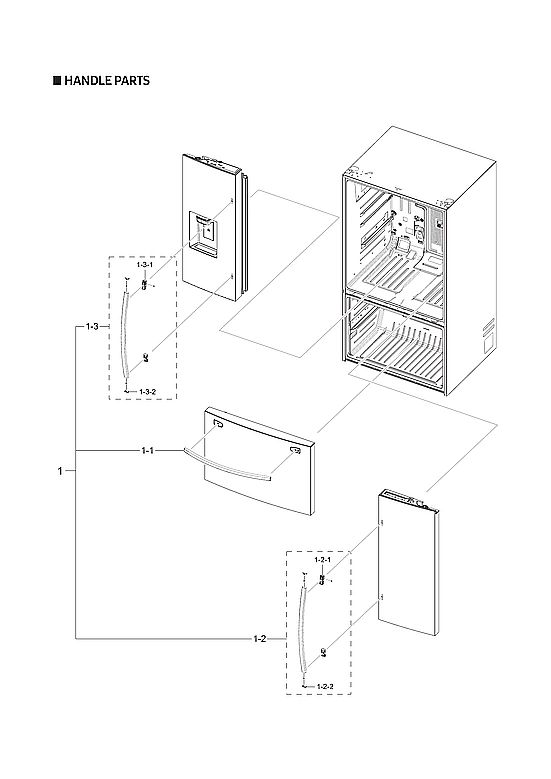

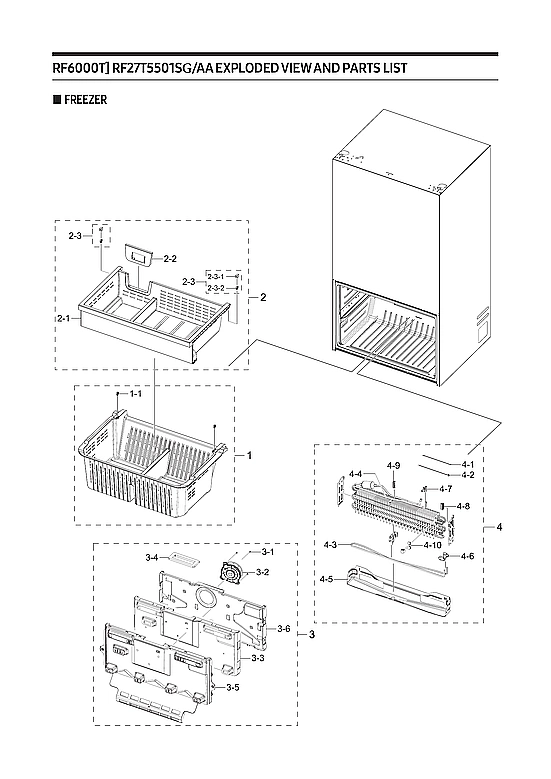

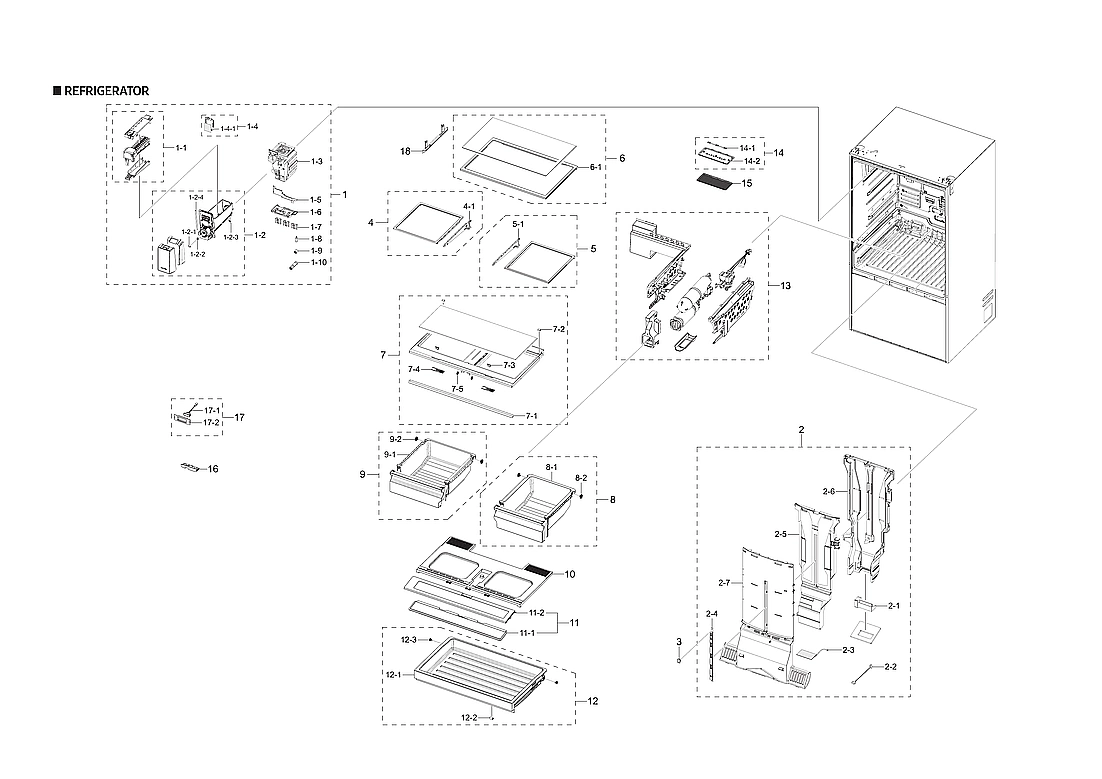

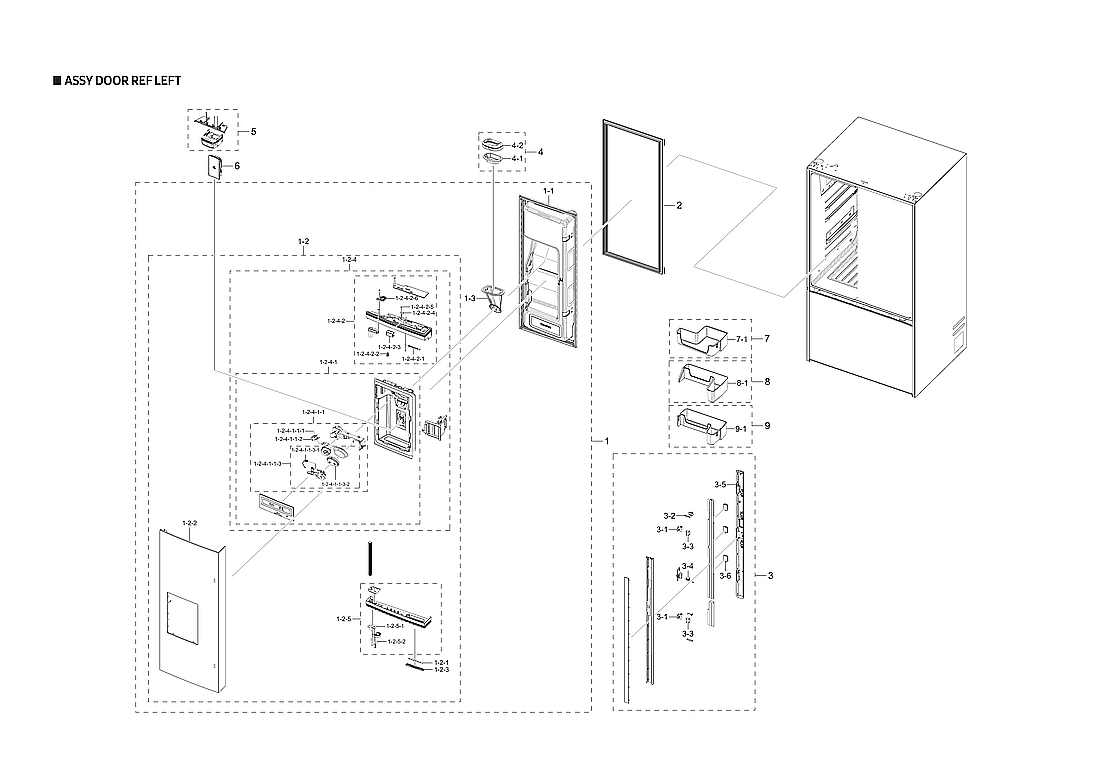

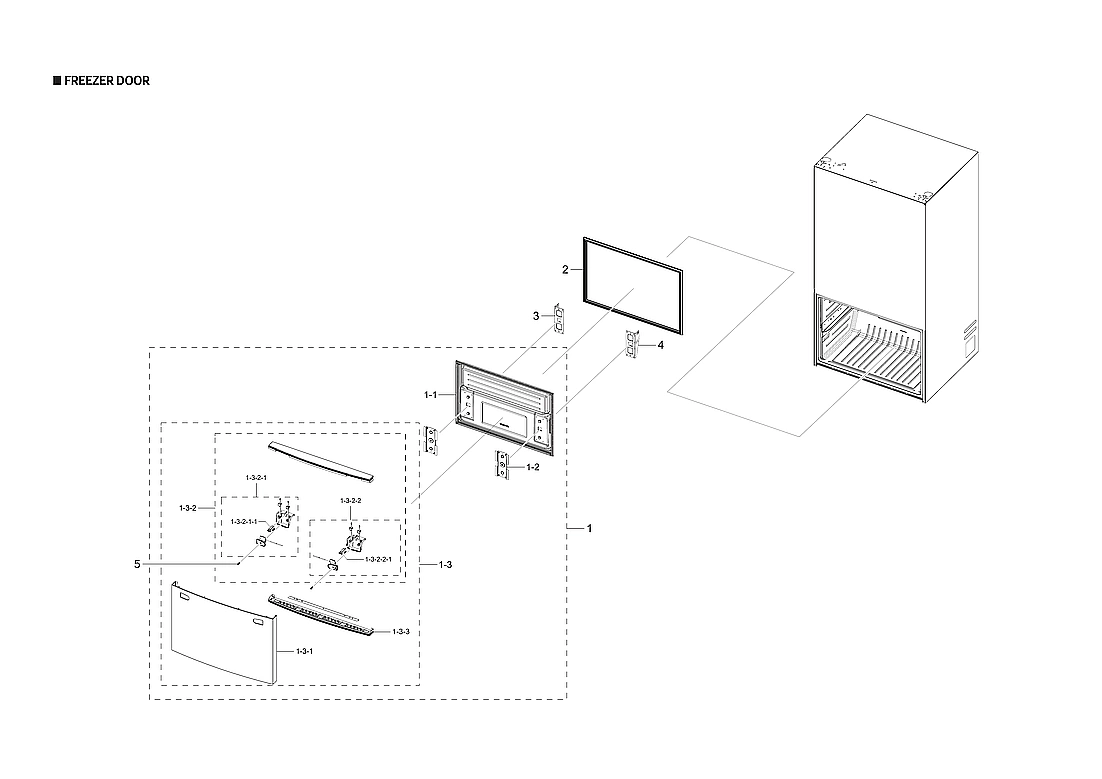

Model Samsung RF27T5501SG/AA-00 Refrigerator – Common Parts &amp; Diagrams

1

ASSY ICE MAKER SMG DA90-12111A Contact Us For Availability

DA34-00043K Samsung Refrigerator Reed Switch Backorder SMG DA34-00043K $50.57

DA61-04804A Samsung Refrigerator Roller Wheel Backorder SMG DA61-04804A $20.67

DA64-04021A Samsung Refrigerator Nameplate Ma Backorder SMG DA64-04021A $37.42

DA97-15217D Samsung Refrigerator Ice Maker As In Stock SMG DA97-15217D $108.74

Refrigerator Freezer Door Handle SMG DA97-20017B No Longer Available

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $14.48

DA97-11291A Samsung Refrigerator Right Vegeta Backorder SMG DA97-11291A $29.37

DA97-14474C Samsung Refrigerator Ice Bucket T In Stock SMG DA97-14474C $155.83

PANEL-REF RIGHT SMG DA64-06269A Contact Us For Availability

1-2-1

DA60-00231A Samsung Refrigerator Fastener Rin Backorder SMG DA60-00231A $6.79

1-2-2

DA60-30108A Samsung Refrigerator Hex Nut Backorder SMG DA60-30108A $3.63

1-2-3

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $6.33

1-2-4

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $2.72

1-2-5-1

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $19.45

DA64-04477D Samsung Refrigerator Table Top Backorder SMG DA64-04477D $78.88

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $186.54

DA97-20021B Samsung Refrigerator Left Handle Backorder SMG DA97-20021B $142.67

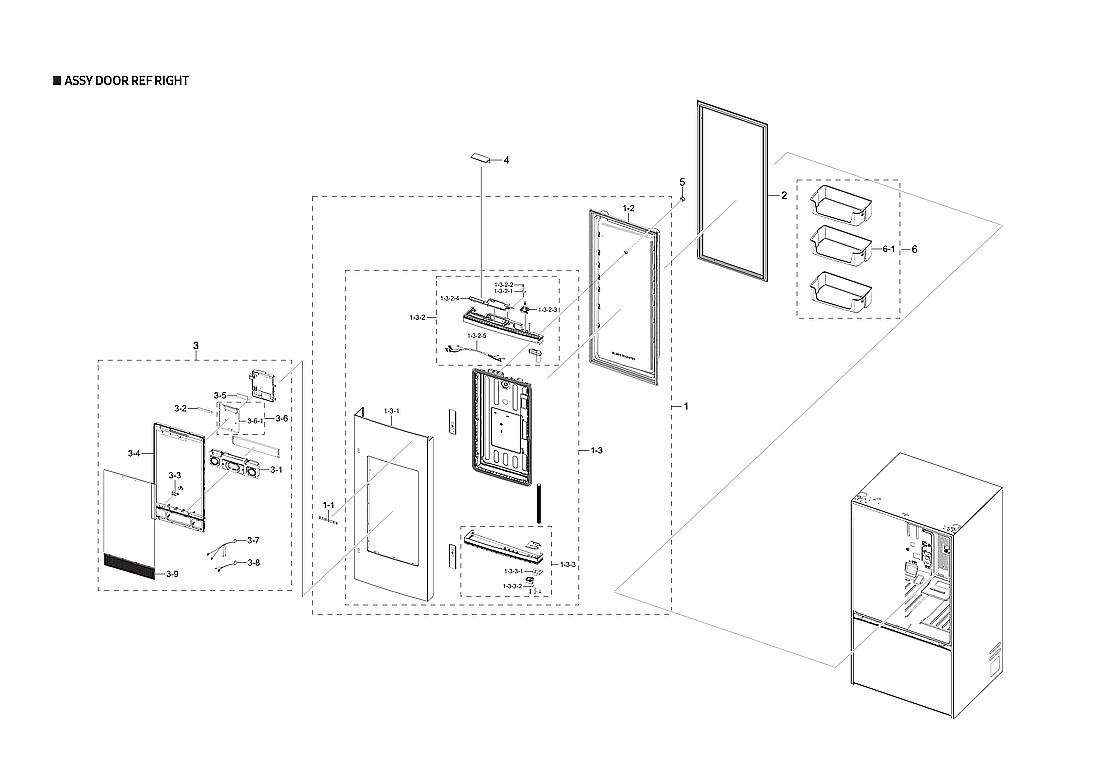

ASSY PLATE DOOR-REF RIGHT SMG DA97-21012G Contact Us For Availability

1-3-1

PLATE DOOR-REF RIGHT SMG DA61-13973G Contact Us For Availability

1-3-2

ASSY CAP DOOR-REF UP RIGHT SMG DA97-21013E Contact Us For Availability

1-3-2-4

DA63-08826B Samsung Refrigerator Door Cover C Backorder SMG DA63-08826B $135.64

1-3-2-5

DA96-01254E Samsung Refrigerator RF600 Door W Backorder SMG DA96-01254E $144.10

1-3-3

ASSY CAP DOOR-REF LOW RIGHT SMG DA97-21014B Contact Us For Availability

1-3-3-1

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $26.15

1-3-3-2

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.97

1-4

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $14.03

1-4-1-1

DA97-13405A Samsung Refrigerator Ice Room Cas Backorder SMG DA97-13405A $249.15

1-5

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $10.40

1-6

DA61-09570A Samsung Refrigerator Cool Abs Cas Backorder SMG DA61-09570A $3.69

1-7

DA61-04712C Samsung Refrigerator Fixer Hose Backorder SMG DA61-04712C $23.08

1-7

DA61-07328A Samsung Refrigerator Freezer Rail Backorder SMG DA61-07328A $178.60

1-8

DA61-07329A Samsung Refrigerator Right Hand U Backorder SMG DA61-07329A $174.65

1-8

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $25.77

1-9

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $27.77

1-10

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $17.64

2

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $7.70

2

DA97-13015K Samsung Refrigerator Gasket Assem Backorder SMG DA97-13015K $87.96

2

DA97-21004A Samsung Refrigerator Cover Assemb Backorder SMG DA97-21004A $175.20

2-1

DA31-00043E Samsung Refrigerator DC Damper Mo In Stock SMG DA31-00043E $136.06

2-2

DA32-00006J Samsung Refrigerator Temperature Backorder SMG DA32-00006J $25.34

2-3

HEATER CORD- DRAIN SMG DA47-00248H Contact Us For Availability

2-3-1

DA61-04813A Samsung Refrigerator Upper Roller Backorder SMG DA61-04813A $3.26

2-3-2

DA66-00639A Samsung Refrigerator Upper Tray R Backorder SMG DA66-00639A $2.86

2-5

INSULATION-MULTI REF A SMG DA62-05456A Contact Us For Availability

2-6

INSULATION DUCT-B SMG DA62-05457A Contact Us For Availability

2-7

COVER MULTI-REF SMG DA63-09784A Contact Us For Availability

3

DA67-03978B Samsung Refrigerator Evaporator C Backorder SMG DA67-03978B $50.57

3

DA97-12573A Samsung Refrigerator Upper Left H In Stock SMG DA97-12573A $62.78

3

DA97-20810D Samsung Refrigerator Display Cove Backorder SMG DA97-20810D $734.55

3-1

3001-002858 Samsung Refrigerator Speaker Backorder SMG 3001-002858 $138.46

3-1

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.98

3-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $47.90

3-2

4709-002748 Samsung Air Conditioner Wi-Fi Mod Backorder SMG 4709-002748 $109.18

3-2

DA31-00334C Samsung Refrigerator BLDC Fan Mot In Stock SMG DA31-00334C $128.40

3-2

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.35

3-3

DA32-00080A Samsung Refrigerator PSD Sensor Backorder SMG DA32-00080A $100.18

3-3

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $4.07

3-3

DA67-02146A Samsung Refrigerator French Cap C Backorder SMG DA67-02146A $8.14

3-4

DA67-02154A Samsung Refrigerator French Door Backorder SMG DA67-02154A $4.98

3-4

NON-SERVICEABLE PART SMG N/P Contact Us For Availability

3-5

DA92-00789A Samsung Assembly Module Backorder SMG DA92-00789A $59.63

3-6

DA94-05450A Samsung Refrigerator Printed Circ Backorder SMG DA94-05450A $292.95

3-6-1

DA92-01272A Samsung PCB Display Assembly Backorder SMG DA92-01272A $240.59

3-7

DA96-01253B Samsung Assembly Wire Harness Backorder SMG DA96-01253B $23.99

3-8

DA96-01368A Samsung Refrigerator Display Wire Backorder SMG DA96-01368A $43.06

3-9

DA97-19330C Samsung Assembly COVER FRONT;RF95 Backorder SMG DA97-19330C $133.39

4

DA61-04841A Samsung Refrigerator Front Hanger Backorder SMG DA61-04841A $68.76

4

DA62-04309D Samsung Refrigerator Single Moist Backorder SMG DA62-04309D $273.66

4

DA63-08449A Samsung Refrigerator Lock Cover Backorder SMG DA63-08449A $11.31

4

DA97-12574A Samsung Refrigerator Upper Right Backorder SMG DA97-12574A $64.44

4

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $48.42

4

DA97-20335A Samsung Refrigerator Shelf Module Backorder SMG DA97-20335A $102.53

4-1

DA32-10104N Samsung Refrigerator Temperature Backorder SMG DA32-10104N $18.22

4-1

DA63-08248A Samsung Gasket Refrigerator Backorder SMG DA63-08248A $30.19

4-1

DA97-14398A Samsung Refrigerator Right Hanger Backorder SMG DA97-14398A $48.29

4-2

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $23.08

4-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $9.50

4-3

DA47-00526B Samsung Refrigerator Metal Sheath Backorder SMG DA47-00526B $127.48

4-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $4.07

4-6

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $8.14

4-7

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $5.89

5

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $4.98

5

DA67-30266K Samsung Refrigerator Cap Screw Backorder SMG DA67-30266K $0.97

5

DA97-12749B Samsung Refrigerator Compressor C Backorder SMG DA97-12749B $105.58

5

DA97-17299M Samsung Refrigerator Dispenser Co Backorder SMG DA97-17299M $217.49

5

DA97-20336A Samsung Refrigerator Right Fixed Backorder SMG DA97-20336A $143.43

5-1

DA97-15168A Samsung Refrigerator Left Hanger Backorder SMG DA97-15168A $118.65

6

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.35

6

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $45.47

6

DA97-21003A Samsung Refrigerator Upper Shelf Backorder SMG DA97-21003A $103.64

6

DA97-21146A Samsung Refrigerator Dispenser Le Backorder SMG DA97-21146A $45.88

6-1

DA97-20988A Samsung Refrigerator Right Door B Backorder SMG DA97-20988A $125.73

6-1

SHELF-REF UP SMG DA67-05002A Contact Us For Availability

7

DA97-20985A Samsung Refrigerator Upper Door B Backorder SMG DA97-20985A $118.57

7

Refrigerator Crisper Drawer Cover Assembly SMG DA97-20333A Contact Us For Availability

7-1

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $138.05

7-1

GUARD-REF UP;RF6000T,GPPS,T3,T Backorder SMG DA63-09776A $26.88

7-2

DA61-04809A Samsung Refrigerator Vegetable Fi In Stock SMG DA61-04809A $0.97

7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.07

7-3

DA64-00817B Samsung Refrigerator Humidity Kno Backorder SMG DA64-00817B $8.14

7-4

DA66-00638A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00638A $3.63

7-5

DA97-15997A Samsung Refrigerator Roller Assem Backorder SMG DA97-15997A $13.12

8

DA97-08437H Samsung Refrigerator Right Vegeta Backorder SMG DA97-08437H $150.17

8

DA97-20986A Samsung Refrigerator Middle Door Backorder SMG DA97-20986A $115.70

8

VALVE STEP SMG DA62-04678E Contact Us For Availability

8-1

Refrigerator Door Bin, Middle SMG DA63-09777A Contact Us For Availability

8-1

CASE VEG-RIGHT SMG DA61-13474B Contact Us For Availability

8-2

DA97-19988A Samsung Refrigerator Roller Assem Backorder SMG DA97-19988A $78.41

9

DA97-08438H Samsung Assembly Case Veg-Left Dr In Stock SMG DA97-08438H $163.86

9

DA97-11541B Samsung Refrigerator Left Pantry Backorder SMG DA97-11541B $45.20

9

DA97-20987A Samsung Refrigerator Lower Door B Backorder SMG DA97-20987A $115.47

9-1

DA63-09778A Samsung Refrigerator Lower Guard Backorder SMG DA63-09778A $26.88

9-1

CASE VEG-LEFT SMG DA61-13473B Contact Us For Availability

10

DA97-20997A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-20997A $122.84

10-1

DA62-01266E Samsung Refrigerator PVC Tube Backorder SMG DA62-01266E $3.63

10-2

DA63-00951C Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951C $6.79

11

DA94-06786F Samsung Assembly PCB EEPROM Backorder SMG DA94-06786F $260.59

11

DA97-21058A Samsung Refrigerator Slide Cover Backorder SMG DA97-21058A $65.44

11-1

COVER SLIDE-A SMG DA63-09794A Contact Us For Availability

11-2

COVER SLIDE-B SMG DA63-09795A Contact Us For Availability

12

DA97-20998A Samsung Refrigerator Pantry Drawe Backorder SMG DA97-20998A $144.18

12-1

CASE PANTRY SMG DA61-13950A Contact Us For Availability

12-2

DA60-10123E Samsung Refrigerator Hex Bolt M6 Backorder SMG DA60-10123E $1.81

12-2

DA66-00637A Samsung Refrigerator Pantry Rolle Backorder SMG DA66-00637A $0.97

12-3

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $2.26

12-3

DA97-19988B Samsung Refrigerator Roller Assem Backorder SMG DA97-19988B $39.45

12-4

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $5.89

12-5

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $6.79

12-6

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.26

13

DA63-04604A Samsung Refrigerator Left Lower R Backorder SMG DA63-04604A $123.12

13

DA97-21041A Samsung Refrigerator Filter Case In Stock SMG DA97-21041A $197.75

14

DA63-04605A Samsung Refrigerator Lower Right Backorder SMG DA63-04605A $62.48

14

DA97-12607A Samsung Refrigerator Lamp Assembl Backorder SMG DA97-12607A $187.97

14-1

DA41-00676K Samsung Refrigerator LED Lamp Ass Backorder SMG DA41-00676K $103.43

14-2

Refrigerator Lamp Case SMG DA61-08237A Contact Us For Availability

15

DA63-06921A Samsung Cover Lamp Backorder SMG DA63-06921A $22.18

15-5

Refrigerator Freezer Basket Slide Rail Assemb SMG DA61-09087A Contact Us For Availability

16

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $4.98

16

DA97-10595E Samsung Refrigerator Low Right Sl Backorder SMG DA97-10595E $169.91

16-3

DA61-09088A Samsung Refrigerator Slide Rail L Backorder SMG DA61-09088A $170.18

17

DA97-13783A Samsung Refrigerator Assembly Cov Backorder SMG DA97-13783A $23.53

17-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $22.18

17-2

DA63-07513A Samsung Refrigerator Reed Switch Backorder SMG DA63-07513A $5.42

18

DA61-13962A Samsung Fixer Shelf Rf6000t Hips Backorder SMG DA61-13962A $47.09

18

Refrigerator Drain Tube Kit SMG DA97-04049E No Longer Available

27

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $47.96

12411

Refrigerator Dispenser Ice Chute Door and Mot SMG DA97-17296A Contact Us For Availability

12421

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $62.78

12422

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $17.78

12423

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.26

12424

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $9.50

12425

DA67-02795B Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795B $27.16

12426

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $16.75

13211

DA61-06014A Samsung Refrigerator Handle Assem Backorder SMG DA61-06014A $2.72

13221

DA61-06014B Samsung Refrigerator Handle Assem In Stock SMG DA61-06014B $4.52

124111

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $79.72

1241131

DA61-01914A Samsung Refrigerator Ice Route Co Backorder SMG DA61-01914A $3.17

1241132

DA63-04648A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04648A $5.71

NI

Samsung Refrigerator Water Filter SMG HAF-QIN Contact Us For Availability
