Model Samsung RF27T5201SG/AA-01 Refrigerator – Common Parts &amp; Diagrams

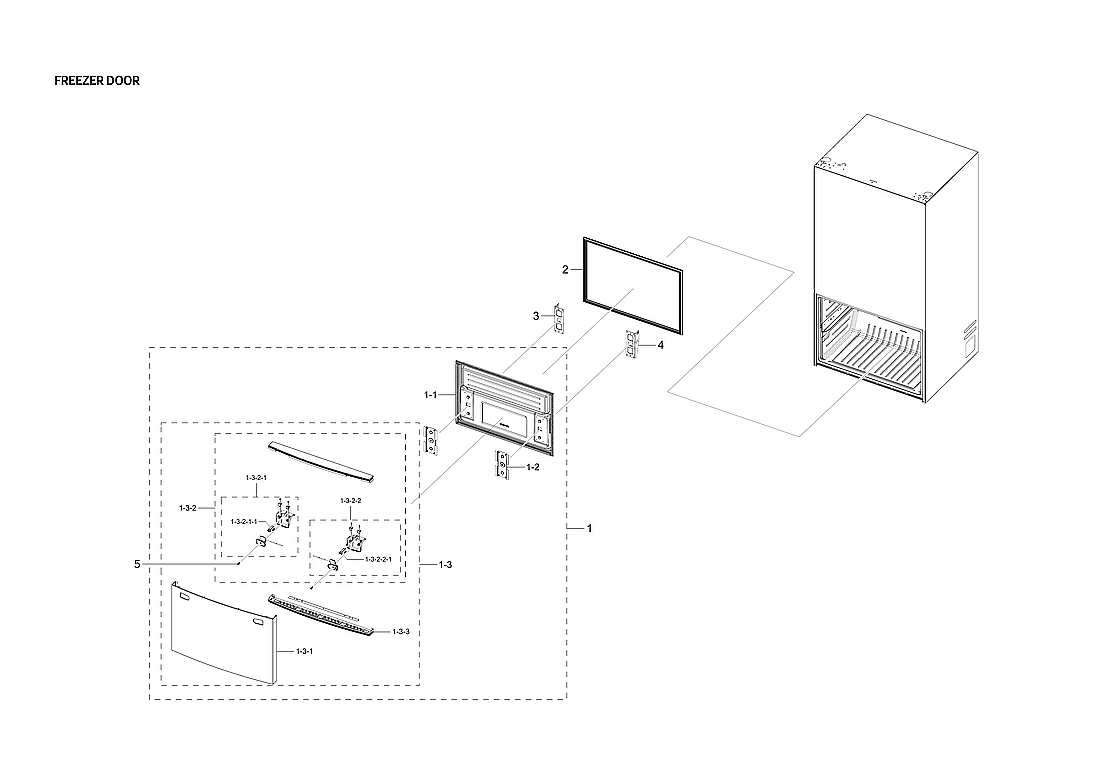

1-1

DA64-04021A Samsung Refrigerator Nameplate Ma Backorder SMG DA64-04021A $32.04

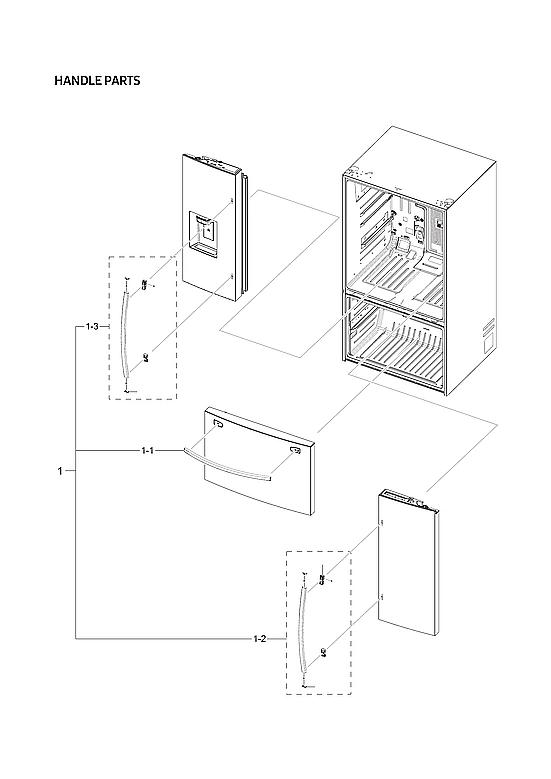

1-1

DA97-15217D Samsung Refrigerator Ice Maker As Backorder SMG DA97-15217D $99.55

1-1

Refrigerator freezer door handle SMG DA97-20017B Contact Us For Availability

1-2

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $13.56

1-2

DA97-11291A Samsung Refrigerator Right Vegeta In Stock SMG DA97-11291A $31.02

1-2

Panel-ref right SMG DA64-06268A Contact Us For Availability

1-2-1

DA60-00231A Samsung Refrigerator Fastener Rin Backorder SMG DA60-00231A $5.82

1-2-2

DA60-30108A Samsung Refrigerator Hex Nut Backorder SMG DA60-30108A $3.09

1-2-3

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $4.65

1-2-4

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $2.32

1-2-5-1

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $21.70

DA64-04477D Samsung Refrigerator Table Top Backorder SMG DA64-04477D $67.49

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $219.16

DA97-20021B Samsung Refrigerator Left Handle Backorder SMG DA97-20021B $124.62

Assy plate door-ref right SMG DA97-21012B Contact Us For Availability

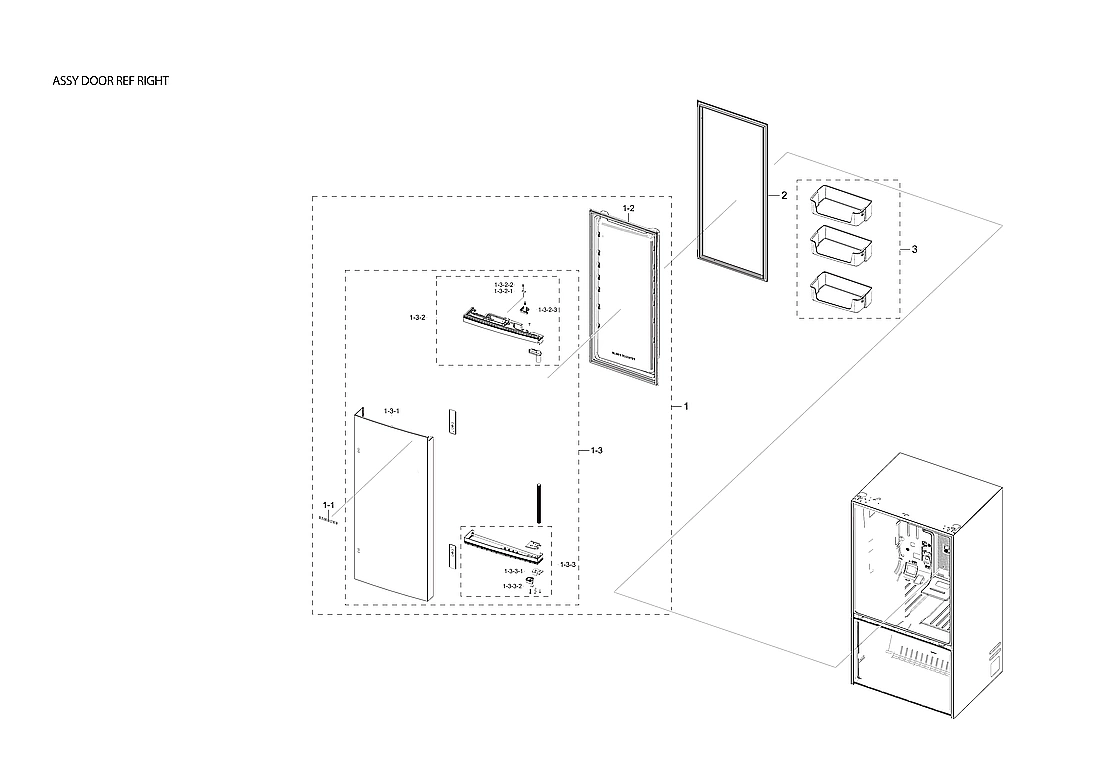

1-3-1

Plate door-ref right SMG DA61-13973B Contact Us For Availability

1-3-2

Assy cap door-ref up right SMG DA97-21013B Contact Us For Availability

1-3-2-3

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $15.50

1-3-2-4

Assy cap door-ref low right SMG DA97-21014B Contact Us For Availability

1-3-3-1

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $22.40

1-3-3-2

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

1-4

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $16.27

1-4-1-1

DA97-13405A Samsung Refrigerator Ice Room Cas Backorder SMG DA97-13405A $205.34

1-5

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $10.47

1-6

DA61-09570A Samsung Refrigerator Cool Abs Cas Backorder SMG DA61-09570A $3.50

1-7

DA61-04712C Samsung Refrigerator Fixer Hose Backorder SMG DA61-04712C $19.76

1-7

DA61-07328A Samsung Refrigerator Freezer Rail In Stock SMG DA61-07328A $152.26

1-8

DA61-07329A Samsung Refrigerator Right Hand U In Stock SMG DA61-07329A $161.11

1-8

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $17.06

1-9

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.20

1-10

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $32.04

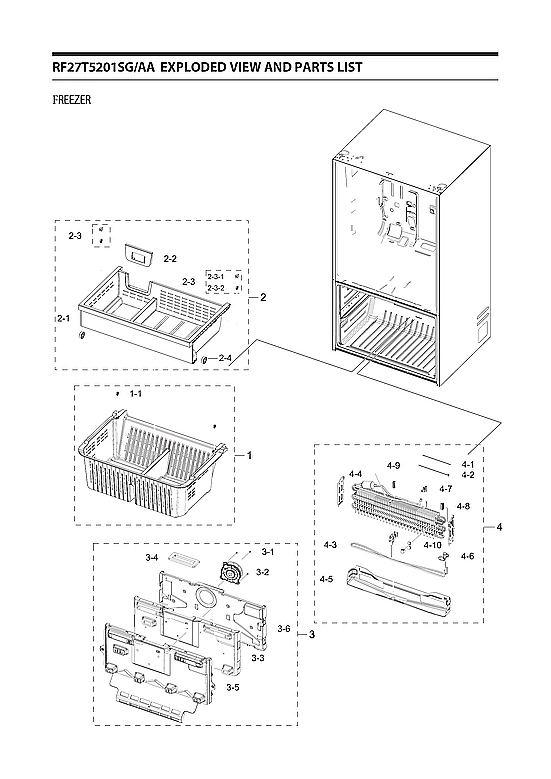

2

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $6.59

2

DA97-13015K Samsung Refrigerator Gasket Assem Backorder SMG DA97-13015K $87.48

2

DA97-21004A Samsung Refrigerator Cover Assemb Backorder SMG DA97-21004A $144.84

2-1

DA31-00043E Samsung Refrigerator DC Damper Mo In Stock SMG DA31-00043E $129.76

2-2

DA32-00006J Samsung Refrigerator Temperature Backorder SMG DA32-00006J $22.05

2-3

Heater cord- drain SMG DA47-00248H Contact Us For Availability

2-4

DA66-00639A Samsung Refrigerator Upper Tray R Backorder SMG DA66-00639A $2.71

2-5

Insulation-multi ref a SMG DA62-05456A Contact Us For Availability

2-6

Insulation duct-b SMG DA62-05457A Contact Us For Availability

2-7

Cover multi-ref SMG DA63-09784A Contact Us For Availability

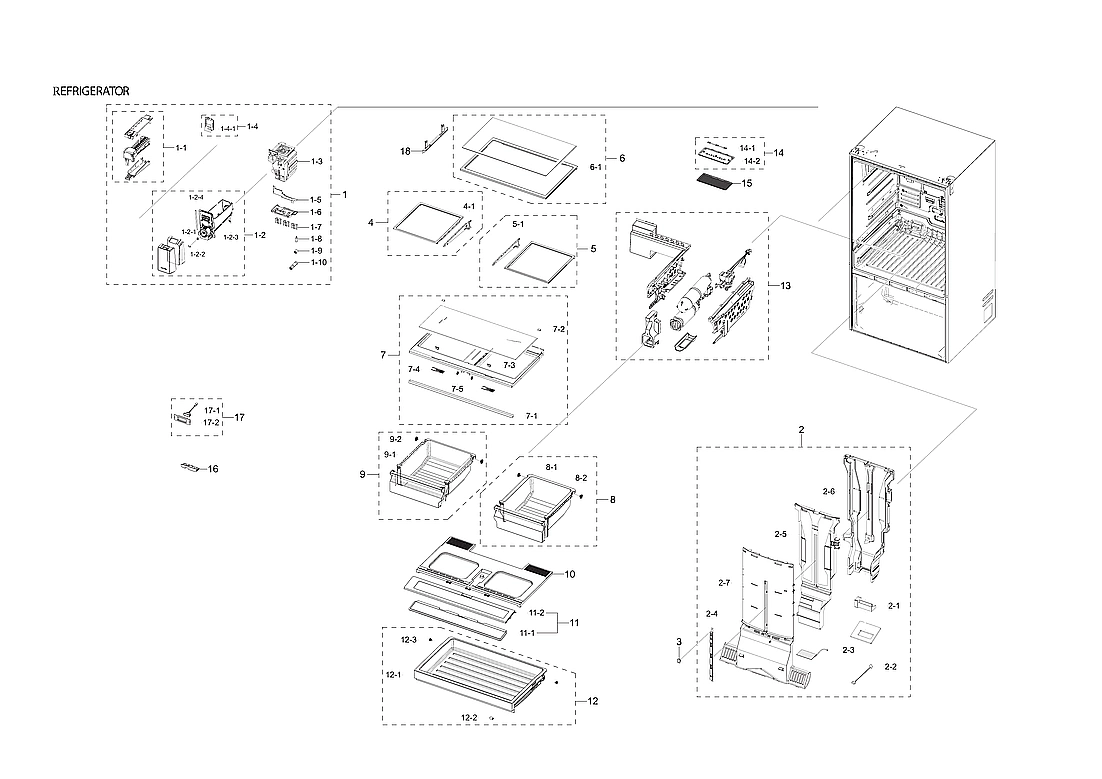

3

DA67-03978B Samsung Refrigerator Evaporator C Backorder SMG DA67-03978B $42.38

3

DA97-12573A Samsung Refrigerator Upper Left H Backorder SMG DA97-12573A $56.56

3

DA97-20814B Samsung Refrigerator Pipe Connect Backorder SMG DA97-20814B $103.39

3

DA97-20984A Samsung Refrigerator Right Guard Backorder SMG DA97-20984A $107.24

3-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $46.37

3-2

DA31-00334C Samsung Refrigerator BLDC Fan Mot In Stock SMG DA31-00334C $118.00

3-3

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $4.26

4

DA61-04841A Samsung Refrigerator Front Hanger Backorder SMG DA61-04841A $57.70

4

DA62-04309D Samsung Refrigerator Single Moist Backorder SMG DA62-04309D $233.82

4

DA97-12574A Samsung Refrigerator Upper Right Backorder SMG DA97-12574A $52.30

4

DA97-20335A Samsung Refrigerator Shelf Module Backorder SMG DA97-20335A $121.13

4-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $17.37

4-1

DA63-08248A Samsung Gasket Refrigerator Backorder SMG DA63-08248A $29.30

4-1

DA97-14398A Samsung Refrigerator Right Hanger Backorder SMG DA97-14398A $41.36

4-2

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $22.47

4-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $9.30

4-3

DA47-00526B Samsung Refrigerator Metal Sheath Backorder SMG DA47-00526B $108.44

4-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $3.88

4-6

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $6.97

4-7

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $7.36

5

DA61-07771C Samsung Refrigerator Left Middle Backorder SMG DA61-07771C $107.51

5

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $3.88

5

DA97-12749B Samsung Refrigerator Compressor C Backorder SMG DA97-12749B $129.92

5

Assy shelf insert-ref fix SMG DA97-20336C Contact Us For Availability

5-1

DA97-15168A Samsung Refrigerator Left Hanger Backorder SMG DA97-15168A $103.15

6

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.56

6

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $38.94

6

DA97-21003A Samsung Refrigerator Upper Shelf Backorder SMG DA97-21003A $100.65

6-1

Shelf-ref up SMG DA67-05002A Contact Us For Availability

7

DA97-12659C Samsung Refrigerator Right Middle Backorder SMG DA97-12659C $107.62

7

DA97-20333B Samsung Refrigerator Cover Vegeta Backorder SMG DA97-20333B $197.28

7-1

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $118.03

7-2

DA61-04809A Samsung Refrigerator Vegetable Fi Backorder SMG DA61-04809A $0.92

7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.26

7-3

Knob-humidity (2) SMG DA64-00817C Contact Us For Availability

7-4

DA66-00638A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00638A $3.09

7-5

DA97-15997A Samsung Refrigerator Roller Assem Backorder SMG DA97-15997A $12.79

8

DA97-08437H Samsung Refrigerator Right Vegeta Backorder SMG DA97-08437H $147.79

8-1

Case veg-right SMG DA61-13474B Contact Us For Availability

9

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $52.52

9

DA97-08438H Samsung Assembly Case Veg-Left Dr In Stock SMG DA97-08438H $141.37

9

DA97-11541B Samsung Refrigerator Left Pantry Backorder SMG DA97-11541B $43.30

9-1

Case veg-left SMG DA61-13473B Contact Us For Availability

10

DA97-20997A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-20997A $101.63

10-1

DA62-01266E Samsung Refrigerator PVC Tube Backorder SMG DA62-01266E $3.09

10-2

DA63-00951C Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951C $7.36

11

DA67-02795B Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795B $26.54

11

DA94-06786A Samsung Refrigerator EEPROM PCB A Backorder SMG DA94-06786A $177.32

11

DA97-21058A Samsung Refrigerator Slide Cover Backorder SMG DA97-21058A $64.53

11-1

Cover slide-a SMG DA63-09794A Contact Us For Availability

11-2

Cover slide-b SMG DA63-09795A Contact Us For Availability

12

DA97-20998A Samsung Refrigerator Pantry Drawe Backorder SMG DA97-20998A $145.94

12-1

Case pantry SMG DA61-13950A Contact Us For Availability

12-2

DA60-10123E Samsung Refrigerator Hex Bolt M6 In Stock SMG DA60-10123E $1.17

12-2

DA66-00637A Samsung Refrigerator Pantry Rolle Backorder SMG DA66-00637A $0.92

12-3

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.09

12-3

DA97-19988B Samsung Refrigerator Roller Assem Backorder SMG DA97-19988B $33.76

12-4

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $6.59

12-5

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $7.36

12-6

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.71

13

DA63-04604A Samsung Refrigerator Left Lower R Backorder SMG DA63-04604A $107.04

13

DA97-21041A Samsung Refrigerator Filter Case In Stock SMG DA97-21041A $232.36

14

DA63-04605A Samsung Refrigerator Lower Right Backorder SMG DA63-04605A $66.43

14

DA97-12607A Samsung Refrigerator Lamp Assembl Backorder SMG DA97-12607A $177.32

14-1

DA41-00676K Samsung Refrigerator LED Lamp Ass Backorder SMG DA41-00676K $103.84

14-2

Refrigerator lamp case SMG DA61-08237A Contact Us For Availability

15

DA63-06921A Samsung Cover Lamp Backorder SMG DA63-06921A $21.03

15-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $3.33

15-5

Refrigerator freezer basket slide rail assemb SMG DA61-09087A Contact Us For Availability

16

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $5.42

16

DA97-10595E Samsung Refrigerator Low Right Sl Backorder SMG DA97-10595E $155.04

16-3

DA61-09088A Samsung Refrigerator Slide Rail L Backorder SMG DA61-09088A $145.80

17

DA97-13783A Samsung Refrigerator Assembly Cov Backorder SMG DA97-13783A $21.70

17-1

DA34-00043J Samsung Refrigerator Door Reed Sw Backorder SMG DA34-00043J $18.21

17-2

DA63-07513A Samsung Refrigerator Reed Switch Backorder SMG DA63-07513A $4.65

18

DA61-13962A Samsung Fixer Shelf Rf6000t Hips Backorder SMG DA61-13962A $52.59

18

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $22.40

12411

Refrigerator dispenser ice chute door and mot SMG DA97-17296A Contact Us For Availability

12422

DA34-00066B Samsung Refrigerator Interlock Do In Stock SMG DA34-00066B $18.28

12423

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $1.94

124111

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $74.19

1241121

DA61-01914A Samsung Refrigerator Ice Route Co Backorder SMG DA61-01914A $2.71

DA61-04804A Samsung Refrigerator Roller Wheel Backorder SMG DA61-04804A $18.94

DA61-06014B Samsung Refrigerator Handle Assem Backorder SMG DA61-06014B $4.65

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.17

DA97-19988A Samsung Refrigerator Roller Assem Backorder SMG DA97-19988A $71.78

Samsung refrigerator water filter SMG HAF-QIN Contact Us For Availability

Non-serviceable part SMG N/P Contact Us For Availability
