Model Samsung RF263TEAESR/AA-00 Refrigerator – Common Parts &amp; Diagrams

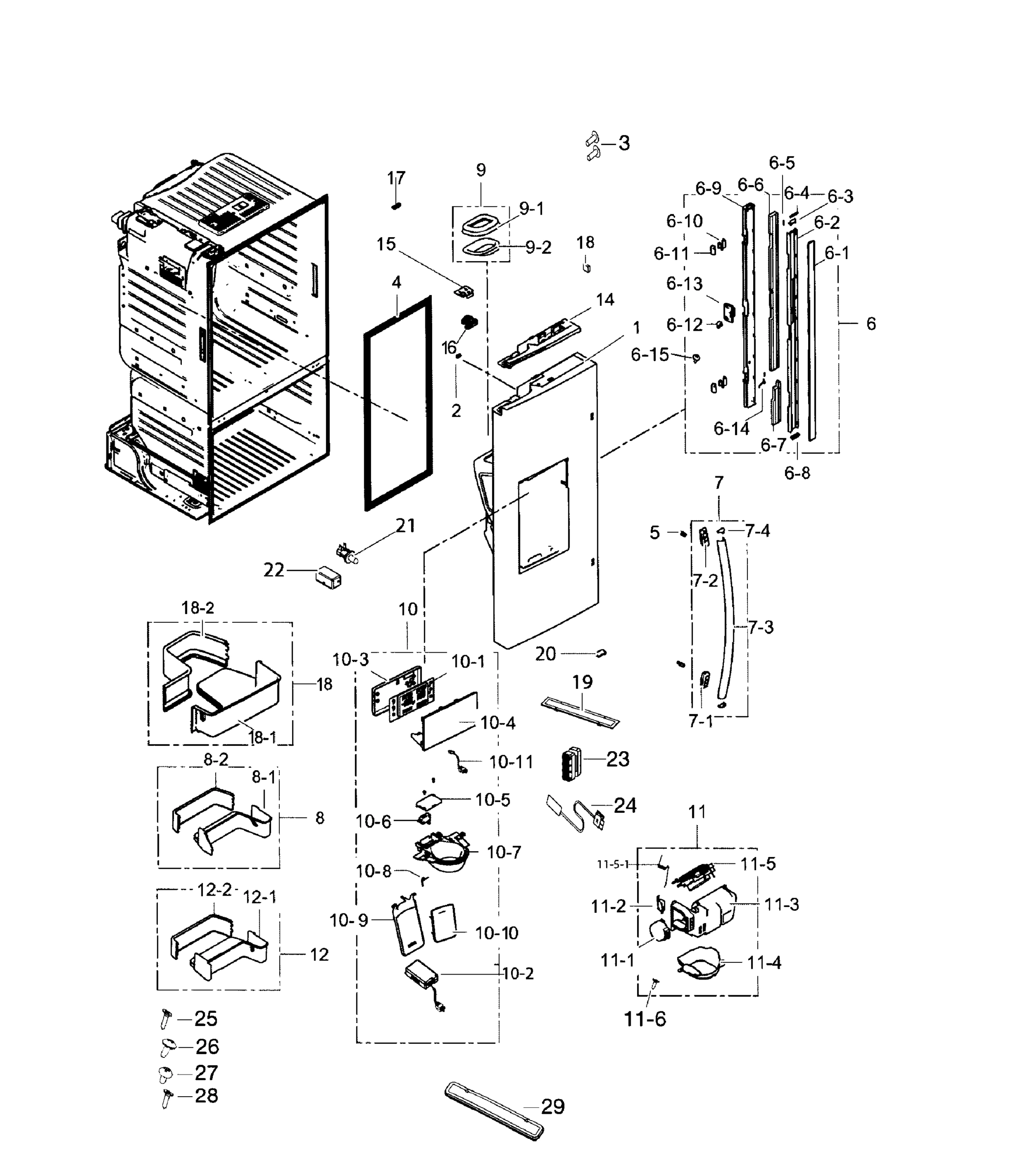

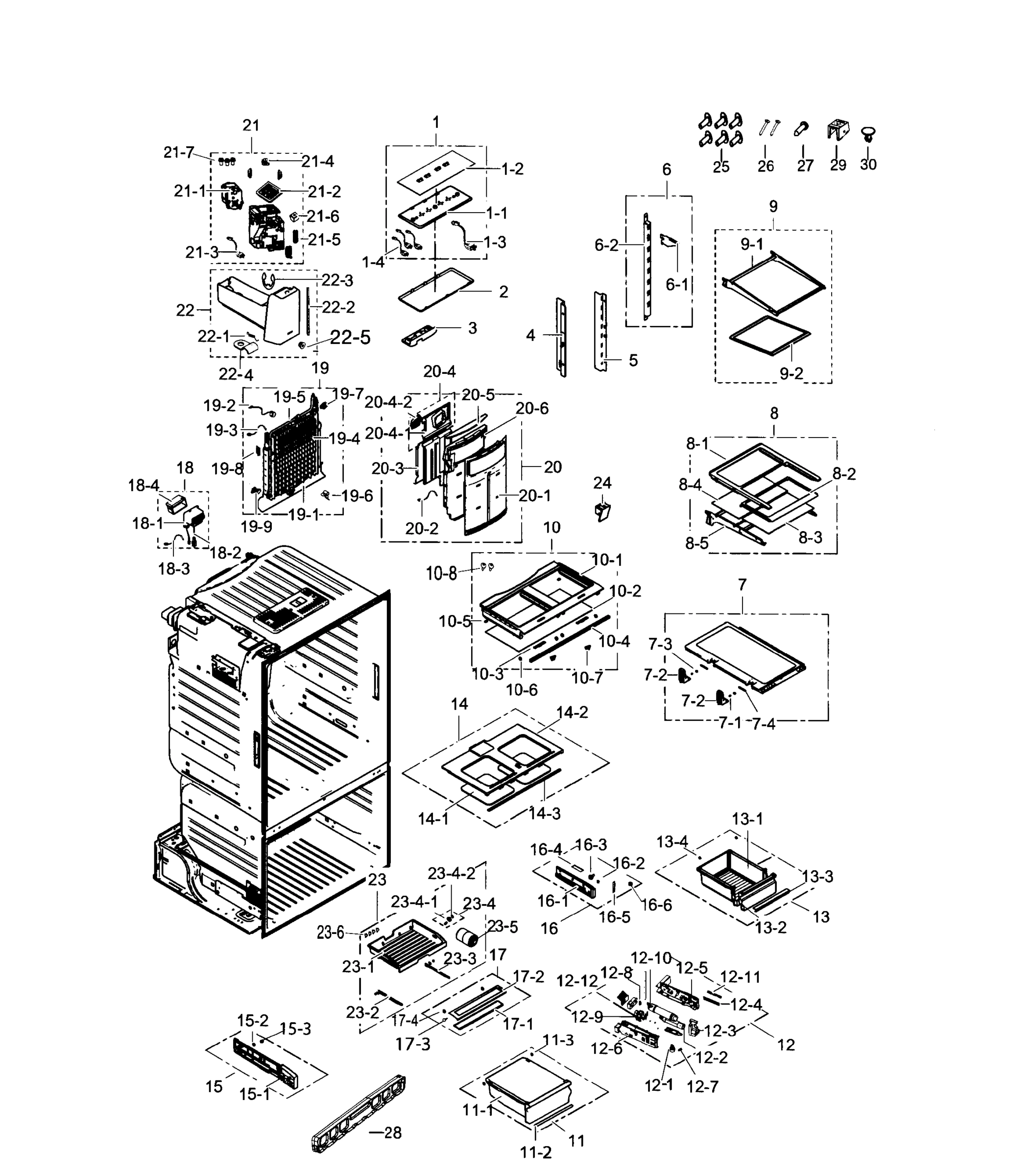

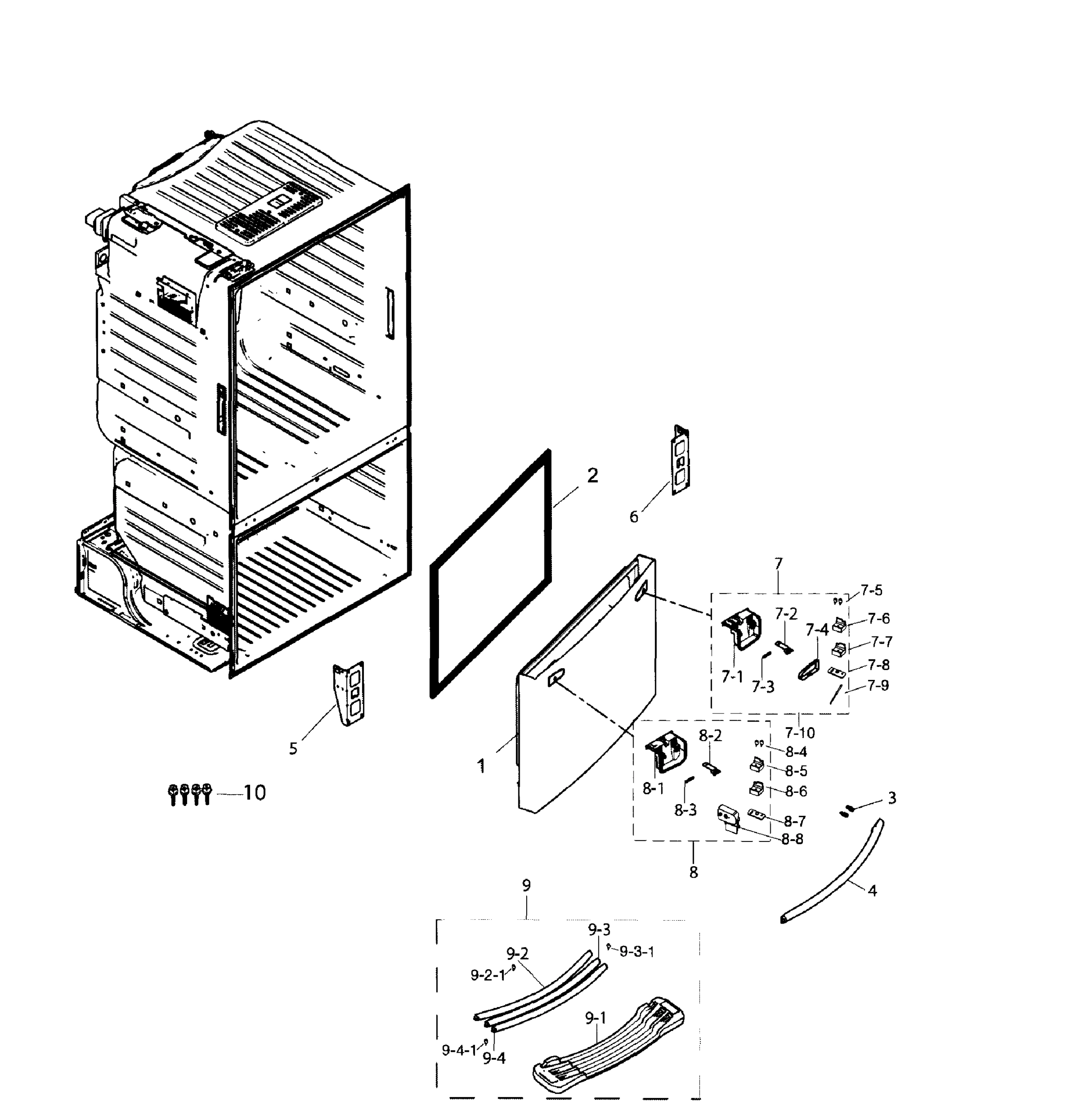

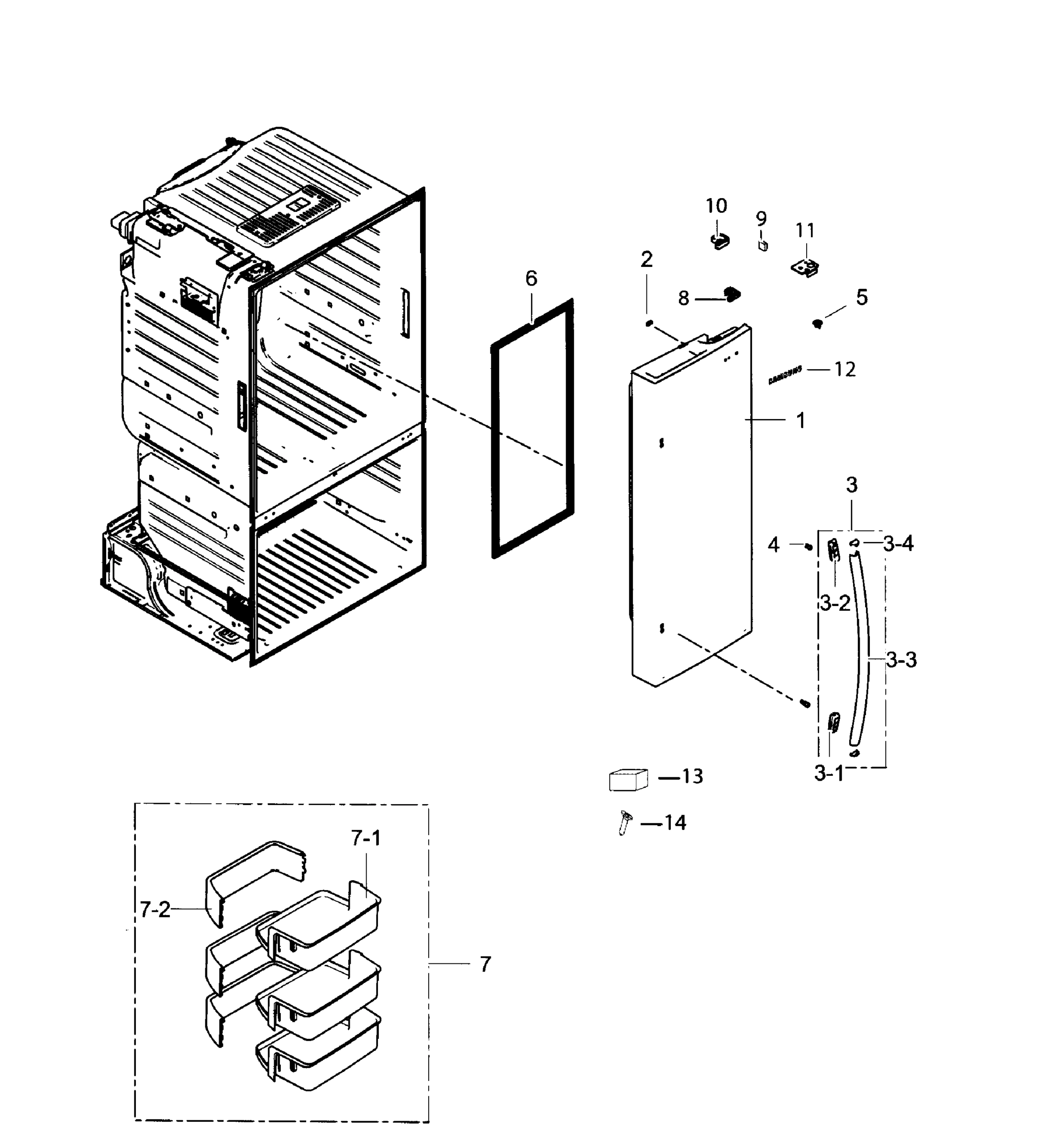

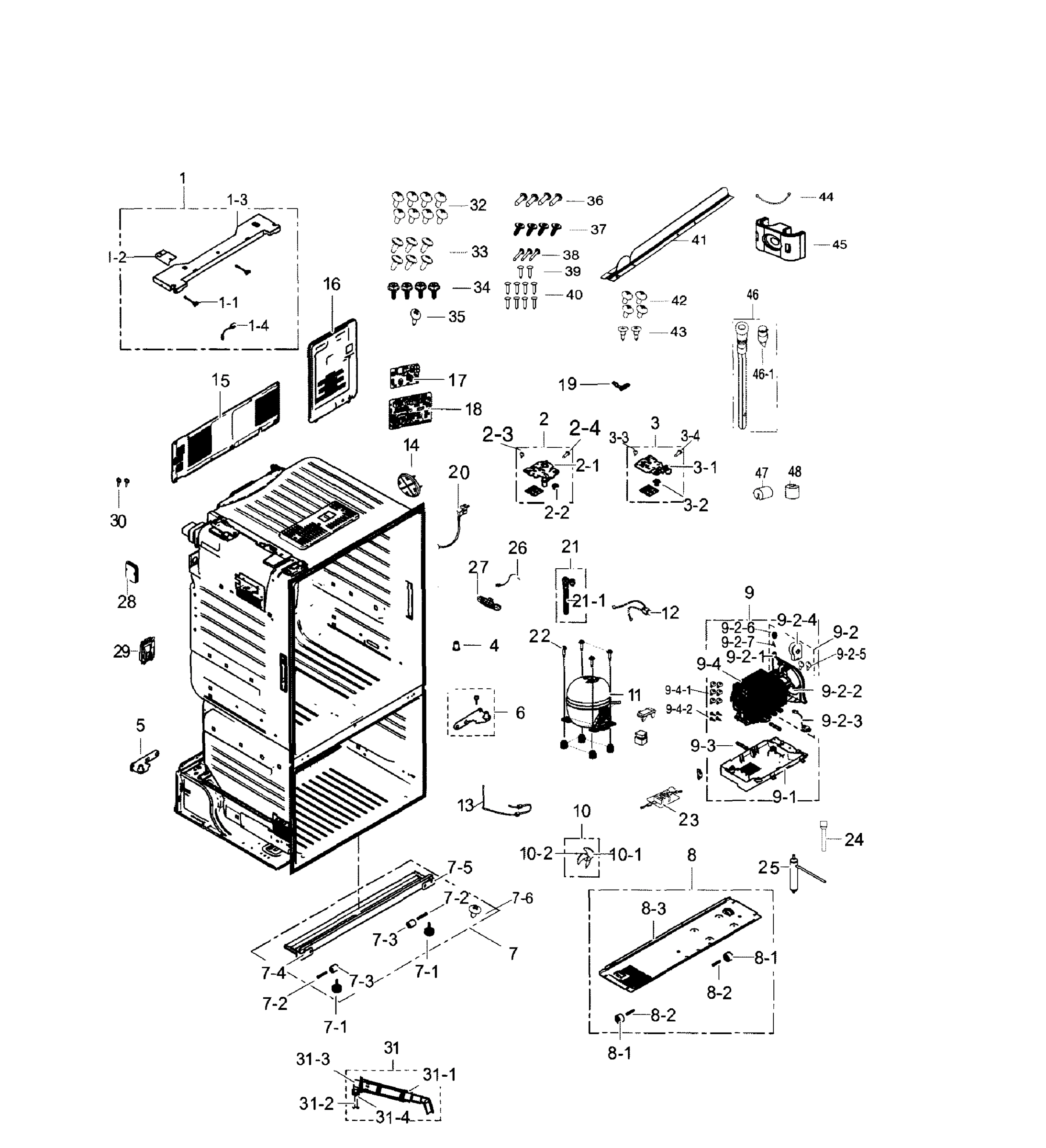

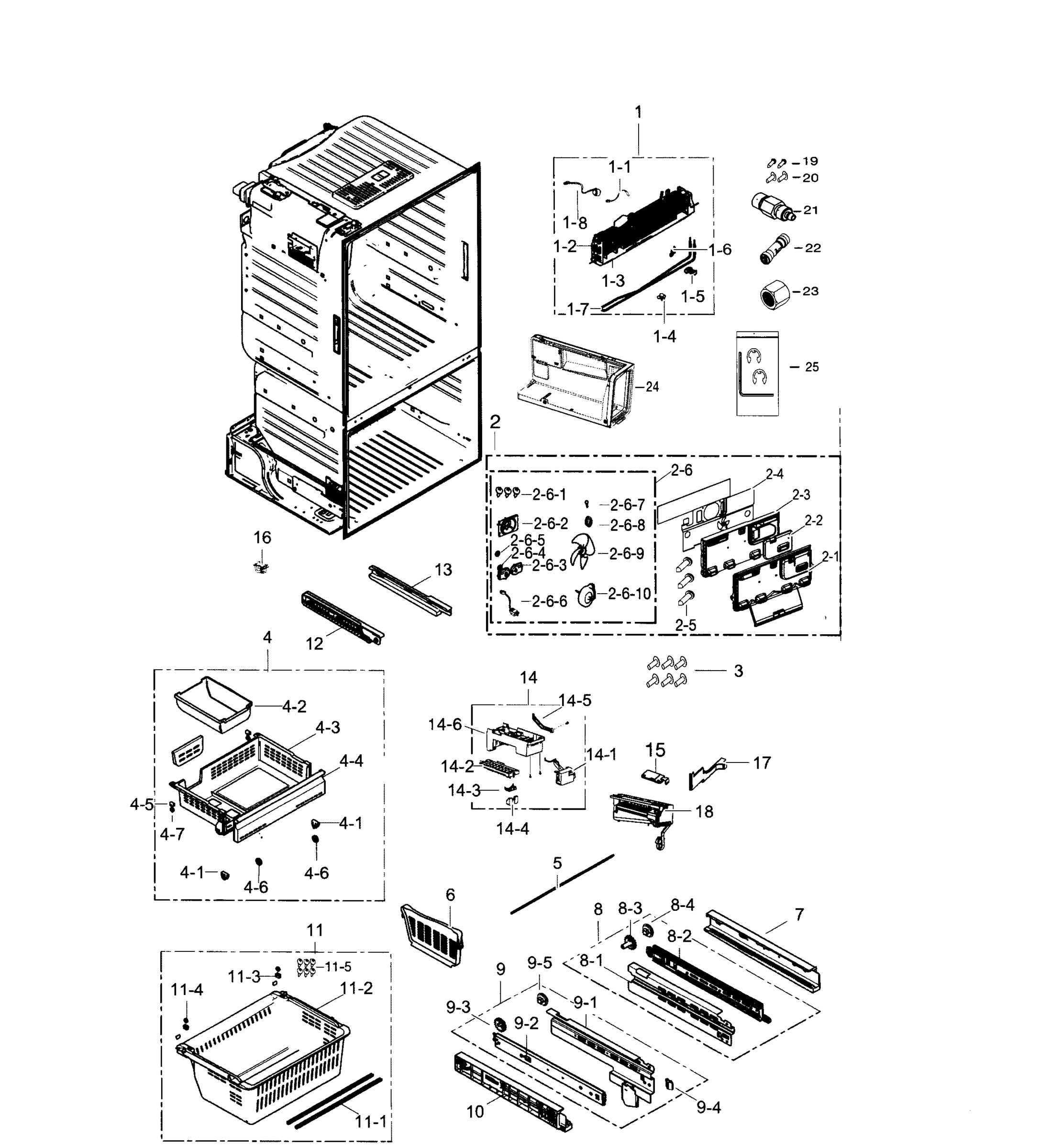

1

DA82-02517A Samsung Refrigerator Freezer Foam Backorder SMG DA82-02517A $355.43

1

DA91-03908A Samsung Refrigerator Door Assembl Backorder SMG DA91-03908A $325.60

1

DA91-03909A Samsung Refrigerator Right Door F Backorder SMG DA91-03909A $248.16

1

DA96-00460L Samsung Refrigerator Evaporator A In Stock SMG DA96-00460L $191.31

1

DA97-12607A Samsung Refrigerator Lamp Assembl Backorder SMG DA97-12607A $177.32

1

DA97-12707A Samsung Refrigerator Assembly Top Backorder SMG DA97-12707A $176.00

1-1

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $22.86

1-2

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $13.56

1-4

DA96-00962A Samsung Refrigerator Reed Switch Backorder SMG DA96-00962A $14.73

1-5

DA61-05689A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05689A $1.99

1-6

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $7.36

1-7

DA47-00424M Samsung Refrigerator Metal Sheath In Stock SMG DA47-00424M $71.24

2

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $1.94

2

DA63-06541D Samsung Refrigerator Freezer Door In Stock SMG DA63-06541D $118.17

2

DA97-12573A Samsung Refrigerator Upper Left H Backorder SMG DA97-12573A $56.56

2

Refrigerator evaporator cover SMG DA97-12617A Contact Us For Availability

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $46.37

2-2

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $4.26

2-6

DA96-00959D Samsung Refrigerator 12V DC Fan M In Stock SMG DA96-00959D $147.13

2-62

DA61-04850B Samsung Refrigerator Motor Case A Backorder SMG DA61-04850B $10.07

2-64

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.09

2-66

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $15.50

2-69

DA31-00230A Samsung Refrigerator Fan Assembly Backorder SMG DA31-00230A $55.71

3

DA61-04795A Samsung Refrigerator French Door Backorder SMG DA61-04795A $8.53

3

DA97-12574A Samsung Refrigerator Upper Right Backorder SMG DA97-12574A $52.30

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.56

4-1

DA61-04813A Samsung Refrigerator Upper Roller Backorder SMG DA61-04813A $2.98

4-2

DA61-05358A Samsung Refrigerator Ice Cube Cas In Stock SMG DA61-05358A $31.93

4-6

DA66-00639A Samsung Refrigerator Upper Tray R Backorder SMG DA66-00639A $2.71

5

DA61-03734A Samsung Refrigerator Door Handle In Stock SMG DA61-03734A $2.65

5

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $3.88

6

DA61-04796A Samsung Refrigerator Drawer Guide Backorder SMG DA61-04796A $38.25

6

DA61-04841A Samsung Refrigerator Front Hanger Backorder SMG DA61-04841A $57.70

6

DA63-06542A Samsung Refrigerator Door Gasket In Stock SMG DA63-06542A $115.86

6

DA97-12683A Samsung Refrigerator French Door In Stock SMG DA97-12683A $172.23

6-2

DA61-08274A Samsung Refrigerator Mid Angle Sh Backorder SMG DA61-08274A $64.82

6-4

DA63-06959A Samsung Refrigerator Upper French Backorder SMG DA63-06959A $4.26

6-10

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.65

6-11

DA67-02146A Samsung Refrigerator French Cap C Backorder SMG DA67-02146A $6.97

6-12

DA67-02154A Samsung Refrigerator French Door Backorder SMG DA67-02154A $4.26

6-13

DA63-04645A Samsung Refrigerator Door Heater Backorder SMG DA63-04645A $11.62

7

DA63-04605A Samsung Refrigerator Lower Right Backorder SMG DA63-04605A $66.43

7

DA97-12650A Samsung Refrigerator Door Shelf B In Stock SMG DA97-12650A $110.75

7

Refrigerator folding shelf assembly SMG DA97-12728A Contact Us For Availability

7-1

DA61-04721D Samsung Front Foot Refrigerator Backorder SMG DA61-04721D $105.58

7-1

DA61-08228A Samsung Refrigerator Handle Suppo Backorder SMG DA61-08228A $8.53

7-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.09

7-2

DA61-08246A Samsung Refrigerator Upper Handle Backorder SMG DA61-08246A $20.92

7-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $6.59

7-4

DA67-02788A Samsung Refrigerator Handle Suppo Backorder SMG DA67-02788A $10.07

8

DA97-10595E Samsung Refrigerator Low Right Sl Backorder SMG DA97-10595E $155.04

8

DA97-12652A Samsung Refrigerator Door Bin Gua In Stock SMG DA97-12652A $117.62

8

Refrigerator glass shelf SMG DA97-12730A Contact Us For Availability

8-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.42

8-2

DA61-09088A Samsung Refrigerator Slide Rail L Backorder SMG DA61-09088A $145.80

8-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.26

8-3

DA66-00767A Samsung Refrigerator Rail Gear Ri Backorder SMG DA66-00767A $5.42

9

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $48.82

9

DA99-03914C Samsung Refrigerator Handle Kit A Backorder SMG DA99-03914C $225.63

9

Refrigerator freezer drawer slide rail, left SMG DA97-10594B Contact Us For Availability

9-1

DA63-06945A Samsung Refrigerator Ice Chute Ca In Stock SMG DA63-06945A $54.04

9-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $9.30

9-2

DA97-12712C Samsung Refrigerator Freezer Door Backorder SMG DA97-12712C $124.88

9-2

Refrigerator freezer basket slide rail assemb SMG DA61-09087A Contact Us For Availability

9-3

DA66-00771A Samsung Refrigerator Rail Gear Le Backorder SMG DA66-00771A $4.65

9-3

Refrigerator door handle SMG DA97-12714C Contact Us For Availability

9-4

Refrigerator door handle SMG DA97-12715C Contact Us For Availability

9-24

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $109.58

9-26

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $3.50

9-41

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.92

10

DA63-04604A Samsung Refrigerator Left Lower R Backorder SMG DA63-04604A $107.04

10

DA97-12727A Samsung Refrigerator Crisper Draw Backorder SMG DA97-12727A $177.80

10

Refrigerator condenser fan blade SMG DA96-00504A Contact Us For Availability

10-1

DA92-00368A Samsung Refrigerator Assembly Pri Backorder SMG DA92-00368A $163.53

10-3

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $4.65

10-5

DA61-04809A Samsung Refrigerator Vegetable Fi Backorder SMG DA61-04809A $0.92

10-6

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $11.24

10-8

DA61-06033B Samsung Refrigerator Ice Dispense Backorder SMG DA61-06033B $3.50

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $22.40

DA97-07024C Samsung Refrigerator Drawer Box T Backorder SMG DA97-07024C $174.44

DA97-12725A Samsung Refrigerator Vegetable Cr Backorder SMG DA97-12725A $176.49

MKV190CL2J/SM1 Samsung Refrigerator Compresso Backorder SMG MKV190CL2J/SM1 $328.33

11-1

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $74.19

11-5

DA97-08117B Samsung Refrigerator Ice Route Co Backorder SMG DA97-08117B $52.03

DA61-07328A Samsung Refrigerator Freezer Rail In Stock SMG DA61-07328A $142.03

DA64-04021A Samsung Refrigerator Nameplate Ma Backorder SMG DA64-04021A $32.04

DA97-12653A Samsung Refrigerator Door Bin Ass Backorder SMG DA97-12653A $122.46

DA97-12662A Samsung Refrigerator Filter Tank Backorder SMG DA97-12662A $233.31

12-1

DA97-08006D Samsung Refrigerator White Case F Backorder SMG DA97-08006D $91.31

12-4

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $46.37

12-6

DA61-07497A Samsung Refrigerator Case Filter Backorder SMG DA61-07497A $31.02

12-7

DA60-00258C Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258C $24.12

12-8

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $17.44

13

DA61-07329A Samsung Refrigerator Right Hand U In Stock SMG DA61-07329A $138.11

13

DA97-12726A Samsung Refrigerator Right Vegeta Backorder SMG DA97-12726A $141.78

14

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $21.70

14

DA97-07015A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-07015A $182.44

14

DA97-07603B Samsung Refrigerator Ice Maker Backorder SMG DA97-07603B $156.66

14-1

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $165.34

14-2

DA63-02284B Samsung Refrigerator Ice Cube Tra In Stock SMG DA63-02284B $26.88

14-3

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $1.94

14-4

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $25.84

15

DA61-05001C Samsung Refrigerator Door Close S Backorder SMG DA61-05001C $41.36

15

DA97-07016A Samsung Refrigerator Pantry Rail Backorder SMG DA97-07016A $103.71

15

DA97-15162B Samsung Refrigerator Compressor C Backorder SMG DA97-15162B $51.28

16

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $26.19

16

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $15.50

16-3

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $11.62

16-4

DA92-00151A Samsung Refrigerator Printed Circ Backorder SMG DA92-00151A $36.18

17

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $10.47

17

DA97-07020C Samsung Refrigerator Pantry Drawe Backorder SMG DA97-07020C $137.74

DA92-00384A Samsung Refrigerator Main Printed Backorder SMG DA92-00384A $72.40

DA97-07189E Samsung Refrigerator Motor Damper In Stock SMG DA97-07189E $138.73

DA97-12651A Samsung Refrigerator Dispenser Sh In Stock SMG DA97-12651A $110.16

DA97-15217D Samsung Refrigerator Ice Maker As Backorder SMG DA97-15217D $99.55

18-2

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $140.64

18-3

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $18.21

19

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $6.59

19

DA96-00660E Samsung Refrigerator Evaporator A In Stock SMG DA96-00660E $136.08

19-3

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $17.37

19-5

DA47-00244W Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244W $75.01

19-6

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $7.36

19-8

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $0.99

19-9

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $4.65

20

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $52.52

20

DA41-00676G Samsung Refrigerator LED Lamp PBA In Stock SMG DA41-00676G $39.00

20-2

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $17.44

20-4

DA97-12815A Samsung Refrigerator Case Motor A Backorder SMG DA97-12815A $99.71

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $16.29

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $17.06

DA97-04049H Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049H $12.39

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $219.16

21-1

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $165.65

21-1

DA62-01266D Samsung Refrigerator PVC Tube Backorder SMG DA62-01266D $3.50

21-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $69.11

21-3

DA96-00682D Samsung Refrigerator Auger Motor Backorder SMG DA96-00682D $81.41

21-6

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $89.76

22

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $8.14

22

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $32.04

22

DA82-01396A Samsung Refrigerator Ice Tray Mak In Stock SMG DA82-01396A $167.27

22-1

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $4.65

22-2

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $2.32

22-5

DA60-30108A Samsung Refrigerator Hex Nut Backorder SMG DA60-30108A $3.09

23

DA27-00019H Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019H $108.83

23

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.32

23

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.20

23-4

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $10.47

24

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $53.75

24-1

DA97-13405A Samsung Refrigerator Ice Room Cas Backorder SMG DA97-13405A $205.34

26

6002-001432 Samsung Tapping Screw In Stock SMG 6002-001432 $0.92

26

DA32-00029U Samsung Refrigerator Temperature Backorder SMG DA32-00029U $24.81

27

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.09

28

DA61-04794A Samsung Refrigerator Pantry Guide Backorder SMG DA61-04794A $24.47

29

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $16.27

30

DA67-02138A Samsung Refrigerator Hinge Hole C Backorder SMG DA67-02138A $1.17

31

DA97-00209Z Samsung Refrigerator Water Pipe F Backorder SMG DA97-00209Z $74.46

31-1

DA47-00192E Samsung Refrigerator Ice Maker Fi In Stock SMG DA47-00192E $54.04

31-3

DA73-00134D Samsung Refrigerator Water Pipe A Backorder SMG DA73-00134D $42.69

33

6006-001170 Samsung Appliance Tapping Screw T Backorder SMG 6006-001170 $0.92

34

DA60-10123E Samsung Refrigerator Hex Bolt M6 In Stock SMG DA60-10123E $1.17

37

6003-001727 Samsung Refrigerator Television T Backorder SMG 6003-001727 $1.56

45

DA61-04712C Samsung Refrigerator Fixer Hose Backorder SMG DA61-04712C $19.76

46

DA97-04049D Samsung Refrigerator Drain Tube C In Stock SMG DA97-04049D $17.82

1010

DA61-07362A Samsung Refrigerator Door Plate L Backorder SMG DA61-07362A $31.70

1011

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $39.29

1151

DA61-01914A Samsung Refrigerator Ice Route Co Backorder SMG DA61-01914A $2.71

1210

DA97-11283F Samsung Refrigerator Water Tank A Backorder SMG DA97-11283F $83.69

2042

DA31-00287A Samsung Refrigerator Box Fan BLDC Backorder SMG DA31-00287A $105.65

2610

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $109.58

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.92

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $0.92

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

DA61-04335B Samsung E Assembly Handle Spring Backorder SMG DA61-04335B $1.94

DA61-04804A Samsung Refrigerator Roller Wheel Backorder SMG DA61-04804A $18.94

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.17

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $1.56

DA61-06014A Samsung Refrigerator Handle Assem Backorder SMG DA61-06014A $2.32

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $2.71

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

DA66-00579B Samsung Refrigerator Handle Cap S Backorder SMG DA66-00579B $5.42
