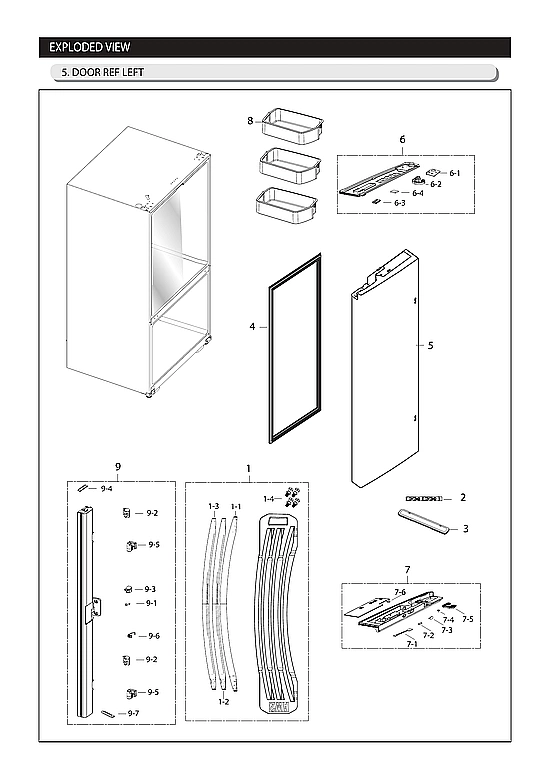

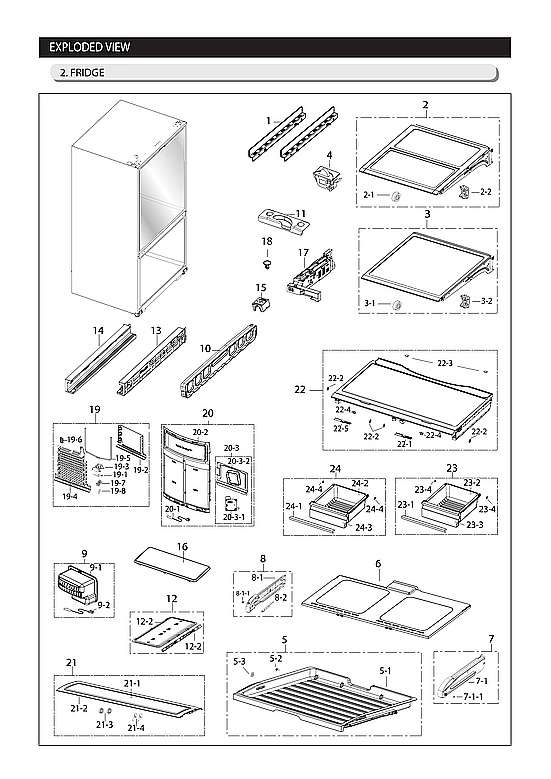

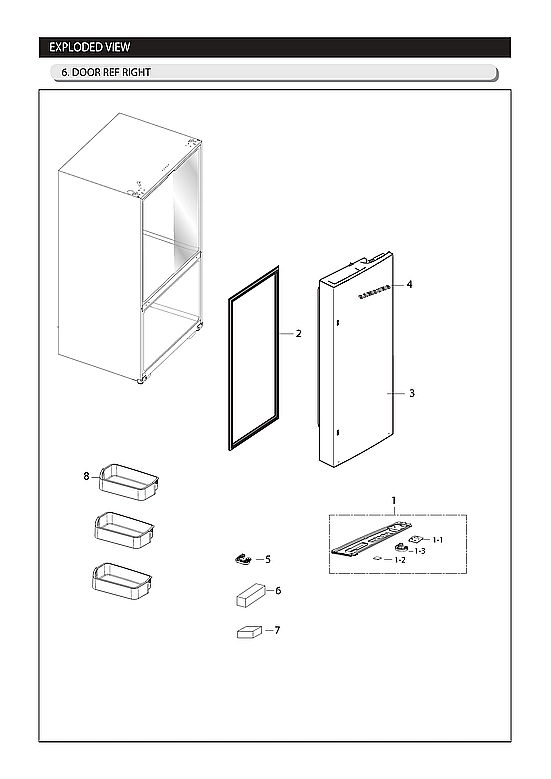

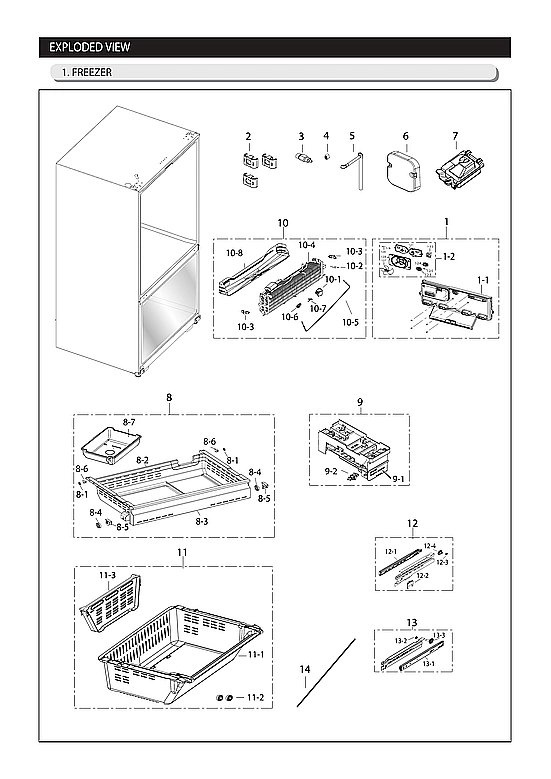

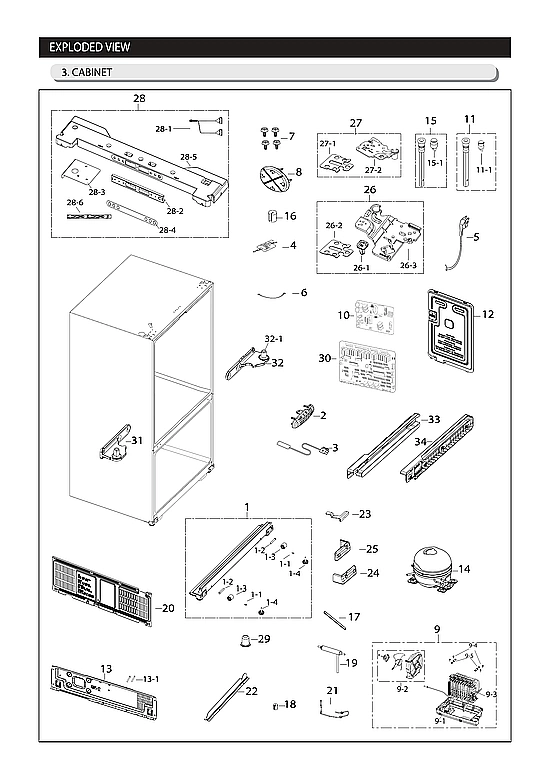

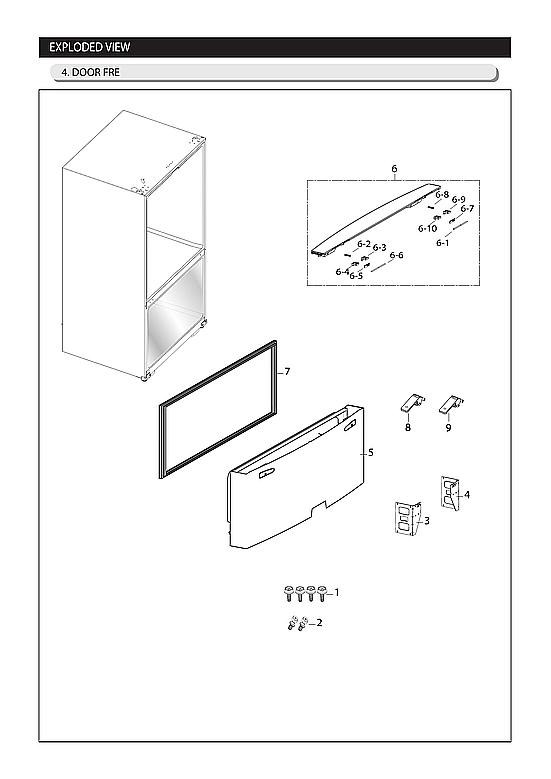

Model Samsung RF260BEAESR/AA-05 Refrigerator – Common Parts &amp; Diagrams

1

Refrigerator evaporator cover SMG DA97-12617A Contact Us For Availability

1-1

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $22.40

1-1

DA97-12712C Samsung Refrigerator Freezer Door Backorder SMG DA97-12712C $124.88

1-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.09

1-2

DA96-00959D Samsung Refrigerator 12V DC Fan M In Stock SMG DA96-00959D $147.13

1-2

Refrigerator door handle SMG DA97-12714C Contact Us For Availability

1-2-2

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $109.58

1-2-3

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $3.50

1-2-4

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.09

1-2-6

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $15.50

1-2-7

DA31-00230A Samsung Refrigerator Fan Assembly Backorder SMG DA31-00230A $55.71

1-2-8

DA61-04850B Samsung Refrigerator Motor Case A Backorder SMG DA61-04850B $10.07

1-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $6.59

1-3

Refrigerator door handle SMG DA97-12715C Contact Us For Availability

1-4

DA61-04721D Samsung Front Foot Refrigerator Backorder SMG DA61-04721D $105.58

2

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $14.29

2

DA61-04712C Samsung Refrigerator Fixer Hose Backorder SMG DA61-04712C $19.76

2

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $3.88

2

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.09

2

Refrigerator glass shelf SMG DA97-12730A Contact Us For Availability

3

DA32-00029U Samsung Refrigerator Temperature Backorder SMG DA32-00029U $24.81

3

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $17.06

3

DA91-03909A Samsung Refrigerator Right Door F Backorder SMG DA91-03909A $248.16

4

DA27-00019H Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019H $108.83

4

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $26.19

4

DA61-04841A Samsung Refrigerator Front Hanger Backorder SMG DA61-04841A $57.70

4

DA63-06542A Samsung Refrigerator Door Gasket In Stock SMG DA63-06542A $115.86

4

DA64-04021A Samsung Refrigerator Nameplate Ma Backorder SMG DA64-04021A $32.04

4

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.20

5

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $52.52

5

DA82-02517A Samsung Refrigerator Freezer Foam Backorder SMG DA82-02517A $355.43

5

DA91-03924A Samsung Refrigerator Left Door Fo Backorder SMG DA91-03924A $248.16

5

DA97-00209Z Samsung Refrigerator Water Pipe F Backorder SMG DA97-00209Z $74.46

5-2

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $10.47

6

DA97-07015A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-07015A $182.44

6-1

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $21.70

6-2

DA61-05001C Samsung Refrigerator Door Close S Backorder SMG DA61-05001C $41.36

6-3

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.32

7

DA60-10123E Samsung Refrigerator Hex Bolt M6 In Stock SMG DA60-10123E $1.17

7

DA63-06541D Samsung Refrigerator Freezer Door In Stock SMG DA63-06541D $118.17

7

DA97-07016A Samsung Refrigerator Pantry Rail Backorder SMG DA97-07016A $103.71

7

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $16.27

7-1

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $53.75

7-2

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $1.94

7-4

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

7-5

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $15.50

8

DA97-12650A Samsung Refrigerator Door Shelf B In Stock SMG DA97-12650A $110.75

8

DA97-12657A Samsung Refrigerator Door Bin Gua In Stock SMG DA97-12657A $112.71

8-2

DA92-00151A Samsung Refrigerator Printed Circ Backorder SMG DA92-00151A $36.18

8-4

DA66-00639A Samsung Refrigerator Upper Tray R Backorder SMG DA66-00639A $2.71

8-5

DA61-04813A Samsung Refrigerator Upper Roller Backorder SMG DA61-04813A $2.98

8-7

DA61-05358A Samsung Refrigerator Ice Cube Cas In Stock SMG DA61-05358A $31.93

9

DA97-07189E Samsung Refrigerator Motor Damper In Stock SMG DA97-07189E $138.73

9

DA97-07603B Samsung Refrigerator Ice Maker Backorder SMG DA97-07603B $156.66

9

DA97-12683A Samsung Refrigerator French Door In Stock SMG DA97-12683A $172.23

9

Refrigerator condenser coil and fan motor ass SMG DA97-05043L Contact Us For Availability

9-1

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.92

9-1

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $140.64

9-1

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $165.34

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $18.21

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $1.94

DA67-02146A Samsung Refrigerator French Cap C Backorder SMG DA67-02146A $6.97

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $142.79

9-3

DA67-02154A Samsung Refrigerator French Door Backorder SMG DA67-02154A $4.26

9-4

DA63-06959A Samsung Refrigerator Upper French Backorder SMG DA63-06959A $4.26

9-5

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.65

10

DA61-04794A Samsung Refrigerator Pantry Guide Backorder SMG DA61-04794A $24.47

10

DA92-00768D Samsung Refrigerator Inverter PCB In Stock SMG DA92-00768D $204.56

10

DA96-00460L Samsung Refrigerator Evaporator A In Stock SMG DA96-00460L $191.31

10-3

DA61-05689A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05689A $1.99

10-5

DA47-00424M Samsung Refrigerator Metal Sheath In Stock SMG DA47-00424M $71.24

10-6

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $7.36

11

DA61-04795A Samsung Refrigerator French Door Backorder SMG DA61-04795A $8.53

11

DA97-04049Q Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049Q $5.98

11

DA97-07024C Samsung Refrigerator Drawer Box T Backorder SMG DA97-07024C $174.44

11-1

DA63-00951C Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951C $7.36

11-3

DA61-04796A Samsung Refrigerator Drawer Guide Backorder SMG DA61-04796A $38.25

12

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $38.94

12

DA97-12607A Samsung Refrigerator Lamp Assembl Backorder SMG DA97-12607A $177.32

12

Refrigerator freezer drawer slide rail, left SMG DA97-10594B Contact Us For Availability

12-1

DA41-00676K Samsung Refrigerator LED Lamp Ass Backorder SMG DA41-00676K $103.84

12-1

Refrigerator freezer basket slide rail assemb SMG DA61-09087A Contact Us For Availability

12-4

DA66-00771A Samsung Refrigerator Rail Gear Le Backorder SMG DA66-00771A $4.65

13

DA63-04604A Samsung Refrigerator Left Lower R Backorder SMG DA63-04604A $107.04

13

DA97-10595E Samsung Refrigerator Low Right Sl Backorder SMG DA97-10595E $155.04

13-1

DA61-09088A Samsung Refrigerator Slide Rail L Backorder SMG DA61-09088A $145.80

13-1

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.26

13-3

DA66-00767A Samsung Refrigerator Rail Gear Ri Backorder SMG DA66-00767A $5.42

14

DA63-04605A Samsung Refrigerator Lower Right Backorder SMG DA63-04605A $66.43

14

DA66-00437A Samsung Refrigerator Gear Shaft A Backorder SMG DA66-00437A $30.67

14

MSV172AL2J/SM3 Samsung Refrigerator Compresso In Stock SMG MSV172AL2J/SM3 $278.15

15

DA97-04049D Samsung Refrigerator Drain Tube C In Stock SMG DA97-04049D $17.82

17

DA97-12663A Samsung Refrigerator Filter Tank Backorder SMG DA97-12663A $186.14

18

DA67-02138A Samsung Refrigerator Hinge Hole C Backorder SMG DA67-02138A $1.17

19

DA96-00660J Samsung Refrigerator Assembly Eva Backorder SMG DA96-00660J $209.51

19-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $17.37

19-2

DA61-06186B Samsung Refrigerator Drain Plate Backorder SMG DA61-06186B $36.87

19-3

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $4.65

19-5

DA47-00244U Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244U $87.48

19-6

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $0.99

19-8

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $7.36

20

DA97-12609C Samsung Refrigerator Evaporator C Backorder SMG DA97-12609C $222.75

20

DA97-15162B Samsung Refrigerator Compressor C Backorder SMG DA97-15162B $51.28

20-1

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $17.44

20-3-1

DA31-00287A Samsung Refrigerator Box Fan BLDC Backorder SMG DA31-00287A $105.65

21

DA97-07020C Samsung Refrigerator Pantry Drawe Backorder SMG DA97-07020C $137.74

22

DA97-12727A Samsung Refrigerator Crisper Draw Backorder SMG DA97-12727A $177.80

22-1

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $4.65

22-3

DA61-04809A Samsung Refrigerator Vegetable Fi Backorder SMG DA61-04809A $0.92

23

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $6.59

23

DA97-12726A Samsung Refrigerator Right Vegeta Backorder SMG DA97-12726A $141.78

24

DA63-06389E Samsung Refrigerator Front Left C Backorder SMG DA63-06389E $3.09

24

DA97-12725A Samsung Refrigerator Vegetable Cr Backorder SMG DA97-12725A $176.49

25

DA63-06405D Samsung Refrigerator Front Right Backorder SMG DA63-06405D $3.09

26

DA97-12573A Samsung Refrigerator Upper Left H Backorder SMG DA97-12573A $56.56

26-1

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $4.26

26-3

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $46.37

27

DA97-12574A Samsung Refrigerator Upper Right Backorder SMG DA97-12574A $52.30

28

DA97-12706D Samsung Refrigerator Top Table Backorder SMG DA97-12706D $220.81

28-1

DA34-00043K Samsung Refrigerator Reed Switch Backorder SMG DA34-00043K $50.05

28-3

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $13.56

28-6

DA92-00152A Samsung Refrigerator LED Display Backorder SMG DA92-00152A $122.73

29

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.56

30

DA92-00384N Samsung Refrigerator Main PCB LED In Stock SMG DA92-00384N $210.85

33

DA61-07328A Samsung Refrigerator Freezer Rail In Stock SMG DA61-07328A $142.03

34

DA61-07329A Samsung Refrigerator Right Hand U In Stock SMG DA61-07329A $138.11

DA61-04335B Samsung E Assembly Handle Spring Backorder SMG DA61-04335B $1.94

DA61-04804A Samsung Refrigerator Roller Wheel Backorder SMG DA61-04804A $18.94

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.17

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $1.56

DA61-06014A Samsung Refrigerator Handle Assem Backorder SMG DA61-06014A $2.32

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $2.71

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.17

DA66-00579B Samsung Refrigerator Handle Cap S Backorder SMG DA66-00579B $5.42
