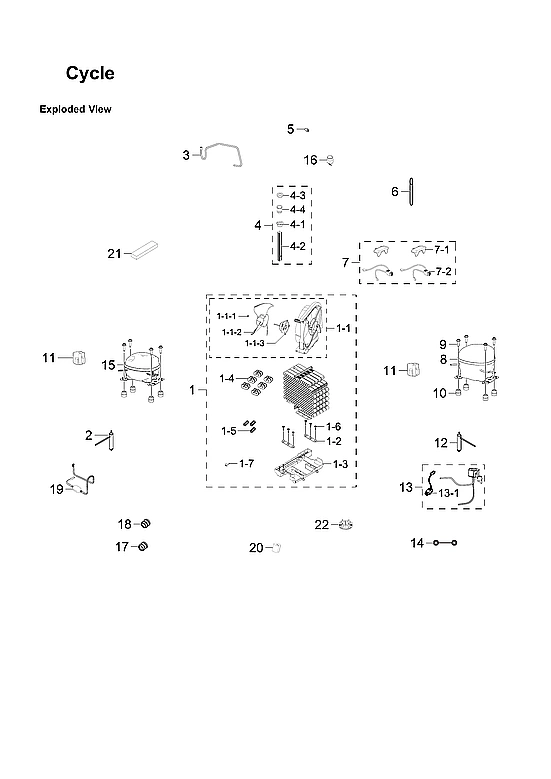

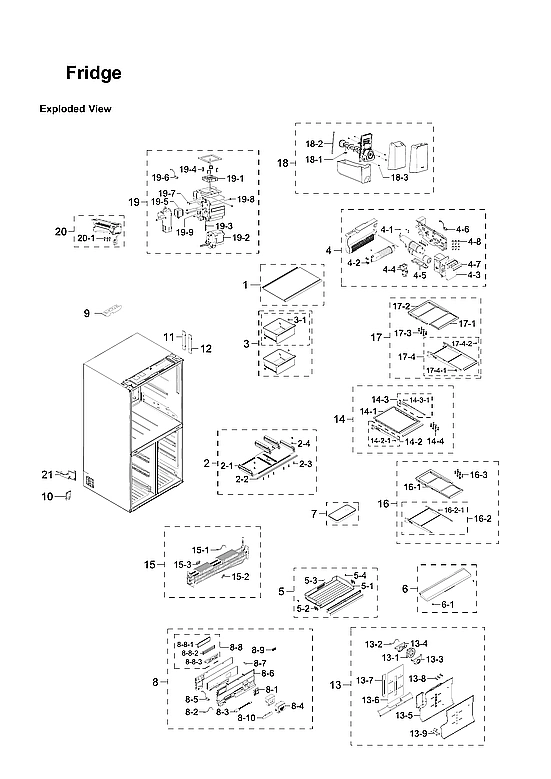

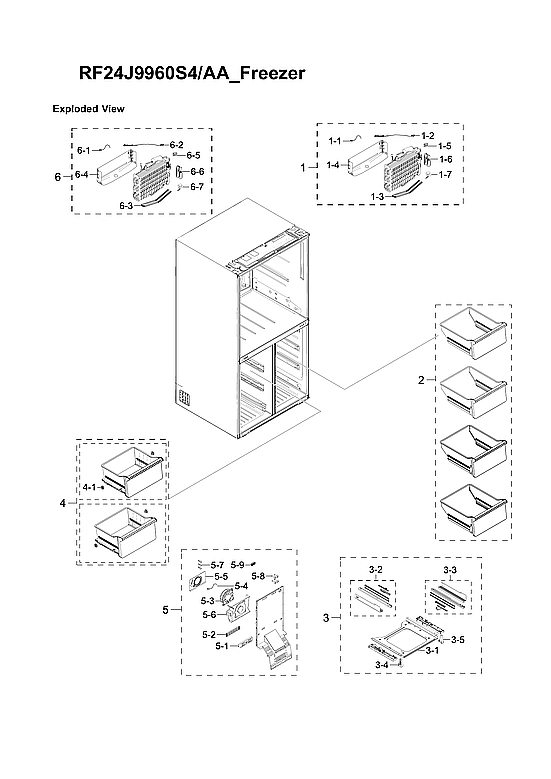

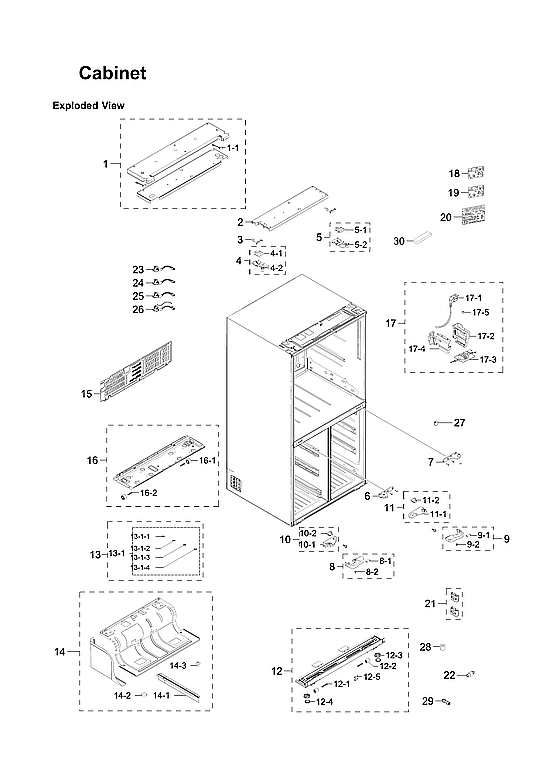

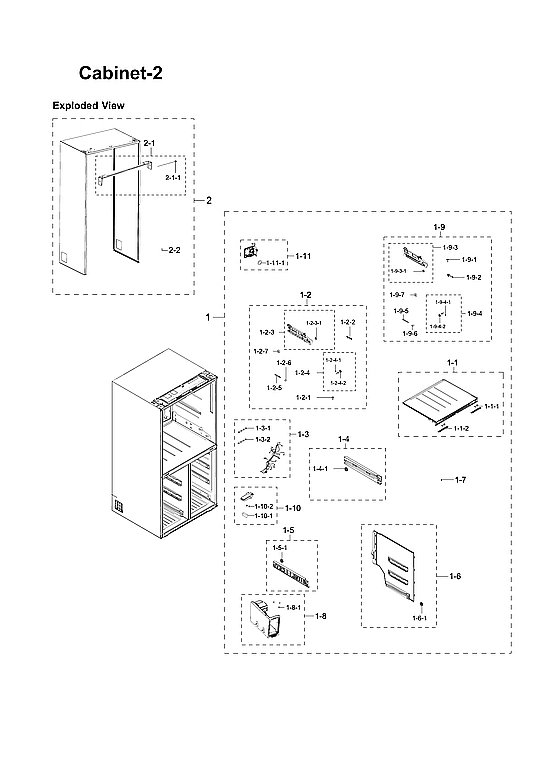

Model Samsung RF24J9960S4/AA-06 Refrigerator – Common Parts &amp; Diagrams

1

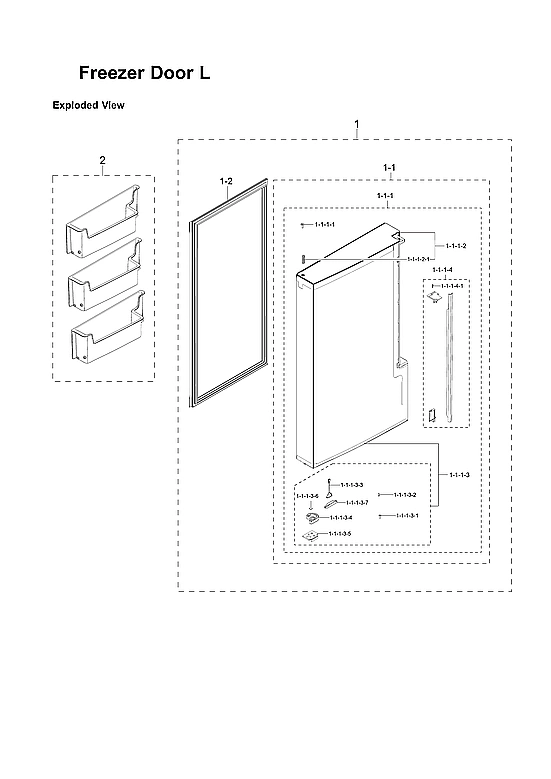

Assy door sub-fre left SMG DA93-00185A Contact Us For Availability

1

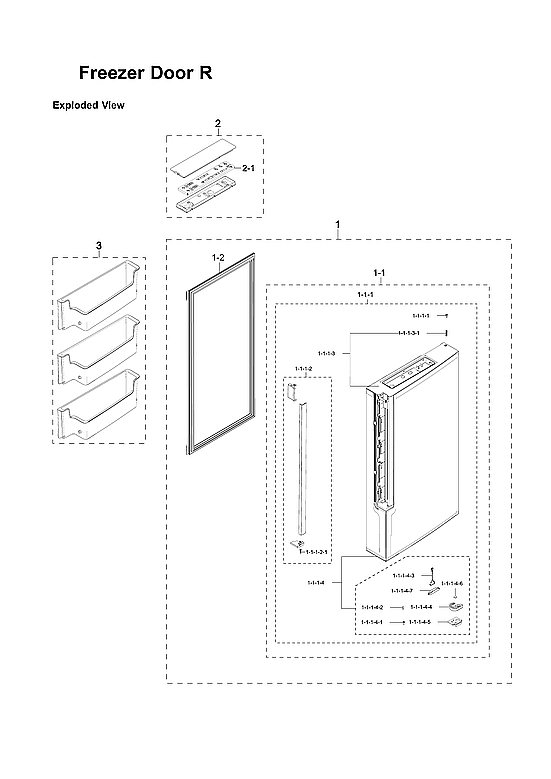

Assy door sub-fre right SMG DA93-00186A Contact Us For Availability

1

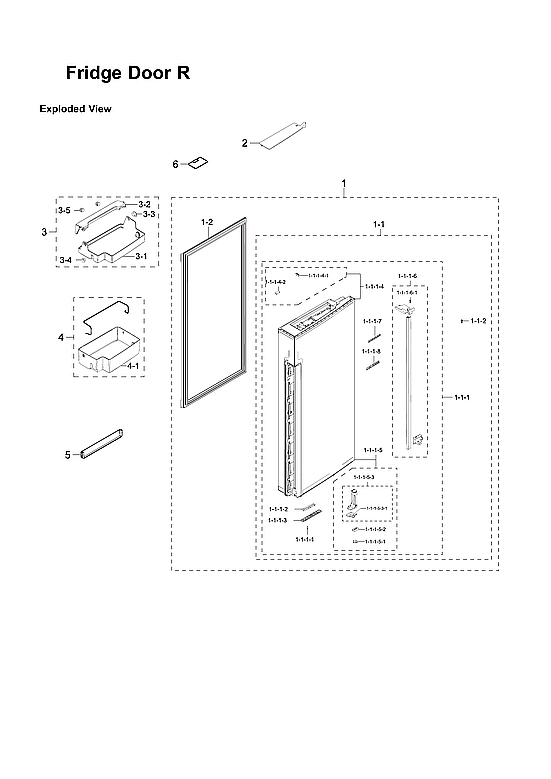

Assy door sub-ref right SMG DA93-00184A Contact Us For Availability

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $22.86

DA91-04393A Samsung Refrigerator Right Door F Backorder SMG DA91-04393A $328.05

DA91-04394A Samsung Refrigerator Right Door F Backorder SMG DA91-04394A $308.25

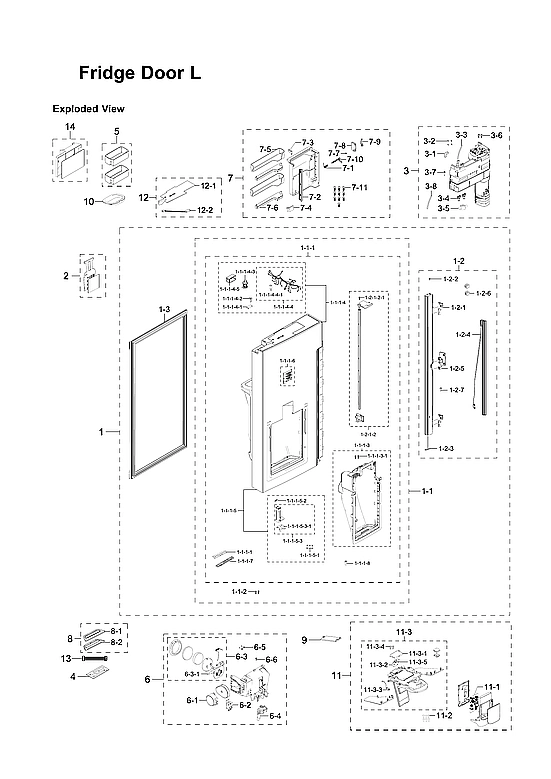

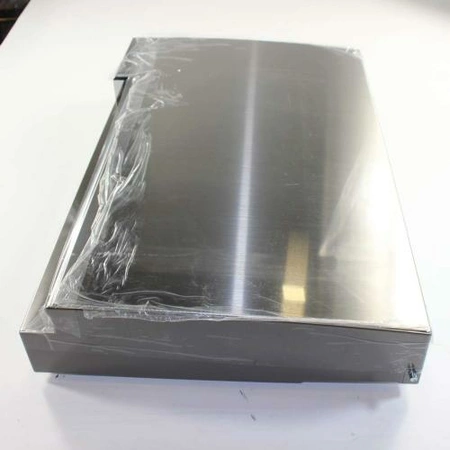

DA91-04395A Samsung Refrigerator Left Foam Do Backorder SMG DA91-04395A $279.96

DA97-15765B Samsung Refrigerator Motor Suppor Backorder SMG DA97-15765B $97.79

1-1-1

Assy plate door-fre left SMG DA97-15921A Contact Us For Availability

1-1-1

Assy plate door-fre right SMG DA97-15922A Contact Us For Availability

1-1-1

Assy plate door-ref right SMG DA97-14758A Contact Us For Availability

1-1-1-2

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $14.29

1-1-1-2

Assy cap door-up left SMG DA97-14678B Contact Us For Availability

1-1-1-2

Assy trim handle SMG DA97-14871A Contact Us For Availability

1-1-1-3

Assy cap door-low left SMG DA97-14680B Contact Us For Availability

1-1-1-3

Assy cap door-up right SMG DA97-14679B Contact Us For Availability

1-1-1-4

Assy trim handle SMG DA97-14872A Contact Us For Availability

1-1-1-4

Assy cap door-low right SMG DA97-14681B Contact Us For Availability

1-1-1-4

Assy cap door-ref up right SMG DA97-14674A Contact Us For Availability

1-1-1-5

Assy cap door-ref low right SMG DA97-14677B Contact Us For Availability

1-1-1-6

Assy trim handle-ref SMG DA97-14867A Contact Us For Availability

1-1-1-7

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $21.70

1-1-1-8

DA64-04752A Samsung Inlay Backorder SMG DA64-04752A $32.04

1-1-2

6002-001515 Samsung Tapping Screw Backorder SMG 6002-001515 $0.92

1-1-2

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $18.98

1-1-2

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $42.91

1-1-3

DA31-00278C Samsung Refrigerator BLDC Fan Mot Backorder SMG DA31-00278C $136.85

1-2

DA97-15248C Samsung Refrigerator Gray Gasket Backorder SMG DA97-15248C $98.99

1-2

DA97-15249A Samsung Refrigerator Gray Gasket Backorder SMG DA97-15249A $92.04

1-2-3

DA63-06842B Samsung Refrigerator Low French G Backorder SMG DA63-06842B $5.03

1-2-5

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $3.88

1-3-2

DA96-01119B Samsung Refrigerator LED Lamp Backorder SMG DA96-01119B $81.92

2

DA63-07754A Samsung Refrigerator Door Cap Cov Backorder SMG DA63-07754A $13.18

2

DA97-14482A Samsung Refrigerator Left Guard Backorder SMG DA97-14482A $63.11

2

DA97-14768A Samsung Refrigerator Control Cove Backorder SMG DA97-14768A $154.43

2

DA97-15881A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-15881A $121.81

2-1

DA92-00614A Samsung Refrigerator Module Assem Backorder SMG DA92-00614A $178.99

2-1

Refrigerator shelf SMG DA67-04080A Contact Us For Availability

2-2

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $118.03

3

DA61-04932B Samsung Refrigerator Hinge Fixer Backorder SMG DA61-04932B $11.24

3

DA97-14483A Samsung Refrigerator Right Guard Backorder SMG DA97-14483A $67.66

3

DA97-14605A Samsung Refrigerator Upper Basket Backorder SMG DA97-14605A $507.46

3

DA97-15882A Samsung Refrigerator Left Vegetab Backorder SMG DA97-15882A $120.36

3

DA97-15912A Samsung Refrigerator Dairy Guard Backorder SMG DA97-15912A $93.00

3-1

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $18.59

3-1

Refrigerator guard SMG DA63-08211A Contact Us For Availability

3-2

Refrigerator cover SMG DA63-08221A Contact Us For Availability

3-3

DA67-02920A Samsung Refrigerator Dairy Hinge Backorder SMG DA67-02920A $1.94

3-4

DA67-02921A Samsung Dairy Hinge Cap Backorder SMG DA67-02921A $2.71

3-5

DA63-07538A Samsung Refrigerator Grommet Asse Backorder SMG DA63-07538A $1.56

4

DA97-14531A Samsung Refrigerator Left Up Hing Backorder SMG DA97-14531A $46.98

4

DA97-15879A Samsung Refrigerator Case Water F Backorder SMG DA97-15879A $245.10

4

DA97-15911A Samsung Refrigerator Right Guard Backorder SMG DA97-15911A $108.65

4-1

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.92

4-1

Refrigerator guard SMG DA63-08212A Contact Us For Availability

4-2

DA62-02414A Samsung Refrigerator Fitting Tube Backorder SMG DA62-02414A $15.50

4-3

Refrigerator case SMG DA61-10647A Contact Us For Availability

4-4

DA62-04027A Samsung Refrigerator 2-Way Water Backorder SMG DA62-04027A $138.16

4-5

DA63-05407A Samsung Refrigerator Water Filter Backorder SMG DA63-05407A $9.48

4-6

DA96-01077A Samsung Refrigerator Wire Harness Backorder SMG DA96-01077A $32.04

4-7

DA64-04692A Samsung Refrigerator Trim Basket Backorder SMG DA64-04692A $15.88

4-8

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.92

5

DA63-07782A Samsung Refrigerator Middle Door Backorder SMG DA63-07782A $22.47

5

DA97-15880A Samsung Refrigerator Assembly Cas Backorder SMG DA97-15880A $160.20

5-1

Refrigerator case SMG DA61-10649A Contact Us For Availability

6

4709-002251 Samsung Refrigerator Wi-Fi Module Backorder SMG 4709-002251 $138.61

6

DA61-09754A Samsung Refrigerator Middle Hinge Backorder SMG DA61-09754A $67.10

6-1

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $74.19

6-1

DA97-22036A Samsung Refrigerator Roller Assem In Stock SMG DA97-22036A $4.65

7

DA97-08310H Samsung Refrigerator Compressor W Backorder SMG DA97-08310H $52.59

7-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $22.05

7-2

DA39-00154J Samsung Refrigerator Compressor W Backorder SMG DA39-00154J $29.98

8

DA97-14537A Samsung Refrigerator Front Leg Co Backorder SMG DA97-14537A $13.18

8

MKV190CL2B/ASH Samsung Refrigerator Compresso In Stock SMG MKV190CL2B/ASH $270.76

9

DA97-14538A Samsung Refrigerator Cover Assemb Backorder SMG DA97-14538A $14.33

11-3-2

3405-001119 Samsung Refrigerator Micro Switch Backorder SMG 3405-001119 $5.03

12-1

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.09

12-2

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $6.59

12-3

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $7.36

12-4

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.71

13

DA97-08630B Samsung Refrigerator Step Valve Backorder SMG DA97-08630B $139.14

13-1

DA31-00334C Samsung Refrigerator BLDC Fan Mot In Stock SMG DA31-00334C $118.00

13-1

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $8.06

13-1-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $1.56

14-3

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.92

15

DA96-01055A Samsung Refrigerator Evaporator A Backorder SMG DA96-01055A $140.80

15

NC1MV43AMP/E01 Samsung Refrigerator Compresso Backorder SMG NC1MV43AMP/E01 $228.54

15-3

DA61-03683A Samsung Refrigerator Sensor Fixer In Stock SMG DA61-03683A $1.17

16

DA63-00951C Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951C $7.36

16

DA97-13195A Samsung Refrigerator Compressor C Backorder SMG DA97-13195A $101.63

16-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.42

16-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.26

17

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $5.03

17-1

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $52.52

17-3

DA27-00043B Samsung Refrigerator Coil Filter Backorder SMG DA27-00043B $80.40

18

DA92-00610A Samsung Refrigerator Standard Mod In Stock SMG DA92-00610A $134.94

18-2

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $2.32

19

DA92-00615B Samsung Inverter Refrigerator Backorder SMG DA92-00615B $170.31

19

DA97-12540K Samsung Refrigerator Auger Motor In Stock SMG DA97-12540K $209.28

19-1

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $69.11

19-2

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $165.65

19-5

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $89.76

20

Refrigerator ice maker assembly SMG DA97-18859A No Longer Available

22

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $17.06

28

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.20

11121

DA61-05366A Samsung Assembly Refrigerator Han Backorder SMG DA61-05366A $0.92

11131

6001-000715 Samsung Machine Screw Backorder SMG 6001-000715 $8.91

11135

DA61-09679A Samsung Left Door Stopper Backorder SMG DA61-09679A $9.68

11137

DA67-02385M Samsung Refrigerator Reed Switch Backorder SMG DA67-02385M $2.32

11143

DA34-00043J Samsung Refrigerator Door Reed Sw Backorder SMG DA34-00043J $18.21

11144

DA61-02383E Samsung Refrigerator Door Closing In Stock SMG DA61-02383E $4.65

11145

DA61-09678A Samsung Stopper Door Right Backorder SMG DA61-09678A $10.07

11146

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

11151

6002-001120 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001120 $0.92

11152

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.32

11153

DA97-14536A Samsung Refrigerator Right Hinge Backorder SMG DA97-14536A $79.02

11161

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $0.92

111531

DA61-09735A Samsung Refrigerator Right Door S Backorder SMG DA61-09735A $11.24

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $8.91

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $0.92

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $1.94

DA63-07231A Samsung Refrigerator Hinge Gromme Backorder SMG DA63-07231A $3.50

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.17

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $0.92

DA97-15998A Samsung Refrigerator Roller Assem Backorder SMG DA97-15998A $6.59

Refrigerator water filter SMG DA29-00020B Contact Us For Availability
