Model Samsung RF24J9960S4/AA-01 Refrigerator – Common Parts &amp; Diagrams

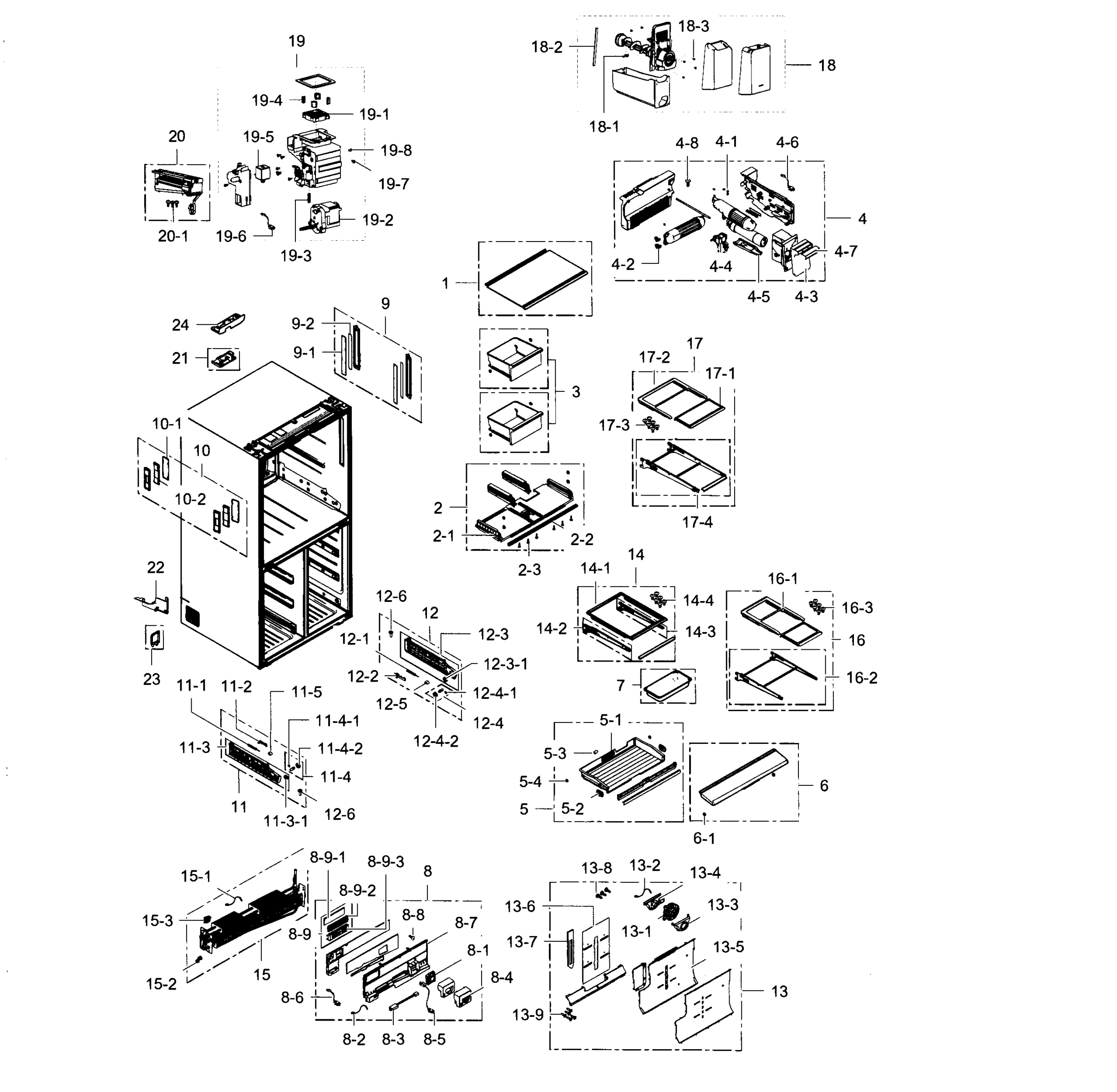

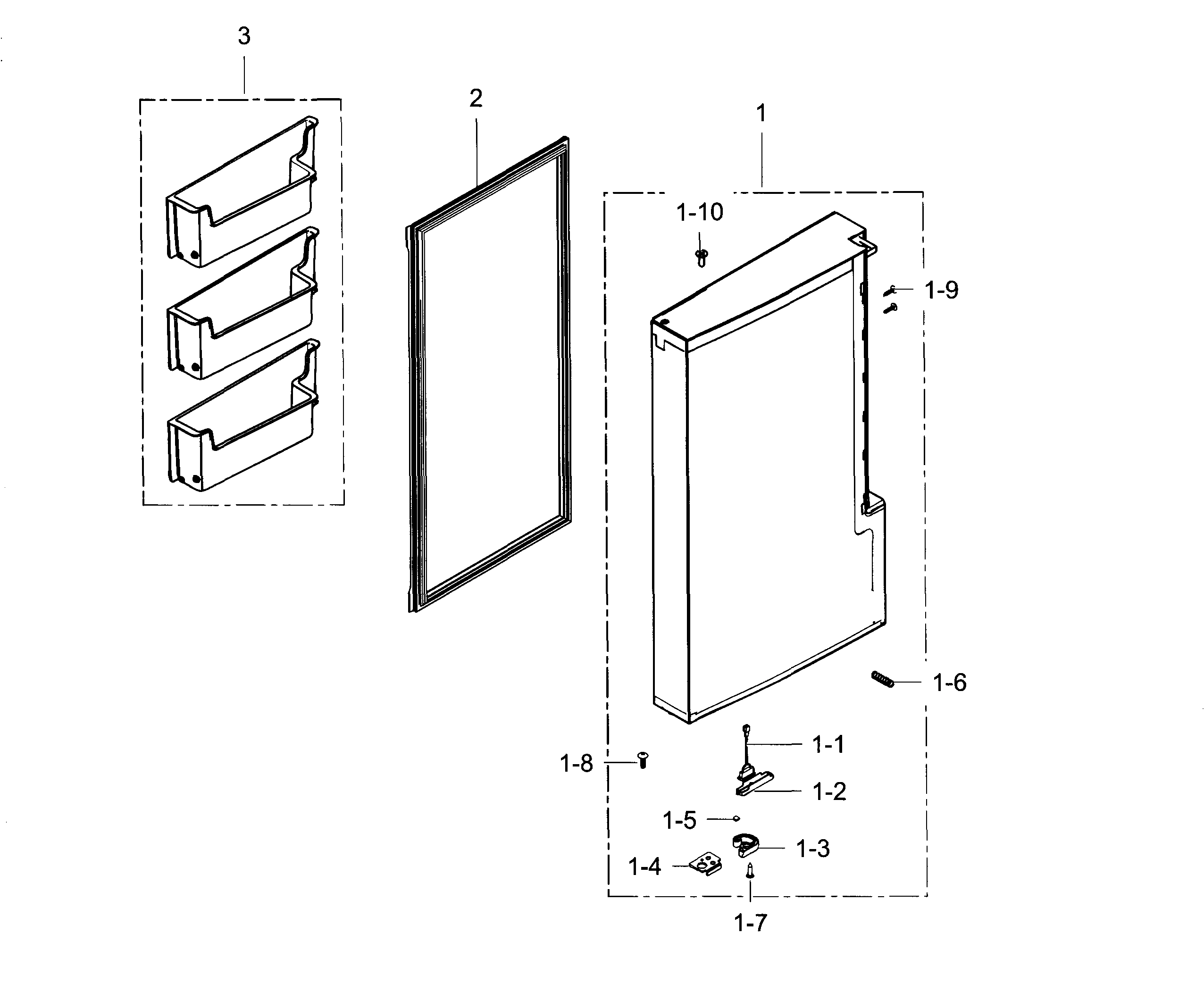

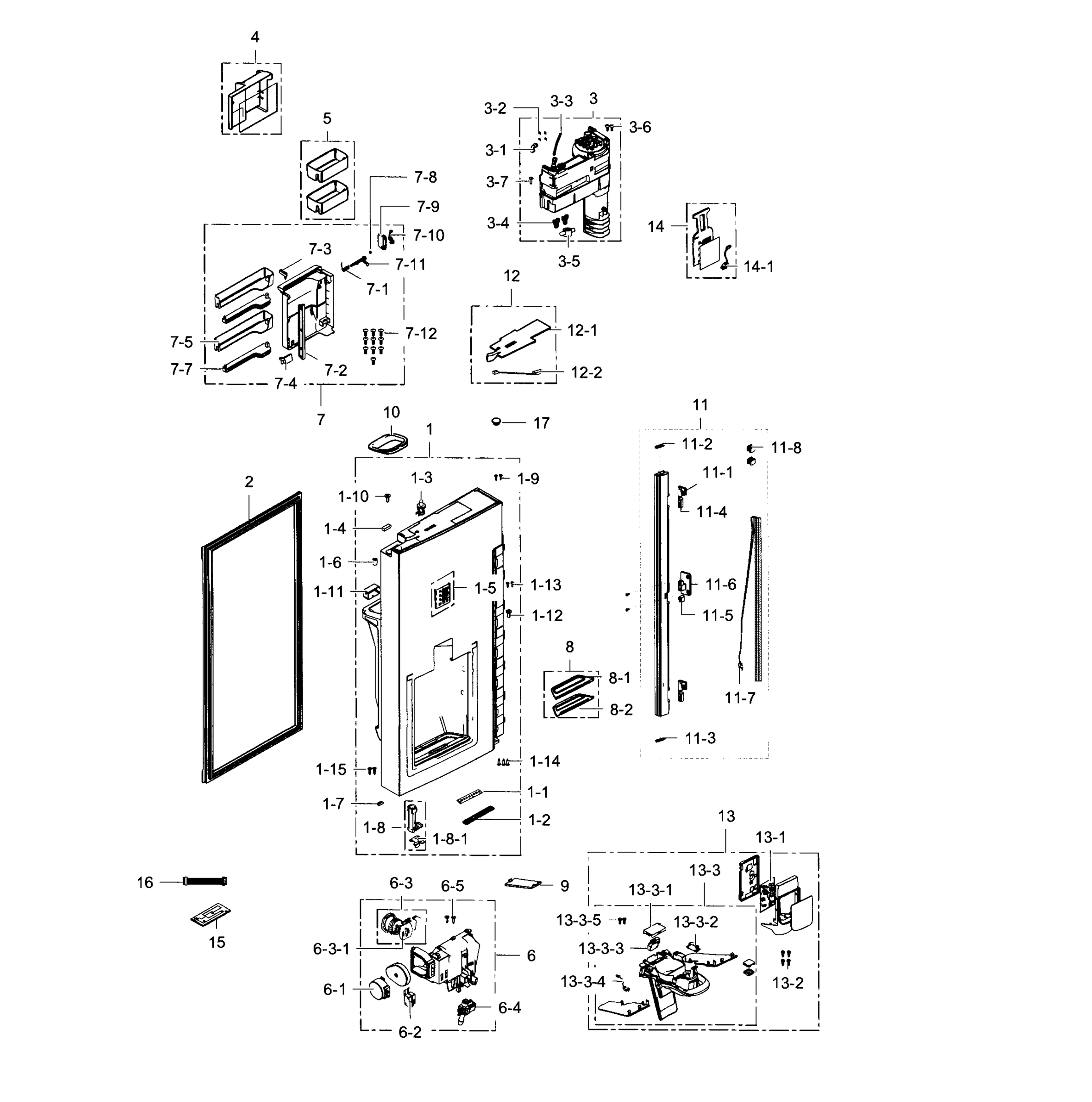

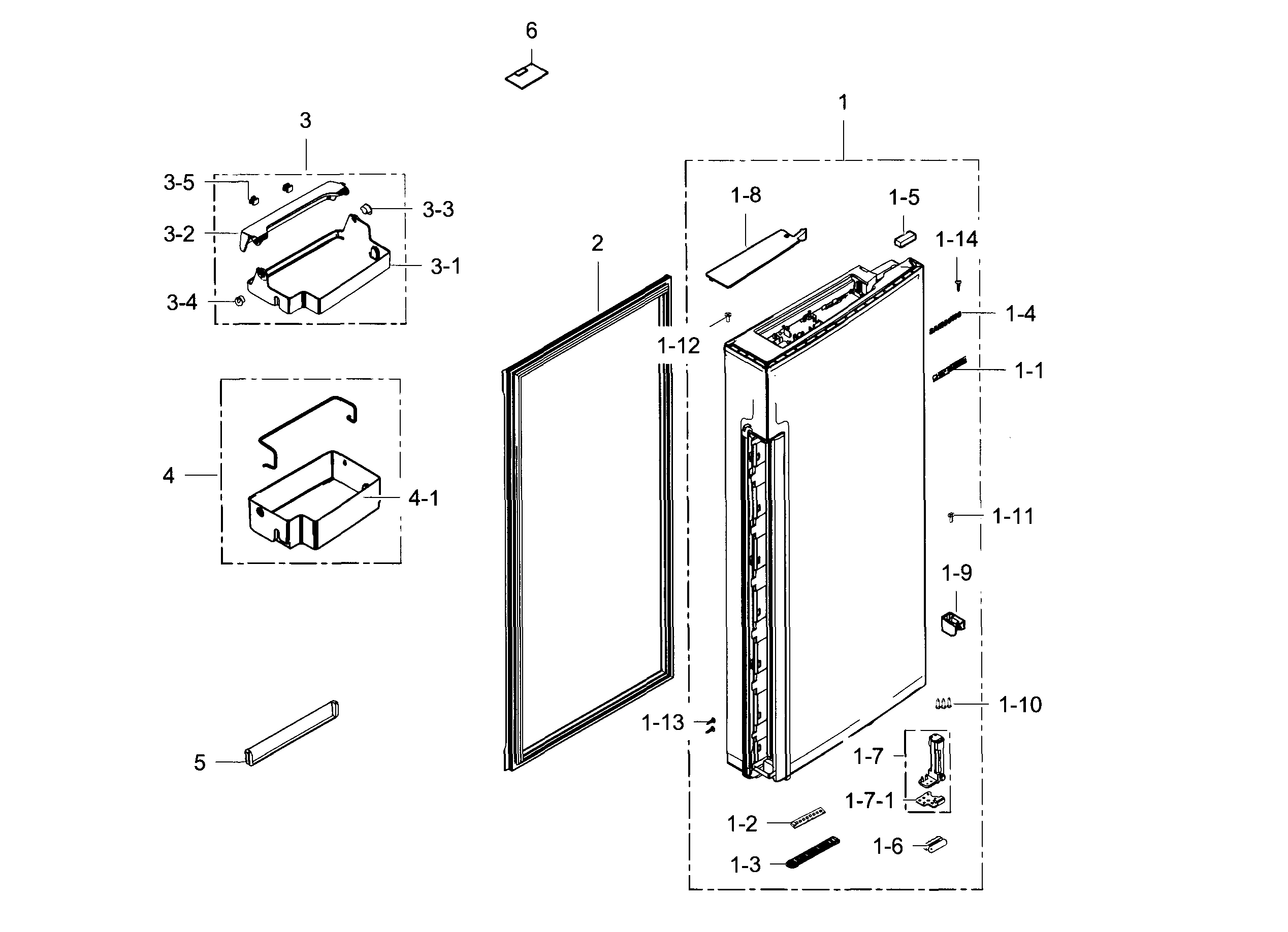

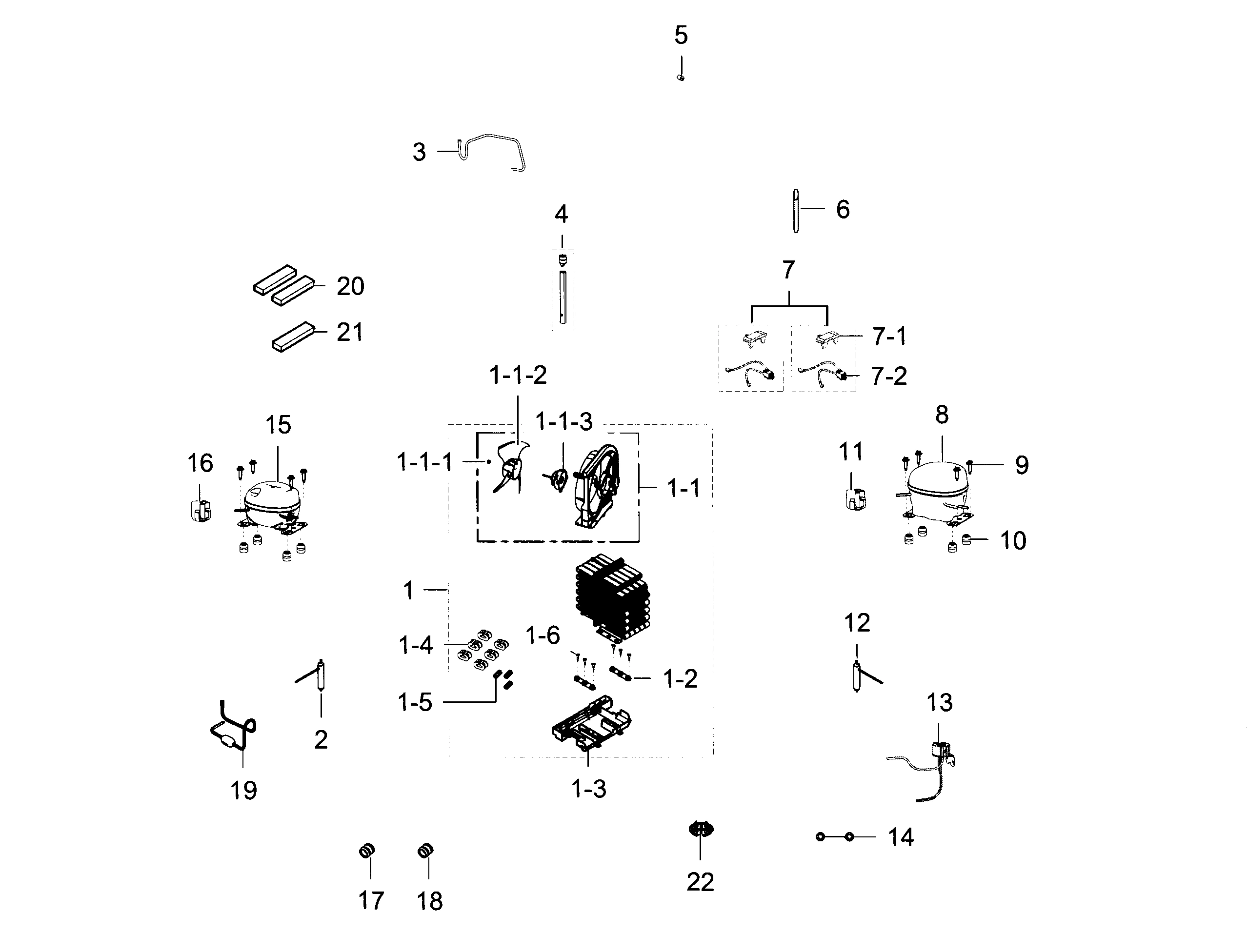

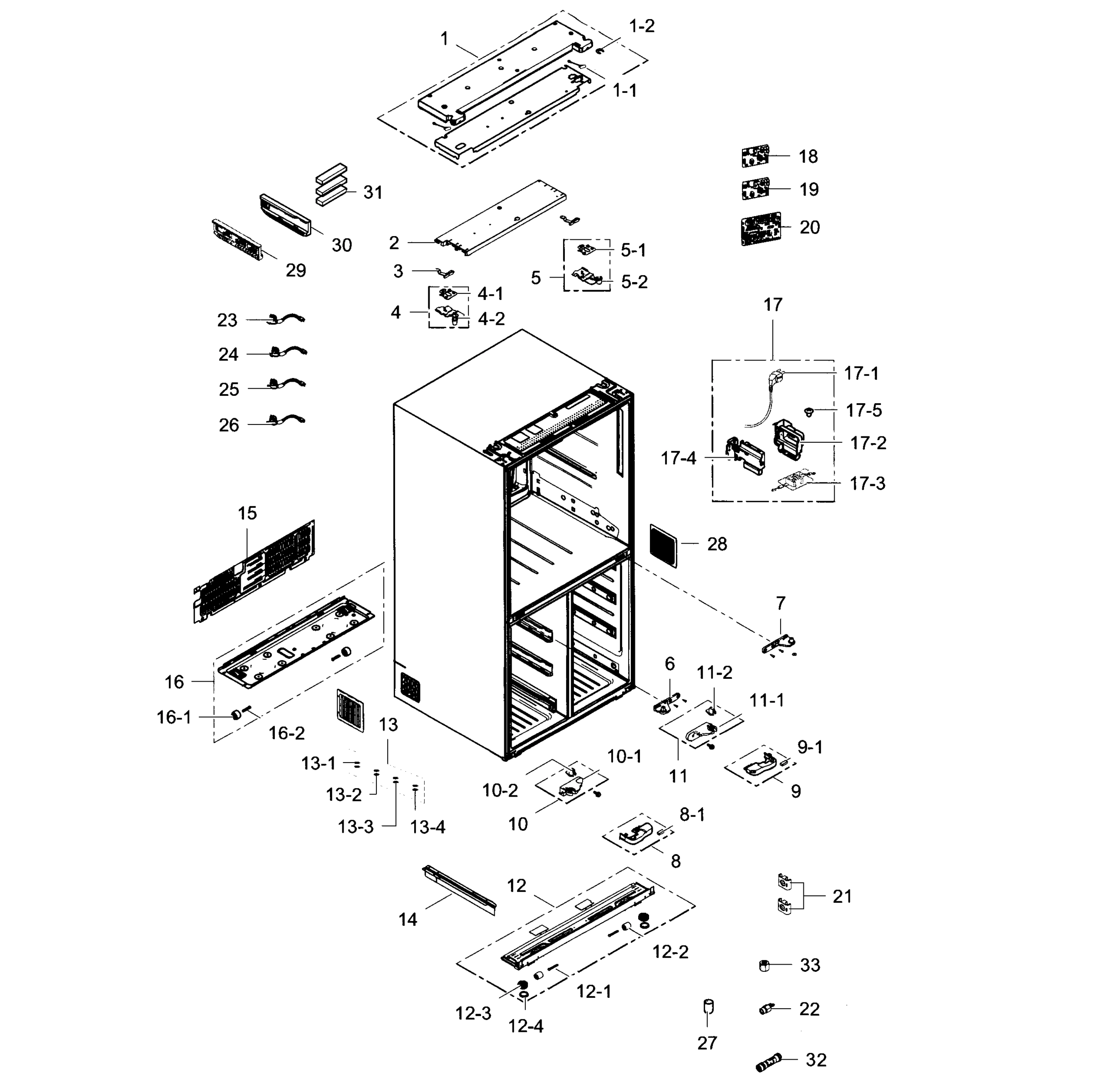

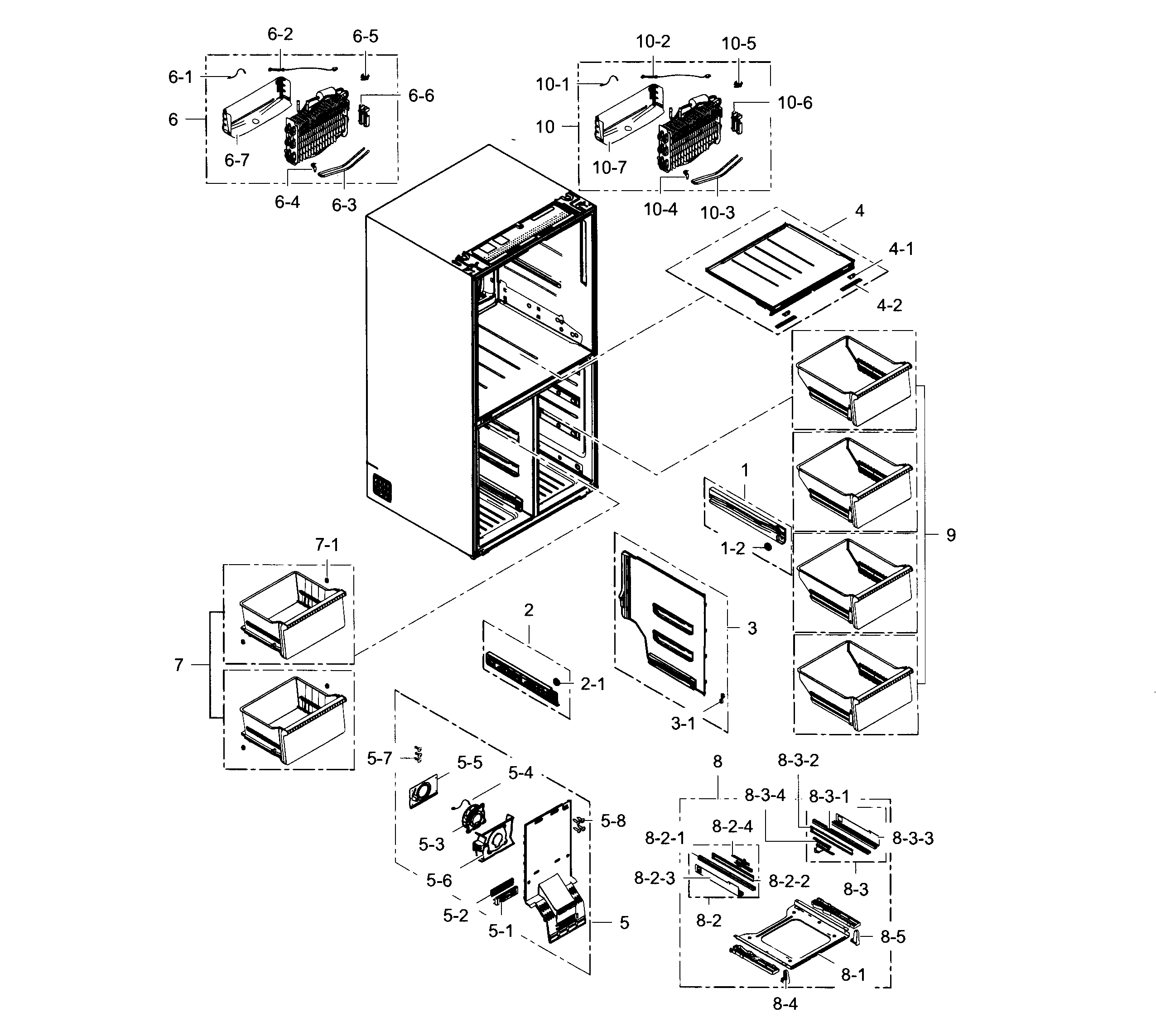

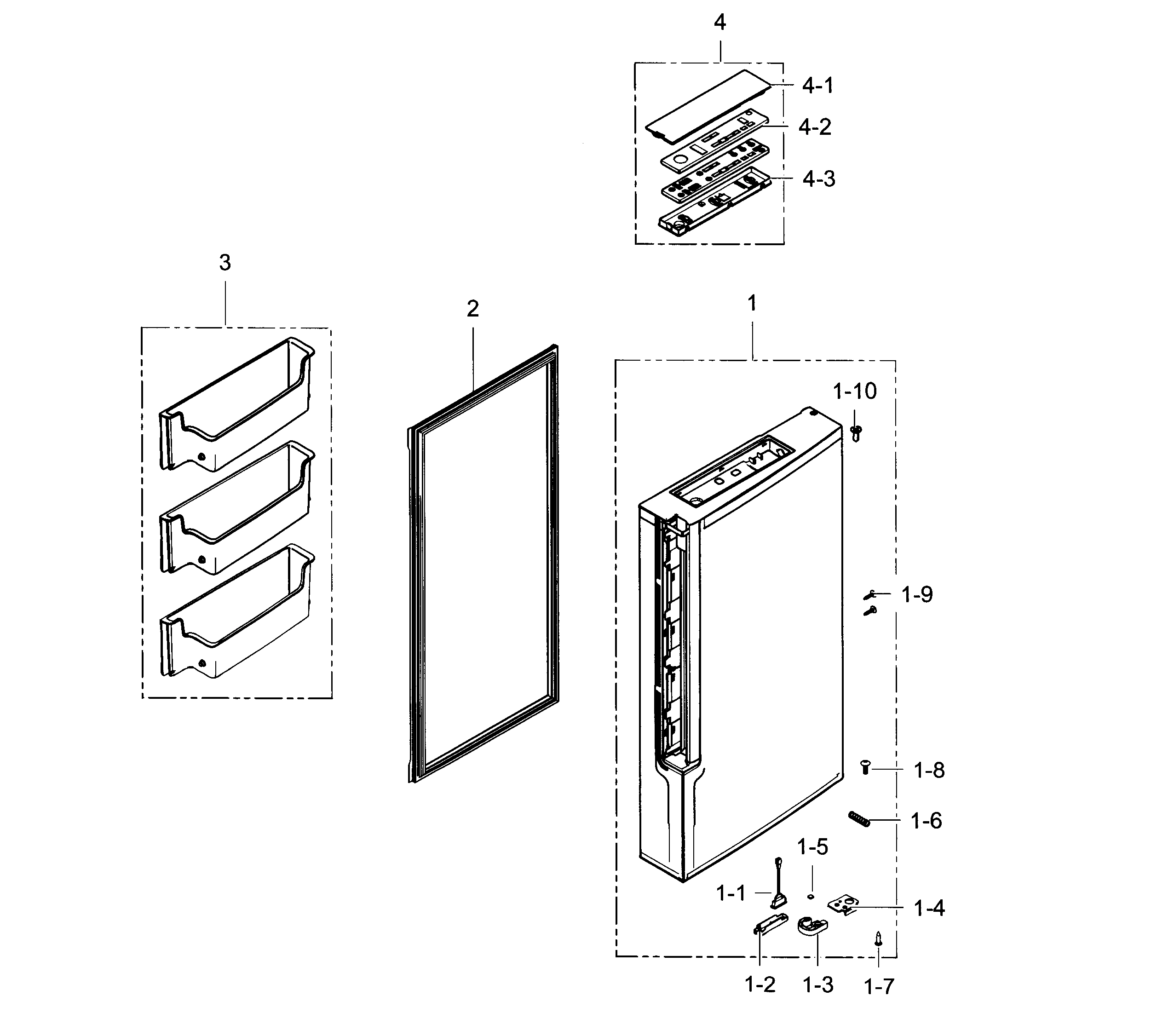

1

DA91-04393A Samsung Refrigerator Right Door F Backorder SMG DA91-04393A $328.05

1

DA91-04394A Samsung Refrigerator Right Door F Backorder SMG DA91-04394A $329.82

1

DA97-15886A Samsung Refrigerator Cover Assemb Backorder SMG DA97-15886A $160.00

1-1

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $24.47

1-1

DA97-15765B Samsung Refrigerator Motor Suppor Backorder SMG DA97-15765B $97.79

1-3

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $18.32

1-3

DA61-02383E Samsung Refrigerator Door Closing Backorder SMG DA61-02383E $4.65

1-4

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $23.22

1-5

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

1-5

DA97-14772A Samsung Refrigerator Control Cove Backorder SMG DA97-14772A $55.24

1-7

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.49

1-8

DA97-14535A Samsung Refrigerator Left Hinge A Backorder SMG DA97-14535A $85.69

1-11

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $8.71

1-12

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $20.31

1-13

DA31-00278C Samsung Refrigerator BLDC Fan Mot Backorder SMG DA31-00278C $146.44

1-14

6002-001120 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001120 $0.92

1-15

6002-001515 Samsung Tapping Screw Backorder SMG 6002-001515 $0.92

1-81

DA61-09732A Samsung Refrigerator Left Door St Backorder SMG DA61-09732A $12.02

2

DA97-15248C Samsung Refrigerator Gray Gasket Backorder SMG DA97-15248C $105.92

2

DA97-15249A Samsung Refrigerator Gray Gasket Backorder SMG DA97-15249A $98.48

2-2

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $118.03

3

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $6.59

3

DA97-14483A Samsung Refrigerator Right Guard Backorder SMG DA97-14483A $72.40

3

DA97-14605A Samsung Refrigerator Upper Basket Backorder SMG DA97-14605A $507.46

3-1

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $19.89

3-3

DA62-01368D Samsung Refrigerator Water Pipe L Backorder SMG DA62-01368D $9.96

3-4

DA60-00338A Samsung Refrigerator Tube Fitting Backorder SMG DA60-00338A $31.71

3-5

DA62-04256A Samsung Valve Keeper Backorder SMG DA62-04256A $60.27

3-6

6002-000471 Samsung Refrigerator Screw Backorder SMG 6002-000471 $0.92

3-7

Amana refrigerator screw SMG 6002-001204 Contact Us For Availability

4

DA97-04049M Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049M $12.02

4

DA97-14531A Samsung Refrigerator Left Up Hing Backorder SMG DA97-14531A $50.27

4

DA97-14696A Samsung Assembly GUARD DISPENSER; Backorder SMG DA97-14696A $74.46

4

DA97-14768A Samsung Refrigerator Control Cove Backorder SMG DA97-14768A $165.24

4

DA97-15879A Samsung Refrigerator Case Water F Backorder SMG DA97-15879A $262.26

4-1

DA41-00676G Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00676G $41.72

4-1

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.92

4-2

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $42.91

4-4

DA62-04027A Samsung Refrigerator 2-Way Water In Stock SMG DA62-04027A $147.83

5

DA63-07782A Samsung Refrigerator Middle Door Backorder SMG DA63-07782A $24.05

5

DA97-14695A Samsung Refrigerator Door Shelf A Backorder SMG DA97-14695A $43.04

5-3

DA31-00334C Samsung Refrigerator BLDC Fan Mot In Stock SMG DA31-00334C $134.05

5-4

DA32-00011D Samsung Refrigerator Temperature In Stock SMG DA32-00011D $10.30

6

DA61-09754A Samsung Refrigerator Middle Hinge Backorder SMG DA61-09754A $71.78

6

DA97-14505A Samsung Refrigerator Ice Route As Backorder SMG DA97-14505A $195.31

6-1

DA31-00079D Samsung Refrigerator Geared Dispe In Stock SMG DA31-00079D $79.39

6-2

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $9.53

6-3

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $41.07

6-4

DA97-14891A Samsung Refrigerator Dispenser As Backorder SMG DA97-14891A $132.84

6-5

6002-001547 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001547 $0.92

6-31

DA63-04647A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04647A $15.76

7

DA97-08310H Samsung Refrigerator Compressor W Backorder SMG DA97-08310H $55.66

7

DA97-15891A Samsung Refrigerator Assembly Cas Backorder SMG DA97-15891A $149.36

7

DA97-15906A Samsung Utility Guard Assembly Backorder SMG DA97-15906A $139.68

7-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $26.31

7-1

DA61-03506B Samsung Refrigerator Bucket Cover Backorder SMG DA61-03506B $7.36

7-2

DA39-00154J Samsung Refrigerator Compressor W Backorder SMG DA39-00154J $32.08

7-2

DA61-09744A Samsung Middle Guide Backorder SMG DA61-09744A $35.83

7-3

DA61-09763A Samsung Hinge Assembly Backorder SMG DA61-09763A $5.82

7-4

DA61-09764A Samsung Hinge Low Assembly Backorder SMG DA61-09764A $6.20

7-5

DA63-08210A Samsung Refrigerator Guard Middle Backorder SMG DA63-08210A $66.30

7-7

DA63-08213A Samsung Tray-Up Assembly Backorder SMG DA63-08213A $22.80

7-8

DA67-01719A Samsung Refrigerator Cap Screw Backorder SMG DA67-01719A $0.92

7-9

DA66-01098A Samsung Refrigerator Lever Backorder SMG DA66-01098A $5.42

7-10

DA66-01097A Samsung Lever Assembly Backorder SMG DA66-01097A $6.59

7-11

DA66-01101A Samsung Refrigerator Cam Lock Backorder SMG DA66-01101A $5.80

7-12

6002-001406 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001406 $0.92

8

DA97-14501E Samsung Refrigerator Evaporator C Backorder SMG DA97-14501E $199.60

8

DA97-14537A Samsung Refrigerator Front Leg Co In Stock SMG DA97-14537A $14.09

8

DA97-15024A Samsung Refrigerator Dispenser Tr Backorder SMG DA97-15024A $105.50

8

MKV190CL2B/ASH Samsung Refrigerator Compresso In Stock SMG MKV190CL2B/ASH $289.71

8-1

DA81-06013A Samsung Refrigerator Evaporator F In Stock SMG DA81-06013A $91.18

8-1

Refrigerator cover SMG DA63-07765A Contact Us For Availability

8-2

Refrigerator tray SMG DA63-07752A Contact Us For Availability

8-3

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $56.89

8-91

DA02-00229A Samsung Refrigerator Catalyst Ass Backorder SMG DA02-00229A $56.58

8-93

Refrigerator cover SMG DA63-08107A Contact Us For Availability

9

DA67-03901A Samsung Dispenser Cap Backorder SMG DA67-03901A $14.93

9

DA97-14538A Samsung Refrigerator Cover Assemb In Stock SMG DA97-14538A $15.34

9

DA97-15890A Samsung Refrigerator Middle Case Backorder SMG DA97-15890A $136.85

9

Refrigerator case SMG DA97-14542A Contact Us For Availability

9-1

DA63-07812A Samsung Right Side Lamp Cover Backorder SMG DA63-07812A $72.69

9-2

DA96-01060A Samsung LED Lamp Assembly Backorder SMG DA96-01060A $98.14

10

DA96-00987B Samsung Refrigerator Evaporator A Backorder SMG DA96-00987B $177.04

10

DA97-13431A Samsung Refrigerator Ice Chute Ca Backorder SMG DA97-13431A $58.50

10

Refrigerator case SMG DA97-14543A Contact Us For Availability

10-1

DA63-07813A Samsung Refrigerator Left Side La Backorder SMG DA63-07813A $35.15

10-2

DA96-01060B Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-01060B $100.78

11

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $11.60

11

DA97-13880G Samsung Refrigerator French Assem Backorder SMG DA97-13880G $148.31

11

Refrigerator cover SMG DA97-15866A Contact Us For Availability

11-1

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.98

11-2

DA63-06959A Samsung Refrigerator Upper French Backorder SMG DA63-06959A $4.56

11-2

Refrigerator damper control SMG DA63-07932A Contact Us For Availability

11-3

DA63-06842B Samsung Refrigerator Low French G Backorder SMG DA63-06842B $5.38

11-3

Refrigerator cover SMG DA63-08219A Contact Us For Availability

11-4

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.15

11-5

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.15

11-6

Refrigerator cover SMG DA63-07287A Contact Us For Availability

11-7

DA47-00245U Samsung Refrigerator Heater Cord Backorder SMG DA47-00245U $72.51

11-8

DA63-07538A Samsung Refrigerator Grommet Asse Backorder SMG DA63-07538A $1.67

12

DA97-14683A Samsung Assembly Display Cover Backorder SMG DA97-14683A $71.78

12

Refrigerator cover SMG DA97-15867A Contact Us For Availability

12-1

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.31

12-1

Refrigerator cover SMG DA63-07750A Contact Us For Availability

12-2

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.05

12-2

COVER DAMPER-REF MIDDLE;RF9900 Backorder SMG DA63-07933A $2.71

12-3

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $7.87

12-3

Refrigerator rail cover SMG DA63-08220A Contact Us For Availability

12-4

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.91

DA97-08630B Samsung Refrigerator Step Valve In Stock SMG DA97-08630B $148.88

DA97-14500C Samsung Refrigerator Cover Assemb Backorder SMG DA97-14500C $245.91

DA97-14769A Samsung Refrigerator Dispenser Co Backorder SMG DA97-14769A $341.21

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $8.06

13-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $1.67

13-1

DA92-00608A Samsung Refrigerator Module Assem Backorder SMG DA92-00608A $146.78

13-3

DA97-14506A Samsung Refrigerator Dispenser Le Backorder SMG DA97-14506A $236.70

13-4

DA61-09741A Samsung Bracket Motor Assembly Backorder SMG DA61-09741A $16.27

13-5

Refrigerator cover SMG DA63-07774A Contact Us For Availability

13-6

Refrigerator insulation SMG DA62-04385A Contact Us For Availability

13-7

Refrigerator insulation SMG DA62-04373A Contact Us For Availability

14

DA97-14793A Samsung Assembly Refrigerator Dis Backorder SMG DA97-14793A $149.61

14

DA97-15899A Samsung Refrigerator Shelf Assemb Backorder SMG DA97-15899A $130.67

14-1

Refrigerator shelf SMG DA67-04081A Contact Us For Availability

14-1

Refrigerator harness SMG DA96-01069A Contact Us For Availability

14-3

Refrigerator hanger SMG DA97-15900A Contact Us For Availability

15

DA96-01055A Samsung Refrigerator Evaporator A Backorder SMG DA96-01055A $150.66

15

DB92-02875B Samsung Refrigerator PCB Assembly Backorder SMG DB92-02875B $32.08

15

NC1MV43AMP/E01 Samsung Refrigerator Compresso Backorder SMG NC1MV43AMP/E01 $228.54

15-1

DA32-00029R Samsung Refrigerator Temperature In Stock SMG DA32-00029R $10.30

15-2

DA61-06013B Samsung Refrigerator FIXER Wire Backorder SMG DA61-06013B $5.38

16

DA97-13195A Samsung Refrigerator Compressor C Backorder SMG DA97-13195A $106.94

16

DA97-15898A Samsung Folder Shelf Assembly Backorder SMG DA97-15898A $147.97

16

Refrigerator wire SMG DB93-14210A Contact Us For Availability

16-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.80

16-1

Folding shelf SMG DA67-04084A Contact Us For Availability

16-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.56

16-2

Refrigerator hanger SMG DA97-15904A Contact Us For Availability

17

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $5.38

17

DA67-30266K Samsung Refrigerator Cap Screw Backorder SMG DA67-30266K $0.92

17

DA97-15902A Samsung Refrigerator Shelf Folder Backorder SMG DA97-15902A $148.42

17-1

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $64.47

17-1

Folding shelf SMG DA67-04082A Contact Us For Availability

17-2

Folding shelf SMG DA67-04085A Contact Us For Availability

17-3

DA27-00043B Samsung Refrigerator Coil Filter Backorder SMG DA27-00043B $86.03

17-4

Refrigerator hanger SMG DA97-15903A Contact Us For Availability

18

DA92-00610A Samsung Refrigerator Standard Mod Backorder SMG DA92-00610A $144.39

18

DA97-14504B Samsung Refrigerator Ice Tray Ass Backorder SMG DA97-14504B $159.08

18-1

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $4.98

18-2

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $2.49

19

DA92-00615B Samsung Inverter Refrigerator Backorder SMG DA92-00615B $189.46

19

DA97-12540D Samsung Refrigerator Auger Motor Backorder SMG DA97-12540D $197.24

19-1

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $73.94

19-2

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $177.25

19-3

DA61-20140A Samsung Refrigerator Solenoid Spr Backorder SMG DA61-20140A $1.67

19-4

DA63-02513A Samsung Refrigerator Fan Grommet Backorder SMG DA63-02513A $2.91

19-5

DA74-40151G Samsung Refrigerator Ice Dispense In Stock SMG DA74-40151G $96.04

19-6

DA96-00682E Samsung Refrigerator Auger Feed W Backorder SMG DA96-00682E $97.96

19-8

DA60-00001B Samsung Refrigerator Special Hex Backorder SMG DA60-00001B $0.92

20

DA92-00611L Samsung Refrigerator PCB Backorder SMG DA92-00611L $172.05

20

Refrigerator ice maker SMG DA97-18859A No Longer Available

21

DA97-14471A Samsung Refrigerator Case Lock As Backorder SMG DA97-14471A $42.38

22

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $18.25

22

DA63-07496A Samsung Refrigerator Ice Dispense Backorder SMG DA63-07496A $14.09

23

DA97-08413C Samsung Filter Tube Cover Assembl Backorder SMG DA97-08413C $18.59

24

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $5.80

27

DA73-00211A Samsung Refrigerator Hose Rubber Backorder SMG DA73-00211A $0.92

32

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $42.16

33

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.62

1331

DA63-05449A Samsung Refrigerator Cover-Switch Backorder SMG DA63-05449A $3.73

1334

Refrigerator harness SMG DA96-00106K Contact Us For Availability

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $0.92

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $0.92

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.92

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

6021-001125 Samsung Refrigerator Hexagon Nut Backorder SMG 6021-001125 $2.91

DA32-00006E Samsung Refrigerator Temperature In Stock SMG DA32-00006E $59.66

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $18.59

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $12.02

DA47-00301D Samsung Refrigerator Defrost Sens In Stock SMG DA47-00301D $21.14

DA47-00318K Samsung Refrigerator 120V Metal S Backorder SMG DA47-00318K $102.57

DA61-03176A Samsung Refrigerator Pantry Suppo Backorder SMG DA61-03176A $1.24

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $7.87

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.24

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.07

DA61-04008A Samsung Refrigerator Washer Guide Backorder SMG DA61-04008A $0.92

DA61-09711A Samsung Motor Case Backorder SMG DA61-09711A $17.40

DA63-07231A Samsung Refrigerator Hinge Gromme Backorder SMG DA63-07231A $3.73

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.24

DA66-01042A Samsung Roller Assembly Backorder SMG DA66-01042A $2.71

DA97-05932B Samsung Refrigerator Roller Backorder SMG DA97-05932B $14.09

DA97-15998A Samsung Refrigerator Roller Assem Backorder SMG DA97-15998A $7.05

Refrigerator water filter SMG DA29-00020B Contact Us For Availability

Oil damper SMG DA61-09993B Contact Us For Availability

Refrigerator cap SMG DA67-03920A Contact Us For Availability
