Model Samsung RF24BB69006M/AA-00 French Door Refrigerator – Common Parts &amp; Diagrams

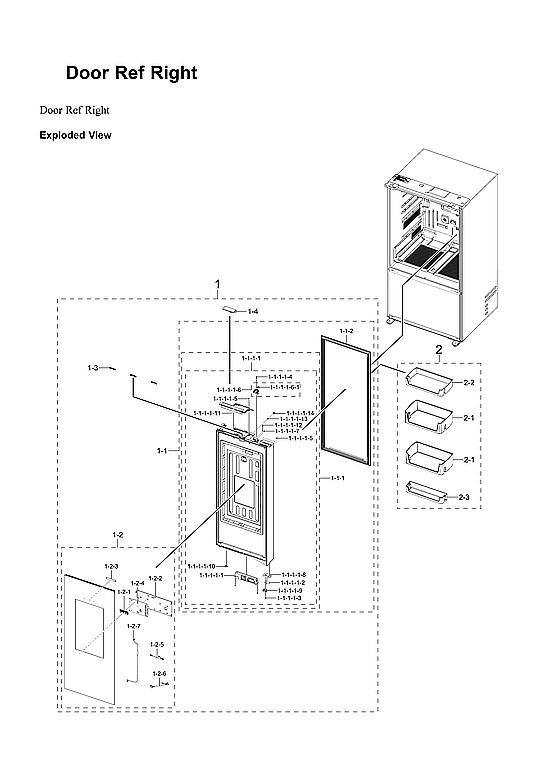

1

DA97-22973B Samsung Refrigerator Evaporator C Backorder SMG DA97-22973B $211.01

1

Assy door sub-ref left SMG DA93-01250C Contact Us For Availability

1

Assy door sub-ref right SMG DA93-01251B Contact Us For Availability

DA31-00334D Samsung Refrigerator BLDC Fan Mot Backorder SMG DA31-00334D $125.29

DA32-00070M Samsung Refrigerator Temperature In Stock SMG DA32-00070M $26.55

Assy door sub-ref in left door module SMG DA93-01243B Contact Us For Availability

Assy door sub-ref right door module SMG DA93-01242A Contact Us For Availability

1-1-1

DA91-06118A Samsung Assy Door Foam-Ref Right Backorder SMG DA91-06118A $251.29

1-1-1

ASSY DOOR FOAM-REF IN;RF8000B, Backorder SMG DA91-06120B $237.04

1-1-1-1

Assy plate door-ref right SMG DA97-23036A Contact Us For Availability

1-1-1-4

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.92

1-1-1-7

6009-001475 Samsung Refrigerator Special Scre Backorder SMG 6009-001475 $0.92

1-1-1-8

DA97-22979A Samsung Refrigerator Lower Left H Backorder SMG DA97-22979A $117.98

1-1-1-11

DA61-13422A Samsung Refrigerator Low Door Sto Backorder SMG DA61-13422A $55.37

1-1-1-13

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $42.91

1-1-1-14

DA63-11598A Samsung Cover Door-Left Backorder SMG DA63-11598A $12.85

1-1-1-15

DA63-11599A Samsung Refrigerator Right Door C Backorder SMG DA63-11599A $25.44

1-1-1-16

DA66-01342A Samsung Refrigerator Lever Backorder SMG DA66-01342A $6.62

1-1-1-17

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $14.29

1-1-2

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $75.95

1-1-2

DA97-17399J Samsung Refrigerator Inner Case A Backorder SMG DA97-17399J $275.40

1-1-2

DA97-23013A Samsung Refrigerator Gasket Assem Backorder SMG DA97-23013A $163.15

1-1-2-1

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $9.53

1-1-2-2

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $0.92

1-1-2-4

DA34-00043M Samsung Refrigerator Reed Switch In Stock SMG DA34-00043M $32.08

1-1-2-5

DA61-11032A Samsung Refrigerator Fixer Assemb Backorder SMG DA61-11032A $5.80

1-1-2-6

DA61-13987A Samsung CASE DISPENSER;RS5000T,ST Backorder SMG DA61-13987A $83.60

1-1-2-7

DA67-04504D Samsung Refrigerator Tube Cap Fix Backorder SMG DA67-04504D $6.62

1-1-2-9

DA97-17297C Samsung Refrigerator Dispenser Le Backorder SMG DA97-17297C $96.42

1-1-2-10

ASSY WIRE HARNESS-DISPENSER;AL Backorder SMG DA96-01471C $81.43

1-1-3

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $84.55

1-1-3

DA97-21788A Samsung Basket Cover Assembly Backorder SMG DA97-21788A $175.08

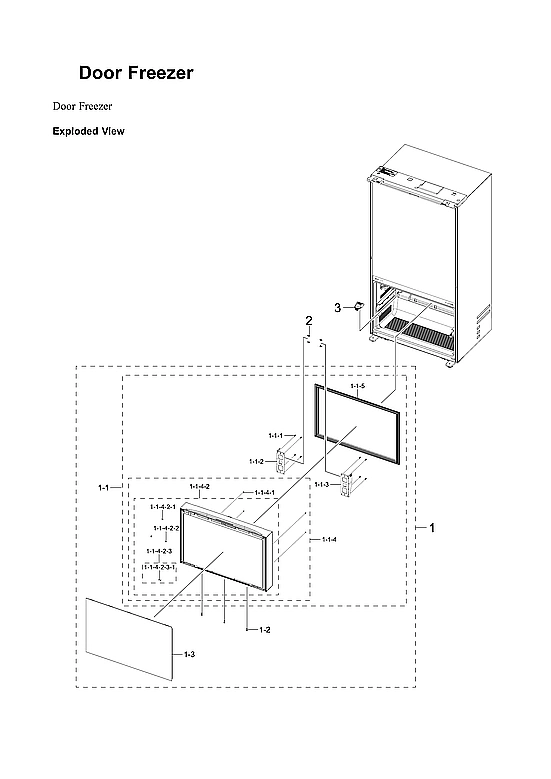

1-1-5

DA97-23074C Samsung Refrigerator French Assem Backorder SMG DA97-23074C $287.60

1-1-5-3

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.98

1-1-5-4

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $6.22

1-1-5-5

DA63-06842B Samsung Refrigerator Low French G Backorder SMG DA63-06842B $5.38

1-1-5-6

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.15

1-1-5-7

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.15

1-1-7

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $0.92

1-1-8

SCREW-TAPPING;SWRCH18A,ZPC,L16 Backorder SMG 6002-000244 $0.92

1-1-9

6002-001406 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001406 $0.92

1-1-11

DA67-30266Q Samsung Cap Screw Backorder SMG DA67-30266Q $58.10

DA32-00070A Samsung Refrigerator Temperature Backorder SMG DA32-00070A $12.85

DA32-00070B Samsung Refrigerator Temperature Backorder SMG DA32-00070B $10.96

DA99-04371R Samsung Refrigerator Custom Panel Backorder SMG DA99-04371R $1,249.46

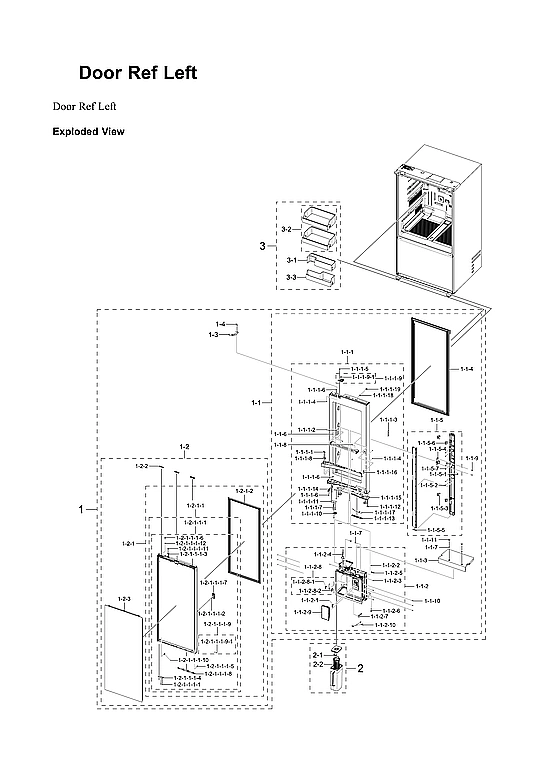

Assy door sub-ref out left SMG DA93-01245C Contact Us For Availability

1-2-1

Non-serviceable part SMG N/P Contact Us For Availability

1-2-1

Assy door sub-ref out left door module SMG DA93-01244A Contact Us For Availability

1-2-1-1

DA91-06117A Samsung Door Foam Assembly Left O Backorder SMG DA91-06117A $206.11

1-2-1-2

DA97-23077A Samsung Refrigerator Gasket Assem Backorder SMG DA97-23077A $172.71

1-2-2

DA60-10123E Samsung Refrigerator Hex Bolt M6 In Stock SMG DA60-10123E $1.24

1-2-2

Cover displa SMG DA63-09838A Contact Us For Availability

1-2-3

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.31

1-2-3

DA92-01368A Samsung Assembly PBA Voice Module Backorder SMG DA92-01368A $67.22

1-2-3

RA-F18DU312/AA Samsung Refrigerator RFD 0.0 1 In Stock SMG RA-F18DU312/AA $278.43

1-2-4

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.05

1-2-4

DA94-06039F Samsung EEPROM PCB Assembly Backorder SMG DA94-06039F $319.60

1-2-5

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $8.84

1-2-5

Wire harness SMG DA96-01368B Contact Us For Availability

1-2-6

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.91

1-2-6

Wire harness SMG DA96-01524A Contact Us For Availability

1-2-7

Wire harness SMG DA96-01421C Contact Us For Availability

1-3

DA63-09686A Samsung Refrigerator Dark ABS Doo Backorder SMG DA63-09686A $4.26

1-3

DA97-20039C Samsung Refrigerator Left Upper H Backorder SMG DA97-20039C $44.36

1-3

Fixer SMG DA61-11034A Contact Us For Availability

1-4

ANGLE SHELF-REF MIDDLE;GI-SGCC Backorder SMG DA61-14455B $38.72

1-4

DA63-08449B Samsung Refrigerator Lock Cover Backorder SMG DA63-08449B $12.44

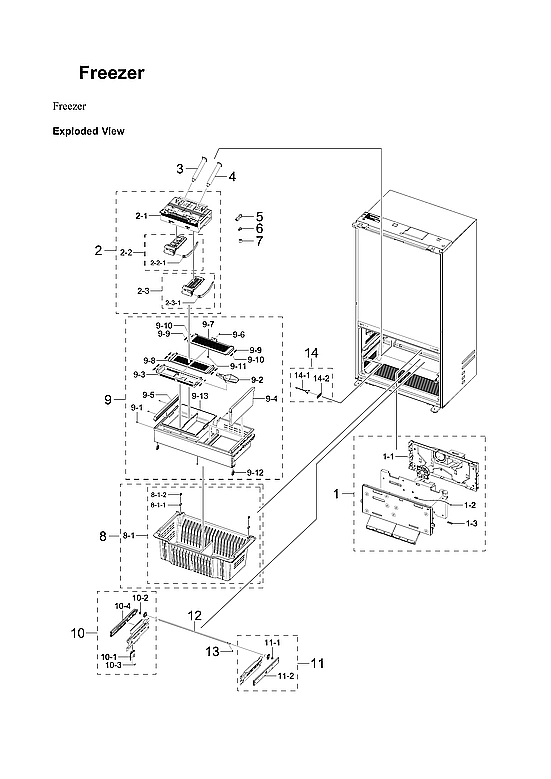

2

DA97-21261K Samsung Refrigerator Water Filter Backorder SMG DA97-21261K $201.59

2

DA97-21878A Samsung Refrigerator Low Vegetabl Backorder SMG DA97-21878A $105.50

2

Assy ice maker SMG DA97-21804C Contact Us For Availability

2

Assy tray drawer-box drawer module SMG DA97-23245D Contact Us For Availability

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.92

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $18.59

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $5.80

DA61-14435A Samsung Refrigerator Ice Maker Su In Stock SMG DA61-14435A $108.18

DA97-21915C Samsung Refrigerator Guard Assemb Backorder SMG DA97-21915C $70.21

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $43.37

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $24.05

DA61-15091A Samsung Refrigerator Filter Case Backorder SMG DA61-15091A $36.14

DA97-22160A Samsung Refrigerator Ice Case Ass In Stock SMG DA97-22160A $151.85

DA97-22566B Samsung Assembly GUARD-REF UP;RF8 Backorder SMG DA97-22566B $62.97

2-3

DA97-22162A Samsung Refrigerator Ice Case Ass In Stock SMG DA97-22162A $116.97

2-3

DA97-23268A Samsung Assembly GUARD-REF LOW;RF Backorder SMG DA97-23268A $57.52

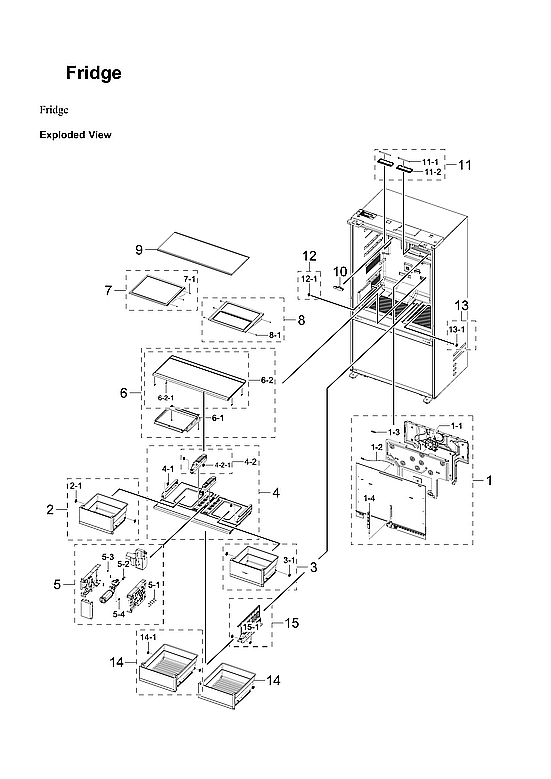

3

L13000630 American Vulkan Lokring Refrigerati In Stock ALC L13000630 $5.64

3

DA97-21256C Samsung Refrigerator Water Ice Pi In Stock SMG DA97-21256C $122.05

3

DA97-21878B Samsung Refrigerator Low Vegetabl Backorder SMG DA97-21878B $114.83

3-1

6006-001170 Samsung Appliance Tapping Screw T Backorder SMG 6006-001170 $0.92

3-1

DA97-21914E Samsung Refrigerator Low Guard As Backorder SMG DA97-21914E $70.21

3-2

DA97-21960E Samsung Refrigerator Middle Guard Backorder SMG DA97-21960E $96.58

3-3

DA97-23075B Samsung Refrigerator Low Ref Guar Backorder SMG DA97-23075B $56.27

3-7-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.80

3-7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.56

4

DA97-21256B Samsung Refrigerator Water Pipe I Backorder SMG DA97-21256B $129.25

4

DA97-23050A Samsung Assembly SHELF PANTRY;RF8 Backorder SMG DA97-23050A $179.75

4-2

DA97-21876A Samsung Refrigerator Middle Left Backorder SMG DA97-21876A $34.29

5

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $19.89

5

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $18.34

5

DA97-23026A Samsung Refrigerator Case Filter Backorder SMG DA97-23026A $259.88

5-2

DA60-00393A Samsung Refrigerator Tube Fitting Backorder SMG DA60-00393A $31.71

5-3

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.92

5-4

DA62-02414A Samsung Refrigerator Fitting Tube Backorder SMG DA62-02414A $16.58

6

L13000621 American Vulkan Lokring .197 or 3/1 In Stock ALC L13000621 $6.41

6

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $18.25

6

Assy shelf veg-low SMG DA97-21902M Contact Us For Availability

6-1

Cover veg-up SMG DA63-11228A Contact Us For Availability

6-2

DA97-21902L Samsung Refrigerator Low Veg Shel Backorder SMG DA97-21902L $167.96

6-2-1

DA64-03784A Samsung Refrigerator Shelf Trim Backorder SMG DA64-03784A $41.39

7

L13000612 American Vulkan Lokring .118" to .0 In Stock ALC L13000612 $7.73

7

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.67

7

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.62

7

DA97-22970A Samsung Assembly SHELF INSERT-REF Backorder SMG DA97-22970A $145.14

8

DA61-04932B Samsung Refrigerator Hinge Fixer Backorder SMG DA61-04932B $12.02

8

DA97-21895A Samsung Refrigerator Quick Space Backorder SMG DA97-21895A $142.85

8-1

DA97-23028A Samsung Refrigerator Drawer Tray Backorder SMG DA97-23028A $159.54

8-1-1

DA97-22036A Samsung Refrigerator Roller Assem Backorder SMG DA97-22036A $4.98

8-1-2

DA71-20145A Samsung Refrigerator Roller Fixer Backorder SMG DA71-20145A $0.92

9

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $42.98

9

DA97-21898A Samsung Refrigerator Upper Shelf Backorder SMG DA97-21898A $154.82

9

DA97-22996A Samsung Refrigerator Upper Tray Backorder SMG DA97-22996A $207.54

9-1

SCREW-TAPPING;STS304,PASS,L14, Backorder SMG 6002-000473 $0.92

9-2

DA61-14309A Samsung Refrigerator Ice Scoop Ca Backorder SMG DA61-14309A $81.70

9-3

DA61-15174A Samsung Refrigerator Case Basket Backorder SMG DA61-15174A $74.81

9-4

GUIDE TRAY-FRE;RF8000BC,HIPS,T Backorder SMG DA61-15176A $67.53

9-5

RAIL-LEFT;RF8000BC,HIPS,COOL W Backorder SMG DA61-15178A $33.56

9-6

DA63-11374A Samsung Refrigerator Door Grommet Backorder SMG DA63-11374A $5.38

9-7

DA63-11587A Samsung Cover Front-Up;Rf8000Bc,H Backorder SMG DA63-11587A $58.50

9-8

DA63-11590A Samsung Refrigerator Rear Cover A Backorder SMG DA63-11590A $79.39

9-9

DA63-11592A Samsung GROMMET-A;RF8000BC,POM,NA Backorder SMG DA63-11592A $1.67

9-10

DA63-11593A Samsung Refrigerator Grommet Backorder SMG DA63-11593A $1.67

9-11

Grommet SMG DA63-40305A Contact Us For Availability

9-12

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $4.56

9-13

DA97-23081A Samsung Refrigerator Ice Case Ass Backorder SMG DA97-23081A $97.70

10

6003-001727 Samsung Refrigerator Television T Backorder SMG 6003-001727 $1.67

10

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $5.80

10

DA97-13261D Samsung Refrigerator Low Left Rai Backorder SMG DA97-13261D $152.80

10-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $3.33

10-3

DA61-03769B Samsung Refrigerator Dispenser Dr Backorder SMG DA61-03769B $4.98

10-4

DA61-08818A Samsung Refrigerator Low Slide Ra Backorder SMG DA61-08818A $147.30

11

DA97-13262B Samsung Refrigerator Low Slide Ra Backorder SMG DA97-13262B $144.38

11

DA97-21951B Samsung Lamp Cover Assembly Backorder SMG DA97-21951B $65.40

11

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $8.25

11-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $1.67

11-1

DA96-01119E Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-01119E $101.56

11-2

DA61-08819A Samsung Refrigerator Low Slide Ra Backorder SMG DA61-08819A $134.50

11-2

COVER LAMP;RF8000B,GPPS,T2,HB, Backorder SMG DA63-11686A $14.09

12

DA66-00437H Samsung Refrigerator Shaft Backorder SMG DA66-00437H $31.35

12

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.40

12

Cover rail-l SMG DA97-23046A Contact Us For Availability

13

ASSY COVER RAIL-RIGHT;RF8000BC Backorder SMG DA97-23047A $60.22

14

L13000584 American Vulkan Lokring Refrigerati In Stock ALC L13000584 $4.46

14

DA97-13783A Samsung Refrigerator Assembly Cov Backorder SMG DA97-13783A $23.22

14

DA97-23041A Samsung Refrigerator Low Vegetabl Backorder SMG DA97-23041A $125.69

14-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $19.49

14-2

DA63-07513A Samsung Refrigerator Reed Switch Backorder SMG DA63-07513A $4.98

15

Support-midd SMG DA97-23043A Contact Us For Availability

SPEAKER;4OHM,803DB,206.4X48.2 Backorder SMG 3001-002863 $143.81

6001-000570 Samsung Machine Screw Backorder SMG 6001-000570 $0.92

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $0.92

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $16.58

Screw SMG 6002-000538 Contact Us For Availability

11118

DA61-09952B Samsung Refrigerator Door Stopper Backorder SMG DA61-09952B $8.31

11119

DA61-13385A Samsung Refrigerator Door Close S Backorder SMG DA61-13385A $5.38

11281

DA61-07581A Samsung Refrigerator LED Case Lam Backorder SMG DA61-07581A $2.07

11282

DA63-06505A Samsung Cover LED Lamp Backorder SMG DA63-06505A $1.94

12111

Assy plate door-ref out left SMG DA97-23035A Contact Us For Availability

111110

DA63-04825B Samsung Refrigerator Grommet Cap Backorder SMG DA63-04825B $2.91

111111

Cover cap do SMG DA63-11578A Contact Us For Availability

111113

6021-000258 Samsung Hexagon Nut Backorder SMG 6021-000258 $0.92

111114

DA97-20572A Samsung Assy Fixer-Up Backorder SMG DA97-20572A $7.05

111161

DA66-00440A Samsung Refrigerator Auto Close R Backorder SMG DA66-00440A $1.24

121113

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.07

121114

DA61-13384A Samsung Refrigerator Door Stopper Backorder SMG DA61-13384A $11.60

121115

Grommet-cove SMG DA63-02750B Contact Us For Availability

121116

DA63-07545B Samsung Refrigerator Middle Hinge Backorder SMG DA63-07545B $2.49

121117

Cover lock SMG DA63-09537A Contact Us For Availability

121118

COVER CAP DOOR;RF9000R(B),ABS, Backorder SMG DA63-09639A $13.69

121119

Assy lever handle SMG DA97-22967A Contact Us For Availability

1211110

DA63-09942A Samsung Door Grommet Backorder SMG DA63-09942A $2.07

1211111

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $0.92

1211112

DA73-00211A Samsung Refrigerator Hose Rubber Backorder SMG DA73-00211A $0.92

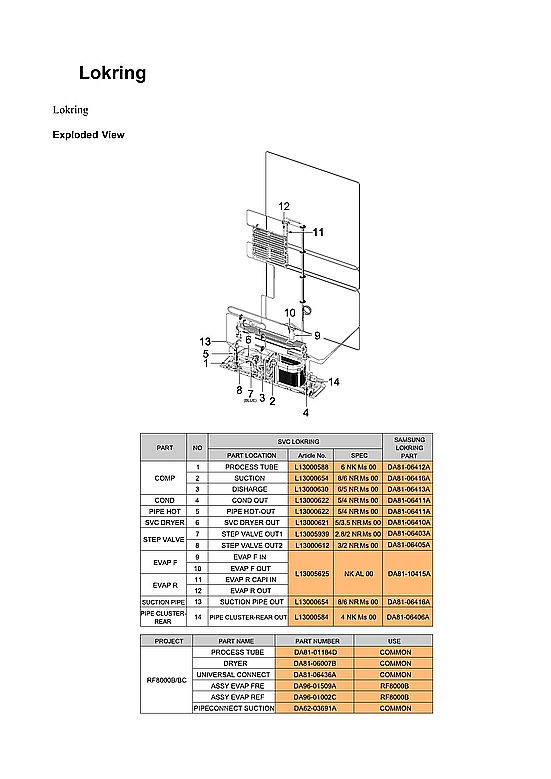

L13000622 American Vulkan Lokring Refrigerati In Stock ALC L13000622 $6.16

L13000654 American Vulkan Lokring Brass Reduc In Stock ALC L13000654 $5.64

6001-000715 Samsung Machine Screw Backorder SMG 6001-000715 $9.53

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $0.92

6002-001397 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001397 $0.92

6002-001547 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001547 $0.92

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.24

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.24

DA61-14661A Samsung Refrigerator Ice Guide Backorder SMG DA61-14661A $57.52

DA62-03691A Samsung Refrigerator Suction Pipe Backorder SMG DA62-03691A $72.22

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.24

DA81-01184D Samsung Refrigerator Check Plug A Backorder SMG DA81-01184D $21.65

DA81-06007B Samsung Refrigerator Dryer Assemb In Stock SMG DA81-06007B $111.77

DA81-06436A Samsung Pipe Connection Assembly Backorder SMG DA81-06436A $21.98

DA81-10415A Samsung Refrigerator Lock Ring As Backorder SMG DA81-10415A $125.44

DA96-01002C Samsung Refrigerator Evaporator M Backorder SMG DA96-01002C $189.16

DA96-01509A Samsung Refrigerator EVAP-FRE Mod Backorder SMG DA96-01509A $227.36

DA97-19988A Samsung Refrigerator Roller Assem Backorder SMG DA97-19988A $76.82

Samsung refrigerator water filter SMG HAF-QIN Contact Us For Availability
