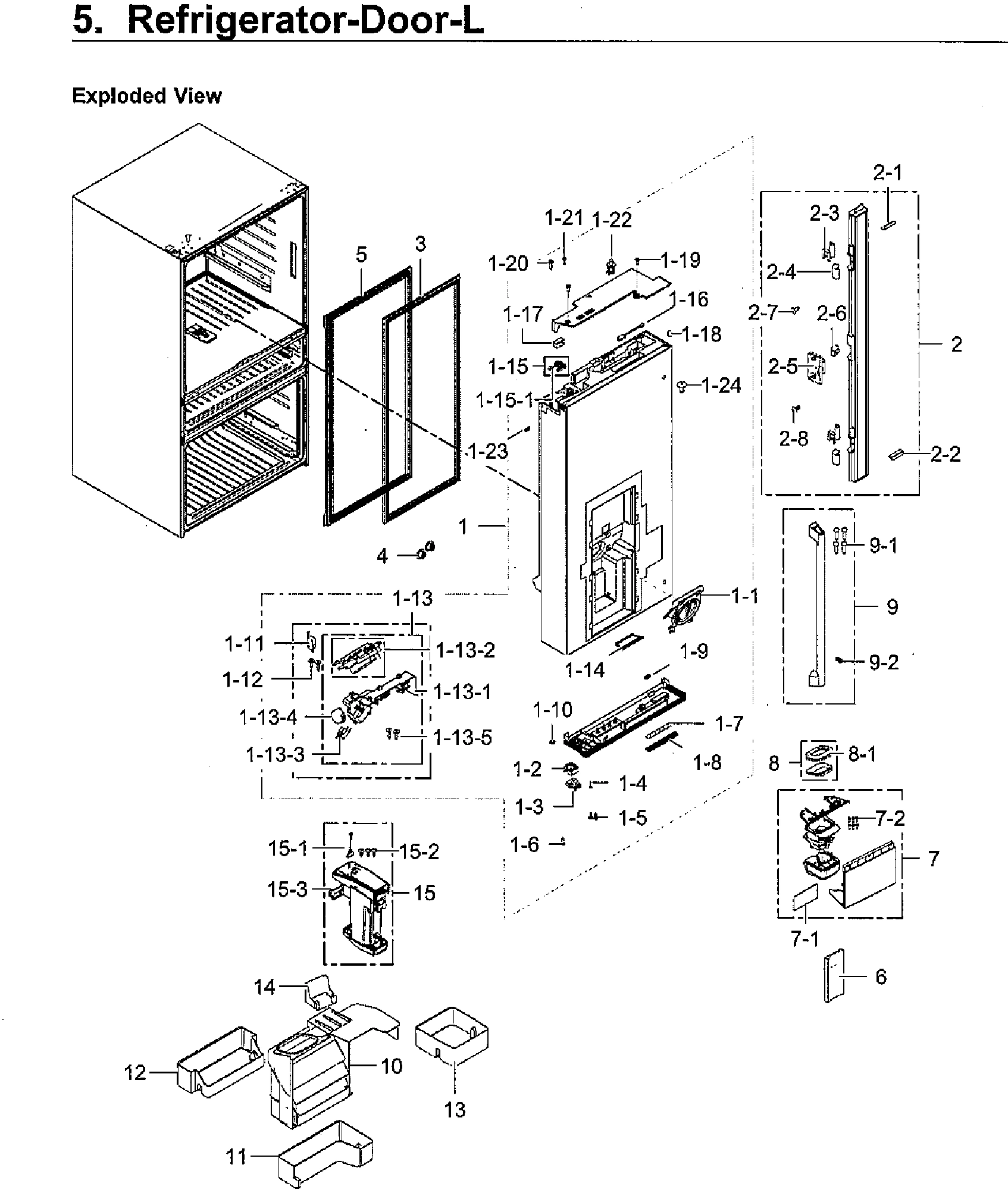

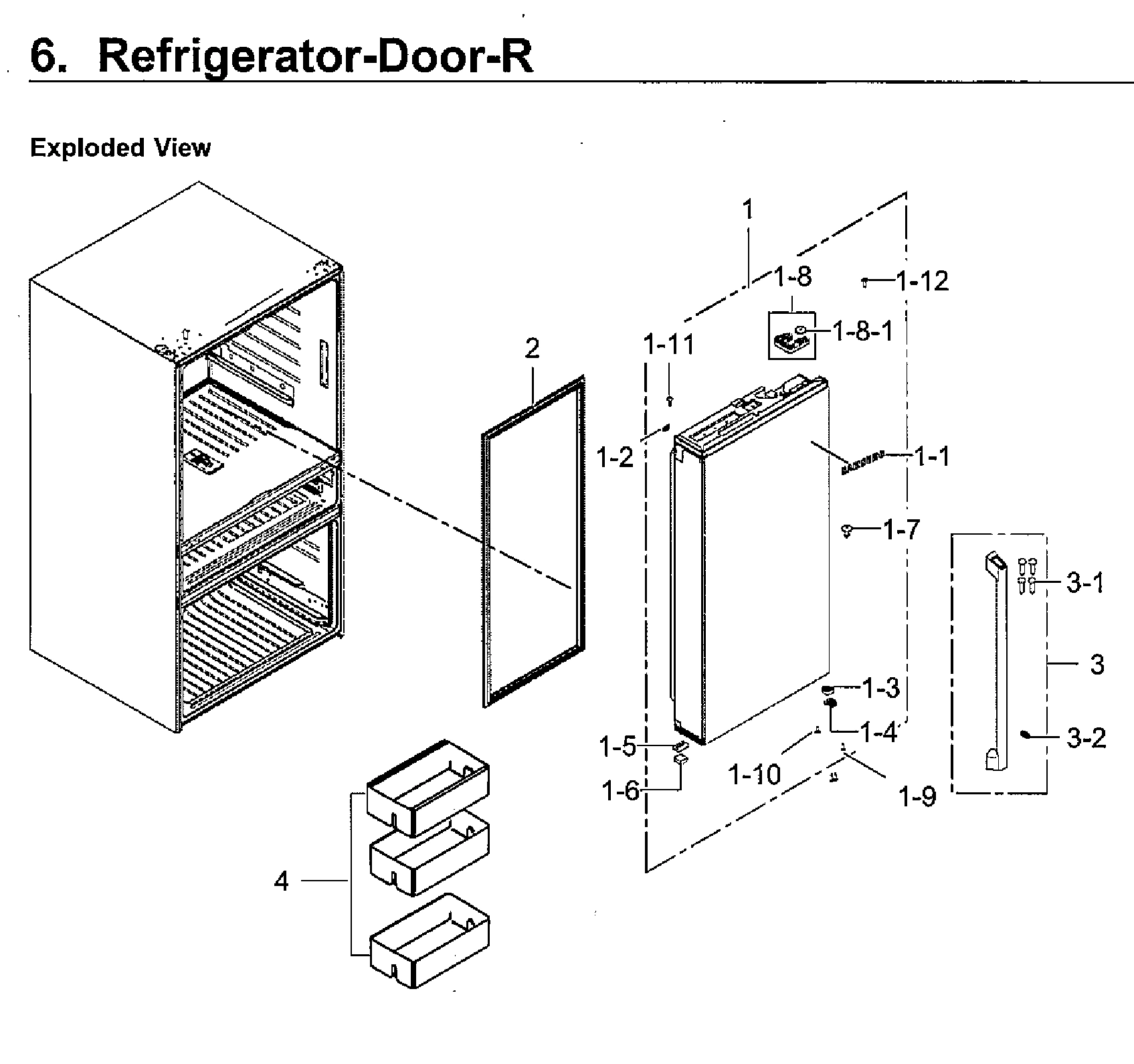

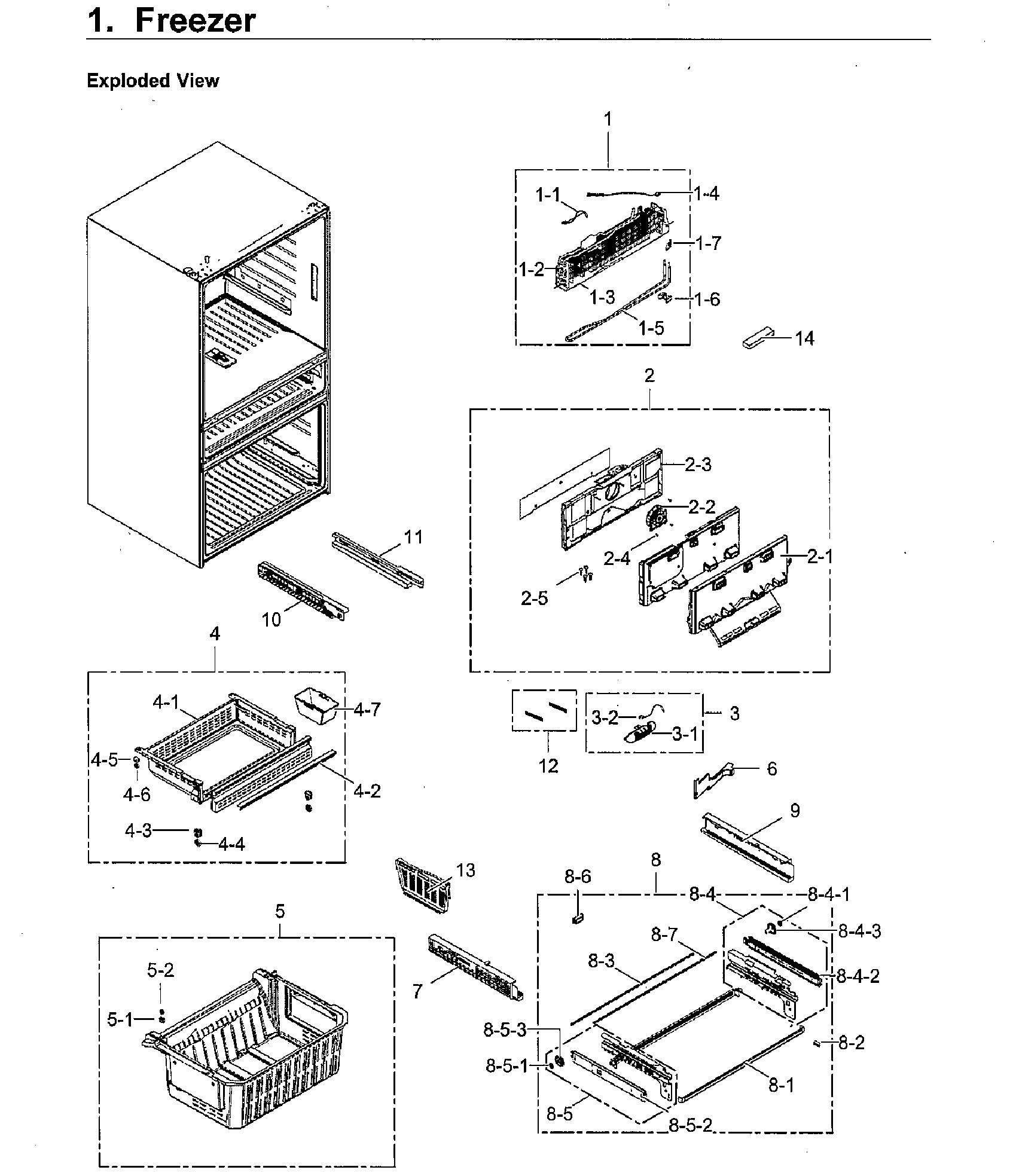

Model Samsung RF23M8090SG/AA-00 Refrigerator – Common Parts &amp; Diagrams

1

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $5.80

1

DA91-04692B Samsung Refrigerator Right Door F Backorder SMG DA91-04692B $201.27

1

DA91-04693B Samsung Refrigerator Left Door Fo Backorder SMG DA91-04693B $300.91

1-1

DA34-00043K Samsung Refrigerator Reed Switch Backorder SMG DA34-00043K $53.56

1-1

DA64-04021D Samsung Refrigerator Mascot All N Backorder SMG DA64-04021D $19.07

1-1

DA97-17298A Samsung Refrigerator Assembly Gui Backorder SMG DA97-17298A $32.81

1-2

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $14.51

1-2

DA61-10856B Samsung Refrigerator Left Door Su Backorder SMG DA61-10856B $7.87

1-3

DA61-10855B Samsung Right Door Cap Support Re Backorder SMG DA61-10855B $10.36

1-3

DA61-11905A Samsung Door Stopper Left Assembl Backorder SMG DA61-11905A $18.98

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $0.92

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $24.05

DA61-09249A Samsung Refrigerator Hanger Front Backorder SMG DA61-09249A $31.35

DA61-11906A Samsung Right Door Stopper Backorder SMG DA61-11906A $22.80

1-5

SCREW-TAPPING;STS304,PASS,L14, Backorder SMG 6002-000473 $0.92

1-5

DA63-04825B Samsung Refrigerator Grommet Cap Backorder SMG DA63-04825B $2.91

1-5

DB92-03769A Samsung Refrigerator Module Assem Backorder SMG DB92-03769A $22.78

1-6

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $7.47

1-6

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

1-7

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $14.29

1-7

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $7.87

1-8

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $42.91

1-8

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $16.58

1-9

6002-001120 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001120 $0.92

1-11

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $0.92

1-12

6002-001615 Samsung Screw Tapping Backorder SMG 6002-001615 $1.24

1-13

Refrigerator dispenser ice chute door and mot SMG DA97-17296A Contact Us For Availability

1-14

DA97-17545B Samsung Refrigerator Dispenser Tr Backorder SMG DA97-17545B $116.41

1-16

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $43.37

1-17

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $8.71

1-18

DA73-00211A Samsung Refrigerator Hose Rubber Backorder SMG DA73-00211A $0.92

1-20

6002-000466 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000466 $0.92

1-22

DA34-00066B Samsung Refrigerator Interlock Do In Stock SMG DA34-00066B $18.28

1-23

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.07

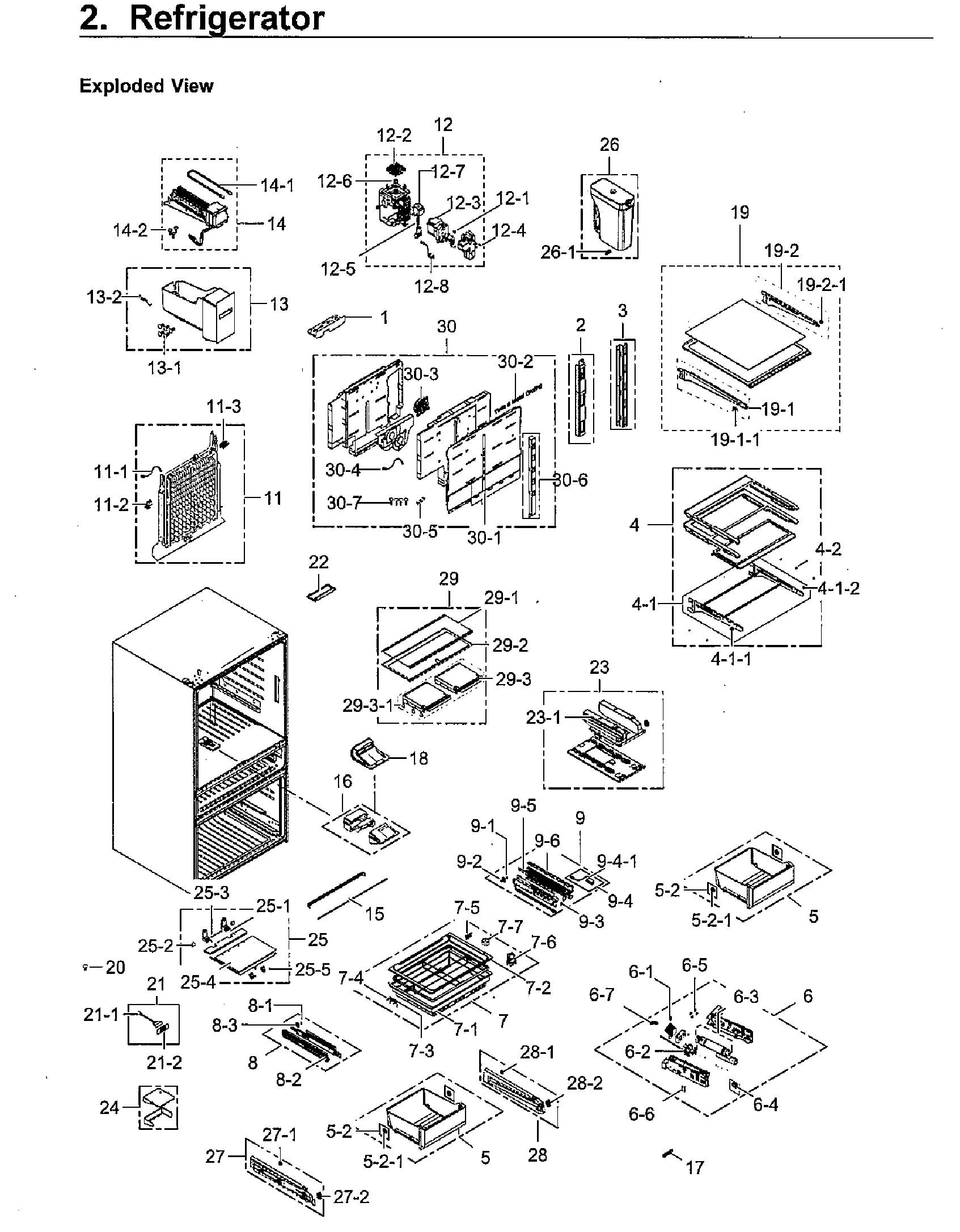

2

DA63-05462C Samsung Refrigerator Convection D Backorder SMG DA63-05462C $2.98

2

DA97-14049J Samsung Refrigerator Assembly Fre Backorder SMG DA97-14049J $153.51

2

DA97-17363A Samsung Refrigerator Evaporator C Backorder SMG DA97-17363A $162.34

2-1

DA63-06959B Samsung Refrigerator Upper French Backorder SMG DA63-06959B $7.47

2-2

GASKET FRENCH-LOW;RF9000JC,SI, Backorder SMG DA63-08421B $5.82

2-3

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.98

2-3

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $4.56

2-4

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.15

2-5

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $6.22

2-6

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.15

2-8

6002-000471 Samsung Refrigerator Screw Backorder SMG 6002-000471 $0.92

3

DA63-09025A Samsung Refrigerator Gasket Assem Backorder SMG DA63-09025A $57.79

3

DA97-17302D Samsung Refrigerator Control Cove Backorder SMG DA97-17302D $241.68

3

DA97-17456B Samsung Refrigerator Handle Assem Backorder SMG DA97-17456B $195.31

3-1

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $0.92

3-1

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.31

3-2

Refrigerator door handle set screw SMG 6009-001526 No Longer Available

3-2

DA32-00070L Samsung Refrigerator Temperature In Stock SMG DA32-00070L $26.92

3-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $4.15

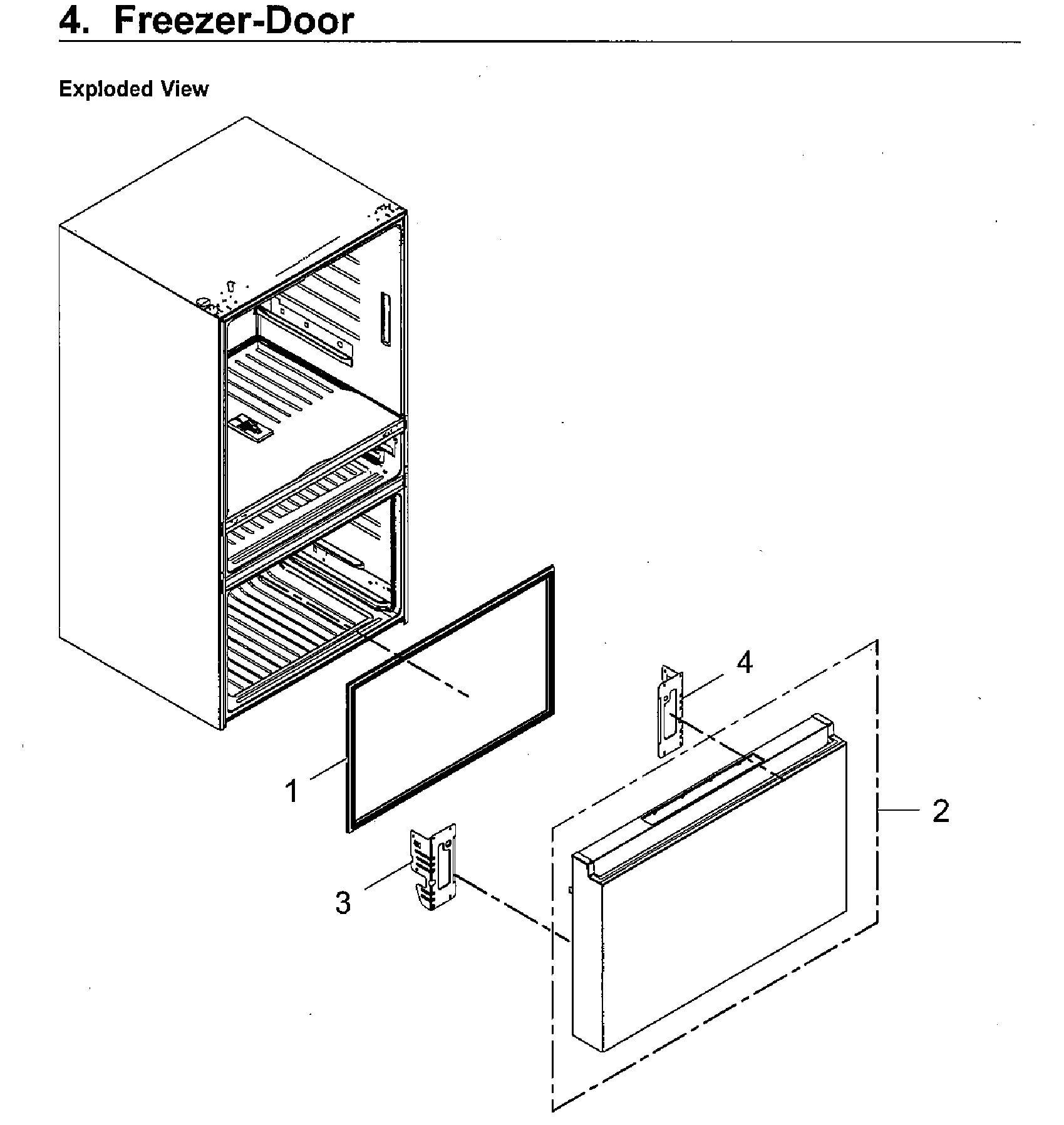

4

DA63-08754A Samsung Refrigerator Right Side G Backorder SMG DA63-08754A $114.61

4

DA67-30266K Samsung Refrigerator Cap Screw Backorder SMG DA67-30266K $0.92

4-3

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $7.47

4-4

DA66-00554A Samsung Refrigerator Upper Freeze In Stock SMG DA66-00554A $4.56

5

DA97-15249F Samsung Refrigerator Gasket Assem Backorder SMG DA97-15249F $112.62

5-2

DA97-14447A Samsung Refrigerator Roller Assem Backorder SMG DA97-14447A $15.76

6

DA63-07496A Samsung Refrigerator Ice Dispense Backorder SMG DA63-07496A $14.09

6

DA97-17297B Samsung Dispenser Lever Assembly Backorder SMG DA97-17297B $111.73

6-1

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $7.87

6-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.31

6-2

DA62-04027A Samsung Refrigerator 2-Way Water In Stock SMG DA62-04027A $147.83

6-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.05

6-4

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.91

6-5

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.92

6-5

DA97-13807A Samsung Refrigerator Front Suppor Backorder SMG DA97-13807A $35.83

6-7

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $18.65

7

DA97-17299B Samsung Refrigerator Dispenser Co Backorder SMG DA97-17299B $190.24

7-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.80

7-1

DA92-00944A Samsung Refrigerator Module Assem Backorder SMG DA92-00944A $116.82

7-2

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.92

7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.56

8

DA97-17451A Samsung Refrigerator Ice Chute Ca Backorder SMG DA97-17451A $59.62

8-1

DA63-09013A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-09013A $48.62

8-3

DA66-00437F Samsung Gear Shaft Refrigerator Backorder SMG DA66-00437F $49.94

8-3

Refrigerator freezer drawer gear SMG DA66-00751A Contact Us For Availability

8-4

DA97-15765E Samsung Refrigerator Motor Circui Backorder SMG DA97-15765E $118.12

8-7

DA66-00437B Samsung Refrigerator Gear Shaft Backorder SMG DA66-00437B $29.87

8-41

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $20.31

9

DA97-17490B Samsung Refrigerator Left Handle Backorder SMG DA97-17490B $193.90

9-2

Refrigerator gear rail SMG DA66-00750A Contact Us For Availability

9-4

DA96-00640B Samsung Refrigerator Wire Harness In Stock SMG DA96-00640B $129.85

10

DA97-17683A Samsung Refrigerator Utility Guar Backorder SMG DA97-17683A $74.23

10

NF54K9151AME01 Samsung Refrigerator Compresso Backorder SMG NF54K9151AME01 $209.28

11

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $11.60

11

DA63-08755A Samsung Refrigerator Guard Assemb Backorder SMG DA63-08755A $109.79

11

DA96-01002B Samsung Refrigerator Evaporator F Backorder SMG DA96-01002B $148.31

11-1

DA32-00070M Samsung Refrigerator Temperature In Stock SMG DA32-00070M $26.55

11-3

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.24

12

DA63-08756A Samsung Refrigerator Guard Middle Backorder SMG DA63-08756A $79.68

12

DA96-01119A Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-01119A $59.01

12

DA97-12540K Samsung Refrigerator Auger Motor In Stock SMG DA97-12540K $223.92

12-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $73.94

12-3

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $177.25

12-7

DA74-40151G Samsung Refrigerator Ice Dispense In Stock SMG DA74-40151G $96.04

13

DA63-08757A Samsung Refrigerator Guard Assemb Backorder SMG DA63-08757A $98.74

13

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $17.56

13

DA97-17285B Samsung Refrigerator Ice Tray Ass Backorder SMG DA97-17285B $201.08

13-2

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $4.98

DA63-08761A Samsung Refrigerator Top Guard Backorder SMG DA63-08761A $40.55

DA72-60040W Samsung Refrigerator Seal-Cutt Ru Backorder SMG DA72-60040W $1.24

DA97-12749B Samsung Refrigerator Compressor C Backorder SMG DA97-12749B $139.02

Refrigerator ice maker SMG DA97-18859A No Longer Available

15

DA97-17399A Samsung Refrigerator Inner Case A Backorder SMG DA97-17399A $155.77

15-1

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $24.47

15-3

DA61-12345A Samsung Refrigerator Middle Case In Stock SMG DA61-12345A $8.71

16

DA92-00763K Samsung Refrigerator Inverter Ass In Stock SMG DA92-00763K $168.26

16

DA97-08430B Samsung Refrigerator Insulation D Backorder SMG DA97-08430B $113.30

17

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $42.16

17

DA94-03757A Samsung Refrigerator EEPROM Circu In Stock SMG DA94-03757A $59.56

18

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $5.38

20

DA62-04309D Samsung Refrigerator Single Moist Backorder SMG DA62-04309D $233.82

20

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $0.92

21-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $19.49

24

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.40

25

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $64.47

26

DA97-17395A Samsung Refrigerator Water Tank R In Stock SMG DA97-17395A $143.40

27

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $6.59

29

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.62

29-2

ASSY SHELF-REF LOW;RF8000MC,PR Backorder SMG DA97-17969A $105.79

29-3

DA97-17968A Samsung Assembly COVER VEG-UP;RF8 Backorder SMG DA97-17968A $62.05

30

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $18.25

30

DA97-17362A Samsung Refrigerator Evaporator C Backorder SMG DA97-17362A $244.24

30-1

Refrigerator evaporator cover SMG DA63-08772A Contact Us For Availability

30-2

DA64-04618A Samsung Refrigerator Inlay Backorder SMG DA64-04618A $77.38

30-3

DA31-00334B Samsung Refrigerator 12035GE-12M- Backorder SMG DA31-00334B $89.63

30-4

DA32-00070K Samsung Refrigerator Temperature Backorder SMG DA32-00070K $26.19

30-6

Refrigerator angle SMG DA97-17944A Contact Us For Availability

30-7

Amana refrigerator screw SMG 6002-001204 Contact Us For Availability

32-1

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $4.15

34

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.67

40

DA62-04678D Samsung Refrigerator Step Valve Backorder SMG DA62-04678D $102.25

43

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $8.06

43-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $1.67

44

DA92-00486A Samsung Refrigerator Module Assem In Stock SMG DA92-00486A $120.19

1131

Case ice route SMG DA61-11734A Contact Us For Availability

1132

Non-serviceable part SMG N/P Contact Us For Availability

1134

DA31-00079D Samsung Refrigerator Geared Dispe In Stock SMG DA31-00079D $79.39

1151

DA66-00440A Samsung Refrigerator Auto Close R In Stock SMG DA66-00440A $1.24

2931

Grommet SMG DA63-40305A Contact Us For Availability

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $9.53

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $0.92

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

6002-001397 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001397 $0.92

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $5.80

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.24

DA61-03176A Samsung Refrigerator Pantry Suppo Backorder SMG DA61-03176A $1.24

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.24

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.24

DA97-15998A Samsung Refrigerator Roller Assem Backorder SMG DA97-15998A $7.05

Samsung refrigerator water filter SMG HAF-QIN Contact Us For Availability

Refrigerator fixer SMG DA61-09550B Contact Us For Availability

Refrigerator fixer SMG DA61-09549B Contact Us For Availability
