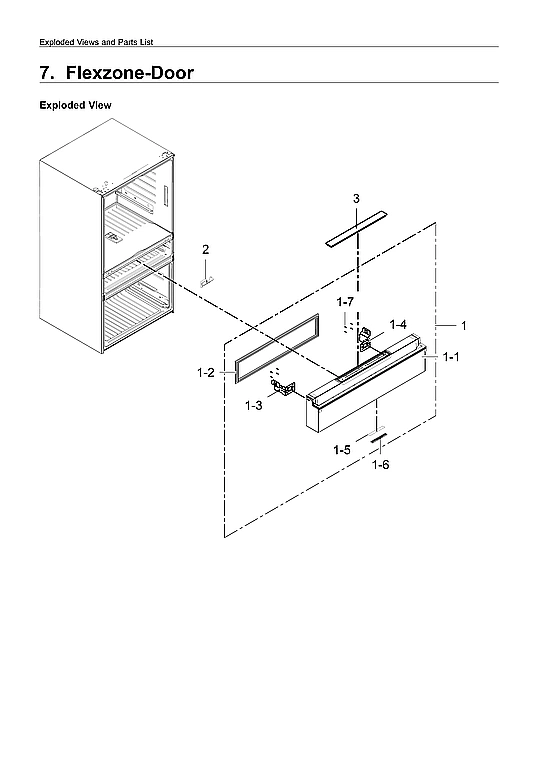

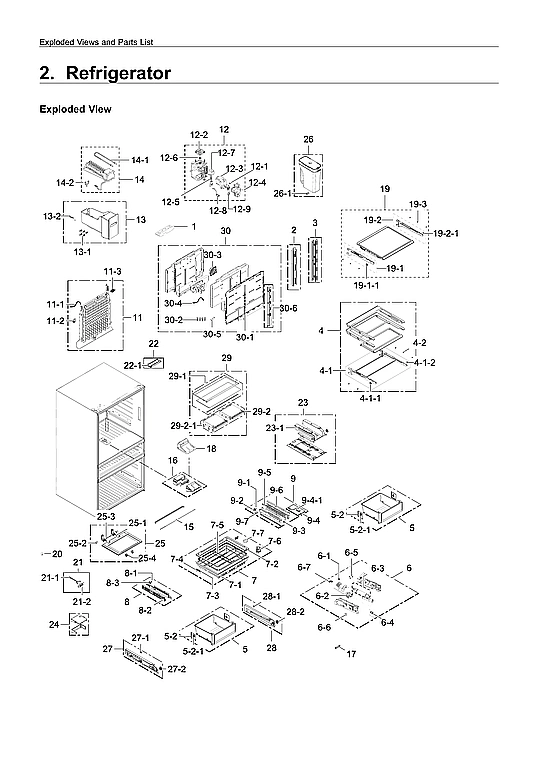

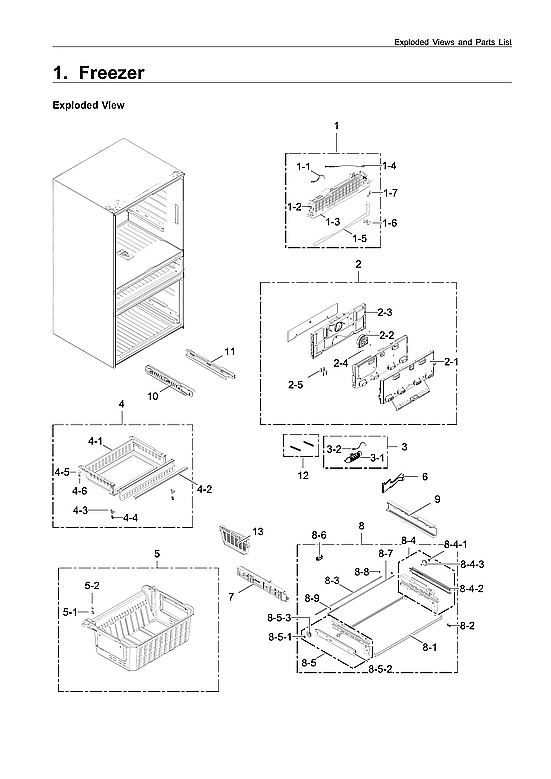

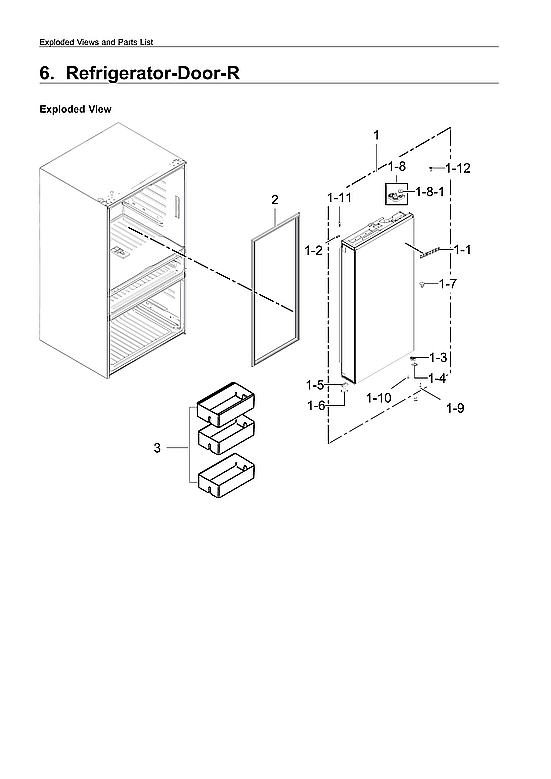

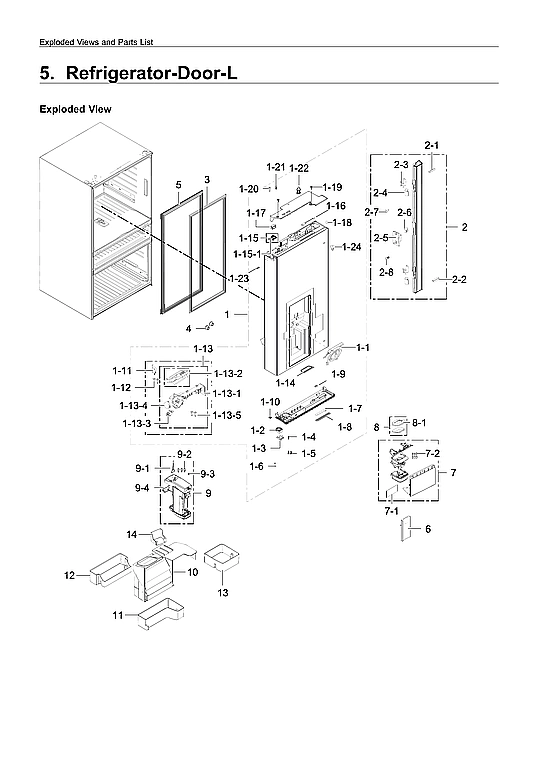

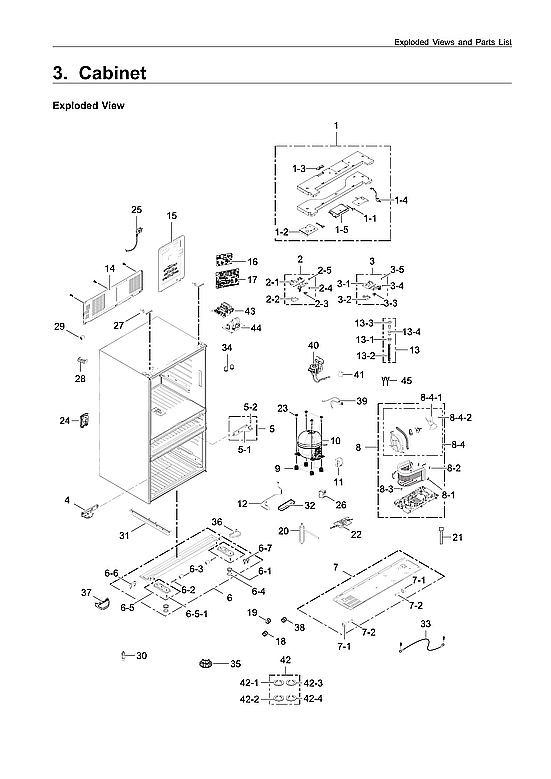

Model Samsung RF23M8070SR/AA-03 Bottom-Mount Refrigerator – Common Parts &amp; Diagrams

1

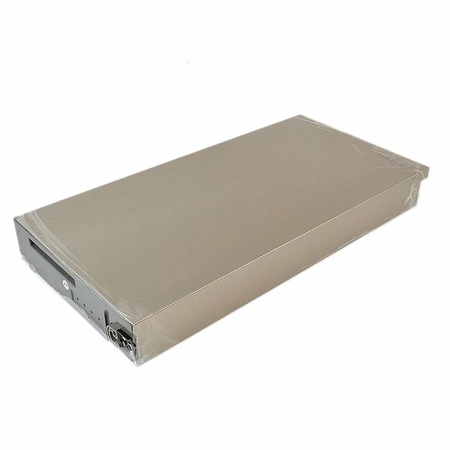

DA91-04692C Samsung Refrigerator Right Door F Backorder SMG DA91-04692C $204.62

1

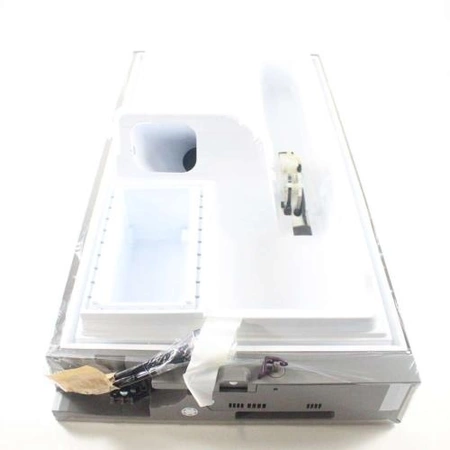

DA91-04693C Samsung Refrigerator Door Foam As Backorder SMG DA91-04693C $320.30

1-1

DA34-00043K Samsung Refrigerator Reed Switch Backorder SMG DA34-00043K $50.05

1-1

DA64-04021D Samsung Refrigerator Mascot All N Backorder SMG DA64-04021D $17.82

1-1

DA97-17298A Samsung Refrigerator Assembly Gui Backorder SMG DA97-17298A $30.67

1-2

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $13.56

1-2

DA97-15249D Samsung Refrigerator Middle Gaske Backorder SMG DA97-15249D $91.31

1-3

DA61-10855A Samsung Refrigerator Right Door S Backorder SMG DA61-10855A $3.88

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $0.92

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $22.47

DA61-09249A Samsung Refrigerator Hanger Front Backorder SMG DA61-09249A $29.30

DA61-11906A Samsung Right Door Stopper Backorder SMG DA61-11906A $21.30

1-5

DB92-03769A Samsung Refrigerator Module Assem Backorder SMG DB92-03769A $22.78

1-6

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $6.97

1-6

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

1-7

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $14.29

1-7

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $7.36

1-8

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $42.91

1-8

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $15.50

1-8-1

DA66-00440A Samsung Refrigerator Auto Close R Backorder SMG DA66-00440A $1.17

1-9

6002-001120 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001120 $0.92

1-9

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.32

1-11

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $0.92

1-13

Refrigerator dispenser ice chute door and mot SMG DA97-17296A Contact Us For Availability

1-13-4

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $74.19

1-14

DA63-08789A Samsung Refrigerator Dispenser Tr Backorder SMG DA63-08789A $58.28

1-16

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $40.53

1-17

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $8.14

1-18

DA73-00211A Samsung Refrigerator Hose Rubber Backorder SMG DA73-00211A $0.92

1-22

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $16.29

1-23

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $1.94

2

DA63-05462C Samsung Refrigerator Convection D Backorder SMG DA63-05462C $2.98

2

DA97-17363A Samsung Refrigerator Evaporator C In Stock SMG DA97-17363A $151.71

2-1

DA63-06959A Samsung Refrigerator Upper French Backorder SMG DA63-06959A $4.26

2-2

DA63-08421A Samsung Gasket Low French Backorder SMG DA63-08421A $7.74

2-3

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.65

2-3

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $4.26

2-4

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $3.88

2-5

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $5.82

2-6

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $3.88

2-8

6002-000471 Samsung Refrigerator Screw Backorder SMG 6002-000471 $0.92

3

DA63-08754B Samsung Refrigerator Right Guard Backorder SMG DA63-08754B $80.09

3

DA63-09025A Samsung Refrigerator Gasket Assem Backorder SMG DA63-09025A $54.61

3

DA97-17302B Samsung Refrigerator Control Cove In Stock SMG DA97-17302B $192.19

3-1

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.09

3-2

DA32-00070L Samsung Refrigerator Temperature In Stock SMG DA32-00070L $25.16

3-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $3.88

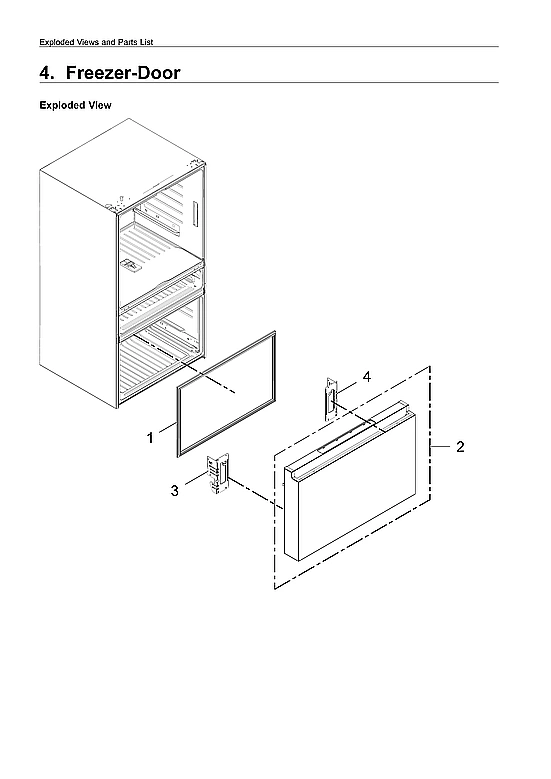

4

DA67-30266K Samsung Refrigerator Cap Screw Backorder SMG DA67-30266K $0.92

4

DA97-13773C Samsung Refrigerator Assembly Tra Backorder SMG DA97-13773C $135.94

4-3

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $6.97

4-4

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $4.26

5

DA97-15249C Samsung Refrigerator Assembly Gas Backorder SMG DA97-15249C $93.47

5

DA97-17911A Samsung Refrigerator Case Vegetab Backorder SMG DA97-17911A $106.82

5-2

DA97-14447A Samsung Refrigerator Roller Assem Backorder SMG DA97-14447A $14.73

6

DA63-07496A Samsung Refrigerator Ice Dispense Backorder SMG DA63-07496A $13.18

6

DA97-17394B Samsung Refrigerator Case Filter Backorder SMG DA97-17394B $209.39

6-1

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $7.36

6-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.09

6-2

DA62-04027A Samsung Refrigerator 2-Way Water Backorder SMG DA62-04027A $138.16

6-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $6.59

6-4

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.71

6-5

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.92

6-5

DA97-13807A Samsung Refrigerator Front Suppor Backorder SMG DA97-13807A $35.83

6-7

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $17.44

7

DA97-17299A Samsung Refrigerator Dispenser Co Backorder SMG DA97-17299A $198.25

7-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.42

7-1

DA92-00944A Samsung Refrigerator Module Assem Backorder SMG DA92-00944A $109.19

7-2

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.92

7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.26

8-1

DA63-09013A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-09013A $45.46

8-3

DA66-00437F Samsung Gear Shaft Refrigerator Backorder SMG DA66-00437F $46.68

8-4

DA97-15765E Samsung Refrigerator Motor Circui Backorder SMG DA97-15765E $110.40

8-4-1

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $18.98

8-8

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $0.92

9

DA97-13778D Samsung Refrigerator Right Hand M Backorder SMG DA97-13778D $200.32

9-1

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $22.86

9-4

DA96-00640B Samsung Refrigerator Wire Harness In Stock SMG DA96-00640B $114.28

10

NF54K9151AME01 Samsung Refrigerator Compresso Backorder SMG NF54K9151AME01 $209.28

11

DA63-08755B Samsung Refrigerator Low Guard RF Backorder SMG DA63-08755B $69.90

11

DA96-01002B Samsung Refrigerator Evaporator F Backorder SMG DA96-01002B $138.61

11-1

DA32-00070M Samsung Refrigerator Temperature Backorder SMG DA32-00070M $24.81

11-3

DA61-03683A Samsung Refrigerator Sensor Fixer In Stock SMG DA61-03683A $1.17

12

DA96-01119A Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-01119A $55.15

12

DA97-12540K Samsung Refrigerator Auger Motor In Stock SMG DA97-12540K $209.28

12-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $69.11

12-3

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $165.65

12-7

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $89.76

13

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $22.40

13

DA97-17285A Samsung Refrigerator Ice Tray Ass In Stock SMG DA97-17285A $153.22

13-2

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $4.65

14

Refrigerator ice maker assembly SMG DA97-18859A No Longer Available

16

DA92-00763K Samsung Refrigerator Inverter Ass Backorder SMG DA92-00763K $157.26

16

DA97-08430B Samsung Refrigerator Insulation D Backorder SMG DA97-08430B $107.66

17

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $18.59

17

DA94-03757A Samsung Refrigerator EEPROM Circu In Stock SMG DA94-03757A $72.40

18

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $5.03

19-1

Assy hanger-low SMG DA97-15901B Contact Us For Availability

19-2

Refrigerator hanger SMG DA97-15900A Contact Us For Availability

20

DA62-04309D Samsung Refrigerator Single Moist Backorder SMG DA62-04309D $233.82

21

DA97-13783A Samsung Refrigerator Assembly Cov Backorder SMG DA97-13783A $21.70

21-1

DA34-00043J Samsung Refrigerator Door Reed Sw Backorder SMG DA34-00043J $18.21

21-2

DA63-07513A Samsung Refrigerator Reed Switch Backorder SMG DA63-07513A $4.65

22

Assembly cover lamp (4) SMG DA97-16143B Contact Us For Availability

22-1

Cover lamp SMG DA63-08273B Contact Us For Availability

23

DA97-17938A Samsung Assembly Middle Rail Backorder SMG DA97-17938A $51.59

24

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $16.27

24

DA97-17685B Samsung Refrigerator Assembly Cov Backorder SMG DA97-17685B $40.31

25

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $52.52

25

DA97-17980A Samsung Shelf Assembly Backorder SMG DA97-17980A $104.98

25-1

DA61-03705A Samsung Refrigerator Hinge Shelf Backorder SMG DA61-03705A $1.56

25-2

DA66-00482A Samsung Refrigerator Roller Hinge Backorder SMG DA66-00482A $0.92

25-3

DA66-00483A Samsung Hinge Shaft Shelf Backorder SMG DA66-00483A $2.32

25-4

6002-001397 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001397 $0.92

26

DA97-17395A Samsung Refrigerator Water Tank R In Stock SMG DA97-17395A $118.58

27

DA61-04932B Samsung Refrigerator Hinge Fixer Backorder SMG DA61-04932B $11.24

27

Assy rail-ref low left SMG DA97-17368A Contact Us For Availability

28

Assy rail-ref low right SMG DA97-17369A Contact Us For Availability

29

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.20

29

DA97-17981A Samsung Refrigerator Vegetable Lo Backorder SMG DA97-17981A $156.75

29-1

DA97-18447A Samsung Assembly SHELF VEG-LOW;RF Backorder SMG DA97-18447A $150.29

29-2

DA97-17968A Samsung Assembly COVER VEG-UP;RF8 Backorder SMG DA97-17968A $57.99

29-2-1

Grommet SMG DA63-40305A Contact Us For Availability

30

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $17.06

30

DA97-17362B Samsung Refrigerator Evaporator C Backorder SMG DA97-17362B $232.65

30-1

Refrigerator evaporator cover SMG DA63-08772B Contact Us For Availability

30-2

Amana refrigerator screw SMG 6002-001204 Contact Us For Availability

30-3

DA31-00334B Samsung Refrigerator 12035GE-12M- Backorder SMG DA31-00334B $89.63

30-4

DA32-00070K Samsung Refrigerator Temperature Backorder SMG DA32-00070K $24.47

30-6

Angle shel SMG DA97-17944B Contact Us For Availability

34

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.56

40

DA62-04678D Samsung Refrigerator Step Valve Backorder SMG DA62-04678D $102.25

42

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $8.06

42-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $1.56

43

DA92-00486A Samsung Refrigerator Module Assem In Stock SMG DA92-00486A $112.32

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $8.91

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.92

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $0.92

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $5.42

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.17

DA61-03176A Samsung Refrigerator Pantry Suppo Backorder SMG DA61-03176A $1.17

DA61-09549A Samsung Fixer Assembly Backorder SMG DA61-09549A $5.82

DA61-09550A Samsung Fixer Assembly Backorder SMG DA61-09550A $4.65

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.17

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.17

DA97-15998A Samsung Refrigerator Roller Assem Backorder SMG DA97-15998A $6.59

Samsung refrigerator water filter SMG HAF-QIN Contact Us For Availability
