Model Samsung RF23M8070SR/AA-00 Refrigerator – Common Parts &amp; Diagrams

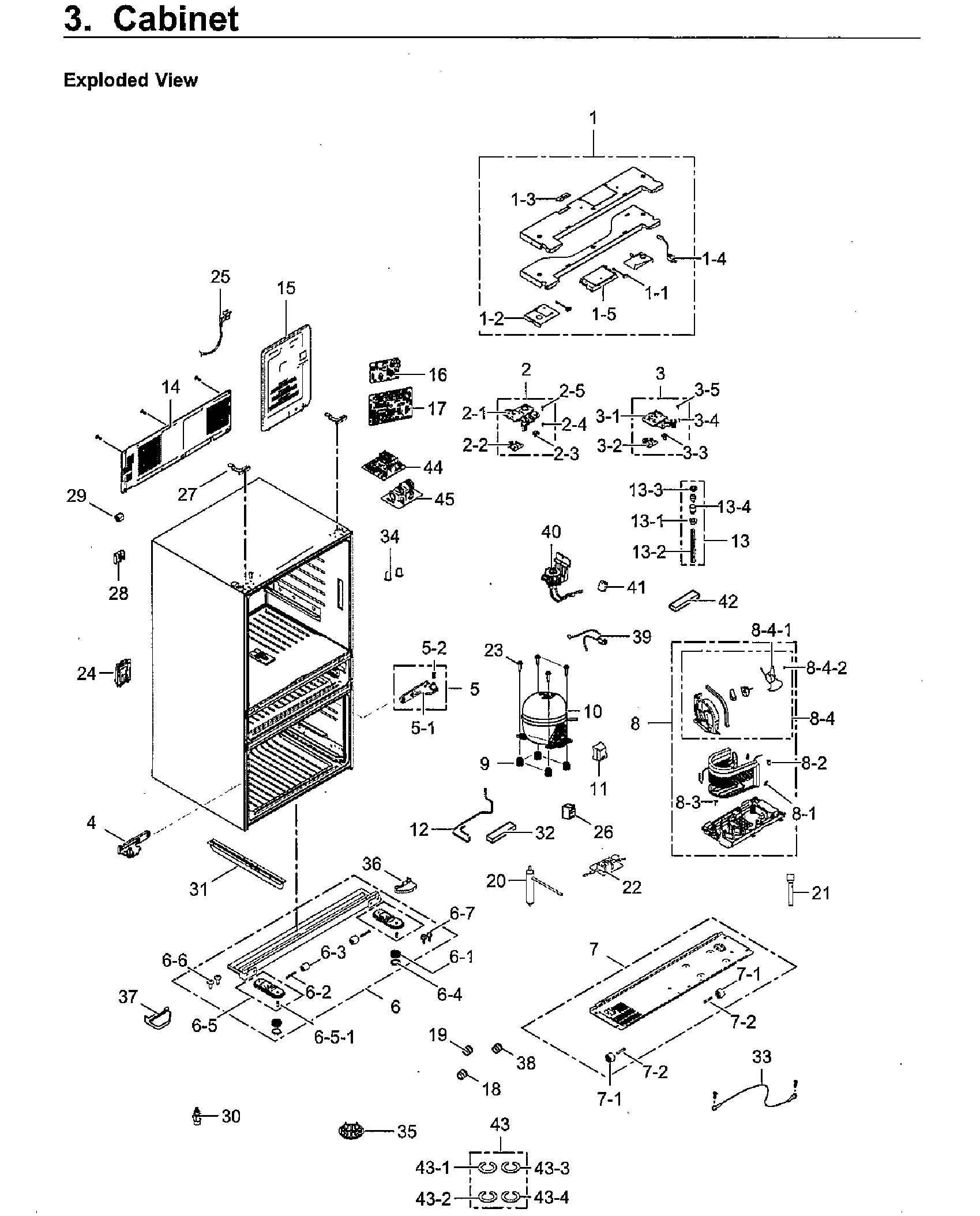

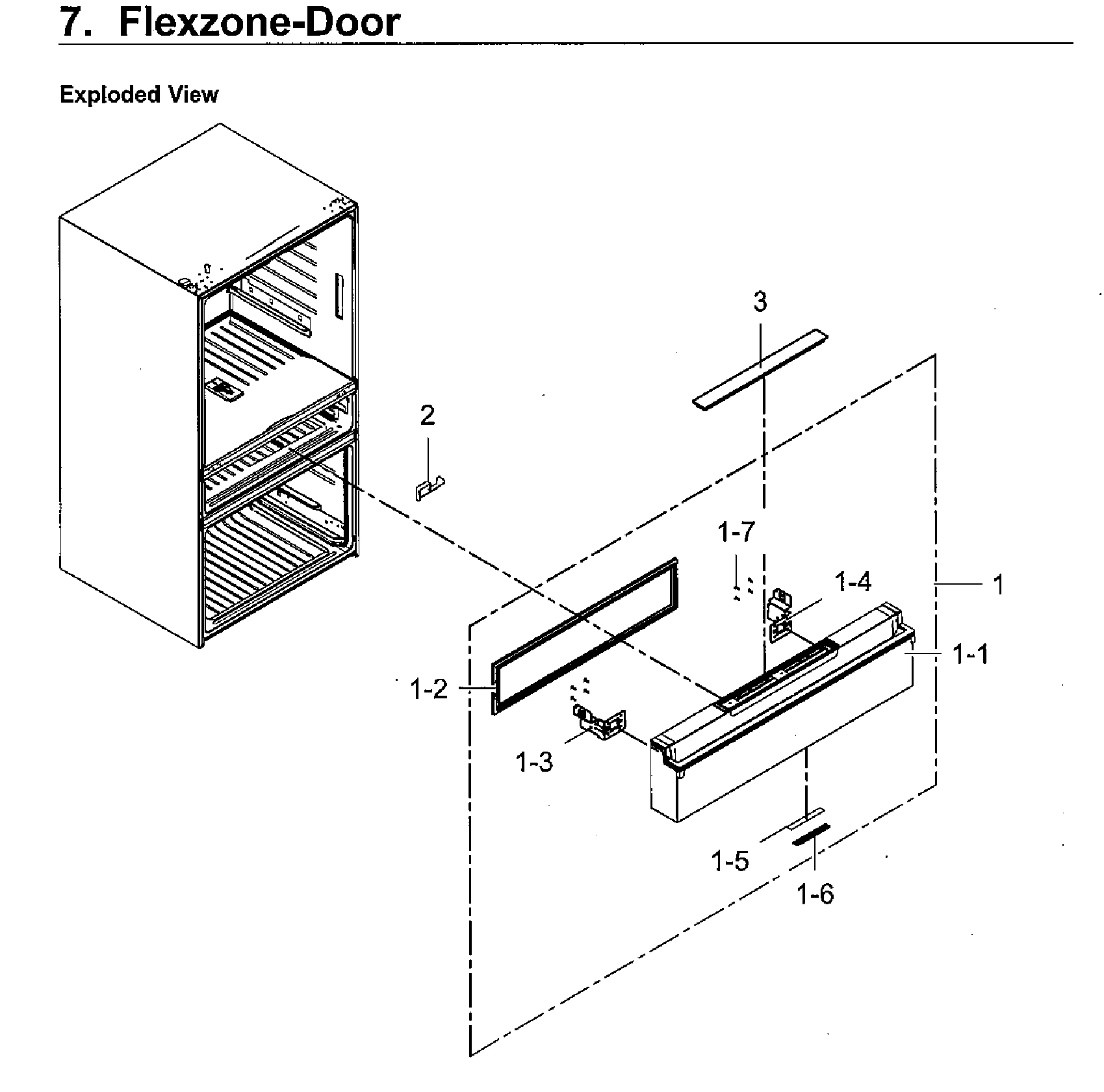

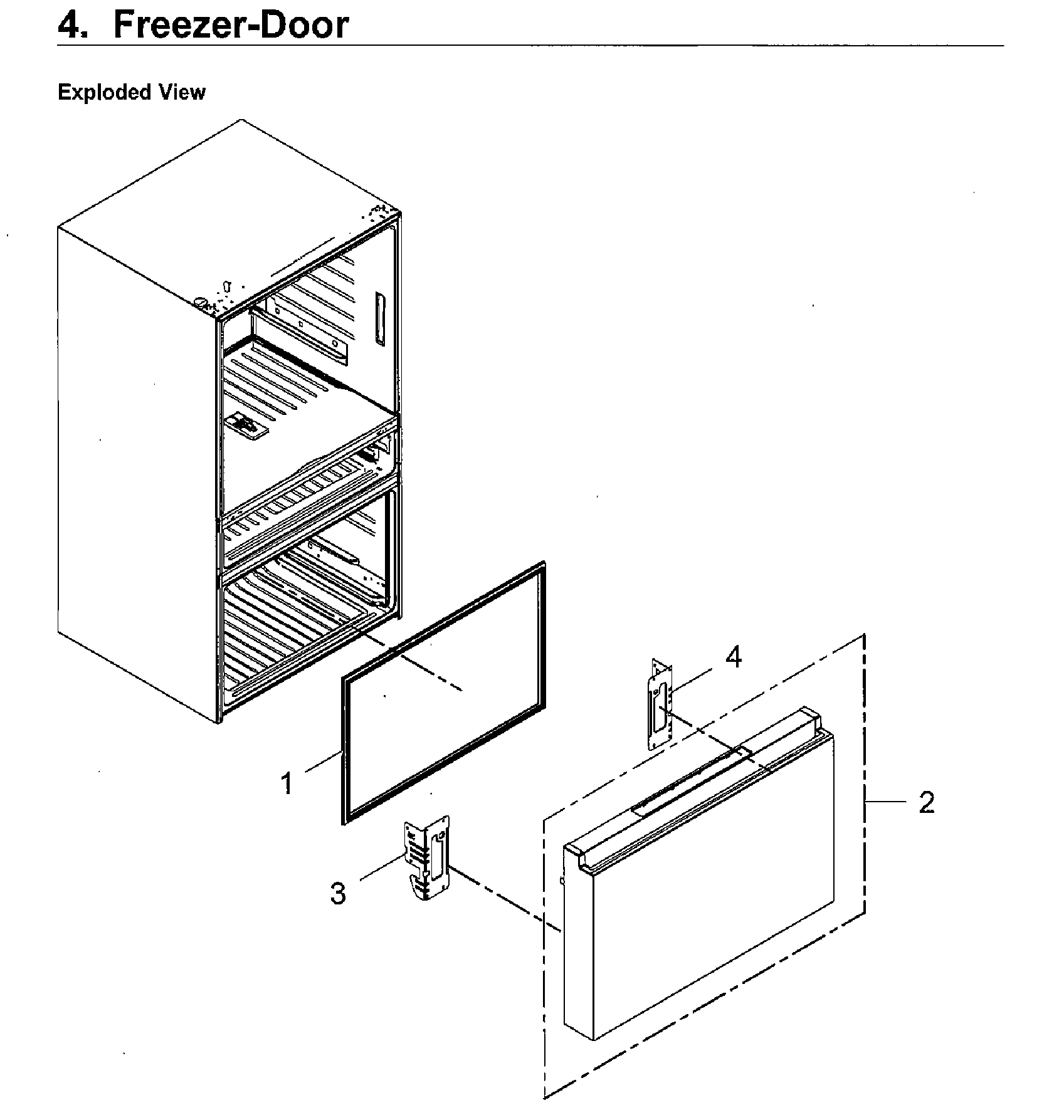

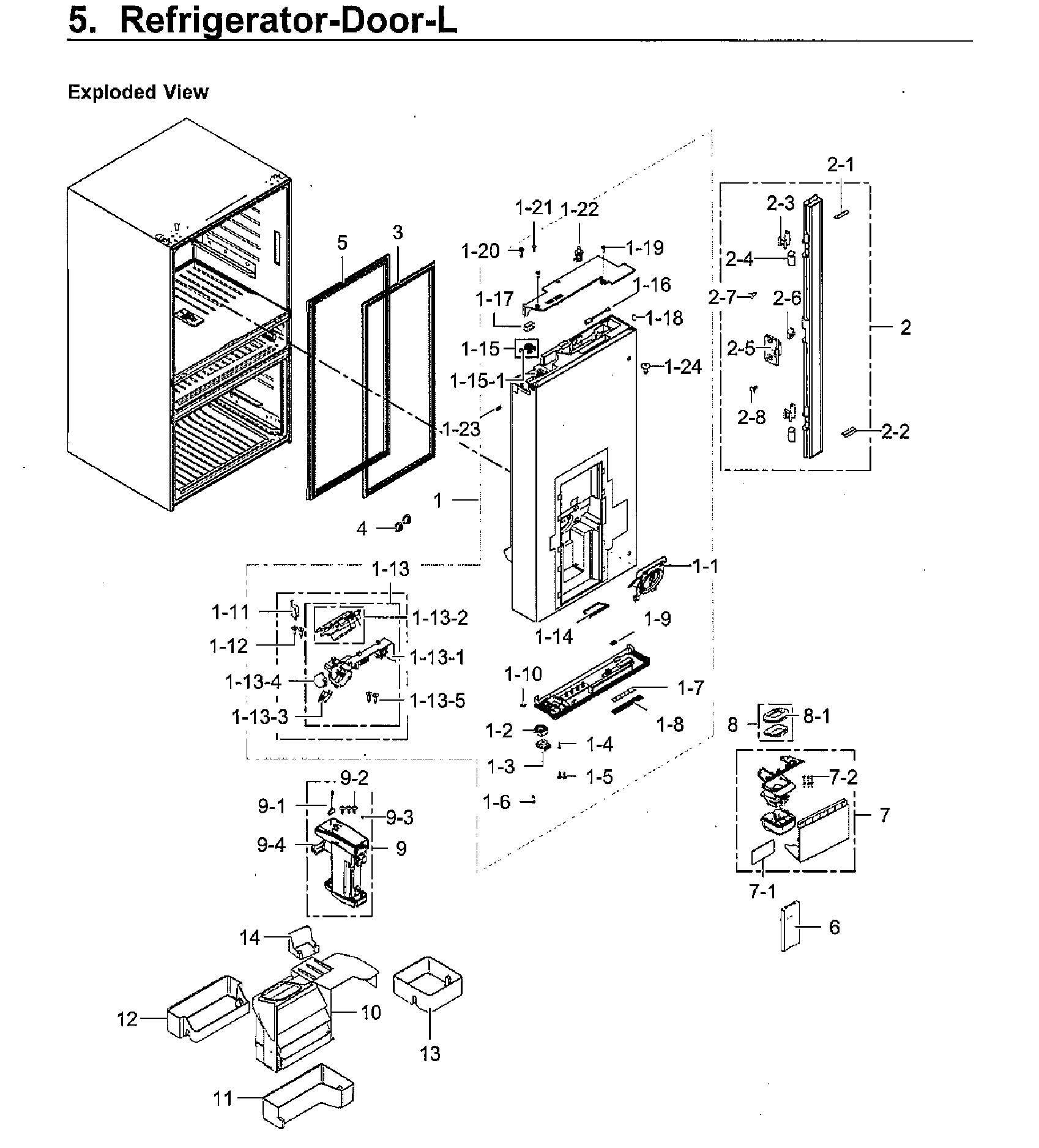

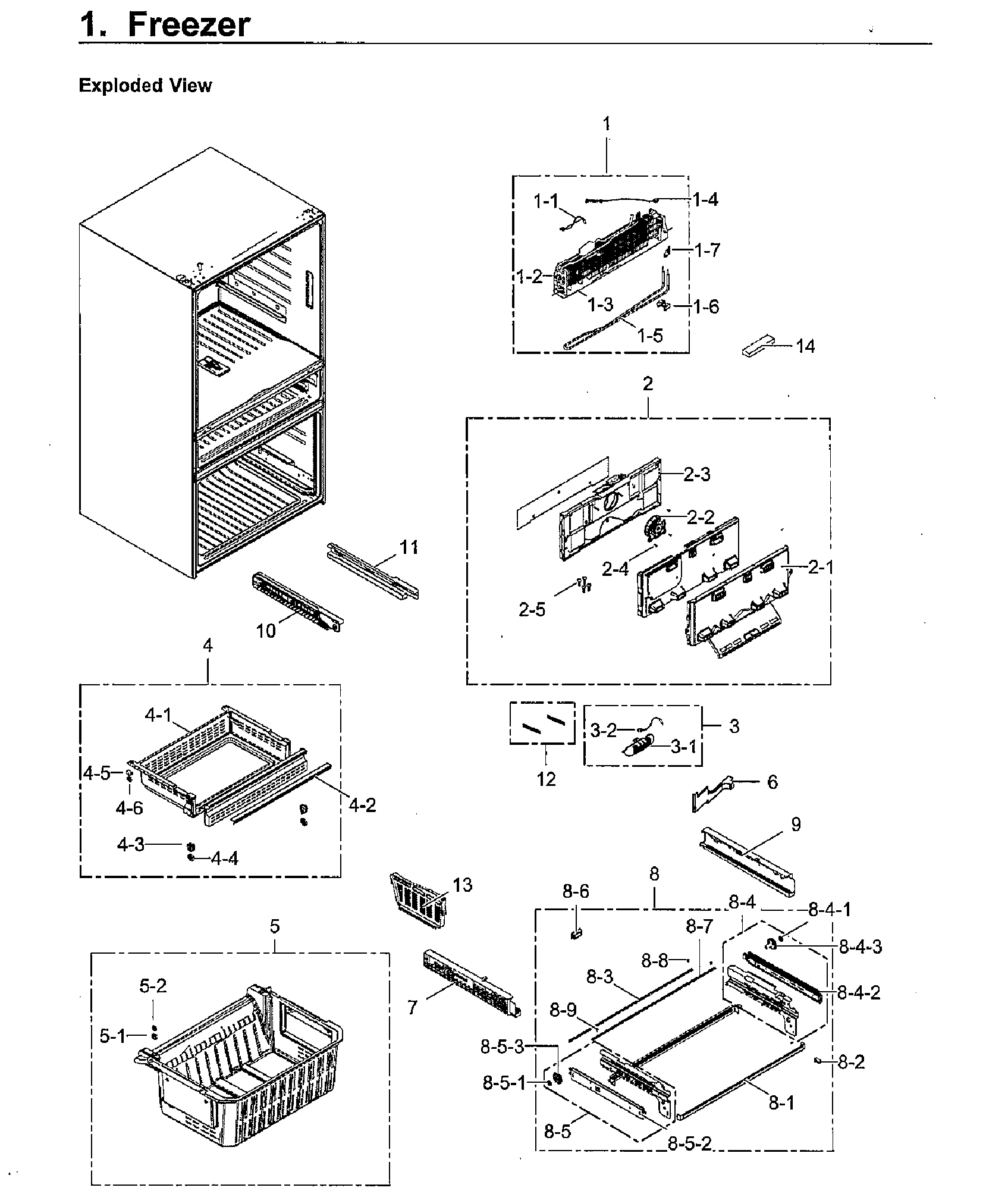

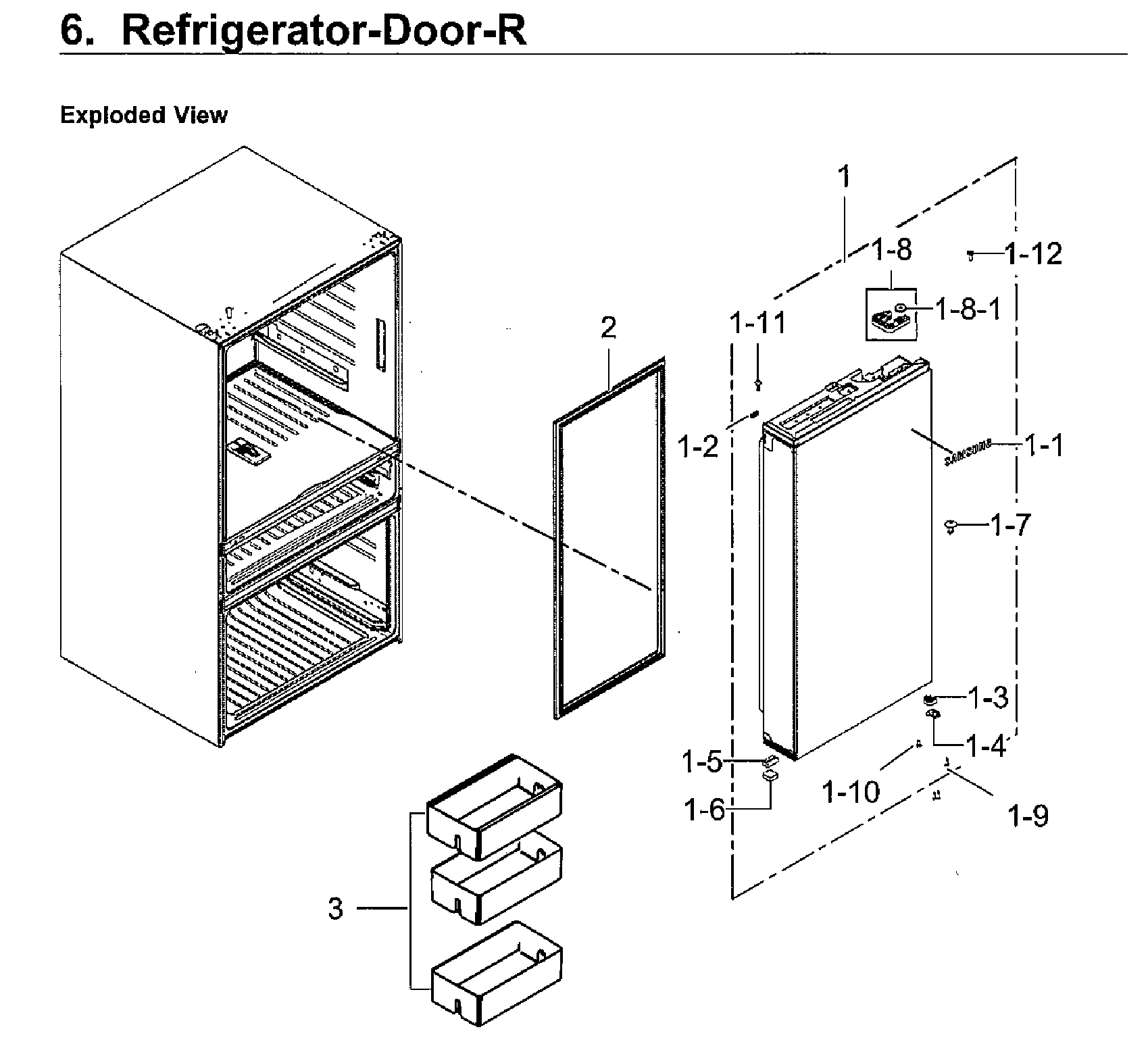

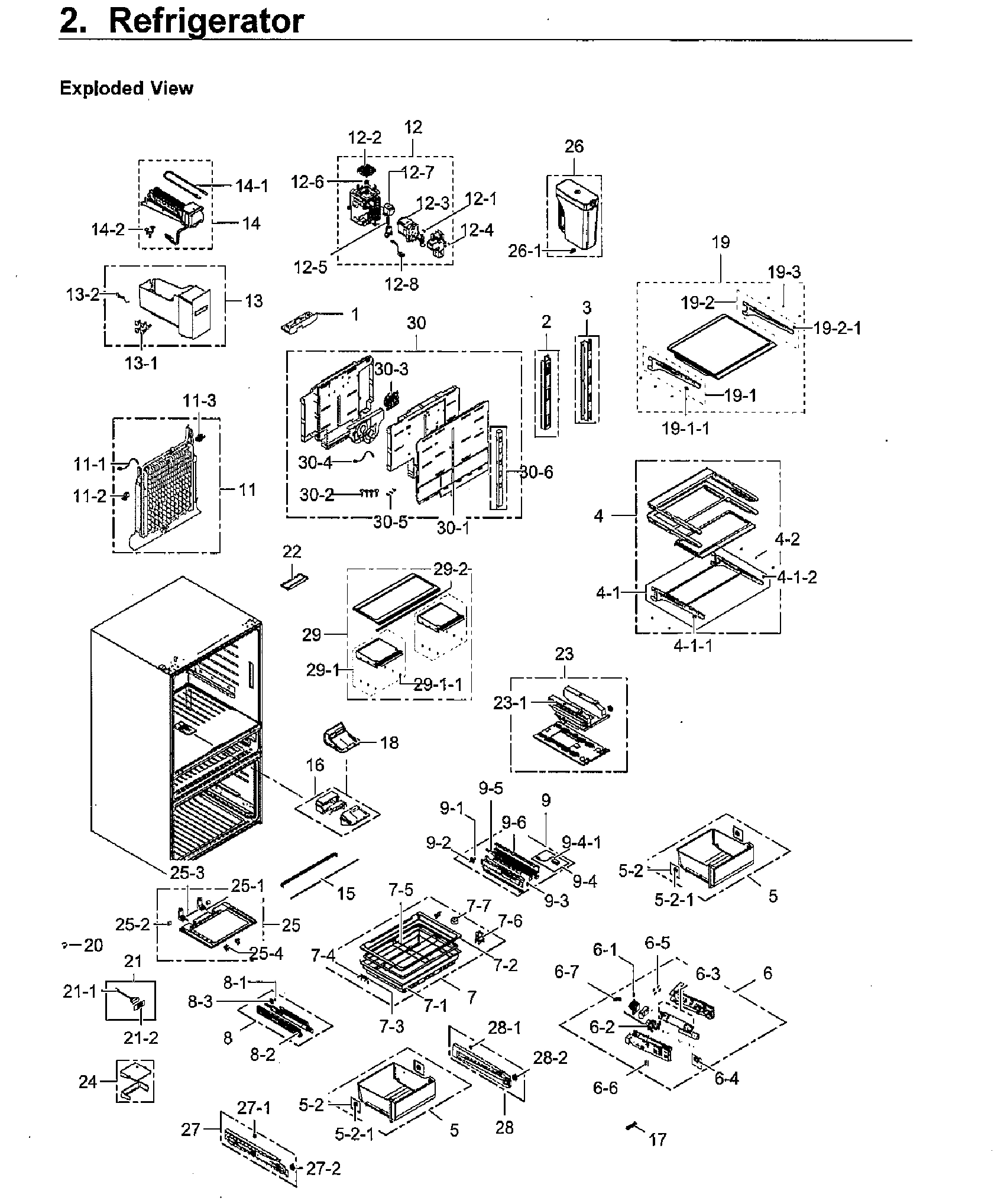

1

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $4.98

1

DA91-04692C Samsung Refrigerator Right Door F Backorder SMG DA91-04692C $239.49

1

DA91-04693C Samsung Refrigerator Door Foam As Backorder SMG DA91-04693C $370.62

1-1

DA34-00043K Samsung Refrigerator Reed Switch Backorder SMG DA34-00043K $50.57

1-1

DA64-04021D Samsung Refrigerator Mascot All N Backorder SMG DA64-04021D $20.82

1-1

DA97-17298A Samsung Refrigerator Assembly Gui Backorder SMG DA97-17298A $33.41

1-2

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $14.48

1-2

DA61-10856A Samsung Refrigerator Left Door Su Backorder SMG DA61-10856A $5.42

1-2

DA97-15249D Samsung Refrigerator Middle Gaske In Stock SMG DA97-15249D $106.71

1-3

DA61-10855A Samsung Refrigerator Right Door S Backorder SMG DA61-10855A $4.52

1-3

DA61-11905A Samsung Door Stopper Left Assembl Backorder SMG DA61-11905A $22.18

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $0.97

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $23.08

DA61-09249A Samsung Refrigerator Hanger Front Backorder SMG DA61-09249A $41.05

DA61-11906A Samsung Right Door Stopper Backorder SMG DA61-11906A $24.90

1-5

6002-000473 Samsung Tapping Screw Backorder SMG 6002-000473 $0.97

1-5

DB92-03769A Samsung Refrigerator Module Assem Backorder SMG DB92-03769A $24.88

1-6

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $8.14

1-6

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.97

1-7

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $15.59

1-7

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $5.89

1-8

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $46.84

1-8

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $16.75

1-9

6002-001120 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001120 $0.97

1-9

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.72

1-11

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $13.12

1-11

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $1.00

1-12

6002-001615 Samsung Screw Tapping Backorder SMG 6002-001615 $1.35

1-13

Refrigerator Dispenser Ice Chute Door and Mot SMG DA97-17296A Contact Us For Availability

1-14

DA63-08789A Samsung Refrigerator Dispenser Tr Backorder SMG DA63-08789A $68.11

1-16

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $62.78

1-17

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $9.50

1-18

DA73-00211A Samsung Refrigerator Hose Rubber Backorder SMG DA73-00211A $0.97

1-19

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.97

1-20

6002-000466 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000466 $0.97

1-22

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $17.78

1-23

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.26

2

DA63-05462C Samsung Refrigerator Convection D Backorder SMG DA63-05462C $3.26

2

DA97-14049G Samsung Refrigerator French Door Backorder SMG DA97-14049G $154.84

2

DA97-17363A Samsung Refrigerator Evaporator C Backorder SMG DA97-17363A $159.84

2-1

DA63-06959A Samsung Refrigerator Upper French Backorder SMG DA63-06959A $4.98

2-2

DA63-08421A Samsung Gasket Low French Backorder SMG DA63-08421A $9.05

2-2

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.35

2-3

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.98

2-3

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $4.07

2-4

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.07

2-5

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $6.79

2-6

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.52

2-8

6002-000471 Samsung Refrigerator Screw Backorder SMG 6002-000471 $0.97

3

DA63-08754B Samsung Refrigerator Right Guard Backorder SMG DA63-08754B $93.59

3

DA63-09025A Samsung Refrigerator Gasket Assem Backorder SMG DA63-09025A $53.81

3

DA97-17302B Samsung Refrigerator Control Cove Backorder SMG DA97-17302B $244.82

3-1

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $4.07

3-2

DA32-00070L Samsung Refrigerator Temperature Backorder SMG DA32-00070L $26.96

3-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $4.07

4

DA67-30266K Samsung Refrigerator Cap Screw Backorder SMG DA67-30266K $0.97

4

DA97-13773C Samsung Refrigerator Assembly Tra Backorder SMG DA97-13773C $148.28

4-3

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $7.70

4-4

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $4.52

4-5

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.35

5

DA97-15249C Samsung Refrigerator Assembly Gas Backorder SMG DA97-15249C $96.03

5

DA97-17911A Samsung Refrigerator Case Vegetab Backorder SMG DA97-17911A $124.94

5-2

DA97-14447A Samsung Refrigerator Roller Assem Backorder SMG DA97-14447A $17.20

6

DA97-17297A Samsung Refrigerator Lever Dispen Backorder SMG DA97-17297A $96.32

6

DA97-17394B Samsung Refrigerator Case Filter Backorder SMG DA97-17394B $245.06

6

DA97-25147B Samsung Assy Cover Housing;fdr, C Backorder SMG DA97-25147B $37.42

6-1

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $6.79

6-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $2.26

6-2

DA62-04027A Samsung Refrigerator 2-Way Water In Stock SMG DA62-04027A $151.73

6-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $5.89

6-4

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.26

6-5

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.97

6-5

DA97-13807A Samsung Refrigerator Front Suppor Backorder SMG DA97-13807A $41.86

6-6

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.97

6-7

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $18.55

7

DA97-17299A Samsung Refrigerator Dispenser Co Backorder SMG DA97-17299A $227.83

7-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $4.98

7-1

DA92-00944A Samsung Refrigerator Module Assem Backorder SMG DA92-00944A $127.71

7-2

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.97

7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.07

8

DA97-17451A Samsung Refrigerator Ice Chute Ca Backorder SMG DA97-17451A $63.18

8-1

DA63-09013A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-09013A $48.06

8-3

DA66-00437F Samsung Gear Shaft Refrigerator Backorder SMG DA66-00437F $54.52

8-3

Refrigerator Freezer Drawer Gear SMG DA66-00751A Contact Us For Availability

8-4

DA97-15765E Samsung Refrigerator Motor Circui Backorder SMG DA97-15765E $122.58

8-7

DA66-00437B Samsung Refrigerator Gear Shaft Backorder SMG DA66-00437B $31.40

8-8

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $0.97

8-41

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $21.27

8-41

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.35

9

DA97-17399A Samsung Refrigerator Inner Case A Backorder SMG DA97-17399A $164.52

9-1

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $26.69

9-2

Refrigerator Gear Rail SMG DA66-00750A Contact Us For Availability

9-3

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $0.97

9-3

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $5.42

9-4

DA61-12345A Samsung Refrigerator Middle Case Backorder SMG DA61-12345A $9.50

9-4

DA96-00640B Samsung Refrigerator Wire Harness In Stock SMG DA96-00640B $96.18

10

DA97-17683A Samsung Refrigerator Utility Guar Backorder SMG DA97-17683A $75.75

10

NF54K9151AME01 Samsung Refrigerator Compresso Backorder SMG NF54K9151AME01 $221.17

11

DA63-08755B Samsung Refrigerator Low Guard RF In Stock SMG DA63-08755B $70.77

11

DA96-01002B Samsung Refrigerator Evaporator F Backorder SMG DA96-01002B $148.80

11-1

DA32-00070M Samsung Refrigerator Temperature Backorder SMG DA32-00070M $25.78

11-3

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.35

12

DA63-08756B Samsung Refrigerator Middle Guard Backorder SMG DA63-08756B $37.83

12

DA96-01119A Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-01119A $57.03

12

DA97-12540K Samsung Refrigerator Auger Motor In Stock SMG DA97-12540K $241.95

12-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $76.74

12-3

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $165.44

12-7

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $91.30

13

DA63-08757B Samsung Guard Up Rf8000m San T3 Backorder SMG DA63-08757B $60.34

13

Refrigerator Drain Tube Kit SMG DA97-04049E No Longer Available

13

DA97-17285A Samsung Refrigerator Ice Tray Ass In Stock SMG DA97-17285A $171.83

13-2

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $6.33

DA63-08761B Samsung Refrigerator Top Guard RF Backorder SMG DA63-08761B $23.08

DA72-60040W Samsung Refrigerator Seal-Cutt Ru Backorder SMG DA72-60040W $1.35

DA97-12749B Samsung Refrigerator Compressor C Backorder SMG DA97-12749B $105.58

Refrigerator Ice Maker SMG DA97-18859A No Longer Available

16

DA92-00763K Samsung Refrigerator Inverter Ass Backorder SMG DA92-00763K $187.55

16

DA97-08430B Samsung Refrigerator Insulation D Backorder SMG DA97-08430B $114.13

17

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $27.77

17

DA94-03757A Samsung Refrigerator EEPROM Circu In Stock SMG DA94-03757A $59.56

18

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $5.42

20

DA62-04309D Samsung Refrigerator Single Moist Backorder SMG DA62-04309D $273.66

21-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $22.18

24

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $14.03

24

DA97-17685B Samsung Refrigerator Assembly Cov Backorder SMG DA97-17685B $47.09

25

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $47.96

26

DA97-17395A Samsung Refrigerator Water Tank R In Stock SMG DA97-17395A $134.42

27

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $7.70

29

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $17.64

30

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $25.77

30

DA97-17362B Samsung Refrigerator Evaporator C Backorder SMG DA97-17362B $218.01

30-4

DA32-00070T Samsung Refrigerator Temperature Backorder SMG DA32-00070T $26.56

30-6

DA97-17944B Samsung Middle Angle Shelf Assemb Backorder SMG DA97-17944B $135.08

34

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.35

40

DA62-04678D Samsung Refrigerator Step Valve Backorder SMG DA62-04678D $117.61

43

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $50.65

43-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $0.97

44

DA92-00486A Samsung Refrigerator Module Assem In Stock SMG DA92-00486A $127.50

1131

CASE ICE ROUTE SMG DA61-11734A Contact Us For Availability

1132

NON-SERVICEABLE PART SMG N/P Contact Us For Availability

1134

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $79.72

1151

DA66-00440A Samsung Refrigerator Auto Close R Backorder SMG DA66-00440A $1.35

2911

Grommet SMG DA63-40305A Contact Us For Availability

NI

Samsung Refrigerator Water Filter SMG HAF-QIN Contact Us For Availability
