Model Samsung RF23BB8200QL/AA-00 Refrigerator – Common Parts &amp; Diagrams

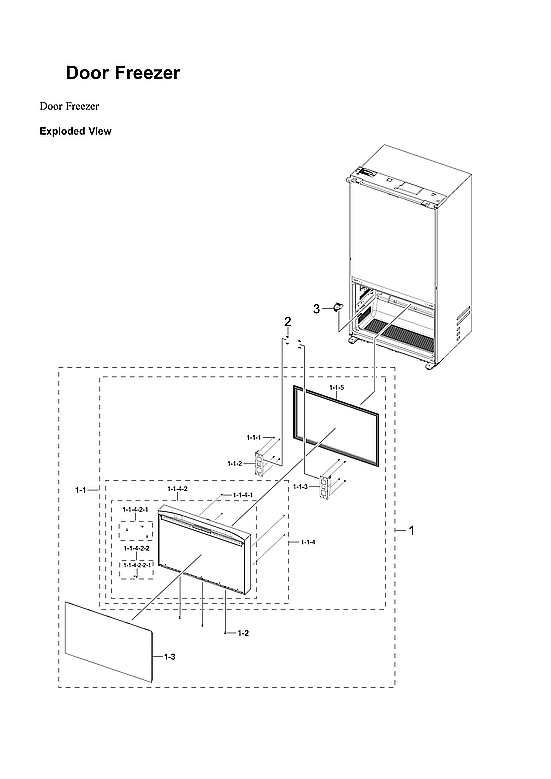

1

DA97-22973A Samsung Refrigerator Evaporator C Backorder SMG DA97-22973A $277.50

1

Assy door sub-fre SMG DA93-01236A Contact Us For Availability

1

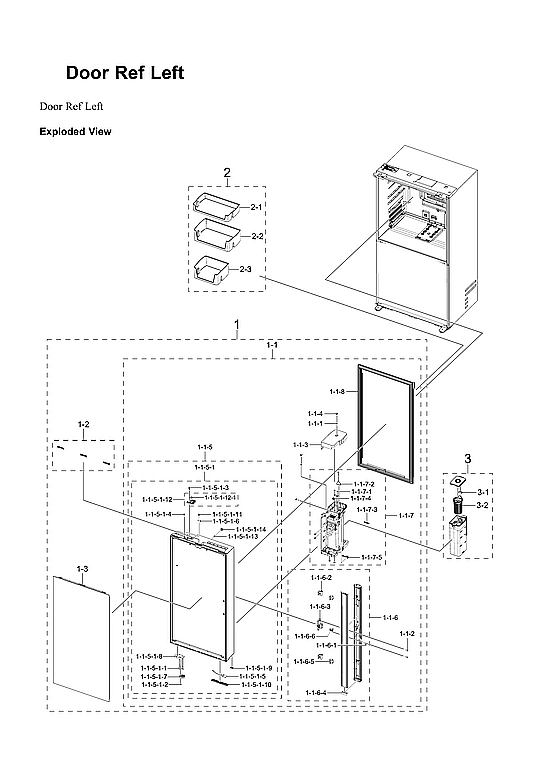

Assy door sub-ref left SMG DA93-01229A Contact Us For Availability

1

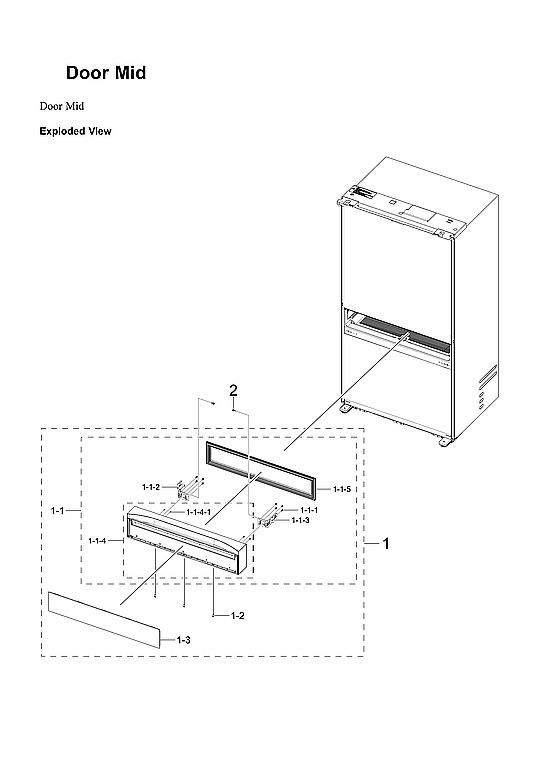

Assy door sub-middle SMG DA93-01235A Contact Us For Availability

1

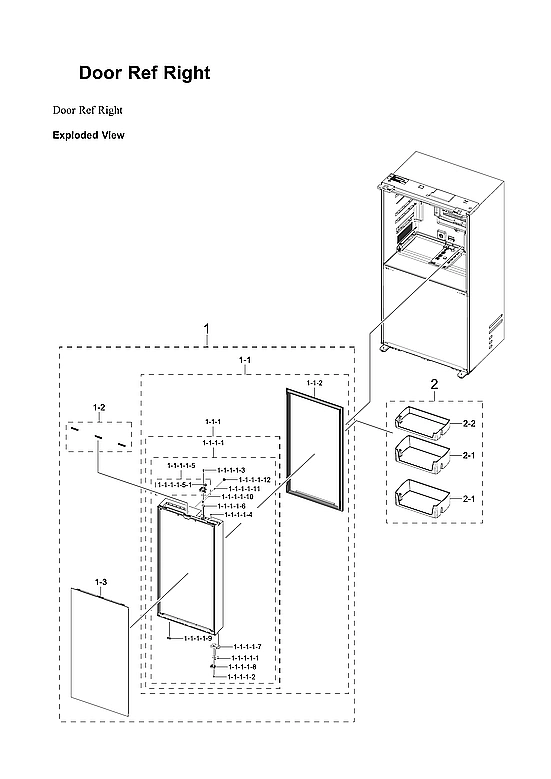

Assy door sub-ref right SMG DA93-01233A Contact Us For Availability

DA31-00334D Samsung Refrigerator BLDC Fan Mot In Stock SMG DA31-00334D $136.19

DA32-00070M Samsung Refrigerator Temperature In Stock SMG DA32-00070M $26.55

Assy door sub-fre door module SMG DA93-01226A Contact Us For Availability

Assy door sub-ref left door module SMG DA93-01221A Contact Us For Availability

Assy door sub-middle door module SMG DA93-01225A Contact Us For Availability

Assy door sub-ref right door module SMG DA93-01223A Contact Us For Availability

1-1-1

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $0.92

1-1-1

DA91-06111A Samsung Right Door Foam Assembly Backorder SMG DA91-06111A $189.82

1-1-1-1

Assy plate door-ref right SMG DA97-23001A Contact Us For Availability

6002-001406 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001406 $0.92

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $75.95

DA61-09248A Samsung Refrigerator Left Middle Backorder SMG DA61-09248A $42.40

DA97-21890B Samsung Refrigerator Dark Gray Ga Backorder SMG DA97-21890B $161.37

1-1-3

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $84.55

1-1-3

DA61-09249A Samsung Refrigerator Hanger Front Backorder SMG DA61-09249A $31.35

1-1-3

DA63-11213A Samsung Refrigerator Autofill Cov Backorder SMG DA63-11213A $73.94

1-1-4

DA67-30266Q Samsung Cap Screw Backorder SMG DA67-30266Q $58.10

1-1-4

DA91-06107A Samsung Refrigerator Middle Door Backorder SMG DA91-06107A $160.40

1-1-4

DA91-06108A Samsung Refrigerator Foam Door As Backorder SMG DA91-06108A $213.70

1-1-4-1

Tapping screw SMG 6002-001149 Contact Us For Availability

1-1-4-2

Assy plate door-fre SMG DA97-23003A Contact Us For Availability

1-1-5

DA91-06105A Samsung Refrigerator Left Door Fo Backorder SMG DA91-06105A $212.98

1-1-5

DA97-23011A Samsung Refrigerator Middle Gaske Backorder SMG DA97-23011A $150.18

1-1-5

DA97-23012A Samsung Refrigerator Gasket Assem Backorder SMG DA97-23012A $148.54

1-1-5-1

Assy plate door-ref left SMG DA97-22999A Contact Us For Availability

1-1-6

DA97-14049G Samsung Refrigerator French Door Backorder SMG DA97-14049G $159.40

1-1-6-2

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.98

1-1-6-2

DA97-08608A Samsung Refrigerator Sensor Cover In Stock SMG DA97-08608A $24.87

1-1-6-3

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $6.22

1-1-6-4

DA63-08421A Samsung Gasket Low French Backorder SMG DA63-08421A $8.29

1-1-6-5

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.15

1-1-6-6

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.15

1-1-7

DA97-17399F Samsung Refrigerator Inner Case Backorder SMG DA97-17399F $212.43

1-1-7-2

DA34-00043M Samsung Refrigerator Reed Switch In Stock SMG DA34-00043M $32.08

1-1-7-3

DA61-11032A Samsung Refrigerator Fixer Assemb Backorder SMG DA61-11032A $5.80

1-1-7-4

FITTING TUBE;POM,ID1/4,1/4 CHE Backorder SMG DA62-03914C $54.92

1-1-7-5

DA67-04504D Samsung Refrigerator Tube Cap Fix Backorder SMG DA67-04504D $6.62

1-2

DA32-00070A Samsung Refrigerator Temperature Backorder SMG DA32-00070A $12.85

1-2

DA63-09686A Samsung Refrigerator Dark ABS Doo Backorder SMG DA63-09686A $4.26

1-2

DA67-04961A Samsung Refrigerator Cap Screw As Backorder SMG DA67-04961A $52.91

1-2-2

DA60-10123E Samsung Refrigerator Hex Bolt M6 In Stock SMG DA60-10123E $1.24

1-2-3

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.31

1-2-4

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.05

1-2-5

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $7.87

1-2-6

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.91

DA32-00070B Samsung Refrigerator Temperature Backorder SMG DA32-00070B $10.96

DA99-05047A Samsung Refrigerator Custom Panel Backorder SMG DA99-05047A $138.57

DA99-05049A Samsung Refrigerator Custom Panel Backorder SMG DA99-05049A $150.55

RA-F36DMMQL/AA Samsung Refrigerator French Do Backorder SMG RA-F36DMMQL/AA $182.53

Fixer SMG DA61-11034A Contact Us For Availability

1-4

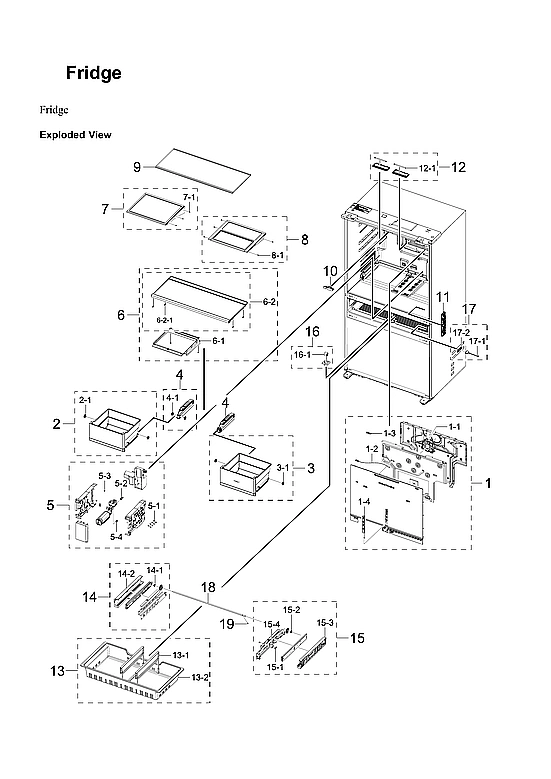

DA61-14455A Samsung Refrigerator Angle Shelf Backorder SMG DA61-14455A $114.06

2

6011-001656 Samsung Refrigerator Hex Bolt Backorder SMG 6011-001656 $1.24

2

DA97-21878A Samsung Refrigerator Low Vegetabl Backorder SMG DA97-21878A $105.50

2

Assy guard packing-door bin module SMG DA97-21907A Contact Us For Availability

2

Assy guard packing-door bin module SMG DA97-21906A Contact Us For Availability

2-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $18.59

2-1

DA97-21912A Samsung Refrigerator Door Bin Ass Backorder SMG DA97-21912A $75.66

2-2

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.92

2-2

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $24.05

2-2

DA97-21916A Samsung Refrigerator Guard Assemb Backorder SMG DA97-21916A $76.24

2-3

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $43.37

2-3

DA97-21913A Samsung Refrigerator Guard Assemb Backorder SMG DA97-21913A $55.37

2-6

DA92-00817A Samsung Refrigerator Module Buzze Backorder SMG DA92-00817A $37.24

3

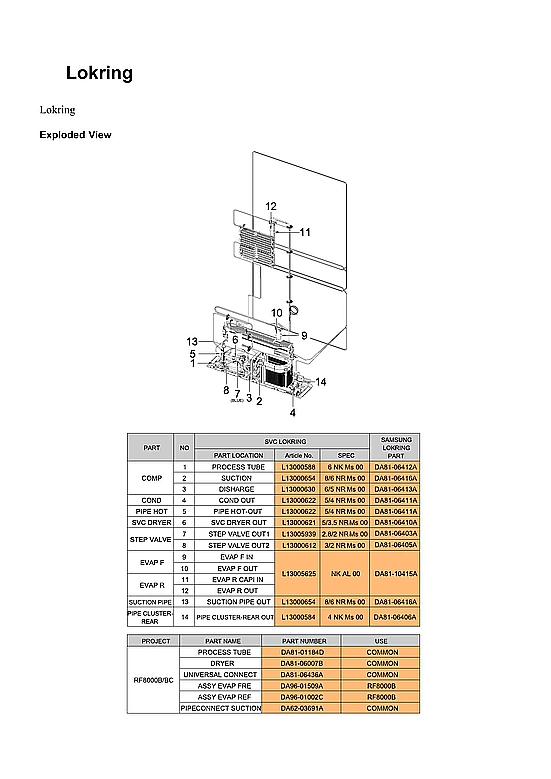

L13000630 American Vulkan Lokring Refrigerati In Stock ALC L13000630 $5.64

3

DA97-21261K Samsung Refrigerator Water Filter Backorder SMG DA97-21261K $201.59

3

DA97-21878B Samsung Refrigerator Low Vegetabl Backorder SMG DA97-21878B $114.83

3

DA97-23024A Samsung Refrigerator Stopper Asse Backorder SMG DA97-23024A $34.66

3-1

6006-001170 Samsung Appliance Tapping Screw T Backorder SMG 6006-001170 $0.92

3-1

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $5.80

3-2

DA61-15091A Samsung Refrigerator Filter Case Backorder SMG DA61-15091A $36.14

3-7-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.80

3-7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.56

4

DA97-21876A Samsung Refrigerator Middle Left Backorder SMG DA97-21876A $34.29

5

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $19.89

5

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $17.56

5

DA97-23063A Samsung Refrigerator Filter Case Backorder SMG DA97-23063A $247.51

5-2

DA60-00393A Samsung Refrigerator Tube Fitting Backorder SMG DA60-00393A $31.71

5-3

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.92

5-4

DA62-02414A Samsung Refrigerator Fitting Tube Backorder SMG DA62-02414A $16.58

6

L13000621 American Vulkan Lokring .197 or 3/1 In Stock ALC L13000621 $6.41

6

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $18.25

6

Assy shelf veg-low SMG DA97-21902M Contact Us For Availability

6-1

Cover veg-up SMG DA63-11228A Contact Us For Availability

6-2

DA97-21902L Samsung Refrigerator Low Veg Shel Backorder SMG DA97-21902L $167.96

6-2-1

DA64-03784A Samsung Refrigerator Shelf Trim Backorder SMG DA64-03784A $41.39

7

L13000612 American Vulkan Lokring .118" to .0 In Stock ALC L13000612 $7.73

7

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.67

7

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.62

7

DA97-22970A Samsung Assembly SHELF INSERT-REF Backorder SMG DA97-22970A $145.14

8

DA61-04932B Samsung Refrigerator Hinge Fixer Backorder SMG DA61-04932B $12.02

8

DA97-21895A Samsung Refrigerator Quick Space Backorder SMG DA97-21895A $142.85

9

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $64.47

9

DA97-21898A Samsung Refrigerator Upper Shelf Backorder SMG DA97-21898A $154.82

9

DA97-22996A Samsung Refrigerator Upper Tray Backorder SMG DA97-22996A $207.54

9-1

SCREW-TAPPING;STS304,PASS,L14, Backorder SMG 6002-000473 $0.92

9-2

DA61-14309A Samsung Refrigerator Ice Scoop Ca Backorder SMG DA61-14309A $81.70

9-3

DA61-15174A Samsung Refrigerator Case Basket Backorder SMG DA61-15174A $74.81

9-4

GUIDE TRAY-FRE;RF8000BC,HIPS,T Backorder SMG DA61-15176A $67.53

9-5

RAIL-LEFT;RF8000BC,HIPS,COOL W Backorder SMG DA61-15178A $33.56

9-6

DA63-11374A Samsung Refrigerator Door Grommet Backorder SMG DA63-11374A $5.38

9-7

DA63-11587A Samsung Cover Front-Up;Rf8000Bc,H Backorder SMG DA63-11587A $58.50

9-8

DA63-11590A Samsung Refrigerator Rear Cover A Backorder SMG DA63-11590A $79.39

9-9

DA63-11592A Samsung GROMMET-A;RF8000BC,POM,NA Backorder SMG DA63-11592A $1.67

9-10

DA63-11593A Samsung Refrigerator Grommet Backorder SMG DA63-11593A $1.67

9-11

Grommet SMG DA63-40305A Contact Us For Availability

9-12

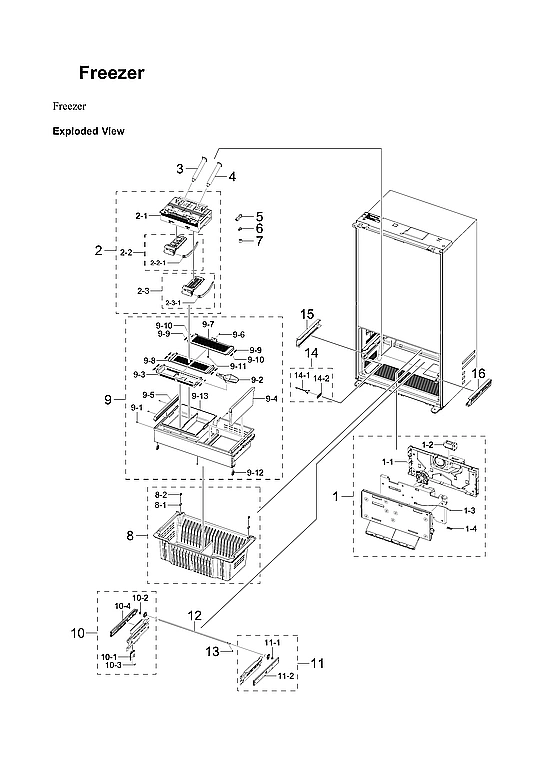

DA66-00554A Samsung Refrigerator Upper Freeze In Stock SMG DA66-00554A $4.56

9-13

DA97-23081A Samsung Refrigerator Ice Case Ass Backorder SMG DA97-23081A $97.70

10

6003-001727 Samsung Refrigerator Television T Backorder SMG 6003-001727 $1.67

10

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $5.80

10

DA97-13261D Samsung Refrigerator Low Left Rai Backorder SMG DA97-13261D $152.80

10-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $3.33

10-3

DA61-03769B Samsung Refrigerator Dispenser Dr Backorder SMG DA61-03769B $4.98

10-4

DA61-08818A Samsung Refrigerator Low Slide Ra Backorder SMG DA61-08818A $147.30

11

DA97-13262B Samsung Refrigerator Low Slide Ra Backorder SMG DA97-13262B $144.38

11

DA97-20552R Samsung Refrigerator Control Cove Backorder SMG DA97-20552R $174.16

11

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $8.06

11-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $1.67

11-2

DA61-08819A Samsung Refrigerator Low Slide Ra Backorder SMG DA61-08819A $134.50

12

DA66-00437H Samsung Refrigerator Shaft Backorder SMG DA66-00437H $31.35

12

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.40

12

DA97-21951A Samsung Cover Lamp Assembly Backorder SMG DA97-21951A $38.59

12-1

DA96-01119B Samsung Refrigerator LED Lamp Backorder SMG DA96-01119B $87.66

13

Assy case convertible SMG DA97-22987A Contact Us For Availability

13-1

DA61-15161A Samsung Refrigerator Middle Guide Backorder SMG DA61-15161A $25.07

13-2

DA61-15163A Samsung Refrigerator Convertible Backorder SMG DA61-15163A $150.36

14

L13000584 American Vulkan Lokring Refrigerati In Stock ALC L13000584 $4.46

14

DA97-13779E Samsung Refrigerator Middle Left Backorder SMG DA97-13779E $155.68

14-2

DA63-07515A Samsung Cover Rail Middle Left As Backorder SMG DA63-07515A $44.25

15

DA63-04942A Samsung Refrigerator Freezer Cove Backorder SMG DA63-04942A $55.57

15

Rail-middle SMG DA97-13778E Contact Us For Availability

15-3

COVER RAIL-MIDDLE RIGHT;RF8000 Backorder SMG DA63-11579A $45.35

15-4

COVER FIXER MAGNET;RF8000BC,HI Backorder SMG DA63-11585A $2.91

16

DA63-04941A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-04941A $54.22

16

DA97-23068A Samsung Refrigerator Roller Assem Backorder SMG DA97-23068A $5.80

16-1

ROLLER-VEG;PP,OD24.5,NATURAL,I Backorder SMG DA66-00276B $0.92

17

DA97-13783A Samsung Refrigerator Assembly Cov Backorder SMG DA97-13783A $23.22

17-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $19.49

17-2

DA63-07513A Samsung Refrigerator Reed Switch Backorder SMG DA63-07513A $4.98

18

DA66-00733B Samsung Refrigerator Shaft Backorder SMG DA66-00733B $21.56

11111

6001-000570 Samsung Machine Screw Backorder SMG 6001-000570 $0.92

11112

Screw SMG 6002-000538 Contact Us For Availability

11113

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $0.92

11117

DA61-09952B Samsung Refrigerator Door Stopper Backorder SMG DA61-09952B $8.31

11118

DA61-13385A Samsung Refrigerator Door Close S Backorder SMG DA61-13385A $5.38

11119

DA63-04825B Samsung Refrigerator Grommet Cap Backorder SMG DA63-04825B $2.91

11422

Assy lever handle SMG DA97-22986A Contact Us For Availability

11514

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

11515

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $14.29

11516

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.07

11518

DA61-13422A Samsung Refrigerator Low Door Sto Backorder SMG DA61-13422A $55.37

11621

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $19.07

11622

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.31

111111

6021-000258 Samsung Hexagon Nut Backorder SMG 6021-000258 $0.92

111112

DA97-20572A Samsung Assy Fixer-Up Backorder SMG DA97-20572A $7.05

114221

6002-001547 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001547 $0.92

115110

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $42.91

115111

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $0.92

115112

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $16.58

1151121

DA66-00440A Samsung Refrigerator Auto Close R In Stock SMG DA66-00440A $1.24

L13000622 American Vulkan Lokring Refrigerati In Stock ALC L13000622 $6.16

L13000654 American Vulkan Lokring Brass Reduc In Stock ALC L13000654 $5.64

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $0.92

6002-001397 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001397 $0.92

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.24

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.24

DA61-14661A Samsung Refrigerator Ice Guide Backorder SMG DA61-14661A $57.52

DA62-03691A Samsung Refrigerator Suction Pipe Backorder SMG DA62-03691A $72.22

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.24

DA81-01184D Samsung Refrigerator Check Plug A Backorder SMG DA81-01184D $21.65

DA81-06007B Samsung Refrigerator Dryer Assemb In Stock SMG DA81-06007B $111.77

DA81-06436A Samsung Pipe Connection Assembly Backorder SMG DA81-06436A $21.98

DA81-10415A Samsung Refrigerator Lock Ring As Backorder SMG DA81-10415A $125.44

DA96-01002C Samsung Refrigerator Evaporator M Backorder SMG DA96-01002C $189.16

DA96-01509A Samsung Refrigerator EVAP-FRE Mod Backorder SMG DA96-01509A $227.36

DA97-19988A Samsung Refrigerator Roller Assem Backorder SMG DA97-19988A $76.82

Samsung refrigerator water filter SMG HAF-QIN Contact Us For Availability
