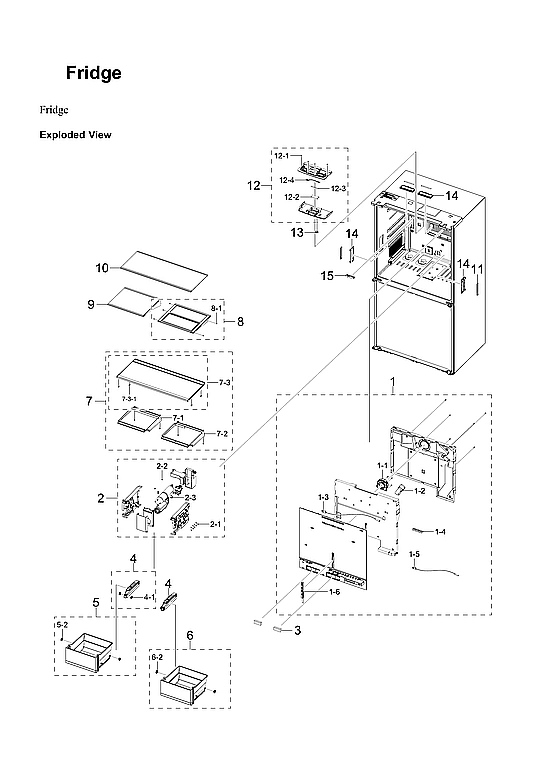

Model Samsung RF23A9771SG/AA-00 Bottom-Mount Refrigerator – Common Parts &amp; Diagrams

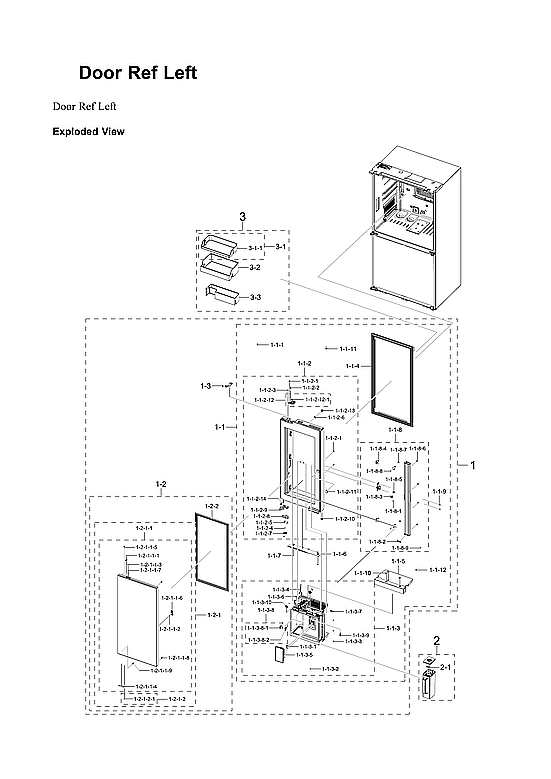

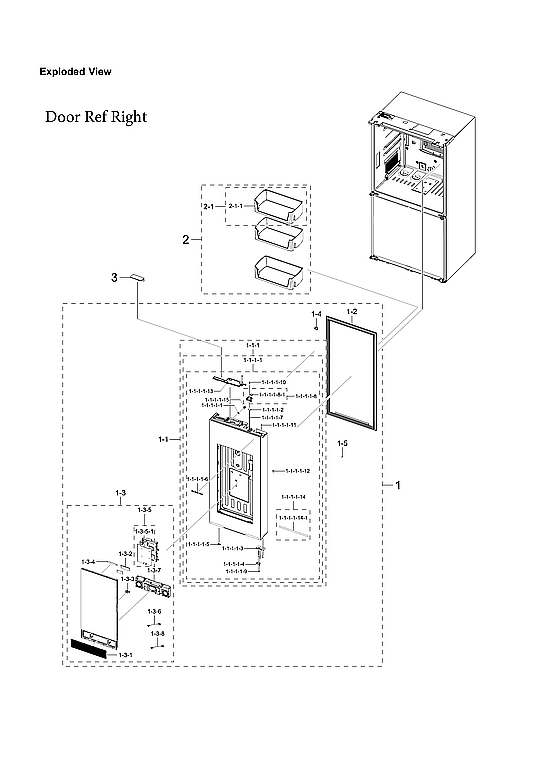

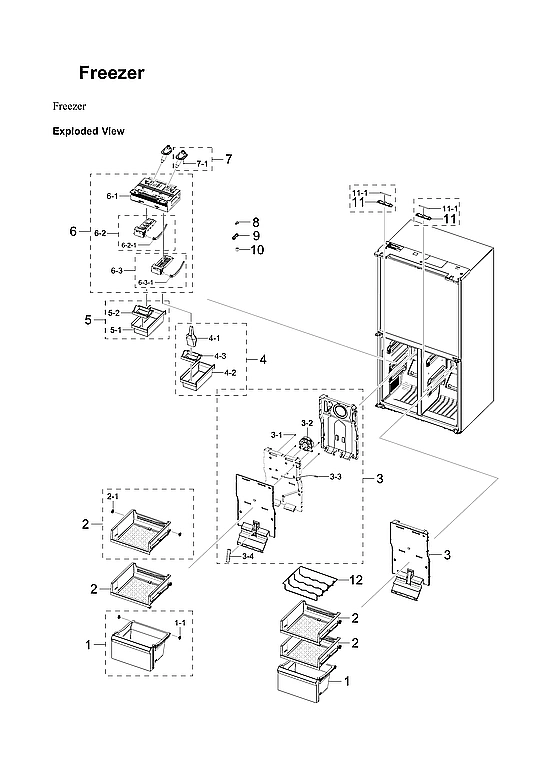

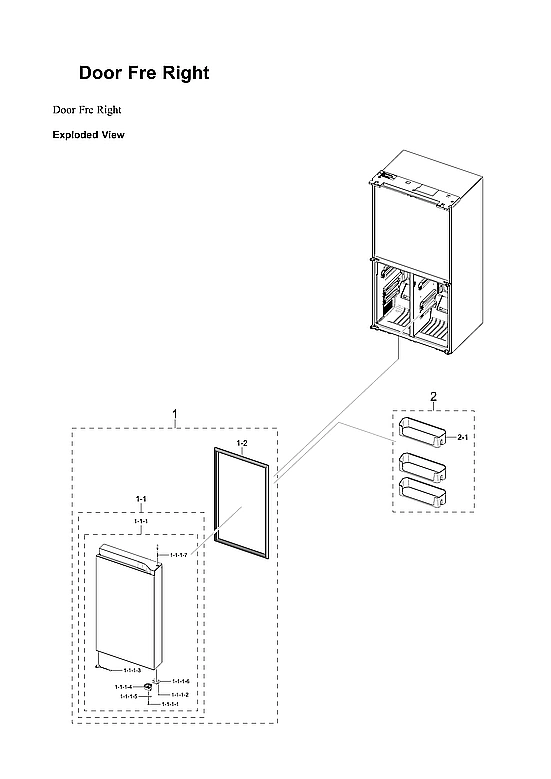

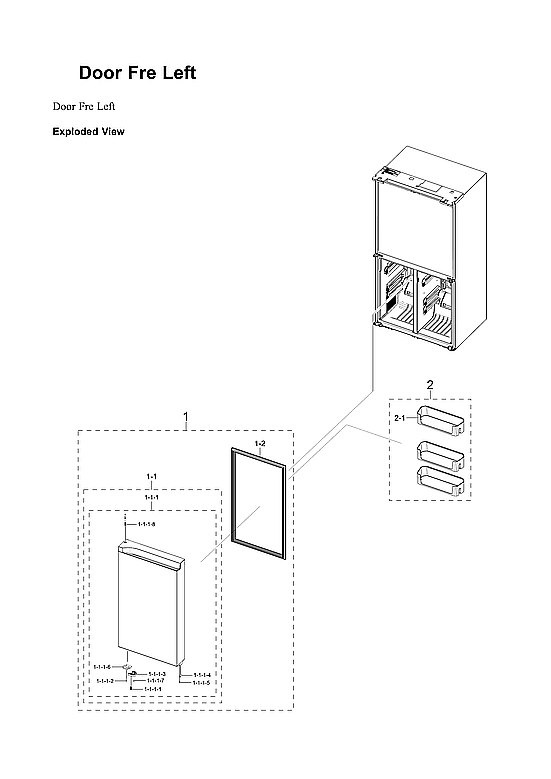

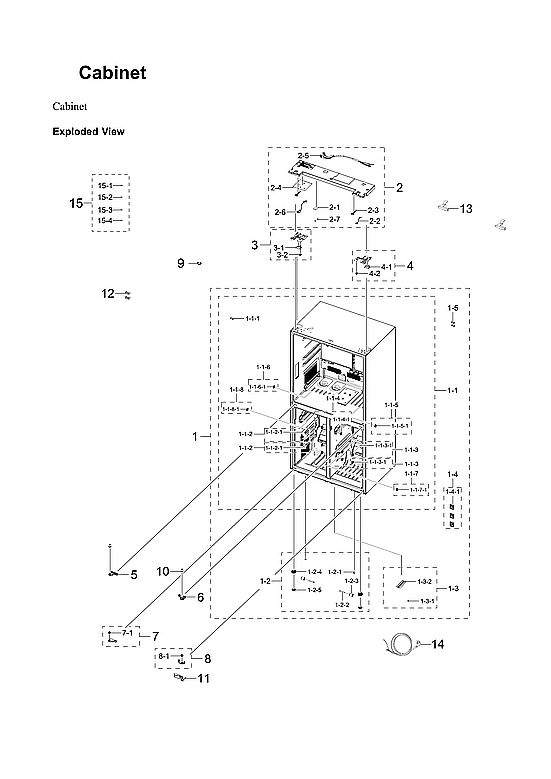

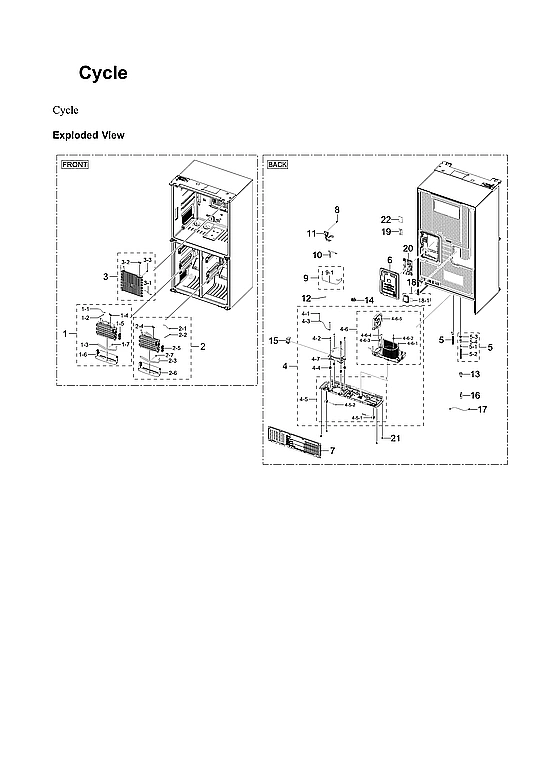

1

NON-SERVICEABLE PART SMG N/P Contact Us For Availability

DA31-00334D Samsung Refrigerator BLDC Fan Mot Backorder SMG DA31-00334D $125.41

DA32-10104N Samsung Refrigerator Temperature Backorder SMG DA32-10104N $18.22

DA91-05480G Samsung Refrigerator Left Foam Do Backorder SMG DA91-05480G $211.46

DA91-05481G Samsung Right Foam Door Assembly Backorder SMG DA91-05481G $221.49

1-1-1

DA91-05485F Samsung Right Door Foam Assembly Backorder SMG DA91-05485F $298.79

1-1-1-1

6001-000715 Samsung Machine Screw Backorder SMG 6001-000715 $8.59

1-1-1-1

6001-000716 Samsung Refrigerator Machine Scre Backorder SMG 6001-000716 $0.97

1-1-1-2

6002-001120 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001120 $0.97

1-1-1-3

DA34-00043L Samsung Refrigerator Reed Switch Backorder SMG DA34-00043L $57.51

1-1-1-4

DA61-03769B Samsung Refrigerator Dispenser Dr Backorder SMG DA61-03769B $2.72

1-1-1-4

DA61-15273A Samsung Refrigerator Door Close S Backorder SMG DA61-15273A $6.79

1-1-1-6

DA61-08816A Samsung Refrigerator Door Stopper Backorder SMG DA61-08816A $33.00

1-1-1-6

DA61-08817A Samsung Refrigerator Door Stopper Backorder SMG DA61-08817A $18.55

1-1-1-7

DA61-05366A Samsung Assembly Refrigerator Han Backorder SMG DA61-05366A $0.97

1-1-1-7

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.97

1-1-2

DOOR FOAM-RE SMG DA91-05473B Contact Us For Availability

1-1-2-4

6002-001547 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001547 $0.97

1-1-2-5

6009-001475 Samsung Refrigerator Special Scre Backorder SMG 6009-001475 $0.97

1-1-2-8

DA61-14211B Samsung Door Stopper - Left Backorder SMG DA61-14211B $46.69

1-1-2-9

DA97-21336A Samsung Hinge Assembly Low Left Backorder SMG DA97-21336A $54.87

1-1-2-11

DA66-01342A Samsung Refrigerator Lever Backorder SMG DA66-01342A $6.33

1-1-2-14

DA63-11272A Samsung Refrigerator Left Door Co Backorder SMG DA63-11272A $35.42

1-1-3

DA97-17399E Samsung Refrigerator Inner Case A In Stock SMG DA97-17399E $231.42

1-1-3-1

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $13.12

1-1-3-2

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $0.97

1-1-3-4

DA34-00043M Samsung Refrigerator Reed Switch Backorder SMG DA34-00043M $27.16

1-1-3-5

DA97-17297C Samsung Refrigerator Dispenser Le Backorder SMG DA97-17297C $91.72

1-1-3-9

DA61-13987A Samsung CASE DISPENSER;RS5000T,ST Backorder SMG DA61-13987A $91.30

1-1-3-10

DA62-02414A Samsung Refrigerator Fitting Tube Backorder SMG DA62-02414A $16.75

1-1-5

DA97-21788A Samsung Basket Cover Assembly Backorder SMG DA97-21788A $153.80

1-1-6

COVER CAP DO SMG DA63-09958A Contact Us For Availability

1-1-8

DA97-20608G Samsung Refrigerator Black Assemb Backorder SMG DA97-20608G $304.54

1-1-8-2

DA63-06842A Samsung French Refrigerator Gaske Backorder SMG DA63-06842A $7.24

1-1-8-3

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.52

1-1-8-4

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.98

1-1-8-5

DA63-00991A Samsung Refrigerator Door Recess Backorder SMG DA63-00991A $0.97

1-1-8-6

DA63-02750A Samsung Refrigerator Cover Slide Backorder SMG DA63-02750A $1.81

1-1-8-7

DA63-07538A Samsung Refrigerator Grommet Asse Backorder SMG DA63-07538A $1.81

1-1-9

6002-001406 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001406 $0.97

1-1-10

DA67-30266Q Samsung Cap Screw Backorder SMG DA67-30266Q $63.18

1-1-11

6002-000244 Samsung Tapping Screw Backorder SMG 6002-000244 $0.97

DA31-00346B Samsung Motor Gear DC Damper Asse Backorder SMG DA31-00346B $94.85

DA47-00301D Samsung Refrigerator Defrost Sens In Stock SMG DA47-00301D $16.98

DA97-21224A Samsung Refrigerator Gasket Backorder SMG DA97-21224A $109.79

DA97-21330A Samsung Refrigerator Gasket Assem Backorder SMG DA97-21330A $116.56

1-2-1

DA91-05486J Samsung Refrigerator Door Foam As Backorder SMG DA91-05486J $242.62

1-2-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $2.26

1-2-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $5.89

1-3

DA32-00070E Samsung Refrigerator Temperature Backorder SMG DA32-00070E $24.43

1-3

DA97-20039B Samsung Upper Left Hinge Assembly Backorder SMG DA97-20039B $48.06

1-3

DA97-20810L Samsung Refrigerator Display Cove Backorder SMG DA97-20810L $684.00

1-3-1

3001-002858 Samsung Refrigerator Speaker Backorder SMG 3001-002858 $138.46

1-3-3

DA32-00080A Samsung Refrigerator PSD Sensor Backorder SMG DA32-00080A $100.18

1-3-4

DA92-01368A Samsung Assembly PBA Voice Module Backorder SMG DA92-01368A $61.46

1-3-5

DA94-05860G Samsung Refrigerator Assembly Pri Backorder SMG DA94-05860G $311.29

1-3-6

DA96-01253B Samsung Assembly Wire Harness Backorder SMG DA96-01253B $23.99

1-3-7

DA97-19330C Samsung Assembly COVER FRONT;RF95 Backorder SMG DA97-19330C $133.39

1-3-8

WIRE HARNESS SMG DA96-01368C Contact Us For Availability

1-4

DA61-11032A Samsung Refrigerator Fixer Assemb Backorder SMG DA61-11032A $6.33

1-4

DA67-03218A Samsung Refrigerator Interlock Sw Backorder SMG DA67-03218A $2.26

1-5

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $0.97

1-5

DA32-00070D Samsung Refrigerator Temperature Backorder SMG DA32-00070D $22.62

1-6

DA61-14455A Samsung Refrigerator Angle Shelf Backorder SMG DA61-14455A $126.45

2

DA97-21261E Samsung Refrigerator Assembly Wat Backorder SMG DA97-21261E $127.63

2

DA97-21797A Samsung Refrigerator Filter Case Backorder SMG DA97-21797A $276.73

2-1

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $5.42

2-1

DA97-19996A Samsung Refrigerator Guard Assemb Backorder SMG DA97-19996A $45.55

2-1

DA97-21915A Samsung Refrigerator Guard Assemb Backorder SMG DA97-21915A $72.43

2-2

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $62.78

2-2

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.97

2-3

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $18.55

2-4

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.35

2-7

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.97

3

DA02-00244A Samsung Catalyst Backorder SMG DA02-00244A $27.16

3

DA63-08449B Samsung Refrigerator Lock Cover Backorder SMG DA63-08449B $13.12

3

DA97-16139B Samsung Refrigerator Assembly Cov Backorder SMG DA97-16139B $162.24

3-1

DA32-10104W Samsung Refrigerator Temperature Backorder SMG DA32-10104W $29.37

3-1

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.35

3-1

DA97-15186E Samsung Refrigerator Guard Assemb Backorder SMG DA97-15186E $50.93

3-2

DA31-00334C Samsung Refrigerator BLDC Fan Mot In Stock SMG DA31-00334C $128.40

3-2

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $4.07

3-2

DA97-21960A Samsung Refrigerator Middle Ref G Backorder SMG DA97-21960A $92.35

3-3

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $10.89

3-3

DA97-21914A Samsung Refrigerator Low Ref Guar Backorder SMG DA97-21914A $67.77

4

DA97-21876A Samsung Refrigerator Middle Left Backorder SMG DA97-21876A $52.36

4-1

6006-001170 Samsung Appliance Tapping Screw T Backorder SMG 6006-001170 $0.97

4-1

DA97-19988A Samsung Refrigerator Roller Assem Backorder SMG DA97-19988A $78.41

4-2

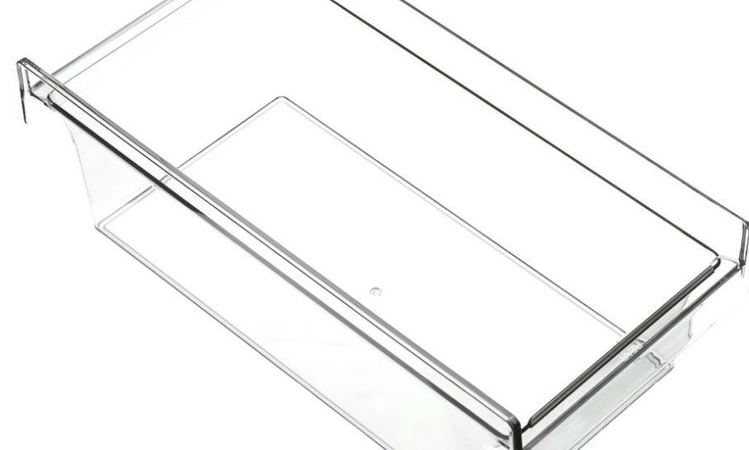

DA61-14444A Samsung Refrigerator Gray Ice Cub Backorder SMG DA61-14444A $57.75

4-2

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $4.07

4-3

DA63-11280A Samsung Refrigerator Ice Cover As Backorder SMG DA63-11280A $37.42

4-5-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $4.98

4-5-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.07

4-6-1

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.97

5

Refrigerator Fan Motor SMG DA97-04049E No Longer Available

5

DA97-21878B Samsung Refrigerator Low Vegetabl Backorder SMG DA97-21878B $125.53

6

DA97-21878C Samsung Refrigerator Case Assembl Backorder SMG DA97-21878C $126.24

6-1

DA61-14435A Samsung Refrigerator Ice Maker Su Backorder SMG DA61-14435A $96.03

6-2

DA97-22160A Samsung Refrigerator Ice Case Ass Backorder SMG DA97-22160A $152.26

6-2-1

DA61-14661A Samsung Refrigerator Ice Guide Backorder SMG DA61-14661A $58.92

6-3

DA97-22162A Samsung Refrigerator Ice Case Ass Backorder SMG DA97-22162A $147.24

7

PIPE WATER I SMG DA97-21801A Contact Us For Availability

7-1

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.97

7-1

COVER VEG-UP SMG DA63-11228A Contact Us For Availability

7-2

DA63-11229A Samsung Vegetable Cover Assembly Backorder SMG DA63-11229A $52.73

7-3

DA97-21902A Samsung Assy Shelf Veg-Low;Rf9000 Backorder SMG DA97-21902A $147.07

7-3-1

DA64-03784A Samsung Refrigerator Shelf Trim Backorder SMG DA64-03784A $42.27

8

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $25.77

8

DA97-21895A Samsung Refrigerator Quick Space In Stock SMG DA97-21895A $208.10

8-1

6002-001397 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001397 $0.97

9

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $18.55

9

DA97-20042B Samsung Shelf Assembly Backorder SMG DA97-20042B $148.13

10

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.35

10

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $17.64

10

DA97-21898A Samsung Refrigerator Upper Shelf Backorder SMG DA97-21898A $228.37

11

DA62-04617B Samsung Refrigerator Step Valve M In Stock SMG DA62-04617B $126.49

11

DA63-04921B Samsung Front LED Lamp Cover Backorder SMG DA63-04921B $6.14

11

DA96-01119A Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-01119A $57.03

11-1

DA41-00519P Samsung Refrigerator Pba-Led Lamp Backorder SMG DA41-00519P $25.28

12

DA97-21827D Samsung Refrigerator Deodorizer A Backorder SMG DA97-21827D $180.52

12

DA97-22020A Samsung Refrigerator Wine Shelf M Backorder SMG DA97-22020A $159.48

12-2

CATALYST SMG DA02-00249A Contact Us For Availability

12-3

DA96-00392G Samsung Refrigerator LED Lamp Backorder SMG DA96-00392G $118.14

12-4

WIRE HARNESS SMG DA96-00852E Contact Us For Availability

13

DA61-04932B Samsung Refrigerator Hinge Fixer Backorder SMG DA61-04932B $12.66

13

DA63-00951C Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951C $6.79

13

DA67-30266K Samsung Refrigerator Cap Screw Backorder SMG DA67-30266K $0.97

14

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $47.96

14

ASSEMBLY COVER LAMP (4) SMG DA97-16143B Contact Us For Availability

15

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $4.98

15

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $50.65

15-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $0.97

18

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $14.03

19

DA92-00945F Samsung Refrigerator Fuse Block P Backorder SMG DA92-00945F $51.65

22

DA92-00795A Samsung Refrigerator Standard Mod Backorder SMG DA92-00795A $179.88

11111

6021-000258 Samsung Hexagon Nut Backorder SMG 6021-000258 $0.97

11113

DA61-09952B Samsung Refrigerator Door Stopper Backorder SMG DA61-09952B $9.07

11114

DA61-13385A Samsung Refrigerator Door Close S Backorder SMG DA61-13385A $4.07

11115

DA63-09933A Samsung Refrigerator Door Cap Gro Backorder SMG DA63-09933A $3.17

11116

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $25.34

11118

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $16.75

11119

Screw SMG 6002-000538 Contact Us For Availability

11381

DA61-07581A Samsung Refrigerator LED Case Lam Backorder SMG DA61-07581A $2.26

11382

DA63-06505A Samsung Cover LED Lamp Backorder SMG DA63-06505A $2.26

12113

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.26

12114

DA61-13384A Samsung Refrigerator Door Stopper Backorder SMG DA61-13384A $18.55

12115

DA63-07545B Samsung Refrigerator Middle Hinge Backorder SMG DA63-07545B $2.72

12116

COVER LOCK SMG DA63-09537A Contact Us For Availability

12117

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $0.97

12118

GROMMET-COVE SMG DA63-02750B Contact Us For Availability

12119

DA63-09942A Samsung Door Grommet Backorder SMG DA63-09942A $20.82

12121

DA97-20057A Samsung Refrigerator Gasket Assem Backorder SMG DA97-20057A $87.65

111110

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $1.00

111111

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.97

111113

DA63-08826B Samsung Refrigerator Door Cover C Backorder SMG DA63-08826B $135.64

111115

DA97-20572A Samsung Assy Fixer-Up Backorder SMG DA97-20572A $26.25

112121

DA66-00440A Samsung Refrigerator Auto Close R Backorder SMG DA66-00440A $1.35

NI

Samsung Refrigerator Water Filter SMG HAF-QIN Contact Us For Availability
