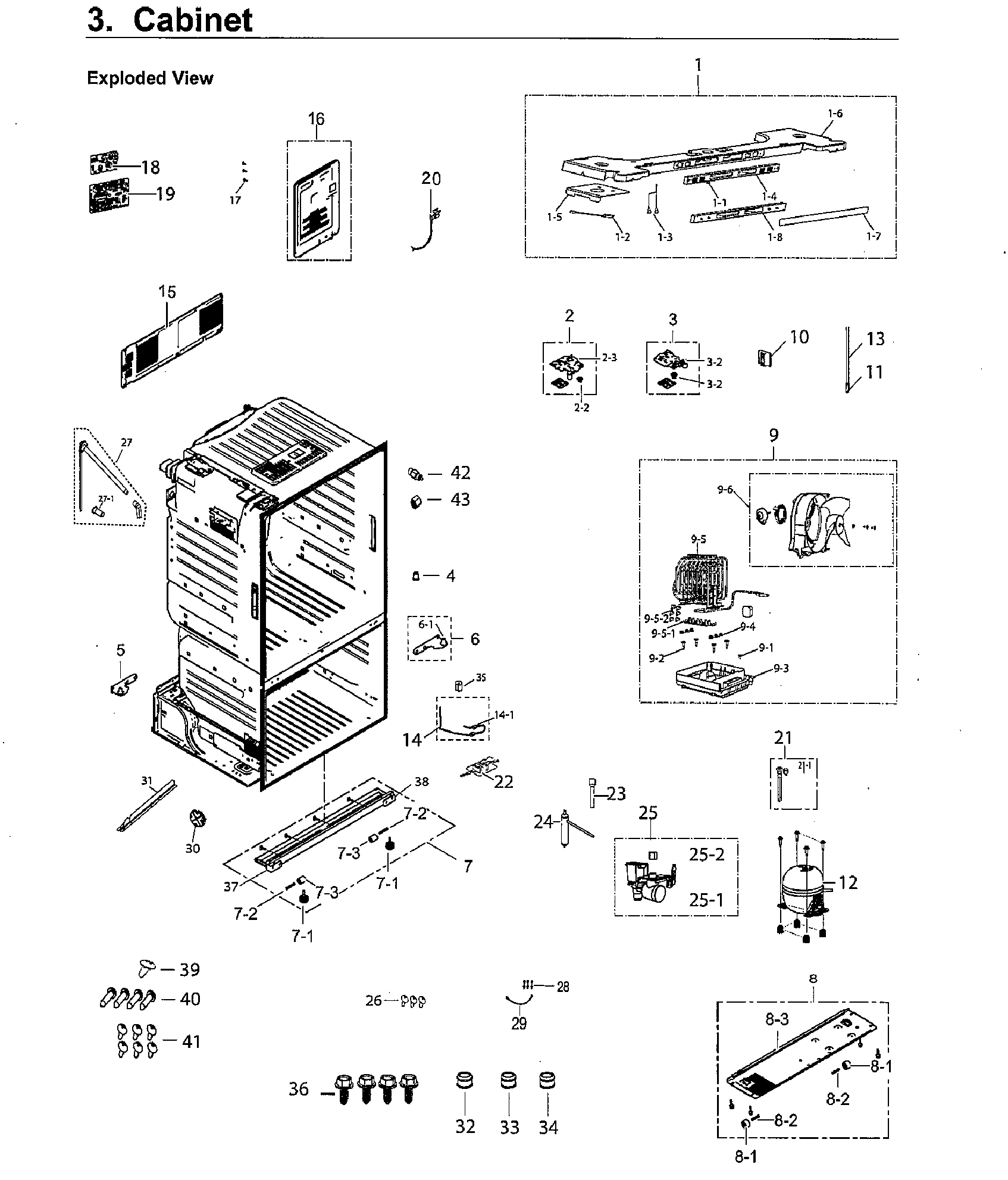

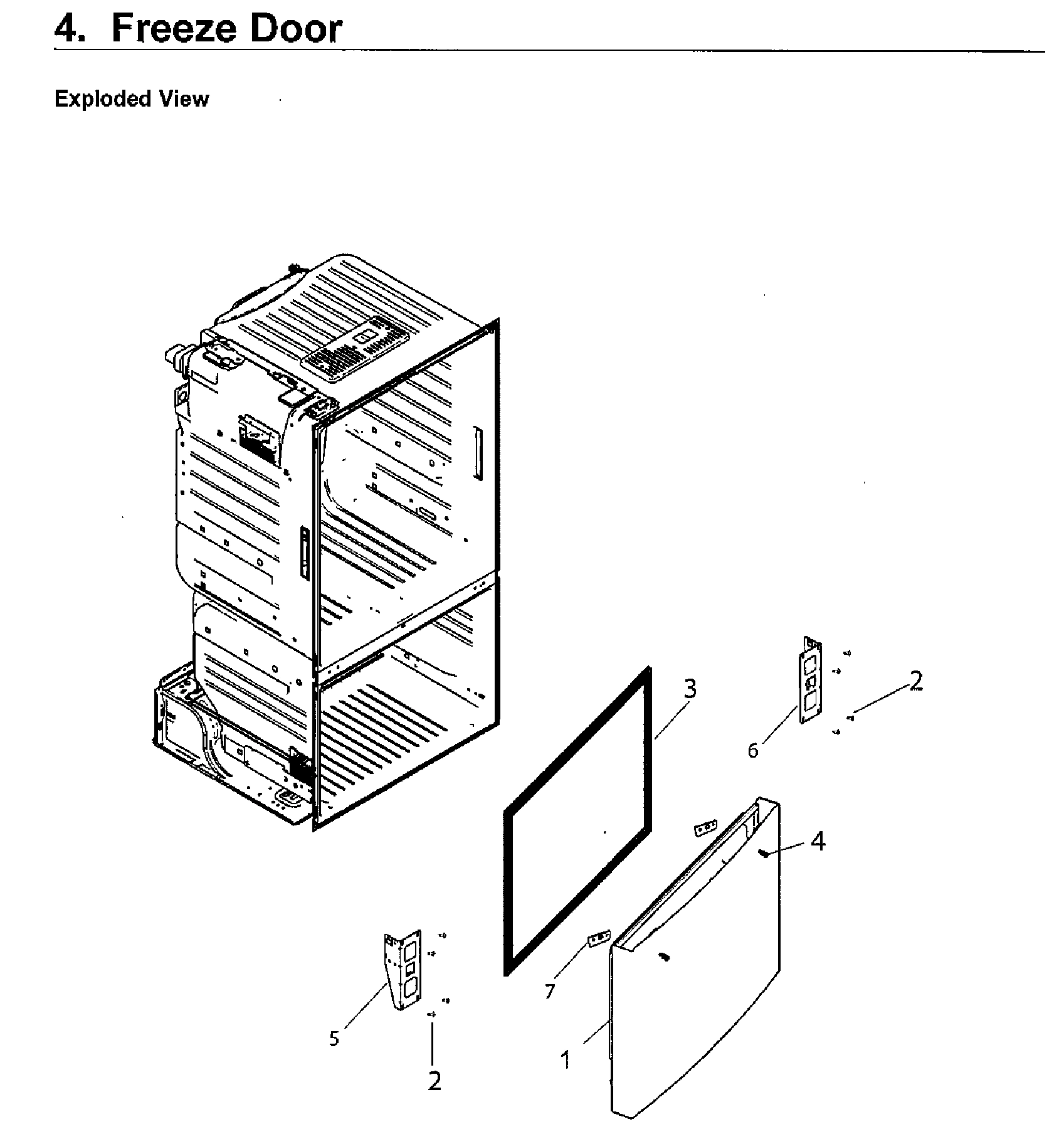

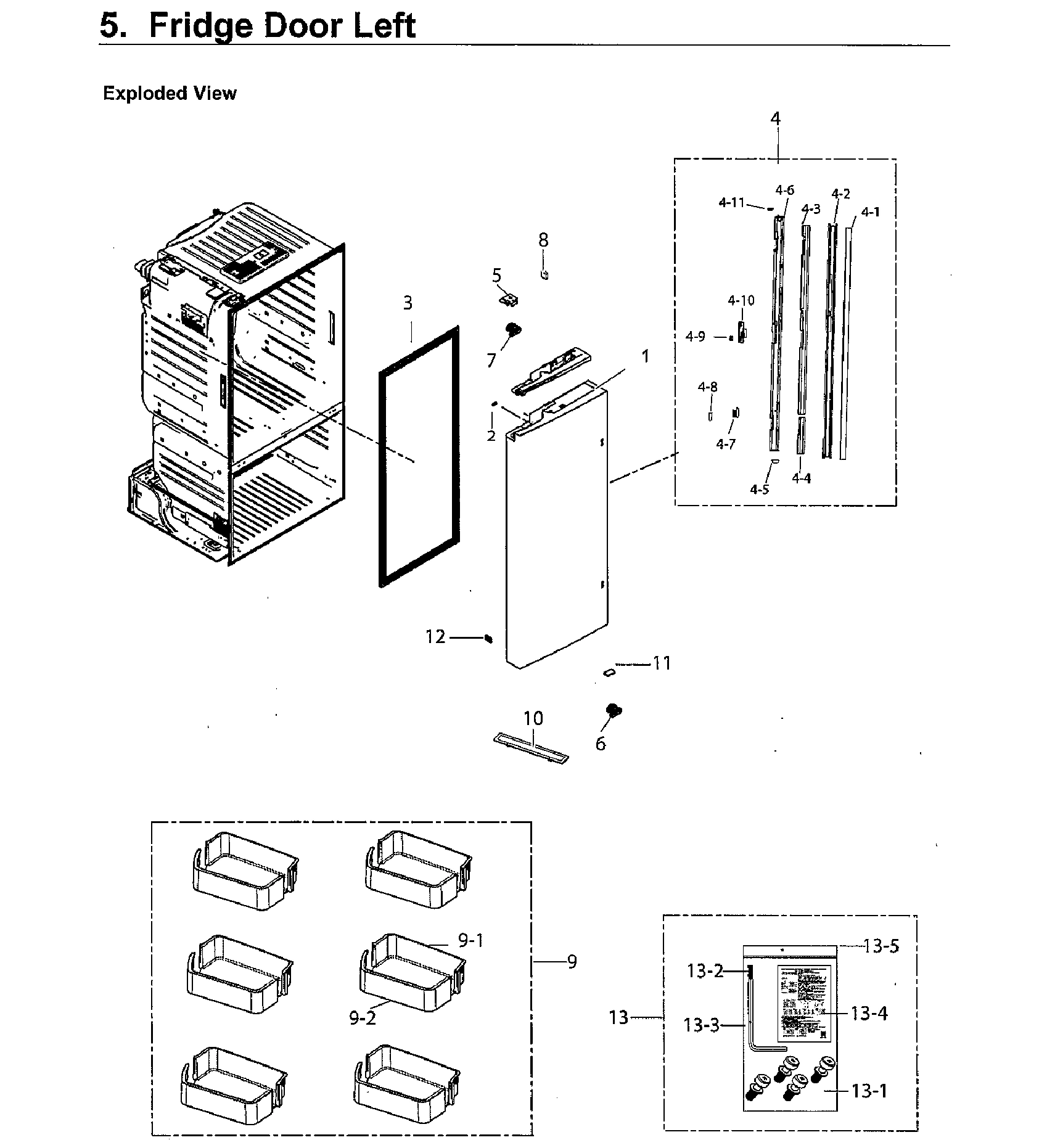

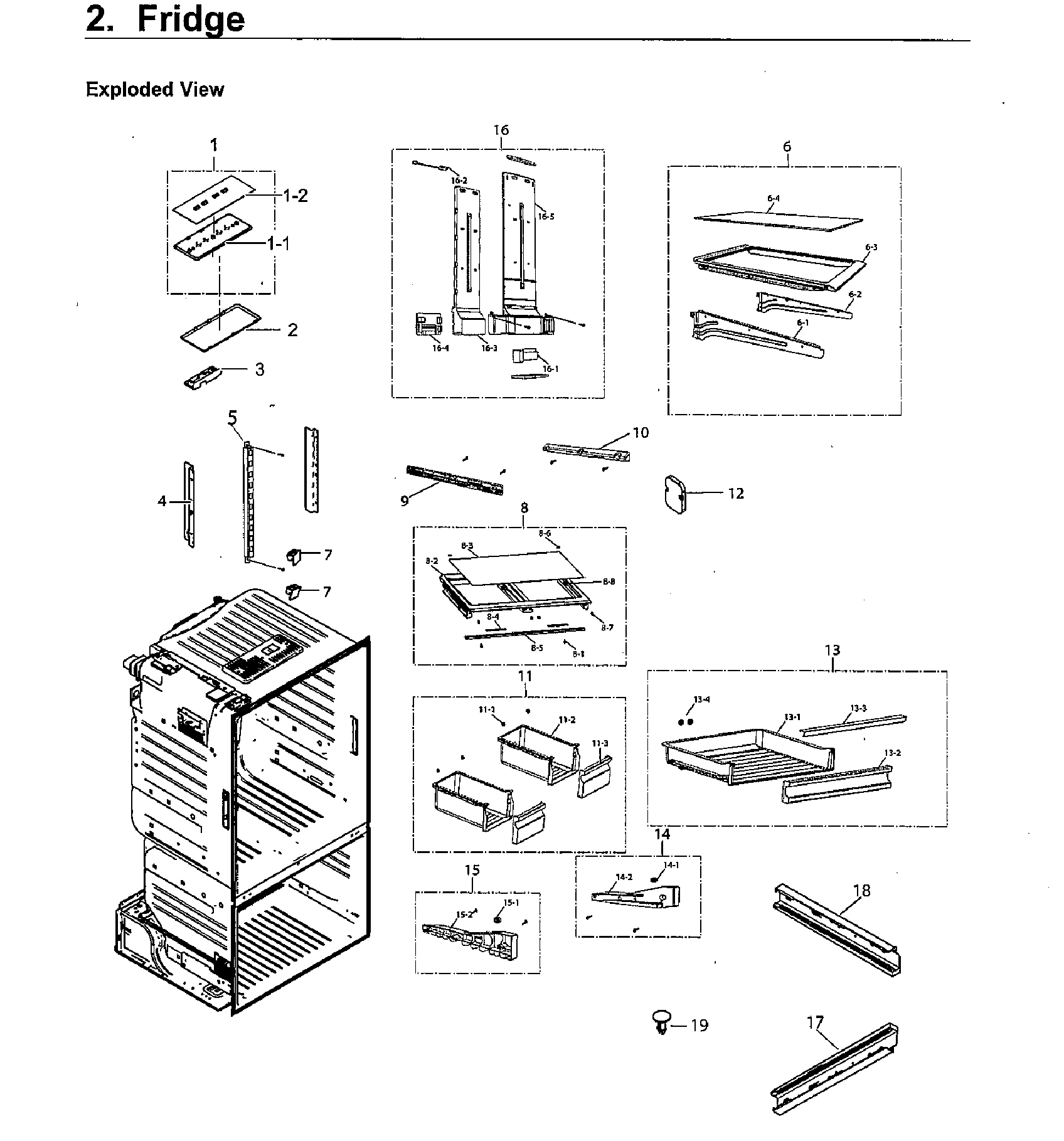

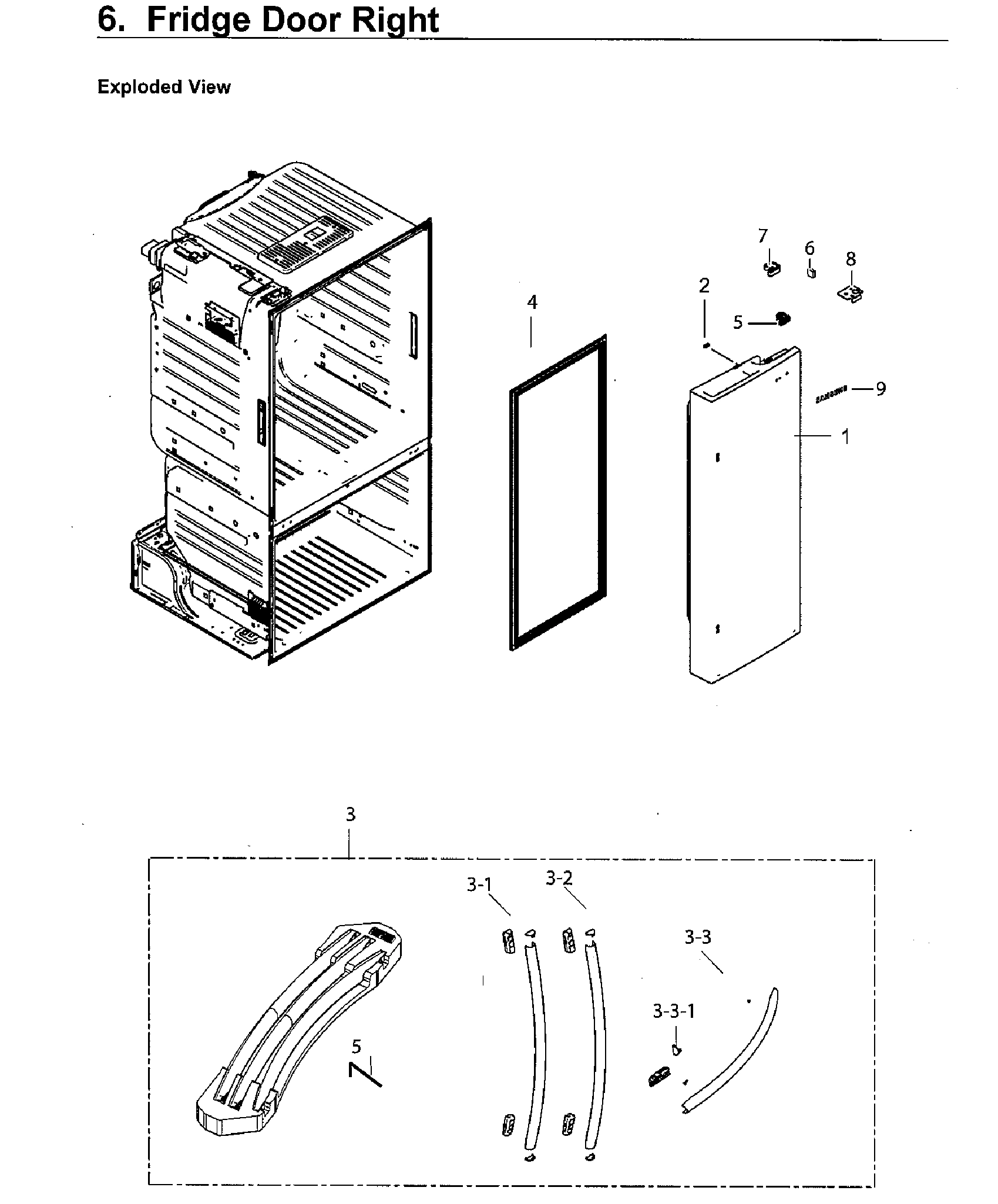

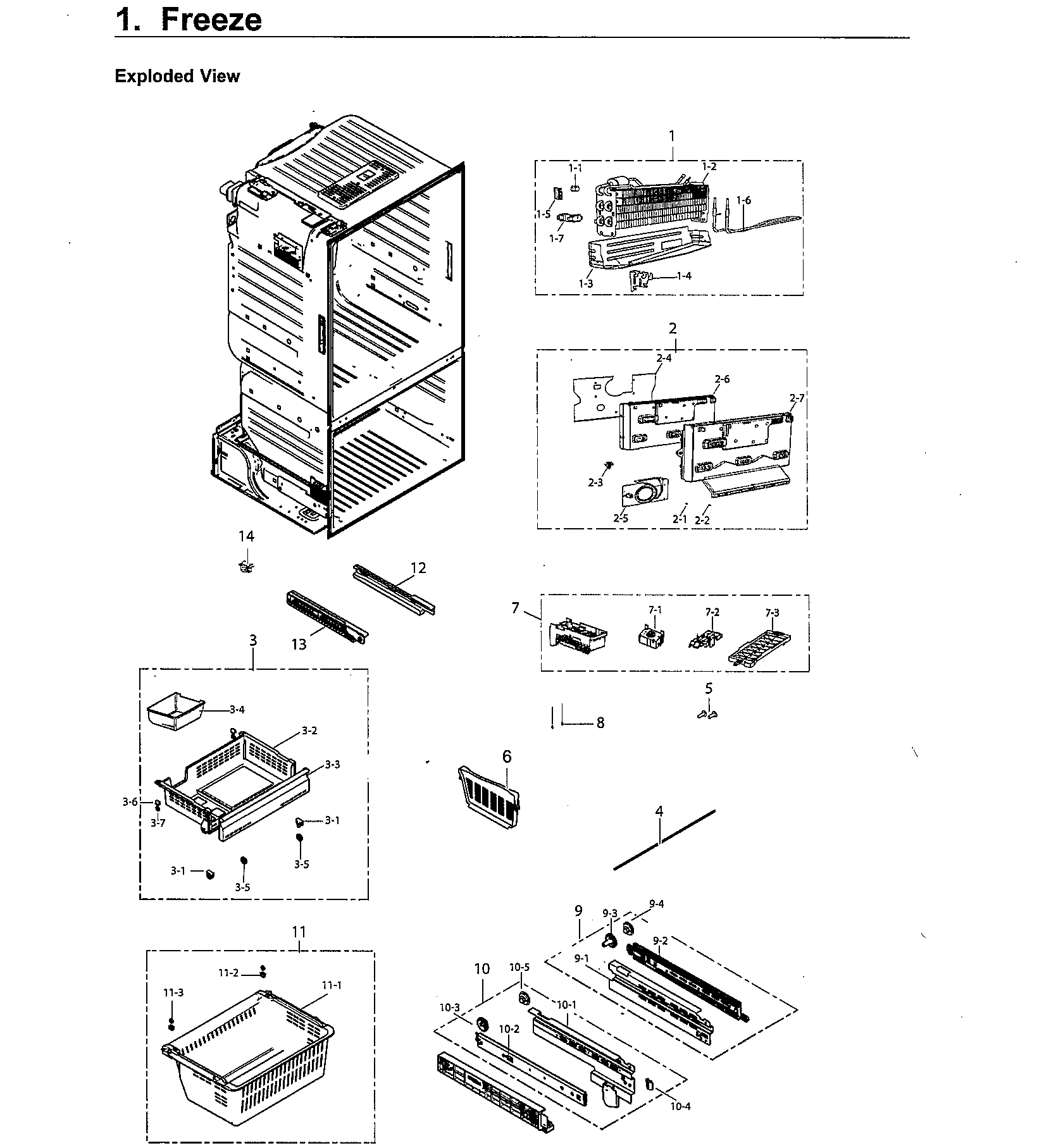

Model Samsung RF220NCTASG/AA-00 Refrigerator – Common Parts &amp; Diagrams

1

Refrigerator door assembly, right SMG DA91-03897F Contact Us For Availability

1-1

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

1-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $17.37

1-2

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $53.75

1-2

DA41-00676K Samsung Refrigerator LED Lamp Ass Backorder SMG DA41-00676K $103.84

1-3

DA34-00043K Samsung Refrigerator Reed Switch Backorder SMG DA34-00043K $50.05

1-3

DA61-08578A Samsung Refrigerator Drain Plate Backorder SMG DA61-08578A $33.43

1-4

DA61-08634A Samsung Refrigerator Heater Fixer Backorder SMG DA61-08634A $6.97

1-5

DA61-04799A Samsung Refrigerator Evaporator S Backorder SMG DA61-04799A $1.17

1-6

DA47-00457B Samsung Refrigerator Metal Sheath Backorder SMG DA47-00457B $131.06

1-7

DA61-08629A Samsung Refrigerator Heater Baros Backorder SMG DA61-08629A $11.24

1-8

DA92-00427A Samsung Refrigerator LED Printed Backorder SMG DA92-00427A $140.80

2

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $1.94

2

DA97-13192B Samsung Refrigerator Evaporator C In Stock SMG DA97-13192B $189.64

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $46.37

2-2

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $4.26

2-3

DA31-00334C Samsung Refrigerator BLDC Fan Mot In Stock SMG DA31-00334C $118.00

3

DA61-08751A Samsung Refrigerator Guide-French Backorder SMG DA61-08751A $10.07

3

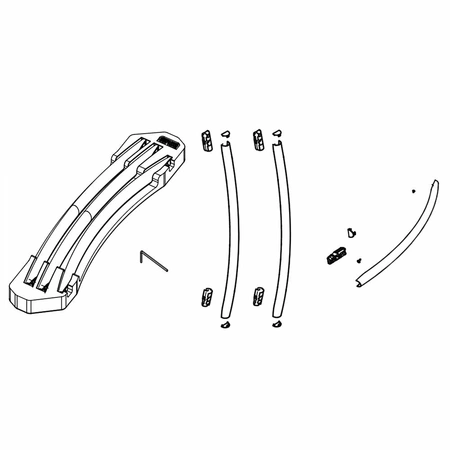

DA99-04145G Samsung Refrigerator Right Front Backorder SMG DA99-04145G $208.88

3-1

DA61-04813A Samsung Refrigerator Upper Roller Backorder SMG DA61-04813A $2.98

3-1

Refrigerator door handle assembly, left SMG DA97-12715F Contact Us For Availability

3-2

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $3.88

3-2

DA97-12714E Samsung Refrigerator Right Door H Backorder SMG DA97-12714E $125.15

3-3

Handle-fre SMG DA97-13074D Contact Us For Availability

3-4

DA61-05358A Samsung Refrigerator Ice Cube Cas In Stock SMG DA61-05358A $31.93

3-5

DA66-00639A Samsung Refrigerator Upper Tray R Backorder SMG DA66-00639A $2.71

3-31

DA67-02633A Samsung Refrigerator Freezer Hand Backorder SMG DA67-02633A $31.37

4

DA61-03734A Samsung Refrigerator Door Handle In Stock SMG DA61-03734A $2.65

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.56

4

DA66-00437G Samsung Refrigerator Gear Shaft A Backorder SMG DA66-00437G $101.56

4

DA97-13015B Samsung Refrigerator Door Gasket Backorder SMG DA97-13015B $108.21

4-4

Refrigerator insulation SMG DA62-03835A Contact Us For Availability

4-5

DA63-06842A Samsung French Refrigerator Gaske Backorder SMG DA63-06842A $6.20

4-6

Refrigerator case SMG DA61-08668A Contact Us For Availability

4-7

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.65

4-8

DA67-02146A Samsung Refrigerator French Cap C Backorder SMG DA67-02146A $6.97

4-9

DA67-02154A Samsung Refrigerator French Door Backorder SMG DA67-02154A $4.26

4-10

DA63-04645A Samsung Refrigerator Door Heater Backorder SMG DA63-04645A $11.62

4-11

DA63-06959B Samsung Refrigerator Upper French Backorder SMG DA63-06959B $6.97

5

DA61-07771C Samsung Refrigerator Left Middle Backorder SMG DA61-07771C $107.51

5

DA61-08210A Samsung Refrigerator Left Door St Backorder SMG DA61-08210A $19.76

6

DA61-04841A Samsung Refrigerator Front Hanger Backorder SMG DA61-04841A $57.70

6

DA97-12659C Samsung Refrigerator Right Middle Backorder SMG DA97-12659C $107.62

7

DA61-05001B Samsung Refrigerator Door Close S Backorder SMG DA61-05001B $1.17

7

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $2.71

7

DA97-07603B Samsung Refrigerator Ice Maker In Stock SMG DA97-07603B $156.66

7

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $15.50

7-1

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $165.34

7-1

DA61-04721D Samsung Front Foot Refrigerator Backorder SMG DA61-04721D $105.58

7-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.09

7-2

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $1.94

7-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $6.59

7-3

DA63-02284B Samsung Refrigerator Ice Cube Tra In Stock SMG DA63-02284B $26.88

8

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $0.92

8

DA61-08196A Samsung Refrigerator Door Stopper Backorder SMG DA61-08196A $25.16

8

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

8

DA97-13029A Samsung Refrigerator Crisper Draw Backorder SMG DA97-13029A $210.94

8-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.42

8-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.26

8-4

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $4.65

8-6

DA61-04809A Samsung Refrigerator Vegetable Fi In Stock SMG DA61-04809A $0.92

9

DA61-08785A Samsung Refrigerator Vegetable Dr Backorder SMG DA61-08785A $7.32

9

DA64-04021A Samsung Refrigerator Nameplate Ma Backorder SMG DA64-04021A $32.04

9

DA97-10595E Samsung Refrigerator Low Right Sl Backorder SMG DA97-10595E $155.04

9

DA97-12935A Samsung Refrigerator Door Bin Gua In Stock SMG DA97-12935A $111.89

9

DA97-13253B Samsung Refrigerator Water Drain Backorder SMG DA97-13253B $238.13

9-1

Refrigerator guard SMG DA63-07206A Contact Us For Availability

9-2

DA61-09088A Samsung Refrigerator Slide Rail L Backorder SMG DA61-09088A $145.80

9-2

Refrigerator cover SMG DA63-07208A Contact Us For Availability

9-3

DA66-00767A Samsung Refrigerator Rail Gear Ri Backorder SMG DA66-00767A $5.42

9-52

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.92

DA61-04712C Samsung Refrigerator Fixer Hose Backorder SMG DA61-04712C $19.76

DA61-08786A Samsung Refrigerator Vegetable Sh In Stock SMG DA61-08786A $6.97

DA63-06131B Samsung Refrigerator LED Cap Cove Backorder SMG DA63-06131B $11.24

Refrigerator freezer drawer slide rail, left SMG DA97-10594B Contact Us For Availability

10-2

Refrigerator freezer basket slide rail assemb SMG DA61-09087A Contact Us For Availability

10-3

DA66-00771A Samsung Refrigerator Rail Gear Le Backorder SMG DA66-00771A $4.65

11

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $14.29

11

DA73-00211A Samsung Refrigerator Hose Rubber Backorder SMG DA73-00211A $0.92

12

DA61-07328A Samsung Refrigerator Freezer Rail In Stock SMG DA61-07328A $152.26

12

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.32

13

DA61-07329A Samsung Refrigerator Right Hand U In Stock SMG DA61-07329A $161.11

13

Refrigerator packing SMG DA99-03490Q Contact Us For Availability

13-1

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $3.88

13-2

DA67-03197A Samsung Refrigerator Wrench Cap A Backorder SMG DA67-03197A $0.92

13-3

DA80-00026B Samsung Refrigerator Spanner Wren Backorder SMG DA80-00026B $2.71

13-4

Label-hand SMG DA99-03429J Contact Us For Availability

13-5

Bag zipper SMG 6902-001266 Contact Us For Availability

14

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $26.19

16

DA97-13075A Samsung Refrigerator Multi Cover In Stock SMG DA97-13075A $149.86

16-1

DA31-00043F Samsung Refrigerator DC Damper Mo Backorder SMG DA31-00043F $117.64

16-2

DA32-00057C Samsung Refrigerator Temperature In Stock SMG DA32-00057C $51.28

17

DA63-04604A Samsung Refrigerator Left Lower R Backorder SMG DA63-04604A $107.04

18

DA63-04605A Samsung Refrigerator Lower Right Backorder SMG DA63-04605A $66.43

18

DA92-00215B Samsung Refrigerator Inverter Pri In Stock SMG DA92-00215B $186.22

19

DA67-02138A Samsung Refrigerator Hinge Hole C Backorder SMG DA67-02138A $1.17

19

DA92-00426A Samsung Refrigerator Main Electro Backorder SMG DA92-00426A $231.02

20

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $52.52

21-1

DA62-01266E Samsung Refrigerator PVC Tube Backorder SMG DA62-01266E $3.09

25

DA97-13268A Samsung Refrigerator Hose Water V Backorder SMG DA97-13268A $145.02

25-1

DA62-01477A Samsung Refrigerator Water Inlet In Stock SMG DA62-01477A $78.21

27

DA97-00209T Samsung Refrigerator Water Pipe A Backorder SMG DA97-00209T $85.47

34

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $5.03

45

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $17.06

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $0.92

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $0.92

6006-001170 Samsung Appliance Tapping Screw T Backorder SMG 6006-001170 $0.92

DA61-04804A Samsung Refrigerator Roller Wheel Backorder SMG DA61-04804A $18.94

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.20
