Model Bosch RED30VQW/01 Range Oven – Common Parts & Diagrams

Common parts from model Bosch RED30VQW/01 Range Oven

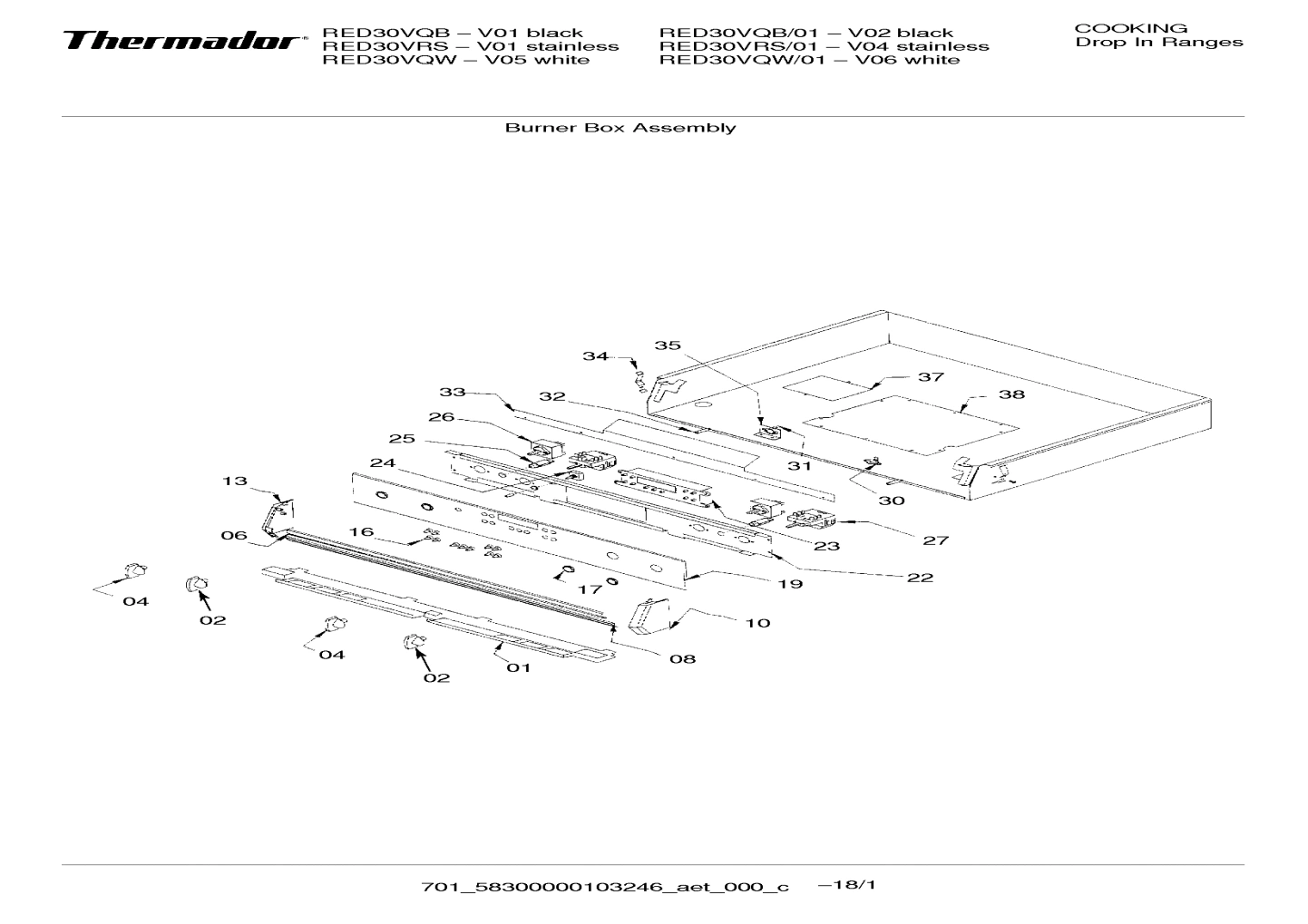

Diagram 1

Print

• This Diagram
• All Diagrams

0119

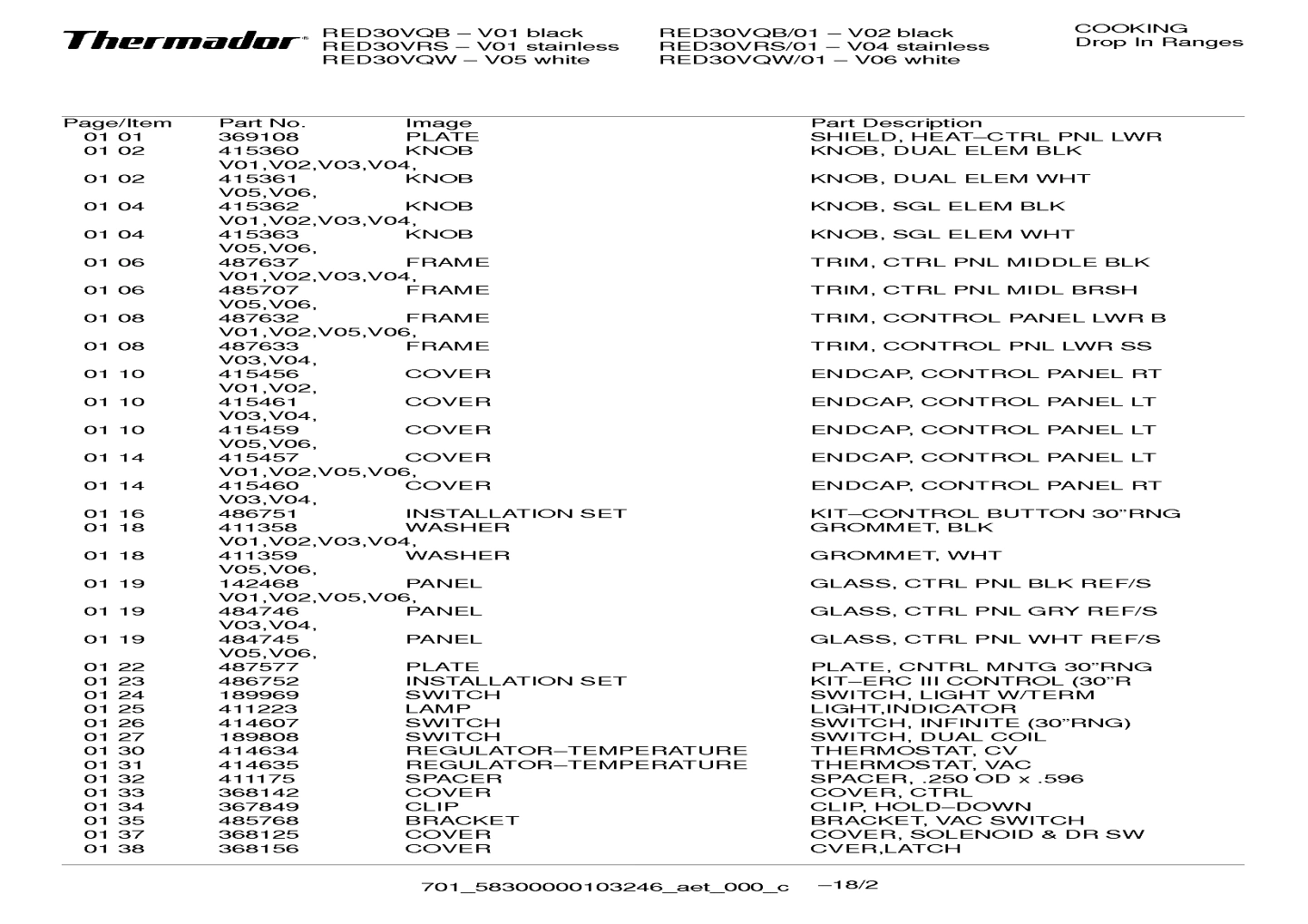

Panel BOS 00484753 Contact Us For Availability

View on Model

0126

Switch BOS 00414607 Contact Us For Availability

View on Model

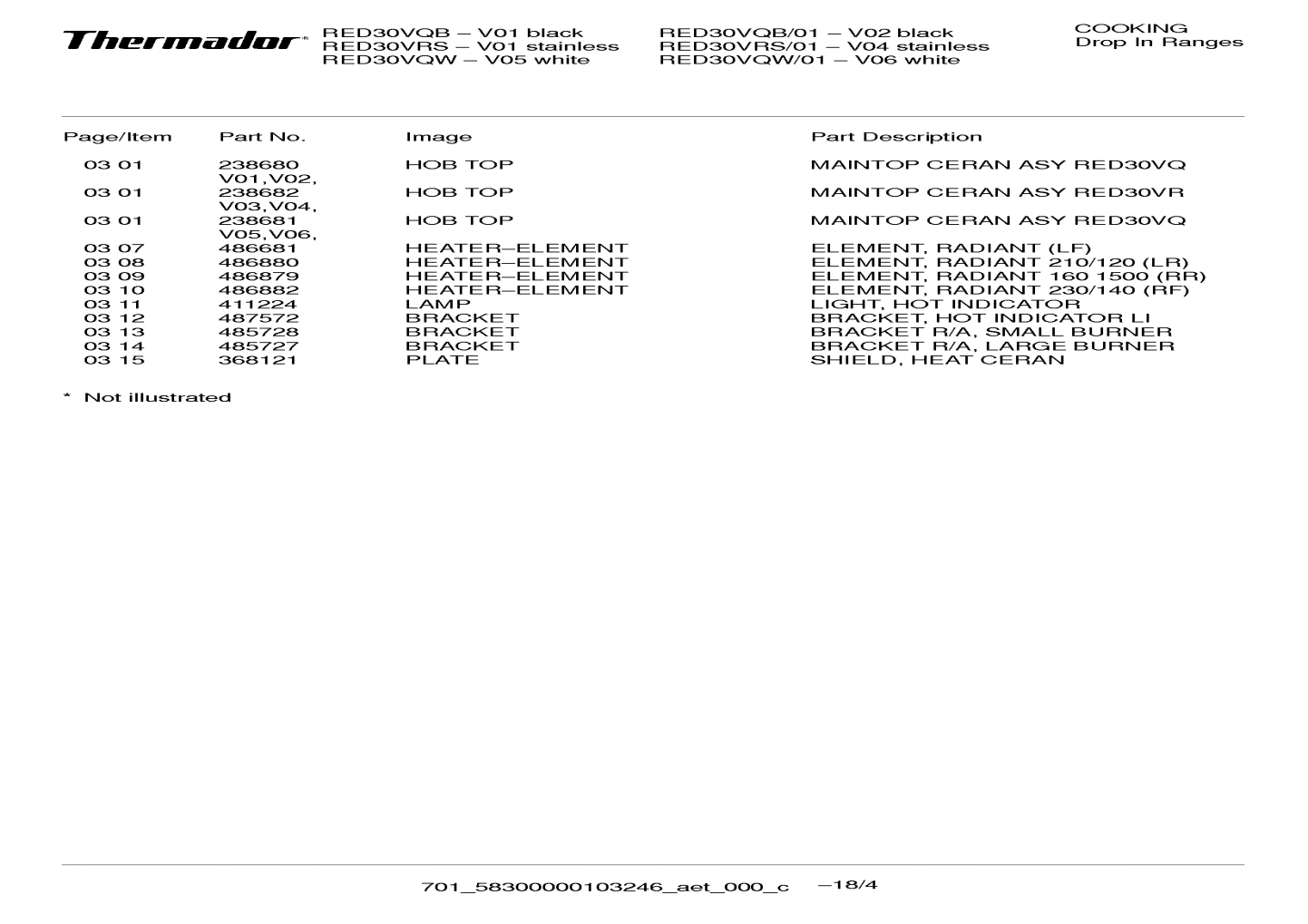

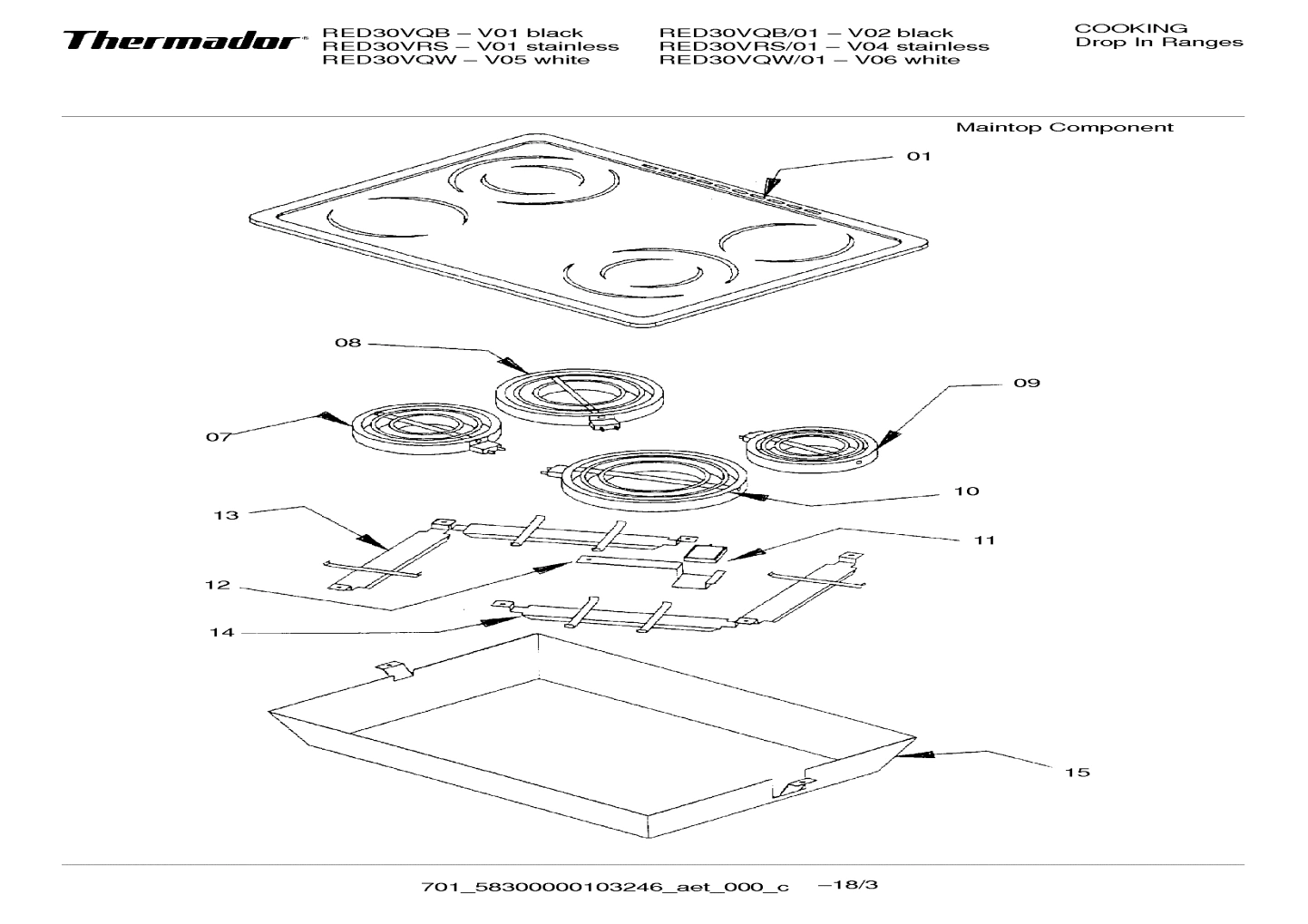

0309

00486879 Bosch Range Heating Element Backorder BOS 00486879 View Details $102.66

View on Model

0310

00486882 Bosch Oven Heating Element Backorder BOS 00486882 View Details $288.30

View on Model

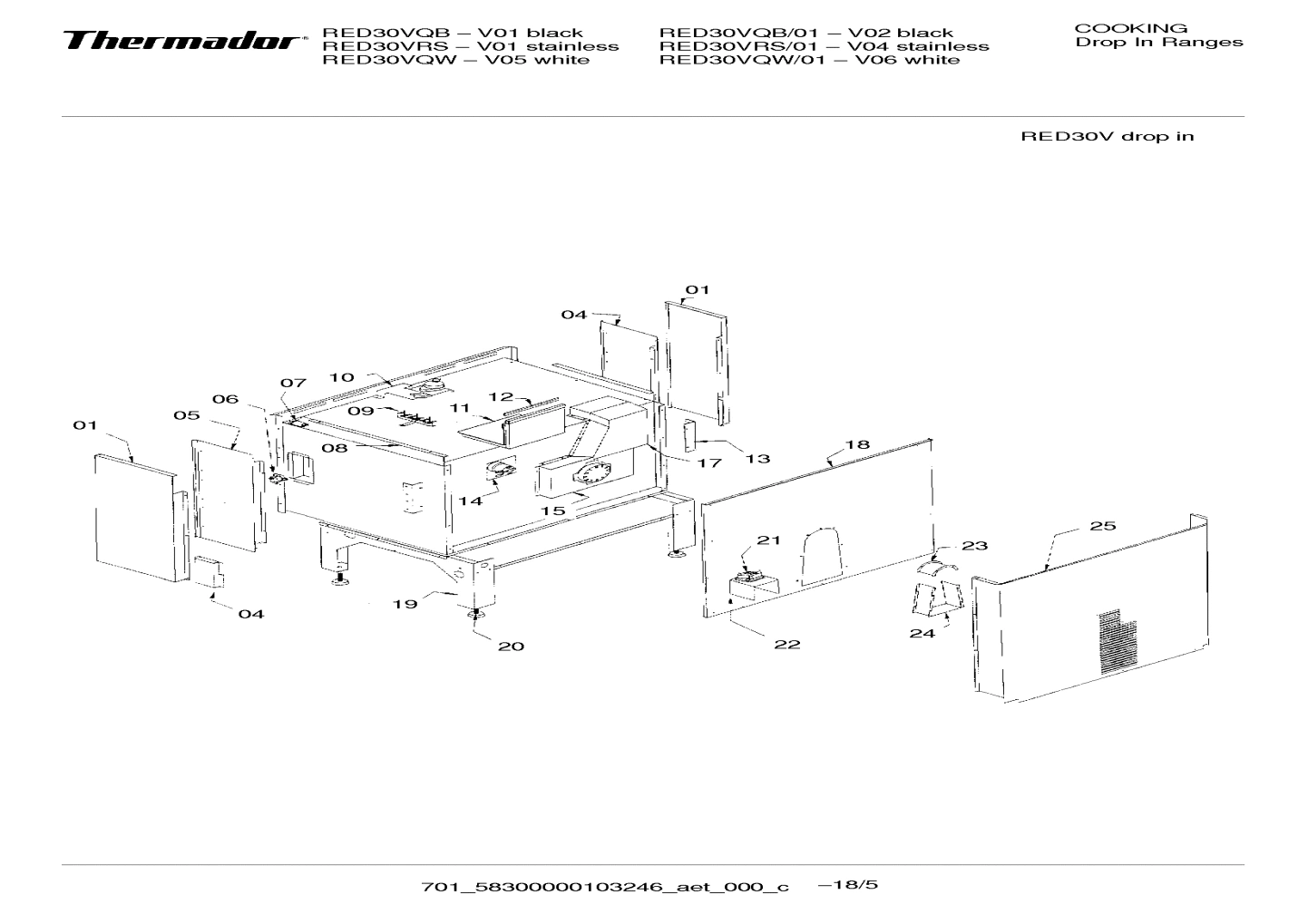

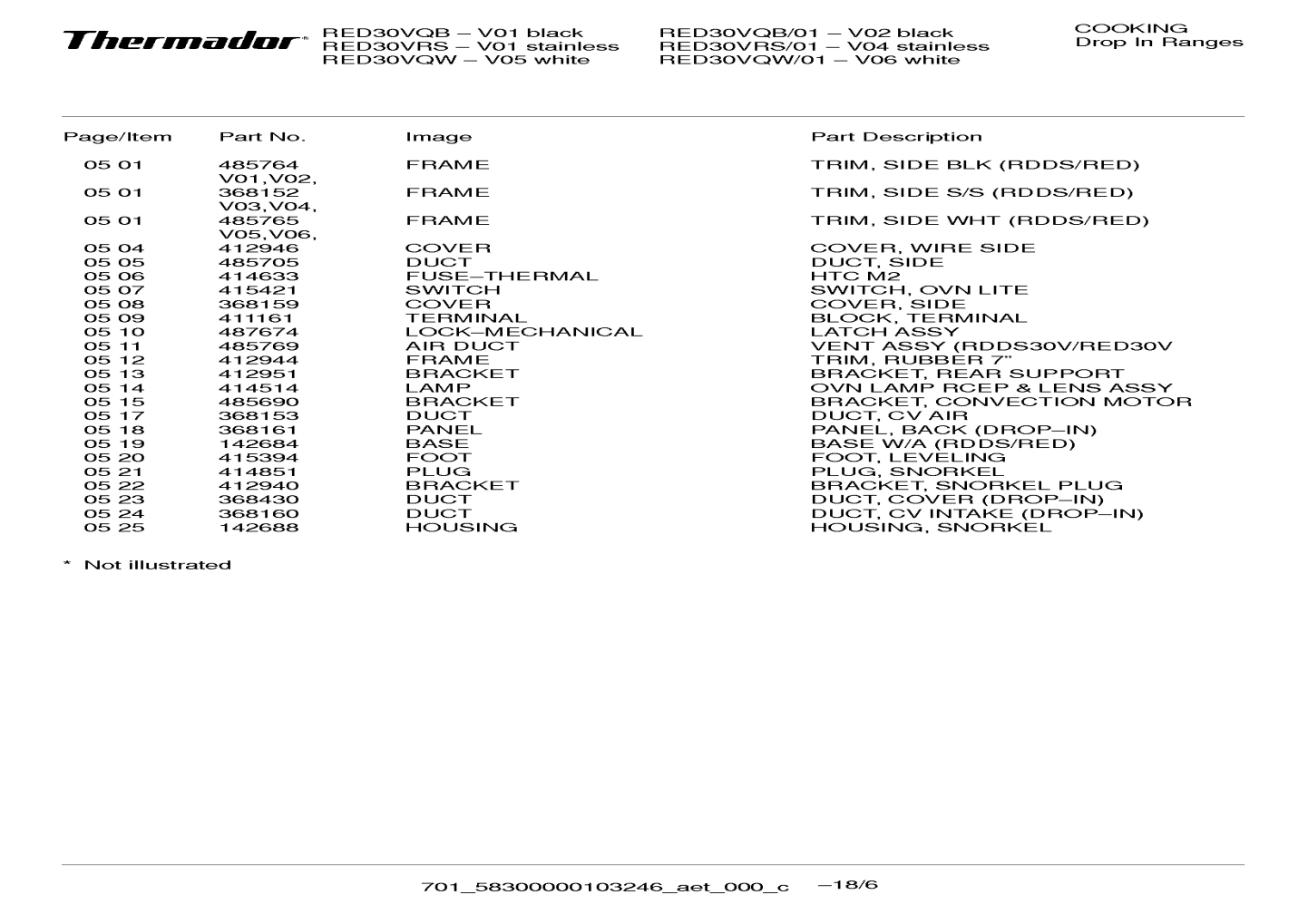

0506

00414633 Bosch Thermal Fuse Backorder BOS 00414633 View Details $39.57

View on Model

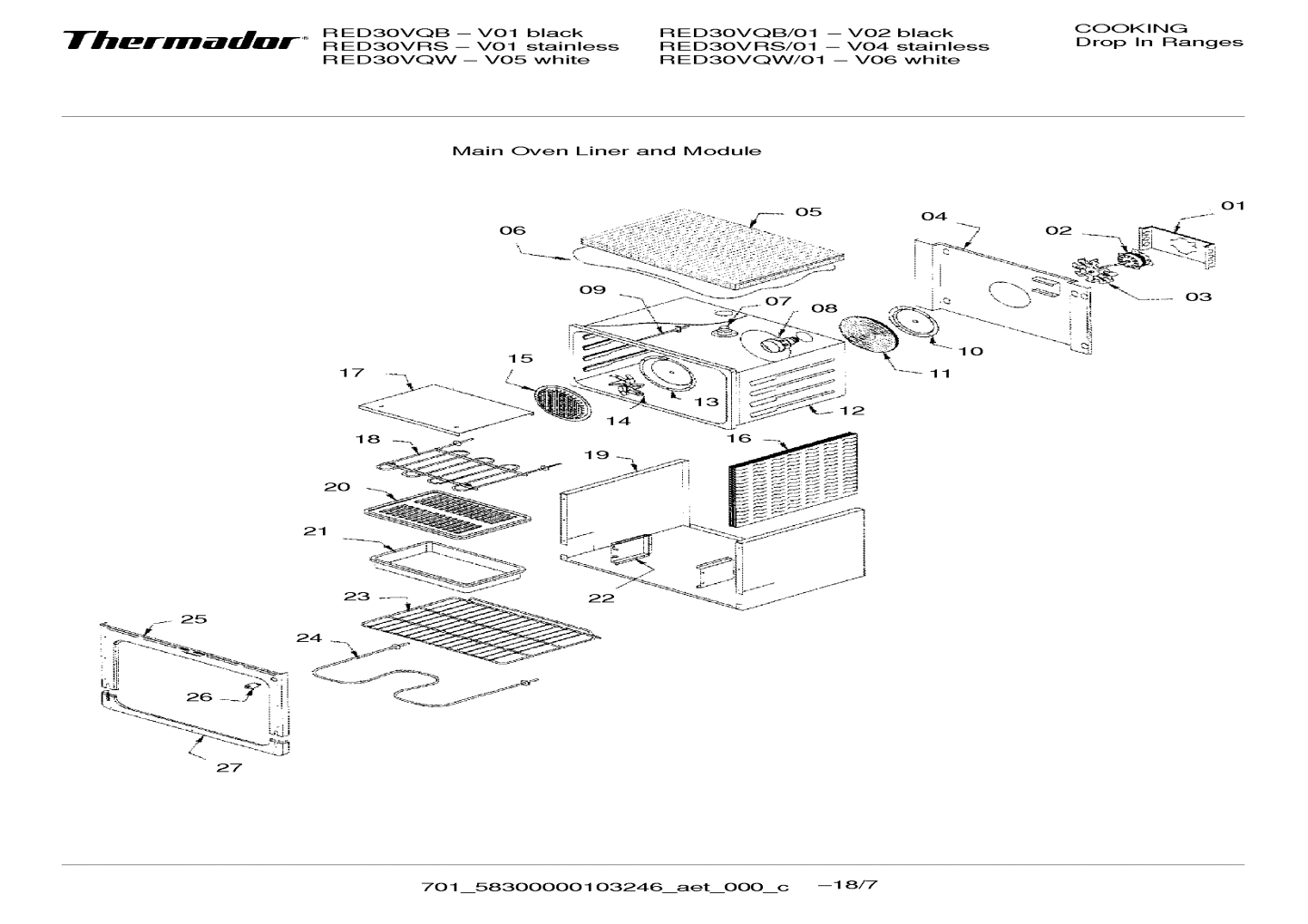

0702

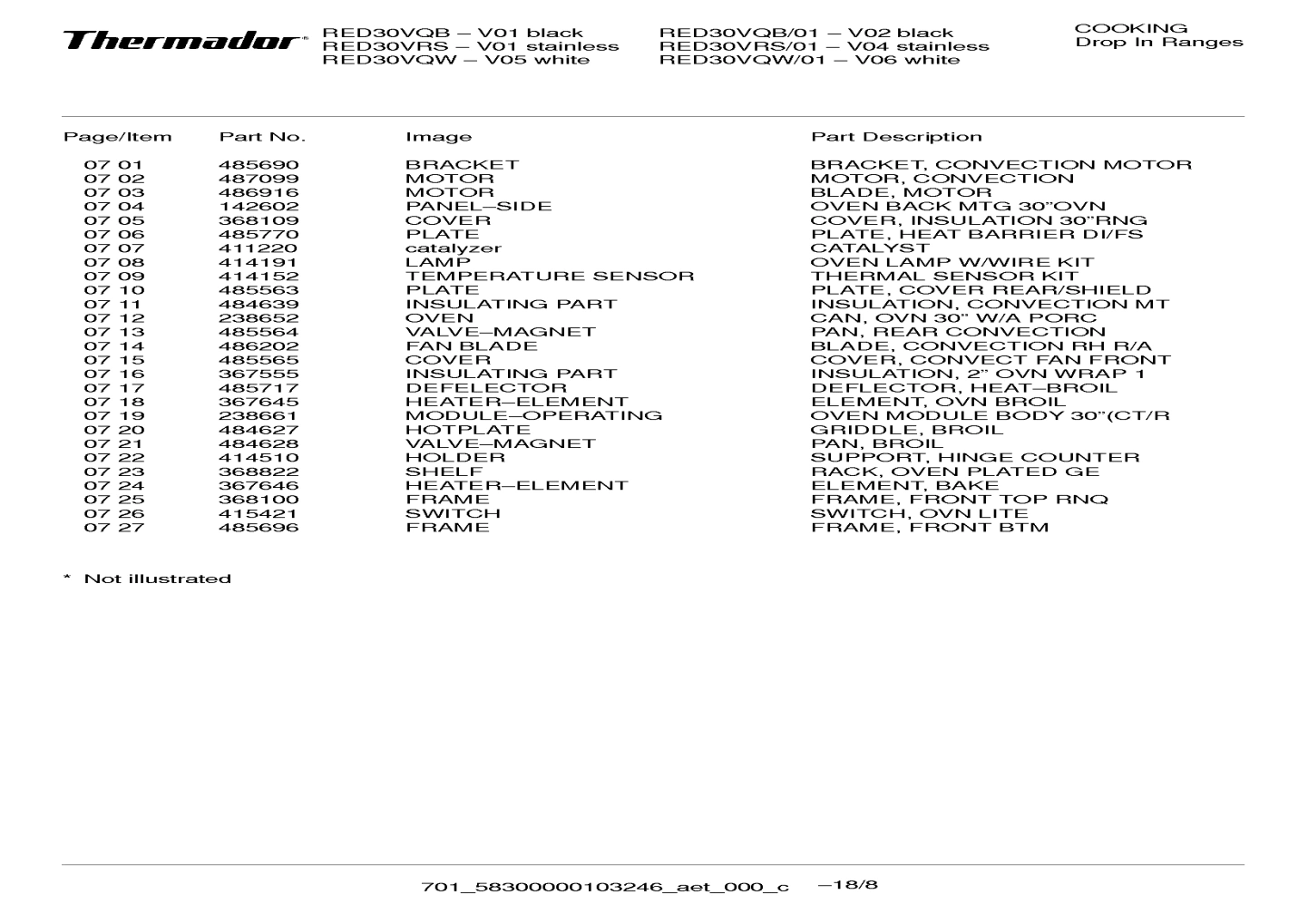

Motor BOS 00487099 Contact Us For Availability

View on Model

0707

Catalyzer BOS 00411220 Contact Us For Availability

View on Model

0708

Lamp BOS 00414191 Contact Us For Availability

View on Model

0718

Heating element BOS 00367645 Contact Us For Availability

View on Model

0721

Universal pan BOS 00449757 Contact Us For Availability

View on Model

0722

Holder BOS 00414510 Contact Us For Availability

View on Model

0724

Heating element BOS 00367646 Contact Us For Availability

View on Model

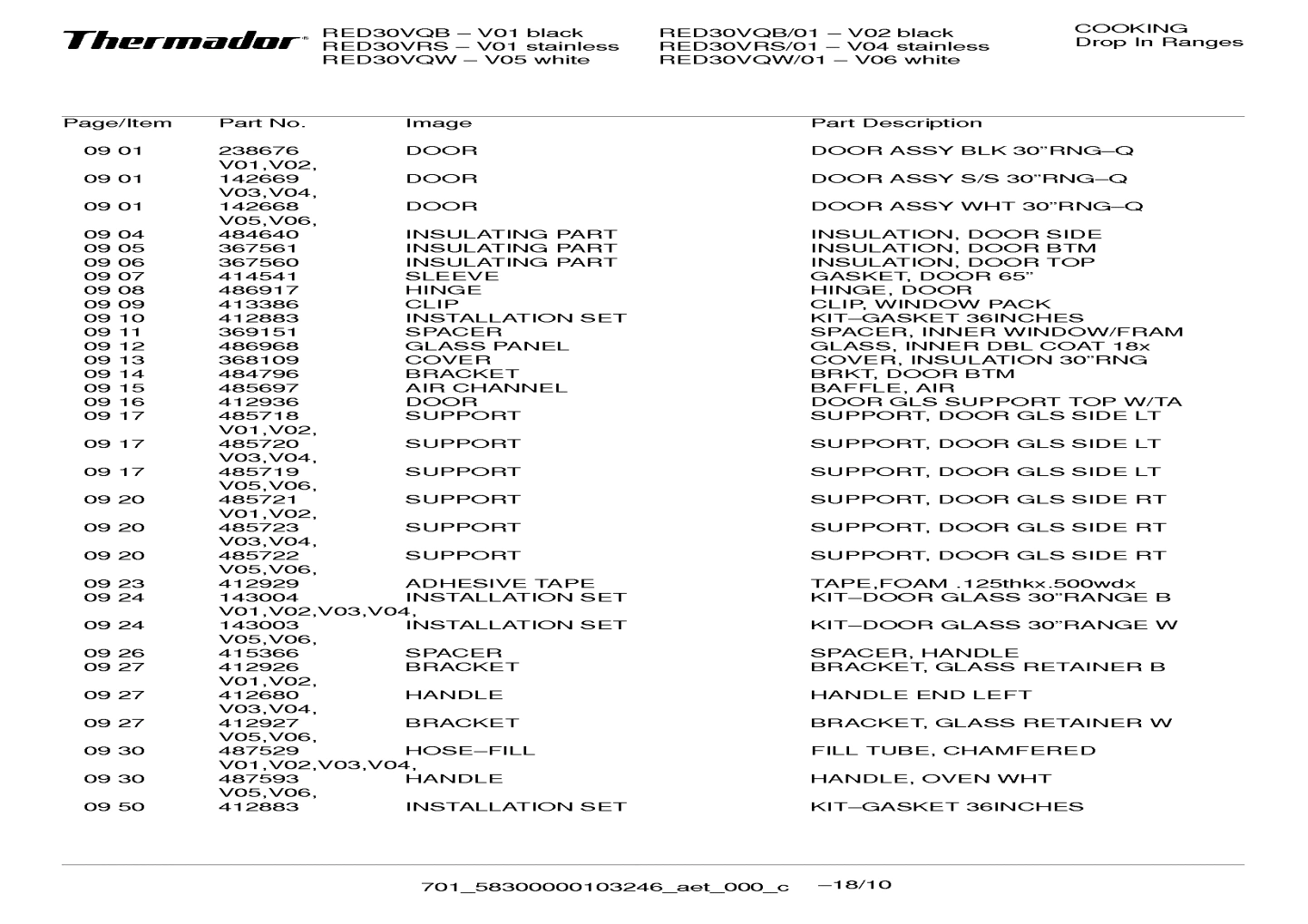

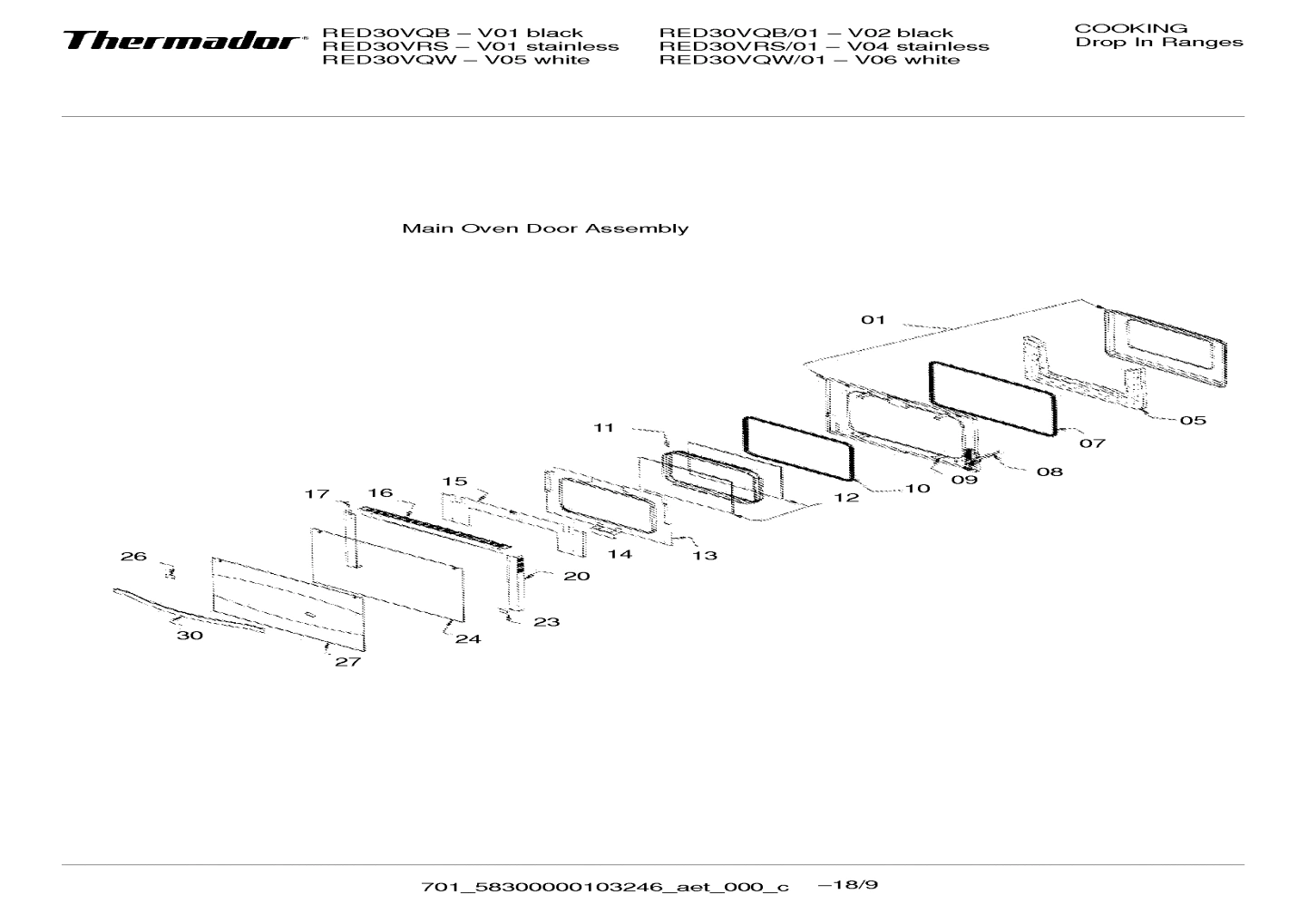

0907

Sealing BOS 00414541 Contact Us For Availability

View on Model

0924

Glass panel BOS 00143003 Contact Us For Availability

View on Model

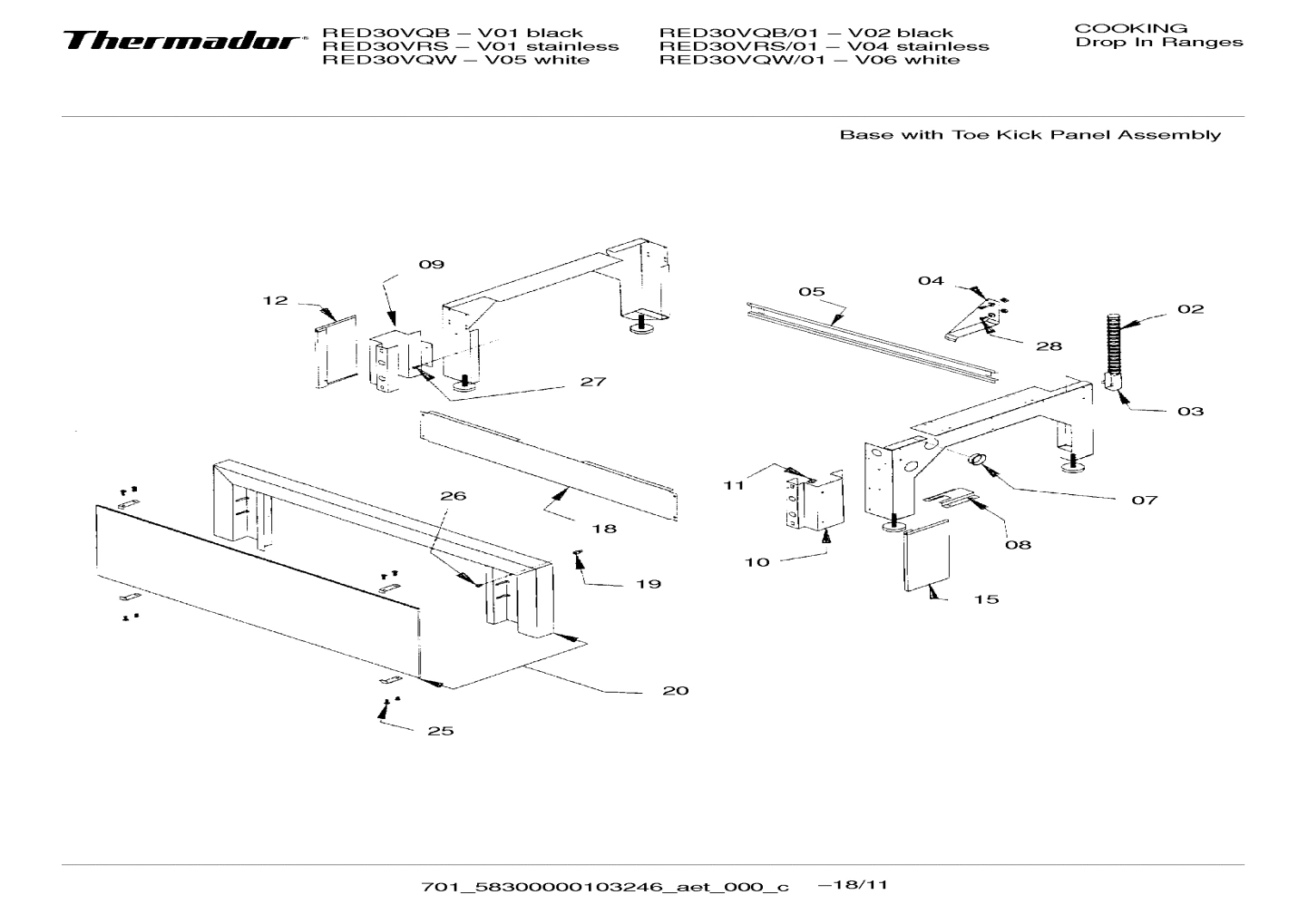

1111

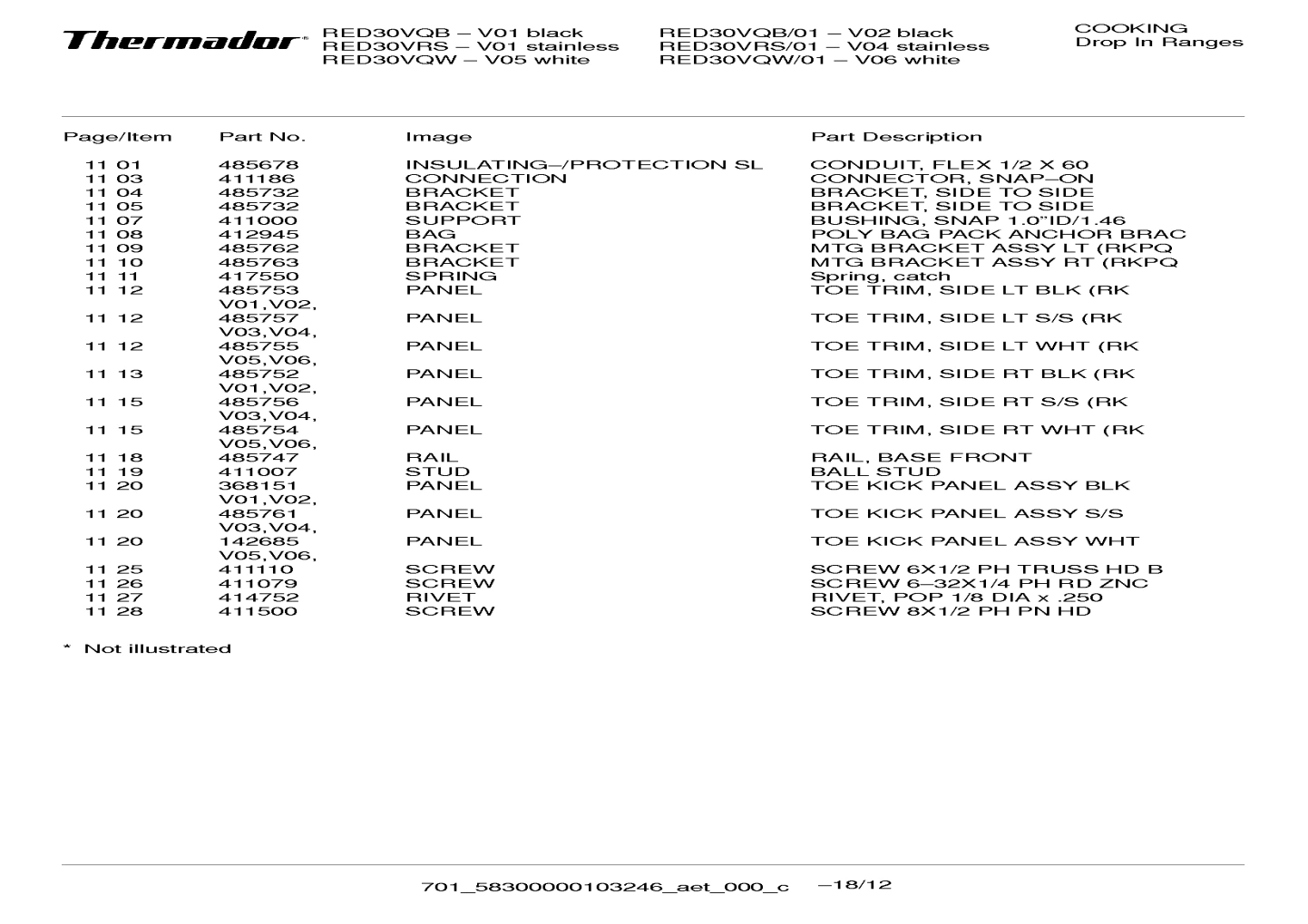

Spring BOS 00417550 Contact Us For Availability

View on Model

1119

Stud BOS 00411007 Contact Us For Availability

View on Model

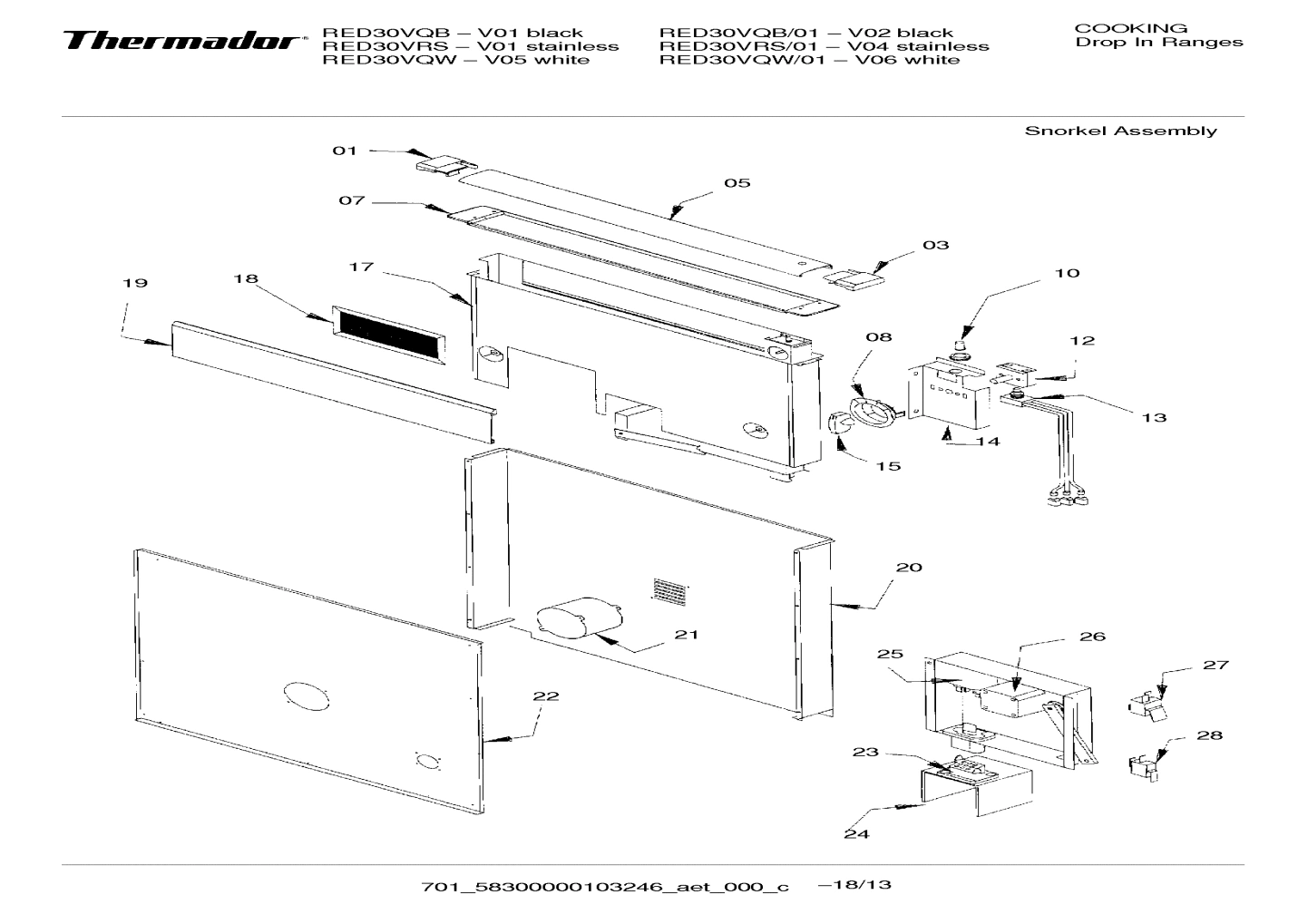

1308

00414824 Bosch Oven Ring Backorder BOS 00414824 View Details $12.55

View on Model

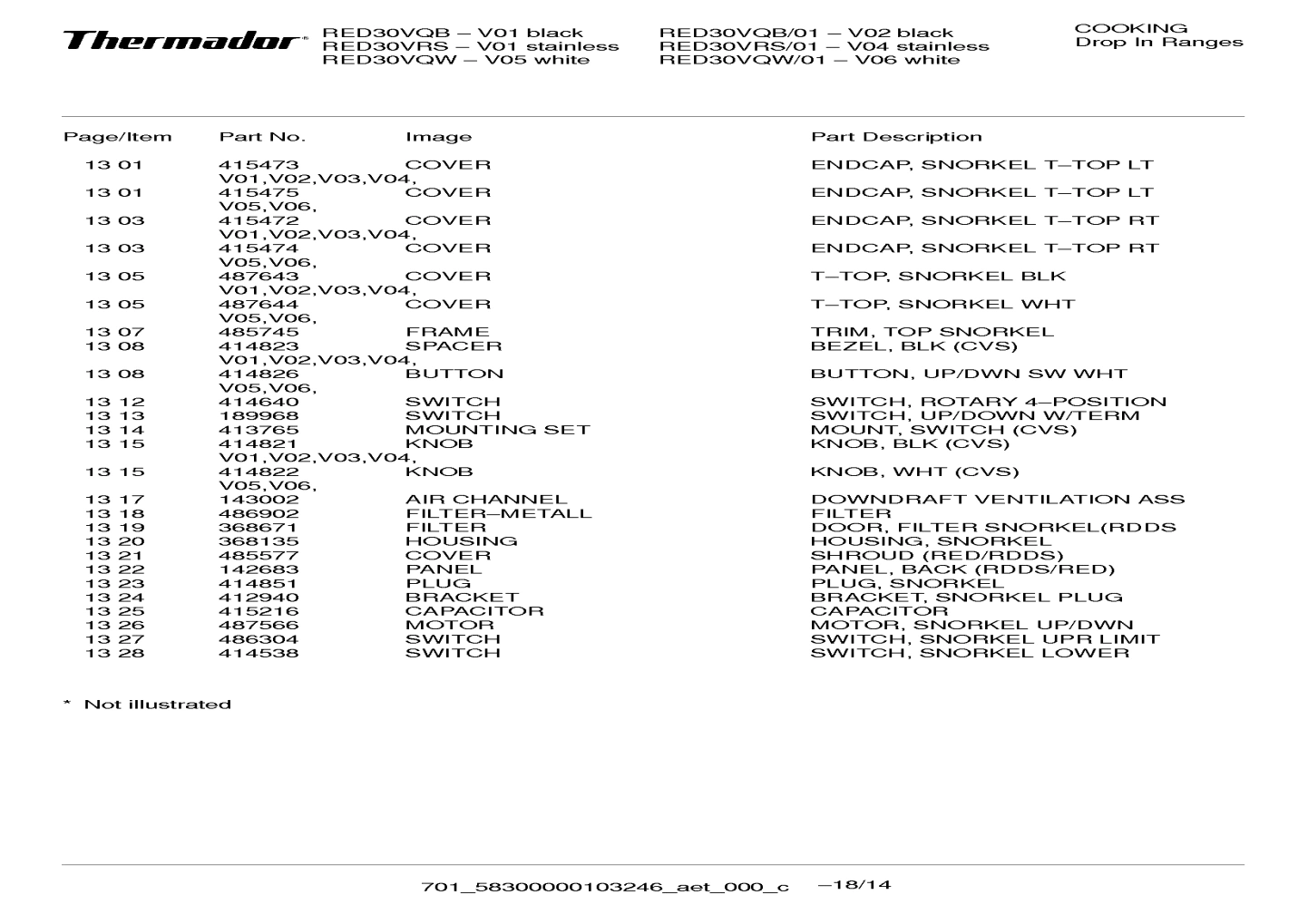

1310

Key BOS 00414826 Contact Us For Availability

View on Model

1312

Switch BOS 00414640 Contact Us For Availability

View on Model

1313

00189968 Bosch Oven Switch In Stock BOS 00189968 View Details $118.91

View on Model

1314

Mounting set BOS 00413765 Contact Us For Availability

View on Model

1315

Button BOS 00414822 Contact Us For Availability

View on Model

1318

00486902 Bosch Oven Filter In Stock BOS 00486902 View Details $24.61

View on Model

1326

Motor BOS 00487566 Contact Us For Availability

View on Model

1327

Switch BOS 00486304 Contact Us For Availability

View on Model

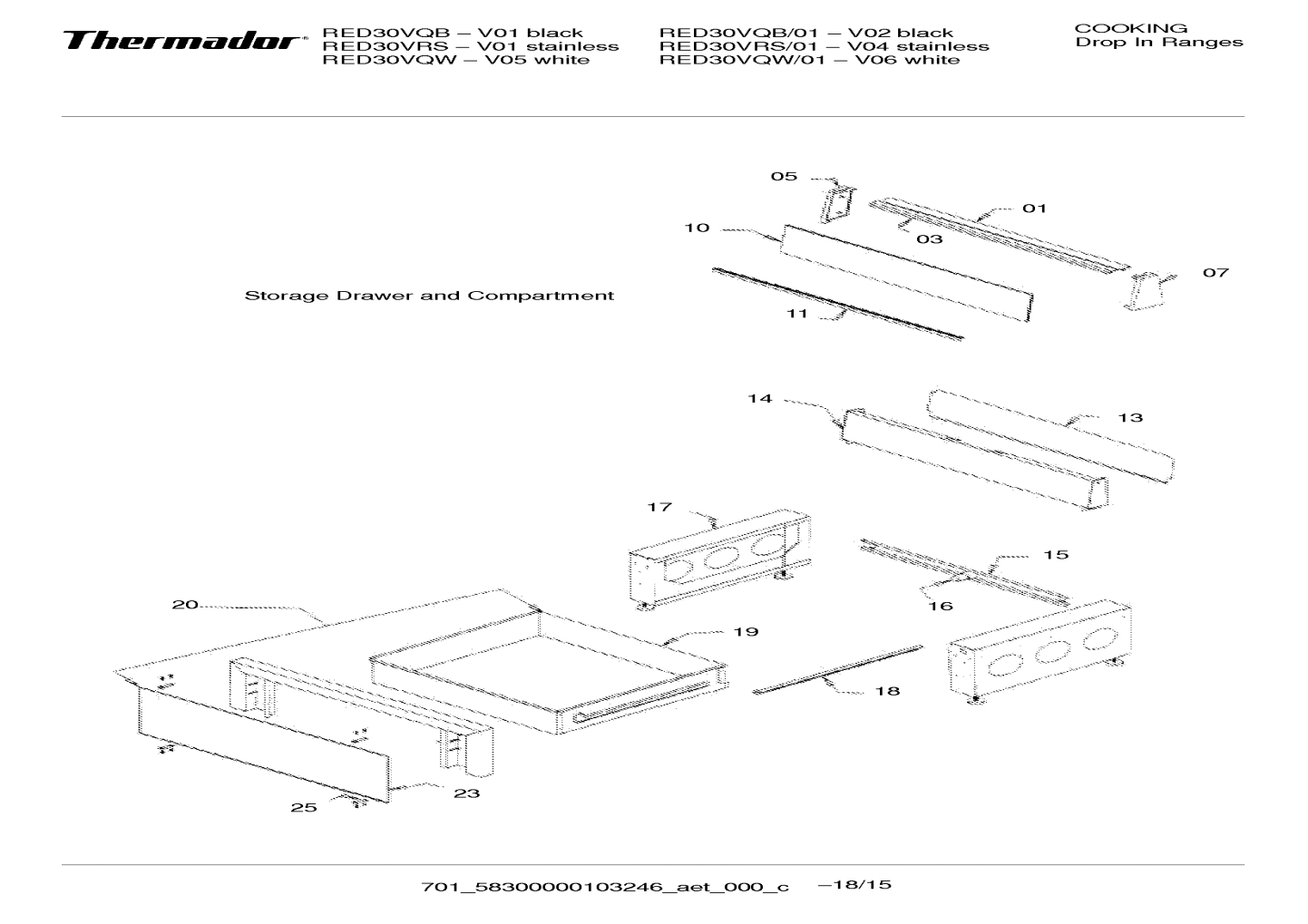

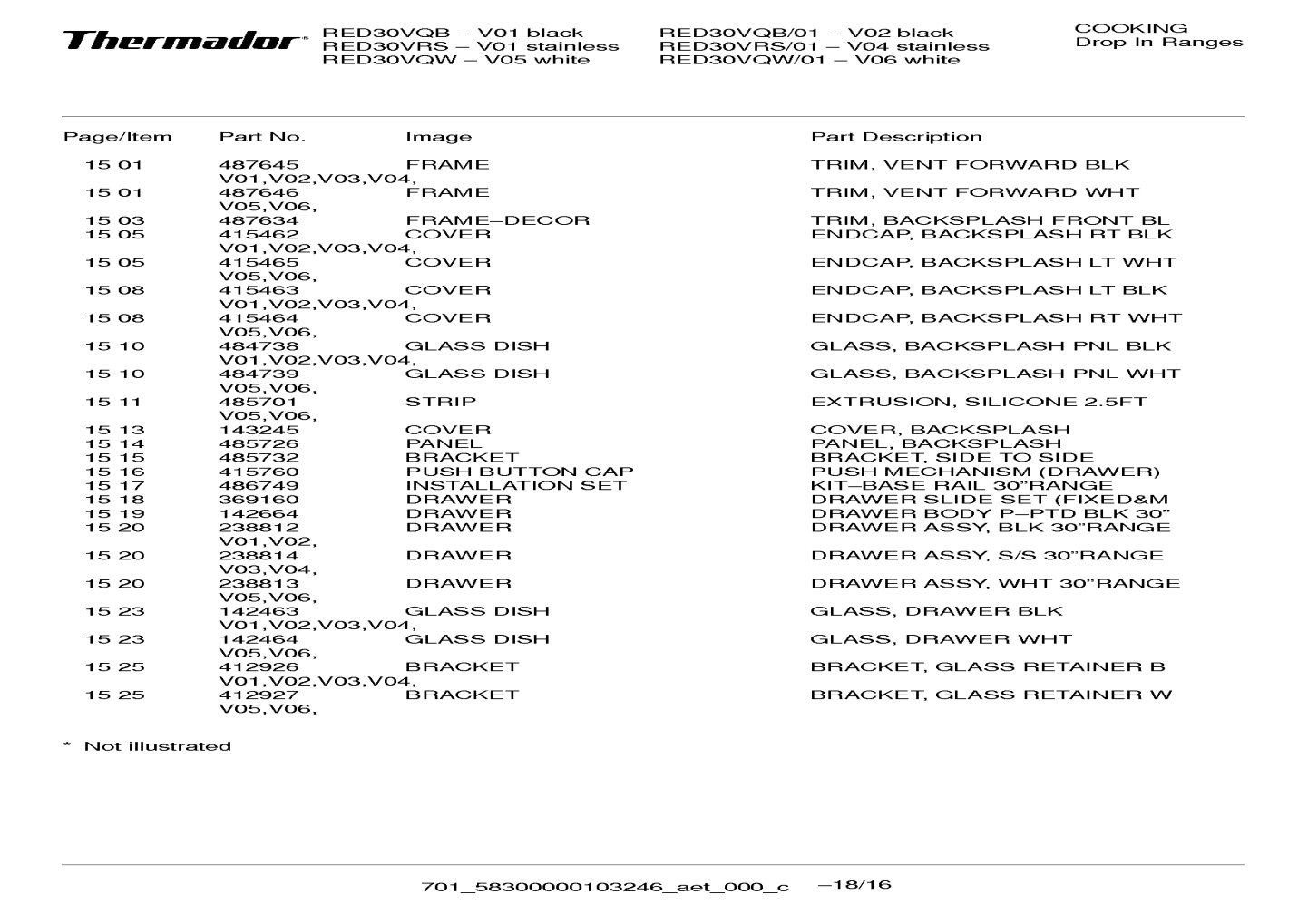

1510

Glass panel BOS 00484739 Contact Us For Availability

View on Model

1516

Push button cap BOS 00415760 Contact Us For Availability

View on Model

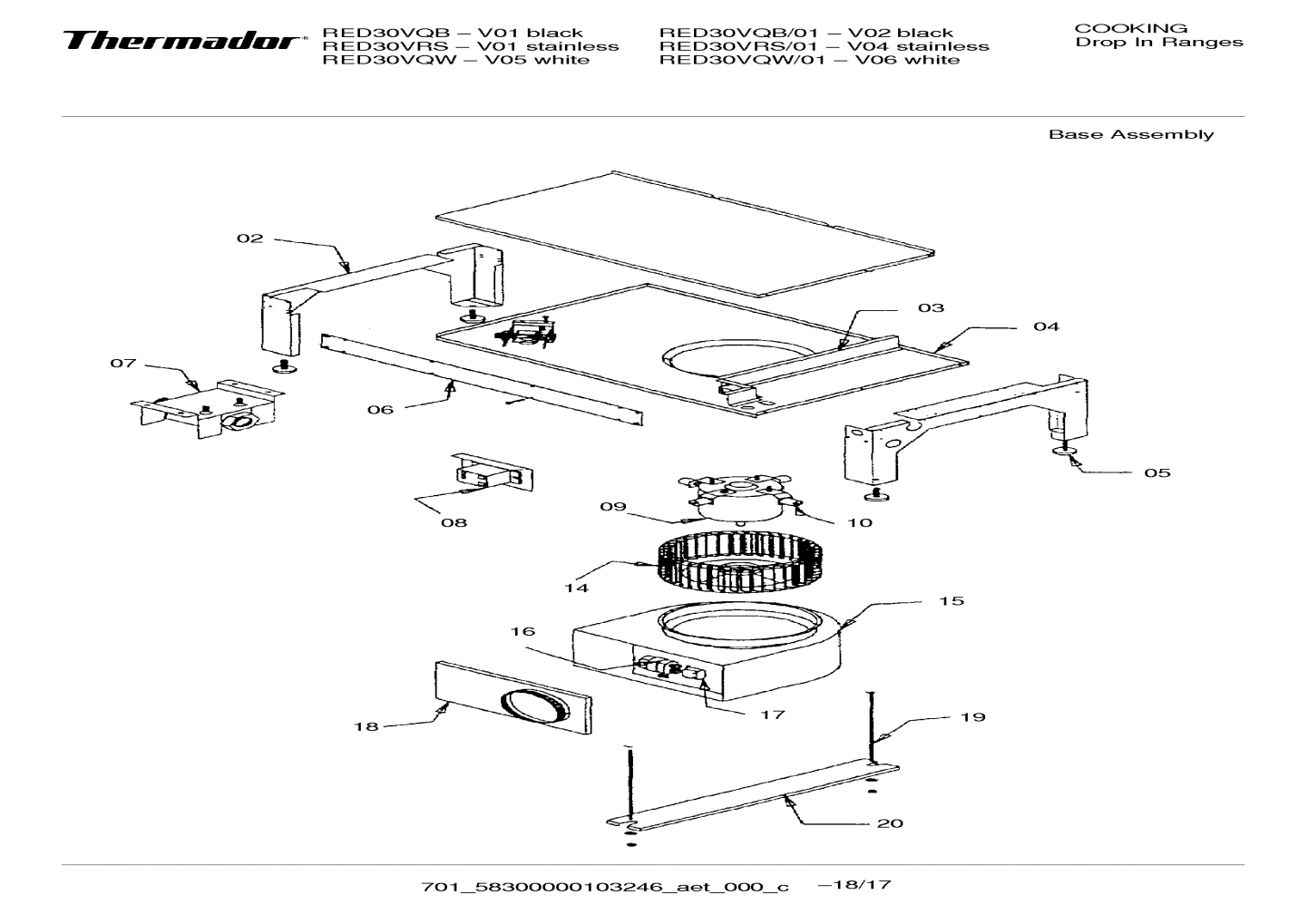

1707

Regulator-pressure BOS 00189034 No Longer Available

View on Model

1708

Relay BOS 00189920 Contact Us For Availability

View on Model

1709

Motor BOS 00143089 No Longer Available

View on Model

1710

Damper BOS 00414730 Contact Us For Availability

View on Model

1712

Nut BOS 00414787 Contact Us For Availability

View on Model

1714

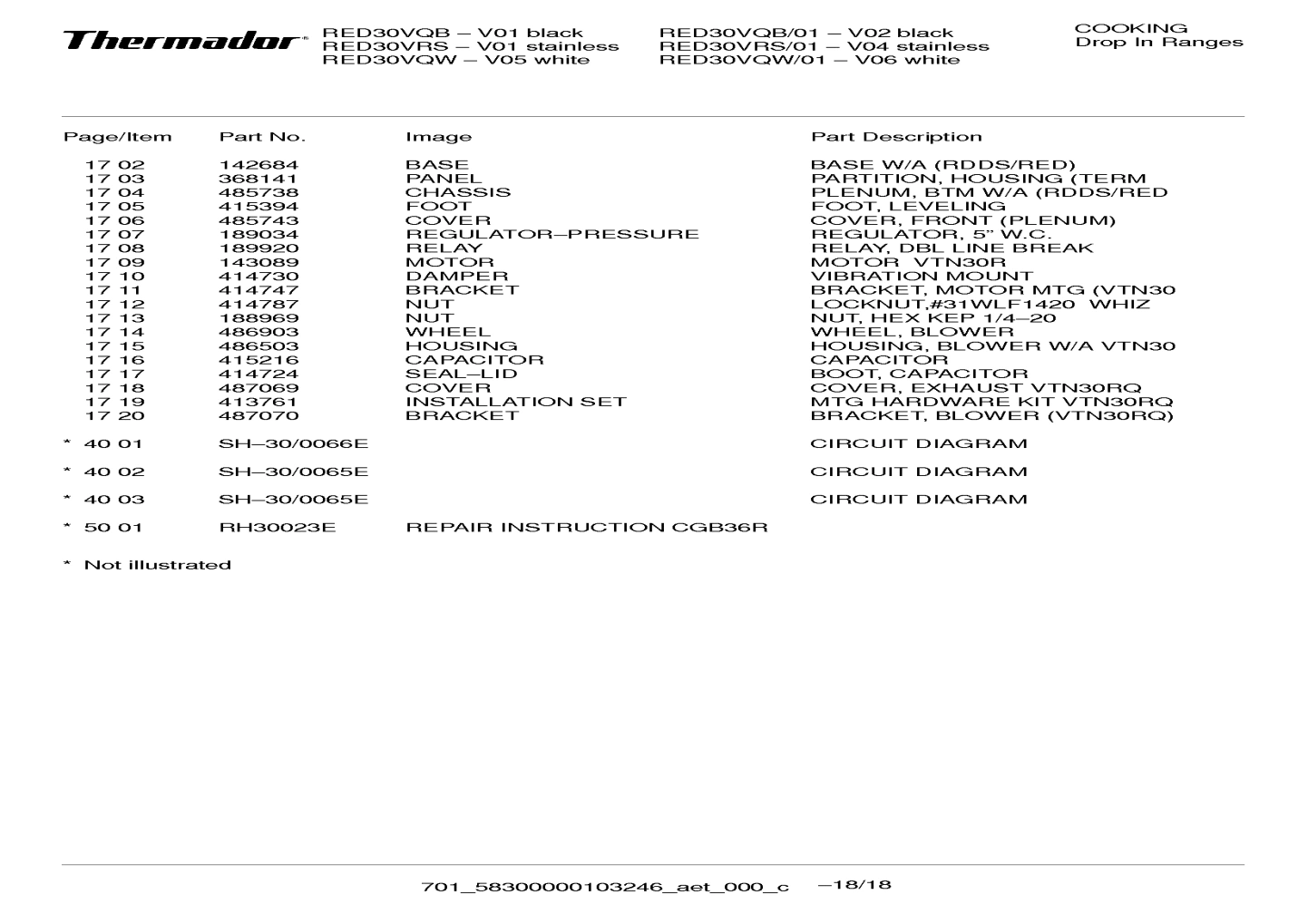

Wheel BOS 00486903 Contact Us For Availability

View on Model

1716

Capacitor BOS 00415216 Contact Us For Availability

View on Model

1717

Sleeve BOS 00414724 Contact Us For Availability

View on Model

×
