Model Bosch RDF30QB/01 Range Oven – Common Parts & Diagrams

Common parts from model Bosch RDF30QB/01 Range Oven

Diagram 1

Print

• This Diagram
• All Diagrams

0135

00636439 Bosch Oven Ignition Device In Stock BOS 00636439 View Details $178.60

View on Model

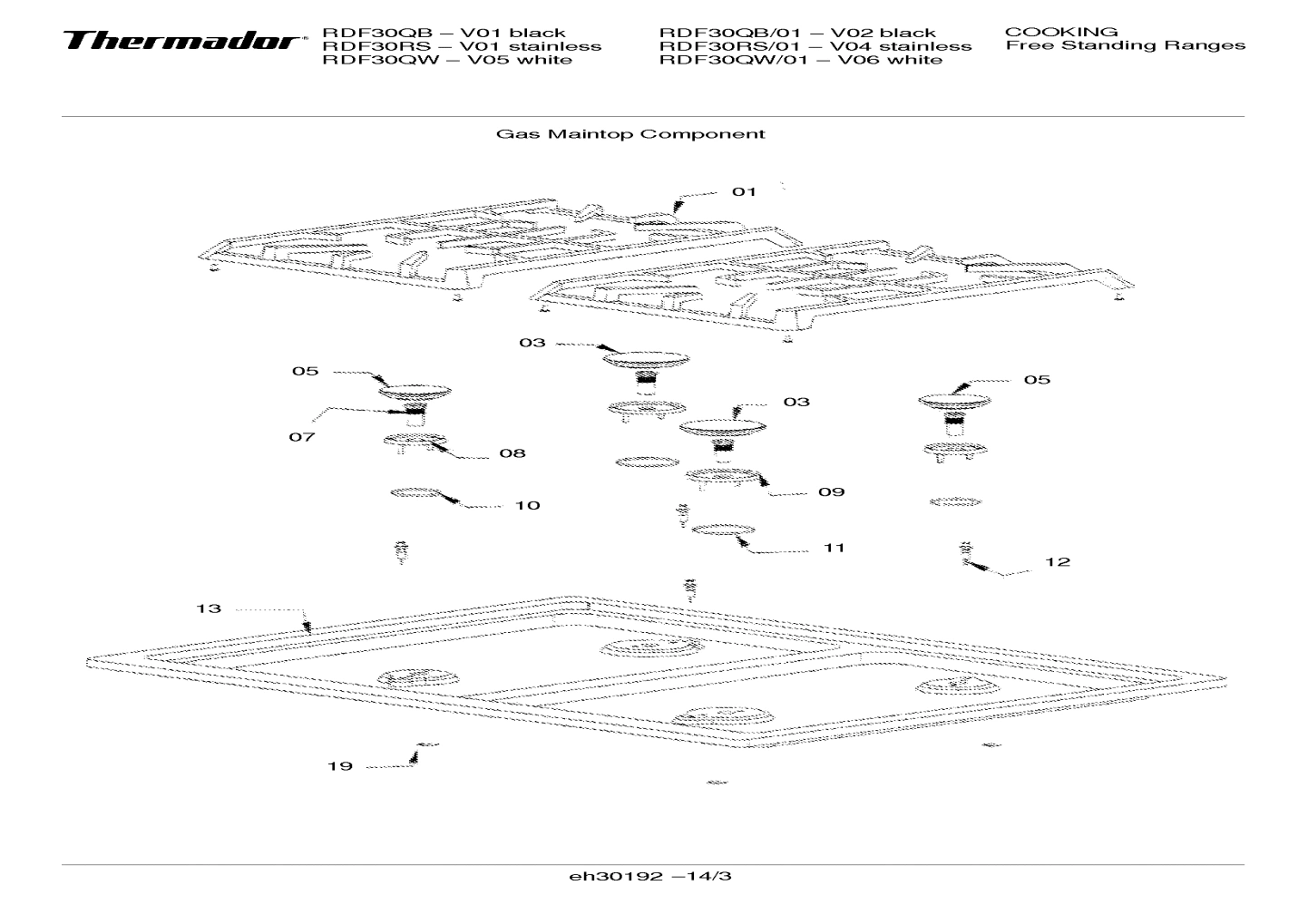

0303

00189762 Bosch Oven Burner Cap Backorder BOS 00189762 View Details $119.38

View on Model

0305

Burner cap BOS 00189766 Contact Us For Availability

View on Model

0307

00189321 Bosch Oven Tube In Stock BOS 00189321 View Details $31.85

View on Model

0308

00189318 Bosch Oven Base Backorder BOS 00189318 View Details $69.72

View on Model

0309

00189316 Bosch Oven Base Backorder BOS 00189316 View Details $39.08

View on Model

0310

Seal BOS 00189320 No Longer Available

View on Model

0311

Seal BOS 00189317 Contact Us For Availability

View on Model

0312

00189324 Bosch Oven Ignition Head In Stock BOS 00189324 View Details $29.43

View on Model

0319

00189322 Bosch Oven Ring In Stock BOS 00189322 View Details $4.83

View on Model

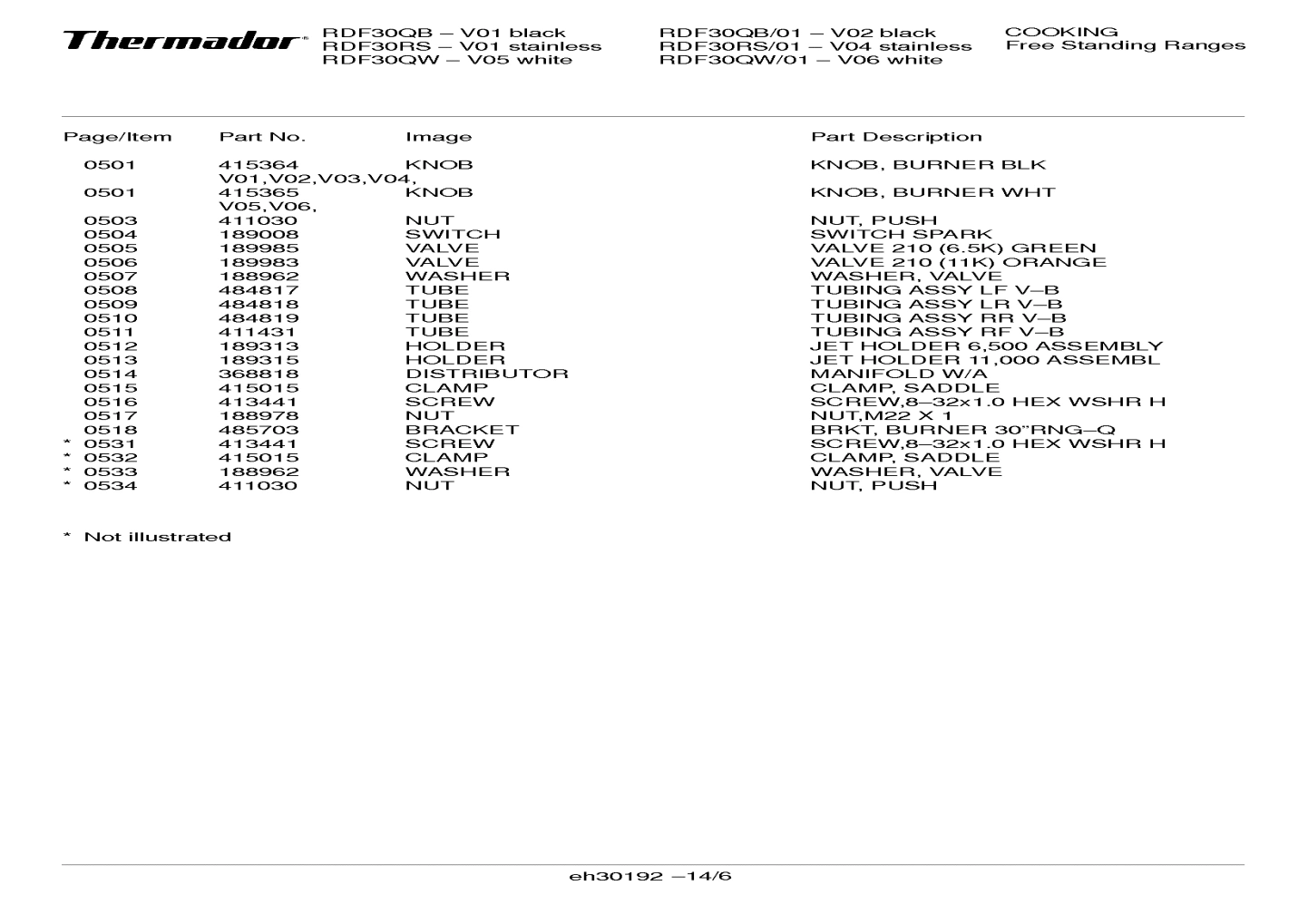

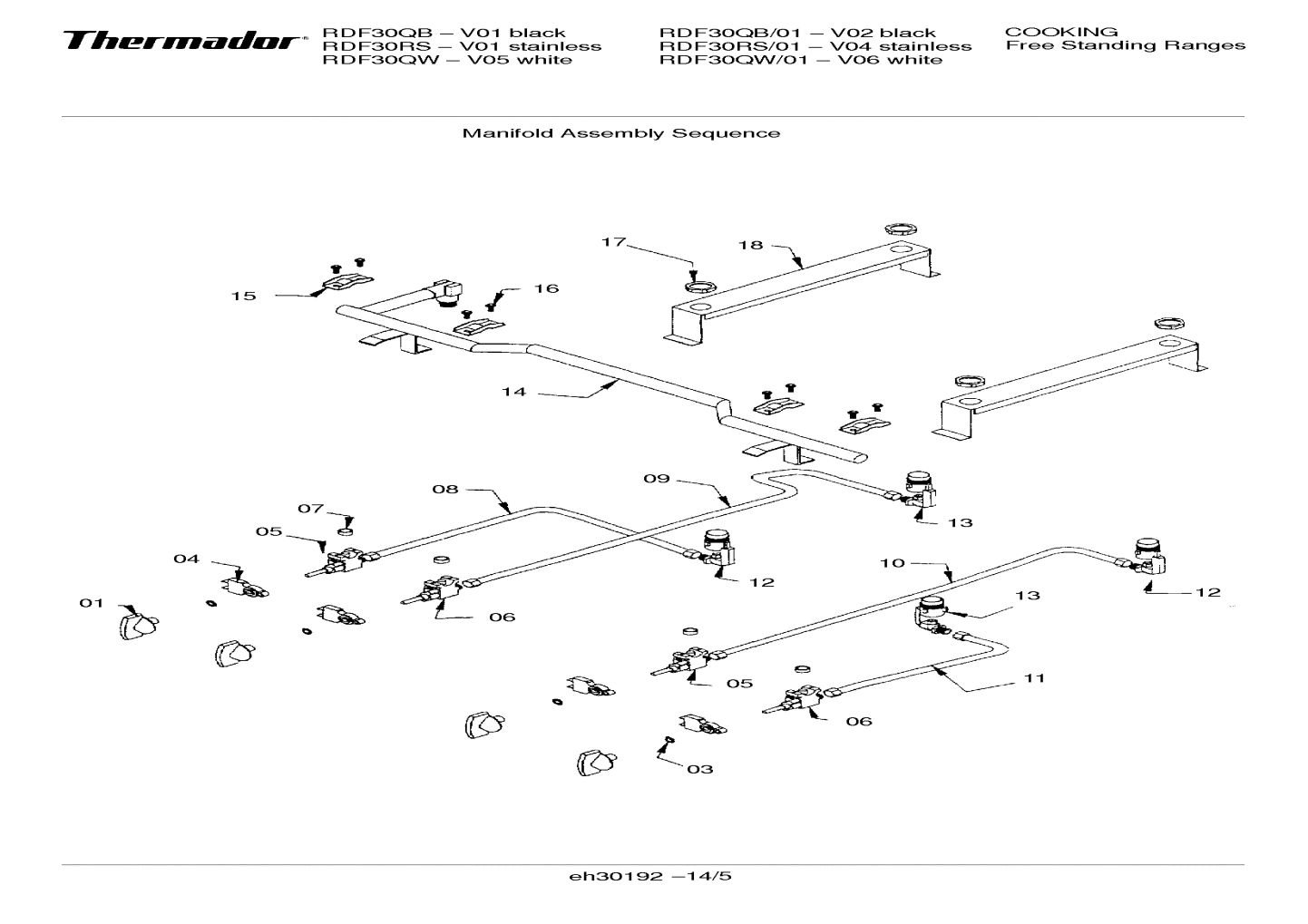

0501

Button BOS 00415364 Contact Us For Availability

View on Model

0504

00189008 Bosch Oven Switch In Stock BOS 00189008 View Details $29.92

View on Model

0505

Valve BOS 00189985 Contact Us For Availability

View on Model

0511

Tube BOS 00411431 Contact Us For Availability

View on Model

0512

00414170 Bosch Oven Holder In Stock BOS 00414170 View Details $66.37

View on Model

0513

00414169 Bosch Oven Holder In Stock BOS 00414169 View Details $62.55

View on Model

0517

00188978 Bosch Oven Nut In Stock BOS 00188978 View Details $13.51

View on Model

0532

Clamp BOS 00415015 Contact Us For Availability

View on Model

0533

Washer BOS 00188962 Contact Us For Availability

View on Model

0702

Motor BOS 00487099 Contact Us For Availability

View on Model

0707

Catalyzer BOS 00411220 Contact Us For Availability

View on Model

0718

Heating element BOS 00367645 Contact Us For Availability

View on Model

0721

Universal pan BOS 00449757 Contact Us For Availability

View on Model

0722

Holder BOS 00414510 Contact Us For Availability

View on Model

0724

Heating element BOS 00367646 Contact Us For Availability

View on Model

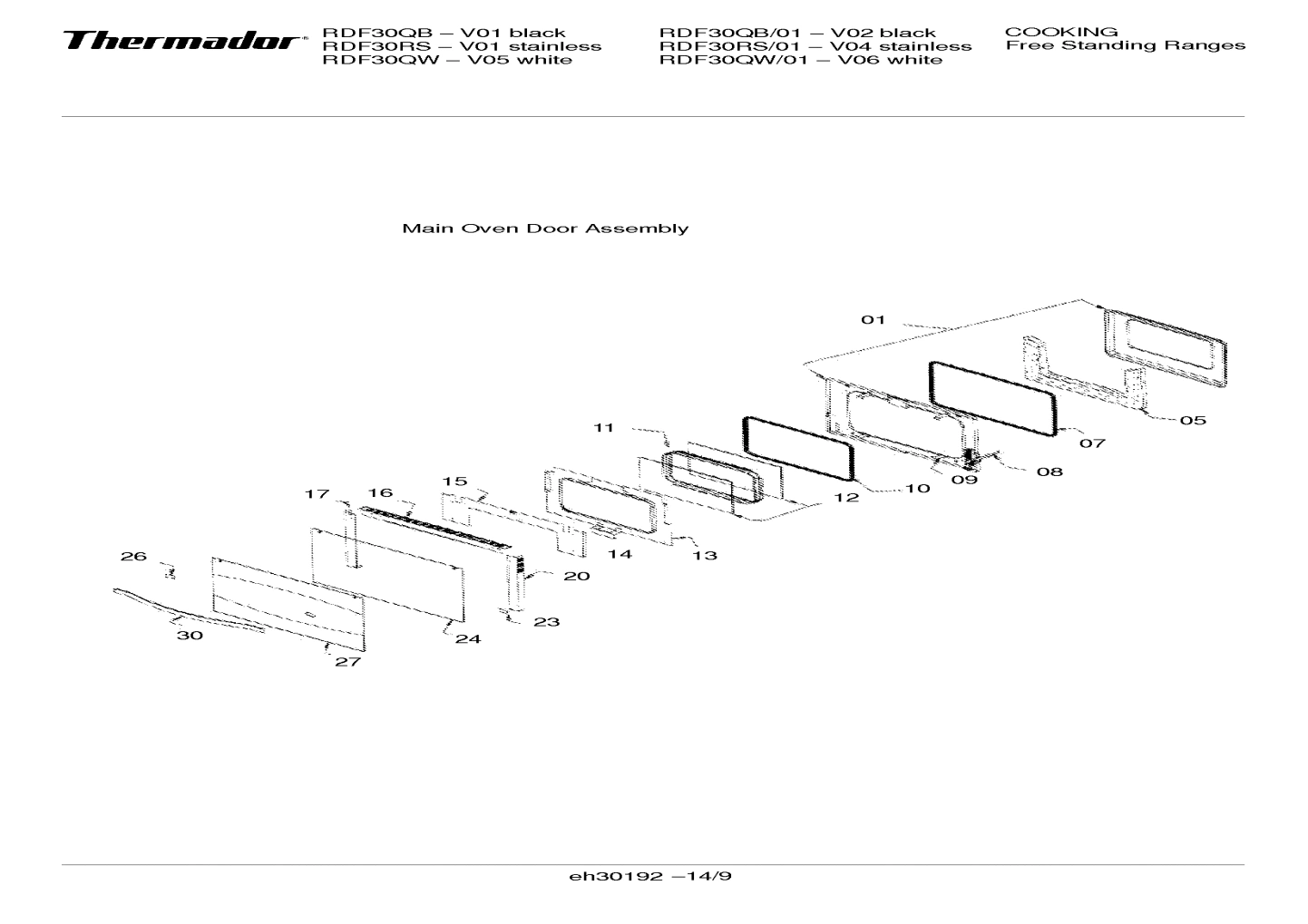

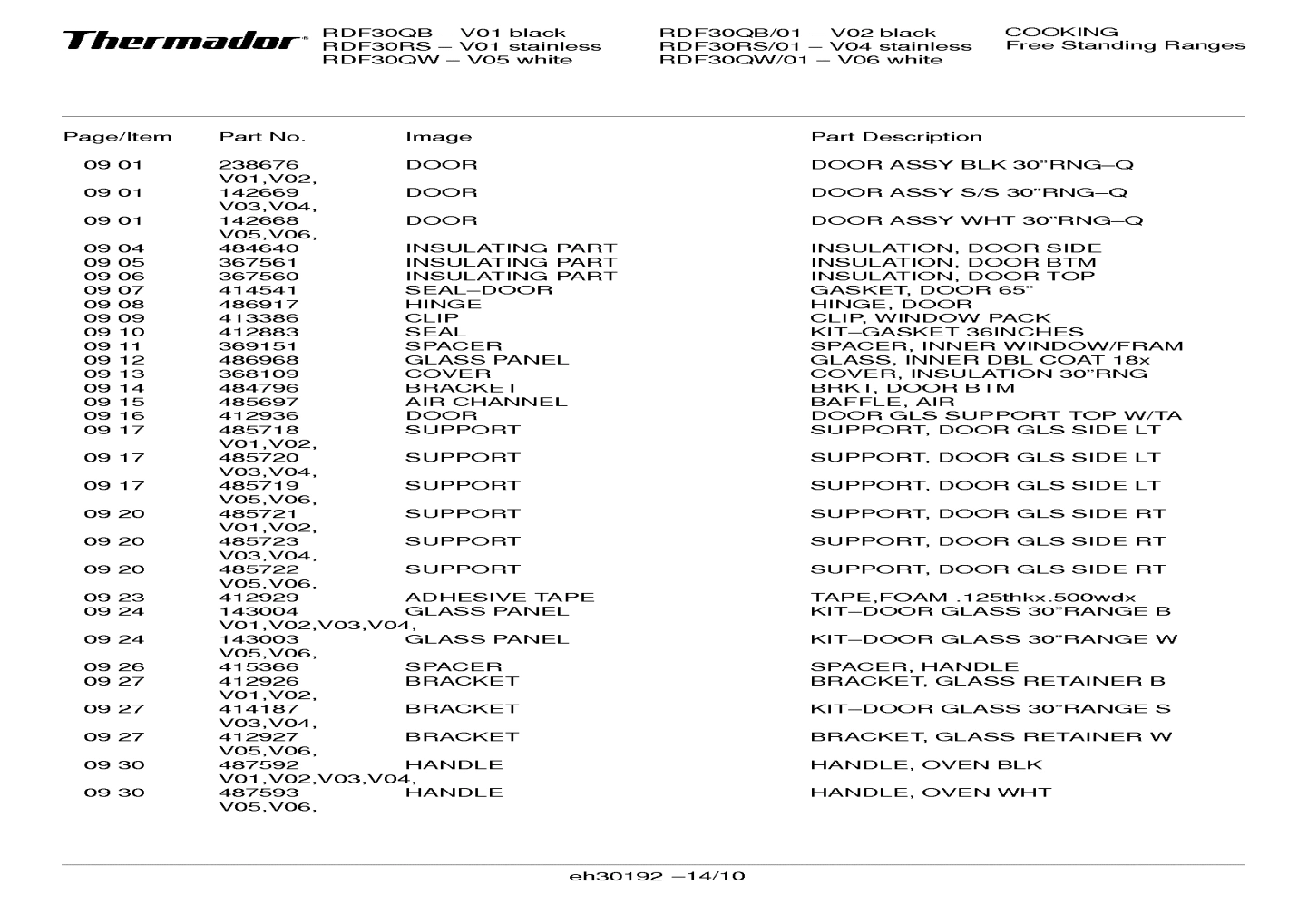

0907

Sealing BOS 00414541 Contact Us For Availability

View on Model

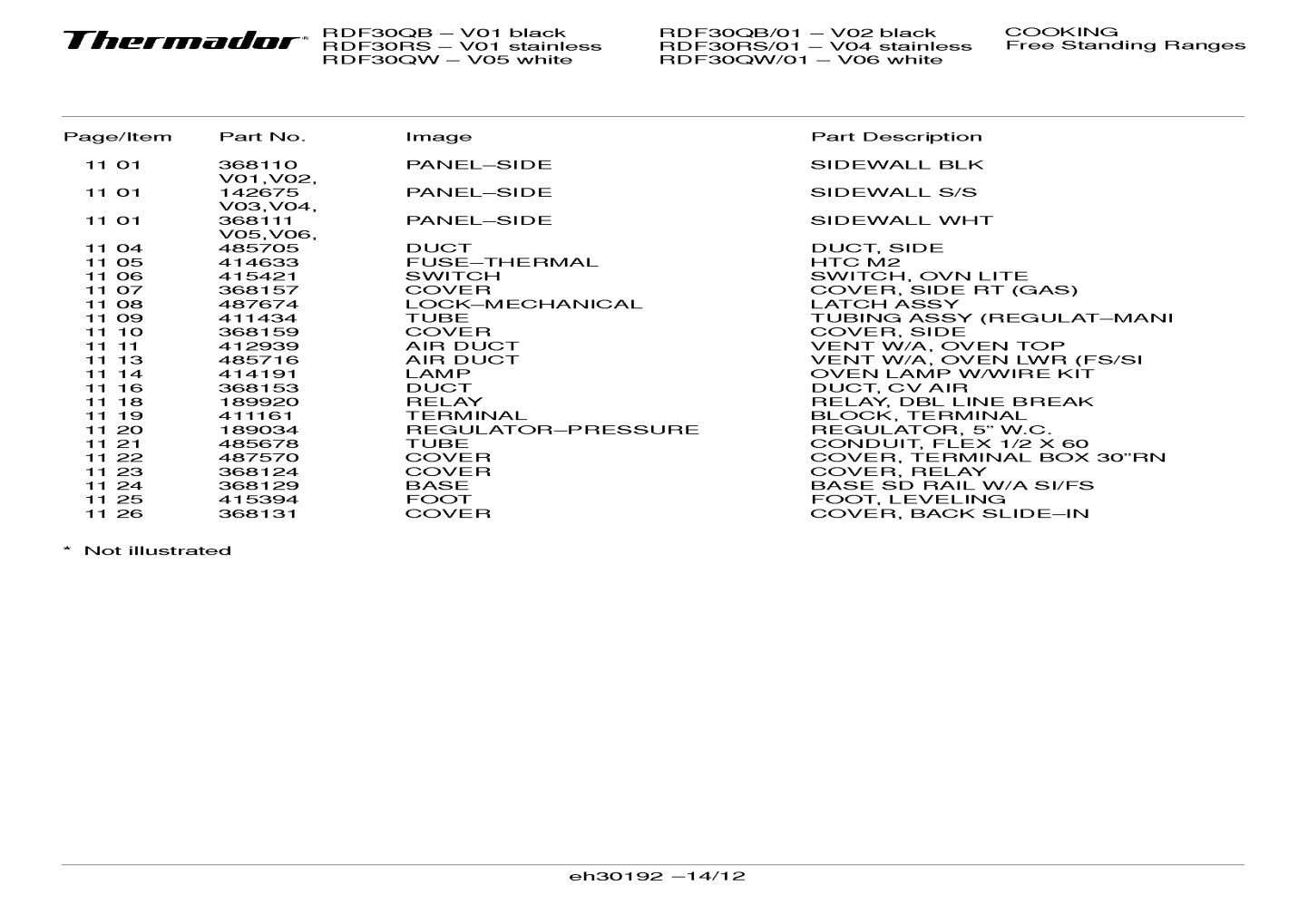

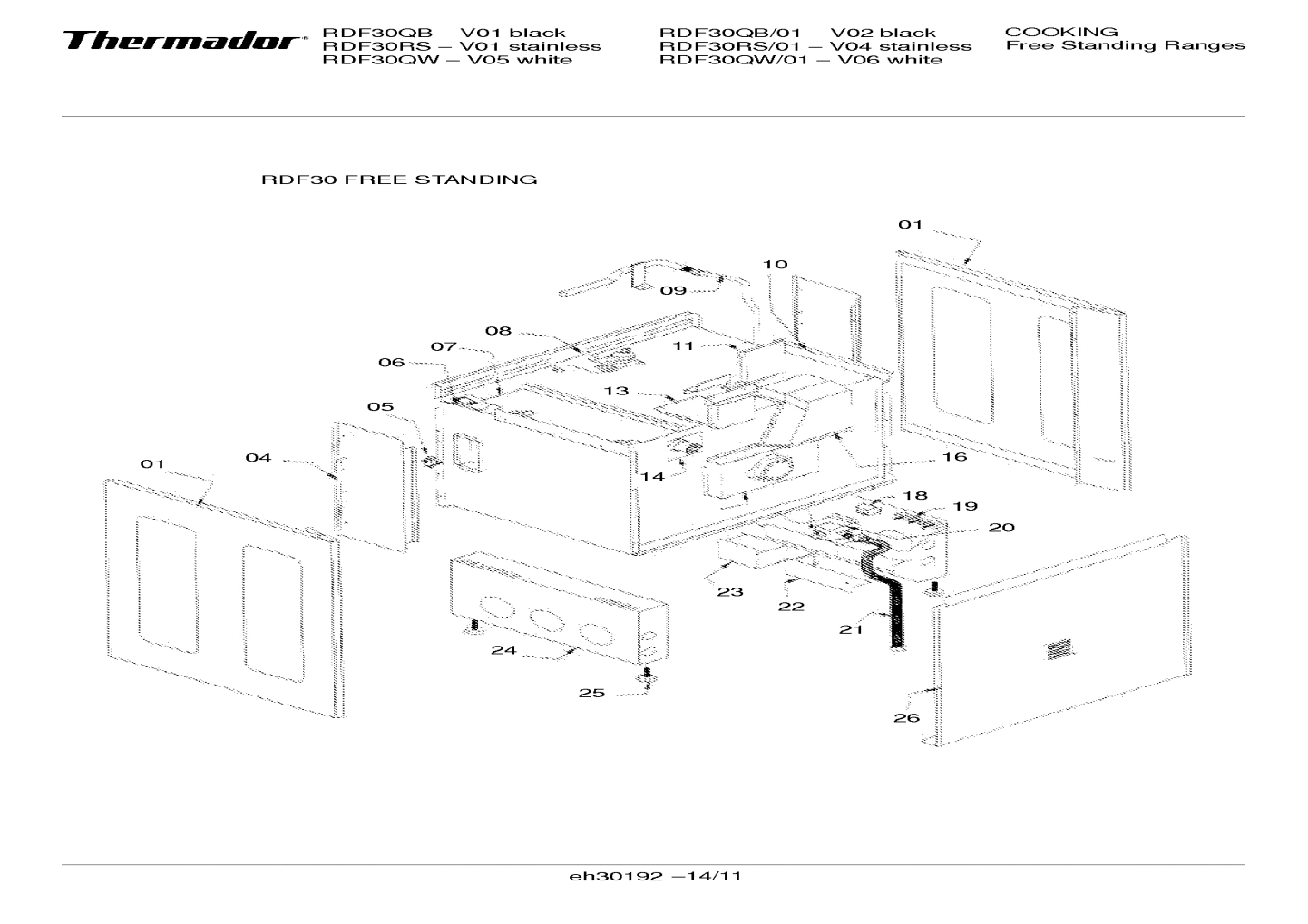

1105

00414633 Bosch Thermal Fuse Backorder BOS 00414633 View Details $39.57

View on Model

1114

Lamp BOS 00414191 Contact Us For Availability

View on Model

1118

Relay BOS 00189920 Contact Us For Availability

View on Model

1120

Regulator-pressure BOS 00189034 No Longer Available

View on Model

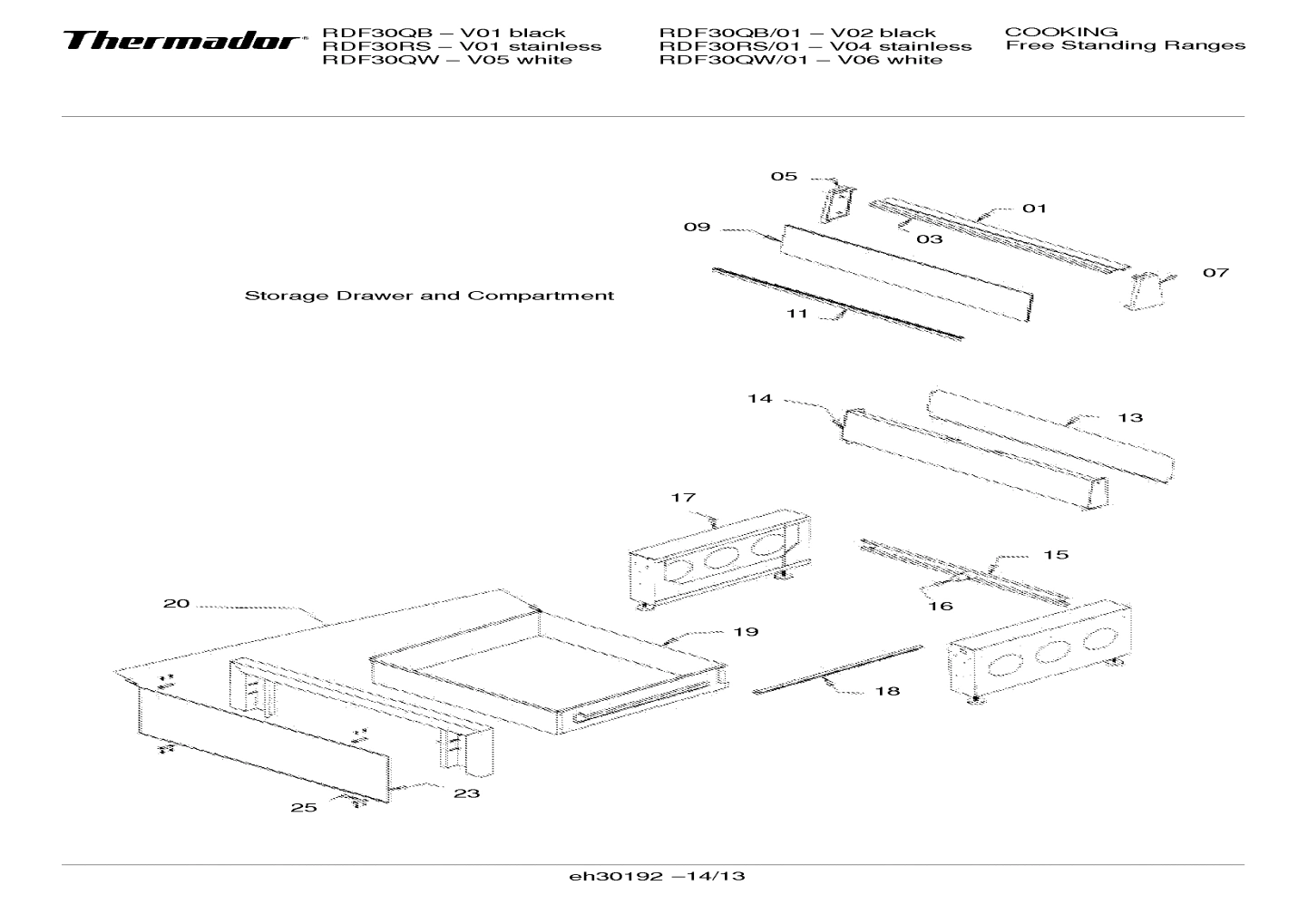

1310

Glass panel BOS 00484738 Contact Us For Availability

View on Model

1316

Push button cap BOS 00415760 Contact Us For Availability

View on Model

1323

Glass panel BOS 00142463 Contact Us For Availability

View on Model

×
