Model Bosch NGP745UC/02 Range Oven – Common Parts & Diagrams

Common parts from model Bosch NGP745UC/02 Range Oven

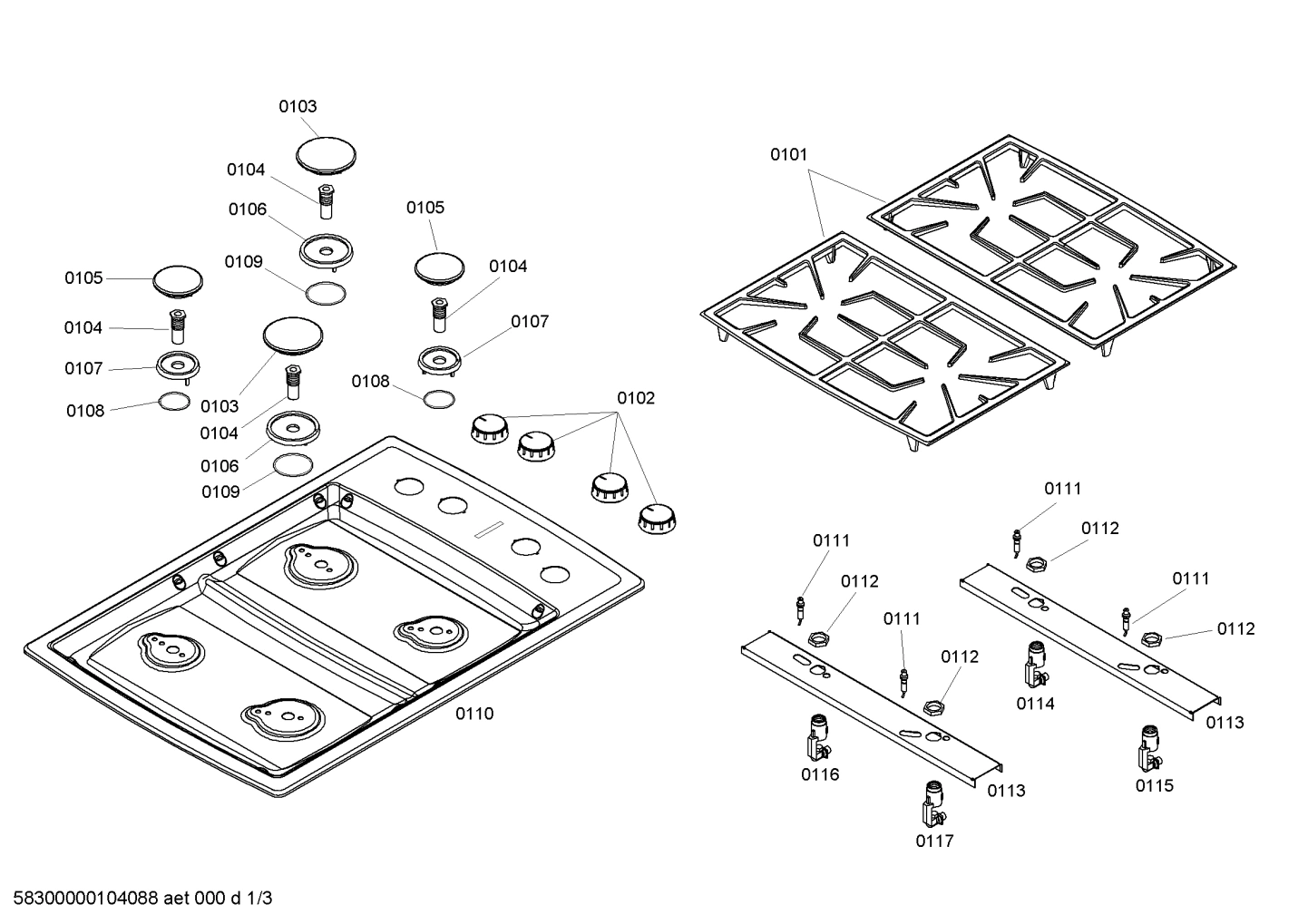

Diagram 1

Print

• This Diagram
• All Diagrams

0101

Grille BOS 00142544 Contact Us For Availability

View on Model

0102

00631683 Bosch Oven Knob In Stock BOS 00631683 View Details $82.25

View on Model

0103

00189335 Bosch Oven Burner Cap Backorder BOS 00189335 View Details $114.68

View on Model

0104

00189321 Bosch Oven Tube In Stock BOS 00189321 View Details $31.85

View on Model

0105

00189336 Bosch Oven Burner Cap Backorder BOS 00189336 View Details $66.85

View on Model

0106

00189316 Bosch Oven Base Backorder BOS 00189316 View Details $39.08

View on Model

0107

00189318 Bosch Oven Base Backorder BOS 00189318 View Details $69.72

View on Model

0108

Seal BOS 00189320 No Longer Available

View on Model

0109

Seal BOS 00189317 Contact Us For Availability

View on Model

0110

Hob top BOS 00473930 Contact Us For Availability

View on Model

0111

Ignition device BOS 00603777 Contact Us For Availability

View on Model

0112

00188978 Bosch Oven Nut In Stock BOS 00188978 View Details $13.51

View on Model

0113

Bracket BOS 00484202 Contact Us For Availability

View on Model

0114

00414169 Bosch Oven Holder In Stock BOS 00414169 View Details $62.55

View on Model

0115

00414170 Bosch Oven Holder In Stock BOS 00414170 View Details $66.37

View on Model

0116

00414785 Bosch Oven Holder In Stock BOS 00414785 View Details $59.69

View on Model

0117

00189365 Bosch Oven Holder Backorder BOS 00189365 View Details $36.67

View on Model

0151

00494679 Bosch Oven Cable Harness Backorder BOS 00494679 View Details $60.17

View on Model

0152

00188954 Bosch Oven Bracket Backorder BOS 00188954 View Details $29.92

View on Model

0153

00189322 Bosch Oven Ring In Stock BOS 00189322 View Details $4.83

View on Model

0154

00413552 Bosch Oven Spacer In Stock BOS 00413552 View Details $19.30

View on Model

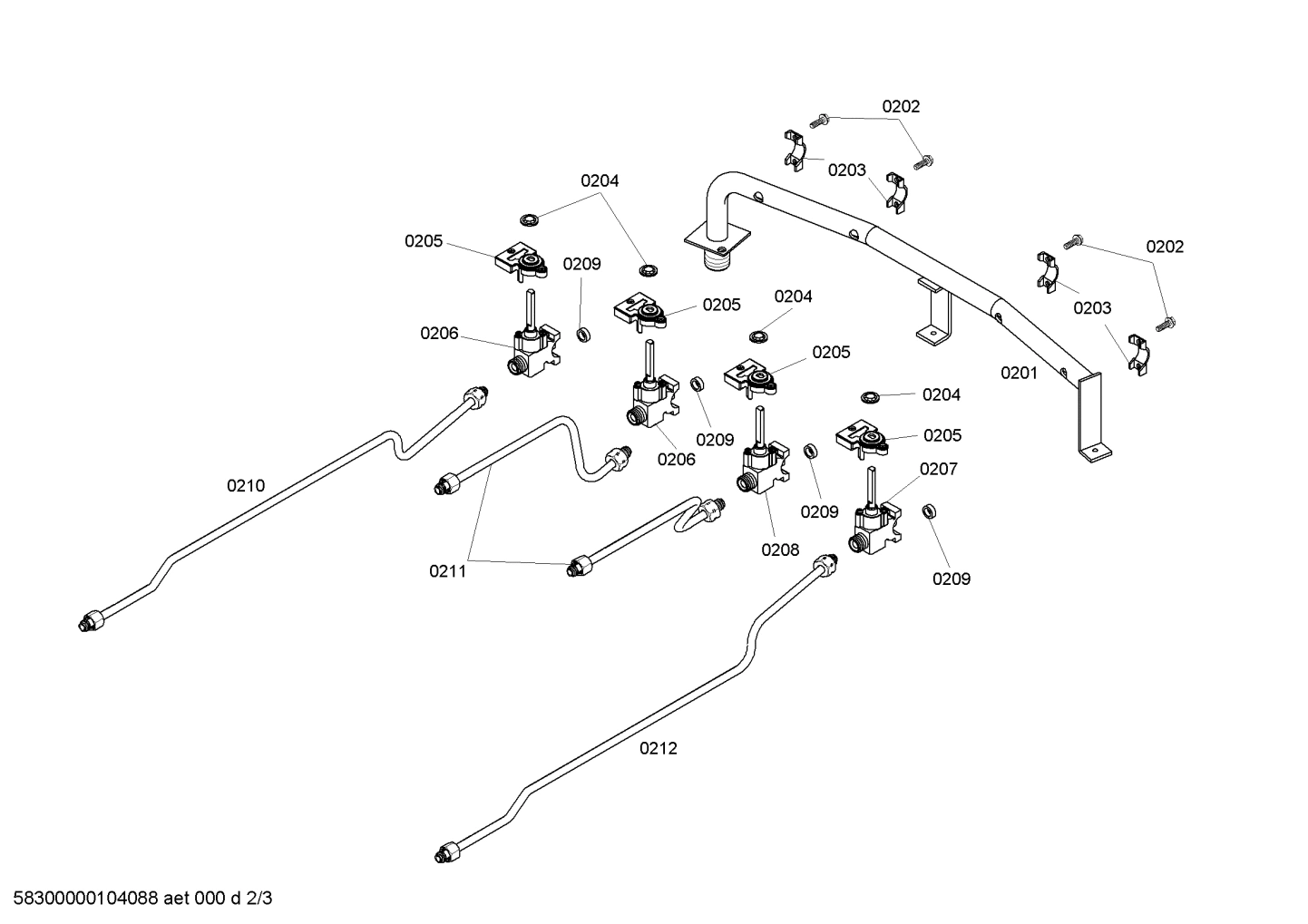

0204

Retaining washer BOS 00188980 No Longer Available

View on Model

0205

00189008 Bosch Oven Switch In Stock BOS 00189008 View Details $29.92

View on Model

0206

Valve-outlet BOS 00189306 Contact Us For Availability

View on Model

0207

Valve-outlet BOS 00189305 Contact Us For Availability

View on Model

0208

Valve-outlet BOS 00189307 Contact Us For Availability

View on Model

0209

Washer BOS 00188962 Contact Us For Availability

View on Model

0211

Tube BOS 00484199 Contact Us For Availability

View on Model

0212

Tube BOS 00484196 Contact Us For Availability

View on Model

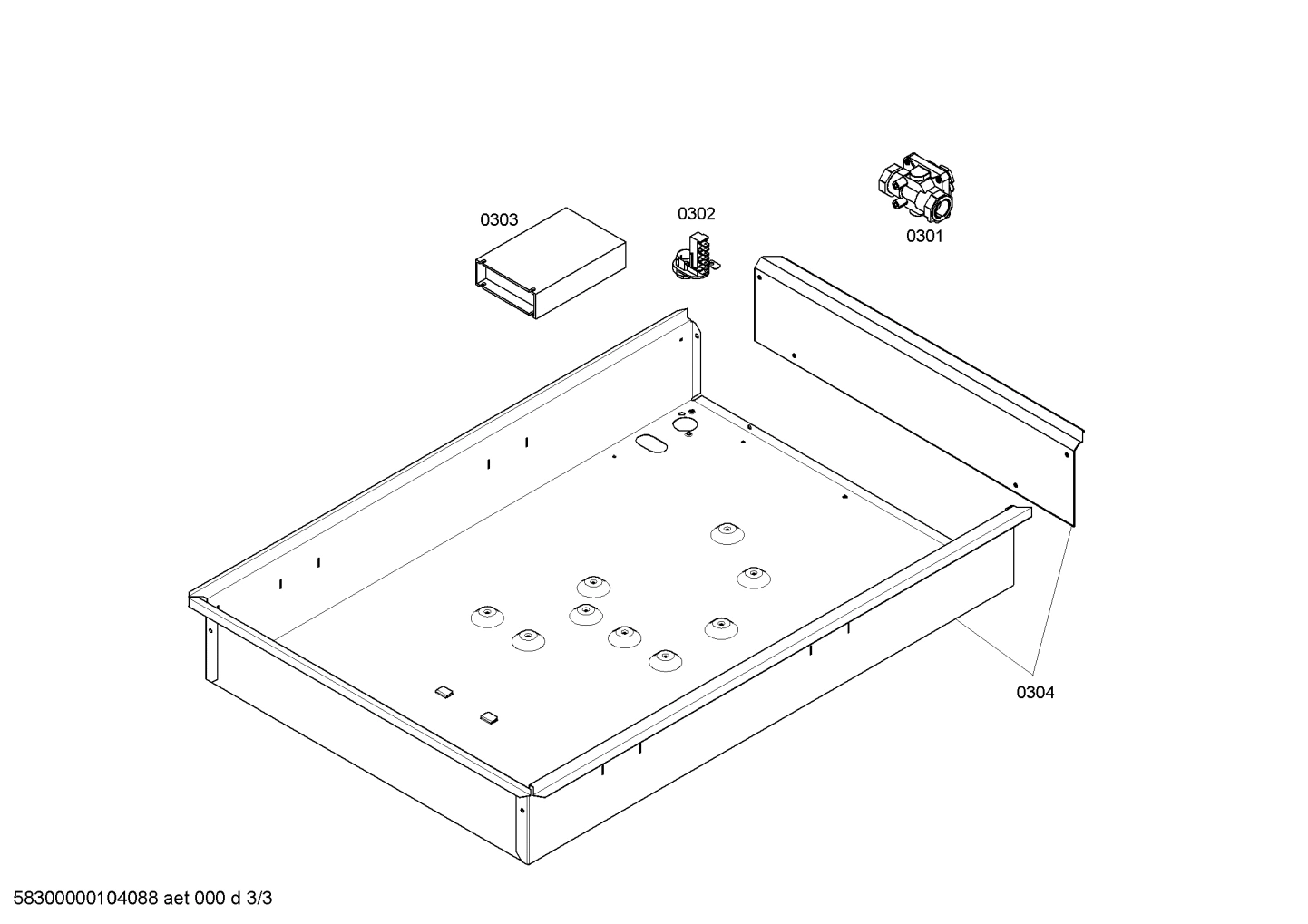

0301

Regulator-pressure BOS 00189034 No Longer Available

View on Model

0302

00414807 Bosch Oven Terminal Backorder BOS 00414807 View Details $34.74

View on Model

0303

00636439 Bosch Oven Ignition Device In Stock BOS 00636439 View Details $178.60

View on Model

×
