Model Samsung NE63T8311SS/AA-06 ELECTRIC RANGE – Common Parts &amp; Diagrams

1

DG94-03578J Samsung Assembly Control Box-Modu Backorder SMG DG94-03578J $390.30

1

DG94-03597A Samsung Oven Door Assembly Backorder SMG DG94-03597A $339.65

1

ASSY COOKTOP SMG DG94-03476E Contact Us For Availability

1

ASSY MECHANICAL PARTS SMG DG90-01071B Contact Us For Availability

DG61-01943A Samsung NX60T8311 LED PCB Holder Backorder SMG DG61-01943A $36.23

DG61-01952A Samsung Bracket Cook Top;electric Backorder SMG DG61-01952A $5.89

DG94-03730C Samsung Range Cooktop Frame Modul Backorder SMG DG94-03730C $383.36

DG94-04104A Samsung Assembly Drawer NE63A67 N Backorder SMG DG94-04104A $184.77

ASSY DOOR E SMG DG94-03598A Contact Us For Availability

1-1-1

BRACKET BARRIER SMG DG61-01893A Contact Us For Availability

1-1-1

Inner Frame SMG DG61-00121C Contact Us For Availability

1-1-1

CAVITY DRAWER SMG DG61-02022A Contact Us For Availability

1-1-2

BRACKET GUIDE-LOW SMG DG61-01996A Contact Us For Availability

1-1-2

BAFFLE DOOR SMG DG62-00293A Contact Us For Availability

1-1-2

PANEL DRAWER SMG DG64-00913A Contact Us For Availability

1-1-3

BRACKET GUIDE-LOW SMG DG61-01999A Contact Us For Availability

1-1-3

Frame Cover SMG DG63-00077C Contact Us For Availability

1-1-3

CHASSIS PANEL-DRAWER SMG DG64-00925A Contact Us For Availability

1-1-4

DG64-00092B Samsung Inner Glass Assembly Backorder SMG DG64-00092B $132.30

1-1-4

BRACKET ELEC SMG DG61-02007A Contact Us For Availability

1-1-4

ASSY SLIDER (2) SMG DG94-03764A Contact Us For Availability

1-1-5

DG94-00358E Samsung Single 30" Hinge Assembly Backorder SMG DG94-00358E $112.31

1-1-6

ASSY DOOR E-COATING SMG DG94-03605A Contact Us For Availability

DG44-01006C Samsung Range Energy Regulator In Stock SMG DG44-01006C $118.39

DG94-03604A Samsung Assembly Door NE/NX9000T Backorder SMG DG94-03604A $185.12

ASSY COOKTOP BURNER SMG DG94-03691E Contact Us For Availability

SUPPORT FRAME-BOTTOM (4) SMG DG61-01993A Contact Us For Availability

ASSY PEDESTAL SMG DG94-04255A Contact Us For Availability

1-2-1

DG47-00024B Samsung Heater Radiant Backorder SMG DG47-00024B $118.91

1-2-1

DG60-00007B Samsung Range Side Panel Spacer Backorder SMG DG60-00007B $2.26

1-2-1

DG61-01866A Samsung Handle Holder Backorder SMG DG61-01866A $14.03

1-2-2

DG47-00060A Samsung Range Single Radiant Heat In Stock SMG DG47-00060A $130.23

1-2-2

DG61-01956A Samsung LEVELLING LEG Backorder SMG DG61-01956A $22.62

1-2-2

DG61-01997A Samsung Door Chassis Bracket Backorder SMG DG61-01997A $4.52

1-2-3

DG47-00063A Samsung Range Dual Oven Bridge Su In Stock SMG DG47-00063A $168.63

1-2-3

ASSY SUPPORT GLASS SMG DG94-03608A Contact Us For Availability

1-2-3

BRACKET-LEG (2) SMG DG61-01990A Contact Us For Availability

1-2-4

DG47-00064A Samsung Range Oven Dual Radiant S In Stock SMG DG47-00064A $172.27

1-2-4

DG61-00525A Samsung Range Leveling Leg Assemb In Stock SMG DG61-00525A $14.48

1-2-4

CHASSIS DOOR-UP SMG DG64-00926A Contact Us For Availability

1-2-5

DG61-00144B Samsung Warming Heater Support Backorder SMG DG61-00144B $5.89

1-2-5

DG64-00949A Samsung Glass Door Assembly Backorder SMG DG64-00949A $88.32

1-2-5

SUPPORT FRAME (2) SMG DG61-01957A Contact Us For Availability

1-2-6

DG94-03005A Samsung NV51R5510 Handle Assembly Backorder SMG DG94-03005A $143.50

1-2-6

DG96-00818A Samsung Assembly Cooktop Wire Har Backorder SMG DG96-00818A $129.78

1-2-6

SHIELD DRAWER SMG DG63-00721A Contact Us For Availability

1-2-7

BRACKET HEATER SMG DG61-01967A Contact Us For Availability

1-2-7

ASSY TRIM-LEFT SMG DG94-03606A Contact Us For Availability

1-2-7

COVER HEATER-TOP SMG DG63-00725A Contact Us For Availability

1-2-8

DG61-01970A Samsung Spring Etc-Heater;oven Ne Backorder SMG DG61-01970A $16.29

1-2-8

ASSY TRIM-RIGHT SMG DG94-03607A Contact Us For Availability

1-2-8

ASSY TRIM PEDESTAL SMG DG94-04126A Contact Us For Availability

1-2-9

ASSY BASE PLATE-DRAWER SMG DG94-03469A Contact Us For Availability

1-2-9-1

BASE DRAWER-RIGHT SMG DG61-01875A Contact Us For Availability

1-2-9-2

BASE DRAWER-LEFT SMG DG61-01876A Contact Us For Availability

1-2-9-3

BASE DRAWER-REAR SMG DG61-01877A Contact Us For Availability

1-3

DG44-01009B Samsung Range Energy Regulator In Stock SMG DG44-01009B $101.06

1-3

DG94-03460A Samsung Assembly Cover Back NE63T Backorder SMG DG94-03460A $126.79

1-3

ASSY COOKTOP CASE-MODULE SMG DG94-03882A Contact Us For Availability

1-3-1

ADIABATIC SMG DG62-00298A Contact Us For Availability

1-3-2

COVER ADIABATIC SMG DG63-00675A Contact Us For Availability

1-4

DG94-03477A Samsung Range Assembly Air Cover Backorder SMG DG94-03477A $96.63

1-4

DG94-03574A Samsung Control Panel Assembly NE Backorder SMG DG94-03574A $245.33

1-4

DG94-03647A Samsung Assembly Outer Panel NX63 Backorder SMG DG94-03647A $146.43

1-4-1

DG60-00040B Samsung Spacer Panel Backorder SMG DG60-00040B $4.07

1-4-2

BRACKET PANEL SMG DG61-01944B Contact Us For Availability

1-4-3

COVER DISPLAY SMG DG63-00691A Contact Us For Availability

1-4-4

CHASSIS PANEL SMG DG64-00919B Contact Us For Availability

1-4-5

CAP-RIGHT SMG DG67-00215A Contact Us For Availability

1-4-6

CAP-LEFT SMG DG67-00216A Contact Us For Availability

1-4-7

ASSY TOUCH SMG DG96-00776A Contact Us For Availability

1-4-8

DG61-01955A Samsung Bracket GUIDE;T-PJT NE63T Backorder SMG DG61-01955A $63.18

1-4-9

GASKET-RUBBER SMG DG63-00715A Contact Us For Availability

1-5

DG63-00682A Samsung COVER Wire NE63T,NY63T Backorder SMG DG63-00682A $4.52

1-5

DG94-03613A Samsung Lamp Holder Assembly Backorder SMG DG94-03613A $25.36

1-5-1

HOLDER LAMP-LED SMG DG61-01871A Contact Us For Availability

1-5-2

INDICATOR-LAMP SMG DG64-00909A Contact Us For Availability

1-6

DG96-00812C Samsung Assembly Wire Harness NE6 Backorder SMG DG96-00812C $233.52

2

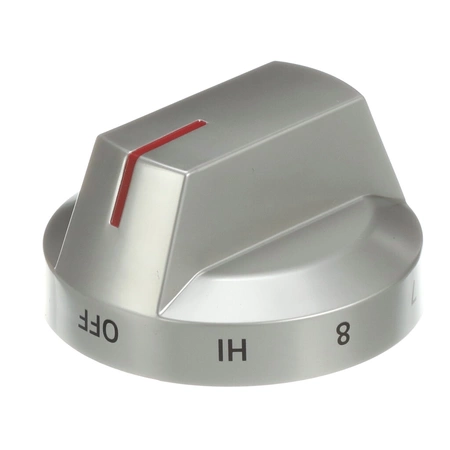

DG94-03797P Samsung Knob Assembly Backorder SMG DG94-03797P $39.85

2

ASSY ACCESSORY PARTS SMG DG90-01086F Contact Us For Availability

2

ASSY CAVITY PARTS SMG DG90-01022D Contact Us For Availability

2-1

DG75-01001D Samsung Range Oven Wire Rack In Stock SMG DG75-01001D $92.65

2-2

ASSY PACKING ACCESSORY SMG DG98-02125E Contact Us For Availability

2-2-2

DG94-00870B Samsung Range Oven Anti-Tip Brack In Stock SMG DG94-00870B $27.16

2-3

DG94-03689B Samsung Assembly Bracket SUPPORTE Backorder SMG DG94-03689B $71.09

3

DG94-03797Q Samsung Knob Assembly In Stock SMG DG94-03797Q $40.24

4

ASSY COOKTOP PARTS SMG DG90-01064E Contact Us For Availability

5

Range Oven Light Bulb SMG DG97-00083A No Longer Available

6

DG47-00068A Samsung Range Grille Heater Sheat Backorder SMG DG47-00068A $138.46

11-1

DE47-20037A Samsung Range Oven High Limit The In Stock SMG DE47-20037A $14.48

11-3-1

3405-001034 Samsung Microwave Oven Range Micr In Stock SMG 3405-001034 $8.59

11-5

DG96-00173A Samsung Oven Terminal Block Assem In Stock SMG DG96-00173A $44.27

12

6021-001211 Samsung Range Oven Convection Fan In Stock SMG 6021-001211 $11.31

13

DG31-00014F Samsung Range Oven Convection AC In Stock SMG DG31-00014F $123.85

14

DG94-00362A Samsung Range Hinge Support Assem Backorder SMG DG94-00362A $28.58

18

DG63-00107A Samsung Ground Terminal Block Backorder SMG DG63-00107A $3.17

19

LATCH-ROD SMG DG66-00071A Contact Us For Availability

20

DG67-00018A Samsung Range Oven Main Convectio In Stock SMG DG67-00018A $10.87

21

DG73-00003A Samsung Range Oven Door Rubber Cu In Stock SMG DG73-00003A $2.72

22

DG94-03530B Samsung Top Adiabatic Cover Assem Backorder SMG DG94-03530B $209.85

23

DG94-03544A Samsung NX60T8711 Latch Bracket A Backorder SMG DG94-03544A $37.83

24

DG94-03561A Samsung Casing Cover Backorder SMG DG94-03561A $85.45

25

DG96-00808B Samsung Main Wire Harness Assembl Backorder SMG DG96-00808B $169.39

26

DG96-00602B Samsung Sensor Assembly Backorder SMG DG96-00602B $44.47

27

DG96-00779B Samsung Assembly Motor NE9000T (E Backorder SMG DG96-00779B $183.83

28

DG32-00002B Samsung Stove Range Oven Sensor T In Stock SMG DG32-00002B $99.60
